Sessions Tambour – Beveled Number 2

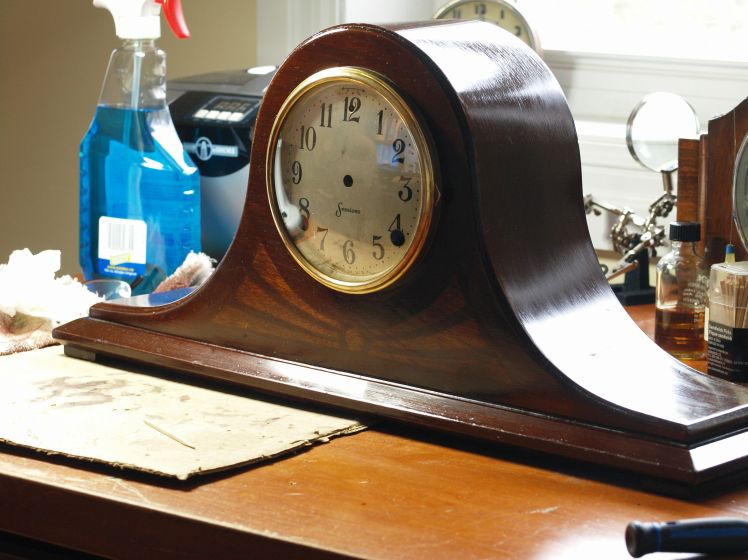

Sessions Beveled Number 2 case

This is a Sessions Tambour style clock that I have been working on for the past two months. I bought it as a non-working clock. As I said in a previous post it is a fairly attractive mantel clock featuring a mahogany finish with faux inlay just south of the dial. It was made in the late 1920s or early 1930s. The case is finsihed and now for the re-assembly of the movement after a good cleaning.

The clock has a few issues aside from the missing pendulum bob. Once the movement was out I inspected the click on the time side and sure enough it had slipped off the teeth. These clicks were poorly designed and often fail. However I think one for the reasons why the click failed was because the arbor hook detached from the spring somehow, I don’t know for sure. I feel that two are connected. I filed the click, gave the rivet a gentle bang with a hammer to set it more firmly in place and now it seems to work as it should.

I recently bought an Ollie Baker spring winder and this was it’s first test. I had a heck of a time getting the main wheel arbor to hook onto the spring and really had to muscle with the inner part of the spring to get the curvature just right so that it could hook. At first I thought that the hook was the problem but as you can see the hook looks fine. Then I thought the spring was the problem but as I said, perseverance paid off. User interface error I suppose.

Mainspring arbor and hook

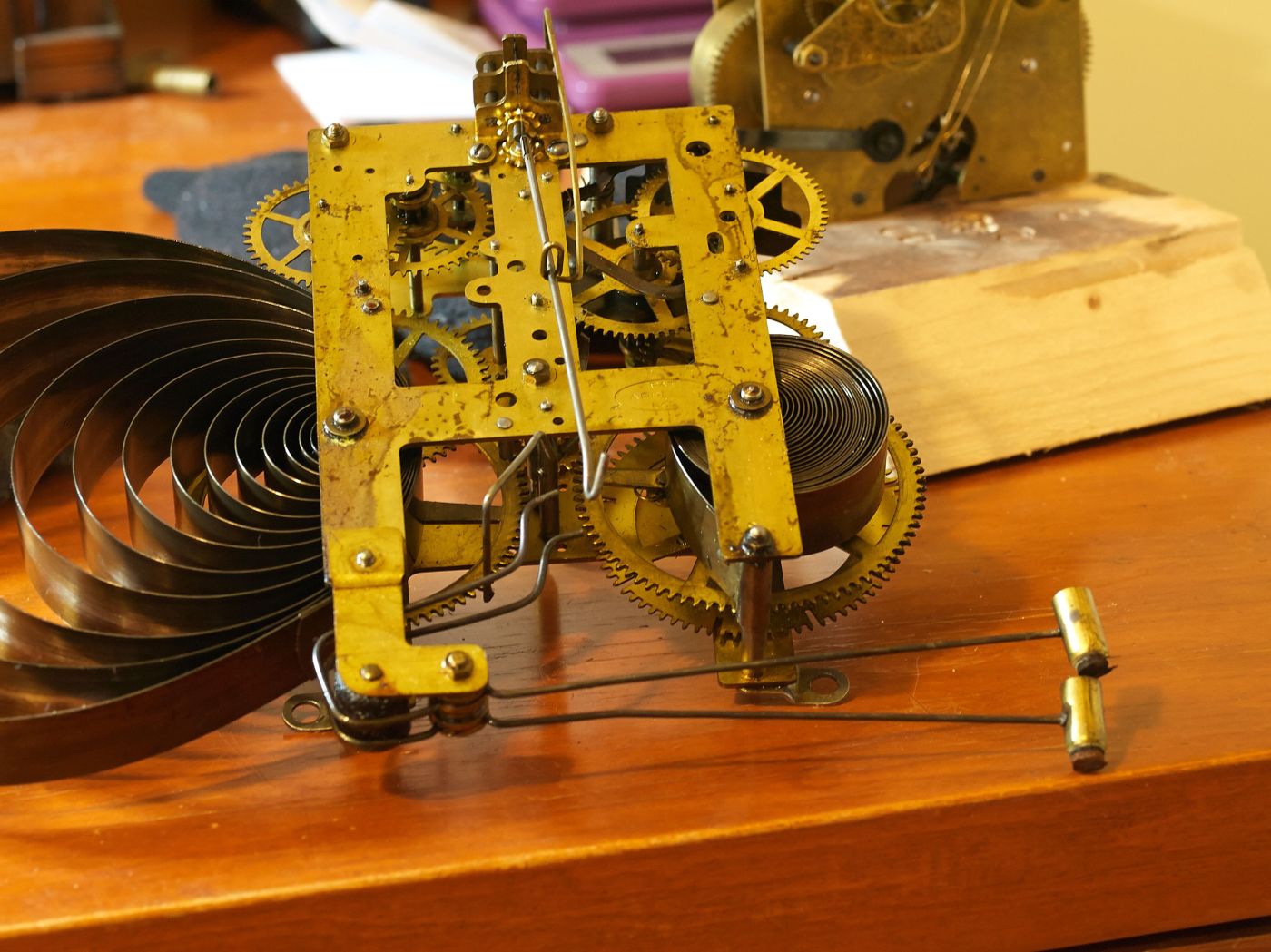

As others have said that is one of the common frustrations of working with clocks. But in the end I managed to get it to hook. The two springs are coiled and secured and are now waiting to be put back onto the movement. But not today! One victory today is enough. I will keep the reader informed as to my further progress with this clock which I am determined to get working.

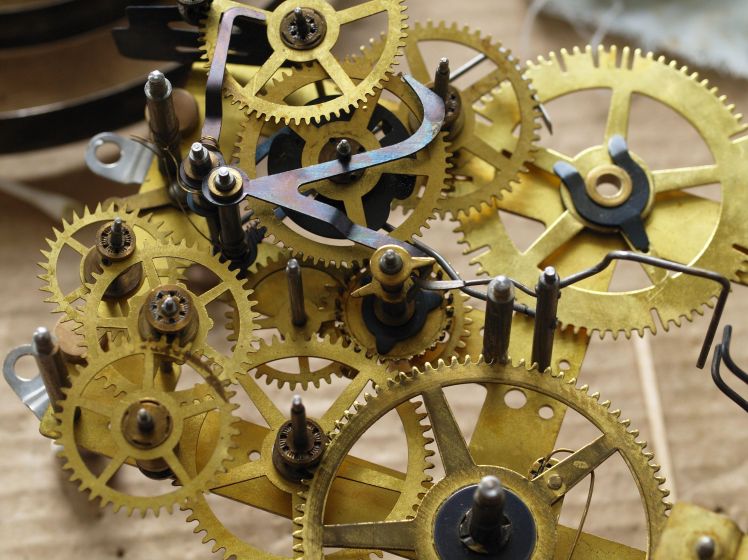

Top plate and springs are missing in photo

It all seems to be coming together although like most things worth doing, it takes time. Let me know what you think and if you have a chance I have a poll that you can respond to. Thanks.
