Allow me to take 5 minutes of your time to watch my video of 19 wall clocks in my collection. Each wall clock is identified by its maker, where known. The video features background music throughout, with a brief segment of sound highlighting the winding of a Mauthe wall clock. Otherwise, there is no dialog.
My only requirement is that the clock must be in good working order and have an appealing appearance.
19 wall clocks in my collection
My entire collection consists of 85 clocks. Many are on display in my home, and some are in the process of restoration or repair.
While many might not initially favour the idea of having a ticking mechanical clock in their bedrooms, its presence can actually offer significant benefits. Let me elaborate on why. Before I go further let me say I understand that some individuals may find the ticking sound disruptive to their sleep.
The therapeutic value of having a ticking sound in the bedroom to aid with sleep can vary from person to person. Some individuals find rhythmic sounds like ticking soothing and conducive to relaxation, helping them fall asleep faster. However, others may find it distracting or even irritating, disrupting their sleep. Overall, it largely depends on personal preference and individual sensitivity to sounds during sleep. Nevertheless, for some individuals, opting to tune into off-station frequencies or running a fan for background noise is their preferred method, whereas our method of choice is the mechanical clock.
Banjo clock hung in the bedroom
In my opinion, having a ticking mechanical clock in a bedroom can be advantageous. Although I have zero evidence to back my claim, it seems beneficial to introduce a rhythmic sound into a room to enhance sleep.
A number of years ago we found a Sessions Lexington banjo clock in an antique store in one of the New England states(USA). Before you conjure images of an expensive banjo clock crafted in Boston or elsewhere, let me clarify that this clock is likely one of the cheapest banjo clocks ever produced. It was made in the late 1920s, and many were sold to those who could not afford the more desirable weight-driven banjo clock, like the one in the next photo.
Sawin banjo clock Ca. 1830
The Lexington may not even keep accurate time, but it excels in its primary function: providing background noise.
The modest Lexington banjo clock CA. 1927
If you are accustomed to American clocks you will note that they are loud tickers unlike finely crafted French and German clocks that are almost silent in operation. The loud ticking however is an advantage. The loud rhythmic ticking sound acts as white noise, helping some people fall asleep faster and masking other background noises.
A mass produced time-only Sessions movement(top plate removed)
The Lexington is a time-only spring-driven clock that runs about 100 or so beats per minute. Although it may beat too fast for some, we’ve grown accustomed to it. In my belief, a slower beat is preferable, with 80 beats per minute being an acceptable compromise.
For those accustomed to it, the ticking becomes a comforting part of their bedtime routine. Using a mechanical clock reduces reliance on digital devices, potentially improving sleep quality by reducing screen time. When it comes to digital devices, it’s best to avoid bringing a cell phone into your bedroom. Learn to disconnect from the digital world. The digital world couldn’t care less about your need to get a good night’s sleep. If you need an alarm, consider investing in a high-quality radio alarm clock instead.
Sangean table radiowith alarm function
And lastly, the classic design of mechanical clocks adds aesthetic appeal to the bedroom, and their reliability ensures consistent timekeeping, even during power outages or when batteries die.
The clock is one of man’s greatest achievements. The development of instruments to tell time is the unwavering toil of brilliant minds from many disciplines who, for over 800 years, worked tirelessly to create, innovate, and improve methods for telling the time.
Horology is not only the study of time but the synergy of art, joinery, fashion, design, décor, physics, engineering, metallurgy, and mathematics. Indeed, the study of the mechanical clock is a microcosm of our society.
Banjo clock Ca. 1840
While not claiming to be an exhaustive guide, the following dates are noteworthy in the history of the clock and compiled from various sources. The challenges in pinpointing precise dates arise from disparities among sources.
Kundo standard size 400-day clock
Advancements in horology preceding the advent of the mechanical clock are omitted. (Clepsydra) and sundial clocks from the Middle Ages, as well as ancient Chinese astronomical clocks, warrant a separate discussion and are not encompassed in this account.
Important Dates in Horological Development
Around 1300 – The first mechanical verge clock in Europe
1364 – Astronomical clock idea by Giovanni de Dondi, Italy
1386 – Tower (turret) clock at Salisbury Cathedral, England
Around 1400 – Fusee power was invented by Jacobs, Czechoslovakia
Around 1450 – A table clock with spring and fusee by Phillip the Good of Burgundy, France
Around 1500 – The mainspring was invented in Germany
Around 1510 – The watch was invented by Peter Henlein, Germany
Around 1560 – A spring-driven portable clock, in Germany
Around 1570 – The oldest known clock with a second hand, Orpheus clock, Germany
Around 1620 – The production of lantern clocks in Britain increased
1637 – Galileo conceives pendulum control for swinging temple lamp, Italy
Around 1650 – The first tower clock in America
1656 – Huygens devises pendulum clock, Holland
1657 – Verge and foliot replaced by pendulum control, Huygens, Holland
1658 – Fromanteel adapts long-case prototype from lantern clock, England
1660 – Hooke conceives balance wheel, England
Around 1675 – Richard Towneley invented dead-beat escapement, in England
1675 – Huygens invents the balance wheel with spiral spring, Holland
Around 1675 – Hooke and Clement collaborated to invent recoil escapement and crutch, in England
1676 – Barlow develops rack striking, England
1680 -1700 – Notable horologists of this era were Arnold, Earnshaw, East, Graham, Knibb, Compion, and Windmills of England; Berthoud, Breguet, and LeRoy of France
1701 – St Sulpice seminary tower clock (imported from France), Montreal, Canada
1713 – Harrison invents marine chronometer, in England. For more see Dava Sobel’s, Longitude, Harrison’s struggle against the establishment to get recognition for his chronometer.
Around 1715 – The break-arch dial introduced
1715 – Graham perfects deadbeat escapement, regarded as the “father” of the dead-beat escapement
1717 – First tower clock in America, Benjamin Bagnall, Boston
1726 – Graham invents Mercurial pendulum (temperature compensating pendulum), in England
1726 – Thomas Bennett makes wall clock, 8-day brass, weight-driven, in America
1736 – Harrison’s marine chronometer tested at sea (accurately ascertaining longitude), in England
1770 – White dials appear in English longcase clocks
1776 – Pouzait invents independent seconds train for the watch, Switzerland
1790 – Vienna regulator-style case emerges in Austria
1790 – American woodworks clocks begin to appear
1802 – Willard patents banjo timepiece, America
1806 – Terry introduces the Pillar and Scroll clock, America
1809 – Martin Cheney sets up a clock-making shop in Montreal, Canada
1810 – Breguet introduces Carriage clock (Pendule De Voyage), France
1818 – Heman Clark makes wrought brass movement for Pillar and Scroll case, America
1825 – Rolled brass production begins in America
1836 – Tempered brass mainsprings introduced in America
1837 – Noble Jerome’s 30-hour brass movement patent approved, America
1840 – American brass movements in mass production
1842 – Chauncey Jerome exports American brass movement clocks to England
1845 – Woodworks movement production ends, America
1847 – Tempered steel mainsprings begin to be manufactured in America
1850 – Lord Grimthorpe designs the Westminster tower clock made by Dent, England
Around 1850 – Brocot (pin-wheel) escapement and pendulum suspension were introduced, France
Around 1850 – American mass production of watches begins. The Waltham Watch Company leads the charge
1860 – Junghans technicians were sent to America to study American mass production techniques, Germany
1870 – Decline in English long-case clocks
1874 – Mantel and wall clock mass production begins in Whitby, Canada
1900 – American clock production peaks; makers are Ansonia, Ingraham, Gilbert, Howard, New Haven, Seth Thomas, Waterbury, and Welch
1904 – Arthur Pequegnat begins clock production in Berlin, Canada
1906 – The Eureka electric clock was introduced, America
1908 – Big Ben alarm clock enters production, in America; Baby Ben follows in 1910
Around 1910 – The torsion pendulum clock (400-day) introduced, in Germany
1920-40 – General decline in American mechanical clock production, increase in electric clock production
1927 – The quartz clock is invented but not in widespread use until the 1970s
1928 – Atmos clock by Jaeger LeCoultre – perpetual motion clock powered by temperature and atmospheric pressure changes
1941 – Arthur Pequegnat ceases production, Kitchener Canada
Around 1960-70 – End of mass-produced mechanical clocks, America (cheaper Japanese, Korean & Chinese mechanical clocks flooded North America)
Present day – Movement and clockmakers remain but become a fringe market; Howard Miller (Ridgeway), Keininger, Hermle, Chelsea, Jaeger LeCoultre among others

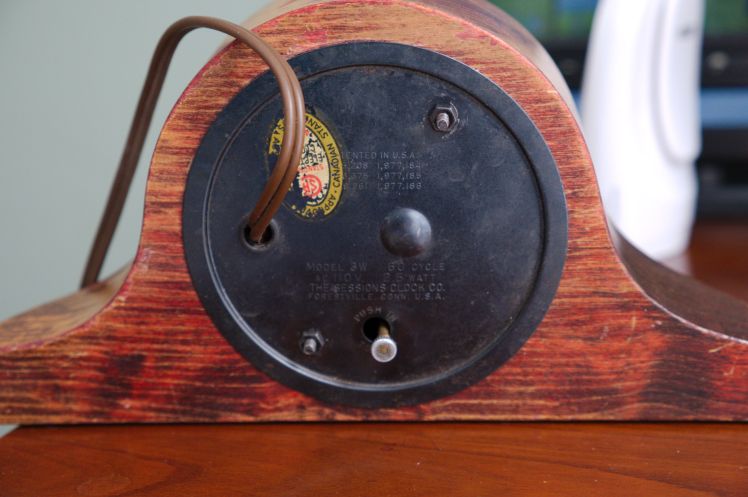

Antique Sessions Electric clock
These milestones highlight our constant quest for accurate timekeeping and showcase the human spirit’s ingenuity.
As we look back, the ticking of the clock is more than just tracking time; it symbolizes our ongoing journey to understand the essence of time. Horology serves as a testament to our commitment to precision and symbolizes our continuous efforts to enhance the quality of our lives.
In the first segment of this two-part series, I detailed the assessment process of this Sessions time-only movement, which can be accessed here. This article explores the next steps in the servicing of this clock movement. I will also offer in-depth observations regarding the case’s condition and comment on any additional issues that have emerged subsequent to the assessment phase.
Sessions Schoolhouse clock
Two years ago, I acquired this Sessions schoolhouse clock at an auction with the intention of adding it to my collection of similar 19-inch clocks. The purpose behind this acquisition was to create a set of “time zone” clocks, as my children are scattered across the country. This setup allows me to easily glance up and determine the time in their respective areas.
The back of the movement
In the initial assessment of the movement, I anticipated no significant surprises or wear due to the prior work done on it.
To disassemble for inspection, I removed the movement from the case. Using a let-down key, I restrained the mainspring with a C-clamp and then removed the 4 bolts holding the movement together. After taking out the mainspring, I inspected the remaining parts for wear. I observed slight elongated wear on the second wheel bushing hole but found no major issues requiring remediation. Further examination revealed minimal grime in the pivot holes and a lack of lubricating oil. Overall, the movement showed little wear.
And now, on to servicing the movement.
Using an emery board to polish the pivots
Using my Taig lathe I polished each of the pivots. Polishing methods may differ but I prefer to use a fine-grain emery board. Emery boards are affordable and ideal for the task at hand. I slide the emery board horizontally while the pivot rotates within the lathe and clean off any residue on the pivots with a soft cloth.
All components are immersed in the ultrasonic cleaner, and after approximately 15 minutes in the cleaning solution, the parts are removed and thoroughly dried using a gentle cloth and a hairdryer to eliminate any remaining water within the lantern pinions.
Since there’s no requirement for bushing work, the procedure remains straightforward, and the components are reassembled after the drying is completed.
Once all the parts are together the pivots, entrance & exit pallets, saddle pin, mainspring arbour, and crutch loop are oiled using Keystone clock oil.
After assembly, the movement undergoes a testing period, which may extend for days or even weeks. However, for this particular time-only movement, because of its simplicity, the testing duration is shorter.
The case and dial
The case is very well-preserved, devoid of the typical dents and marks often encountered on clocks from this time period. Cleaning with soap and water will suffice.
I only realized that the entire dial face, except for the chapter ring, had been repainted after I started loosening the screws for the dial bezel. I hadn’t noticed this previously and had assumed it was a replacement dial because it appeared to be in such good condition. Achieving this required a steady hand, and as a result, it looks very well done.
Repainted dial face
Despite the care and attention given to preserving the movement and case, it is noteworthy that the hands are incorrect. Sessions would have originally used solid spade hands instead of pierced ones, and, naturally, both the hour and minute hands are too short.
On the test stand
The test stand
While on the test stand, I had to make two adjustments to the recoil escapement. The entry and exit pallets were too far from the escape wheel which necessitated moving the saddle slightly in towards the escape wheel. This is the drop most often referred to and it can be visualized as the airspace between the leading corner of a tooth point and the part of the pallet it is about to fall on. The other is a crutch adjustment to bring the movement to the correct beat.
Two days on the testing stand prove to be adequate, and the final step involves reinstalling the movement back into its case.
Two years ago, I acquired this Sessions schoolhouse clock at an auction with the intention of adding it to my collection of similar 19-inch clocks. The purpose behind this acquisition was to create a set of “time zone” clocks, as my children are scattered across the country. This setup allows me to easily glance up and determine the time in their respective areas.
Three time zone clocks. The centre clock is the subject of this article
In this blog series, I will first guide readers through the assessment process, providing a detailed account of my findings. In the second part, the next blog article, I will walk you through the movement’s servicing and testing phase.
This clock belongs to the schoolhouse clock style. The origin of the name “schoolhouse clock” is not well-documented, and it appears that the term was not used during the time these clocks were made. Instead, it was later coined by collectors to describe a particular style of clock commonly found in school settings.
Sessions Drop Octagon bob
Schoolhouse clocks were the standard design for early North American schoolhouses due to their larger, easy-to-read dials. They were widely hung in schoolrooms across Canada and often had simple time-only movements, although some versions included a calendar function or time and strike movements. These clocks had a utilitarian look and were known for their durability.
The design of schoolhouse clocks is believed to be influenced by English drop dial fusee clocks, which were produced in the late 18th and 19th centuries. Drop dials closely resembled schoolhouse clocks and featured conical constructions with a chain or gut line pulled by a mainspring barrel, providing even power release for improved accuracy. Complicated movements such as these did not find their way into inexpensive mass-produced American and Canadian schoolhouse clocks.
Label on the back of the clock
However, not all of these clocks spent their lives in schoolhouses. The back label bears the stamp “Office,” indicating that in addition to school settings, these clocks were also used by small businesses in retail areas or in office settings.
Assessing the condition of the movement
The clock was in working order when I received it. When I removed the dial which is held by 4 brass screws I was delighted to find the movement to be very clean and in very good condition overall.
The movement has been worked on in the past as there are 2 new bushings on the back plate, the number 3 wheel, and the escape wheel bushing. On the front, one bushing on the escape wheel bridge was replaced.
In addition the click spring, both click and wire have been replaced. A note to those working on Sessions time-only and Sessions time and strike clocks from this era: it’s important to be aware of the company’s history of poorly designed click springs. Therefore, it’s not unexpected to find this one replaced.
Back of movement
The suspension spring and pendulum leader have also been replaced. The mainspring has the letters MB stamped on the arbour loop which leads me to believe that it may be a replacement. In all, the work was completed by a competent repairer, in my view.
There is no oil remaining in the pivot holes as the oil has dried up completely. Further running of this movement as-is is a recipe for accelerated wear. Finding the right balance is crucial when applying oil. Excessive oil can attract dust and dirt, transforming it into grinding paste, whereas too little can lead to premature drying of the pivots. In general, however, the old adage holds true: less is more!
Disassembly
In view of the work done on this movement in the past, I am not expecting any further surprises or appreciable wear as I disassemble the movement.
To disassemble the movement, first remove the movement from its case. There are 4 screws holding the movement to the backboard and once released the movement easily comes out. Using a let-down key, the mainspring is restrained by a C-clamp and the 4 bolts holding the movement together can be easily removed with a slotted screwdriver. The mainspring is then taken out after which a further inspection takes place.
Next, I check for wear by removing the mainspring and reattaching the top plate with all wheels, including the escape wheel, in place. By spinning the wheels I can visualize how each wheel interacts with the adjacent one. There were no surprises but there is very slight elongated wear on the second wheel bushing hole, back plate but not enough to be concerned about at this point.
Before cleaning the movement in the ultrasonic machine I begin by pegging the holes using toothpicks. My objective at this point is to determine how much dirt and grime are present in the pivot holes. Not surprisingly there was very little grime but again the absence of any lubricating oil. I then checked each pivot for unusual signs of wear and in the case of this movement, there was little, if any, wear.
Well, that is all for now.
An upcoming article will delve deeper into the ongoing process of servicing this clock movement. Additionally, I will provide insights into the condition of the case and address any other issues that might have surfaced during the assessment stage.
The origin of the name “schoolhouse clock” is not well-documented, and it appears that the term was not used during the time these clocks were made. Instead, it was later coined by collectors to describe a particular style of clock commonly found in school settings.
Gilbert Admiral with calendar function
Schoolhouse clocks were the standard design for early North American schoolhouses due to their larger, easy-to-read dials. They were widely hung in schoolrooms across Canada and often had simple time-only movements, although some versions included a calendar function or time and strike movements. These clocks had a utilitarian look and were known for their durability.
Ansonia Schoolhouse Clockwith 12-inch dial
The design of schoolhouse clocks is believed to be influenced by English drop dial fusee clocks, which were produced in the late 18th and 19th centuries. Drop dials closely resembled schoolhouse clocks and featured conical constructions with a chain or gut line pulled by a mainspring barrel, providing even power release for improved accuracy. Complicated movements such as these did not find their way into inexpensive mass-produced American and Canadian schoolhouse clocks.
When purchasing a clock, the author always asks the seller about its history and provenance.
Sessions Drop Octagon time only schoolhouse clock
In the case of the Sessions Drop Octagon wall clock pictured above, the seller had acquired it from a decommissioned one-room schoolhouse in Springhill, Nova Scotia. The clock, dating back to the 1920s, features a solid oak case, original hands, a pressed brass pendulum bob, a solid brass bezel, and a tin dial pan with stenciled lower glazing. While the paper dial showed signs of discoloration and wear, the clock was in reasonably good condition for its age.
Upon bringing the clock home, the author discovered that it ran for only a short time before stopping. A rubbing sound around the pendulum area indicated that the pendulum bob was hitting the inside of the case. After correcting a bent crutch rod, cleaning the movement, and making some adjustments, the clock started running properly. The author considered replacing the paper dial, which had brownish spots from prolonged exposure to moisture but decided to keep it as part of its history.
Time-only movements, like the one in this schoolhouse clock, are relatively easy to work on, making them suitable for beginners in clock collecting and repair.
While the exact origin of the term “schoolhouse clock” remains uncertain, it has become a permanent part of the clock collector language. These clocks, with their distinct style and large dials, were commonly found in early North American schoolhouses and have since gained sentimental value and recognition among collectors.
Bushing wear is a common issue that can occur on antique brass clock movements. A bushing is a small hole drilled into the plate that is used to support the pivots and reduce friction between the pivots and the clock’s plates. Over time, the bushings can become worn down or damaged due to friction, which can cause a clock to malfunction or stop. Other factors such as the environment the clock is in, the lack of periodic lubrication, and the build-up of dirt and grime combine to exacerbate wear over the years.
When bushing wear occurs, the clock’s pivots may become loose or wobbly, which can lead to the gears not meshing properly or becoming stuck. This can result in the clock losing accuracy or stopping altogether.
To repair bushing wear on an antique brass clock movement, the bushings or the holes must be drilled out and a new bushing inserted in its place. The new bushings must be precisely fitted to ensure that the clock’s pivots are properly supported and that the clock runs smoothly.
On my bench is a Sessions time-only schoolhouse clock made in the early 1920s. According to the label on the back, it is called the Office.
At only 21 inches high it is diminutive in size, unfortunately, the hands are incorrect
Factors at play when a clock stops
The clock stops when fully wound. There are essentially two factors at play when a clock stops. When the mainspring is fully compressed dirt and grime act like sandpaper and prevent the power of the mainspring from releasing. Some erroneously call this “overwinding” a term that has stubbornly persisted over the years. Worn bushing holes add to the problem when the holes are so worn the gears do not mesh correctly.
Curious, why is the trademark stamped on the INSIDE of the back plate?
Sessions movements are not new to me and I have worked on identical movements in the past. Compared to the others I have worked on, this one has minimal wear with one peculiarity detailed below.
Even before servicing, it looks clean
There is no doubt this movement has been worked on previously judging from pivot scratch marks around the bushing holes and a replacement click spring. The leader and suspension spring have also been replaced at some point in the clock’s life and judging from the condition of the suspension spring, it may need to be replaced in this servicing.
While there is some movement in all the bushing holes the worst is the 3rd wheel rear plate and the escape wheel front and rear plate. The holes in those three locations were drilled out and new bushings were installed in their place.
Despite slight wear on all other bushing holes, there is not enough to warrant new bushings at this time. Naturally, if I were in the clock repair business I would consider bushing the entire movement.
Using support to steady the escape wheel bridge
In this case, replacing bushings in the entire movement is not necessary as the clock will remain in my collection and as such will be inspected every 2-3 years for wear.
One of the unique features of clocks such as this is their ability to be hung and forgotten and continue to run quite well while very worn, a testament to their rugged design.
Plates on the left and gears on the right, a pretty simple movement
And now the eccentric repair. The click spring retaining tab/hook was snapped off for whatever reason. As a result, the replacement click spring winds its way through to the outside of the wheel by hooking into a hole drilled in the spoke. It is a little odd but as it works well there is no requirement for remediation. Aesthetics aside, some repairs do not need to be reversed if the part functions well.
Odd but it works
The mainspring has plenty of “spring” left in it which makes me wonder if it is a replacement.
On the test stand
During servicing the mainspring was unhooked from the main wheel arbour and using my Olie Baker spring winder, it was extended and thoroughly scrubbed with a Scotch-Brite heavy-duty scouring pad, and lubricated with Keystone clock spring oil. There was certainly enough dirt and grime to stop the clock in the spring’s fully wound position and a good cleaning solved the problem.
After a brief testing period, the movement was remounted and it is now on display on my kitchen wall where it rejoins its cousins.
As the tiny hands look rather silly, the correct clock hands will be added to my next clock supply order.
The Sessions Clock Company of America was one of the leading clock manufacturers in the United States in the early 20th century. Founded in 1903 by William E. Sessions and Aaron Lufkin Dennison in Forestville, Connecticut, the company quickly gained a reputation for producing clocks that were both reliable and affordable.
Over the years, the Sessions Clock Company produced a wide range of clocks, including mantle clocks, and wall clocks, and became known for their innovative designs.
A very popular model was the schoolhouse clock. Schoolhouse wall clocks have a rich history dating back to the late 19th century. Originally used in schools, and other public places, these clocks were designed to be reasonably accurate and reliable timekeepers, with large, easy-to-read dials and distinctive wooden cases with glass-paneled lower access doors showing a moving pendulum.
A comparatively small schoolhouse showing incorrect hands
Over time, schoolhouse clocks became popular in homes and offices, with various manufacturers producing their own versions of the classic design. Today, schoolhouse wall clocks remain a popular choice for those seeking a traditional timepiece and are often seen as a symbol of American craftsmanship and design.
Diminutive clocks were popular in their day because of the lower cost compared to a larger wall clock. This clock is 21 inches high by 13 1/2 inches wide with a 7-inch dial and it is difficult to envision how it could be seen clearly in a large classroom setting but for some school regions, the cost was an important factor. Standard schoolhouse clocks are typically seven to eight inches longer and have 12-inch dials.
Most schoolhouse clocks were designed to display only the time, with no additional features such as a striking mechanism or date displays. This simplicity allowed for a greater focus on reliability, which was essential in public spaces such as schools where good timekeeping and long periods between servicing were crucial.
Shown in the middle with a Waterbury on the right and Sessions on the left, all are time-only clocks
I have had this particular Sessions clock for over a year and it stops from time to time. It likely requires a good cleaning and it is time to put it on the workbench. The case is in excellent condition and I see no need for intervention aside from cleaning with soap and water.
We’ll see what we shall find. I’ll report back in a week or two but this should be a standard servicing job and I am not expecting any surprises.
Well, it’s that time of the year. What is my best clock acquisition of the past year? You can decide for yourself and leave a comment but I will reveal my favorite at the end of the post.
As a clock hobbyist, I have had little difficulty locating interesting clocks and every year I have managed to find a winner or two. 2022 was no exception.
In the early days of collecting, time and strike vintage mantel clocks were my principal focus with the goal of taking them apart and making them work, an important part of my learning. Many of those clocks have been either sold or gifted. I have shifted my focus toward collecting interesting clocks, rare clocks, clocks that have a special provenance, and growing my collection of Canadian-made clocks.
My wife is my best clock finder. Our discussions may go something like this; “did you see that wall clock on Facebook/xxx auction house?”. “Let me see. Yeah, it looks good, what do you think? Make an offer?” and off we go. Sometimes I will accept the offer from the seller without negotiating because it is a fair price but there are times when a little wheeling and dealing takes place prior to the sale.
In no particular order, here are my finds for 2022.
Fusee gallery clock
Gallery or dial clock, unknown maker
The clock is also called a dial clock in England which is where it was made. There are no markings anywhere on the clock save an obscure trademark that I have been unable to identify. It is a time-only fusee clock with a 12-inch dial, a very common size. It might have had a chain drive at the beginning of its life but it now has a cable. I have not serviced this clock because I don’t know enough about fusee movements, particularly the method of preloading the powerful mainspring.
E N Welch marine clock
Marine clock by E N Welch
This 30-hour spring wound clock with a hairspring lever escapement simply tells the time. It was made in the 1870s and perhaps earlier. It has been serviced, bushed, and cleaned, but my challenge at the moment is setting up the hairspping. It will work but not well.
Hamilton clock co ogee
Hamilton time and strike ogee clock, Canadian made
Acquired in the spring of 2022 this ogee clock was made in Hamilton, Ontario (Canada). The movement was serviced but the case challenged my veneering skills. It looks quite presentable now but was in poor condition when I bought it.
Jerome and Co. Rose Cottage clock
Rose Cottage clock by Jerome & Co.
Quite honestly I was going to throw the case out after having serviced the movement. It simply looks too far gone. However, I have accepted the challenge of bringing back this clock to its former glory. So far it is a work in progress.
Jauch calendar clock
Jauch 8-day calendar clock
From a distance, this clock looks good but a closer examination reveals a cheaply made time-only movement and an equally inexpensive pine case. It is clear that this German company was attempting to cash in on the antique American schoolhouse clock that was popular in the 1970s.
Wag on the wall
Wag on a wall
This has a well-made German movement, possibly by Mauthe or Hermle. It is a time-and-strike weight-driven clock and keeps very good time. Its only negative is that it has a cheap 1960s look about it but the only thing missing is a bottom middle finial.
Sessions Grand Assortment
Grand Assortment by Sessions
Perhaps the ugliest gingerbread clock ever made. The photo is the exact clock I worked on two years ago since the clock is apart at the moment and I have stripped down the case (a last resort).
Sessions Mission clock
Sessions Mission clock, 8-day time and strike
I like this clock not only because it is a 10$ thrift store find but it has very nicely styled mission clock and it works very well, keeping decent time for a spring-driven clock.
Empire gallery clock
English gallery clockwith 10-inch dial
I was hoping this was a fusee clock when I bid on it on an online auction in the spring of 2022 but it is a spring-driven 8-day clock with a fairly robust movement that was intended for commercial use, a store, an office environment perhaps.
Daniel Pratt Jr woodworks clock
Daniel Pratt Jr woodworks clock
I have a couple of Danel Pratt woodworks clock. Unfortunately, this one is missing its topper. Servicing woodworks movements takes special care and attention and I may tackle this clock in the spring.
Ansonia 30-hour parlour clock
Ansonia 30-hour parlour clock
I seem to gravitate toward 30-hour clocks. This is a time-and-strike clock and is in decent condition requiring only a few touchups.
My favorite?
Well, it has to be the time-only fusee which is probably why I subconsciously placed it first on the list. It well built industrial-strength clock that was designed to last for years. It looks great on any wall, is very quiet, and quite accurate which is what fusee movements are known for.
I have saved a few clocks that were one step closer to a garbage bin by taking an aggressive approach to clock case restoration. Is stripping a clock case a travesty?
Firstly, I am not a huge fan of gingerbread clocks which were very popular in America at the turn of the 20th century. Every major manufacturer made them and they sold like hotcakes. Thousands have survived and a quick perusal of online auction sites any day of the week will reveal dozens if not hundreds of them.
The designs were created by using high-pressure rotary presses on oak wood that had been pre-steamed to soften it.
Auction photo
Gingerbread clocks are quite large for a shelf clock and generally unattractive, in my opinion. The only other gingerbread I have, besides the Sessions clock which is the subject of this article, is an Arthur Pequegnat Canuk 8-day time and strike added to my collection in 2019. The Canuk is nicely balanced, well-proportioned, and mildly attractive for a gingerbread clock.
The Sessions Grand Assortment #1, is the ugly duckling of the clock world.
Arthur Pequegnat Canuk
The design of the top is not consistent with the side rails and the base. The crown looks overbearing. It is not very well-balanced and out of proportion but it was the style of the time and thousands upon thousands were sold.
This clock was acquired as part of an auction lot and was relatively inexpensive. I plan to revitalize the case and service the movement but I am not sure at this point whether or not it is worth keeping.
What to do with the case? Here are two shots of the case, the base, and the crown.
Base section
The mottling is what some call alligorating. Over time heat, moisture (stored in an attic or garage), dust, and dirt cause the shellac to coagulate into lumps or globules similar to the skin of an alligator. It is not fun to remove and drastic measures are required to put right.
Crown section
In the past when met with a similar situation I have tried a number of approaches; lacquer thinner, sanding, alcohol, a mixture of cleaners, and so on but the only way to get rid of it entirely is to strip the case. Does stripping diminish the value of a clock? Perhaps, but if done correctly it might even enhance its desirability.
Grand Assortment
The photo above shows a Grand Assortment I worked on in 2019. Obviously, someone added the colouring to the tablet making it somewhat worse rather than better. I cleaned the case of dirt and grime but left the finish as-is. This one has darkened with age but it looks acceptable.
For my Grand Assortment, the only thing that remains is a very aggressive approach. So, off to the shop it goes.
Hmm, is it a Grand Assortment #1 or #1 in an Assortment of Grand clocks?
Most mechanical clocks have an hour hand concentric with the minute hand with the hour hand making one full turn every twelve hours. The special set of wheels off the centre arbour is called the motion works. Attached to the centre arbour is the minute hand. The hour pipe fits over the centre arbour and to it is attached the hour hand. This set of gears, called the motion works, is driven by the time train and powered by a spring or a weight.
I am working on a movement made by the Sessions Clock Co. It is from a model called the Grand Assortment probably made sometime before 1920. This is Grand Assortment #1 in a series of three.
Slightly blurry auction photo
The case is in rough shape and certainly needs some tender loving care. I thought my major challenge was putting life back into a tired case (another story) but it appears the movement needs resuscitation as well.
Note from a previous owner, this clock is from around 1915 or so, not 1903
Adjusting the time on the clock is a challenge because the minute hand is very stiff and takes some effort to move it. Something is amiss with the motion works, the time train itself or both.
Motion works at the centre of themovement
I initially cleaned the movement, checked for wear and determined that the little wear I observed should not be enough to affect the running of the clock.
I reassembled the movement and while on the test stand the problem reoccurred, a minute hand that was just as stiff to move as before and after a few hours, the movement simply stopped. I later discovered that the homemade click spring on the time side had unhooked and caught on the second wheel.
As received. Hmm, the pendulum rod is missing
I am not an expert on the meshing depth of gear teeth but I suspect that there is enough wear in the motion works and the time train to prevent the gear teeth from engaging smoothly with the contact point of the next gear, the lantern pinion. The combination of wear in several locations might produce the stiff centre arbour condition. Based on this theory I went ahead with bushing work.
Drilling a hole in the plate with Bergeon bushing machine
This time I was somewhat more discerning concerning potential wear points and yes, a more careful inspection revealed there was likely enough wear to affect the running of the clock. I began with new bushings on the escape wheel rear plate and third and fourth wheels on the time side and finally the second wheel back plate for a total of 4 bushings on the time side; nothing on the strike side. It looked fine.
Reassembly
The main wheel arbours on this movement aren’t interchangeable. It is easy to confuse the two. After reassembling the movement I noticed that the plate did not go all the way down on the strike side. I compared the two arbours and the time side arbour is narrower at the top. Swapping them back to where they belonged fixed it.
Sessions mainsprings on this movement are not interchangeable
Setting up the strike side correctly on the first go-around is probably more luck than skill but this time there was no additional fiddling with the correct position of the warning wheel which is just below the fly.
I did not completely eliminate the stiff centre arbor but it is improved and the clock is running well. If I have to take it apart a third time I will check for a bent arbour in the train or the center arbour itself or a bent pivot.
This is the only mission-style clock in my collection. Made by the Sessions Clock Co. of America in or about the 1920s it reflects classic Mission design and is rather attractive. I was not searching for this clock but a $10 find in a Pembroke, Ontario thrift shop is hard to pass up.
Though this clock is a non-running Sessions movement they are simple enough to work on. The time side was easy to get running with a simple crutch adjustment but there was a good reason the strike side had not been working in many years. After servicing the movement I now understand why it ended up in a thrift shop.
Mission-style clock by Sessions
The case is in reasonably good condition requiring a light cleaning and there is nothing missing overall save the winding key which can be easily sourced. The minute hand fell apart while I was setting the time, probably as a result of being bent so many times but it can be easily repaired.
The movement is a conventional Sessions design with a between-the-plates escapement setup as opposed to earlier Sessions movements that had outboard escapements. The movement is complete and everything is there including a few extra parts thrown in for “good” measure.
Movement issues
I observed a number of “X” marks around bushings but absent are punch marks or replacement bushings. Was there a plan to install new bushings?
An X mark beside a bushing hole and why the mysterious drilled hole adjacent to the escape wheel bushing hole
An “X” mark usually indicates a bushing hole that requires remediation, and why is the mysterious hole perilously close to the escape wheel bushing hole?
The cam wheel pegs for the strike lever have both been soldered and although it is not the neatest work the repair seems solid.
Soldered cam wheel pegs
The actuator arm for the hour strike had been bent so many times that it snapped off when I tried to test the clock before disassembly. This can also be repaired.
The real fun begins
I make it a point to label the mainsprings so that the time and the strike mainspring return to the same location. At times it makes little difference but, at other times, as in the case of this movement, the difference is significant.
In this movement, there is a slight difference in the strike mainspring arbour design so that the arbours cannot be reversed. Because of the slight variation in the strike side mainspring arbour the gears do not mesh correctly if the arbour is reversed. A past repairer switched the two mainspring arbours, time to strike side and strike to time side, and bent wheels to make them fit.
The count wheel is shaped into a bowl to force it to engage the second wheel arbour
Because the mainspring arbours were switched, a previous repairer had screwed a small brass piece into the plate to push the arbour to the right and enable the second wheel to engage the count wheel.
Brass “fix”A brass piece (left) was screwed into the plate to push the second wheel toward the count wheel
A piece soldered onto the arbour to prevent lateral movement was unnecessary because the abours had been switched.
Brass piece soldered onto the time side mainspring (below hammer) to prevent the arbour from moving too much
It took a couple of assembling and disassembling tries to discover the problem, which is valuable time wasted on the bench.
In short, a past repairer did not understand what they were doing and made unnecessary changes complicating what would otherwise be a routine service. Home-cooked repairs are at times functional but often they are an absolute disaster and sometimes the most challenging part of clock repair is fixing other people’s shoddy repairs.
The remainder of servicing went as expected. There was some movement of the pivots in the pivot holes but not enough to justify bushing work at this time. As expected there is less wear on the strike side.
Minute hand fixed, hands, bob, and numerals polished and now on display
So, another clock was brought back to life and a satisfactory repair despite the challenges.
Between 1903 and 1933 the Sessions Clock Company of America produced 52 models of mechanical clocks ranging from simple mantel clocks and shelf clocks to wall or “regulator” clocks all designed for the home or small businesses.
Found in many homes across America Sessions clocks were regarded as relatively inexpensive, simple in design, and decently constructed aside from one noted design flaw, the clicks. After a hundred years many Sessions clocks are still running.
Mission style clock by Sessions
This is the only mission-style clock in my collection. I was not particularly looking for this one but a $10 find in a thrift shop is hard to pass up. Though this clock is non-running Sessions movements are simple enough to work on.
As there is no maker’s label I can’t tell you the model name or number of this wall clock but I assume that it was made in the early part of the 20th century.
The movement
The case is in very good condition and there is nothing missing save the winding key which can be easily sourced. The minute hand broke while I was setting the time, probably as a result of being bent so many times. That can be repaired.
Sessions movement with front plate off
The movement is a conventional Sessions design with a between-the-plates escapement setup as opposed to earlier Sessions movements that had inboard escapements.
I noticed many “X” marks around bushings but I did not see punch marks or replacement bushings. Was it meant to have had the bushings replaced?
Servicing the mainsprings
The cam wheel pegs for the striking lever have both been soldered and although it is not a very neat job the repair seems strong enough.
There is a hole adjacent to the escape wheel arbor which might have been made through manufacture but it is oddly close to the escape wheel bushing hole.
One more issue. The actuator arm for the hour strike had been bent so many times that it snapped off when I tried to test the clock before disassembly. This can also be repaired.
In short, this is a clock that has been worked on in the past and I would think, not by a professional. Sometimes home-cooked repairs are strong and functional and other times they leave a lot to be desired.
All is not lost and I think this movement can be saved.
Once the Sessions Clock Co acquired E. N. Welch assets in 1902 (for more on the history of E. N. Welch Clock Co. go here) the company was well on its way to becoming one of the biggest clock producers in America. Production began in 1903 and between that time and 1933 Sessions produced 52 models of mechanical clocks, ranging from Advertisers, large and small clocks with logos of various businesses, to wall, or regulator clocks, and shelf or mantel clocks, designed for the home.
The vast majority of Sessions clocks are generic types that have limited value today. I do not know one particular clock made by Sessions that is highly sought after by collectors today although if there is one, please let me know. Found in many homes across North America, they were robust and strong runners despite being inexpensive and plentiful. You might call them the Chevrolet of American clocks.
Of those, I have worked on, the one Achilles heel is the flimsy click design.
I did not have a Mission-style clock in my collection so, this is a long overdue acquisition. Items missing on this clock are the winding key, a #6, and a label which is normally affixed to the backboard. Hence I do not know the model’s name.
In the below photo, the minute hand is missing. I have it but it snapped in two when I attempted to set the time and it will need to be repaired.
Sessions Mission style wall clock
The mainsprings were wound tight. Rather than let the springs down I ran the time side of the clock during the summer. The time side appeared to be fine, a small matter of putting it in beat but the strike side was erratic and struck either at will or incessantly. Something is amiss on the strike side and that means servicing is in order.
I noticed almost immediately that there is what looks like homemade bushing on the second wheel strike side much like a Rathburn bushing but obviously done by a home handyman. It likely works okay but I will remove it to see what issues I find.
Looking over the movement I can see that it has been serviced several times. The pillar nuts are chewed up and there are X marks besides most of the bushing holes and of course one or two bushings with punch marks. I also see a bit of soft solder on the movements in various places such as the third wheel strike side, and time side main wheel arbor which tells me that the repairs were not professional.
I will have a more detailed description of the movement when I dive deep into cleaning and repairing it in the days to come.
I often get letters from my readers that begin with something like, “I picked this up in a thrift store” and marvel at what they find for next to nothing. Quite often the item they snagged at an unbelievable price needs a little love but that is to be expected.
Sessions wall clock
While on our summer jaunts my wife occasionally drags me into the odd thrift store because as she says, you’ll never know what we’ll find” and quite often she’s right. Over the past two or three years, we have bought a few jazz and classical CDs for next to nothing (yes, CDs are back).
Recently we stopped in a small town in an adjacent province to look around. We found a couple of classical CDs and were content to leave when my wife pointed out a mission-style clock hanging behind the cash.
“What’s the price on that? “, I asked. “I don’t know, the boss is in the back” I found him throwing items into a dumpster, obviously things that could not even be given away. “I’m interested in a clock”. “Show me”, he said. We both walked to the front of the store, he looked up at the clock, rubbed his chin, and said, “how about 10 bucks”. I mean, why dicker!
I don’t have a Mission-style clock in my collection and hoped that it was a Canadian-made Arthur Pequegnat, but I knew the hands were not the type used on Pequegnat clocks. Upon first inspection, the only things missing are the winding key and a label which is normally affixed to the backboard.
Sessions time and strike movement
I thought perhaps it was an Ingraham or Sessions. Once back at home I unscrewed the back panel and identified it immediately as a Sessions movement. Still a good deal. It also tells me that it was made after 1903 the year the sessions Clock Company was formed after a group of investors bought out the assets of the EN Welch Clock Co.
The mainsprings were wound tight. Rather than let the springs down I ran the clock. The time side was fine, a small matter of putting it in beat but the strike side needs a little work. There is nothing wrong with the passing strike on the half-hour but complete silence on the hour. Something is amiss on the strike side. I‘ll give it a nudge and see what happens.
Some years ago I had this brainy idea that I would have a trio of time zone clocks above our main computer in the kitchen so, when one of our children called, all we had to do was glance at the wall to see what local time it was in their region.
Back then we had a daughter in Victoria, British Columbia, another in Calgary, Alberta, and a son in Halifax, Nova Scotia. Our daughter has since moved to Ottawa, Ontario.
It was a great idea but not perfect.
Trio of clocks representing 3 time zones
The New Haven time and strike clock (the middle one in the photo above) was not as small as I wanted but it was all I had at the time. The New Haven clock was eventually gifted and replaced by an Ansonia time-only which was also still too large.
Ansonia time-only clock
The search was on for a third 14-inch drop octagon time-only clock to complete the trio. It did not matter who the maker was. It took a while but as luck would have I saw one on an online auction in the spring of this year.
It is a Sessions time-only drop octagon and identical in dimensions to the two others.
The trouble was I was not going to pay a reserve auction bid of $100CDN (79US, 63GBP). As much as I wanted the clock the price was too high though some of you may disagree.
It appeared to be in very good condition judging from the auction photos and there was nothing much wrong with it except for incorrect minute and hour hands (it would have had longer and thicker closed spade hands).
Sessions time-only clock
We had already purchased 4 clocks at this particular online auction and elected to pick them up instead of having them shipped.
When my wife called to ensure someone was there when we arrived at the auction house she was told that all unsold clocks would be individually priced and sold without tax and buyer’s premium. Luckily the Sessions was one of few unsold clocks but the price was half the reserve. So, we bought it and now it graces our wall.
The newest(middle)in our trio of clocks, from left to right, Sessions, Sessions, Waterbury
Two Sessions and a Waterbury clock. They all look great!
The Grand Assortment was sold “six in a case” to retailers who then sold them separately. The name “Assortment” seems appropriate and I am not surprised that some collectors refer to them simply as the Grand. So, was the “Assortment” a choice among a number of Grands (Grand 1, Grand 2, etc.)?
Auction Photo
Selling clocks in lots of 6 was a fairly common practice in the early part of the 20th century. An individual might order one of the clocks either directly from Sessions or working through a retailer but would normally select one from the retailer’s shelf.
This clock was bought at auction in the spring (of 2022). The plan is to fix it up and sell it to offset a recent equipment acquisition. I am not normally in the business of selling clocks but will sell the odd one locally to keep my collection manageable.
The clock case needs quite a bit of work which I will address in a future article.
The movement looks good but it is very grimy, no surprise there. We’ll get to that later in this post.
The Sessions dial
The dial, however, may not be salvageable. One option is a new paper dial, and another is a replacement with a suitable and period-correct alternative. I have the same size Arabic dial from an Ingraham gingerbread that I might use. Manufacturers interchanged Roman Numerals and Arabic dials on some models and I have seen at least one Grand Assortment on the internet with an Arabic dial so, an Arabic dial may be a good look.
These Sessions models were around for a number of years up to 1915 or so and like everything else the gingerbread clock fell out of style. I imagine this one sat on a shelf as a decoration for a good number of years after that.
The movement
Apart from having an even coating of dirt and grime all over the movement, there is surprisingly little wear.
A very dirty movement
Most Sessions movements I have come across have had a hard life and usually require a fair bit of intervention in terms of repairs including numerous new bushings. This movement may not need any as far as I can determine during my initial assessment. As a matter of fact, this is probably the least worn Sessions movement I have ever worked on. It is not without issues, however.
Judging from pivot scratch marks, wrench marks on the plate around the pillar nuts, mangled helper wires, and a replacement spring for the click on the time side it certainly has been worked on in the past, likely cleaned more than once.
A coating of dirt all over the movement
There was a film of rust on the mainsprings, not enough to write them off and they still have plenty of power left in them.
Trademark
Clicks are a documented weakness in Sessions’ movements. Both sides were in good condition although I had to re-attach the click spring on the time side. A past repairer had attempted a fix and replaced the original wire with a steel replacement wire that looks homemade, but it works. It just needed tightening.
The helper springs were evidently broken at some point and shortened. One was wrapped around the top pillar post and the lifting lever was wrapped around the count lever. Both should be attached to a pillar. I was able to reuse one but the other had to be replaced.
Helper springs top center
Most, but not all, American time and strike clocks have helper springs to maintain tension on lifting and locking levers. Springs are occasionally removed from a movement either because they are broken and/or repairers do not understand their function.
New helper spring
The mainsprings are in good condition. They were cleaned and oiled.
Mainspring retention clip to restrain the power of the springs
No bushing work is required for this movement which is a rarity for old American clocks I have come across. All pivots were polished, pivot holes pegged out and now for reassembly.
This is a fairly easy movement to reassemble but the strike side count and drop levers must be in the correct position in order for the strike side to function correctly. That means the drop lever is in the slot of the cam and the count lever is in the deep slot of the count wheel. The lock pin on the wheel just below the fan must also be next to the locking lever.
Sometimes I get it right the first time but often I must separate the plates on the top corner and re-adjust the locking wheel.
Everything in place but the escape wheel
Once re-assembled it is placed on the test stand for several cycles.
On the test stand
The next step is addressing the clock case finish.
The clock case needs quite a bit of work and may require stripping, not something I do as a matter of routine but in its present condition, it will never attract a buyer.
This is not the first Grand Assortment clock from the Sessions Clock Co. that I have worked on. In June 2019 I repaired a family member’s clock. It is exactly the same model.
Auction photo
The Grand Assortment was sold “six in a case” to retailers who then sold them separately. The name “assortment” seems appropriate and I am not surprised that some collectors refer to them simply as the Grand. Selling clocks in lots of 6 was a fairly common practice in the early part of the 20th century. An individual could probably order one of the clocks either directly from Sessions or working through a retailer but would normally select one from a retailer’s shelf.
Styles of Grand Assortment
Tran Duy Lyshows this Assortment model from the 1915 catalogue. It was likely made earlier but this style of clock was well on its way out by about 1915. This is Grand No. 3 and the price was $4.00, a day’s salary for a working man. All were eight-day runners but could be ordered with alarm (45 cents extra), cathedral bell (45 cents more), or standard wire bell.
This one was purchased at auction for $35 and listed as “not-tested”. “Not-tested” is an interesting auction term for “it may or may not work and it probably doesn’t”.
The note came with the clock(1903 is the year Sessions began making clocks)
Gingerbread clocks also called “kitchen clocks” were introduced after the American Civil War and remained popular until the end of World War I. The term is derived from the tradition of making decorated gingerbread houses which began in Germany in the early 1800s. The broad application of the gingerbread style applied to almost anything including clocks.
However, gingerbread clocks have polarizing designs. Collectors either love them or hate them. I am not particularly fond of the design of this one but I can see how many at the time were attracted to the style.
The clocks’ cases were steam-pressed oak and occasionally other hardwoods were used. Various designs were pressed by a heat-bond process which was quite advanced for the time. It was a time-saver, spectacular designs were pressed within seconds and it saved on labour costs. Hundreds of thousands of these steam-pressed oak-cased clocks were made and all are now well over 100+ years old.
The clock is 22 inches tall, ten inches wide with a 6-inch dial. It is a time-and-strike movement striking the hour and half-hour on a coiled wire gong.
I am not a huge fan of Sessions’ movements, particularly from this vintage. Too many helper springs, frustrating to re-assemble, and setting up the strike side is always finicky plus the poorly designed weak clicks are prone to failure (yet they’ve lasted this long!). Set up properly they will run reliably for years and are reasonably good time-keepers for a spring-driven clock.
Is it worth fixing? Certainly, there is nothing fundamentally wrong with the movement but the case is in rough shape and will require considerable intervention. The paper dial on tin is also in poor condition. Quite often the crown is broken, pieces missing or cracked which is the case for this one and unfortunately, it is not very well glued back together.
The Plan
The movement should be fairly easy to service. I don’t see a lot wrong with it upon initial inspection. As expected it is quite dirty but I don’t see a lot of wear. I won’t know conclusively until I take it apart. The plan is to put the movement in proper running order.
A dirty movement but there does not seem to be a lot of wear
The finish is badly aligorated and will need a lot of work. “Aligorated” means that over time the surface of the case was exposed to heat and high humidity causing the shellac to coagulate in clumps resulting in a mottled finish. I will attempt to renew the finish which might involve stripping the finish. That may sound extreme but it may be the only solution.
The dial is in poor condition
Rust has bled through the paper dial and as such it is beyond hope and will be impossible to restore. I may change out the Roman numeral dial with an Arabic dial from an E. Ingraham gingerbread clock from the same period. The dial size is exactly the same and the centre canon and winding arbours fit perfectly. Checking on the internet I note that there are several Grand Assortments with Arabic dials.
Once the movement is serviced and the case is redone, there should be a dramatic improvement. I have already decided that I will not be keeping it as it will be resold to offset equipment costs.
Those of you who work on mechanical clocks regularly must have run into this situation at least once. Everything went perfectly until the very end.
Sessions time and strike movements are very common and I have worked on quite a few over the years. They are reasonably well constructed with the exception of a well-documented poorly designed click.
Worn click on a Sessions movement
The other day I was working on a movement that I had originally serviced 5 1/2 years ago. Back in 2016, I installed 10 bushings, quite a number for any clock but it was very worn. It has run exceptionally well since then but now it was time for an inspection, cleaning, oiling, and correcting any possible issues.
Sessions movement in a wall clock
I took the movement apart, cleaned the plates, wheels, and levers in my ultrasonic cleaner (which I did not have back in 2016), and reassembled the movement. As expected the movement is much shinier than before and looks like it came off the factory floor.
During my inspection, I found minor wear but the only location where a bushing was required was the second wheel backplate. I could have left it but it was worn enough to need a new bushing.
Backward count wheel
It’s back together and being tested. Okay, I had to open up the strike side to reposition the stop wheel to correct warning but that’s about it.
It now runs perfectly and a nice pat on the back for me but oh! oh! wait…..it is not quite perfect, because I don’t think three o’clock follows four.
Dang, the count wheel is on backward. Why didn’t I see that?
You probably expected me to express a few choice words but I looked at it and said, ha, that’s too funny!
5 minutes was all it required to put it right and now it sounds great. Four o’clock now follows three o’clock. Yes!
I am an avid collector of antique and vintage clocks which means I cruise the online auction sites regularly, about once or twice a week. This spring I checked out offerings from a local online auction site that deals with estate items, placed bids on 4 clocks (actually 5 since one lot had two clocks). The one I did not win was a 6 column Sessions mantel clock but no real loss there.
I won the bids on four clocks. CDN110 was the total though with buyers’ premium and taxes the price jumped to CDN147, still not bad for a small collection of antique clocks.
I do not have these clocks as of this writing since they are sitting at the auction house but I think can make a preliminary judgment based on what I see in the auction photos.
Although I am normally not in the business of selling clocks I will sell the odd one to keep my collection manageable. The plan is to fix these clocks and sell them to offset clock equipment purchases most notably an Adams Brown Timetrax 185, an electric clock timer, an amplifier that measures the rate of mechanical clocks by sensing escapement action and mechanical sounds of the escapement which I recently purchased. Here they are.
Unknown cottage clock
In no particular order of importance let’s start with an octagon cottage clock from the 1870s or 80s. It is a 30-hour clock judging from the placement of the winding points.
With pendulum and key
From the style of the pendulum bob and the case itself, I would say an E. Ingraham & Co. time and strike cottage clock. Some would have come with an alarm. This one does not.
Side view
It is in fair shape. The dial appears to have serious losses and there are nicks and scratches over a good portion of the case from what I see in the photos. I wonder if the tablet is a replacement and the original reverse painted?
It is difficult to tell with the harsh auction light but the case might be made of rosewood.
Decorative pendulum
It will be a good candidate for a mild refresh and should look very nice when completed.
Sessions Grand Assortment #3
Next is a Sessions Grand Assortment #3. I have worked on one in the past. There are three models in the Grand Assortment series and despite the fact that it is a lowly gingerbread clock and thousands of similarly styled clocks were sold by every major American clock manufacturer, this model is surprisingly collectible.
It is an 8-day clock with a steam-pressed oak case. The case looks very “aligorated” a term applied to a shellac finish that has coagulated as a result of being stored in a hot, humid environment such as an attic or a garage.
The dial is in poor condition
The tablet looks good but the dial is very degraded. This is a paper-on-metal dial and when the metal below the paper rusts the stain bleeds through to the front. This is called “foxing”. These stains are very difficult to remove and cost-prohibitive for most clocks. This is a cheap clock and a dial replacement is the only option and as such, I am not sure what to do about it.
A note is attached to the key and it says 1903. It is doubtful it was actually made in that year and I am sure the previous owner went by the year Sessions Clock Co. acquired clock-maker E.N. Welch Co. though the clock is certainly from around that period.
With a note from the previous owner
Reconditioning the case might be a challenge. Is it a candidate for stripping down to the bare wood? I suspect it is but we’ll see. I also see a small crack just above the top of the dial, so it might have been broken off at one point and re-glued.
I am not sure about the pendulum bob which does not look quite right for this clock. More research should provide me with the answer.
E Ingraham Ocean and Ansonia kitchen/parlour clock
Next is a two-for-one deal.
A duo of clocks
The one on the left is an E. Ingraham steam-pressed 8-day gingerbread possibly from the Ocean series. Unfortunately, it is missing its decorative tablet and that will certainly affect its resale value.
The pendulum looks right for the clock and the case itself looks to be in decent shape but as I said, it is very unfortunate that the tablet is missing.
Pieces of a clock
The pieces at the foot of the gingerbread clock belong to the clock on the right. Usually, when I see pieces like this it tells me that it was handled roughly by the auction house.
What I like about this clock is its timeless design, almost Art Deco but made long before the Art Deco period.
So who is the maker of the clock on the right?
Unknown parlour clock
The auction description simply says, “unknown clock”. I believe it is an Ansonia 30-hour (position of the winding arbours) kitchen clock in Walnut from about the early 1880s. The tablet is bright and vivid, not a design I have seen before but likely original. Attaching the top pieces should be a fairly simple process and thorough cleaning of the clock case clock and movement should make it an ideal candidate for resale.
Of the four, two are 30-hour clocks. I have found that 30-hour clocks are a tough sell. Most casual collectors are looking for an 8-day clock since 1-day clocks are a hassle to wind but I think I can make both presentable enough to attract some buyers.
The auction notes do not say whether any of these are in working order. They are all “untested” which is typical auction-speak for “they may or may not work – the risk is yours!”.
American clocks are very tough and often work well despite being very worn. I suspect with a little encouragement I can get all of these clocks working again.
Now, to pick them up from the auction house.
Check for upcoming articles on each of these clocks.
A mechanical clock is a machine and all machines require periodic maintenance. Five years might be considered a long time since the movement on a Sessions time and strike mantel clock was first worked on when 2-3 years is the norm between service intervals but let’s agree that it has not been an easy time these past two years and priorities have shifted.
I have not opened this clock up since 2016 and I wonder if any surprises await me. I worked on this clock in 2016, so, it is a judgment on my own workmanship.
Sessions Beveled #2
It was purchased locally from a person who knew absolutely nothing about clocks, making a few bucks on whatever he could get his hands on. He could not tell me one darn thing about it only that it was not working. The case was in rough shape and it was less than $40, so, I bought it.
Although I had worked on several clocks prior to this one, it was an important part of my journey in clock repair because I was now able to put my newly acquired Bergeon bushing machine to the test.
Bergeon Bushing Machinepurchased in 2016
Back then I installed 10 bushings, replaced the pendulum bob and suspension spring, oiled the movement, reinstalled it, and refreshed the case. Not the best timekeeper in the world but that is the nature of spring-driven American clocks of that era (the 1920s).
Disassembly and Inspection
I always approach the inspection and servicing of a clock that I have serviced in the past in much the same way I would service a clock that has just come into my collection. The steps are identical; inspect, restrain mainsprings, clean all parts, peg out bushing holes, polish pivots, address wear issues, assemble, oil and test. This clock is no different.
Backplate off andshowing the helper springs
First, remove the hour and minute hands. Next, put the clock on its face and remove the 4 screws that hold the movement in place. Pull the movement out of the case, place the case aside, and let the mainsprings down into the mainspring retention clamps.
Mainsprings are removed
Never attempt to take apart a spring-driven movement without first restraining the mainsprings. This is a very important first step in clock repair and it is obvious for safety reasons.
Mainspring contained in a retention clamp
During the servicing, as I usually do, I will check all pivots and bushings but most particularly the mainspring clicks which is a well-documented weakness in Sessions movements.
As I began taking the movement apart I noticed a badly kinked suspension spring which will have to be replaced. This usually occurs when a clock is moved without removing the pendulum bob. We have had some home renovations this past two years and the clock has been moved about the house. My fault, actually.
I generally take many photos during servicing but there is no requirement this time since I have kept the photos I took from 2016. However, if anything is noteworthy at this juncture, I will record it.
One item I did not own five years ago was a high-quality ultrasonic cleaning machine. The movement is dirtier than I expected and there is blackish oil around some (not all) of the pivots. I was probably a little overzealous with oiling and perhaps not as careful as I should have been polishing the pivots. It definitely requires a good cleaning and my American-made L&R Quantrex 140 with internal heater will be put to good use.
Ultrasonic cleaner by L&R
I have been working with so many German movements lately I can’t remember the last time I worked on an American one, let alone a Sessions clock. It has been months, so, here we go!
I pulled the plates apart and inspected the movement for wear. There is more blackened oil up the train (mentioned above) than I was expecting which tells me that if not addressed now it will lead to accelerated wear of the pivots and bushing holes and eventual stoppage of the clock. There is the tiniest bit of wear on the 4th wheel back-plate but not enough to justify replacing at this time.
The second wheels, front, and back, which were not attended to then, may now need attention. The good news is that all the replacement bushings from 2016 remain in very good condition.
It looks like at least one new bushing on the strike side wheel, not surprising since it bears the brunt of mainspring power. While there is some wear on the other three I can live with it but the fourth on the strike side back-plate is somewhat oval-shaped as you can see in this photo.
Worn pivot hole on the strike side
Though not as bad as others I’ve seen in American clocks that are well worn, there is enough play in this wheel to justify a new bushing.
TheNew bushing
The click and rivet design are a special problem on Sessions clocks, and I am happy to see that both clicks are in good condition after 5 years. It might be unfair to criticize parts that are nearly 100 years old. The photo shows what a worn click would look like.
Worn click on another Sessions movement
After the parts are cleaned in the ultrasonic and thoroughly dried, the bushing holes are pegged and the pivots polished. Now for the new bushing.
The pivot measured 1.62mm and I chose one with an inside diameter of 1.60mm. After broaching (cutting followed by a smoothing broach) it was a perfect fit.
Now for reassembly. The strike side levers with helper springs under tension can often be a challenge to stay in place during reassembly but the key is patience. Oiling and testing are next.
What did the movement look like after 5 1/2 years? The blackish oil was a little concerning but overall the movement is in great shape. It is certainly cleaner and shinier than before.
It is that time of the year when you begin searching for that unique gift. Of course, there are a multitude of choices but have you considered a mechanical clock as a gift? Let me provide you with a few tips.
Gilbert mantel clock
Mechanical clocks harken back to the old days when life was simpler; no mobile telephones, no internet, and no streaming TV. Ah, those were the days!
Okay, so you are reasonably sure that a mechanical clock would be appreciated by the receiver. What to buy? There are a plethora of choices out there and certainly, clocks that would fit every budget from the simple and cheap American kitchen clock to a rare 19th century Boulle figural French mantel clock. Let me attempt to narrow your choices, not with a specific clock but a buying strategy.
Mechanical clocks appeal to those who enjoy the sound, the strike of a clock, or those who merely appreciate it as part of their decor. These factors will influence your choice as a gift.
Here are two examples of clocks I have gifted to my family. My son and his partner have a German Schatz W3 bracket clock in a custom case. It is in excellent mechanical in running condition but it stays quiet on their shelf. Nevertheless, it is the centrepiece for their fireplace mantel.
Schatz W3 in a custom made case
My daughter has a Sessions Raven 8-day mantel clock which sits atop a bookcase in their family room. It only runs when my wife and I visit.
Sessions Raven clock
But they love their clocks.
The following two categories might assist you in your decision to buy a clock for your loved one, a friend, or a business associate.
Category 1 – Those recipients who appreciate a running clock
You will want to avoid a non-working clock. Unless you have the skills in clock repair or know someone who can work on it, it is best to steer away from those. Many sellers use the phrase, “may need some adjustment” which is almost always a red flag for a clock that has issues. These are the cheapest clocks, and for good reason, they are simply worn out.
You may also get lucky and find that special mechanical clock that has been recently serviced and is in good running order but you will pay more because the seller is interested in recouping their investment in the clock.
Buying a clock from a reputable clock repair retailer is a good bet if the clock has been serviced and a warranty is provided but expect to pay significantly more.
Otherwise, there are many buy and sell online sites. I would shop locally and avoid eBay or other online auction sites. Auction sites are a real crapshoot complicated by high shipping costs and the risk that the clock might arrive broken. Yes, that has happened to me!
Arthur Pequegnat Moncton, 15-day, double spring time-only
The sound of a ticking and striking clock in a room is very soothing for some. For others., not so much
Most clocks are 8-day running which means that they must be wound once per week. There are some quality 15-day and 30-day clocks but they are few and far between.
Daniel Dakota wall clock, made in China
Of the 30-day clocks avoid anything made in China. While 1-day clocks such as Cuckoo clocks and antique Ogees are plentiful and look terrific, winding a clock every day wears thin after a while.
Category 2 – Those recipients who want a mechanical clock as a decoration
Then, there are the folks who are not really that interested if the clock runs or not but want something that fits their decor and is a good conversation piece. A non-working clock with a good case is perfect. If it has the original movement but it is not working there is always the option of fixing it later. Personally, I would shy away from any clock that has its mechanical movement replaced with a quartz one.
Focus on the condition of the case. Is it missing any parts, has recent work been done it, does it look authentic? Does it catch people’s attention?
For example, here is a very attractive Seth Thomas 8-day round top in a bold Rosewood case that has had only one minor veneer repair and a replacement dial face, but it looks great!
Seth Thomas round top
You bought the clock but the case is very dirty. Clean it! Some folks might argue that one should not clean a clock case so as to maintain it’s original patina. But, isn’t patina just another word for dirt? Soap and water with gentle scrubbing will make a huge difference. Check out this before and after photo of the cleaning of a clock face.
Junghans clock dial before cleaning
Junghans clock dial after cleaning with soap, water, and Q-tips
And this before and after photo of a gingerbread clock. You need not want to go the extra distance in retouching the dial but soap and water is an easy and non-invasive method of improving the look of the case itself.
Very grimy clock case especially the base section
After, showing a clean case and a retouched dial
Final words
A mechanical clock makes an excellent gift and it is something that can be passed down from one generation to the next. My kids appreciate a mechanical clock from their dad and I will gift them one that is in excellent mechanical condition but I am not bothered if they use it merely as a decoration.
Though my collection consists of mechanical clocks exclusively, now there is an exception, a vintage Sessions electric table clock, model 3W with sweep second hand, made, of course, by the Sessions Clock Co. Forestville, Connecticut in 1936 and sold in Canada (a Canadian Standards Approval sticker is on the back).
Also on the back, it states that it consumes 2.5 watts, They couldn’t call it model 2.5! It was probably a very affordable clock in its day and available almost anywhere.
At 4 1/2 inches tall and 8 1/4 inches wide, it would fit on any countertop, bookcase etc. although because it lacks an alarm it would not be a bedside table clock. There is only one control in the rear, a push-and-twist-in knob that sets the time. Pretty simple!
Back of clock showing patent dates, CSA decal, adjustment knob and cord
It arrived with a missing plug, a detached minute hand and a finish that was almost completely worn off but the convex glass, face, brass bezel and motor are all in very good condition.
Once the Sessions Clock Co acquired E. N. Welch assets in 1902 (for the history of E. N. Welch go here) the company was well on its way to becoming one of the biggest clock producers in America. Production began in 1903 and between that time and 1933 Sessions produced 52 models of mechanical clocks, ranging from Advertisers, large and small clocks with logos of various businesses, to wall, or regulator clocks, and shelf or mantel clocks, designed for the home. Some Session clocks from this period are prized by collectors but most others are of the generic kind that have limited value today.
This is the only true gingerbread clock I have in my collection, temporarily. By this summer (2019) it will be returned to a family relation.
Dial and movement has been removed; notice the 4-colour tablet design
Can you get this thing working, my sister said? Sure, I said. Grand Assortment is an odd name for a Sessions clock, I said. The name certainly lacks imagination, but this particular clock is one of three in a series and sold for $4.00 in 1915 and could be configured with alarm and/or cathedral bell. This particular clock is Grand #3.
Antique and Vintage Mechanical Clocks
You must be logged in to post a comment.
