The Clock That Wasn’t Complete: My Waterbury Suffolk Discovery

This clock wasn’t one I set out to find. My wife and I were wandering through a sprawling antique shop in Almonte, Ontario—the kind of place where time itself seems to stand still. She drifted upstairs while I lingered below, each of us lost in our own quiet hunt. A few minutes later, she appeared at the top of the stairs and called down, “Take a look at this!” I climbed up, curious, and there it was—a clock that neither of us had expected to see, yet somehow felt right. We looked it over, exchanged a knowing glance, and decided the price was fair. A few moments later, it was ours.

For a while, I admired the clock just as it was—until a small detail caught my attention and led me down another path of discovery.

I initially thought the clock was complete until I posted a query on an online clock forum site and discovered that it was missing two trim pieces.

First photo of the clock

However, I also learned that the clock was named the Suffolk and was offered for sale by Waterbury from about 1907 to 1915. The clock is shown in Tran Duy Ly’s Waterbury Clocks book on page 270, which includes an image.

It is cased in mahogany, has an eight-day movement, and features a half-hour strike with a coiled gong. The six-inch “ivory” (porcelain?) dial has spade and spear hands and a visible or open escapement. It includes a cast gilt sash and bezel with convex beveled glass. The clock is tall at 15½ inches and 11¾ inches wide, with wooden biscuit feet.

The time and strike movement on a coiled gong

I asked myself what I should do about the missing trim pieces. I also wondered how they had fallen off, but it appears they were glued on at the factory and may have been vulnerable to coming loose if struck. In my experience, once a piece comes off and becomes separated from the clock, it is unfortunately lost forever.

The original pieces were carved mahogany blocks with a center cut-out. Since I don’t have the tools to duplicate that process, and the router bits I have are far too large for this type of work, I decided to come up with what I felt was an acceptable alternative.

I didn’t have any mahogany among my scrap wood selection, but then I remembered some trim pieces I’d received from a friend’s old pump organ about a year ago. At the time, I had no idea how I would use them, and as I suspected, they turned out to be made of mahogany.

Using a table saw, I cut out two test pieces to determine if the repair would work. They looked acceptable, even if not quite sized correctly, and since I had enough mahogany, I set about carefully measuring the final pieces. I decided to stack thinner sections in a relief style—quite the opposite of the original design.

Because the clock’s case parts varied slightly in tone, I knew the new pieces would end up a shade darker.

Test pieces, narrower than the final pieces

I then cut the final pieces, sanded off the finish, glued the sections together, and attached them to the base of the clock using carpenter’s wood glue. The final step was applying two coats of finishing paste wax. The clock now looks more complete, and unless one is familiar with the original design of the missing pieces, they would be hard-pressed to notice the difference.

The final outcome

Making changes to a clock’s case is never easy, for each alteration risks straying from what once was. Yet restoration is, by nature, a communication between the past and the present—to reconcile what time has taken and what care can restore. Though the change departs slightly from the original, it brings balance to the design in my view, and renews the clock’s quiet dignity. In that sense, I am content with the outcome.

Restoring the Suffolk reminded me that even small imperfections can lead to creative solutions. While my replacement trim pieces differ from the factory originals, they complement the clock’s character and preserve its charm—proof that restoration is as much about craftsmanship and ingenuity as it is about authenticity.

For those who appreciate a visual commentary, check out a 3 1/2 minute video I made during the project:

6

Discovering a Rare Waterbury Clock in Almonte, Ontario

Almonte, Ontario, (Canada) is a town that practically invites you to slow down and explore, and that’s exactly what my wife and I did one afternoon in September. In fact, it is called “The Friendly Town”. We drifted from one antique shop to another, discovering all sorts of curiosities. But in one store, I found something that stopped me in my tracks—a stately Waterbury time and strike mantel clock. It felt like uncovering a hidden story, and I couldn’t resist bringing it home.

There are many antique stores in Almonte, but this is where the clock was purchased

I was drawn to the open escapement and porcelain dial—features that are relatively rare in a common American clock.

Untouched and before a cleaning

At first glance, it looked intact, but after posting the clock on a popular clock collectors’ website, I was informed that the case appeared to be missing the lower parts of the columns. I asked the poster to supply a photo for comparison. In the meantime, I carefully examined the case myself and did not find any anchor points or residual glue traces that would suggest something had originally been attached there.

However, further research revealed that there were indeed trim pieces under the columns. This photo, taken from the 1909–10 Waterbury Clock catalog, shows the complete clock. You will note that in 1909–10, the clock was listed at $23.00, slightly more than a typical middle-class worker’s weekly wages in 1910.

The clock is called the “Suffolk”, as shown in Tran Duy Ly’s Waterbury book on page 270 (and the catalog photo above). It is cased in Mahogany, has an 8-day movement, and has a half-hour strike with a coiled gong. It has a six-inch “ivory” (porcelain?) dial with spade and spear hands, and a visible or open escapement. It features a cast gilt sash and bezel with convex beveled glass. The clock is tall at 15 1/2 inches and is 11 3/4 inches wide with wooden biscuit feet.

As an aside, Waterbury also produced a Suffolk model in 1891, which is entirely different from this clock.

The poster said that it is also shown in the 1915 catalog. The patent date on the movement plate is September 1898, so it is quite possible that Waterbury offered the movement for this and other models for a number of years.

When I first looked over the movement, I could see it had been well cared for, still showing a bright, clean finish. But then I noticed something odd: the pendulum was hooked directly onto the crutch. That explained everything—of course, the clock wouldn’t run! It was likely this simple issue that led the seller to list it ‘as is,’ and therefore at a better price.

While trying to think of a way to make a new suspension spring and rod, I thought, why not check the bottom of the case? Sure enough, the original suspension spring and rod had been tucked into a crevice at the inside bottom of the case.

With the suspension rod attached and the gong in place

After installing the suspension spring and rod, I wound the movement, gave the pendulum a gentle push, and to my relief, the clock sprang to life. I’m holding off on letting it run too long until I oil the pivots. Once that’s done, I’ll let it run for a while to see if it can make a full 8-day cycle. After that, it will be set aside for proper servicing.

Despite the missing lower trim pieces and the slight chipping around the number 12 on the porcelain dial, it remains a very nice clock and is reasonably well-preserved.

From the tucked-away suspension spring & rod to the moment the pendulum first swung, it reminded me how even the simplest details can make all the difference in getting a clock to run. While it will eventually need a full servicing, seeing it come to life again was a rewarding reminder of why I love collecting and caring for these fascinating pieces of history.

4

Waterbury Wren shelf clock – case refresh

I originally assumed this clock was a Seth Thomas since it had a Seth Thomas movement. After a thorough search on the web, I concluded that this was not a Seth Thomas case. I searched for clocks made by other clockmakers, starting with E.N Welch, Ansonia (because it is similar in style to the Syria), Gilbert, Sessions and finally Waterbury. The term “Waterbury cabinet clock” generated some hits. I found one on an auction site then, two more. I now have a case made by a different maker than the movement and in clock circles this is called a marriage.

The case is a Waterbury model called the “Wren”. I found three Wren models, two with paper dials and one with the identical dial pan as this clock. It may well be that this dial pan is original to the case.

Despite the fact that it is a marriage I might keep it. The case is attractive and the movement fits the case, although both the centre hole and regulator hole over the 12 look to have been bored out and not in a tidy way.

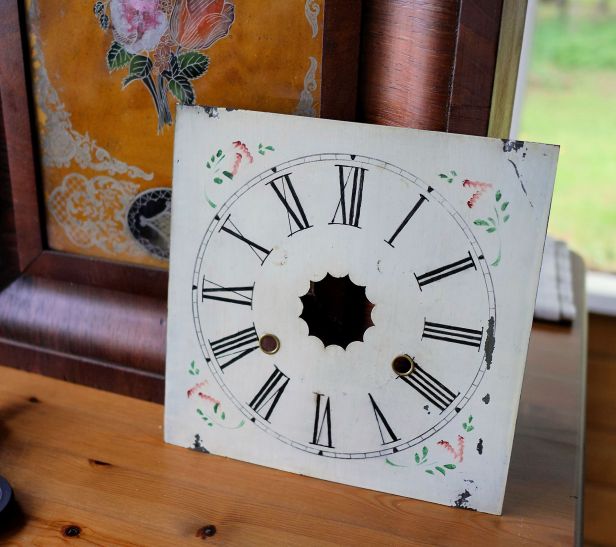

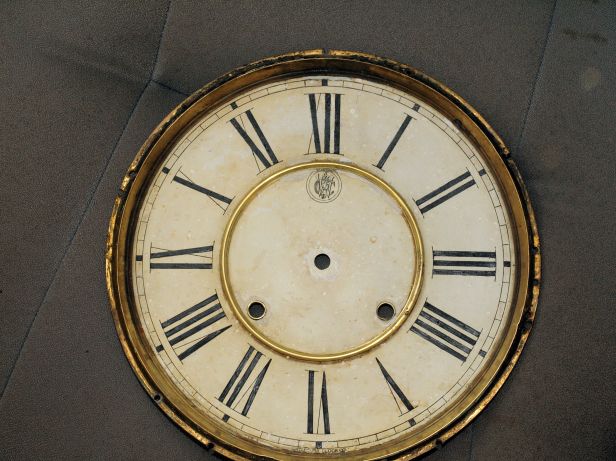

The dial has been cleaned and repainted.

Cleaned and repainted dial

Now to the case. It Stands 13 1/8″ Tall By 12 5/8″ Wide And 5 1/2″ deep. As of this writing if you search for this model you might see one or two without the top crown. It is easily detached and no surprise that it might go missing.

Crooked finial

The case is in good shape with no parts missing however, the top finial on the right is not correctly aligned with the bottom column which I did not notice till I began cleaning the case. Evidently it had detached in the past and a past repairer glued it back not noticing the misalignment. It was simple matter of prying the finial off, regluing and centering it.

Two other pieces had to be reglued, a support piece for the crown and crosspiece in the back for one of the sides of the crown.

I cleaned the case with Murphy’s soap and following the scrubbing I decided that there was enough shellac worn off that a fresh coat would make the case much more appealing.

Finial is reattached and straighter
New coat of shellac

I applied traditional shellac, mixing amber flakes and alcohol with a broad artists brush. In the next shot you can see the difference between the left side of the crown and the right. I now have the option of leaving the finish as-is or aging it by “dulling” it with 4X0 steel wool.

Crown section

In the next photo is the completed case.

To me it is a huge improvement.

All this is being done while the movement is undergoing testing and once the testing is complete the two, the case and the movement will be “married” again.

Now if I can find the matching glass and bezel it will be complete.

Waterbury Arion wall clock movement servicing

Let me begin by saying that I am not a big fan of clock movements with steel plates. Many that I have come across have brass bushing inserts that I believe to be a limitation rather than a benefit.

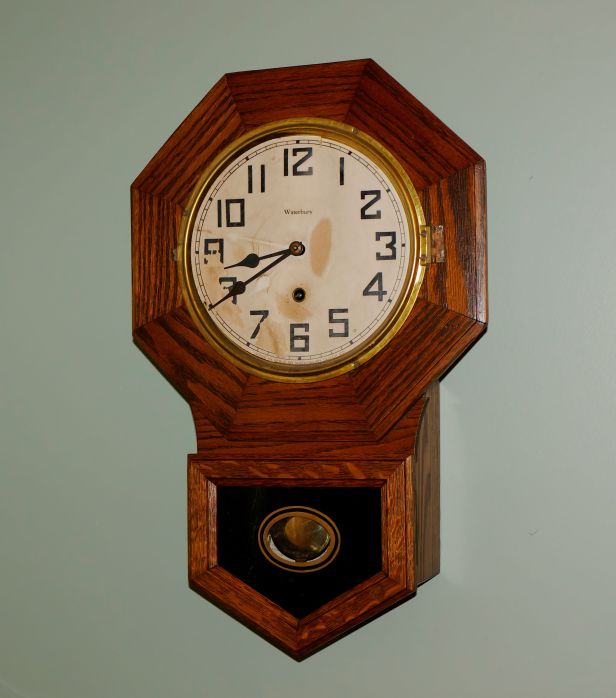

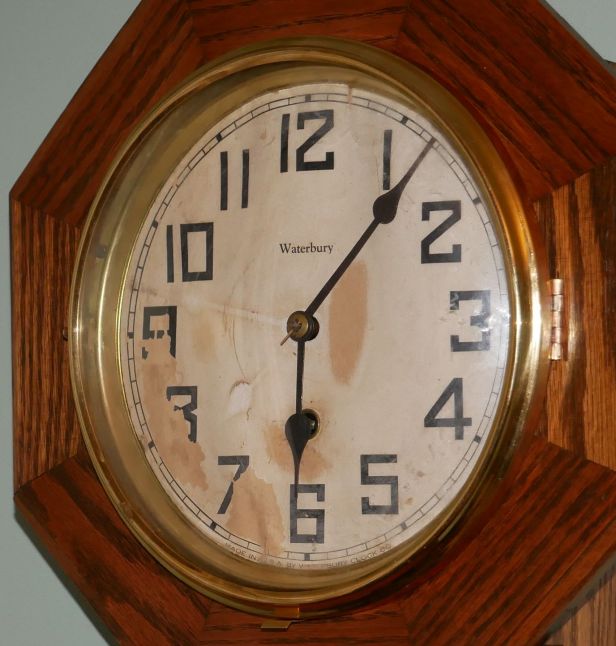

Waterbury short drop wall clock

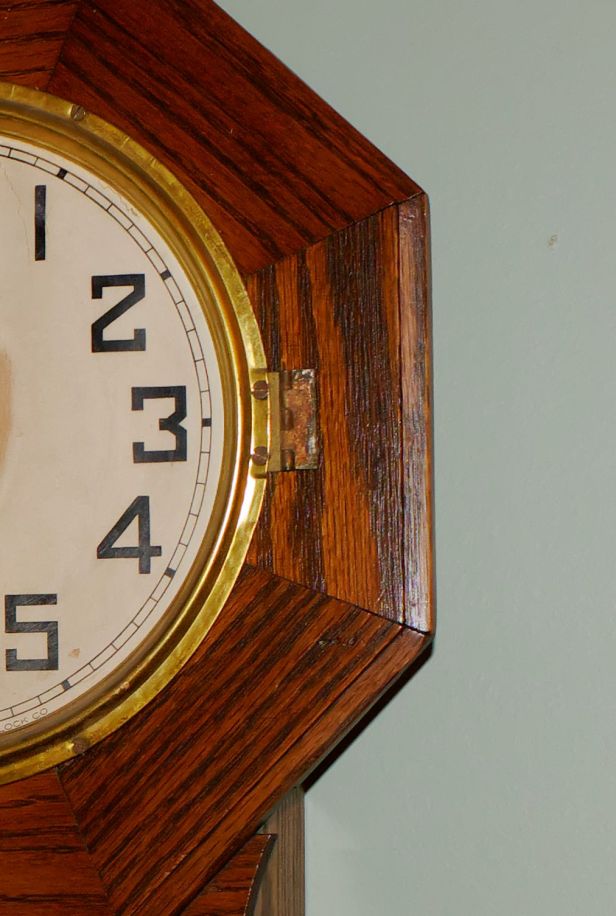

The movement in this plain drop octagon case is a Waterbury time-only. When I bought the clock in January of 2016 it came without the glass and bezel which I ordered from a supplier. I was informed by the previous owner that it had been serviced so, other than the new glass and bezel plus inpainting some of the numerals I have done nothing else to it, but now it is time to service the movement.

Inpainted numerals

A diminutive size, this clock was made around 1930 just a few short years before the Waterbury Clock Company was placed in receivership.

It is a solid oak case measuring 19 inches long by 12 inches wide, with an 8 inch paper dial marked Waterbury, a black and gold pendulum aperture, and 8-day time-only movement. The bottom of the dial says, ” Made in the USA by Waterbury Clock Company”, Connecticut. These clocks are often refereed to as schoolhouse clocks though I can’t imagine the dial of a clock this small visible from the other end of a classroom.

Issues with steel plated movements

As mentioned, the movement has steel plates. Steel plates are perfectly fine and I understand why manufacturers use them, to save brass (and money), but I have two issues with them.

One, no matter how hard I try, I cannot get them to shine because the steel tends to attract tarnish which is almost impossible to remove. And of course, as they are made of steel they are prone to rusting. The solution is to plate the steel in brass or nickel as some makers did.

Arthur Pequegnat movements, with steel plates, for example, are nickel-plated. Unless the nickel plating is compromised they shine up spectacularly.

The time and strike with signature nickle-plated steel plates
Pequegnat nickel-plated steel plates

A second issue with steel plates is the brass bushing inserts. In my view, there is simply not enough brass to work with. In most cases I use a smaller bushing than I would otherwise employ so as to avoid cutting into the steel plate. I use the Bergeon bushing system. KWM bushings may have a smaller outside diameter, I’m not sure?

Large bushings on a movement that has steel plates means there is a risk in cutting into the steel. The cutters that came with my Bergeon bushing machine are about $35CDN apiece and it would only take a cut or two into steel to render them dull and useless.

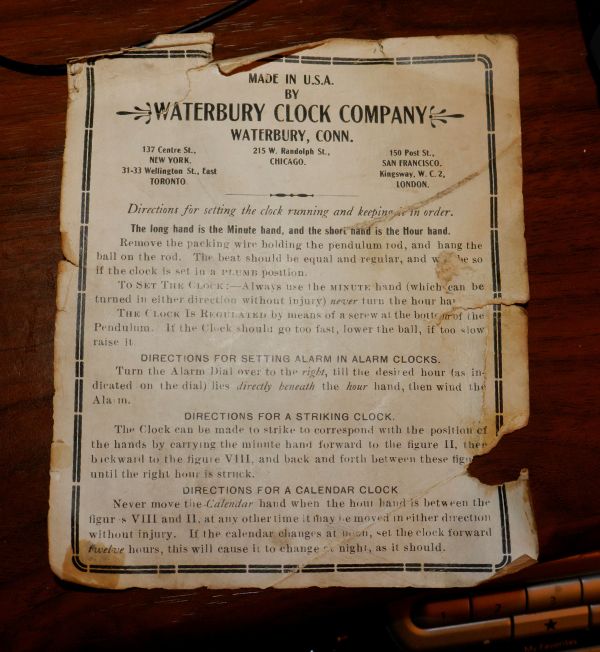

Waterbury Arion instructions

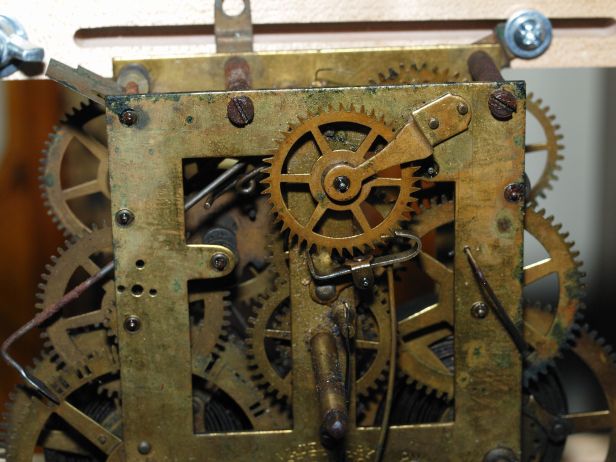

Assessing the movement

The movement is in generally good condition. The lantern pinions and gear teeth are in excellent condition. There is minimal wear on the pallets, escape wheel teeth and all parts in general.

The mainspring is definitely a replacement. The loop end looks to have been annealed. It does not look professional but the mainspring is in very good shape and is reusable. I suspect, given the length of the mainspring, that it is oversized for the movement.

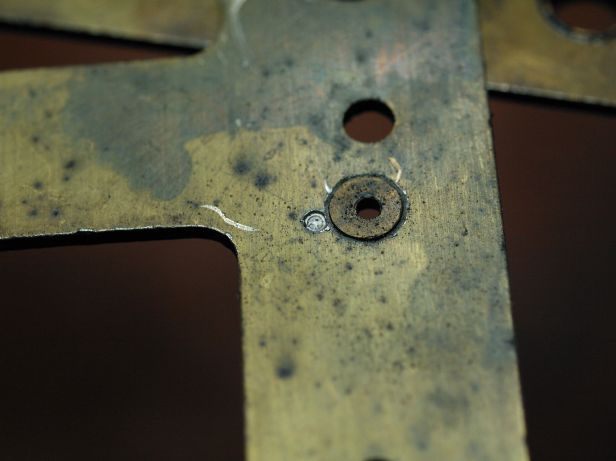

The movement is certainly in need of bushing work. New bushings will extend the life of the movement.

Five bushings were installed. Two on the verge, front and back, the third wheel back plate and second and fourth wheels front plate.

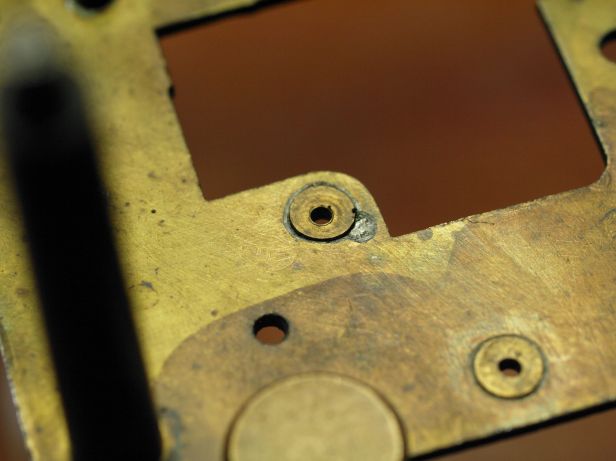

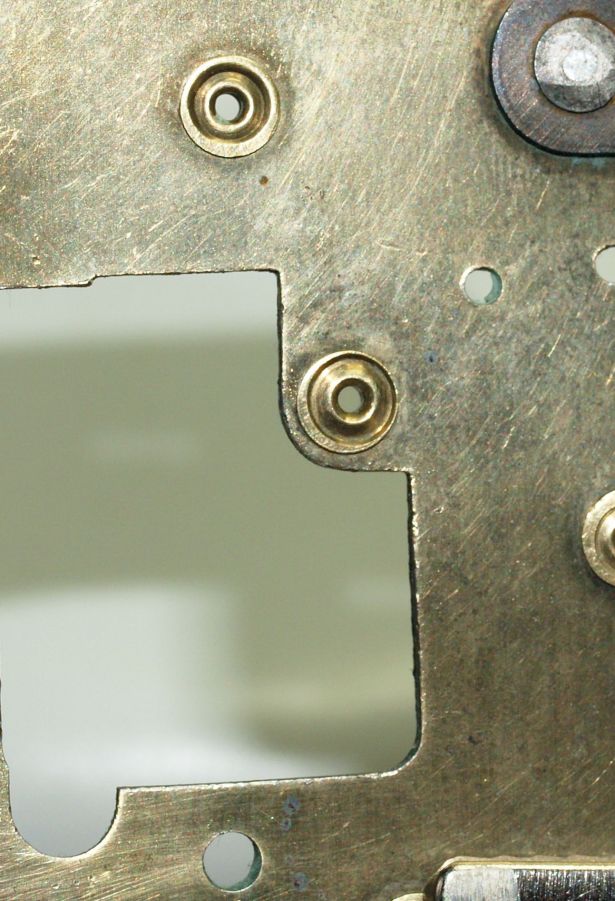

Three bushings on the front plate

The pivot on the third wheel is 2.30mm in diameter. Though it would normally require a 4.50mm outside diameter bushing, a 4.50mm bushing makes a very large hole, so large in fact that it would have meant cutting into the steel plate.

I chose a 3.5 mm bushing with a 1.90mm inside diameter. Broaching out to 2.30mm, effectively removes .4 millimeters of brass with a remaining thickness of 1.2mm which should be enough. 3.00mm OD bushings were used for the 4 other pivot holes. Brass-plated movements present present fewer limitations on bushing diameter.

New third wheel bushing

The mainspring was cleaned and oiled. The movement was reassembled and put on the test stand.

Once on the test stand I noticed a wobble in the suspension leader which was rectified by tightening the suspension spring post.

If you are novice and just starting out in clock repair, time-only movements are excellent to begin with as there is only one train to work on but take extra care with movements that have steel plates.

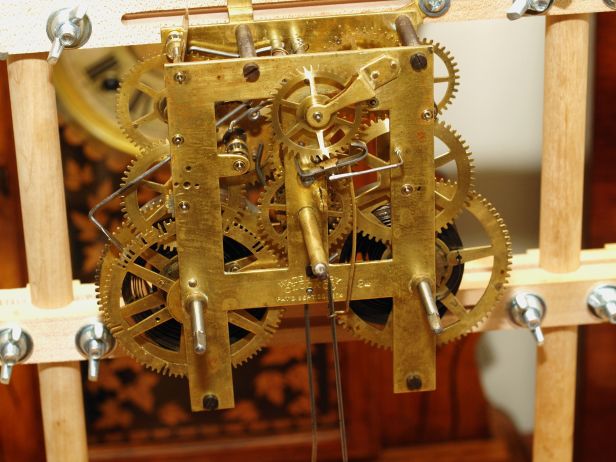

Time-only Waterbury movement on the test stand

My suspicion about the mainspring was confirmed. 15 days later, it was still running.

After 5 years this movement should not have been as worn as it was and the issue is an oversized mainspring which puts an unnecessary load on the gears through the train. I am not about to replace the mainspring, it is just not worth it for a $40 clock, but my advice to anyone interested in clock repair is to source a mainspring that is correctly sized for the movement you are working on.

The cleaning and the installation of new bushings should nonetheless ensure years of reliable running.

A marriage of two makers, Waterbury and Seth Thomas

This clock is an antique store find not too far from where I live. It was high on a shelf and the price was not visible. I asked the shopkeeper to take it down so that I could check the price ($40) and verify that it had a mechanical movement.

Seth Thomas cabinet clock?

I opened the back panel, quickly glanced at the movement and the trademark stamp appeared to be Ansonia. I had worked on an Ansonia Syria shelf clock in the past year and it looked quite similar but it was an odd looking movement for an Ansonia. Ansonia movements generally have an arched plate, this one had a hump. No matter, I bought it.

Ansonia Syria cabinet clock

While at home I was able to examine the clock more closely.

What did I buy?

I discovered that the movement is made by the Seth Thomas Clock Co. not by Ansonia. The movement was made for about 12 years and was available from 1890 to 1902. The style of the case is also from the same period.

An exhaustive search of Seth Thomas clocks on the internet using keywords such as, shelf, parlour (parlor), cabinet, carved oak and mantel produced nothing. I then navigated to a well-known Seth Thomas database site, poured through hundreds of listings and again, zilch.

I began to realize that the case might not have been made by Seth Thomas, after all.

However, I was determined to find the maker. I searched for clocks made by other companies, starting with E.N Welch, Ansonia (because it is similar in style to the Syria), Gilbert, Sessions and finally Waterbury. When I used the term “Waterbury cabinet clock” I found it on an auction site. So, now I have a case made by a different maker than the movement.

What is a marriage?

Among clock circles it is generally accepted that if a clock has significant parts from another source, particularly the movement and put into a period correct case from a different maker, it is considered a marriage. If it has parts sourced from a number of other clocks it is a Frankenstein or Frankenclock. While this clock is not quite a Frankenclock it is certainly a marriage.

Waterbury Wren case

I am actually disappointed that this clock is a marriage

The case is a Waterbury model called the “Wren”. I found three Wren models, two with paper dials and one with the identical dial pan as my clock. It may well be that this dial pan is original to the case.

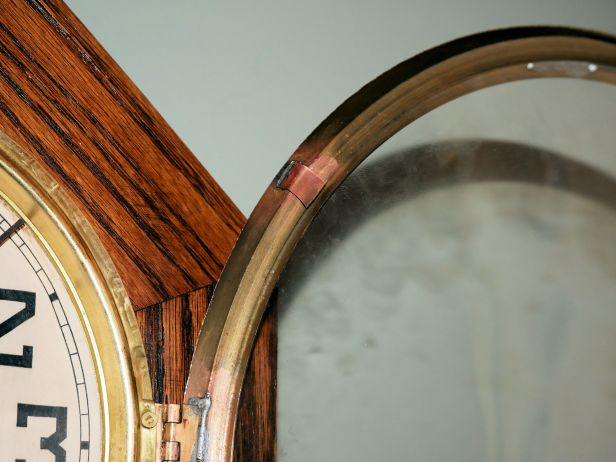

The concave brass bezel and glass are certainly more recent. When I first looked at the clock I knew that the brass bezel and glass were incorrect but that did not stop me from buying the clock. The original bezel would have been a piecrust design with flat glass. This glass bezel is from a 1930s vintage clock.

The back access door is made of plywood, a recent addition and, of course, there is no label. The original panel would have been made of solid wood and screwed to the sides of the case with a circular tin access port. The label would have been located on the outside under the port door or underneath the base,

Does the movement run?

The movement is complete with pendulum bob and ST key. It was sold as a non-running clock, but will the clock run?

While the movement was still in its case I applied mainspring oil to the tight mainspring, allowing a few minutes for penetration. I then removed the verge so that the time train would run freely, using my finger as a brake on the escape wheel. It was sluggish at first but eventually the sticky time side mainspring made several soft clunking sounds as it ran down.

You can see the very tight time-side mainspring in the next photo. Grime and built-up dirty oil over the years will seize a mainspring.

Once the mainspring was partially let down I reattached the verge and the clock would stop after a minute or so. There was definitely power going to the escape wheel but something else was amiss. It would skip a tooth or two with every rotation which told me that the pallets were too far from the escape wheel. There is an adjustment screw on an arm which allows the pallets to be moved closer (or further) to the escape wheel. I eventually found the correct distance and the clock began to run normally. At the same time I opened the crutch loop wider to allow more impulse.

This is certainly no substitute for an overhaul but a good diagnostic tool.

Meanwhile, the strike side ran perfectly.

The movement is running and keeping good time but it needs a cleaning and several wear issues addressed.

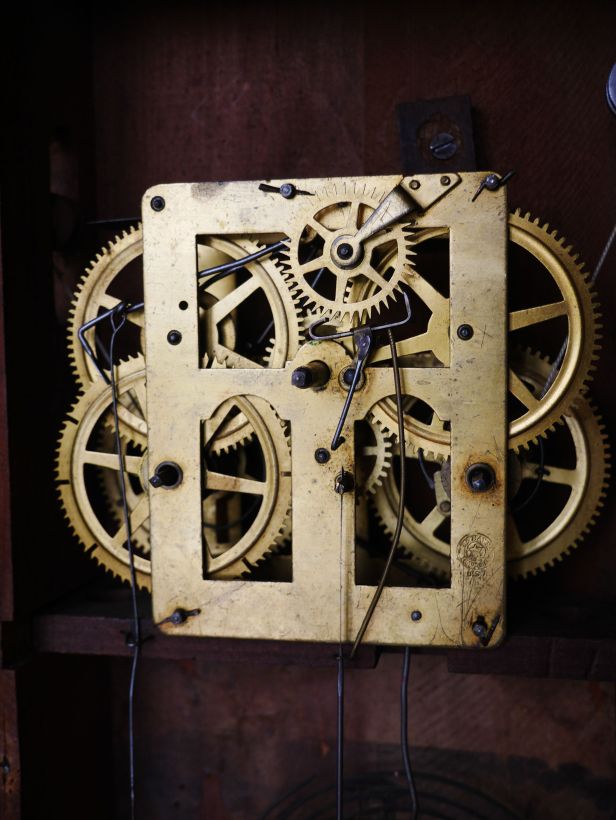

Seth Thomas 8-day time and strike movement

Next steps?

I am actually disappointed it is a marriage. Buying a clock is always a risk and if I had paid many times more for this clock I would have asked for my money back.

I am not sure what I am going to do with it but I am inclined to service it and perhaps put it on the market. If I sold it I would certainly disclose the fact that it has a period correct replacement movement from another maker.

Nevertheless, it would make an attractive clock once the case is cleaned, the movement is properly serviced and has the correct glass and bezel.

And, if I like it enough I might keep it.

Tick Talk Tuesday #28 – How do I fix my Waterbury ogee?

Tick-Talk Tuesday
Tick-Talk Tuesday is about the letters and comments I receive from you, the reader, concerning your clock, issues you might have had, challenges you face or a clock you would like me to profile. I give my responses to your question(s) and provide advice on your particular clock concern. For those comments and questions that stump even me, I consult within my clock circles for the best possible answer

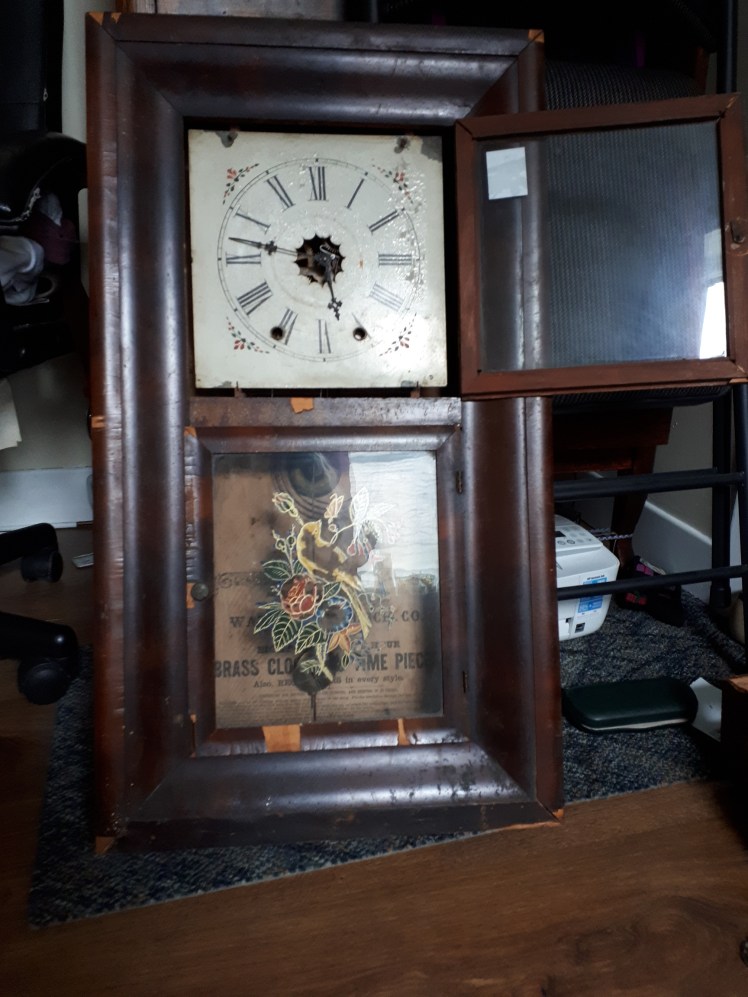

8-day Waterbury ogee clock

It’s an 1870 Waterbury clock, it’s not in the best shape but it seems so sad to see family heirloom that’s was passed down over the years just tossed aside

AS writes,

I have been interested in old clocks and have 4. My maternal great grandparents were all watchmakers in England and I wished they were still alive to teach me the trade.  The other day I found this old clock in a second-hand store and I fell in love with,  It’s an 1870 Waterbury clock, it’s not in the best shape but it seems so sad to see family heirloom that’s was passed down over the years just tossed aside,  I loved it so I bought, It needs some repair and would love to repair it myself, do you have any advice on where I can get it to fix or how to fix it myself I have tried online to find a diagram of the inside so I have an idea on how to fix but found nothing.

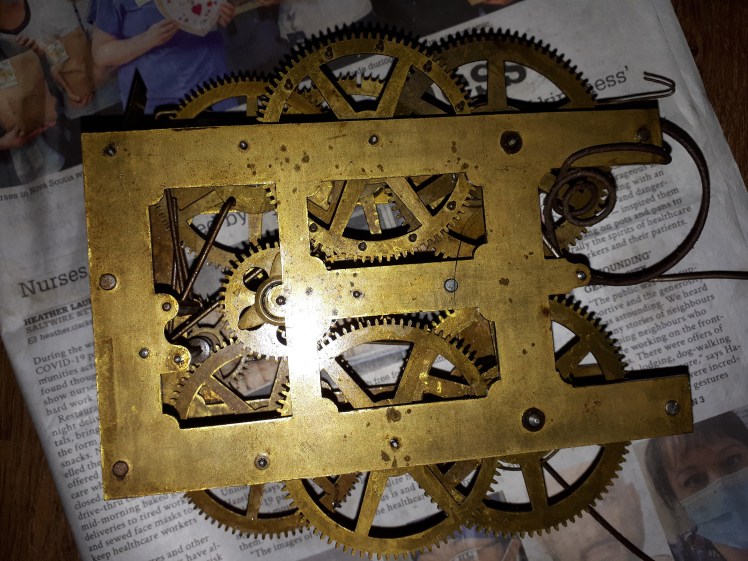

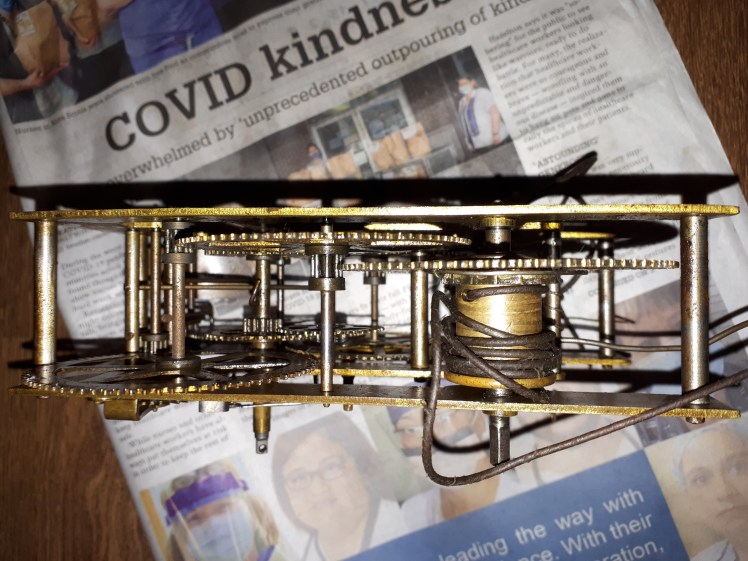

Waterbury 8-day ogee clock movement – side view

My reply,

Hi and thanks for coming to my blog.

I have no doubt that the clock you bought is from the 1870s. The style is called “Ogee” because of the curved veneer molding. Yours is unusual in that it has two front doors rather than the typical one door. You are correct; it needs love and attention.

I have several suggestions for you. One, you can learn about servicing clocks by taking courses online. Dave LeBounty is one source. They are not free, however.

Two, there is a clock forum site operated by the National Association of Watch and Clock Collectors (NAWCC). It is free to post, you do not need a paid membership and you can ask questions about your clock and get some guidance on how to repair it.

Waterbury 8-day ogee clock movement

Three, Steven Conover has several excellent books on clock repair. He has one that focuses on time and strike movements, like yours. It is an excellent guide and easy to follow.

Fourth, You can get your hands dirty by taking out the movement and taking it apart yourself. I can walk you through the process.

Hope this helps.

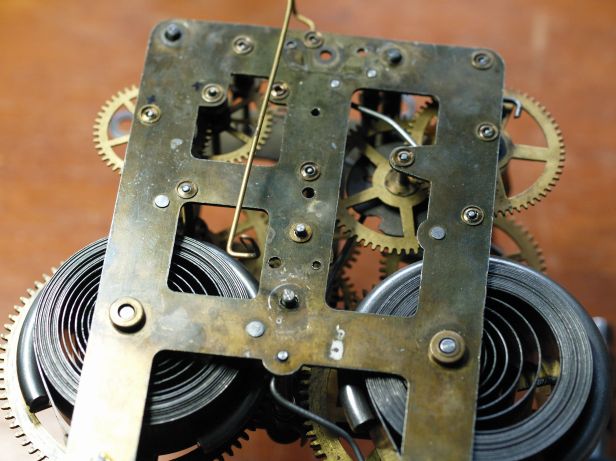

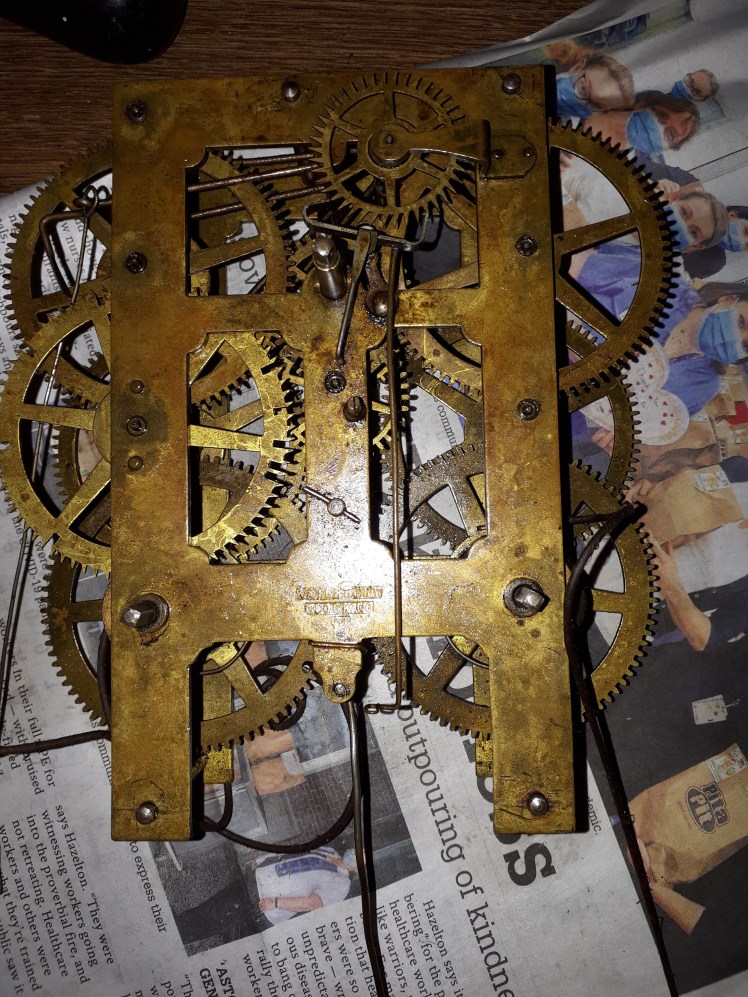

Waterbury 8-day ogee clock movement – backplate

AS replies,

Thank you for your reply, and advice.  I will look into the NAWCC, Would love to try and fix it myself, as it would be a joy to learn the craft and maybe save other old clocks.  The only clock repair here in New Glasgow closed years ago, so there is no one here to do repairs which is a shame as these old clocks are a part of history and should be saved.  I have managed to get the gearbox out, it is in need of a good cleaning and does need some parts, It doesn’t have a spring but 2 ropes that wrap around 2 gears and spindles on either side then attach to 2 weights. The ropes need replacing as well as new weights, If you could walk me through it that would be wonderful. It is a grand old piece and I would love to see it working again.

Note: There are far more 30-hour ogees than there is the 8-day type. I have not come across one in quite some time. In my collection, my 4 ogees are all 30-hour clocks.

Waterbury York parlour clock – a fresh approach to addressing a non-functioning strike side

Back in December 2019, I wrote about the challenges of adjusting the strike side of this attractive parlour clock, a Waterbury York, circa 1900. Despite many attempts the strike side refused to work. Though I was close to a solution but I did not realize it at the time. I put it aside to think about it.

Attempt #2. Will I be successful? Read on.

A shot of the clock the day I brought it home.

The time side functioned perfectly but the strike side did not run at all when I first brought the clock home. Typically a good cleaning or a simple lever adjustment is all that is required though once I opened the movement up I saw it true colours. I detailed these surprises in my December post.

Continue reading “Waterbury York parlour clock – a fresh approach to addressing a non-functioning strike side” →

Dry home and clock case issues

Winter, along with the dry conditions of a typical Canadian home, can play havoc with wooden clock cases. In Canada we generally shut the doors and windows to keep the cold air out from mid November to mid March and we may stay inside for days at a time. During our Canadian winter we have difficulty controlling indoor humidity. Most modern homes have a commercial style air-exchanger that is designed to control relative humidity but it can only do so much.

I have dozens of clocks and most do not seem to mind the changes in humidity from season to season other than a rate adjustment. Those vintage clocks that are adversely affected tend to be clocks with thin veneers that separate from the frames of the cases. Less affected are Ogee clocks with thicker veneers.

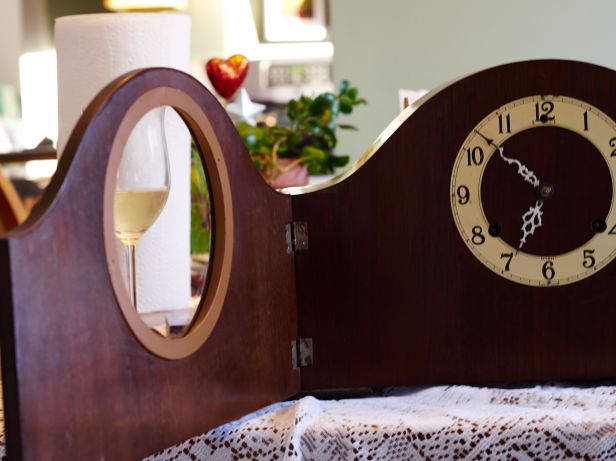

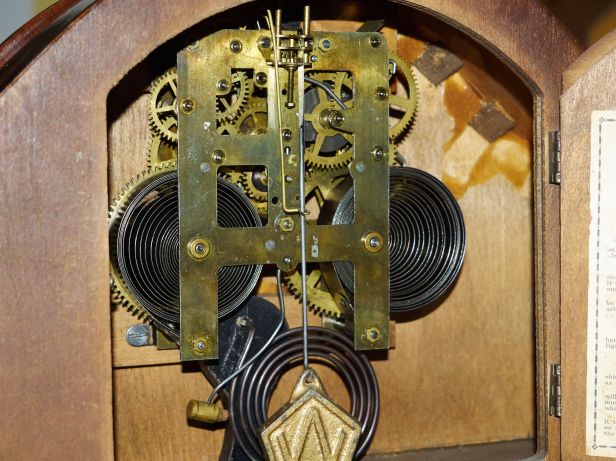

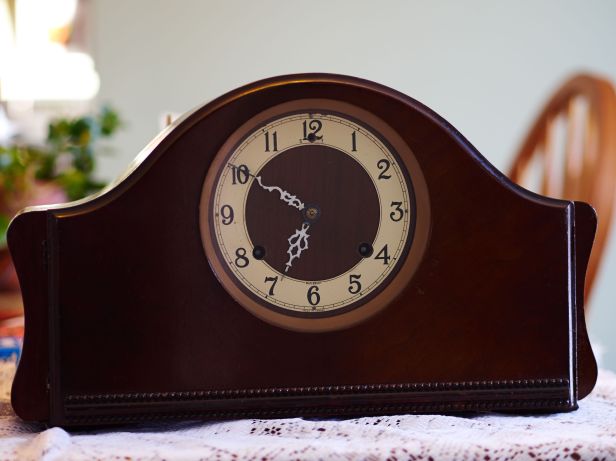

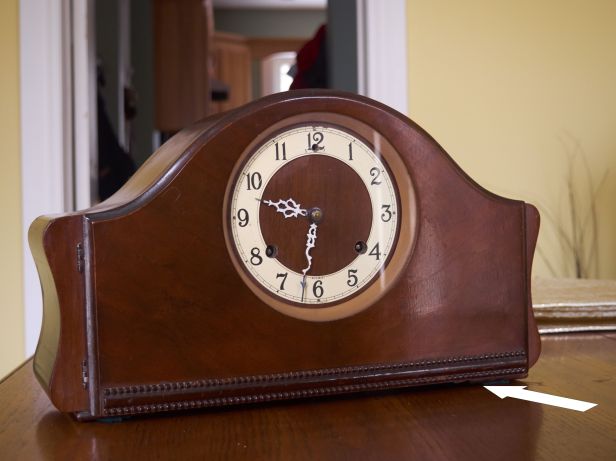

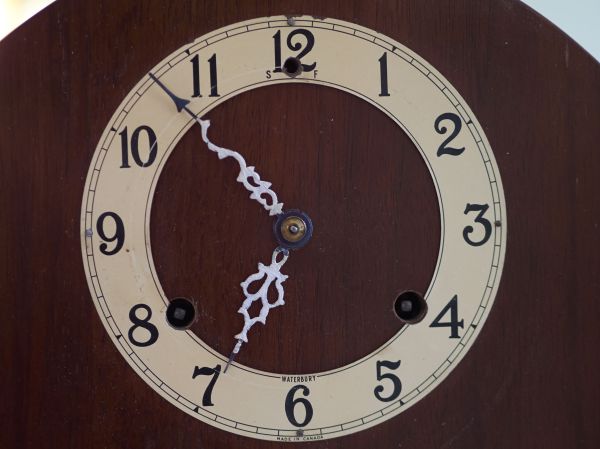

My Ingersoll-Waterbury time and strike clock from the mid 1940s is a 70 year old clock and not a particularly valuable one to begin with but has been affected with peeling veneer. The peeling veneer is unsightly and must be addressed.

I am not opposed to using modern materials to repair a vintage clock and in this case yellow carpenters glue was used to close the gaps on both the left and right rear of the case. Yellow carpenters glue has a bonding strength of 3 tons and for maximum effect is should be clamped for 24 hours.

Split veneer on left side, rear

Both sides of the case were splitting open. The right was slightly worse than the left. Although I have several clamps I only had one to spare for this little project so, the job was spread over a few days.

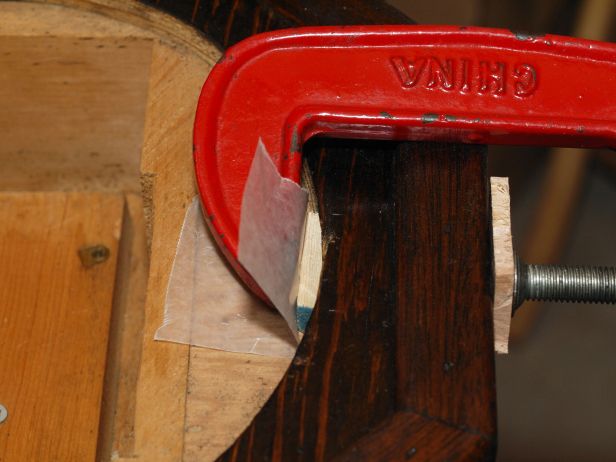

Right side is clamped

Wax paper is placed between the clamp and the veneer to prevent the glue from adhering to the clamp itself.

Once the glue has bonded, the case is lightly sanded in the affected areas, the remaining cracks treated with wood filler and touched up with a dark stain.

Stain-able filler in the small cracks that remain

Two coats of shellac are then applied.

Not perfect but an improvement.

Clocks and museums

I am not fanatical about humidity as far as my collection is concerned but museums go to great lengths to control humidity. In museums temperature and humidity are interrelated, and must be monitored and controlled in conjunction with one another towards the goal of preservation. Room temperature is usually established according to the needs of visitors, and is set between 18 and 20°C. The relative humidity for the correct conservation of the works displayed usually lie in the limited range between 45 and 50%.

Clocks react to humidity differently. Clocks with wood pendulum rods need seasonal adjusting as the wood contracts and expands with changes in humidity. Wall clocks that have tight doors in the summer are easier to open in the winter as wood contracts.

High humidity can be mitigated through the use of humidifiers if there is sufficient concern about dry air and its effect on clock cases. It is a good option in the winter months.

If you have a modest collection of clocks I would not worry about humidity issues but you can be assured that seasonal changes can have an affect on your clocks.

30-hour clocks – four for your consideration

These three 30 hour clocks in the opening photo were serviced in the fall of 2018. The fourth (shown next) is a Waterbury Ogee from about 1870.

It was never my intention to collect 30-hour clocks but I am attracted to this style of clock. Thousands were made, they are surprisingly cheap and come up often on online for-sale sites. Many have the cases that have suffered the ravages of time though these are in very good condition. However, buyers and collectors tend to stay away from 1-day clocks because of the hassle of winding them every day.

I marvel at the engineering and innovative technology of clocks made over 150 years ago and how popular these clocks were in their day.

Waterbury OG clock
Waterbury 30-hour Ogee clock

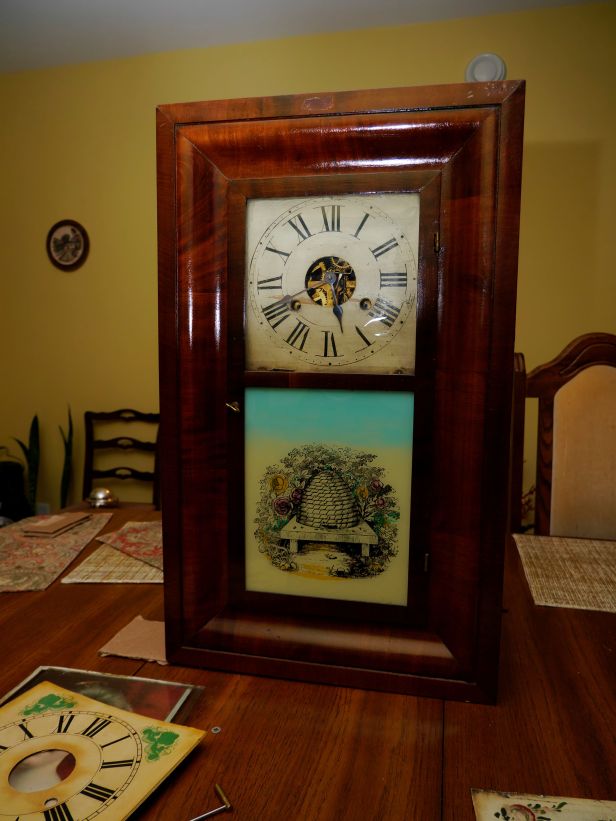

On the left in the opening photo (and below) is a George H Clark, pre-1850. It features a Jerome-like movement and a wood dial.

George H. Clark 30 hour Ogee
George H. Clark 30 hour Ogee

30 hour movement servicing
All of the clocks on this page have similar movements to this Jerome

Touch-ups to nicks and scratches were all that were required to improve the look of the case but the movement required a good cleaning as well as a couple of bushings.

The middle clock (also seen below) is a Chauncey Jerome Ogee clock. The label dates the clock to about 1855-56 just prior to the company’s bankruptcy.

Chauncey Jerome 30 hoir Ogee clock
Chauncey Jerome 30 hour Ogee clock

Eight bushings were installed on this clock. Some of these clocks need a lot of work while others require a good cleaning.

On the far right (and blow) is a Sperry and Shaw 30 hour New York style 4 column shelf clock. The movement was disassembled and cleaned but did not require bushing work. The case was also freshened up.

Sperry & Shaw 4 column clock
Sperry & Shaw 4 column clock with a Canada Clock Co 30-hour steeple to the right

I am fascinated with 30 hour clocks. Yes, they require winding every day but I enjoy it and it has become one of my daily rituals. The sound of the gong is not particularly pretty but it is distinctive. You always know when an Ogee clock is striking in a house.

What other mechanical devices keep running after 150+ years?

Lessons learned restoring grandfather’s old clock

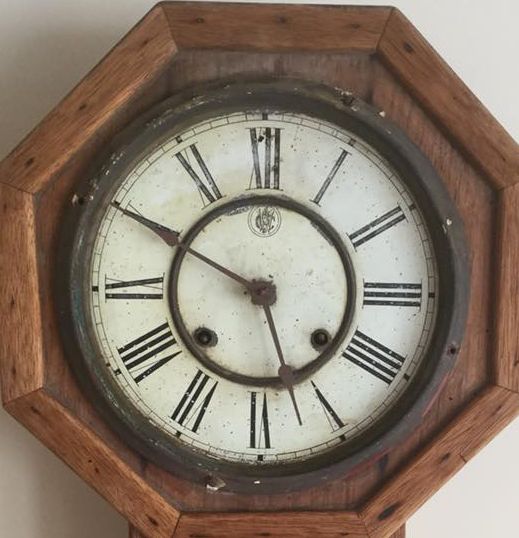

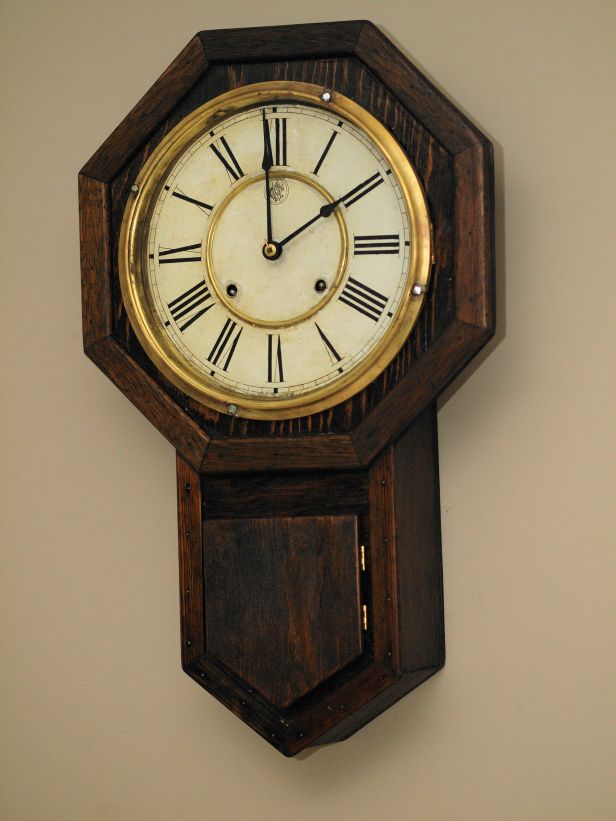

Photo of Waterbury time and strike wall clock sent to me by my cousin

I’ve thought about this clock, dreamt about it, wondered where it was all these years……and now I have it. I was confident that I could do something with this clock since I had just finished a major restoration project.

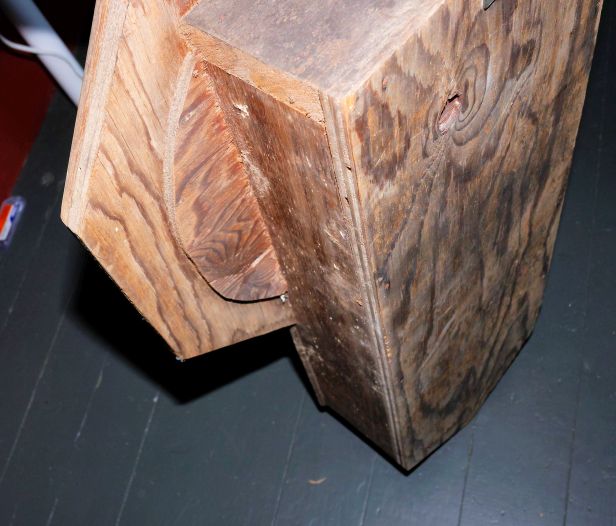

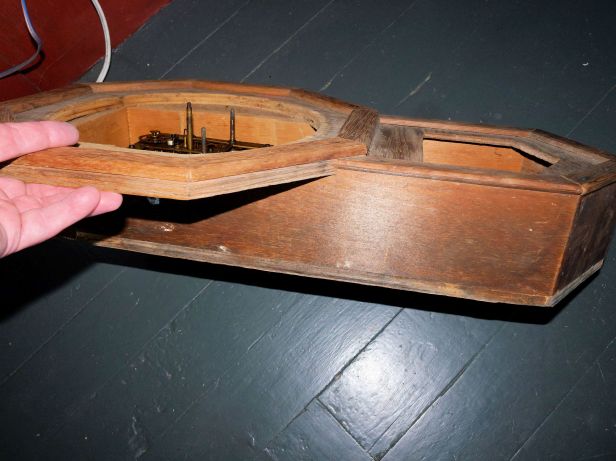

I had no idea that the clock I was getting was a movement in a homemade case

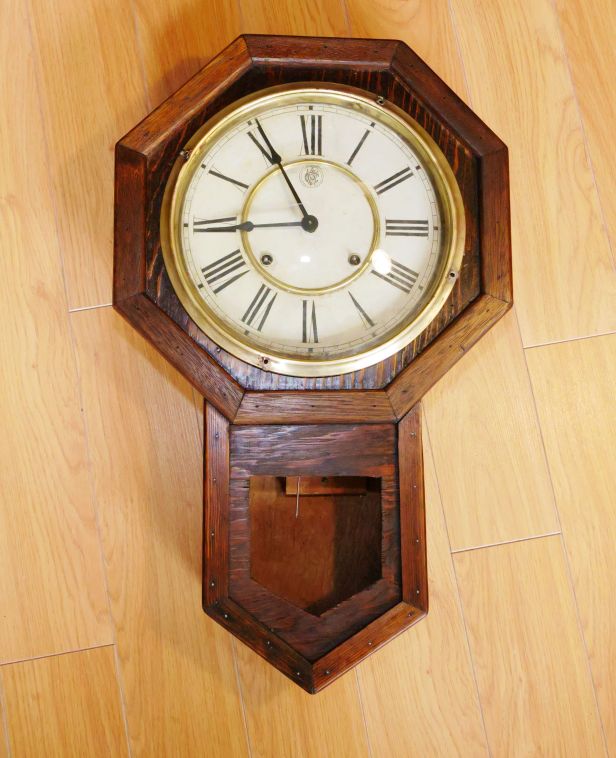

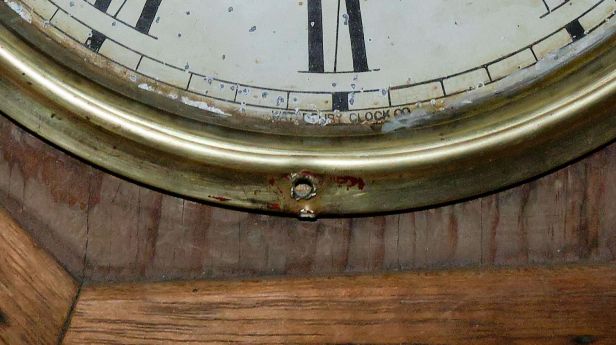

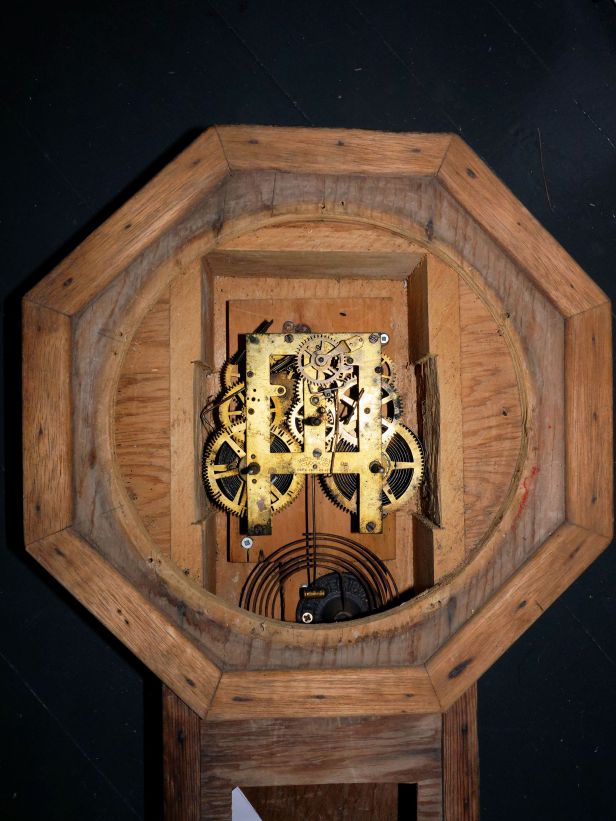

I have a vivid memory of this Waterbury octagon short drop time and strike schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. After church on Sundays, my father would take (drag?) us kids for a visit; it was a weekly ritual. The house was stone quiet except for the sound of a clock ticking loudly in the kitchen. My grandfather was a veteran of WWI and was bothered by noises, shell shock they called it, but he did not seem to mind the rhythmic sound of a mechanical clock.

When I was a kid in the 1950s it looked impressive.

So, I jumped on this project and have learned a few things along the way.

The following are lessons learned restoring grandfather’s old clock.

When it comes to family, lower your expectations

I made some inquiries within the family and when I first saw a photo of grandfather’s old kitchen clock and discovered that the case was homemade I was very disappointed. I had no idea that the clock I was getting was a movement in a homemade case. The original case, long gone is but a family mystery. Nevertheless, my cousin said, “You can have it”.  I wondered what I would do with it. I explored several options but at the end of the day I wanted a working clock no matter which direction I took.

Work with what you have rather than dream of significant changes

I could have radically altered the appearance of the clock completely but would it be the same? It is a philosophical dilemma. If too much is done to restore a clock it is not fundamentally the same and cannot be considered original. The homemade case is crude and made some 30-40 years ago but it is part of the clocks history. The chicken pecks on the clock face tell the story of a clock that likely sat in a barn for many years.

Envision what the final outcome should be before you begin and resolutely stick to your plan

Should I restore the clock or preserve what I have? It was an interesting dilemma.

My options:

  1. Do absolutely nothing.
  2. Take the movement out, find an appropriate period donor case or
  3. Make some minor changes but preserve the provenance

I chose #3 for several reasons:

  • To preserve the bygone times of a clock passed on through the family, despite its many warts
  • Labour aside, it was cost effective; my entire monetary outlay was less than $50
  • Ignoring aesthetics, the case was crude, heavy but very sturdy and should last forever

Be content that the clock tells a story no matter how ugly or homely it might look

It may not be the prettiest clock on the wall but it will be a great conversation piece and after 70 years (??) it is finally functional. I can only imagine my grandfather standing under the clock, comparing the time with his pocket watch and deciding if he should make just one small adjustment.

Retouched dial face

Changes I made

  • Sanded, stained and shellacked the case

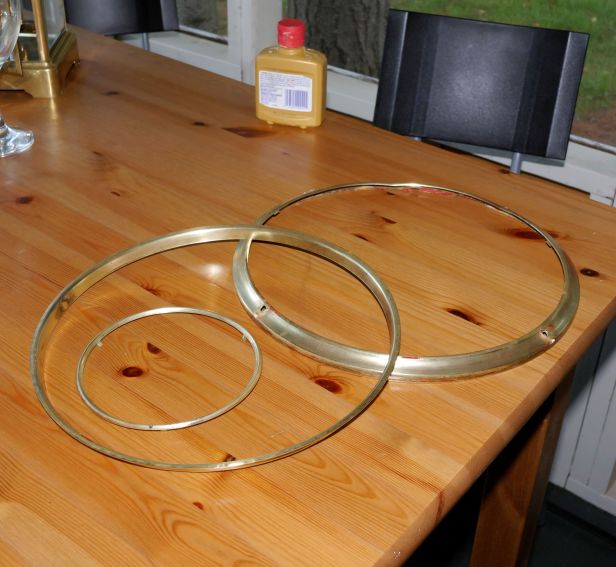

  • Brass bezel was separated from the dial bezel (don’t ask me why the two were screwed together), new bezel hinge installed, and door catch
  • New convex glass dial installed
  • Brass was cleaned and polished
  • New clock hands
  • New pendulum, pendulum rod, verge and crutch
  • Movement completely serviced, several bushings installed
  • New hinged access door made from century old clock case wood

After servicing, a fully functional Waterbury time and strike movement

What I did not change

  • The overall “character” of the clock
  • The holes in the brass bezel were left as-is; it is what it is
  • Dial is original though touched up in some areas; I considered a new paper dial but decided to retain the original and came very close to matching the colour of the dial face
  • The case is made of thick plywood; it is utilitarian, very solid and will likely outlast the movement

Yes, it is ugly but it works and it tells a story

Final thoughts

I am actually very pleased with the outcome. The changes manage to preserve the provenance but not enough to radically alter the look of the clock such that it is. It is now worthy of being placed on a wall and it will certainly occupy a prominent spot in my home, plus, it tells a fascinating story.

Here is the story told by yours truly.

Antique and vintage wall clock collection

one-weight Vienna wall clock

It has taken me 6 years to assemble my collection of antique and vintage clocks. Although I have many clocks, wall clocks are my particular favorites. Check out my collection of antique and vintage wall clocks in this YouTube video I made in January 2019.

Feel free to comment.

Grandfathers clock – the drop door, the movement and other things – Part IV

This is the fourth and final article on this curious and somewhat homely Waterbury time and strike schoolhouse clock. I have a vivid memory of this Waterbury octagon short drop schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. Now that I have it what do I do with it.

It is a clock that had been passed down within the family and as you can see it went through a significant change. I thought about next steps and considered advice from friends and family. It came down to three options:

1) Do absolutely nothing, preserve it as-is and store it in a closet,

2) Discard the case out, buy a donor case and install the parts I have in the new case or,

3) Preserve it, that is, not change it in a significant way but make some cosmetic changes and have it run reliably.

The drop door, movement and other things

The next photo shows the clock after the glass bezel was installed, the dial face was refreshed and the case was given a coat of dark walnut stain (the number “IIII” has a reflection from an overhead light). You can still see the plywood and the nail heads but my objective was to clean it up, refresh and preserve the character of the homemade case.

Dark walnut stain, dial re-freshened and glass installed

The access drop door:

The clock requires an access door on the short drop, the opening is unsightly. As you can see in the photo above the cut-out is rough and a door will effectively hide it. Making a n access door is a simple project and will enhance the appearance of the case.

I have an old Ogee clock case that I use for any wooden parts required for clock projects. I cut a 1/4 inch piece and fashioned the door panel using a paper template for the dimensions. There are two panels which make up an inner and outer door sections.

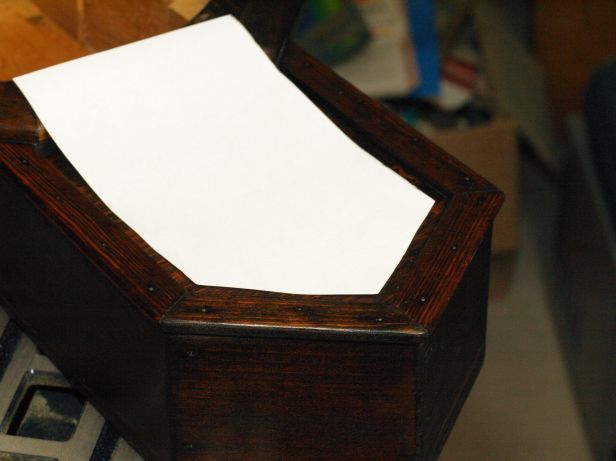

First, I used paper as a template to draw the new door.

The template is a sheet of paper

I cut the inner and outer door panels using a table saw and sanded all sides.

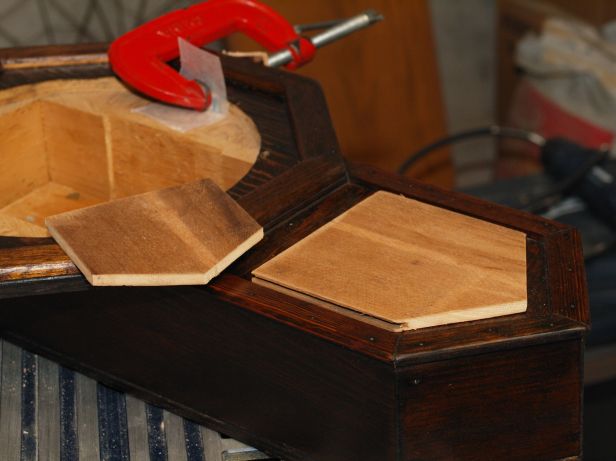

Inner and outer door, cut and sanded

Next, using masking tape I taped one piece to the other. I positioned my hand in the drop area so the inner piece would be aligned correctly with the door panel.

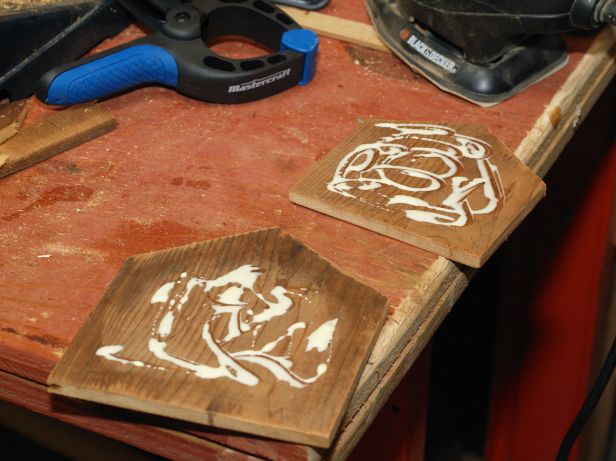

Glue applied to both panels

Once the panels were aligned I removed the masking tape, gave the panels a final sanding, then applied yellow carpenters glue to both panels. Hide glue would have been used originally but the goal for this little project is to hide the crude cutout, not to replicate woodworking methods at the time it was constructed. Yellow glue is appropriate for this project; it is stronger and has a high bonding strength.

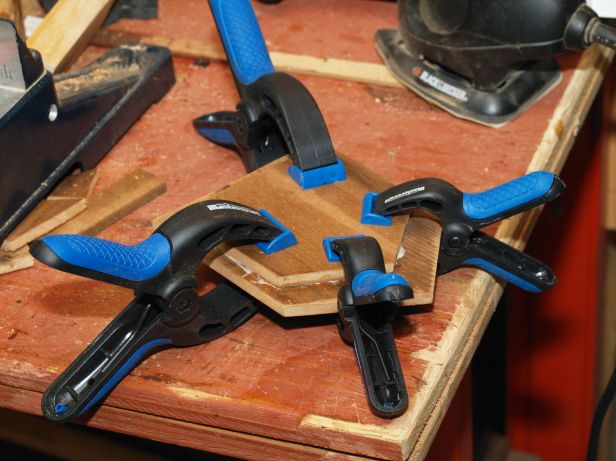

The two panels are clamped together.

Next, a dark walnut stain was applied to the door panel to match the case. Installing the door to the case required two small brass hinges mounted on the right side. For the pull handle, I decided to go with a wood knob stained in dark walnut.

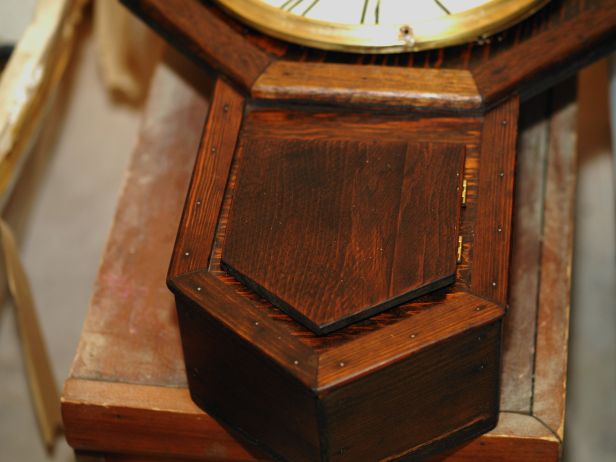

Drop installed and stained to match case

Final steps:

A small piece of wood was affixed to the inside of the dial cutout to ensure that the hinge screws had something to bite into. Following this, the glass bezel door was attached.

Block on left is glued in place to screw the door hinge to the case

Next are dummy slotted wood screws for the bezel holes, basically to conceal the holes.

The drilled holes in the bezel are unsightly

The door project is almost complete, door pull missing in photo

Having sorted out the striking issue the movement is now installed in the case.

My thoughts on this project:

Prior to the first pictures I saw, I had visions of a clock that needed a little work to restore it. When I discovered that the case was homemade it was a disappointment. After giving it much thought it seemed that the most appropriate course of action was to preserve what I had.

Overall the cost of bringing this clock back to running condition and refreshing the case was minimal. Was it worth it? Yes! It is now complete, it shows better and it will tell an interesting story for years to come.

It may not be the prettiest clock on the wall but it will be a great conversation piece and after 60 years it is functional and it will finally tell the time. I can only imagine my grandfather standing under the clock, comparing the time with his pocket watch and deciding if he should make just one small adjustment.

Grandfathers old clock – Preserve a memory or restore it – Part III

This is Part III of a 4-part series. I have a vivid memory of this Waterbury octagon short drop schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. Now that I have it what do I do with it.

I have devoted two previous articles to this curious and somewhat homely Waterbury time and strike schoolhouse clock. It is a clock that had been passed down within the family and it has had a hard life. Along the way it has undergone some changes, not all of them pretty. I thought about the next steps for this clock and considered advice from friends and family. It came down to three options:

1) Do absolutely nothing, preserve it as-is and store it in a closet,

2) Discard the case out, buy a donor case and install the parts I have in the new case or,

3) Preserve it, that is, not change it in a significant way but make some cosmetic changes and have it run reliably.

Option three it is.

At one time the original case was painted yellow with red trim. which is probably why it was discarded

Restoration or preservation? The restoration process consists of performing clock repair procedures on the movement as well as cosmetically restoring the dial, the case and its wooden and metal components using period procedures. Proper restorations do not change the clock’s functionality, appearance or value. Restoration of a valued clock is a serious business as many owners are emotionally attached to a clock for various reasons.

In this situation the movement can be restored and the other hardware cleaned up, however, the case is not original and was likely made 40, or 50 years ago which is why this project is part restoration and part preservation. Servicing the movement, putting the clock in running condition and making some cosmetic changes is my objective for this project.

This is what the clock looked like when I first received it.

First photo of the clock sent by my cousin

It has a homemade plywood case though it has all the essential mechanical parts. There is no dial glass. The brass bezel would have been hinged and perhaps the hinge broke and was discarded. The bezel was then screwed into the plywood.

The first step is the movement. The parts arrived from Perrin and I went to work on the movement. The movement is a Waterbury time and strike with a patent date of Sept 22, 1874. It was dirty as expected and there was some rust but it cleaned up nicely.

Before

And after servicing

The movement required 5 bushings at T2F, T2R, S2F, S2R, and S3F. As always it takes me more than one try to get the strike side functioning correctly. During testing I noticed that the strike side was sluggish. A tight bushing, bent pivot, insufficient end shake? I will know when I take it apart and take a second look.

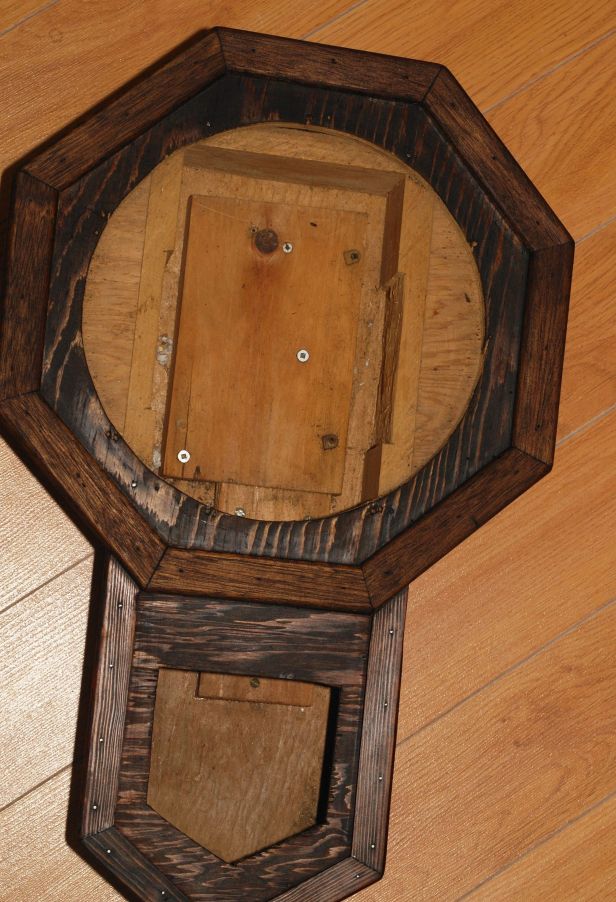

Walnut stain and clear coat, hiding the plywood and nail heads, for the most part

I gave the case a thorough cleaning, then a sanding and applied one coat of dark walnut stain followed by three coats of shellac. A dark Walnut stain is the optimal way to hide the plywood and the nail heads. It does not hide the plywood completely but the intent for this project is to refresh the case rather than conceal imperfections.

At one time the original case was painted yellow with red trim, my grandfather’s idea of matching the clock to the paint and trim in his kitchen. The original case was likely in such poor condition that it was thrown away.

Next, the brass. It was painted red at one time so it took a little Brasso muscle to remove a combination of red paint and tarnish.

The brass was quite black

The result looks good

The dial was a challenge. Cleaning up the pit marks and faded numbers was my key objective. The nicks are chicken pecks while stored in a barn. Again, I was not interested in replacing it but touching up the nicks and rust spots while preserving the character of the dial. I have a supply of acrylic metal paint and it is a matter of mixing the right colours to determine the closet match.

The numbers were painted with flat black acrylic metal paint. The dial touch-ups would fool most people at a distance. I removed the rust from the hands and gave them two coats of flat black paint. The coil gong base was cleaned and also painted black.

Colour matching to hide paint loss

I ordered 10 1/4inch convex glass for the bezel plus a door hinge. The hinge was soldered into place as were brass tabs to hold the glass. Although the hinge is not affixed in this photo, this is what the door complete with dial glass looks like. There is not much I can do about the screw holes on the bezel; it remains part of its provenance. I may cut the heads of some brass slotted screws and solder them to the holes or simply leave the holes as-is.

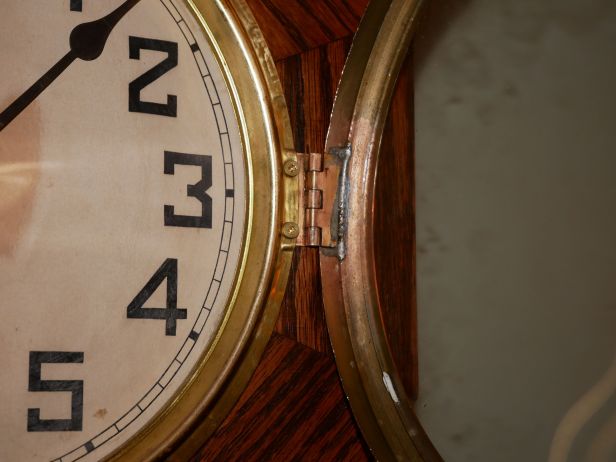

Glass installed in bezel. Hinge installed but not fit to case in this shot

The clock requires an access door on the short drop, the opening is unsightly. As you can see in the photo above the cut-out is rough and a door will effectively hide it. I plan to make a solid door much like the one on this New Haven schoolhouse clock.

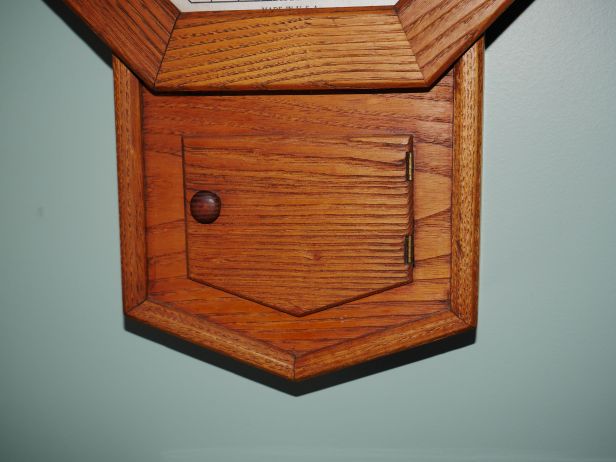

Drop door on a New Haven schoolhouse clock

It may not not be the prettiest clock in my home but it will be a great conversation piece and after 60 years it will finally tell the time. I can only imagine my grandfather standing under the clock, comparing the time with his pocket watch and deciding if he should make just one small adjustment.

Next is new drop access door and final assembly which I will detail in the next and last post for this project, Part IV in 4 days.

What to do with this old clock was a difficult decision. What would you have done?

Waterbury, New Haven or EN Welch – A true Frankenstein clock

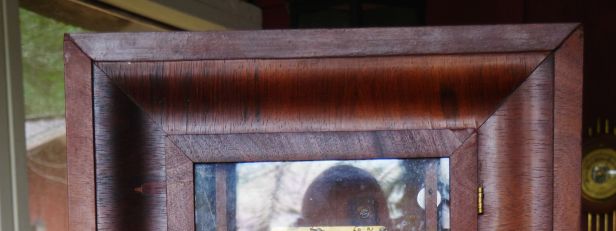

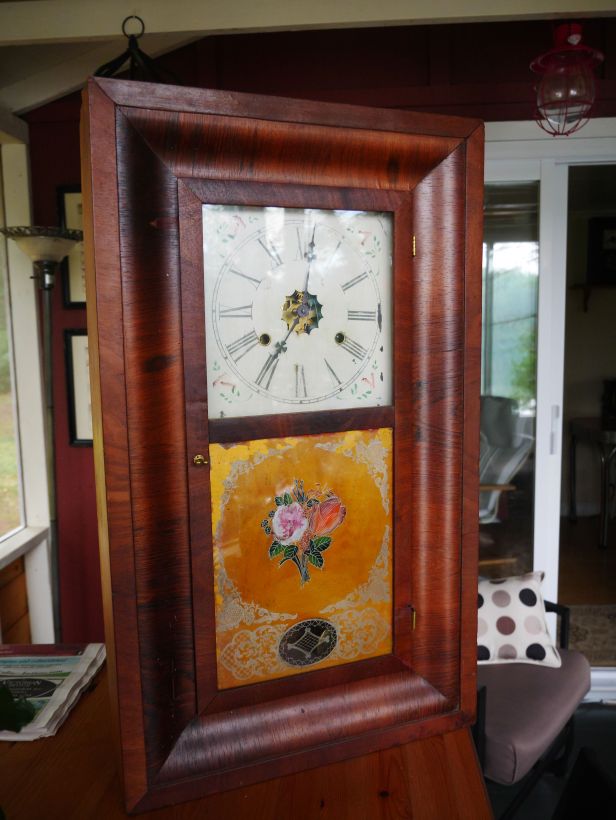

E N Welch case

Is this attractive 30 hour weight driven Ogee a Waterbury, a New Haven or an E.N. Welch? All of the above, actually and perhaps more.

The older the clock and the greater the number of owners means there is an increased chance that there have been minor and even significant changes to the clock

Is it a marriage or a Frankenstein?

When horologists speak of a marriage they mean the clock in its entirety is not original. It generally means the movement is not original to the case but it can have other meanings as well. Various parts and components might have been added or changed over time. Over the life of a clock it has often been in the hands of many owners particularly if the clock is well over 100 years old. The older the clock and the greater the number of owners means there is an increased chance that there have been minor and even significant changes. Each owner may add or take away components in the interest of having a reliable clock while sacrificing authenticity. Functionality trumps aesthetics. When a clock goes well beyond the horologists definition of a marriage, it is called a Frankenstein.

A Frankenstein clock is made up of a mixture of clock parts from many makers. In this case, a previous owner acquired a number of non-working Ogee clocks, took what was salvageable from each one and constructed a working clock.

New Haven 30 hour movement

This clock was purchased at auction as a non-running example and cost the owner very little money. I was asked to take a look at it and perhaps “do something to make it run”. It came complete with weights for both sides missing only the pendulum bob and the correct key. The key that came with it was a #3 mantel clock key as the original would have been a crank style key. One weight was stuck in the right channel past its hook; the other was loose in the case; not a good way to transport a clock. Though difficult to tell if they are original to this clock, the weights are those typically found in a 30-hour brass time and strike movement.

The numbers have been repainted by the writer

The dial is not original to the case though it is correct for the period. There is a stamped impression in French on the back of the dial suggesting that the clock it was attached to was intended for export to France (Chauncey Jerome?).

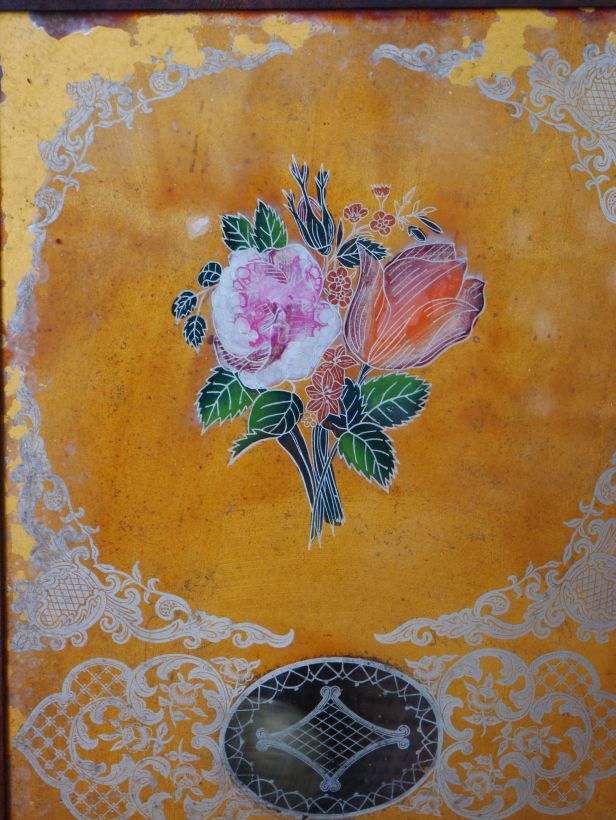

Tablet design

The tablet is a nicely detailed floral design but has some loss as one would expect given its age. However, the tablet and the door do not appear to be original to the case. There are small blocks under each hinge suggesting the door was “made to fit” this case. Nails are used on one hinge and screws on the other.

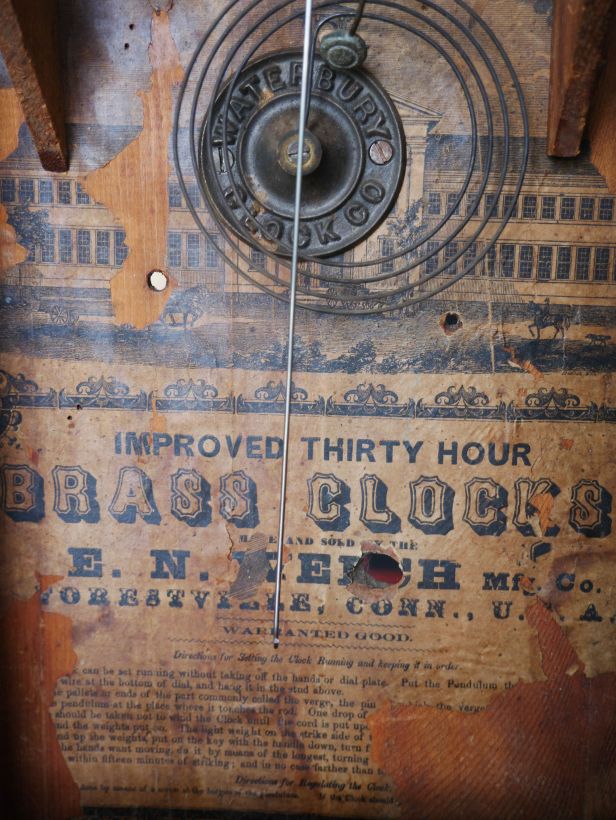

Waterbury coil gong

The case is an E.N. Welch, the time and strike weight driven movement is New Haven and the coil gong is a Waterbury.

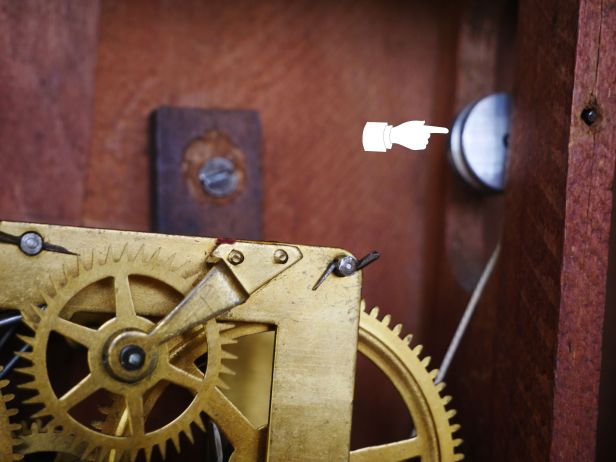

The aluminum spindle for the cable just above the movement on the right side is an curious touch.

Aluminum spindle

A wall hook at the top and back of the case suggests that it was hung rather than having sat on a shelf. Knowledgeable Ogee clock owners know that these clocks were never meant to be hung though many were displayed in that manner.

I took the movement out of the case, inspected it for wear and found it to be in very good condition with no obvious pivot, tooth, pinion or click wear. The verge and escape wheel similarly had little wear. The cables for the weights should be just long enough to bring the weight to the bottom of the case with a little to spare. On both sides the cables were twice as long as they should have been. The suspension spring and rod which is a later replacement, is too long as the bottom of the spring touches the crutch loop. The crutch loop had been incorrectly turned 90 degrees requiring a simple twist with pliers to correct it. How it ran is a puzzle since there was no impulse transmitted from the crutch to the pendulum rod. A previous owner, though well intentioned had little knowledge of how a movement functioned.

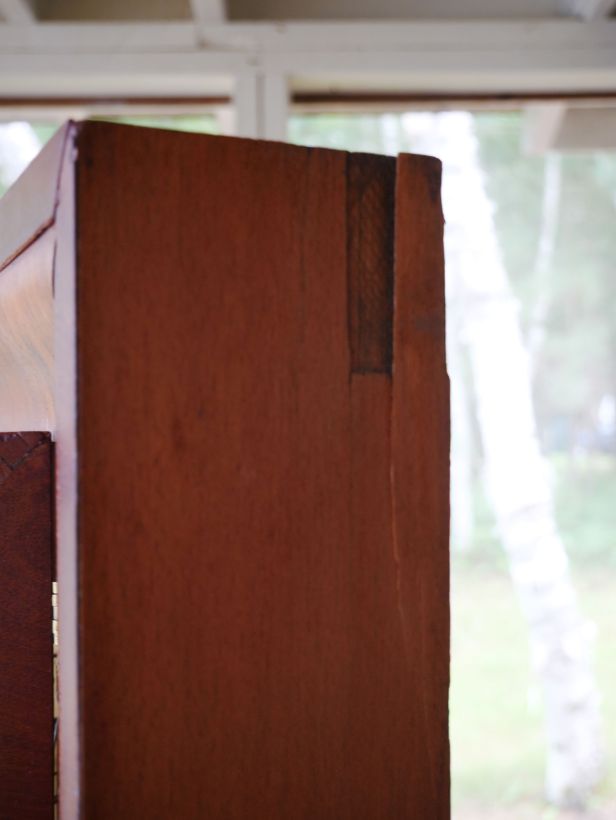

Incorrect grain direction on top piece

The rosewood veneer though dulled with age is in fair shape and had acceptable repairs with the exception of the flat horizontal strip on the top front, which upon closer inspection, is a replacement with simulated grain oriented in the wrong direction. Other issues are minor chips on the bottom edge of the case, two pieces of missing veneer on the right side and slight bubbling of veneer on the top left side panel.

Veneer issues

So, what is this clock exactly?

The answer is that it is a 30 hour Ogee clock. It is also an amalgam of many clock parts, a Frankenstein. From afar the entire clock looks very good, but closer examination immediately reveals it many sins. As they say, “Nice from afar but far from nice!”. A resourceful person took all the good parts from a variety of clocks and combined them to make a clock that actually runs and keeps good time.

Is it a keeper?

For discerning clock collectors this example is far from acceptable and certainly diminishes the value of a clock considerably even if it runs well. An expert looks for precisely these things prior to any decision and any serious collector of Ogee clocks would instantly walk away. For someone either interested in the history of clock production or those entering the world of clocks wanting a cheap clock to practice and learn with, it is certainly worth keeping.

The clock is running strongly and striking as it should following a cleaning and oiling. This 30 hour New Haven, Waterbury, E.N. Welch Ogee clock from the 19th century would fool most people.

It reminds me of that old expression….Caveat Emptor (Let the Buyer Beware)!

Grandfathers old clock – now what do I do with it? Part II



Photo sent to me by my cousin

I posted Part I of a four-part article on this curious schoolhouse clock recently. In this, Part II I discuss the what I like and what frustrates me about this project.

I have a vivid memory of this Waterbury octagon short drop schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. Now that I have it what do I do with it. I thought long and hard about what my next steps should be and considered advice from friends and family.

  1. Do absolutely nothing,
  2. Discard the case, buy a donor case and install the parts I have or,
  3. “Preserve” it, that is, not change it in a significant way but have a working clock.
I had hopes of restoring this clock to its former glory but after discovering a home-built case I have decided to proceed differently

The good stuff: The dial face is definitely showing its age. There is rust and pitting throughout but the Roman Numerals are fairly clear despite some fading. The Waterbury trademark is visible on the dial just above the centre arbour. The spade hands appear to be original, though rusted. The time and strike movement is intact sans suspension spring, pendulum rod and pendulum bob. There is a Waterbury trademark on the front plate of the movement with a patent date of September 22, 1874. Just how long Waterbury used this movement deserves some research but the clock works look to be from the 1890s. The coil gong is clearly marked Waterbury. The bottom line; there is strong evidence that the movement, dial, bezel, clock hands, and coil gong are all from the same clock.

When I picked up the clock I immediately discovered that it was twice as heavy as it should be

Plywood was not available as a general building material until 1928

The frustrating stuff: When I picked up the clock I immediately discovered just how heavy it was. Makers go to great lengths to make clocks as light as possible; this one is very hefty. The backboard and front face are constructed of ½ inch plywood. Plywood would not have been available in the 1890s or even some years afterwards. The centre frame appears to be 3/4 inch board. The movement sits high on a block of wood to bring the arbours closer to the dial but the result is that they protrude too far above the face. Robertson and Phillips screws (the former invented 1909, the latter in 1932) are used everywhere. The “newer” case is very sturdy and would likely last a long time but weighs twice as much as it should. It is an interesting homemade case.

Plywood construction, twice as heavy as a typical clock case should be

The handyman, be it my grandfather or someone who it was passed on to certainly had the best of intentions. The original pieces such as the dial, movement etc. were retained but the original case was discarded. My grandparents were poor and lived modestly. In those days if things wore out folks would go to great lengths to keep them running often resorting to home repairs with materials at hand. The goal was functionality not aesthetics.

The movement, coil gong, dial face, bezel and hands are all from the same clock

Four screw holes were drilled into the original brass dial bezel and at one point in its life it was painted red. The bezel would have been originally hinged to the front face of the clock. The dial glass is missing, perhaps discarded after it broke. Aside from the 4 screws holding the dial bezel, I counted 20 more screw holes once I lifted up the bezel.

Lastly, the short drop section is without an access door.

Next steps: I had hopes of restoring this clock to its former glory but after discovering a home-built case I have decided to take another course of action.

The dial, bezel, movement and coil gong are the important mechanical bits which are in good shape. Missing are the suspension spring, pendulum rod and pendulum bob, all easily available through any clock supplier. The movement wheels run free and the mainsprings are good; all the parts are there aside from those mentioned above and there is no reason why it should not run reliably after cleaning and servicing.

The clock is waiting for me on my cousins kitchen table

The case is what it is, it is part of my history, part of my family history. It will be sanded and stained dark walnut followed by a clear topcoat. I will affix a brass plaque in memory of my grandfather and proudly hang it on the wall.

But first: The first order of business is to clean up the clock including the brass dial face sections. Next, buy new glass for the dial and a hinge for the bezel plus the movement parts that are required. Finally, I will fashion a new drop door using old wood from a donor clock.

And that’s where it ends. It can be no more than what it is.

It may not be the prettiest clock in my home but it will be a great conversation piece and after 70 years it will finally tell the time. I can only imagine my grandfather standing under the clock, comparing the time with his pocket watch and deciding if he should make just one small adjustment.

The clock is now on my project bench and I will post two more blog articles in November detailing the steps towards preserving this interesting clock.

Grandfathers old clock – I asked for it, now what do I do? Part I



Photo of my grandfather’s clock sent to me by my cousin

I’ve thought about this clock, dreamt about it, wondering where it was all these years…….and now I have it. Now, what do I do?

I have a vivid memory of this Waterbury octagon short drop schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. After church on Sundays, my father would take us kids by for a visit; it was a weekly ritual. The house was stone quiet except for the sound of a clock ticking loudly in the kitchen. My grandfather was a veteran of WWI and was bothered by certain noises but did not mind the sound of a mechanical clock.

When I was a kid in the 1950s it looked gigantic and for some curious reason, it was painted yellow with red trim. What did I know, I thought old clocks came in all sorts of colours.

My grandfather, William George Joiner, taken during WWI

But he loved that clock. There is a story that my grandfather was fanatical about keeping the clock on time; he would constantly compare the time to his pocket watch and make adjustments, sometimes several times a day. They left the house on Olmstead Street in Eastview (now Vanier, Ontario, Canada) several years before his death and the clock was passed to a son (my uncle) and eventually handed down within his family. My grandfather passed away in 1962.

Movement is essentially intact except for the suspension spring, rod and pendulum.

A year ago I decided to track down the clock and learned that it had stayed within the family. My cousin sent a photo of the clock but upon examining it I could see that something was not quite right. It was missing parts, it looked pretty rough and that case looked homemade. At that time I replied,

Yes, it is indeed a Waterbury time and strike clock. Your description of it as a school clock is correct though it would not have been called a schoolhouse clock at the time. It would have been sold as an office clock. The patent date tells us that the clock was made after 1874 but likely manufactured in the 1890s to 1900.

In clock circles it would be described as a time and strike 8-day octagonal short drop wall clock, Roman Numeral dial face with spade hands. From the photo I can see that it is missing the pendulum (as you said) the hinged wooden drop access door which would have had a glass tablet and the brass/glass bezel which would have covered the dial. I assume these items are long gone.

It also appears to have been in a damp environment judging from the tarnished brass and the fact that the rust from the iron nails has bled through the wood. However, it is not unusual for a clock of this age to be in such a condition. I have seen far worse.

At a recent family get-together, my cousin said that if I wanted the clock I could have it. Yes, I said and I brought it home thinking about my next steps with my new clock project.

There are 4 posts in this series. Part II is in 4 days. In Part II I consider those next steps. Parts III and IV will be in November.

Let me know what you would do with this project.

Waterbury 30 hour Ogee clock – servicing Part II

Waterbury clock movement

Waterbury OG clock
30-hour Waterbury Ogee with a beautiful veneered case

This 30 hour Ogee clock was purchased in the fall of 2017. I was eager to add this clock to my collection as it is the one particular style of clock that I do not have. From my research on Waterbury clocks I determined that it was made in or around 1870.

I decided to turn the worn trundles inward and seal them with Permatex (medium strength thread-locker) so they are fixed rather than rolling; not ideal but reversible

While the case is in remarkable condition for the age of the clock the movement has suffered the ravages of time.

Simple 30 hour movement, top plate removed
Simple 30 hour movement, top plate removed

Testing over the course of a day or so revealed that clock would not run for more than a few minutes. The movement was taken out of its case and inspected to determine what needed to be done to get it to running condition.

I expected punch marks and there were a number. In the old days clock-makers would attempt to address pivot wear by closing the pivot holes with a stake or punch. Not ideal but a common practice. Bushing work was definitely required. The pivots, on the other hand, were in very good shape and polished up nicely.

Punching the bushing home
Punching the bushing home

My first task was to address the bushings. Ten bushings were installed, 5 on each plate. The front bushing work included the escape wheel bridge, always a challenging spot to bush. Next I addressed the other serious wear issue – the trundles on all of the lantern pinions.

Lantern pinions on the escape wheel
Lantern pinions on the escape wheel

The trundles on the lantern pinions were in bad shape as you can see in the photo above. The wear seen here was identical on all 4 lantern pinions. Notched trundles were not what I expected.

The trundle work was certainly the most interesting part of the repair. My experience with lantern pinion work is zero. After some research the method I selected was to hand drill through the top shroud to release the worn trundles.

Drilling through the shroud to release worn trundles
Drilling through the shroud to release worn trundles; I used a smaller bit than the one pictured here

After releasing the worn trundles I used 1.10mm pivot wire which is ideal for this purpose and matched the worn trundles precisely.

Test fitting of pivot wire before the wire is cut to proper length

I began with the fly. I drilled into the top shroud. I then cut 1.10mm pivot wire into the required lengths then rounded the ends with a cut-off disc on a  Dremel. After the fly was completed I addressed two more lantern pinions in the same way. I staked the shroud ends to seal the trundles inside.

With three done the escape wheel lantern pinion was next and that is when I ran into a snag. The escape wheel shroud is reversed (see photo below), so I cannot drill into the top shroud without a lot of guess work. Using needle nose pliers I decided to turn the worn trundles inward and seal them with Permatex (medium strength thread-locker) so they are fixed rather than rolling. This is not ideal but it is reversible.

There does not appear to be a definitive answer as to whether the trundles should be free-moving or fixed although I suppose they are designed to roll with the gear teeth. At some future point the trundles on this wheel will need to be replaced.

So, how do you get at those trundles?
So, how do you get at those trundles?

The clock did not come with a pendulum bob so, a new one was attached. The suspension spring and leader was replaced to address a crimped spring that resulted in a wobbling pendulum bob. I used .09mm suspension spring in the correct length. The clock now runs well and it has completed a number of 30-hour cycles.

I suspect that this will be a clock that will not be run daily, the inevitable hassle of constantly winding a 30 hour clock but I am pleased that it is back in running order and I will ensure that is runs on special occasions.

Waterbury 30 hour Ogee clock – servicing Part I

Trundle wear
My hope was that it would be a relatively straight forward exercise

This is Part 1 of servicing this 30 hour Waterbury time and strike movement. I honestly thought it would be relatively straight forward exercise. Dis-assemble, clean the parts, polish the pivots, do a little bushing work and voila! Not so.

I have worked on many clock movements but I have never seen quite the extent of wear that I found on this movement. 150 years certainly takes its toll.

Ogee clock showing replacement pendulum bob
Ogee clock showing replacement pendulum bob

Some time ago I profiled this Ogee clock. To reiterate, in 1839 the first prototype movement was produced for Chauncey Jerome by his brother Noble in Connecticut, USA. Jerome thought that a simple one-day clock could be produced far more cheaply than those with wooden movements at the time. Brass movements were more robust, could be transported easily and were unaffected by humidity. The simple case added to the movement was the Ogee named for its “S” shaped moldings. The success of the Ogee clock convinced other makers that there was money to be made in clock production.

This particular 30 hour time and strike Waterbury Ogee clock was produced at the height of Ogee clock production (1870s) and many thousands were sold. This is a very fine example. Absolutely nothing needs to be done to the case; it is in exceptional condition. The movement, well, that’s another story. This was not a working clock when I got it.

Waterbury clock movement
Waterbury clock movement

After disassembling the movement I discovered two things. One, there was evidence that it had been worked on before – as expected. There were punch and stake marks on the movement plates to close pivot holes and there was considerable wear in the lantern pinions.

Front plate has been removed

Four of the wheels have lantern pinions, with 5 trundles apiece. Trundles are the loose wires within the 2 shrouds. Dust and dirt as well as misalignment of wheel and pinion due to worn pivot holes can exacerbate the wear issue. The trundles on all 4 lantern pinions are very worn as you can see in the next two photos. I discovered why this clock does not run. When the gear teeth hits two worn trundles at precisely the right angle it locks the gear and stops the clock.

Worn trundles within lantern pinion
Worn trundles within lantern pinion

Another wheel with worn trundles within the lantern pinion
Another wheel with worn trundles within the lantern pinion

Professional clock-makers encounter these issues fairly regularly. Indeed, one of the most common operations in clock repair is replacing bent, broken or worn trundles. There are different methods of performing this service and the method I will employ is to drill into the shroud, extract the worn trundles, cut new ones out of pivot wire, insert them and re-knurl the shroud.

In the meantime bushing work was performed; 10 bushings were installed, 5 on the back plate and 5 on the front, including one on the escape wheel bridge. I re-assembled the movement knowing that the trundles had to be replaced, but despite new bushings the movement ran only marginally better.

Part II (Jan 2nd) details the procedure I followed to replace the trundles in the lantern pinions. Stay tuned.

Waterbury Ogee (OG) 30 hour weight driven clock and why they are so undervalued

Waterbury OG clock

Why are these clocks so cheap? Discounting the wild prices some seem to be asking on online for-sale sites, a good example can be had for almost nothing. Why? Allow me to explain.

This 30 hour time and strike Waterbury Ogee clock was discovered at an antique store an hour’s drive away. The store has a well-deserved reputation for pricing items for a quick sale and each time we visit there is always a new selection of interesting clocks as well as plenty of other fascinating antiques.

Ogee clock showing replacement pendulum bob
30-hour Ogee clock by Waterbury

Ogee clock, clock design that originated in the United States in the 1830s, distinguished by a case (usually pine) the front outer edges of which are curved into an S-shape (ogee). This shape is formed by the union of a convex and a concave line. A mass-produced variant of the shelf clock, the ogee clock stands about 30 inches (75 cm) high and is usually weight-driven. The movements were usually made of brass and were made to run for 30 hours or eight days. (Brittanica.com)

The Ogee clock – the beginning

In 1839 the first prototype movement was produced for Chauncey Jerome by his brother Noble in Connecticut, USA. Jerome thought that a simple one-day clock could be produced far more cheaply than those with wooden movements at the time. Brass movements were more robust, could be transported easily and were unaffected by humidity. The simple case added to the movement was the Ogee named for its “S” shaped moldings. The success of the Ogee clock convinced other makers that there was a lot of money to be made in clock production.

My new acquisition

The seller knew nothing about clocks and his only interest was to move the item. The proprietor said it was not working. Just as well, I bought the clock for almost nothing. In my opinion these clocks are terribly undervalued.

It came with a winding crank and both weights but no pendulum. A 2.2oz pendulum bob was later fitted to the movement.

The dimensions are 4 1/4 deep X 15 1/4 wide X 25 3/4 inches high. The clock strikes on the hour to conserve the weight drop. The coiled gong on the Waterbury stamped base is loud, and the striking is frantic.

The movement will run and stay in beat (relatively!) but stops after about 15 minutes. That is to be expected and a thorough servicing is in order. Stake and punch marks throughout the movement tell me that the movement has been worked on more than once.

Ogee clock label
Ogee clock label shown with a 2.7 oz pendulum, also testing with a 1.7 oz pendulum

The Rosewood veneer is in remarkably good condition though the outside four corners have been compromised. The label is in very good condition with two small pieces missing at the bottom edge and water staining on the right side. The painted zinc dial with Roman Numerals has some flaking and the numbers are somewhat faded but it otherwise looks very good for the age of the clock. Both spade hands and Ogee hands are on similar dials I have seen so I do not know if these are correct/original. The lower reverse painted tablet is silk screened, looks to be marred around the centre area and the entire scene has minor crackling but it is vivid and largely intact.

Veneer in excellent condition
Veneer in excellent condition


This is a Type 2.411 movement introduced by the Waterbury Clock Co. when Chauncey Jerome worked for them briefly in 1856-1857 after he went bankrupt. Found in Chauncey Jerome-labeled clocks with movement stamped, “C JEROME.” and also stamped “Waterbury Clock Co. CT” in later (1870) Waterbury clocks. This movement has the Waterbury stamp.

Waterbury clock movement
Waterbury clock movement

There is a Canadian connection to this movement. The Canada Clock Co. of Whitby, Ontario 1872-76 made 30 hour weight driven, time and strike movements based on an American design. Research indicates that the Collins Brothers (there were three: William, John, and Edward Collins) made a close copy of the OG movement used by the Waterbury Clock Company in Connecticut, a testament to the excellent design of this movement.

Ogee clock top showing cable pulleys
Ogee clock top showing cable pulleys

Why are these clocks so undervalued?

  • The economic collapse of 2008-09 prompted many to sell their clocks and glut the market.
  • The generation of folks who cherished these clocks are dying off.
  • The newer generation consider them irrelevant and are not interested in them.
  • 30 hour clocks are a tough sell because of the hassle of winding them daily.
  • Winding them daily means that most have considerable wear and the cost of repair exceeds the value of the clock
  • Lastly, many tens of thousands were made so they are not especially rare.

Ten years ago an Ogee in good condition would easily sell for $200 to $300. Today I see prices all over the map but none close to the prices they once commanded.

Expect a report on the servicing of this 30 hour Waterbury Ogee in the weeks to come.

Timezone clocks – keeping track of family across the country

Trio of clocks above computer



Trio of clocks
Trio of clocks

It this day and age it is very common to have family scattered to the four winds. What time is it is such and such? Why not create timezone clocks? I live in Canada and I have one daughter in Calgary, Alberta, one of our mid-western provinces and one in Victoria, BC, on the west coast of Canada. We keep in touch with Skype and telephone and as I am working on my computer in the kitchen area of my home all it takes is one glance upwards to see what time it is in Calgary or Victoria.

This is my trio of clocks. The two on either side are eight inch while the centre clock has a 12 inch dial. The centre clock is a New Haven time and strike from the 1930s taken out of a decommissioned school house in Saskatchewan in the 1950s. My aim is to have three 8 inch dial clocks. Once I find another 8 inch time-only clock the New Haven will be replaced.

New Haven time and strike clock
New Haven time and strike clock

Waterbury Arion drop octagon
Waterbury Arion drop octagon

I later painted three numerals

The clock on the left is a Waterbury Arion. It came to me without glazing and bezel but ordering a replacement was easy enough through a clock supplier, Perrin in Canada. While writing this blog I decided to touch-up the 7, 8, and 9 numerals. It is the quietest of the three clocks.

The one on the right is Sessions Drop Octagon. The dial face is in rough shape but I decided to leave it as-is. The clock came from a decommissioned schoolhouse in Springhill, Nova Scotia in the 1960s.

Sessions Drop Octagon
Sessions Drop Octagon

It is by far the noisiest of the three but you get used to the sound. All three will be time-only clocks, preferred if you are looking for the dedicated function of simply telling the time. Of the three my favorite is the Waterbury. Even with the “messed-up” dial face, it is the most accurate of the three and will run for 12-15 days on a single wind.

Keeping track of family all over the country is part of being a normal modern family and timezone clocks certainly help.







New Haven Short Drop Octagon – two curious features

New Haven access panel

I recently purchased a vintage Canadian made New Haven 8-day short drop octagon time and strike clock. It is in the familiar style of a schoolhouse clock.

The New Haven Clock Company lasted just over 100 years.

Sadly, The New Haven Clock Company lasted just over 100 years. Much of the history of the New Haven Clock Company comes from this informative site.

In 1853 the Haven Clock Company was founded in New Haven, Connecticut by Hiram Camp (1811‑1892) and other clock-makers. The company’s mission was to mass produce inexpensive brass clock movements for use in clocks. In April, 1856 The New Haven Clock Company buys out a competitor’s company, the Jerome Clock Company. They move their production to the former Jerome factory and New Haven begins making clocks under their own trademark. In 1870 some of New Haven’s clocks are marketed under the Jerome & Co. brand.

In 1885 the company stopped selling clocks other than their own New Haven brand. In 1890 the company developed serious financial problems and efforts were made to keep it solvent until 1897 at which time the company emerges from reorganization. In 1902 Walter Chauncey Camp (1859-1925) began to turn the company around. In 1923 Walter Camp steps down as head of the company and is succeeded by Edwin P. Root.

In 1929 Richard H. Whitehead replaces Root as president of the company but by this time New Haven is again facing financial difficulties which is compounded when the Great Depression hits in November, 1929. Whitehead is able to keep the company afloat during these troubled times and the firm becomes profitable once again. From 1943 to 1945 the company uses its manufacturing plant to aid in the war effort, producing products almost exclusively for military use. In March of 1946 The New Haven Clock and Watch Company becomes the new name of the firm after it reorganizes once again. It returns to what it did best before the War, once again making clocks and watches.

The 1946 reorganization eventually leaves the company vulnerable to foreign investors and it loses control to a consortium of Swiss watchmakers. The man who had successfully shepherded the company through the hard times of the Depression years, resigns as president. In 1956 the New Haven Clock and Watch Company files Chapter 10 bankruptcy in a U.S. court. Its fortunes have declined precipitously since Whitehead’s departure and it never recovers. In 1960 the company goes out of business and the production lines are closed. The facilities are sold through a combination of public auction and private negotiation in March of 1960.

The New Haven Clock Co. of Canada was established at Brantford, Ontario (Canada) in 1906. The New Haven Clock Company of Canada was a subsidiary of the New Haven Clock Company of America. Both mantel and wall clocks were made in the Brantford plant with Canadian wood cases, but the spring-driven pendulum movements were brought in from the U.S. The Canadian arm of the New Haven Clock Company closed in 1956.

This clock was made in the 1930s and taken out of a decommissioned one-room schoolhouse in 1963.

New Haven schoolhouse clock
New Haven schoolhouse clock

I am always fascinated by a clock’s history and I always ask a seller how much they know about it

I am always fascinated by a clock’s history and I always ask a seller how much they know about it. I believe a clock’s provenance is almost as important as the clock itself. The seller, a man in this seventies, related in great detail how he acquired the clock from the Lone Spruce School in Invermay Saskatchewan in 1963 when the municipality was selling off school assets. Saskatchewan is a western province of Canada. Invermay Sask is a village in the east-central region of Saskatchewan, Canada with a population of 247 in 2011. Invermay is about 75 km west of Canora or about 50 km east of Wadena on Highway 5.

New Haven clock instructions
New Haven clock instructions

Lone Spruce school was built between 1913 to 1915 on the west side of section 1 township 34 range 8 west of the second meridian, and it is noted by local historian Caroline McDonald, that the school was 1/2 mile north from each of the north and south corners of the section of land. Classes opened under Mr. Oliver, during World War 1. A new school was needed around 1950-1951, and the new school yard chosen was section 8 township 34 range 7 west of the second meridian, the old school yard having been two miles to the west of the new school. The old school house sat empty for 10 years and was removed in 1959-60. When the new school closed for classes, the Lone Spruce school house was re-located into Hazel Dell around 1959-1960 and decommissioned in 1963 at which time its assets were sold.

Why a school board would order time and strike clocks is an interesting question.

#331 appears on the inside access door. The number 331 was likely an inventory number that referred to one of a lot purchased by the municipality in the 1930s. Why a school board would order time and strike clocks is an interesting question. My other schoolhouse clocks are time-only. Why the access door is a solid sash rather than glazed is another curious question. The combination of the solid sash and time & strike movement must have hit a particular price point for the school board at that time. The teachers were likely instructed not to wind the strike side.

Time zone clocks
Time zone clocks

The New Haven clock is now one of three “time zone” clocks on our kitchen wall. I have a daughter in Victoria BC, and a daughter in Calgary, Alberta and at a glance I can see the time in those two regions of Canada. The New Haven clock is our local time; the Victoria clock is a Waterbury and the Calgary clock is a Sessions.

This clock is on my calendar for servicing which I will cover in an upcoming article.



Ingersoll Waterbury mantel clock servicing and a little mystery thrown in for good measure

OLYMPUS DIGITAL CAMERA
Ingersoll-Waterbury time and strike mantel clock

When I bought my Ingersoll-Waterbury clock a year ago I knew that it had not been serviced but the price was reasonable and it was running. I  got a lot of other projects out of the way and have finally gotten around to giving this clock a little care and attention.

Ingersoll-Waterbury clocks were sold in Canada; had Canadian made cases using American made Waterbury movements and were sold in department stores across Canada. This clock was distributed by the G. R. L’Esperance Co. from Montreal, Quebec. The label on the inside of the back access door says “Ingersoll-Waterbury Co. a division of Waterbury Clock Co.”. Ingersoll-Waterbury was the Canadian arm of the Waterbury Clock Co. Year of manufacture, I am estimating was somewhere between 1940-1944 when brass was in short supply.

The case is in very good shape though it was likely inexpensive to make. Some cost savings are evident in the use of a paper dial, flimsy clock hands and a plastic bezel with flat glass. However, I was impressed with the well designed and sturdily built movement and surprised that it did not take much to service this clock.

OLYMPUS DIGITAL CAMERA
The front of the case has a swinging door

One unique feature is a swinging door with plastic bezel and flat glazing attached to the case by two hinges that open up to reveal the clock face and hands.

OLYMPUS DIGITAL CAMERA
Brass bushing punched into a steel plate

The clock has a steel frame with a brass electro-plating as a rust inhibitor and brass bushings punched into drilled holes in the steel. Steel plates are not unusual as there were a number of manufacturers which used steel as a cost savings measure, for additional strength or because brass was in short supply. The plates were often plated with nickle as in the case of Arthur Pequegnat clocks or brass as in the case of this clock. One of the first things I noticed when I dis-assembled the clock were the number of punch marks adjacent to the bushings an example of which can be seen in the next photo. It must have been difficult to achieve a tight fit for the brass bushings; factory punching ensured that the bushings remained in place.

punch mark next to a bushing
punch mark next to a bushing

I have just completed the servicing. The clock required three new bushings. Punching new brass bushings into the factory bushings took a little more care and attention than usual as I did not want to loosen the existing bushings.

OLYMPUS DIGITAL CAMERA
8-day time and strike movement

Dis-assembly, cleaning, servicing the mainsprings, installing new bushings are no different than any other American movement. Re-assembly of the strike side requires the synchronizing of the strike side by aligning the levers and wheels correctly which usually takes several attempts for me.

The one real challenge I had was aligning the strike hammer so that it would actually strike the gong. I must have bent it when I took the clock apart. What was I thinking?  I could not see the solution so I put it aside until I came up with the fix. I ended up bending it back to its correct position.

While re-installing the movement into it’s case I noticed something strange on the bottom of the clock, a mysterious hatch. On the bottom right hand side of the clock (indicated by the arrow) there is a hatch that measures 2 3/8 inches by 2 3/8 inches. On it there is an inscription which reads

“FRONT, if you know what this hatch is for, you know more than I do” signed J.H.Ross May 24, 1967.

“Front” refers to the orientation of the hatch. What is it for? I posted this on the NAWCC discussion board site and so far no-one has come up with the answer.

Arrow showing where hatch is located
Arrow showing where hatch is located

Why would anyone put a hatch on the bottom of this mantel clock?

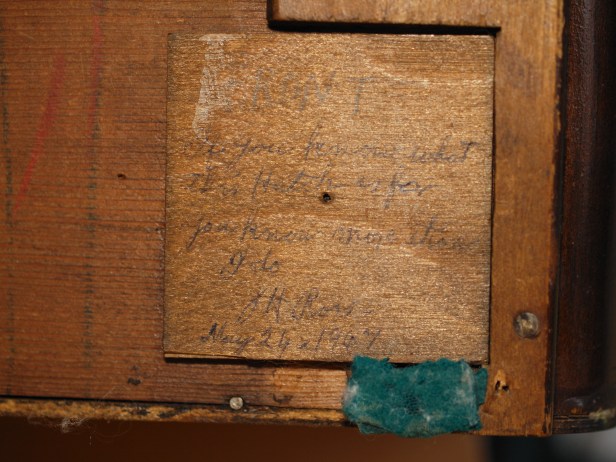

Where hatch is located
Where hatch is located

Was the hatch added later on? There is a lighter colouring of the wood to the left of the green felt which seems to indicate that a hole was cut out later to accommodate the hatch.

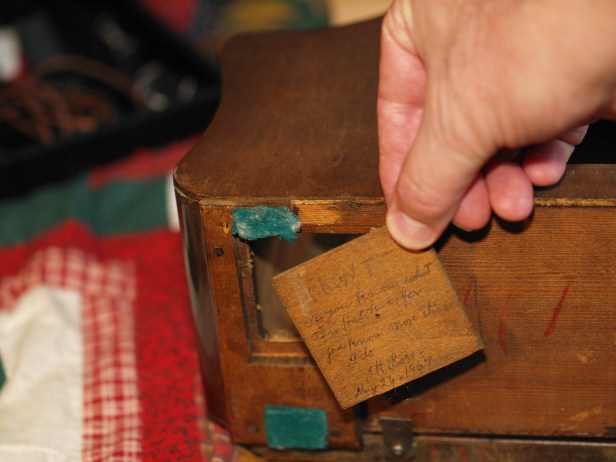

The hatch is open
The hatch is open

A clasp on the other side of the hatch secures it in place and allows it to be removed.

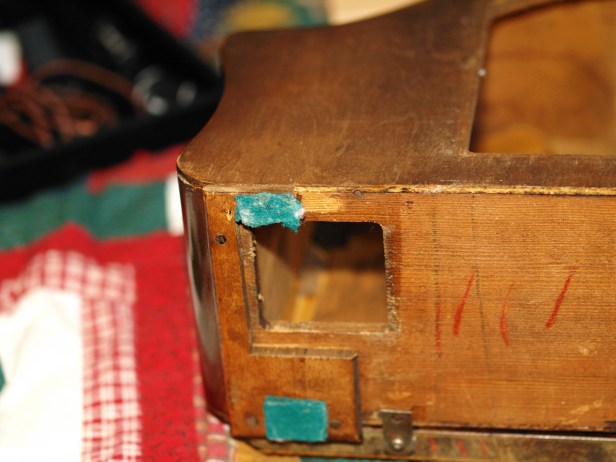

Bottom left side
Bottom left side

Was the trap door a chamber to hide items? Why, when it simply opens up into the case interior.

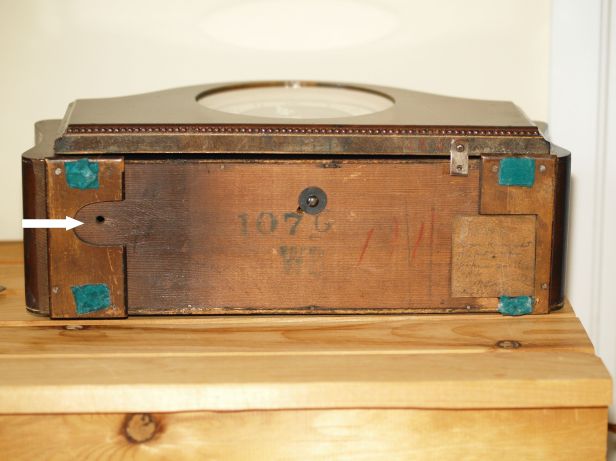

View of bottom of case
View of bottom of case

And there’s more! Here is a view of the entire bottom showing a second cutout (see arrow) on the left side. Why go through all this trouble?

The clock is all back together and in the process of being regulated but I sure would like to solve this mystery. It has taught me one thing, always look at the bottom of a case.

New glass and bezel for Waterbury Arion

I am not sure where you would have found a Waterbury Arion. It is really too small for a schoolhouse clock or an office clock unless it was a tiny office. Nevertheless, enough of them were made since they are fairly common.

rs_1080437
Waterbury Arion octagon short drop without glass and bezel surround

I bought this time-only clock from an older gentleman in Halifax, Nova Scotia.. When he advertised it on a local online for-sale site the photo was so poor that I did not notice that it was missing a bezel and glass so when I arrived at his home we negotiated a slightly lower price.

The oak cabinet is in very good condition as is the reverse painted glass sash. On the other hand, the paper dial is not in great shape but I have decided to leave well enough alone. I think it adds character to the clock. It is a strong runner and keeps very good time. Since it is only 19 inches tall it will fit just about anywhere in a home. A year has gone by and I like the clock so much that I felt it was worth putting on a glass dial and brass bezel.

I measured the clock face and ordered a new bezel and glass. Not having done this before, I thought the glass and bezel would come as one complete assembly or if not complete, a simple way of attaching the glass. What came were 4 brass clips, a hinge without screw holes, the brass bezel, convex glass sized to fit and a 1 1/2 inch long brass tab. Not what I expected!

rs-waterbury-octogon-short-drop-9
Original hinge prior to sanding and cleaning

I did not see the need to replace the original hinge as it is in very good condition. I learned that soldering will only hold if the parts to be soldered are cleaned/sanded beforehand and petroleum-based plumber’s flux paste is used, plus I chose to use a propane torch rather than a soldering iron to get as much heat to the parts as I could. Capillary action is required to make the solder flow so there must be sufficient heat.

Although I need more practice soldering I achieved a strong bond. At hand were Robertson screws to secure the hinge to the case which will be replaced with slotted screws at a later date.

rs-bezel-and-glass-on-a-waterbury-_4
New bezel installed with old hinge

Next was getting the glass into the bezel. Here is one of the clips that I soldered into place. There are 4 of them and each one was a minor frustration. If the solder bond is strong enough the clips can be safely bent and I was able to bend these with ease.

rs-bezel-and-glass-on-a-waterbury-_3
Bezel showing a clip soldered into place

The high heat of a torch will discolour the brass. Too much heat and the outside of the brass will also be discoloured. Must be beginners luck, the outside of the bezel is fine.

When pushing the tabs down to anchor the glass I put a small chip in the glass which is not otherwsie noticeable. I did not want to put an anchor slot in the left side of the bezel which is what the 1 1/2 inch tab is for so I decided to trim it and use it as a bottom support for the bezel assembly, just under the number “6”. Not ideal but very functional.

rs-2bezel-and-glass-on-a-waterbury-_1
You can just see the support tab under the 6

In the process I also cleaned up the brass around the dial pan to match the new bezel/glass surround. Despite minor frustrations and the need to stop and think as I went along the project is now complete and the clock looks much more better.

rs-bezel-and-glass-on-a-waterbury-_1
Completed bezel project.

A great little project and I learned more about soldering along the way.

Now to repaint the numerals.

What the term a “fully serviced” clock really means

Arthur Pequegnat kichen clock

Everybody appreciates a serviced clock when they are making a purchase. However, there is no acceptable definition for the term “Fully Serviced”. Fully serviced may mean one thing for the amateur clock collector and repairer and another to a professional clock repair shop.

Juba Schatz mantel clock
Juba Schatz mantel clock

The other day I was responding to a FaceBook post which offered a mantel clock for sale. The owner said that the clock, a 100+ year old antique, had been “fully serviced” so I asked him what he meant by that since I was curious. He said the clock was ultrasonically cleaned, the pivots were inspected, and the clock was oiled. He did not actually state that the clock was disassembled before cleaning but I assume that it was done properly although dunk and swish (or duncan swish) techniques are used more often that we realize. Dunk and swish involves immersing the entire unassembled movement into a cleaning solution and calling it “cleaned”. However, no reputable clock repair person (horologist) would employ this method. By using the term “fully serviced” the seller naturally expects to get several tens of dollars more for the clock.

No doubt who ever buys the clock will get a couple of years of service before it again needs attention. My concern is the state of the bushing holes and of course the pivots in a 100 year old clock and chances are it was not serviced properly in it’s past life.

I have disassembled and serviced a few clocks in my limited experience and my observation is that the older the clock the more the need for bushing and other repairs. My definition of servicing is this; disassemble and totally strip down, ultrasonically clean, springs unwound, inspected and oiled, pivots inspected and polished, pivot holes pegged and bushings installed / replaced if necessary, other parts inspected and addressed and the movement tested and regulated before re-installing in the case. My servicing also includes a case refresh. I serviced a 1920s Sessions Beveled No. 2 clock this spring (2016) that required 12 bushings.

Sessions Beveled No. 2 case
Sessions Beveled No. 2 time and strike in as-found condition

Fully serviced with case refresh
Fully serviced with case refresh

My Arthur Pequegnat Maple Leaf kitchen clock pictured here was professionally serviced in 2015 by a reputable clock shop and also required 12 bushings.

RS Pequegnat fan top (3)
Arthur Pequegnat kitchen clock in as-found condition

I am currently working on a 1940s Ingersoll Waterbury which was not too badly worn but still required 3 new bushings.

Ingersoll Waterbury clock
This American Ingersoll Waterbury clock, circa 1940, required 3 bushings,

If you poke around some of the clock for sale sites you will see a description that reads something like this, “all of our clocks are fully serviced and tested to ensure reliable running”. But if you bring up the profile on any one of the clocks offered for sale they generally do not describe how it was serviced and / or the actual service done on the clock.

I see plenty of antique and vintage clocks on the local online for-sale sites. Many have not been serviced as you would expect but some sellers claim that their clock has been fully serviced without providing any detail about what was actually done or whether it was a backyard tinkerer who did the servicing or a professional shop. The Juba Schatz mantel clock you see in the first photo might even be described as “serviced” but all I did was take the movement out of it’s case, inspect the pivots and other parts, oil the movement and return it to its case which took about 10 minutes.

“Fully serviced” to me means defining the term when selling a clock. A reputable for sale site should say something like this, ” has been fully serviced, having been totally stripped down, ultrasonically cleaned, reassembled, runs the full length of the wind and keeping excellent time, +/- 2 minutes per 7 day period”. A little more detail would be beneficial such as specific areas that needed to be addressed or particular repairs made if required but that is about as close as you will get and for those serious about a clock purchase it might be good enough.

Fully serviced means different things to different people. Always ask before you buy.

Ingersoll-Waterbury time and strike mantel clock

Centre canon repair

Ingersoll-Waterbury mantel clock
Ingersoll-Waterbury mantel clock

My next project is this vintage Ingersoll-Waterbury time and strike mantel clock. Ingersoll-Waterbury clocks were sold in Canada and had Canadian made cases using American made Waterbury movements. G.R. L’Esperance of Montreal were the sole distributors of Ingersoll-Waterbury clocks in Canada.

Waterbury has a long history going back to 1857. Like many American clock companies the Waterbury clock company had its boom periods (late 1800s) and its low period (1930s).  In 1942 a Norwegian company ended up buying the Ingersoll-Waterbury Company. They built a brand new factory in the nearby town of Middlebury, CT.  and in 1944 the company name was changed to United States Time Corporation; this clock was made prior to that year.

What makes this clock interesting is that it actually has a steel frame with a brass electro-plating. The plating was evidently used to stave off rust. It is very likely that this clock was made at some point through the war years (1941-44) when brass was in high demand hence the use of steel for the plates. To accommodate the pivots, brass bushings which were pressed into the steel pivot holes at the factory. My only other experience with steel plates is my Arthur Pequegnat Maple Leaf kitchen clock which has nickle-plated steel plates. The Maple Leaf by Arthur Pequegnat is shown in this next photo.

Arthur Pequegnat Maple Leaf kitchen clock
Arthur Pequegnat Maple Leaf kitchen clock with nickle-plated movement

Waterbury back plate
Waterbury back plate

As you can see the movement is quite dirty and will require a thorough cleaning which can only be accomplished by a complete dis-assembly. Once disassembled comes the inspection and servicing.

Centre canon repair
Centre canon repair

Punch mark adjacent to bushing
Punch mark adjacent to bushing

Reverse side of punched bushing
Reverse side of punched bushing showing oil cup

This clock has never been bushed. The punch marks found adjacent to three of the bushings were likely factory made to set the bushings in place. There is one tooth repair (fourth photo) on the centre canon gear which appears to be the only evidence of work performed on this clock after it left the factory and the only indication that this clock was ever serviced.

The case is in very good condition requiring only a cleaning and polishing. I may touch up the clock hands with a little white paint.

I have determined that only 5 bushings need to be “replaced”, so time to get started. I will report on my progress with this clock in an upcoming article.

Website Powered by WordPress.com.

Up ↑
