Hamburg Amerikanische Uhrenfabrik | Servicing an 8-day Countwheel Strike Movement – Part II

I am currently working on a mantel clock from the Hamburg American Clock Company. This is Part II in a two-part series. For Part I go here.

The Hamburg American Clock Company is otherwise known as Hamburg Amerikanische Uhrenfabrik or HAU and in many parts of the world, it is simply known as HAC.

HAC mantel clock circa 1926

In Part I, I described the steps taken so far which are disassembly, inspection, cleaning of the parts, and polishing of all pivots. The next steps are bushing work, reassembly, oiling (the mainsprings were oiled in a previous step), and finally, testing.

I believe this is the No. 36 movement by HAC.

HAC clock movement
HAC clock movement #36

The wheels that spin the fastest typically show the most bushing wear, but wear can also appear in other areas, such as the main wheels, which endure significant torque. For instance, I observed punch marks on the cap side of each mainspring barrel. While punching around any bushing hole is generally poor practice, it appears this was done at some point in the clock’s history and can’t be reversed. Nonetheless, the repair seems to have held up well.

Bushing Work

I have seen similar movements with much more wear than this one, but I felt that some bushing work was necessary to extend the clock’s lifespan.

Bergeon Bushing Machine
Bergeon Bushing Machine

Six Bergeon brass bushings were installed in total. For the time side (T), bushings were placed at T1 (front and back) and T3 (back). For the strike side (S), bushings were installed at S3 (back), S2 (front), and S4 (front). The numbers indicate the wheel location in the train beginning from the bottom. A couple of pivot holes were borderline, but I decided to leave them as they are.

Reassembly

It pays to be patient and methodical during reassembly. Rushing can lead to mistakes, such as missing steps or improperly aligning parts, which could cause malfunctions or even damage later. Taking the time to carefully double-check the placement of parts, and ensure everything is in its correct place will help ensure the reassembly is smooth and successful.

An older HAC movement, without the barrel cutouts

Once the wheels are in place the lever and there is only one multi-arm ever that resides between the plates. Position it such that the long arm rests in one of the deep slots of the count wheel while a short arm is placed in the cut out of the cam wheel (as above).

Positioning the pivots is a delicate process, and any forceful handling can result in a bent or broken pivot. In this, as in all cases when aligning pivots, a pivot locator is your best tool.

Pivot locator

My usual practice is to position all the wheels and the lever(s) on the plate with the movement posts, first. Once the wheels are correctly located, I lower the front plate onto the back plate. I secure two nuts to the mainspring end which prevents the movement plates from coming apart as I position the upper wheels in the train.

The pin-wheel, which is uppermost and one wheel removed from the fly on the strike side, is placed in approximately the 12 o’clock position, the warning position. At the same time the hammer paddle is positioned between two of the points on the star wheel. More than once I have had to go back in to make minor adjustments when the paddle hangs up on one of the star points. It looks like this one is also a candidate for that very adjustment.

A Timetrax machine is used to adjust the beat and the rate of the movement.

The movement has been placed on a test stand and the time side Is in beat and running as it should according to my Timetrax machine. Curiously, the Timetrax manual lists only one HAU/HAC movement, a three-train one but this one is likely similar to Junghans bracket clock movements which runs at 164 bpm. Junghans is mentioned for comparison because, by 1930, the company had successfully taken full control of HAC.

Testing

The testing phase is crucial in the process of servicing a clock, often taking the most time because it ensures that the clock is functioning properly before it is reunited with its case.

On the test stand

During this phase, the clock is put through various operational checks to simulate real-time performance, which helps in identifying any issues that may not have been apparent during the initial servicing or cleaning process. Issues such over-tightened or loose components can present themselves as well as problems with the escapement mechanism.

The testing phase serves as an important diagnostic step to identify what further repairs or adjustments may be needed.

This concludes the servicing of an 8-day HAU/HAC movement. If you have any comments or feedback on any of the steps in the process, please feel free to share!

Hamburg Amerikanische Uhrenfabrik | Servicing an 8-day Countwheel Strike Movement – Part I

Among clock collectors and admirers, the Hamburg American Clock Company is a well-known German company. It is otherwise known as Hamburg Amerikanische Uhrenfabrik or HAU and in many parts of the world, it is simply known as HAC.

Time and strike mantel clock, shown without the crown and as purchased

About the Company

The company was formed in Germany in 1873 by Paul Landenberger and Phillipp Lang. Originally called Landenberger and Lang, it became the Hamburg Amerikanische Uhrenfabrik in 1891. The company was very active from 1885 onward, became a cooperative in the mid-1920s, and eventually merged with Junghans, one of the world’s largest clock companies, in 1930.

Original investors insisted that “American” be in the company name but “American” also refers to the manufacturing system adopted from America. The name of the company adds confusion to the novice repair person who might assume that what they are working on is an American-made clock.

HAU adopted the cross arrows as their trademark in 1892, and it became synonymous with the brand.

HAC trademark
HAC trademark

In 1925, a few years before its merger with Junghans, the company had a workforce of 2,200 individuals. Junghans remains a successful and thriving company today, specializing in high-end watches.

Condition of Case and Remarks

The case is in very good condition but was missing the crown when I purchased the clock in 2021. Since then, I have sourced a crown, and based on the research I have conducted online, it appears to be the correct “topper” for this clock.

A crown was sourced and it definitely improves the look

The dial face is in good condition and shows some wear but not like the heavily worn dials I have seen on similar HAC clocks.

A commemorative brass plaque at the base reads: “The Rev. J. H. Cox Chyndale Wes’ Church Aug. 1926.” I assume this church is in the UK, but my online search yielded no information about this person. However, this inscription helps date the clock to no later than 1926. It is possible the clock may have been on a retailer’s shelf for several months or even up to a year or more before that date.

The Movement | Notes and First Steps in Servicing

In typical HAC fashion, the movement is robust and compact and it is a countwheel strike. The spring barrels are capped in the usual manner but feature four holes that make the mainspring visible. Earlier HAC movements had fully enclosed barrels—perhaps a cost-saving measure to use less brass! Otherwise, everything else is standard HAC.

Four nuts hold the movement plates. Once separated I removed the parts and divided the time and strike wheels.

Take careful note of two wires protruding from the rear plate. They act as tension springs, one for the strike hammer and on the opposite side of the movement, another for the lifting lever. These can easily break off, so handle the movement with care.

After disassembling the movement, it was cleaned in an ultrasonic cleaner. My aim wasn’t to achieve the shiniest brass possible but to ensure the brass and steel parts were thoroughly cleaned. There was some rust on two movement posts, which I removed using emery cloth. All parts were thoroughly dried.

The process may vary, but I moved on to polishing the pivots next. Since pivots are quite delicate, especially the fly, it’s important to handle them with care. Avoid applying excessive pressure on the pivot when using a metal lathe for polishing.

Polishing a pivot
Polishing a pivot with an emery board

I know some repairers prefer to avoid servicing mainsprings due to the difficulty of extracting them. However, it is essential to do so for several reasons. Clean and lubricated mainsprings ensure consistent power, enhancing the clock’s accuracy and performance. Additionally, it provides an opportunity to inspect for defects, cracks, and rust and replace them if necessary.

Once cleaned and lubricated, the springs are returned to their barrels using a spring winder such as the one made by Olie Baker.

Mauthe Horse Crown spring barrel in Olie Baker spring winder
Spring barrel in Olie Baker spring winder, with an appropriately sized collar ready to be inserted in the barrel to extract the spring

Since brass is softer than steel pivots one should expect some wear on the bushing holes. There are parts of a clock movement that exhibit more wear than other parts.

For instance, the wheels that spin the fastest are often the areas that show the most bushing wear but wear can show up in other places as well. I noticed punch marks on the cap side of each mainspring barrel. While punching around any bushing hole is generally poor practice, it appears this was done at some point in the clock’s history and can’t be reversed. Nonetheless, the repair seems to have held up well.

Next Steps

After inspecting and cleaning the movement, and polishing the pivots, the next step is to install new bushings. In my next article, I will focus on this process, along with the reassembly and testing of the movement.

Servicing a HAC Clock Movement

Among clock collectors and admirers, the Hamburg American Clock Company is a well-known German company. It is otherwise known as Hamburg Amerikanische Uhrenfabrik or HAU and in many parts of the world, it is simply known as HAC.

In this post, I will outline the procedures involved in servicing the movement of a HAC mantel clock produced circa 1925. It’s worth noting that HAC crafted clocks for international markets, and in the case of this particular clock, it spent a period in England after its initial manufacturing.

Time and strike mantel clock made by the Hamburg American Clock Co. known as HAC or HAU
Time and strike mantel clock made by the Hamburg American Clock Co. known as HAC or HAU

Disassembling the movement

After removing the clock hands and releasing the six screws that attach the movement to the front dial board the movement can be maneuvered carefully around the bronze rod gong without having to remove the gong itself.

Front of type 36 HAC movement
Front of type 36 HAC movement

Once out of its case, the first step is to remove the suspension spring and pendulum leader. A taper pin secures the spring onto the suspension post.

Next, safely let down the mainsprings using a letdown tool. On this movement, and I have not seen it elsewhere, there is a small pin on each rachet. Once the letdown tool is placed in the arbour, it is a simple matter of pushing the pin on the click with a small screwdriver and allowing the rachet to run freely, under control, of course.

The pin on the click is indicated by an arrow
The pin is indicated by an arrow

At this point, the two exterior wheels, both rachets with their retainers and the click springs can be removed as well as the “V” shaped stop lever.

On the front of the movement, two screws hold the pallet arbour plate, and with it comes the crutch. Note the position of the small pallet arbour plate for future reference. This is also a good time to remove the hammer from its arbour but the plates can be separated with the hammer still attached.

At this stage release the 4 nuts holding the movement and the back plate can be removed. There are two springs which look like stiff wire, one is for the count lever and the other for the hammer. Do not break these springs and be careful handling the plate once it is separated. The wire springs can be repaired if they break but it adds more work to servicing.

Plate is removed exposing wheels and levers
Plate is removed

Once the plate is lifted from the movement, the wheels and levers can be removed. Strike and time side wheels are then separated into containers. I like working from the top down and carefully removing each wheel one at a time. The centre cannon is the last wheel to be removed. The half-hour cam, a star wheel with two points, is on a tube which can be pulled off the arbour and the centre wheel easily lifts out. Once the centre cannon is removed the mainspring barrels can be extracted and put aside for servicing.

Assessing wear

Identifying whether a movement has undergone previous work can be challenging, but scratch marks around pivot holes typically suggest past work. An unmistakable sign of prior servicing is the presence of punch marks, as observed around the mainspring barrel on the time side. The aggressive punching suggests that the arbour hole was enlarged considerably. However, the arbour’s fit through the barrel appears sufficiently tight, indicating no immediate concern.

Time-side mainspring barrel showing punch marks
Time-side mainspring barrel showing punch marks

While it’s not approved today, punching pivot holes was a common practice in the past.

The movement is relatively clean but over-oiled the result of simply lubricating the clock over the years without actually checking to see if it required new oil.

There are very few issues with the movement with a potential need for two new bushings on the strike side and just one on the time side.

Cleaning the movement parts

Cleaning a clock movement’s parts is a fundamental step in the maintenance and restoration process. It not only improves the immediate performance of the clock but also contributes to its long-term durability and accuracy.

Cleaning a mechanical movement’s parts before reassembling a clock movement is crucial for several reasons, to remove dirt and debris, prevent wear and damage, optimize performance identify and any perfomance issues. Cleaning is often accompanied by the application of fresh lubrication to key components. Lubrication reduces friction between moving parts, minimizing wear and ensuring smoother operation. This step is vital for maintaining the health of the movement.

HAC/HAU shelf clock is attractive but the dial needs work

Bracket clock

The movement has been serviced and the next step to bringing this clock back to life is cleaning a very grimy, tarnished and worn dial.

For those unfamiliar with HAC or, The Hamburg American Clock Company (Hamburg Amerikanische Uhrenfabrik), it is a well-known German company that was incorporated in 1876 as Landenburger and Lang, later with a name change to HAC in 1883 and was eventually acquired by Junghans in 1926.

Its best-known trademark is the “crossed arrows” symbol found on the movement plate and the coil gong. Unlike most HAC clocks there is no cross arrows trademark on the gong though there is one on the movement behind the pendulum rod. The name “Hamburg” was chosen at the insistence of one of its investors and “American” refers to similar American-style production methods.

I have a number of German clocks including Junghans, Mauthe, Hermle, Jauch, Gufa, and Gustav Becker but this is the first HAC clock in my collection.

Bracket clock
HAC clock auction photo

I bought this clock online at an estate auction in February of 2021 and because of the pandemic I had it shipped to me. The only thing I had to go on were the auction photos but it is no different than taking a chance on an eBay or similar site. Once I opened the package it is what I excepted, no surprises.

While it is an attractive design it is dirty and likely has never been cleaned. There are no parts missing, a bonus, but the case and dial require attention.

The most distracting element is the dial. In short, it is a mess.

HAC dial
HAC dial closeup

Two options

One is to replace the dial from a donor clock but given the small amount of money put into it, the fix would have been pricey. Those I have found in my internet search are going for more than I paid for it. The second option is to clean it up and make it as presentable as possible.

Cleaning the dial

Normally I use a good water-based cleaner to remove grime from a dial but in this case, the blackish-grey tinge you see in the above photo is actually 100 years of built-up oil, grease and grime. I am sure an auto mechanic owned the clock and adjusted it before he washed his hands.

Drastic measures are called for. I knew that I would be stripping the remainder of the cream-coloured paint from the dial but as I discovered, there is so little paint left that it would not have made a difference. The numbers were also rubbed away after years of use.

HAC clock is attractive but the dial needs a lot of work
HAC clock is attractive but the dial needs a lot of work

I took the dial out of the case and using Q-tips and a cleaning solution took away as much grime as possible. Some 50 Q-tips later I managed to remove most of the dirt. After rinsing with water and wiping the dial, I filled in the numbers using water-based acrylic black paint, a fine-tipped artist’s brush, and a fine-tipped .6mm permanent marker for the chapter ring.

HAC dial
HAC dial after cleaning and numbers touched up

The dial came out marginally better and the original patina has been somewhat retained. I am pleased with the result but that is as far as I will go.

From a distance, it is presentable and less distracting.

HAC clock on display

Next and last is refreshing the case.

HAC/HAU movement servicing

HAC movement
The arrangement of the gears should be familiar to anyone working on German clocks made in the first quarter of the twentieth century

Bought on an online estate auction site earlier this year, servicing the movement is the subject of this post. Once the movement is serviced, the next step is to address dirt and grime on the case and see what I can do to improve the look of the dial although I am not very hopeful that I can do much to improve it.

For those unfamiliar with the HAC acronym, it stands for Hamburg American Clock Company, a well known German company acquired by Junghans in the late 1920s. It is otherwise known as Hamburg Amerikanische Uhrenfabrik or HAU. Kind of a strange name for a German clock company but that is how the original investors wanted it named.

I have a number of German clocks including familiar makers such as Junghans, Mauthe, Hermle, Jauch, Gufa, and Gustav Becker but this is the first HAC clock in my collection.

HAC clock
HAC clock circa 1900-1910

Assessment of the movement

It is a typical 14-day German time and count-wheel strike circa 1900 to 1910. It is a robust and almost industrial looking movement and perhaps made early in this series of movements. It could be the type #21 although I can find nothing to confirm it.

The arrangement of the gears should be familiar to anyone working on German clocks made in the first quarter of the twentieth century. This movement has slightly thicker plates, no cutouts, and no extraneous holes and looks sturdy.

HAC clock movement
HAC clock movement, dirty and very tarnished

It has been worked on in the past, the strike side mainspring having been replaced at some point in the clock’s life. The time side has the HAC cross arrows stamped on the mainspring and appears to be original.

HAC clock movement
HAC clock movement, no cutouts

It doesn’t look as though there were issues at the time when the mainspring was replaced, no punch marks around the pivot holes or new bushings, for example, but there are wear issues now and that is to be expected in a 100+ year old clock movement.

In total the movement required 9 bushings, 6 on the strike side and 3 on the time side; 4 on the backplate, and 5 on the front plate. A couple of pivot holes are questionable and exhibit some wear and out of an abundance of caution I bushed them and why not while I have the movement apart. As expected there is more wear on the lower parts of the trains.

The bushing work went as expected. Some of the pivots are quite small and required 2.50mm OD bushings which I don’t often use but have plenty of them in my supply.

Ultrasonic cleaning did not do much to brighten up the brass plates, but to me aesthetics is unimportant. My goal, as always, is simply to have a properly serviced movement that runs well.

Assembly and testing

The movement was assembled and oiled. Both the strike and the time side are running well. There were no particular problems setting up the strike side other than a couple of attempts setting up warning before I got it right.

HAC movement
HAC movement on the test stand

It continued to run well during the next couple of weeks.

It is a 14-day movement but I find with these German movements that winding them once per week ensures more accurate timekeeping.

Auction clock bought on a whim

Bracket clock

Although I have sold a few clocks locally in the past year to trim down my collection, I am always on the lookout for new acquisitions. One in, one out, has become the rule.

I am a frequent follower of online for-sale and estate auction sites and look for unique clocks like this E. Ingraham Grecian shelf clock (right) which I bought in early January 2021.

Ingraham Grecian
Ingraham Grecian shelf clock C.1871

There are two noteworthy estate auction houses in Nova Scotia, but only one offering premium items. As for what I term is “the better auction house”, art and Canadiana are their specialties but occasionally clocks are added to the auction offerings.

In February 2021 I took a chance on a second clock from the same auction house. Since one clock was offered I knew that the auction would not attract collectors. If there are several clocks offered for auction, I find that collectors are attracted and that tends to drive up the bidding.

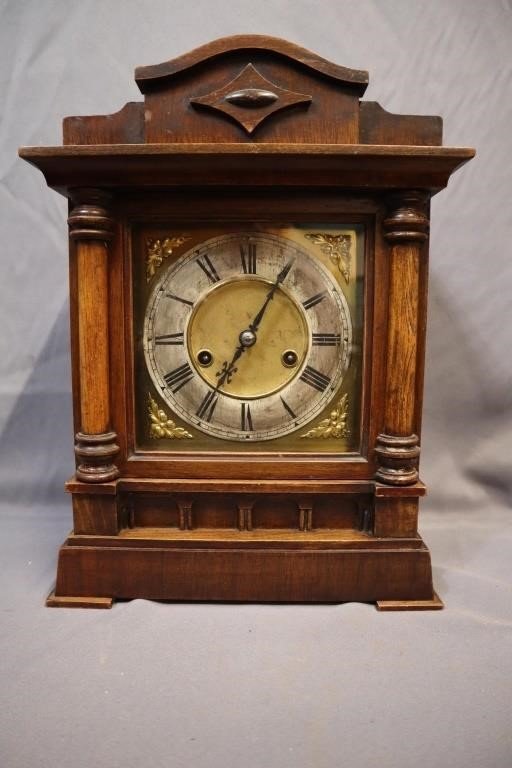

Bracket clock
Bracket clock, photo used with permission Harris and Sons

The description of the clock according to the auction house is as follows:

Antique walnut bracket style mantel clock with polished brass outer
dial. In running order but probably could use a clean, with mellow
tone chime. Brass movement. No makers marks. Measures 14
inches tall by 10 1/4 wide and 5 3/4 inches deep.

So a “pig in a poke” as we would say locally. An unknown maker in a fairly attractive case. “Could use a clean” is a euphemism for “might have some issues”. From the auction photos, the case looks tired and the state of the movement is unknown, but, I am up for the challenge.

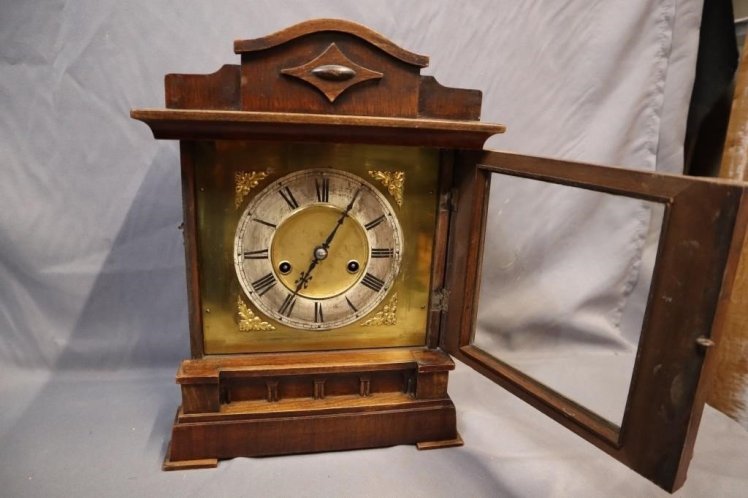

Bracket clock
Bracket clock, photo used with permission Harris and Sons

The dial looks intriguing. It could be one piece with a silvered chapter ring or spandrels added over the brass which is more likely. As of this writing, it remains at the auction house awaiting shipment.

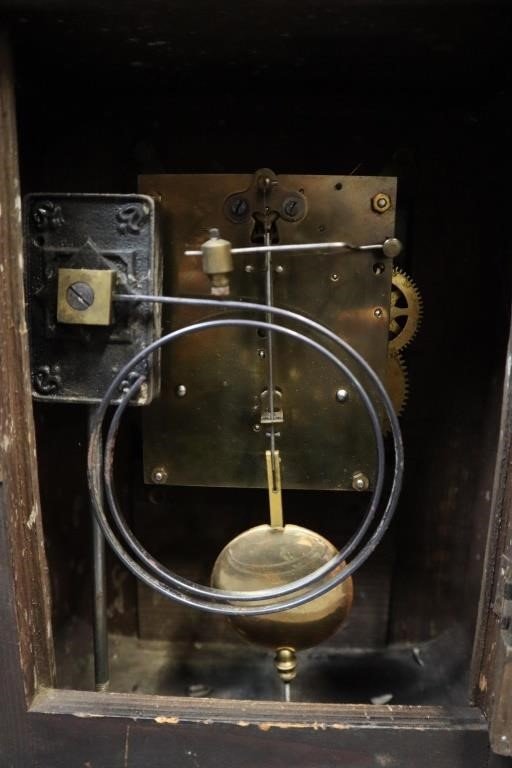

The movement is certain to be German. However, it might have been made by any number of companies, Junghans, Mauthe, HAC but I am thinking it is HAC, the Hamburg American Clock Co. and made in the early part of the 20th century. I do not have any other HACs in my collection, so, this would be the first.

I suspect a well-built movement with solid plates front and back.

Bracket clock
Bracket clock, photo used with permission Harris and Sons

The reserve bid of $75 is what I paid. I am not a fan of reserve bids but at least I did not pay more than that. Of course, tax and the auction house buyer’s premium are always added to the final invoice.

I think I will be pleased with the purchase.
