Jauch time only calendar clock – a closer look

I am all in for a bargain and one cannot buy a clock any cheaper. A friend spotted this German-made Jauch time-only calendar clock in a thrift shop for $1.65.

Schoolhouse clock made in Western Germany by Jauch

The date stamped on the movement is July 1979 which is no surprise since the clock has a number of modern features such as a magnetic lower door clasp and lift-up hinged dial bezel.

Jauch time-only movement, PL42, length of pendulum in cms, date7/79

The clock is certainly a nostalgic return to the oak-cased schoolhouse clocks found in many schoolrooms 100 years ago like the Gilbert Admiral calendar clock (pictured below) from the late 1890s, but the case is a cheaper pine instead of oak.

Glbert Admiral time-only wall clock with calendar

The clock looks good on any wall and to many, this vintage clock would appear, at first glance, to be an antique.

In an earlier post, I noted that there is not a lot wrong with this clock. The case needs a little tender loving care which is easily remedied and the movement looks very clean.

I removed the movement from its case since it was not running, mounted it on a movement test stand, and made an anchor adjustment by moving the pallets slightly. The movement was now in beat. I oiled the movement and it has been running for several days.

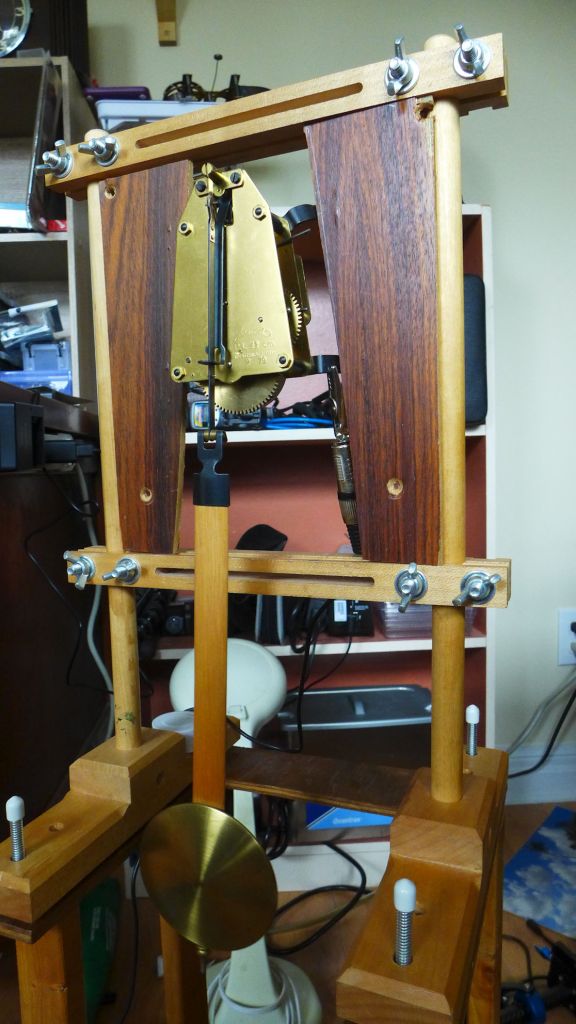

The movement is on a test stand and running in beat

Two vertical pieces that looked like wallboard or laminate flooring hold the movement in place. The two sides are secured with 2 Robertson screws. I doubt the manufacturer would have used Roberton screws since this type of screw is widely used in Canada but seldom elsewhere.

When I removed the movement I noticed additional screw holes. So, it seems to be a later fix, but why? Is the movement a replacement? If so, why bother with such a cheap clock? A mystery to be sure.

The movement looks very clean and looks to have had little running.

Next is taking the movement apart. I wonder if any surprises await me.
