Antique and Vintage Mechanical Clocks

For years, my Seth Thomas column and cornice clock rested atop an antique radio in our living room. However, after redecorating the space with hardwood flooring in place of the carpet, the radio and clock no longer suited the updated space.

I did not want to relegate the clock to storage, so I opted to find it a new spot in our home. Since most of the other rooms already had plenty of clocks, I decided to display it in my office.

This lovely Seth Thomas time and strike eight-day weight-driven column and cornice clock with hour strike features an attractive veneer case with cove molded crest, lyre movement, three-quarter columns in painted gold, and two glass doors, one with a reverse painted design, opening to the interior clock works which reveal a tin painted dial and the original printed and illustrated Seth Thomas clock makers label. It is 32″ tall, 18″ wide and 5“ deep.

The clock has one unique detail: while the lower tablet is original, the upper tablet was recreated from a photograph of hanging fruit, modified to complement the design below. Additionally, the dial, which had suffered some losses in the corners and chapter ring, was repainted.

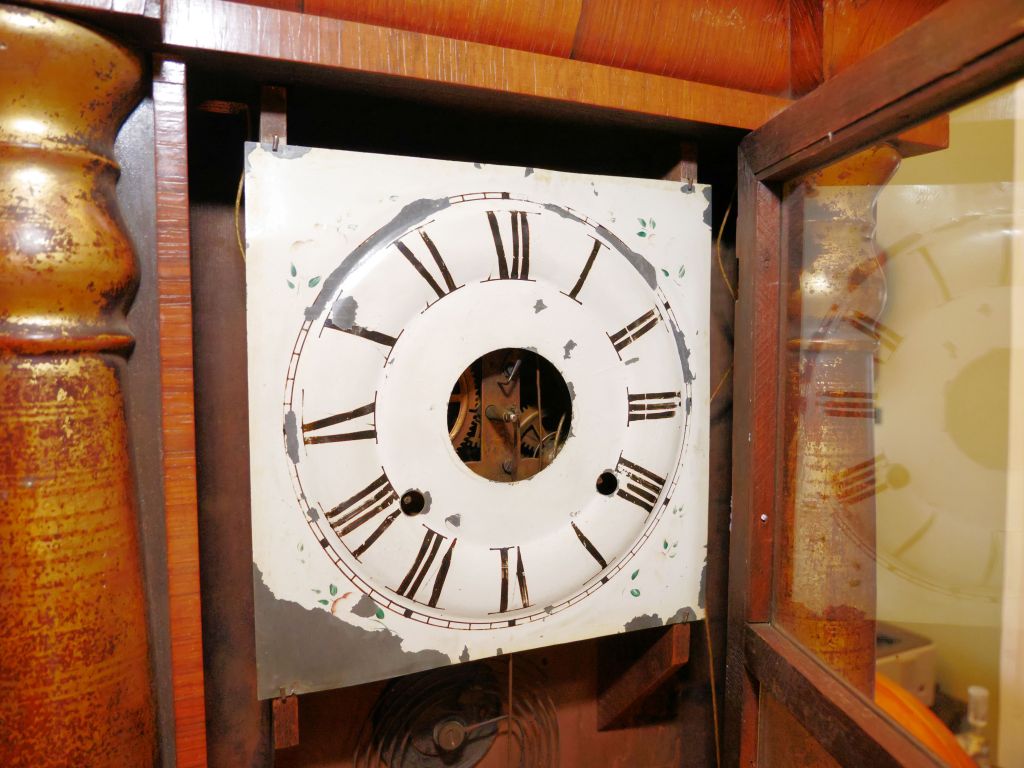

The painted tin Roman Numeral dial has hand-decorated flower spandrels in all four corners with the centre portion of the brass lyre movement visible through the dial.

Among collectors an appropriate descriptor for this clock is “column and cornice” but it is also generally classified as a shelf clock. This particular clock features a hook on the top of its case, likely intended by a past owner for installation that way. While I have seen similar clocks mounted like this online, they were never originally designed to be hung.

However, the hook might serve an additional purpose. Given that these clocks can become top-heavy when fully wound, the hook could be an effective way to secure the clock to a wall, especially in areas where it might be easily bumped.

Building the Shelf

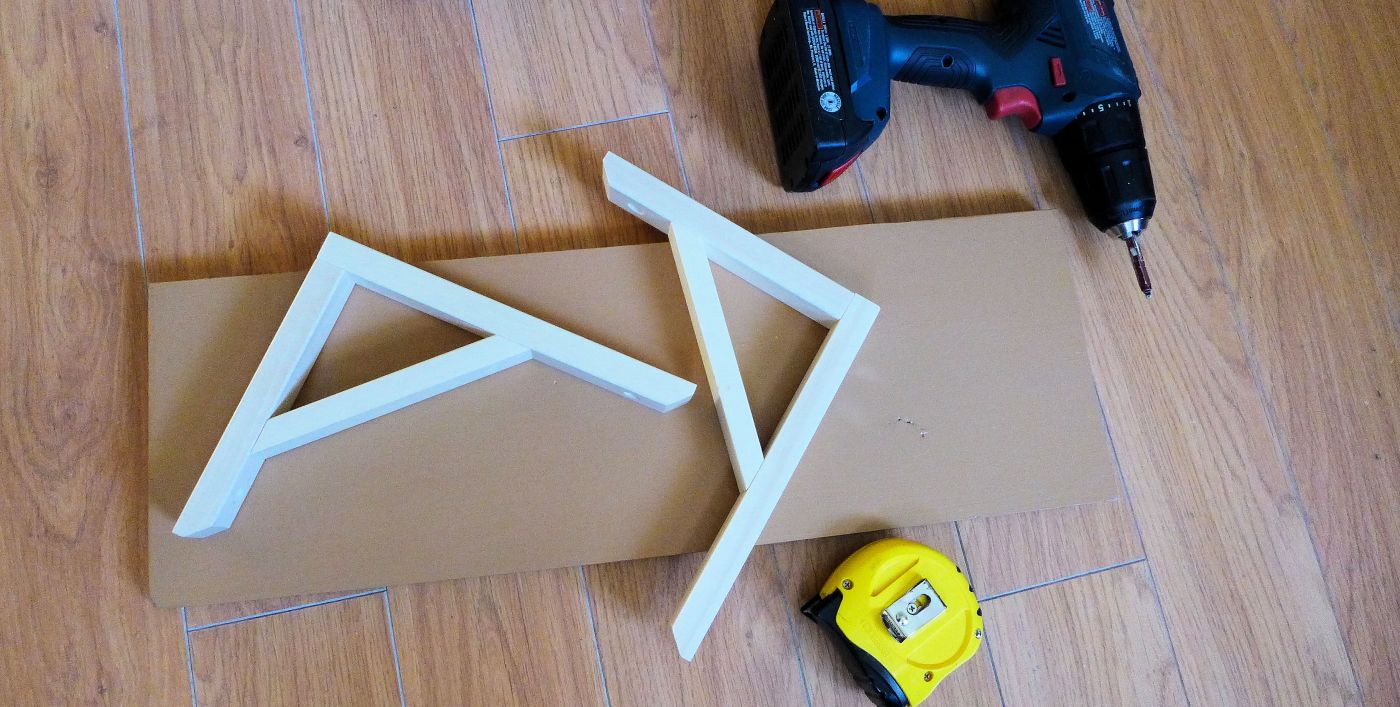

The first step was to build a shelf to accommodate the clock. I had some leftover 8-inch-deep pine boards from a previous project, which were ideal for this purpose. I purchased extra pine braces some time ago, and they turned out to be perfect for completing the project. I cut a piece about 22 inches long and painted it a shade of beige. The base of the clock is 18 inches leaving 2 inches on either side.

The next step was to mount the braces to the wall. Knowing the room had studs spaced 16 inches apart, I used a stud finder to locate the first stud and then measured 16 inches to find the second one.

Once the braces were mounted and made level I installed the shelf using wood screws.

Checking for the Correct Beat

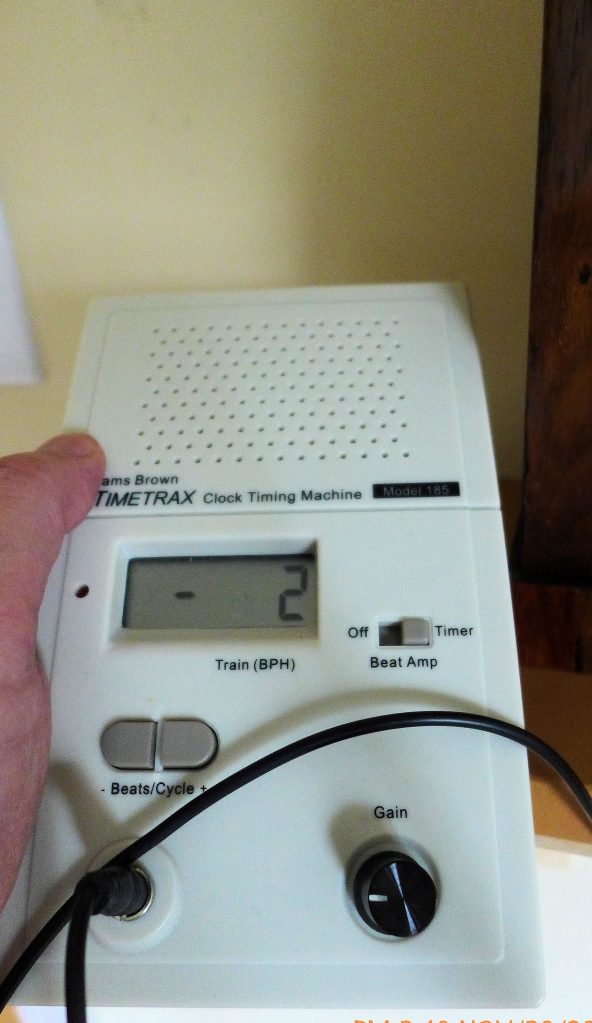

Now to determine if the shelf is level and the clock is in beat. Using a Timetrax Clock Timing Machine I switched to the BAL feature to check the beat.

A beat adjustment was unnecessary as the clock was already leveled. If leveling were needed, it would simply involve slightly bending the crutch incrementally to find the beat. While checking the beat can easily be done by ear, it made sense to use my Timetrax device for greater precision.

According to the Timetrax instruction manual If the beat is within plus or minus 20 the clock is in beat. In this case, it was almost dead on.

Once the beat is confirmed, the weights are replaced, the hands and dial can be reattached, and the pendulum is given a slight push.

After confirming the beat the clock was ready to be displayed in its new spot. This Seth Thomas column and cornice clock, with its exquisite veneer case and distinctive features, now takes pride of place in my office, where it brings an added touch of elegance to the room. Moreover, since the room houses many spring-driven clocks, a weight-driven clock will provide a more accurate reference for timekeeping.

I’m pleased to have found a new location for it, as it truly deserves to be on display.
