Clock testing stands for most purposes.

What is ideal is one clock stand for servicing and testing all clock movements but unfortunately, there are so many different types and styles of movements that one size does not fit all.

I have written an article or two on test stands in the past but consolidating all my testing stands into one article might help the reader decide which one would work best for them.

Testing the Kienzle movement on a makeshift test stand
Testing the Kienzle movement on a makeshift test stand

For the first one, I made a makeshift test stand out of scrap wood and what I like about this one is that if I require more holes to mount a movement, I could simply drill them where I need them. But I also like the idea of using it for those mantel clocks and small wall clock movements with seat boards.

HAC movement
HAC movement

This particular one has clamps so, mounting a movement is very easy since each clamp has a center horizontal groove. Once the height has been set, simply screw the clamps into the vertical rod. It takes seconds to mount a movement. The brackets are adjustable to about 10 inches.

Junghans B11 movement on the test stand
Junghans B11 movement on the test stand

This test stand, called “Gene’s clock testing stand”, is very versatile. The movement can be mounted as I have done in the photo or bolts can be inserted through clock plates and into the cutouts as in the photo below.

Same as above with an extension

This is the same Gene’s stand as above but made for longer pendulum leaders. The home-made extension measures 18 1/4″ high by 9″ deep by 9 1/4″ wide. The bottom part is adjustable and fully detachable.

Clock stand painted
Clock stand for tall case movements

Finally, this is a 48″ stand for hall clocks or grandfather clock movements. It can accommodate two or three movements but I do not work on more than one tall case movement at a time. When used for testing purposes I anchor the stand to a wall to help eliminate sympathetic vibrations.

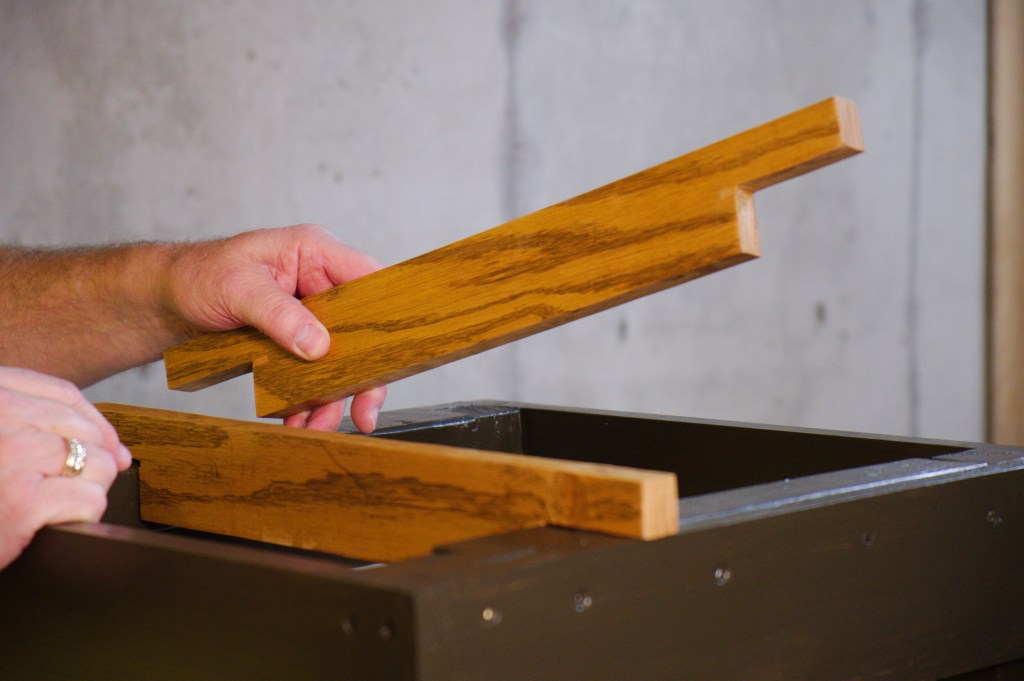

Clock stand one rail on
Clock stand rails

The stand is made of pine while the rails are constructed of yellow oak.

Every horologist should have at least one or more sturdy clock stands for testing clock movements.

Once you begin working on clock movements in earnest you will learn that a testing stand is indispensable and as you repair more movements one type will not be sufficient.
