A custom test stand for weight driven ogee style clocks

A few weeks back I published an article on clock testing stands. While a single clock stand would be ideal for all movement testing purposes there are so many different types and styles of movements that one size does not fit all.

The one stand I was missing was for testing weight-driven ogee style clocks whether they be 30-hour or 8-day or select clocks that would require a pulley system for the weights.

Aside from an easy setup and quick mounting of a movement for testing it allows me to inspect the movement from all sides

Tall case clock stand
Tall case clock stand

Rather than construct a stand-alone ogee test stand I decided to make it a companion to my tall-case clock stand. Mounting atop the tall-case stand means that it is at the optimum height for making adjustments.

I also wanted something I could easily remove if I needed the long-case stand for testing and it is simple to set up.

Salvaging case parts from an old ogee simplifies the construction of the stand. It can be done without ogee case parts but it means devising a pulley system and making rails with slots for the movement seat board.

The ogee clock was purchased along with three others for $20 but the ogee clock case was in such poor condition it could not be restored.

A movement came with the case which I use for spare parts. The veneer has been harvested and used for other projects. The remaining wood pieces are stored and ready for use in future projects.

The tall-case stand is 48 inches high and will accommodate more than one movement although I generally work on one movement at a time. It is square-shaped and very stable though when used to test grandfather clock movements it is anchored to a wall to eliminate or reduce sympathetic vibration.

The tall-case stand is braced on all sides and the framing around the 4 legs adds additional stability and strength.

Clock stand two rails off
Taking the rails out

The rails, made of yellow oak, a hardwood, chosen for their strength.

The two pieces I am holding are the oak rails that are designed to fit into the top of the stand and are fully adjustable width-wise depending on the size of the movement.

Close-up of the top

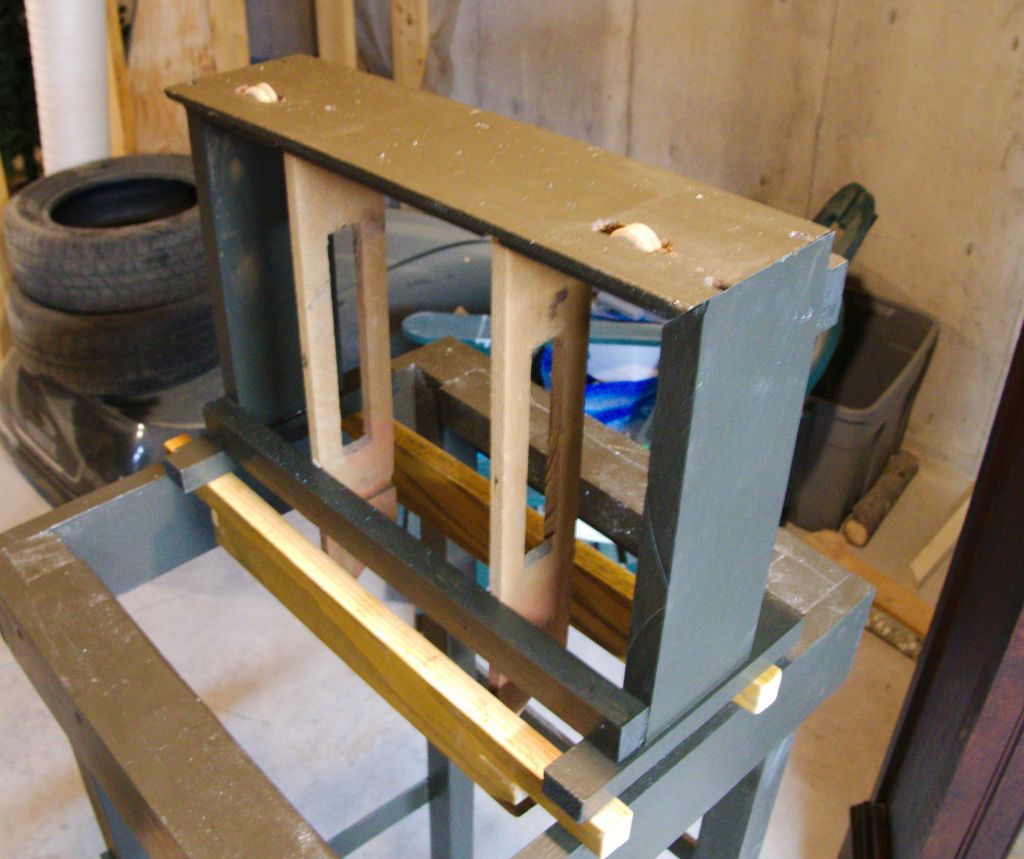

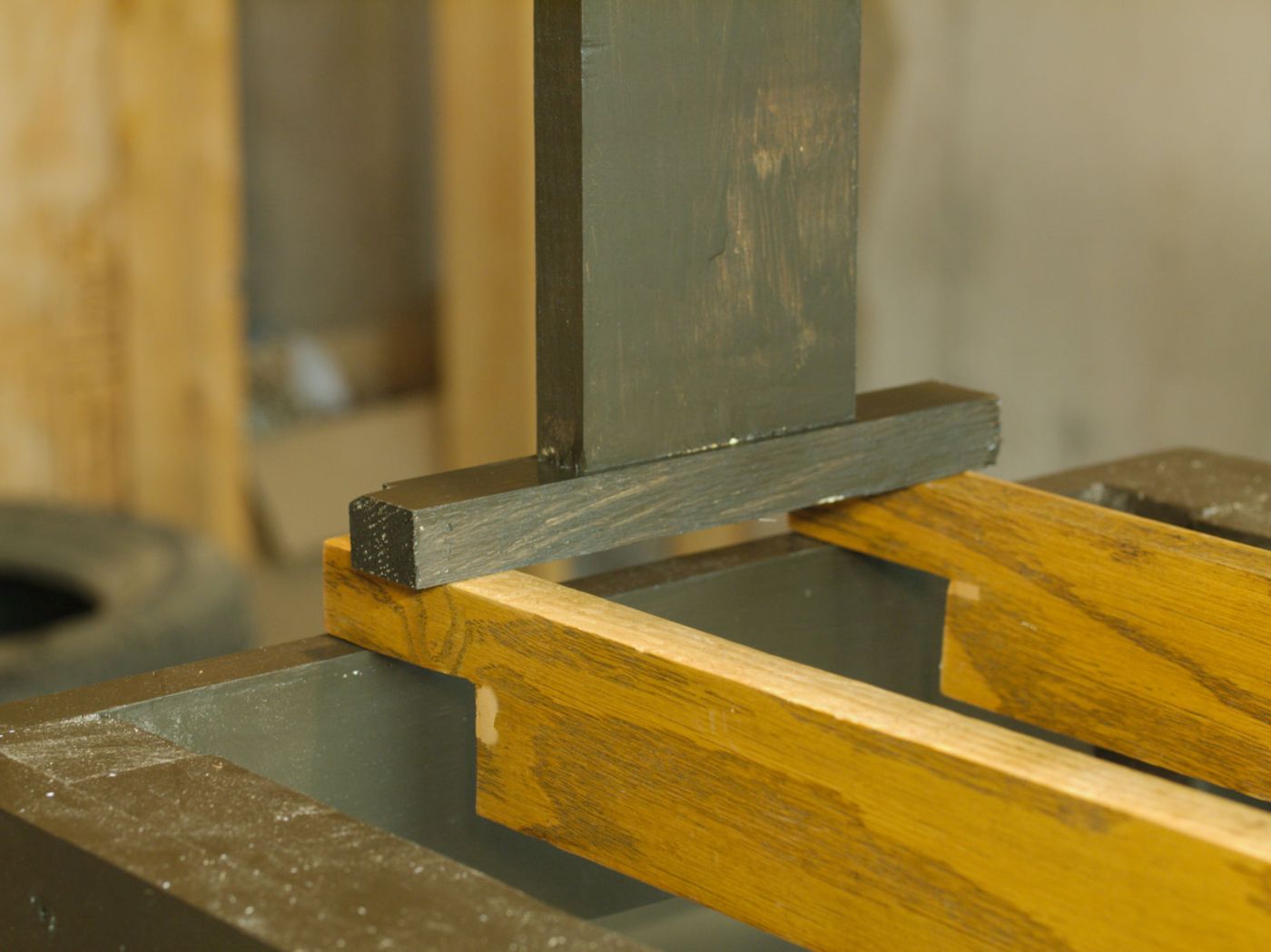

The ogee stand is 10 inches high and has stabilizing rails under each side that rest on the oak rails. There is a cross brace in the front and back to give it strength and lateral stability. The top from an old ogee case is ideal because the pulleys are in the correct position for the weights.

The rails easily take the weight of a 30-hour movement which is about 7 1/2 lbs total. Will it take the 13 lb+ weight of an 8-day ogee? Yes. There is no need to screw or nail the ogee stand to the oak rails as the combined weight of the movement plus weights are enough to anchor the stand in place.

Test stand rest on the two rails

I painted the stand to match the tall-case stand.

I chose Espresso latex paint because it does a great job of hiding my carpentry errors.

Testing the time side of a Waterbury ogee movement

Aside from an easy setup and quick mounting of a movement for testing purposes it allows me to inspect the movement from all sides.

It works as expected and now I can use the stand instead of the case for testing.

I know there is another ogee clock in my future!
