The Therapeutic Art of Clock Repair in Retirement

Engaging in a fulfilling hobby like clock repair and restoration can offer immense benefits for the soul, especially during retirement. Horology provides a respite from life’s pressures and allows individuals to use their time constructively.

Working on a time-only movement

Here are several compelling reasons why having a hobby like clock-making is invaluable for retirees and those approaching retirement.

Boosts self-esteem

Each small achievement in pursuing the hobby leads to a sense of accomplishment and success. These positive experiences build a strong foundation of self-confidence, which can be applied to handle other life challenges effectively.

Learning the components of a chiming movement

Eliminates boredom

Hobbies prevent boredom and deter individuals from indulging in destructive behaviours. Rather than spending hours mindlessly watching TV, constructive engagement with a hobby brings immense satisfaction and rewards.

Broadens perspective

Engaging in a hobby fosters continuous learning and personal growth. Taking on new challenges opens up fresh perspectives, facilitating personal development and resilience in overcoming adversity.

Promotes youthful vitality

Hobbies contribute to brain health and help maintain cognitive abilities, making them a valuable investment in both present and future well-being. Cultivating hobbies early in life ensures lasting benefits, much like a wise investment.

Examining a rusty time and strike movement

Integrates with other interests

Hobbies can be beautifully combined with other passions, such as photography, travel, or writing. This harmonious integration enhances the overall experience and enriches life’s journey.

Sparks curiosity and interest

Having a unique and captivating hobby, like collecting historical clocks with intriguing stories, makes one more interesting to others. Sharing these experiences enthralls attention and sparks engaging conversations.

A clock hobby is more than the movement

Provides stress relief

A hobby becomes a refuge in trying times, offering solace from the world’s stresses. It creates moments of tranquility and relaxation, promoting overall mental well-being.

Learning new techniques

Break Problems Down to improve problem-solving abilities

When confronted with a complex problem such as a complicated three-train movement, break it down into smaller, manageable parts. This approach allows you to analyze each component separately, find solutions more effectively and promote personal growth.

A feeling of satisfaction when things work correctly after servicing a movement

In challenging times, the dedication and effort invested in a hobby like clock repair and restoration bring immense joy and fulfillment.

It’s never too late to explore new hobbies and discover one’s own oasis of happiness and relaxation during retirement.

7 reasons why a hobby such as clockmaking gives respite during a pandemic

7 reasons why a hobby such as clockmaking gives respite during a pandemic.

Builds self-esteem. Developing and maintaining a hobby is important because the small successes from day to day are enough to sustain oneself amid other pressures in life and it is the one solid thing to feel good about. It gives renewed energy to tackle other challenges in life.

Dial face, Scottish tall case clock C.1848

Avoid boredom. There is zero scientific evidence of this but boredom is responsible for a lot of society’s ills and destructive behaviours. Do you come home after a challenging workday to watch hours of TV when you could be doing something constructive and rewarding? If so, it is time to re-evaluate your life.

Junghans clock project is finished
Junghans Sydney shelf clock C.1911

Enrich your perspective. There is an old adage: “The more you know, the more you grow”.  Any opportunity to learn something new, to be challenged anew, is great for character-building by seeing the world through refreshed eyes. Clockmaking or any hobby helps one differentiate from others and provides key examples of overcoming adversity or tackling a difficult situation and emerging on the other side.

museum
American Watch and Clock Collectors Museum, USA

Keeps you youthful. Establishing and maintaining a hobby is a healthy habit to form not just now but for your later years. Hobbies are excellent for brain health and help stave off cognitive decline. The older you become the more difficulty you will have struggling to fill your time with meaningful activities. Beginning a hobby early in life pays dividends in the long run much like an interest-bearing investment.

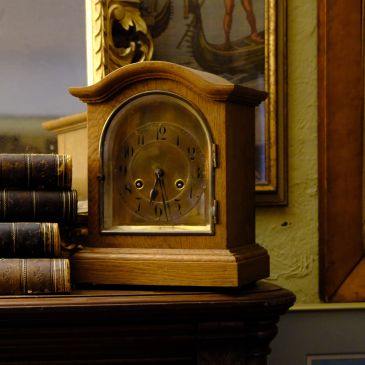

Schatz W3 bracket clock C. 1950s

Combine your hobby with other interests. Photography and traveling are two other of my interests. Blogging is another, of course. Clockmaking combines all of those interests and as a side benefit my wife, who is also my travel partner and clock locator, provides encouragement every day.

Westclox LaSalle alarm clock
Westclox LaSalle alarm clock C. 1934

It makes one interesting. Talk about your occupation or your grandchild and before long people’s eyes begin to glaze, but mention a clock that fell off a wall during the Halifax Explosion, a clock that hung in a railway station nearby, a rare clock bought for next to nothing and ears perk up.

Crispi clock back from the horologist
Junghans Crispi wall clock, C.1898

A great way to relieve stress. Hobbies provide stress relief simply because it is an oasis, a way of disconnecting temporarily and we all need a place of refuge in trying times.

Mauthe wall clock circa 1895

We are nearing the end of the pandemic and folks are returning to their former routines. If you have found a new hobby in the past year there is no doubt you have certainly acquired new skills, renewed confidence and furthered your knowledge. Don’t stop now!

First blog post – 6 years ago

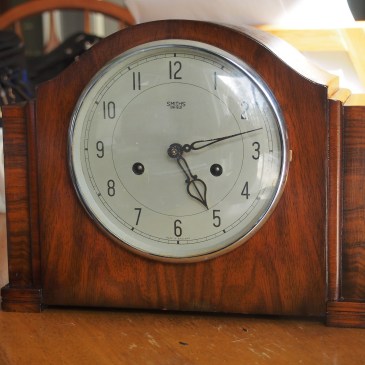

Smiths Enfield mantel clock

Clock collecting from a beginner’s perspective. That was the subject of my first blog post six years ago. Since then I have seen a lot of excellent and not-so-good blogs come and go but I wanted to give it my best shot and after 6 years, well, I am still here.

I started with a free WordPress plan, moved to a personal plan and then, this year, to a Premium plan. I now permit advertising on my site but my only goal is to recoup costs for server space and domain name. Anything extra is gravy.

In the early days I would stop blogging in the summer and resume in the fall. That did not work so well as my viewership fell off and I had to rebuild after the holidays. Now I schedule all my articles in advance. In fact, I typically have about 15-18 articles “in the can” at any given time. Having an inventory of articles means there is no need to scramble with something new every 3-4 days, my typical interval between articles. Some of you bloggers must know how hard it is to put words together when inspiration is lacking.

I am not sure what I was expecting 6 years ago but now have a dedicated following, receive many interesting letters each week, have met people through my blog and it seems people appreciate my content. This is reflected in statistics which are the lifeblood of any blog and it’s those daily figures that keep a blogger motivated. For instance, I have more views in a typical day than I had in the first 3 months of my blog.

Not once do I claim to be a professional horologist but after 10+ years in clock repair as a hobbyist I think I know something by now.

Welcome to my first blog post written May 15, 2015 which I will present word for word.

wall clock
OK, so it’s a Chinese clock but it works

I regard myself as a clock collector and tinkerer. I am not a trained horologist nor do I have a unique talent for clock repair or even getting a simple clock back to working order, but I find the world of horology to be quite fascinating.

It is a relatively new hobby for me which began with the purchase of a Daniel Dakota time and strike wall clock. Why start with a Chinese-made clock which most would consider inferior to almost any other clock in the world. It was cheap, it piqued my interest in collecting and repair and it was something to practice on. I then moved on to a Ridgeway grandfather clock and to my current collection of Mauthe, Seth Thomas, Hermle, Forestville, Sessions, Smiths Enfield, Muller and Pequegnat clocks.

Arthur Pequegnat kitchen clock, known as the “Fan-top”

My blog will profile clocks in my collection both vintage and antique as well as describe my attempts at repair. Along the way I will seek advice from you, the reader, from clock forum sites and whatever information I can find online.

Seth Thomas Adamantine mantel clock

Clock collecting is a great conversation starter and it allows me to combine my other passions, photography and traveling (and now, writing). Locating good clocks means traveling around the province of Nova Scotia and Canada, meeting interesting people along the way and is some cases getting that one-of-a-kind deal.

Most photos on this site are my own. Photos from other sources will be given full credit. I will try to capture the beauty of these old mechanical wonders and anything about their provenance will included as well.

Forestville Westminster chime
Forestville Westminster chime mantel clock

Stay tuned. It is all a learning experience and as I bravely go further into the hobby I hope to share my frustrations and my successes.

As Winston Churchill once said, “Success is walking from failure to failure with no loss of enthusiasm”.

I have stayed true to form since then and continue to publish 7 to 9 articles per month. Since then I have acquired dozens of antique and vintage clocks from all over Canada and probably have upwards of 80 clocks in my collection at this point. I have also said goodbye to an additional 20 clocks through local sales and as gifts. It remains a hobby that I thoroughly enjoy although occasionally I have done some paid and pro bono work.

If you have stayed with me since the beginning, thank you, but if you are new to my blog or following for the first time, welcome!

Anyway as I said 6 years ago, “Stay tuned”.

Macro photography images and clock repair

Alarm clock mainspring close-up

How do you get those wonderful macro shots, a reader asked.

Polishing a pivot
Polishing a pivot, slow shutter speed emphasizing the speed of the lathe

Close-up of bushing wear
Extreme close-up of bushing wear (the black mark is an identifier – a bushing that needs work)

Photography easily becomes part of almost any hobby and in my view, a camera is essential for clock repair. Describing a process on paper is one thing but it cannot replace a well-crafted video or a series of detailed still images. A picture is worth a thousand words.

Having the right tool is also important. For optimum results, I suggest a dedicated camera with a good macro lens. Why? You can take wonderful pictures with a cell phone but cell-phones are very limiting because they have difficulty isolating the foreground from the background and have a hard time producing decent macro images.

I have a number of cameras, two Pansonics, a Fuji, and an Olympus E330. While the first three cameras are either new or relatively new the last, an Olympus E-330, made 14 years ago, is my go-to camera for macro work.

Bushing installed on escape wheel arbour
Close-up of a bushing installed on escape wheel bridge

At 7.5 mp it has more than enough megapixels and reducing the file for blog work makes for a particularly small but detailed file when server space is limited (as on a blog). I use artificial light on occasion but for the most part, rely on natural light from a west-facing window in my workspace. When artificial light is required, I rely on a continuous studio light and rarely use the on-camera flash.

Olympus E330
Olympus E330 with 50mm F2 macro lens

Paired with an Olympus 50mm F2 macro lens it is excellent for those very close clock shots and allows me to isolate my subject while maintaining a pleasing background blur.

New escape wheel bushing
New escape wheel bushing

After almost 15 years it works every day and I can still purchase CF memory cards and even aftermarket BLM-1 batteries. Simply put, I will use it until it goes to photography heaven.

Reverse side of punched bushing
The reverse side of a punched bushing, notice how the background is completely blurred out

The E330s best feature is its ability to activate a switch from automatic to manual focus mode and lock on an extremely close subject such as the above and below photos.

Looks like a large pivot hole but actally punched close to the hole
Looks like a large pivot hole but actually punched close to the hole, an example of subject isolation

Some clock repairers record everything on paper and to each their own, but for me, there is no substitute for a digital image. During any clock repair job, I will take dozens of photos from every conceivable angle. If I have difficulty reassembling the movement or am puzzled as to where a particular wheel, lever, washer, or spring should be positioned, my photos are my best reference. In addition, I catalog my images so that I can refer to them, days, weeks, or months later if need be.

My advice is simple, buy a good new or used camera with a dedicated macro lens for clock repair. It does not have to be the latest, greatest, and the most expensive but decent enough to give you good quality results. You will thank me.

Horolovar guide and how to determine the correct suspension spring for a 400-day clock

Dial face Kundo Clock

A 400-day clock, also known as a torsion clock, is a type of mechanical clock designed to run for about a year (400 days) on a single winding. It features a unique suspension system, where a rotating pendulum or torsion spring controls the movement. The clock’s long-running time is achieved through a very slow, consistent release of energy from the mainspring, and the mechanism is typically enclosed in a glass dome for display. Though not particularly accurate, they are fascinating to watch.

Years ago, my daughter gave me a Horolovar guide as a Christmas gift. Any horologist who works on many 400-day clocks will agree that the Horolovar guide is an indispensable manual when working with 400-day clocks.

It’s not a manual you’ll reach for often, but when working on 400-day clocks—often called anniversary clocks—it becomes absolutely essential.

Horolovar 400 Day Clock Repair Guide
Horolovar 400 Day Clock Repair Guide

The guide was last published in June 1991, and I believe little has changed since then. However, while writing this, I did some research and discovered that Haller Uhrenfabrik GmbH still produces mechanical anniversary clocks. Haller Uhrenfabrik GmbH is a German clock manufacturer based in Simonswald in the Black Forest, known especially for anniversary clocks, table clocks, and decorative mechanical timepieces. Founded in 1874, it combines traditional clockmaking.

Using the Manual

My daughter was in the midst of moving across the country when she unknowingly overlooked the locking mechanism on the 400-day clock she had received as a gift a few years ago. Upon unpacking it, she found that the suspension spring had snapped. While a snapped suspension spring can’t be reused, it can be easily replaced.

400-day clocks require very specific suspension springs, ones specially designed for each of the many dozens of manufacturers in the past 100 years. Install a suspension spring with an incorrect thickness and length, and you are asking for trouble. The correct spring for the make and model of the clock will ensure a smooth-running anniversary clock that will operate for many years.

On the positive side, these clocks run so slowly at 8 beats per minute that it is rare to have worn pivots and bushing holes.

Horolovar templates
Horolovar templates

Back to the clock in question. It is a Kundo anniversary clock made in the 1950s. According to the Horolovar guide, it is model 1371. Model 1371 tells me that the thickness of the suspension spring is .081 mm or .0032″. I’ve worked on similar models before and had some leftover Horolovar suspension springs of that size.

Kundo 400-day clock, made in West Germany

This is essentially a one-hour job. There are two blocks, one at the top and one at the bottom. Carefully unscrew the blocks, ensuring the spring doesn’t become bent during the process (the small screws can be tricky to loosen). Once the blocks are removed, insert the suspension spring and tighten the screws. After securing the blocks, the manual will indicate where to attach the suspension fork.

suspension spring installed on a Kern
Suspension spring installed on a Kern 400-day clock

Install the assembly onto the clock by attaching the top block with a screw that threads into the mounting hole, and hooking the bottom block onto the pendulum—but your work is not yet finished.

Now comes adjusting the beat and regulating the clock. There is a bracket above the suspension spring assembly that can be turned slightly (it is a friction fit) in either direction to correct the beat. I set the beat by ear and eye. There is a beat setting tool that can be purchased from a clock supplier if you plan to work on a lot of these clocks. In any event, a beat amplifier is an absolute must.

Most 400-day clocks run at 8 beats per minute. Mine runs slightly faster at 9 beats per minute, but this can be adjusted using the dial-type speed regulator at the top of the four weights. While a clock running a bit fast might seem negligible, over the course of a year, it can accumulate into a significant difference of minutes or even hours. As anyone familiar with these clocks will attest, they are not known for their precision in keeping time.

Can you install a new suspension spring without the Horolovar guide? Yes, but you’ll need to research the correct suspension spring thickness for that specific model and use the old assembly as a template.

In the end, 400-day clocks are deceptively simple machines that demand careful attention to detail. Replacing a suspension spring may only take an hour, but selecting the correct one, installing it properly, and setting the beat requires patience and a bit of experience. The Horolovar guide brings all of this together, turning what could be trial and error into a straightforward process. It may not be a book you use often, but when you need it, there’s really no substitute.

Related Articles

Anniversary clock repair – a replacement suspension spring
Kundo 400 day clock and why I love anniversary clocks | Part I
Kundo 400 day clock and why I love anniversary clocks – Part II

Search for my past clock articles using keywords

In light of current world events the antiquevintageclock.com family wish to convey our sympathy and condolences to those effected by Covid 19

I receive letters from all over the world asking my advice on a number of clock issues such as how a particular component of a mechanical clock should work, a clock repair challenge, how to address a particular repair or more basic things such as how to find a winding key that fits, how to wind a clock or set a clock in beat.

As comedian Dean Martin once said, “Keep those cards and letters coming”

In the past 4 years, I have authored over 400 articles that have covered a number of areas such as clock history, clock repair challenges and general clock articles but rather than direct questioners to use the search box (Search for clock articles using keywords), located to the right on the main page, I simply answer the question. It usually prompts a dialogue with more questions.

Veneering a cornice on a Seth Thomas shelf clock

Please drop me a line concerning your clock issue or give the search box a try; you might find what you need. One keyword should help in your search.

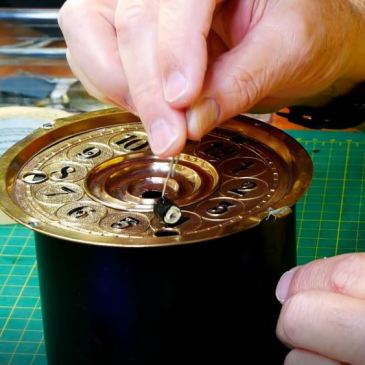

In-painting a clock dial

As American comedian and actor Dean Martin once said, “Keep those cards and letters coming”.

7 reasons why a hobby is your oasis for the coming dark days

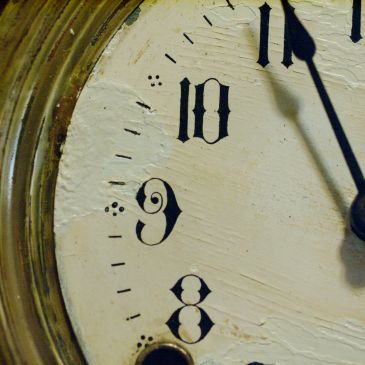

Pequegnat dial touch up

Amid the health crisis ensnaring the world today finding escape is good for the soul. Social distancing, self-isolation, and sheltered-in-place are terms representing new realities. However, we must all use our time at home constructively engaged in meaningful activities and mine is the repair and restoration of old clocks. Horology allows me to drift into a very different world and focus on something uplifting, challenging and positive.

If clocks are not your thing, insert whatever hobby you have below but bear with me as I give you seven reasons why a hobby is a great thing to have in times of high stress.

One of my more recent restorations, a Scottish tall case clock from the 1850s. Read more here.

So here are 7 reasons why a hobby (like clockmaking) gives you respite in today’s world.

  1. Build self-esteem. Developing and maintaining a hobby is important because the small successes I have from day to day are enough to sustain me while other pressures are occurring in my life and it is the one solid thing to feel good about. It also gives me renewed energy to tackle other challenges in life.
  2. Avoid boredom. I have zero scientific evidence of this but I really believe that boredom is responsible for a lot of society’s ills and destructive behaviours. How many people come home after a challenging workday to watch TV for hours on end (depressing news programs for example) when they could be doing something constructive and rewarding?
  3. Enrich your perspective. There is an old adage: “The more you know, the more you grow”.  Any opportunity to learn something new, to be challenged anew, is great for character-building by seeing the world through refreshed eyes. My hobby helps me differentiate myself from others and provides me with key examples of where I have overcome adversity or tackled a difficult situation and emerged on the other side.
  4. Keep you youthful. Establishing and maintaining a hobby is a very healthy habit to form not just now but for your later years. Hobbies are excellent for brain health and stave off cognitive decline. The older you get the more trouble you will have struggling to fill your time with meaningful activities. Beginning a hobby early in life pays dividends in the long run, not unlike an interest-bearing investment.
  5. Combine your hobby with other interests. Photography and travelling are two other interests in my life. Blog writing is another, of course. This hobby allows me to combine all of those interests and as a side benefit my wife, who is also my travel partner and clock locator, encourages me every day. Of course, lately, we have had to curtail some of our travelling because of world events.
  6. It makes me interesting. You can only talk about your occupation or your grandchild for so long before people’s eyes begin to glaze, but if I mention that I have a clock that fell off a wall during the Halifax Explosion, a clock that hung in a railway station near where I live, a rare clock I bought for next to nothing, ears perk up.
  7. A great way to relieve stress. My hobby provides stress relief simply because it is an oasis and we all need a place of refuge in trying times.

Crispi clock back from the horologist
Complete restoration of German time and strike wall clock, Junghans Crispi circa 1899

In these trying times, I find comfort in knowing that my clocks work and look great because of the time and effort I devote to my hobby. My advice is simply this; it is never too late to find a hobby and once you have found something that is engaging and takes you away from the troubles in life, you have found your own oasis.

Clock collecting and repair as a hobby – Part 1

This is Part I of a two part series. In Part I, I will discuss why I collect, repair and restore clocks. In Part II are 9 reasons why clock collecting and repair is a great hobby for just about anyone.

Continue reading “Clock collecting and repair as a hobby – Part 1” →

Appreciating simplicity – the mechanical clock

Arthur Pequegant Brandon II

What other machine have you acquired that has worked continuously since it was made 150 plus years ago and still does the job it was intended for? Mechanical clocks revolutionized people’s perception of time by displaying neutral, uniform units that showed the passage of time. Though not as accurate as the modern electronic timekeeper the mechanical clock remains a marvel of engineering and innovation.

The constant search for clocks

Locating antique and vintage clocks involves travelling, meeting fascinating people and discovering a clock’s particular history. Each story is unique and some stories are sad. I recently arranged the purchase of an antique French shelf clock, arrived to pick it up and discovered that the person was terminally ill and selling off his clock collection to provide for his wife after he had passed. I really felt sorry for the fellow. Of course, many stories are happy ones.

I enjoy clocks for what they are. I often think about the men who conceived them, built them and the craftsmen working in small factories in places such as New England with primitive (by our standards) tools and the harsh conditions they endured. Life to them was a day-to-day struggle. That the clocks are still with us today is a testament to the pioneers of clock-making.

Miniature Vienna Regulator
Miniature Vienna Regulator wall clock, circa 1870

There are a lot of clocks I find intriguing. There are some people that collect complex clocks and I appreciate them as well but I lean towards beauty in simplicity. For example, the miniature Vienna Regulator pictured above is a time-only clock made during the Austrian-Hungarian empire (1870). It is simple, little can go wrong and after nearly 150 years it is still running strong.

There is a certain joy in collecting and repairing clocks. The hobby of clock-making allows one to escape from negativity, put aside worldly matters, effectively manage stress, and dispense with everyday concerns. Occasionally clock problems are very challenging however, the joy in discovering a solution is immeasurable. Beyond that, clocks are an art form and should be appreciated for what they are.

As a collector, the number of clocks I have is not important. The size of my collection is also not important but by trimming my acquisitions from time to time I keep it manageable.

George H Clark Ogee clock – movement and dial work

George H. Clark 30 hour movement

One cannot deny the classic style of an American Ogee clock. This one is in great shape and required almost nothing to get it to top form. 30-hour shelf clocks are abundant but not many cases survive years of wear and tear.

Dial removed to show the 30 hour movement

This George H. Clark 30-hour shelf clock is a very good example of Connecticut form. The case form is called an “og” or “ogee”, a mathematical term that describes the “S” curve shape in the primary molding that surrounds the door.

The clock has a brass time and strike, weight driven movement with an excellent original printed paper label on the interior reading in part “Made and Sold at/46 Courtlandt St/New York…. George H. Clark”. It measures 28 x 17 x 4.5”. This rectangular shaped case is decorated with nicely grained mahogany veneers. The veneer has very little if any losses.

The dial face

The upper section of the door is fitted with clear glass. Through this one can view the painted wood dial. The wood dial tells me that it is an early pre-1850 clock. This dial is formatted with a Roman numeral time track.

It is always a challenge matching 100+-year-old paint but by combining white. brown and yellow acrylic paint I was able to approximate the original colour. Some Roman Numerals were touched up with black acrylic paint.

The wood dial before touch-ups

And after numerals and face given a matching paint; you can see the difference in the number 4

I also glued two small blocks under the left and right “L” pins to centre the dial correctly.

The door is open showing the gong coil and the pasted label in very good condition

The lower section features a beehive painted tablet. The tablet is a replacement but fairly close to what would have been there at the time.

Beehive design; not original but in keeping with the style

Observations regarding the movement

The movement looks like an early (unmarked) Waterbury, ca. 1860 type 2.411. Waterbury movements have “quarter-round” corners, while most other ogee movements tend to have the “tombstones” or plain rectangles. The movement could have been swapped but It is difficult to tell.

A clean Jerome style movement

Everything except the movement points to a period between 1840-50. If the movement is a replacement it was likely an early replacement.

30-hour movements will run surprisingly well with horrible pivot wear. However, regarding repair, my view is this: I do not normally install new bushings in every single pivot hole on the movement. If a bushing hole is passable I will leave it as-is but if the hole is quite oblong I will install a new bushing to mitigate potential gear meshing issues in the future.

Addressing the movement

I will also ignore some past repairs. For example, in this particular movement I noticed 4 punch marks around the escape wheel bridge pivot hole. As most clock repairers know using a punch to close a pivot hole was an acceptable practice many years ago though it is not considered a good practice today. In this particular case, the pivot hole was in good shape and I decided to leave it as-is. After assessing the movement further, I installed one bushing on the second wheel front plate strike side (S2) and the second on the second wheel strike side rear plate (T2). Just two bushings. As to the three lantern pinions, they were in very good condition.

Reassembly was routine. The time side ran fine.

Adjusting the strike side was not easy and should have been a simple procedure. The problem was not only correctly positioning the warning pin on the fly but ensuring that the warning hook lever could actually meet the warning hook. The levers in this clock had been bent every which way making it a real challenge to find the correct angles. It did not strike correctly before servicing. Trial and error combined with colourful language certainly helped correct the strike.

The finished clock

The gong block and coil were also cleaned up. Tip; it helps to put the same screws back in the same holes. Seems trivial but it is a good practice. Not all screws are the same.

Gong block removed and cleaned

Little time was spent on this clock and I was fortunate to have an almost perfect case. The previous owner knew how to take care of the case but the movement neede work. When many of these clocks stopped they simply became decorations but I am sure that this one will run reliably for many more years to come.

Ansonia Marquis crystal regulator – a reader’s clock

Ansonia Marquis crystal regulator circa 1904

I asked reader and fellow horologist Bob G. if he could kindly give me permission to profile one of his favorite clocks, an Ansonia Marquis crystal regulator circa 1904. This is a very impressive clock that showcases the best of Victorian style at the turn of the twentieth century.

The photos are Bob’s and I will let them largely speak for themselves. But first some information about the company.

Much has been written about the Ansonia Clock Company. The company’s history can be found here. Formed in 1844 the Ansonia Clock Company had a relatively long life but went into receivership just prior to the infamous stock market crash of 1929. The machinery and dies were sold to a Russian holding company thus ending the long reign of one of Americas best known clock companies.

“…there came an order to supply the Soviet union with men and machines to make watches and clocks, neither of which products ever had been manufactured there. Representatives of Amtorg went to the Ansonia Clock Company in Brooklyn and to the Duber Hampden Watch Company of Canton, Ohio, and bought them lock, stock and barrel. Then they hired most of the skilled employees of the plants to go to Russia and operate the familiar machines. These have been installed in a new, many-windowed building in Moscow, where Russian apprentices are beginning to master the trade.”

An inglorious end to a fine clock-maker. Now to Bob’s clock.

Clock face showing Brocot “open” escapement

Bob writes:

the Ansonia “MARQUIS” crystal regulator mantel clock is an eight-day time and strike with open escapement, jeweled pallets, porcelain dial, thick beveled glass and a brass bezel. The hands and pendulum appear original and it came with an old key which is probably a replacement. There are no hairline cracks or chips that I could see in the dial or the beveled glass. The pendulum is the same as the one shown in the 1904 catalog.

Pendulum bob showing faux mercury in two glass tubes

Ansonia listed the MARQUIS in its 1904 catalog. It may have been produced a couple years either side of that date. The original price in 1904 was a whopping $40.00, not cheap for that time period. $40.00 in 1904 is equivalent in purchasing power to $1107.48 in 2019.

The clock measures 15½ inches high and 7½ inches wide with a 4-inch porcelain dial. The case is listed in the catalog as polished brass, “rich gold” ornaments.

Side view of the Marquis

I purchased this clock as part of a large collection. The owner had passed away, and his grandson was settling the estate. The grandfather had opened a jewelry store and clock shop over 73 years ago and the store is still in operation today.

This clock needed a good cleaning, and the brass was badly tarnished.

Tarnished brass base

After cleaning and polishing

The gold ornaments were left intact to preserve the rich patina.

Ornamental features, the legs and crown

The entire clock was disassembled, and the brass parts were run through an ultrasonic cleaner, then polished.

Back plate, coiled gong and hammer

The movement was also taken apart and cleaned. All the bushings and pivots were in good condition. One of the jeweled pallets needed to be adjusted and reset with shellac.

Trim pieces in place

It took about a week to get this beauty all back together and running again, but it was worth the effort to see it ticking away and keeping great time.

Thank you Bob. A most impressive clock.

The jeweled pallets are made from garnet, a precious stone consisting of a deep red vitreous silicate mineral. Here is an interesting 1905 catalog showing Ansonia’s collection of crystal regulators. Page 24 shows the Marquis with a price increase to $41.80. As Bob pointed out, a hefty price for a clock in its time.

At least orient the clock photo!

For sale

Gilbert antique mantel clock

If you are going to sell a clock tell me more about it and why is it sideways? It does not take much to orient a photo! Very annoying.

Is it mechanical or electric? Looks like it is key wound from the rear.



Gilbert tambour clock with Normandy Chime – movement servicing

Gilbert mantel clock 1925

This Gilbert tambour style mantel clock is model 2038 with a bim-bam strike or what Gilbert called a Normandy chime. The model number along with the words “Normandy Chime” are stamped on the bottom of the case. Gilbert called this the “Normandy Chime” as it was reminiscent of the old bells of Normandy (Corneville) in France. In terms of nomenclature within clock circles, calling it a “Chime” certainly adds to the confusion as this would be considered a striking clock rather than a chiming one.

Whoever did the past bushing work chose to avoid the motion works area, and for good reason

The Movement

And now to service the movement.

Dis-assembly of the movement is done in the conventional manner with the exception of two items. Both the striking disk (upper arrow) which runs off the cam wheel and the passing strike L bracket (lower arrow) which runs off the centre cannon are friction fit and must be pulled off beforehand to work on the movement. I don’t have a puller but two small screwdrivers positioned across from each other will lift the parts off with minimal effort. Do not polish the ends of these two rear pivots.

Arrows showing striking disk and passing strike L bracket

A prior examination of the movement revealed that it is generally good shape. Overall, the lantern pinions are in good condition with minimal wear. There has been extensive bushing work completed in the past. I see six replacement bushings on the back plate and seven on the front for a total of thirteen which suggests that there was a lot of wear. They are all in very good condition which tells me that the work was done fairly recently.

It also tells me that whoever did the past bushing work chose to avoid the motion works area and for two reasons. It is a tough one to fix because there is so little brass to work with and there is not a lot of torque on this wheel so it can be left as-is.

Although the following photo does not show it well, there is a lot of play in the bushing hole. This is the only one that is addressed in this servicing because I wanted to ensure good meshing of the motion works gears.

Motion works gear with bushing wear

To address the motion works bushing I sought advice from my colleagues at the NAWCC forum site with comments ranging from doing nothing to immediate replacement. The best advice came from a member who suggested I install a smaller diameter bushing and broach out the hole to fit the pivot and that is exactly what I did. A #46 Bergeon bushing was chosen with a diameter of 3mm and an inside diameter of 1.30mm. The pivot is 1.48mm and the result is a side wall that is about 0.80mm. This should allow the gear to mesh nicely and since there is not a lot of torque on this gear the fix should last a long time.

Re-assembling was straightforward. There are no helper springs on this movement so there was no tension pushing on the levers. The only adjustment I had to make was to pull the movement slightly apart to correctly align the stop pin to the stop lever so that the movement strikes as it should.

Arrow showing stop pin (my healing thumbnail from a mainspring that let go)

Since the movement has a Normandy chime the striking hammers are located outside and to the bottom of the movement.

Striking hammer assembly for Normandy Chime

The final process in re-assembly is to attach the hammer mechanism. But before doing so two parts are re-attached, the strike wheel and the L bracket which are pushed back into place. Once in place they can be moved slightly to sync the hourly and half hour strike.

Some folks give Gilbert movements a bad rap but they are not much different than a Sessions, or similar inexpensive movement of that period and the fact that this one is still functioning after over 90 years has to say something for its engineering.

Junghans wall clock – Sometimes a small thing can be a pain in the, well, you know

Junghans Crispi wall clock

The problem; a run-on strike. The solution; remove the movement, poke around looking for the cause, find it almost immediately and apply a quick fix.

The story

My winter (2017) project was an antique German Junghans Crispi time and strike spring driven wall clock made in the style of a Vienna Regulator. It was manufactured in Schwenningen, Germany in 1899. It came to me as a box of parts. I put hours of work into this project so a malfunctioning movement was a bit of a disappointment.

When I originally  disassembled the movement for servicing I made two errors. In my attempt to correct a bent star wheel paddle, I managed to snap it off.

Strike paddle

However, I also managed to snap off the paddle wheel arbor spring which is essentially a thin steel wire which maintains paddle tension during the strike. At the time I did not have the right tools to repair the break. Hmm! After a professional servicing, all is right.

Return spring that had become loose after two years (first photos taken of the movement)

Fast forward to 2019

Now, two years later the strike side decided to malfunction. It was striking incessantly. I decided to check out the problem. I took the movement out of the case, removed the clock face and immediately noticed that the strike tension wire had wiggled out of the arbor so that nothing prevented the paddle from stopping, hence the run-on strike. As I mentioned this was one of the repairs made on the clock when it was professionally serviced.

The solution is Loctite. Some purists will scoff but I believe there is place for modern materials in clock repair so long as the repair is functional and discreet. I positioned the spring correctly and applied Loctite where the wire runs into the paddle arbour and allowed it to dry for 24 hours.

After the repair the clock is striking as it should. However, it took me a couple of days to find the correct beat. For some reason this clock must be absolutely level to function correctly. If it is off by just a smidgen it will not run. Anyway, everything is fine now.

Spring comes early this year but not by much! Adjust your clocks

The first day of spring is called the vernal equinox (sometimes also referred to as the spring equinox or March equinox) and it is almost always either March 20 or March 21 though it will fall on March 20 for the next two years in a row. The first day of the spring season is the day of the year when the Sun crosses the celestial equator moving northward.

Spring is often called the season of rebirth and renewal. It is also seen as the time of the year when we Canadians crawl out of winter hibernation and greet longer and warmer days with enthusiasm and renewed energy.

1910 Ansonia Crystal Regulator

In the pursuit of horological interests what will Spring mean for this writer?

This weekend (March 2019) my wife and I are in Fredericton, New Brunswick. Part of our mini vacation is to check out antique shops and flea markets for interesting clocks.

Otherwise, at home I am putting the finishing touches on the servicing of an Ansonia Crystal Regulator and determining next steps for a recently acquired Gilbert tambour clock.

Gilbert tambour style mantel clock circa 1925

Clocks coming up on the bench are an Arthur Pequegnat Brandon for inspection and oiling, another Gilbert Mantel clock for servicing and case repairs and a Jauch wall clock that I am servicing at for a friend.

Arthur Pequegnat Brandon II

In June I am attending the National Association of Watch and Clock Collectors national conference in Massachusetts (USA) where I hope to interact with like-minded individuals within the world of horology and perhaps learn new things. I am looking forward to it.

Time to get busy!

Schatz W3 – Installing an 8-rod chime block in a custom made clock case

Some time ago I bought this movement without a case.

Having a movement without a case is like a car engine without the body

I discovered this Aug Schatz & Sohne W3 (circa 1960) movement at a local antique store for under CAN$20. My wife said, “You should buy that, maybe you can make a case for it”. “Hmm”, I thought; that would be above my pay grade. The movement looked interesting and it was not expensive so, why not! But, having a movement without a case is like a car engine without the body but I was confident that one day I would have the solution.

This is a type W3 movement. “W3” refers to three chime tones, St Micheal, Whittington and Westminster.

Rear plate
Rear plate of the W3 movement showing chime selector and chime/strike hammers

I put out a plea and two people contacted me to say they had a case that would fit. One lived in Australia and the cost of shipping the case was too high. Another corresponded twice but I sensed he realized that his case would not fit. So, I put the movement away. On a positive note it runs well.

Schatz and Sohne W3 movement installed in a custom case

The pursuit of a custom made case

In the spring of 2018 my son’s girlfriend suggested that her grandfather could build the case. He loves doing this kind of work, she said. Although skeptical at first, I accepted her offer. Though a skilled craftsman her grandfather is over 90 years of age but spends as much time as he can in his woodworking shop in rural Virginia. He agreed to do the work. I sent the measurements to him but he preferred to have the movement in hand so it was sent to Virginia. He was able to use the movement as a guide in constructing the case. The clock was returned to me in December 2018 and it looked absolutely perfect.

Now to the installation of the chime block

The dimensions of the case allowed ample room to place a chime block. The block and rods are 7 1/2 inches long but even so there was not much room to spare on one end. The 8-rod chime block is from a Canadian clock supplier and is designed for a Hermle triple chime movement. There are not a lot of 8-rod chime blocks available through suppliers and given that I had little choice I had to assume that it would work for my clock and it does!

This video describes the placement of the chime block and some experimentation to achieve the optimum sound.

The tapered sections of the rods are an inch long and the hammers must be positioned to strike the wide point of the rods for best results. The oak base was trimmed to fit, allowing for about an eighth of an inch between the rods and the hammers. To close the distance to the rods the hammer wires are bent and centered on the rods. As they are brittle, chime rods should never be bent!

Chime block and oak piece forming the base

Once I was satisfied that the chime block was correctly positioned the block was secured. First I screwed the chime block to the hardwood base with 4 brass slotted screws. And finally, I secured the chime block through the base using two 1 1/4 inch slotted screws through pre-drilled holes.

I gave the case one more coat of shellac before putting it on display.

I am impressed with the outcome. Not all movements have such a happy ending.

Lessons learned restoring grandfather’s old clock

Photo of Waterbury time and strike wall clock sent to me by my cousin

I’ve thought about this clock, dreamt about it, wondered where it was all these years……and now I have it. I was confident that I could do something with this clock since I had just finished a major restoration project.

I had no idea that the clock I was getting was a movement in a homemade case

I have a vivid memory of this Waterbury octagon short drop time and strike schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. After church on Sundays, my father would take (drag?) us kids for a visit; it was a weekly ritual. The house was stone quiet except for the sound of a clock ticking loudly in the kitchen. My grandfather was a veteran of WWI and was bothered by noises, shell shock they called it, but he did not seem to mind the rhythmic sound of a mechanical clock.

When I was a kid in the 1950s it looked impressive.

So, I jumped on this project and have learned a few things along the way.

The following are lessons learned restoring grandfather’s old clock.

When it comes to family, lower your expectations

I made some inquiries within the family and when I first saw a photo of grandfather’s old kitchen clock and discovered that the case was homemade I was very disappointed. I had no idea that the clock I was getting was a movement in a homemade case. The original case, long gone is but a family mystery. Nevertheless, my cousin said, “You can have it”.  I wondered what I would do with it. I explored several options but at the end of the day I wanted a working clock no matter which direction I took.

Work with what you have rather than dream of significant changes

I could have radically altered the appearance of the clock completely but would it be the same? It is a philosophical dilemma. If too much is done to restore a clock it is not fundamentally the same and cannot be considered original. The homemade case is crude and made some 30-40 years ago but it is part of the clocks history. The chicken pecks on the clock face tell the story of a clock that likely sat in a barn for many years.

Envision what the final outcome should be before you begin and resolutely stick to your plan

Should I restore the clock or preserve what I have? It was an interesting dilemma.

My options:

  1. Do absolutely nothing.
  2. Take the movement out, find an appropriate period donor case or
  3. Make some minor changes but preserve the provenance

I chose #3 for several reasons:

  • To preserve the bygone times of a clock passed on through the family, despite its many warts
  • Labour aside, it was cost effective; my entire monetary outlay was less than $50
  • Ignoring aesthetics, the case was crude, heavy but very sturdy and should last forever

Be content that the clock tells a story no matter how ugly or homely it might look

It may not be the prettiest clock on the wall but it will be a great conversation piece and after 70 years (??) it is finally functional. I can only imagine my grandfather standing under the clock, comparing the time with his pocket watch and deciding if he should make just one small adjustment.

Retouched dial face

Changes I made

  • Sanded, stained and shellacked the case
  • Brass bezel was separated from the dial bezel (don’t ask me why the two were screwed together), new bezel hinge installed, and door catch
  • New convex glass dial installed
  • Brass was cleaned and polished
  • New clock hands
  • New pendulum, pendulum rod, verge and crutch
  • Movement completely serviced, several bushings installed
  • New hinged access door made from century old clock case wood

After servicing, a fully functional Waterbury time and strike movement

What I did not change

  • The overall “character” of the clock
  • The holes in the brass bezel were left as-is; it is what it is
  • Dial is original though touched up in some areas; I considered a new paper dial but decided to retain the original and came very close to matching the colour of the dial face
  • The case is made of thick plywood; it is utilitarian, very solid and will likely outlast the movement

Yes, it is ugly but it works and it tells a story

Final thoughts

I am actually very pleased with the outcome. The changes manage to preserve the provenance but not enough to radically alter the look of the clock such that it is. It is now worthy of being placed on a wall and it will certainly occupy a prominent spot in my home, plus, it tells a fascinating story.

Here is the story told by yours truly.

A Smiths Enfield mantel clock comes back to life

Smith Enfield time and strike

Smiths Enfield mantel clocks are highly regarded by beginning clock collectors due to their popularity, abundance, and durable movements. For amateur clock repairers, they offer relatively few challenges.

I acquired my Smiths Enfield time-and-strike clock in 2013 from a young clock tinkerer in Dartmouth, Nova Scotia, but it was never a reliable runner. It would only run for a few minutes before stopping. Eventually, the clock was set aside and left in a corner of my shop.

Post war English time and strike movement

While not an especially attractive clock it embodies the utilitarian design typical of post-war English clocks from the late 1940s and early 1950s.

After several months and armed with new knowledge of clock repair, it was time to take a second look.

About Smiths Enfield

The Enfield Clock Company (London) Ltd. was established in 1929, with its first clocks sold in 1932.

The company utilized modern assembly line techniques to manufacture and assemble its clock movements, inspired by the American system of automated factories. Initially, clocks were sold wholesale and for export, with the movements supplied to shops that would then assemble the cases themselves. Enfield took pride in producing “British-made” clocks. However, in 1933, facing difficulties competing on price, the company was sold to Smiths Industries, which led to the name change to “Smiths Enfield”.

In 1935-1936, they introduced a striking 14-day clock in a Jacobean Oak case, which helped solidify the company’s position in the market. With the outbreak of war in 1939, the factory shifted to wartime production. While clock production continued, material shortages became a significant challenge.

After the war, American machines were allowed to be kept and production of the 53mm movement re-commenced. Production was later moved to the Smiths factory at Cricklewood and then later to their Welsh factory in about 1955. Under Smith Industries the production line was changed to watches. Ultimately all clock production was phased out and the company closed shortly thereafter.

A New Suspension Spring?

I serviced the clock in 2015, and it needed bushing work. Since the wear wasn’t severe, I thought I could delay it for another two years. However, the clock has not been running since then. At the time, I knew little about the purpose and function of a suspension spring, and since I assumed the one that came with the clock was correct, I thought there must be another issue causing the clock to run poorly.

Suspension spring post

It’s time to revisit the suspension spring to determine if that’s the issue.

Suspension spring location

Over the past four years, I have accumulated an assortment of suspension springs and, through trial and error, found one that is either correct for the movement or very close.

The suspension spring has a mounting hole on one end and a small T-bar on the other where the pendulum hangs. I replaced the old spring with a shorter, more flexible one. As a result, the clock started running. In the first week, it lost about five minutes, but after making minor adjustments to the pendulum length, the timekeeping improved with each change.

The takeaway from this is that the correct suspension spring is crucial to whether a clock runs, and it should be considered as one of the potential reasons when a clock is not working.

A new & exciting direction in clock collecting & repair

Front room collection

I have been collecting clocks for over 8 years. In that time I have enjoyed my hobby immensely and I am constantly on the lookout for new and interesting acquisitions. It is more like a daily passion.

However, I now realize that as my collection steadily grows I have more than I need or want. I cherish some of my clocks and intend to keep them for years; my Arthur Pequegnats, selected Seth Thomas clocks, clocks made by the Hamilton Clock Co. and the Canada Clock Co., my Vienna regulators and some of my German wall clocks. I don’t mind parting with other clocks now or in the foreseeable future. Some I will miss and others I will not.

A house can only hold so many clocks

My daughter correctly pointed out that I should adopt a one clock comes in another goes out approach. “One-in, one-out”, she says and it makes perfect sense.

A house can only hold so many clocks. In my small office which is 10X12 I have a total of 15 clocks, 10 of which are running daily and the remainder in various states of repair. Outside my office, at any given time, there are 26 clocks in a number of rooms around the house. I am not one of those persons on YouTube who feel the need to cover their walls with clocks. I prefer to display them in a natural way, as an integral part of the decor of my home. The number is not all that important but I am trying to keep it manageable.

Kienzle clock on display with Ingraham Huron
Kienzle World Time clock and Ingraham Huron balloon style shelf clock

I have decided that now is the time to sell some of my clocks. My objective is not to make money but to recover the cost of the original purchase plus my labour on each clock that I sell. These are the clocks that have left my collection recently.

I am making more critical choices when adding pieces to my collection
Mauthe Westminster chime mantel clock, circa 1950
Juba Schatz Bim-Bam mantel clock, circa 1948
Four spandrels surrounding the chapter ring
Hermle Westminster chime with moon phase circa 1985

I have also gifted eight clocks over the last 3 years and most have been mantel clocks. Antique and vintage clocks make wonderful gifts to friends and family. It is cool to see them displayed and running in their homes when I visit though I know darn well that they are wound just hours before my arrival.

On a clock forum site recently someone said’ “How many clocks do you need”. The answer, “Just one more”

As my knowledge of the clock world grows and my experience repairing and restoring them expands I am making more critical choices when adding pieces to my collection. However, those critical choices often translate into spending more money. For example, recent acquisitions have been a Seth Thomas Regulator #2 and an Arthur Pequegnat Moncton, both wall clocks.

Seth Thomas Regulator #2, time-only, weight driven clock Circa 1922
Arthur Pequegnat Moncton, double spring time only clock, Circa 1930

I believe my new approach is a natural progression and perhaps I have been subconsciously heading down that path for a year or more. Unless a clock has an interesting provenance, is rare, uncommon, unique and/or is a challenge to restore I will now shy away from most of the garden variety clocks one sees on online for-sale sites and yes, I still have a few of those.

On a clock forum site recently someone said’ “How many clocks do you need”. The answer, “Just one more”.

I knew during the course of collecting antique and vintage clocks combined with increased knowledge/experience that my hobby would evolve and continuing my horological journey in a slightly different way is about time,

100,000 clock blog views – onward and upward

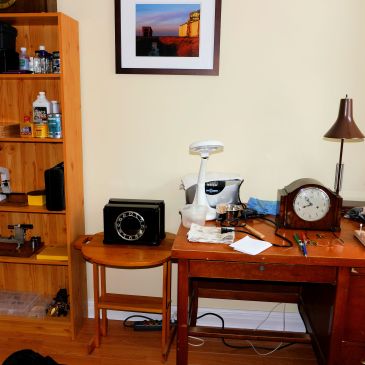

My workshop

100,000 views, Wow!

In the late spring of 2015 I attended a workshop on WordPress blogging at the local community college. I was impressed with the power of blogging. I had already begun collecting antique and vintage clocks and so, it was a good time to begin a blog and share my horological interests and experiences. This was my very first post 3 1/2 years ago.

The first few months were very discouraging. I am sure that those of you who are bloggers know what I mean. It takes time and patience to build an audience and it also takes time to build a ranking on various search engines. I was getting very few page-views, I struggled with the content and tried to envision what my audience would like to see but more importantly what I wanted to convey in my blog articles. I never considered myself a stellar writer but I was enthusiastic and I wanted to give it my best shot. I observed what other bloggers were doing, what made their sites engaging, took some tips from WordPress and other online sources and adopted a style that suits me.

Learning to replace lantern pinions

In the fall of 2015 there was an encouraging uptick in daily page-views. I also began to realize that I had to not only appeal to those with a modest interest in antique clocks but those with a deeper knowledge. My blog was never intended to satisfy expert horologists and those in the clock trade though I don’t mind if they drop by from time to time.

I have received many comments. Some offer suggestions and advice on projects I am working on while others are looking for direction on their particular clock problem. I provide whatever assistance I can.

Installing a new clasp on a Pequegnat Bedford

I graciously accept any criticism because that is an important part of my growth as a clock repair person.

Stats – the lifeblood of a blog

Like it or not, statistics or analytics as Google calls it, are the lifeblood of a blog. The best day was in January 2019 when I hit 267 page-views. However, on average I receive 100 daily page-views and about 800-1000 page-views per week. I have been viewed in 100+ countries and the top 6 viewers are in USA, Canada, United Kingdom, Australia, South Africa and Germany. I am encouraged by the steady rise in interest from mechanical clock fans around the world and share their enthusiasm.

I also discovered that writing articles well in advance and scheduling specific publication dates really helped with planning particularity when I am vacationing and cannot find the time to write.

My work area in 2019

My basement shop where I work on clock case restoration

Yes, there are days and months when the stats dip a bit but that only encourages me to take a second look at article content, learn to explore new areas of interest and make the learning fun. My regular features, Tick Talk Tuesday, Crazy Clock Ads and What Is This Thing For look at the lighter side of clock collecting and repair.

If you are new to my blog, welcome. There is plenty to read. If you are a regular viewer please share your views and comments and if you have any ideas for future articles let me know.

In clock restoration circles small details can make a big difference

Small details added during clock restoration projects can change the appearance of clock in a positive way. In this article I will describe how adding a piece (actually two), that should have there in the first place, will make all the difference.

During the fall (2018) I spent a considerable amount of time restoring a Vienna styled time and strike German made FMS Mauthe spring driven wall clock. Restoration involved completely stripping and refinishing the case and fully servicing the movement. My wife commented that the transformation was dramatic and of course, I graciously accepted the compliment.

For some reason many wall clocks are missing their side stabilizers

Before

And….

After

Restoration included adding an arched door insert above the dial and a new centre top finial. Otherwise, the clock was complete except for one small item, the 2 wall stabilizers. Why would they be missing? A thumbscrew might go astray during a servicing and rather than find a replacement it is too easy to take both off and discard them.

Clock case stabilizers

Many wall clocks are missing their side stabilizers. Check the rear backboard of a wall clock without stabilizers. You might find two small holes on either side of the case near the bottom indicating it once had wall stabilizers. Otherwise if you do not find those holes, the clock was never meant to have them.

Once the beat is set, level the clock on the wall and set the stabilizers by screwing each one into the wall. The stabilizers will compensate for any wall vibrations and the movement of the case during the weekly winding.

Right side stabilizer

Some stabilizers are unique to brands such as Ansonia and Gustav Becker. This, however, does not mean that they are limited to these movements, they are interchangeable. The stabilizers you see here are advertised as Vienna stabilizers.

Left and right stabilizers are barely seen but preform an important function

All clock suppliers carry stabilizers. I ordered a pair and simply re-used the screw holes on either side on the backboard to attach the stabilizers.

Are they absolutely necessary? No! Can a clock run without them. Yes! Yet, it is an often overlooked detail that might make all the difference.

Crazy Clock ad – do you know what you are selling?

Advertised clock

Okay, here’s the description.

Carved pine antique mantle Grandmother clock circa 1900

“Pine”, “1900” and “antique” might be correct but what style is this clock? It is not a Grandmother clock but commonly known as a kitchen clock or a Gingerbread clock. It is not carved but steam pressed and tens of thousands of these were made.

If you are going to ask $125 you had better know what you are selling, who the maker is, what kind of clock it is, any issues and the overall condition.

Tick Talk Tuesday #20 Pequegnat Classic mantel clock $6 online purchase

Tick-Talk Tuesday

The Classic, made by the Arthur Pequegnat Clock Co.

Tick-Talk Tuesday is about the letters and comments I have received from you, the reader, concerning your clock, issues you might have had, challenges you face or a clock you would like me to profile and my responses to your questions with advice on your particular clock concern. For those comments and questions that stump even me, I consult within my clock circles for the best possible answer

DS from New Brunswick, Canada writes, “Good day Mr. Joiner, I have purchased my first Pequegnat clock by accident. It was just a parts buy but I was quite surprised to see it was an Arthur Pequegnat Bedford Classic.  Now I’m looking at resurrecting this old girl. My concern is the dial. I’ve found a few few Bedford clock online but they have porcelain dials with a proper side hinged bezel but mine is a metal dial soldered into bezel so it opens upwards? I removed the bezel to try to rotate it but the only screw holes will only mount it as you see it. Would the brushed(?) metal dial have been an option or is this clearly a poor replacement. Any thoughts or opinions would be appreciated. I live just outside of Buctouch and could make the trip if you would like to see it for a closer inspection.
Thanks”

A reused label

My reply,”

Hi and thanks for your email.

Nice find. First of all it is called the Classic. The Bedford label was used and crossed out. Though not common I have seen this before.

I have attached a link to the Classic which is part of Skip Kerr’s extensive Pequegnat collection. You will see that his clock has a smaller (original) dial which is in keeping with the size and style of the case.

http://www.skipkerr.com/image.aspx?id=832

It is a Pequegnat dial though not normally for that particular clock and yes, Pequegnat made brushed metal/painted metal dials. I have never seen a Pequegnat clock with the hinge in that location but you never know, it might be a variant.

It might also be a replacement. If so, I would think that the “newer” dial’s hinge would not fit if hinged on either side. Are there any screw holes at all on the left or the right? The dial is soldered to the bezel? That is unusual. I don’t see any glass?

The next is a link to an article I wrote concerning a Bedford clock. You will notice that the case is quite different and yes, the dial on mine is a replacement and larger than the original, just like yours.

Restored Athur Pequegnat Bedford mantel clock
Arthur Pequegnat Bedford model, mantel clock

Rather than change it out I would keep it the way it is, after all, it is part of the clock’s provenance.

Here is a post on the Bedford clock

Buctouch is a very pretty area.

Hope that answers your questions.”

DS replies,”Thank you sir, it was a $6 online auction purchase. I was fond of the case style and thought I could strip it and update it for our guest room, maybe even paint it (I know I used the “P” word). Once I received and inspected it couldn’t believe it was a Pequegnat. Thinking it was another mass produced import I expected missing parts and poor veneer but other than the missing glass and hands it is complete and in working order. I’m honored to have the opportunity to save this piece and will enjoy it for many years to come. The body has only one set of screw holes for the bezel, I tried to reposition the bezel then I would re-solder the face in the proper position but nothing lines up except the current position so I welcome your idea to leave it as found.

Thanks again for your advice and link I will definitely take a look. I enjoy researching and learning with each new piece I collect.

Happy hunting, DS”

Later DS wrote, “Well sir I’ve cleaned up the original case, installed new hands and replaced the glass. I believe the bezel and face may be original. There are only one set of screw holes in the case and the bezel and when I correct the bezel the wood trim on the case interferes with opening the bezel. So there it is my first Pequegnat. Thanks for the information on my clock. Now on to the next.”

Another happy Pequegnat clock collector.

Crazy Clock Ads – would you buy this clock?

If you are going to sell a clock this is certainly not how to do it. The image (and there is only one image) is blurry and the person holding the clock looks like they are in their Pajamas. Plus, there are absolutely no details about this clock in the ad, just the price.

Great photos taken from many angles and a thoughtful description are fundamental to selling any clock.

George H. Clark 30-hour Ogee clock – in very nice shape

George H. Clark 30 hour Ogee

Wood dial removed

This George H. Clark 30-hour shelf clock is a very good example of Connecticut form. The case form is called and “og” or “ogee”. a mathematical term that describes the “S” curve shape in the primary molding that surrounds the door.

The clock has a brass time, strike, weight driven movement with original printed paper label on the interior reading in part “Made and Sold at/46 Courtlandt St/New York…. George H. Clark”. It measures 28 x 17 x 4.5”. This rectangular shaped case is decorated with nicely grained mahogany veneers. The veneer has very little if any losses. The one blemish on the top is auction label glue which took off some of finish but was later retouched with shellac.

The upper section of the door is fitted with clear glass. Through this one can view the painted wood dial. The wood dial tells us that it is an early pre-1850 clock. This dial is formatted with a Roman numeral time track. The lower section features a beehive painted tablet. The tablet is a replacement but fairly close to what would have been there at the time.

Wood dial in fair shape; the spade hands might not be original, veneer is stripped where an auction label was placed

An online search for “George H. Clark clocks” or “Clarke” turns up various references at 46 Courtlandt Street, anywhere from 1844 to 1847. They mention a George H. Clark (no “E”) in Bristol in the early 1840’s, and then in New York City in the late 1840’s. He is said to have sold Ogee clocks with 30-hour brass weight movements. Spittlers and Bailey, an important source for Ogee clocks of this period, mention George H. Clarke (with the “E”) and they indicate a label with the words “Made and Sold at 46 Courtlandt St.”

Good label and original pendulum bob

They say “No date” for this Clarke. Two different people? A name like Clark/Clarke, may be variants of the same basic name and the same person.

The pendulum bob is also 1840s in style.

Coil gong

The label is in good condition. In pencil below the address are the initials “GLD” plus the date “Dec 29” that may ether refer to a day in the month or the year 1929. A service date perhaps. The overall look of the label is 1840-50 in style.

There is a screw to the right of the gong. Screws in this location are used to anchor the clock to a wall and are common as clocks such as these are top heavy when the weights are wound fully to the top of the case.

George H. Clark 30 hour movement
George H. Clark type 2.411 30 hour movement, possibly Waterbury but unmarked

The movement looks like an early (but unmarked) Waterbury, ca. 1860 type 2.411. Waterbury movements have “quarter-round” corners, while most other ogee movements tend to have the “tombstones” or plain rectangles. The movement could have been swapped but It’s hard to tell because it appears original to the case.

Everything except the movement points to a period between 1840-50.

Aside from touching up the slight damage on the top part of the case there is nothing else to be done. The movement? That will have to be taken out and serviced but I will leave that to another day.

Website Powered by WordPress.com.

Up ↑
