Re-Bushing, Reassembly & Testing of a Gustav Becker Regulator

Gustav Becker 2 weight clock

This two-weightGustav Becker regulator wall clock, purchased in 2016 as a “project clock,” proved early on to be more challenging than I thought. This is the third and final post in this series. For the story behind this clock and an analysis of the steps taken so far, the first and the second posts can be found here and here.

Gustav Becker two weight regulator

After repeated but unsuccessful attempts to source correct replacement parts, the original movement was ultimately replaced with a complete 1918 P27 movement. That decision proved sound. The replacement movement has run reliably for more than nine years, making the recent strike issues described here less a surprise and more a predictable outcome of a long service interval.

The current issue is intermittent stopping during the warning phase, with the warning lever binding against the stop-wheel pin. In the absence of obvious breakage or damage, and given the movement’s extended service interval, the symptoms suggest accumulated wear rather than sudden mechanical failure.

With that diagnosis in mind, let’s now shift to systematic bushing work, careful reassembly, and methodical testing of the movement.

Polishing Bushings

Polishing the pivots prior to addressing pivot hole wear is a critical step, since even minor surface roughness can accelerate wear in otherwise sound bushings. Ensuring the pivots are smooth and true allows any remaining issues to be correctly attributed to pivot hole wear rather than the pivots themselves.

Taig lathe with 1/4 hp motor
Taig metal lathe

The pivots were inspected and polished using my Taig metal lathe (above). An emery board was used to clean and polish each individual pivot. No pivot wear was expected, and none was found.

Bergeon Bushing Machine

Bushing Work

The next step is addressing wear, particularly on the strike side. Pivots in this movement are significantly smaller than those found in mass-marketed American movements. As a result, some of the pivot holes measure only 0.6 to 0.7 mm, requiring small 2 mm diameter Bergeron bushings.

This demands a high level of precision when drilling the plates, as accurate placement is critical. Off by a fraction of a millimeter, and the wheels will not mesh correctly. Two new back-plate bushings were installed on the second and third wheel pivot holes.

After checking the action of the wheels, I debated whether or not to include the fourth wheel pivot hole, which did not look as worn as the other two. I decided not to at this point. Interestingly, both replaced bushings showed punch marks adjacent to the pivot holes, a previous attempt to reduce pivot hole wear by closing them. Punching pivot holes might have been an acceptable practice years ago, but not today.

Reassembly

Working with small pivots presents its own set of challenges. There is always the risk of a bent pivot. Now, it could have been me, or it might have been there for quite some time, but I noticed a slightly bent pivot on the flywheel. Straightening a bent pivot is not for the weak of heart. A broken pivot can be a catastrophe.

Can it be fixed? Yes — and I have done pivot work in the past — but it’s something best avoided whenever possible. I have a staking tool specifically for correcting bent pivots, and I did my best to straighten it. I also have the original movement, so I could have used the fly from that movement if my minor repair had gone sideways.

Other than the minor hiccup described above, assembly went as planned.

Have I ever left a part out? More than once. I’ve put everything together only to discover the hammer arbor looking up at me as the last part in the bin, practically saying, “You forgot me.” Not this time.

Aside from the winding drums, there are only 6 wheels and the fly. The strike levers are on the outside of the front plate. Below the large hour wheel on the front plate are two smaller gears that must be timed. Curiously, there are timing marks on the bottom of the gears, so, using a black marker, I indicated the timing marks on the top of the wheel. This aligns the movement for striking at the 12 o’clock position.

Otherwise, the stop wheel should be very close to 12 o’clock, and the gathering pallet is positioned to clear the rack. Next come the various levers and the taper pins to keep them in place.

Testing

I have five testing stands, but none that accommodate a Vienna Regulator, so the movement was returned to the case for testing. During the testing period, I did not attach the hands or the dial.

With the striking issues finally sorted out, the clock is now running as it should — steady, reliable, and doing exactly what it was meant to do. As of this writing, it is on its second 8-day cycle and keeping time within a few seconds per hour.

Final thoughts

It now seems likely that wear on the striking side lay at the heart of the problem, and those issues have finally been addressed. As with any clock repair, time itself will be the true judge, but for the moment, all signs are encouraging. With a little luck, it will settle in and run contentedly for many years to come.

This has always been one of my favourite clocks in the collection and one that I keep running daily, so it was genuinely disheartening to see it silent for the past few months. I tried every reasonable adjustment to coax it back to life without dismantling the movement, but in the end, there was no substitute for proper disassembly and servicing. Sometimes a clock simply tells you when it is time to do things the right way.

I will let it run through another full eight-day cycle, make any final adjustments that may be needed, and then refit the dial and hands — hopefully marking the return of a familiar and welcome presence in the room.

Related Links

2

E Ingraham and Co. 30 hour movement cleaning

The movement was pulled out of a 30-hour shelf clock made by American clock-maker E. Ingraham and Co. in the 1870s (the name the company used from 1861 to 1880). The clock was bought at auction in mid-March 2022 along with 3 other clocks.

E Ingraham 30-hour movement

This is one of those situations where the case looks distressed whereas the movement looks like it has been well cared for over the years. It has seen service at least three times.

The three dates, two on the back panel and one on the rear of the dial, are all presumably service dates. The inscription, Bridges Bros, Woodstock, New Brunswick, 1879 is the earliest and on the back panel are the dates January 31, 1916 (barely readable) and October 1994.

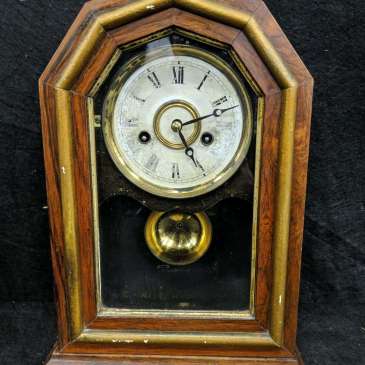

Auction photo

The case

The gold band on the front face of the “octagon top” has some losses. I intend to hide the nicks with gold artist paint matched to the case. There are a few scratches over the rosewood case which will be hidden by a fresh coat of shellac following cleaning with soap and water.

5% of a label remains on the back. The inside label is interesting since most of the back panel is covered in black paper with E Ingraham Co. inscribed in gilt on the bottom section.

Dull dark blue paper label with gilt lettering

The dial shows considerable wear following years of daily use and the plan is to enhance the numbers with multi-surface black acrylic paint.

Auction photo

As a collector who has seen many of these styles of clocks, I initially assumed the access door glass was a replacement since many from this period had reverse painted tablets. Due to the decorative pendulum, the bright brass bell, the stylized wood panel that is the base for the dial, the glass panel with its waviness and various imperfections plus the putty-like material that is used to mount the glass, the total absence of any sign that it was painted, the clear glass appears to be original to the case.

It is always a bit of a disappointment when something is lost or changed in a clock’s history but the case looks reasonably good despite the minor wear.

Some of the scratches, dents, etc. found on a case (not all of course) are no doubt the result of rough handling either when transporting the item to the auction house or during its stay.

This is certainly not an example of a case that requires refinishing. The minor touch-ups and enhancements will dramatically improve the appearance of this clock while not changing its character or value in any way (but may even increase it marginally).

The movement

Now to the movement. The movement looks surprisingly good for its age and from my first inspection, it does not need much to put it right.

The front plate and escape wheel removed

Every time-side pivot and bushing is in very good condition and there is an old replacement bushing, 3rd wheel back-plate.

The strike side requires a new bushing second wheel back-plate. There are two old replacement bushings on the front plate and two on the backplate, all on 3rd wheels. The bushings are nice to see but it is not encouraging when one pops out while pegging the movement. It will be replaced. Not the best of workmanship.

There are punch marks around four bushing holes, front, and back. All pivots on the strike side are in very good condition.

It also appears the time side mainspring has been shortened a bit, not a concern since these clocks when properly serviced will run well past 30 hours.

All in all, it should be a quick project. Now that I have a clear idea of what needs to be done I will get to work on the case. Expect a post on the case itself in the next few weeks.

An 8-day clock – what does that mean?

There’s something deeply satisfying about winding a mechanical clock—feeling the tension build in the spring or watching the weights slowly rise as you turn the key. That simple ritual connects you to generations past, when timekeeping was both a science and a daily habit. Among the many types of mechanical clocks, the 8-day clock holds a special place. Wound just once a week, it blends convenience with craftsmanship, offering the perfect balance of tradition and practicality.

An 8-day clock is a mechanical clock that requires winding only once every seven days. While that may sound simple, there’s more to it than just the winding schedule.

Double-sided winding key

Types of Mechanical Clocks

Mechanical clocks vary in their run times. A 30-hour clock—often called a 1-day clock—needs daily winding. Many ogee weight-driven and alarm clocks fall into this category. Others, especially those with Chinese or Korean movements, can run up to 31 days. You’ll also find clocks rated for 14, 15, or even 60 days, and anniversary clocks, known as 400-day clocks, which run for more than a year on a single wind. The number of days simply refers to how long the clock will run before needing to be rewound.

Arthur Pequegnat Moncton
Arthur Pequegnat Moncton 15-day clock

Why Regular Winding Matters

If you don’t wind a clock near the end of its run time, it will stop when the mainspring or weight no longer provides power. A serviced 8-day spring-driven clock might run a day or two beyond its rated cycle, but eventually, it will stop once the power is depleted.

Junghans 14-day time and strike mantel clock
Junghans 14-day time and strike mantel clock

When an 8-day clock consistently fails to run its full cycle, it’s a clear sign that servicing is needed. Dirt, worn bushings, or tired pivots can all cause power loss. Fresh oil alone won’t solve the issue—mixing new oil with old, dirty oil can actually worsen wear.

Professional clock servicing involves fully disassembling and cleaning the movement, repairing worn areas, reassembling and lubricating it, and testing for accuracy. Though servicing can be costly—and sometimes exceed the clock’s market value—it’s well worth it for pieces with sentimental or historical importance.

It’s normal for an 8-day spring-driven clock to lose a bit of time toward the end of the week. As the mainspring unwinds, the stored energy gradually decreases, slightly slowing the movement.

Speed Variations and Clock Design

Seth Thomas round top
Seth Thomas round top 8-day clock

Some clocks include a device called a stopwork or Geneva stop, which limits the spring’s range to its most consistent section of power. This improves timekeeping but is relatively uncommon today—many clocks that once had stopworks have had them removed by repairers over the years.

Arrows showing Geneva stops or stop works

My Personnel Collection and the Variety of Run Times

Of the more than 80 clocks in my collection, about 30 are running at any given time. Five are 1-day ogee clocks, three have 14-day run times, and the remainder are 8-day models. Most antique and vintage clocks you find in shops or online are also 8-day clocks—the classic “once-a-week winders.”

Keeping a Regular Winding Schedule

Weight-driven 8-day clocks tend to be more accurate than spring-driven ones because their power source—a descending weight—delivers a constant force. They typically need only minor time corrections.

Final Thoughts

Winding your clock at the same time each week ensures steady performance. I make it a Sunday morning ritual to wind my clocks and make any necessary time adjustments.

Like any precision instrument, a clock rewards consistent care. With proper handling, regular maintenance, and timely servicing, an 8-day clock will live up to its name—keeping time faithfully, week after week.

Feel free to share your comments or questions below!

Related Articles

A Beginner’s Guide to Winding a Mechanical Clock
The Myth of Over-Winding: Clarifying a Common Misconception
Winding a mechanical clock – A How-To Guide
Top 9 Antique Clock Myths Debunked for Collectors

In clock restoration circles small details can make a big difference

Small details added during clock restoration projects can change the appearance of clock in a positive way. In this article I will describe how adding a piece (actually two), that should have there in the first place, will make all the difference.

During the fall (2018) I spent a considerable amount of time restoring a Vienna styled time and strike German made FMS Mauthe spring driven wall clock. Restoration involved completely stripping and refinishing the case and fully servicing the movement. My wife commented that the transformation was dramatic and of course, I graciously accepted the compliment.

For some reason many wall clocks are missing their side stabilizers

Before

And….

After

Restoration included adding an arched door insert above the dial and a new centre top finial. Otherwise, the clock was complete except for one small item, the 2 wall stabilizers. Why would they be missing? A thumbscrew might go astray during a servicing and rather than find a replacement it is too easy to take both off and discard them.

Clock case stabilizers

Many wall clocks are missing their side stabilizers. Check the rear backboard of a wall clock without stabilizers. You might find two small holes on either side of the case near the bottom indicating it once had wall stabilizers. Otherwise if you do not find those holes, the clock was never meant to have them.

Once the beat is set, level the clock on the wall and set the stabilizers by screwing each one into the wall. The stabilizers will compensate for any wall vibrations and the movement of the case during the weekly winding.

Right side stabilizer

Some stabilizers are unique to brands such as Ansonia and Gustav Becker. This, however, does not mean that they are limited to these movements, they are interchangeable. The stabilizers you see here are advertised as Vienna stabilizers.

Left and right stabilizers are barely seen but preform an important function

All clock suppliers carry stabilizers. I ordered a pair and simply re-used the screw holes on either side on the backboard to attach the stabilizers.

Are they absolutely necessary? No! Can a clock run without them. Yes! Yet, it is an often overlooked detail that might make all the difference.

New Haven 30 hour Sharp Gothic (Steeple) – a curious fact

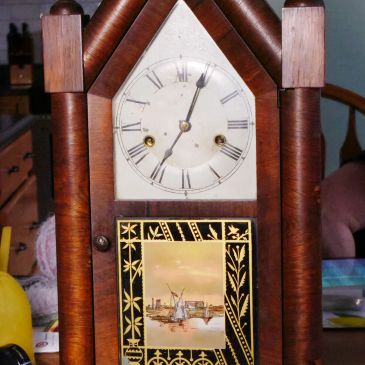

New haven Gothic Steeple clock

This is a recent acquisition bought at a local online estate auction site. It has a curious fact that I found quite intriguing.

My wife and I saw a very attractive colonial style Stickley writers desk and while browsing further through the online catalogue I noticed 2 clocks. One was an IBM style time clock and the other was this, a 30 hour New Haven Sharp Gothic (steeple) time and strike clock.

Sometimes we win and sometimes we lose but we do not get caught up in the fever of bidding

Early in the day we put a maximum bid of $60 on the Stickley desk and $40 on the steeple clock. As we often do, we let the bids stand while we go about our day. Our usual strategy is to apply the most we think we would pay. Sometimes we win and sometimes we lose but we do not get caught up in the fever of bidding. At the end of the bidding day, we discovered that we had won both items. Of course, as auction goers know there is a buyers premium and a tax on anything you “win” which adds to the price.

Stickley is an American maker of fine furniture and is best known for their timeless mission style designs. We are pleased to have won a well-made and attractive little desk that is a great addition to our sun-room. The fact that It is in exceptional condition is a plus.

Stickley writing desk
Stickley writing desk circa 1940

The New Haven Clock Company was founded in New Haven, Connecticut by Hiram Camp (1811‑1892) and other clock-makers

The other win was a $40 steeple clock. Steeple clocks, otherwise known at the time as Sharp Gothics, were made from about the 1830s to around 1900. This is a 30-hour clock which is easily recognizable from the front face by the close proximity of the winding holes to the centre arbour.

History of the New Haven Clock Co.

The New Haven clock Co. produced clocks for over 100 years. In 1853 the Haven Clock Company was founded in New Haven, Connecticut by Hiram Camp (1811‑1892) and other clock-makers. The company’s mission was to mass produce inexpensive brass clock movements for use in clocks. In April, 1856 The New Haven Clock Company eventually bought out the Jerome Clock Company. They moved their production to the former Jerome factory and New Haven began making clocks under their own trademark. In 1870 some of New Haven’s clocks were marketed under the Jerome & Co. brand. Early unmarked movements were Jerome designed.

In 1885 the company stopped selling clocks other than their own New Haven brand. In 1890 the company developed serious financial problems and efforts were made to keep it solvent until 1897 at which time the company emerged after reorganization. In 1902 Walter Chauncey Camp (1859-1925) began to turn the company around. In 1923 Walter Camp stepped down as head of the company and was succeeded by Edwin P. Root.

In 1929 Richard H. Whitehead replaced Root as president of the company but New Haven again faced financial difficulties compounded by the Great Depression in November, 1929. Whitehead was able to keep the company afloat during these troubled times and the firm regained profitability. From 1943 to 1945 the company turned to the war effort, producing products almost exclusively for military use. In March of 1946 The New Haven Clock and Watch Company became the new name of the firm after it reorganized once again. It returned to what it did best before the War, making clocks and watches.

The 1946 reorganization eventually leaves the company vulnerable to foreign investors and it lost control to a consortium of Swiss watchmakers. The man who had successfully shepherded the company through the hard times of the Depression years, resigned as president. In 1956 the New Haven Clock and Watch Company filed Chapter 10 bankruptcy in a U.S. court. Its fortunes had declined precipitously since Whitehead’s departure and it never recovered. In 1960 the company went out of business and the production lines closed. The facilities were sold through a combination of public auction and private negotiation in March of 1960. After over 100 years the company was no more.

My auction win

This New Haven clock is in very good condition apart from minor veneer issues on the base and the columns. The clock is also missing the very tip of the right finial although it might be hard to tell from the photo. It measures 20 1/2 inches tall with a 5-inch dial. The movement appears to be original to the case. The dial is original and has some loss that would be expected in a 148-year-old clock. What I thought was a photograph taped to the lower glass is the original tablet. The tablet is interesting because it features a sailboat against Greek (?) temples surrounded by gold foliage on a black background. The design of the tablet was used in other New Haven clocks of the time. Though likely intended for European export the clock found its way to Canada instead.

Eight-day clocks eventually replaced 30-hour clocks 1865 to 1870 seems about right

Lower tablet
Lower tablet

Now for a curious fact!

In my attempt to date the clock I found some information that narrows the time frame somewhat. It has an almost perfect label save for some staining on the bottom left. There is an over-pasted square blue coloured label on the bottom centre from a clock retailer in Halifax, Nova Scotia, Canada. As regular readers know, Halifax is only an hours drive from my home.

The small blue label says, “Thomas D. Spike, watchmaker and jeweler”. I accessed an online database and found that the business was listed in the 1869-70 City of Halifax business directory, however, I could not find how long the business was in operation. Logically, I can assume the clock came from his shop and is from that period.

Thomas D. Spike, watchmaker and jeweler, Halifax, Nova Scotia

According to one source the tapered escape wheel bridge was introduced around 1870. The tablet style is typical of the 1870s, so 1870 is very close to the date it was made.

Label in very good condition
Label in very good condition

The movement is a count wheel strike. The clock runs and keeps time but the strike side fails to stop. Once the clock starts striking it keeps on until the mainspring runs down. This is a common problem. In most cases, the warning wheel misses the locking lever even though the count lever in the deep notch and the maintenance lever is in the maintenance-cam notch. Bending a lever or two is a relatively easy fix but the clock must be dis-assembled in order to make this adjustment.

30 hour time and strike movement
30 hour time and strike movement

However, I must put the clock aside for now as I have a Mauthe wall clock and a Jerome Ogee on the workbench. Once those projects are out of the way I can focus on repairing the veneer and servicing the movement of this fine example of an American sharp Gothic shelf clock from 1870.

Kundo 400 day oval anniversary clock – let’s get this thing working!

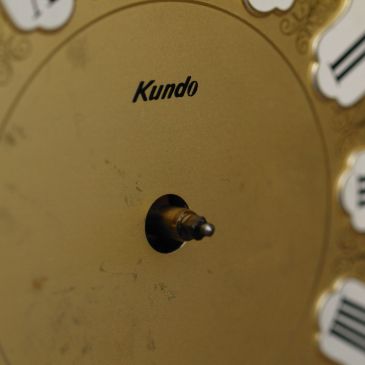

Dial face of a 400 day clock

Of the five anniversary clocks in my collection, none have cost me more than $30. It’s unfortunate because these clocks are truly fascinating devices. They are well-crafted, delicate, and ornamental, driven by spring mechanisms. While many thousands were produced, their abundance is reflected in their low value today. My focus is on collecting the older mechanical models, the last of which were manufactured over 35 years ago, and steer clear of the battery-operated anniversary clocks still being sold.

Among clock repair enthusiasts (horologists), opinions on anniversary clocks vary—some enjoy working on them, while others struggle to develop an affinity for them. I fall firmly into the former group, finding these clocks both intriguing and enjoyable to work on.

Kundo 400 day torsion clock
Kundo 400 day torsion clock

Gustav Becker, Haller, and Schatz 400-day clocks are certainly more desirable, better made, and fetch higher prices. While I don’t have any of these makes in my collection, I am always on the lookout for more desirable and collectible models.

Movement before cleaning
Movement prior to cleaning and showing verdigris on the spring barrel

I picked this up for $5 at a local antique store. When buying one of these clocks, regardless of the price, it’s crucial to check that all parts are present, as sourcing a missing part can be nearly impossible unless you purchase an identical clock for parts. Often, the only issue is a broken suspension spring.

Fortunately, this Kundo clock was complete and in generally good condition. However, the suspension spring had clearly been snapped off due to improper transport. Many people either forget about or are unaware that these clocks feature highly effective pendulum locking mechanisms.

These are called torsion clocks because there is a weighted disk or wheel, often a decorative wheel with 3 or 4 chrome or brass balls on ornate spokes, suspended by a thin wire or ribbon called a torsion spring (otherwise known as a suspension spring). The torsion pendulum rotates about the vertical axis of the wire, twisting it, instead of swinging like an ordinary pendulum.

These clocks operate very slowly—in the case of this Kundo Junior, just 10 beats per minute compared to 100 beats per minute or more for a typical pendulum mantel clock. Due to the slow movement of the gears, wear is minimal, and it’s quite common to find these clocks with a broken suspension spring as their only issue.

Front plate removed
Front plate removed

The movement was disassembled and cleaned in an ultrasonic cleaner. The mainspring was removed from the barrel, cleaned, and serviced. Otherwise, there was minimal wear to the pivot holes. In fact, I have never needed to install a bushing in an anniversary clock because their slow operation results in very little friction.

The old spring was very twisted

Now, it’s time to install the new suspension spring. The suspension spring is a very thin piece of steel running down the back of the clock, designed to twist back and forth while suspending the pendulum balls. It’s crucial not to kink or bend it, as a bent or crimped spring is the most common reason these clocks fail to function properly.

You can purchase pre-assembled suspension springs in kit form—springs already fitted with blocks and a fork—but I’ve found it far more cost-effective to buy the springs separately and re-use the blocks and fork. To ensure accuracy, I consulted my Horolovar manual (I eventually purchased one) to find the exact template—Kundo 5E, in this case. I then unscrew the blocks and fork to install the new spring. Here is an example of a suspension spring from a Kern 400-day clock.

suspension spring installed on a Kern
A new suspension spring was installed on a Kern

Installing the suspension spring requires a little patience. While it is a delicate process, it’s relatively easy to do. It’s best to work on a flat surface. There are screws on both the top and bottom blocks that must be loosened before the new spring can be inserted. The bottom block was a bit stubborn, and a jeweler’s screwdriver is essential—you don’t want to strip those tiny screws.

Use the template in the Horolovar manual as your guide. For the Kern clock mentioned earlier, I had to rely on some guesswork while waiting for the manual to arrive, but once it did, I was able to confirm the measurements. After positioning the blocks, attach the fork and secure it with screws.

Install the bottom block first. Attach the spring block to the 4 pendulum balls with the pin then lock the pendulum balls in place using the locking lever. Some 400-day clocks use a simpler bottom block solution that simply hooks the block into place. Because this one uses a pin it is a bit more frustrating. After the bottom block is secured and locked in place install the top block to the top mount by first slipping the fork over the verge post. In the case of this Kundo it is a small side screw that secures the top block to the mount (saddle?).

I then attached the dial face and the hands then gave the pendulum a gentle 360-degree spin. Not surprisingly the clock failed to maintain its spin. An adjustment was required.

Looking at the top of the clock, you’ll see a screw that can be loosened to adjust the fork in one direction or another. Be very careful not to kink the suspension spring when loosening this screw. Loosen it gently, just enough to allow movement, and make small, incremental adjustments when setting the beat. While you can buy a beat adjustment tool for 400-day clocks, with a bit of trial and error—observing the verge’s action and fine-tuning the beat setter—you’ll eventually find the correct beat. You’ll know it’s “in beat” when the time between the tick and tock is the same. At that point, the clock should run smoothly. Since the ticking is so quiet, it helps to turn off any background noise in the room while making adjustments. I have several loud-ticking clocks in my office, and I stop them to assist with the process.

If you work on enough torsion clocks, a Timetrax or similar beat amplifier will make the task much easier.

The clock has been running for several weeks and is in the process of being regulated. Above the pendulum balls in a regulating adjustment dial. You will see a “+” and a “-“.  Adjusting towards the plus side speeds up the clock and the minus slows it down. I recommend minute turns for either adjustment.

There’s some debate about whether or not to oil these clocks, given the slow movement of the gears. While polishing the pivots to reduce friction can certainly be beneficial, I believe a bit of pivot oil is never a bad idea.

As I mentioned earlier, I’m part of the group that enjoys working on 400-day clocks, appreciating their delicate mechanisms and the satisfaction that comes with restoring them to working condition.

Regulating your mechanical clock – its easier than you think

Mainspring contained in a clamp

Regulating your clock is the process of making repeated, precise adjustments to its mechanism with the goal of enhancing its accuracy and ensuring it functions as a reliable timekeeper over an extended period.

The running of your mechanical clock is influenced by three key factors: neglect, friction, and the environment. These elements will determine whether your clock can maintain accurate timekeeping. The article ends with tips on regulating your clock and the effects of mainspring power on timekeeping.

Let’s look at each factor.

Neglect

Neglect is easy to understand: without proper care, a clock will lose its reliability as a timekeeper. Placing a clock in a sunny spot, especially in a hot window, can cause the case to age prematurely and dry out the movement. Setting a clock near a heat source, like a heating vent, can affect its performance. Transporting a weight-driven clock without securing the weights can result in broken case parts and shattered glass. Moving a pendulum clock without removing the pendulum can cause internal damage.

Additionally, turning the hands backward should be avoided unless the manufacturer specifically permits it in the clock’s instructions.

Preparing to wind a clcok using a winding crank
Using a winding crank

Friction

Each moving part of a clock must be in optimal condition. The gear train should move freely, but excess friction will negatively impact the clock’s performance. Regular lubrication is crucial to prevent this. Friction causes wear, and over time, wear can lead to costly and time-consuming repairs. As bushing wear accelerates, the clock’s functionality will deteriorate, eventually causing it to stop.

Close-up of bushing wear
Close-up of bushing wear; the pivot hole is oval when it should be circular

It’s good practice to inspect your clock’s movement every year or two and add oil if the pivots are dry. If you notice a buildup of thick, dirty oil around the pivot holes during your inspection, it’s time to service the clock’s movement. This can be done either by you, if you have the necessary skills, or by a clock specialist.

Six bushings on back plate
Six bushings installed on the back plate of a Sessions Westminster A mantel clock movement

Once the lubricating oil is used up or dries out the clock continues to run but the wheels are running without lubrication in their pivots holes. Once the pivot holes are enlarged (see above) the gears begin to run too deep into each other and the clock eventually stops. In clock circles the proper function of one gear operating with another, smoothly is referred to as “meshing”. Once wear becomes a factor, winding the springs no longer helps, as the springs lack sufficient power, or the gears fail to mesh properly, preventing them from overcoming friction in the gear train.

This leads some owners to think the clock is stopping due to being “over-wound,” when in reality, it’s simply worn out, or there is so much debris and dried oil in the mainspring that it sticks and refuses to unwind.

Preventative maintenance can help avoid costly repairs.

Servicing a clock is a separate topic altogether but black or green oil around or in the pivot holes is an indication that re-oiling will be ineffective; dis-assembly and cleaning of the movement is necessary.

Mixing old, dirty clock oil with new oil will speed up wear, and adding more oil won’t improve its performance.

Environment

Changes in the ambient temperature of your environment will affect it’s timekeeping rate. It is quite common to make seasonal adjustments to your clock. If you are in a temperate climate such as my part of the world, humidity, and temperature changes have a noticeable effect on the rate-keeping of any clock. Increasing the ambient temperature will slow it down, from the expansion and lengthening of the pendulum rod (unless it has a compensating type pendulum).

Clocks perform better in the more controlled environment of a home, but damp basements, window sills, bathrooms, areas above heating elements or vents, garages, and other humid spaces are unsuitable for mechanical clocks. Harsh environments can damage both the movement and the case, leading to issues like cracks, fading, and detached veneer in addition to a myriad of problems with the movement.

pendulum bob with adjuster
Pendulum bob with regulating adjustment

Regulating your Mechanical Clock

Regulating a clock often means making incremental changes to the length of the pendulum by means of a rate adjustment screw located at the end of the pendulum, or as in the case of a French clock pendulum (above) a rating screw inside the bob. Turning the rating screw clockwise shortens the pendulum (faster) and counterclockwise lengthens (slower) it.

Usually, one full turn of the screw means adding or subtracting a minute per week. To simplify the process some clocks have a rate adjustment arbour on the dial, typically at the 12 o’clock position. That way you do not have to open the access door at the back of the clock to adjust the rating nut on the pendulum.

Rate adjustment arbor
Rate adjustment arbor

If you have a double-ended key, the smaller end is used for the rate adjustment arbour. The “S” (slow) and “F” (fast) settings correspond to adjusting the clock’s speed—slowing it down or speeding it up. Clocks may have either one of these adjustments, but sometimes both (adjustable pendulum and rate adjustment arbor), as on this French shelf clock.

French mantel clock
French mantel clock

Rate adjustment is a trial-and-error process and typically takes a week or longer. If you can adjust your mechanical clock within a minute or two per week you are doing well. You will gradually gain a feel for the kind of adjustment required to regulate your particular clock.

Clocks without pendulums are those that have lever escapements, floating balance escapements, or balance wheel escapements. Regulation is achieved by moving a lever from slow to fast (as indicated on a wheel for instance) or adjusting weights in one direction or another on the escape wheel. There are specific directions on how to this and it is best to consult the instruction manual on your clock or search for resources online.

Mainspring Power and Regulation

When winding a spring-driven clock you are winding a sturdy coiled metal spring. The mainspring is an energy storage system or a power source. When you turn the key the winding gets tighter until you cannot turn the key any further. This stored energy (or potential energy) is now ready to be released but because a clock has reduction gears and an escapement (method for energy to escape) the energy is designed to be released at a steady and controlled rate. The purpose of the gear train is to convert the slow rotation of the main wheel into the faster rotation needed to tell the time. Each wheel in the train turns faster than the previous one.

A spring-driven clock tends to release most of its energy at the beginning of a cycle and releases less energy towards the end of it’s winding cycle which is typically an 8-day period. Most clocks will run longer than eight days but will lose more time as the spring supplies less power.

Regulating some spring-driven clocks can be challenging due to the way they release their power, though this can vary depending on the clockmaker. If your vintage or antique spring-driven mantel or wall clock is accurate to within 1-2 minutes per week, it’s performing quite well.

Sessions Beveled No 2 tambour style clock and French carriage clock
Sessions Beveled No 2 tambour style clock and French carriage clock

My Sessions time and strike tambour-style clock typically runs about one minute fast at the start of the week and around one minute slow by the end of the week. This is normal.

one-weight Vienna wall clock
This one-weight Vienna wall clock is accurate to within 30 seconds a week

On the other hand, weight-driven clocks are more accurate since they release power at a constant rate through the winding cycle. Weight-driven clocks are generally more reliable timekeepers and are easier to regulate.

Junghans Crispi wall clcok with compensating pendulum
Junghans Crispi wall clock with compensating pendulum

Neglect, friction, and environmental factors play a significant role in a clock’s ability to keep accurate time. By ensuring proper maintenance, placing your clock in a location free from heat and humidity, and regularly checking for adequate lubrication, you can extend its lifespan, maintain its value, and enjoy dependable performance for years to come.

Sessions Westminster A mantel clock Part III – re-assembly and cursing the chime drive

Mainspring servicing

Do you like the challenge of working on a mechanical clock? This one might have you ripping your hair out. These are not the best clocks to start on and can be a headache for the experienced clock-maker.

You will find Part I of this project here and Part II, here.

Refinishing the case
#1 Refinishing the case while movement is on the test bench

In August 2015 I wrote, “This a good project clock that is not for the inexperienced. As I gain more knowledge I will tackle this fascinating clock.” Well the time is now

With a little experience under my belt it time to tackle this vintage circa 1931 Sessions Westminster A chiming clock.

I had removed the movement from it’s case in 2015 to replace a bad click since the mainsprings can be easily removed without dis-assembly. The click holds the tension or power of the mainspring and is identified by a clicking sound when the key is turned on the winding arbour. Although I have not run the clock much since then the click is holding up well.

Six bushings on back plate
#2 Six bushings on back plate, 7 total (one not shown)

The movement required a total of 17 bushings. There was some movement of the pivots in the pallet arbour bushing holes, not enough to be overly concerning but they were addressed during servicing.

I was unable to pull the centre cam off because I do not have a puller which was unfortunate as the hole might have called for a bushing.

Centre shaft cam
#3 Centre shaft cam

Gathering pallet pins
#4 Gathering pallet pins, also showing two racks

I was also unable to pull the arbour for the gathering pallet pins. It also might have needed a bushing though luckily I was able to bush one end. I mentioned in Part II that parts that are pressure fit on any movement are frustrating when said parts cannot be removed without special tools. Fortunately I was able to hand pull other chiming/striking parts off this movement.

All parts in except the minute / hour canon
#5 All parts in except the minute / hour canon

Old and new brass spring
#6 Old spring on rack and new brass spring ready for the second rack.

There are two racks on this clock (see photo #4). One rack was missing it’s retaining spring.  I made a new one out of brass wire. The clock was not striking properly and this small, seemingly inconsequential part might be the reason.

It shows very well for a vintage 86 year old clock

Between re-assembling the movement and testing of the time side I had an opportunity to address the finish on the case. I used a wood stain to hide scuffs and nicks, applied 5 coats of Minwax Satin Wipe-on Poly using 1500 grit emery cloth between coats to bring up the finish. Although not quite the deep luster of a clock coming out of the factory it shows very well for a vintage 86 year old clock. Purists might argue that I am using a modern finish on a classic clock but I don’t mind since the clock was found in a dusty old barn and cost me only $25.00.

Robert Croswell’s guide for the Sessions Westminster A clocks is excellent

The dial bezel was polished using Brasso.

Re-finished case
#7 Re-finished case

Five Days Later

The clock has been running for a few days and I am satisfied that the time side is functioning well. I can now proceed with the strike and chime side, following Robert Croswell’s excellent manual.

One Week Later

The time is running well and I am getting a full cycle (8 days+) however I am still having issues with the strike side. It manages the quarter hours as it should, 4 strikes on the quarter, 8 on the half, 12 on the three quarter and 16 on the top of the hour. However it is obvious (to me) that I do not have the hour strike sequence set up properly. Robert Croswell’s guide for the Sessions Westminster A clocks is excellent but I am having difficulty understanding how the racks, and there are two, and the snails, again two, are set up.

Stay tuned, I know I will solve this little annoyance eventually.

Servicing a Well Worn New Haven Schoolhouse Clock

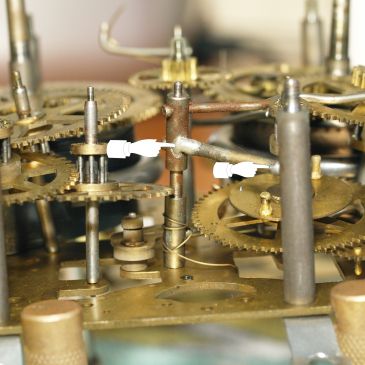

Side view of movement indicating solder points

The clock is a “Canadian made” New Haven Octagonal short drop wall clock. It was assembled at The New Haven Clock Co. of Canada plant established at Brantford, Ontario (Canada) in 1906.

New Haven schoolhouse clock
New Haven schoolhouse clock

The New Haven Clock Company of Canada was a subsidiary of the New Haven Clock Company of America. Both mantel and wall clocks were made in the Brantford plant with Canadian wood cases, but the spring-driven pendulum movements were brought in from the U.S. The Canadian arm of the New Haven Clock Company closed in 1956. More information about The New Haven Clock Company can be found here. This clock was probably made in the 1940s.

The clock was removed from a schoolhouse in Saskatchewan, Alberta (Canada) in the 1960s. The previous owner said that he ran the clock for a couple of years, got tired of it and put it in storage. I hung it up on my kitchen wall for a couple of months and while it ran immediately and kept good time I considered putting off servicing with other projects on the go. However, if I ran it long enough without proper attention any wear would be exacerbated. Now is the time to service this clock.

Day One

The movement was mounted with what looked like the 4 original screws. I wondered if this movement had ever been serviced. Clues began to reveal themselves as I took the movement out for a closer inspection.

OLYMPUS DIGITAL CAMERA
New Haven movement #304

The centre cannon arbour was very loose which is not uncommon. A bushing might be required. The pivots were in good shape and had minimal wear but most bushing holes on both the time and the strike side, front and back plates were so enlarged that there was considerable lateral movement of the wheels in both trains but not enough to stop the clock. Not the worst I have seen but clearly a clock that is in dire need of servicing. The clock ran for many years and appeared to have received not much more than basic servicing during that time.

Day Two

The movement was very dirty. The cleaning solution in the ultrasonic cleaner was dark brown in colour and large pieces of crud floated on top, a build up of dried oil and dust over the years.

An obvious example of a previous repair was the drop lever that had been soldered in two places as you can see in the photo below.

Top view of movement indicating solder points
Top view of movement indicating solder points

The lever looks strong and should hold for years to come.

Strike side maintenance lever
Strike side maintenance / drop lever

I took special care to resist bending any parts of the lever to adjust it for fear of breaking it. The helper wire/spring on the drop lever also seemed to have been replaced at some point because it looked crudely made, not something you would see in a factory installed movement. A piece of the helper wire broke off during dis-assembly which meant that I had to make a new wire/spring.

I polished the pivots and then proceeded with the bushing work prior to cleaning the movement.

Bergeon Bushing Machine
Bergeon Bushing Machine

15 bushings were installed, 7 on the front plate and 8 on the rear plate. The centre cannon arbour required one bushing, a much larger one, on the rear plate.

To completely eliminate any issues with the time side I took all the strike train wheels out

Movement on test stand without strike side wheels
Movement on test stand without strike side wheels

Without strike side wheels
Without strike side wheels

Day Three to day Five

All went well while test fitting the wheels on both trains; they moved as smoothly as they should. I re-assembled the movement and attempted to align the levers on the strike side as best as I could with little success. I ran the movement on the test stand even though the drop lever was not positioned correctly. Unfortunately, the clock stopped every few hours. My suspicion was an incorrectly aligned lever somehow stopping the strike side.

To completely eliminate any issues with the time side I took all the strike train wheels out and ran the time side for 3 trouble-free days eliminating any issues with the motion works.

I  consulted Steven Conover’s excellent book on strike clock movements (Striking Clock Repair Guide) to work through a solution. He devotes one chapter to the New Haven movement and  clear instructions for setting up the strike side.

Day 6

After studying Steven’s manual, I reinstalled the strike side and proceeded with the necessary adjustments as follows.

The positioning of the levers are critical.

The 3 levers of the New Haven movement
The 3 levers of the New Haven movement

There are 3 levers in this clock. Knowing how the levers function is key to getting this clock to run. The hammer strike lever (Lever number 1) performs a very simple task and installs on the bottom of the clock and is activated by the hammer lifting pins on the cam wheel. The drop and paddle lever (Lever number 2) does several jobs in unison. It pushes the unlocking lever or the lift lever (Lever number 3) down to release the warning pin to prepare the strike. The top arm of the lever number 2 rotates through the 2 – 180 degree slots of the cam while the bottom arm forms the paddle that enters the deep slots of the count wheel to indicate the strike on both the hour and half hour. The upper arm of this lever must be on the upper rear part of the slot on the cam to work correctly. I found this through trial and error. Needless to say, the positioning of the levers are critical. Once the levers were positioned correctly, the clock ran beautifully.

Post assembly testing

The clock went through it’s full 8-day cycle without any issues striking as it should. The movement was mounted back into it’s case, is being regulated and is now on display in our living room.

This very ordinary clock reflects its utilitarian role as a schoolhouse clock; it is not the best looking or the best sounding clock in the world but like a faithful servant it should run without issues for years to come.







My Gustav Becker – one year later

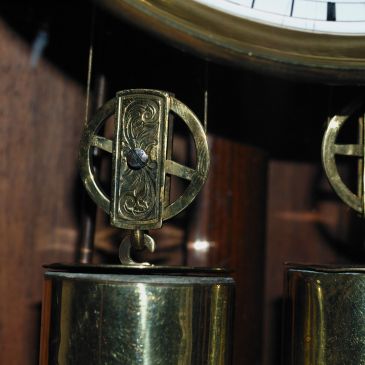

Gustav Becker weights

Vienna Regulator Braunau factory circa 1902
Gustav Becker Vienna Regulator Braunau factory circa 1902

It has been one year since my wife presented me with a Vienna Regulator wall clock as a retirement gift. I was in heaven! I always wanted a Gustav Becker clock. I thought it was the holy grail of clocks. As I delve more deeply into this hobby and have the benefit of a greater knowledge of the world of clocks this past year I am learning that there were other more desirable makers of that period (1850s to 1900) but I have my Gustav Becker and I have no regrets.

It has been an interesting time and one of the most significant horological experiences for me in the past year. This clock has taught me a lot.

Gustav Becker 2 weight clock
The hands may look nice but they are incorrect for the period

This was a project clock and my first experience with a non-working clock that bought with it a number of not insurmountable issues. The side and front glass panels may look original but they are replacements after the glass broke during shipping. I brought it to a local glass shop and they installed the glass. I should have bought a old window with the wavy glass to use as a replacement as one reader suggested. I just did not think of it at the time.

The original movement was missing vital strike side parts

The original movement was missing vital strike side parts. Fighting with the seller who misrepresented the condition of the movement got me nowhere. I had to find a replacement movement and it had to be from Gustav Becker’s Braunau factory.  Finally, I located a donor movement from Poland. The serial number on the Poland movement told me that it was 16 years newer. Some minor details differentiated the older and newer movement but it was exactly what I was looking for. It was a perfect fit for the case and correct for the pendulum length.

To the casual observer it is a beautiful wall clock befitting the grand period of German clock-making a century ago

What have I learned this past year? I put more than three hundred dollars of repairs into this clock above and beyond the original cost, much more money than the clock is worth. Don’t even get me started on import duties and shipping from the US. I am still riled about that. I am extremely reluctant to make any future clock purchases that require shipping by mail/courier. Others have had positive experiences with shipped clocks – I did not. I find it too much of a gamble. I prefer to buy my clocks in person! Though I won’t go into further detail, this was not a positive buying experience and after a year I am still fighting for compensation from the seller.

GB movement

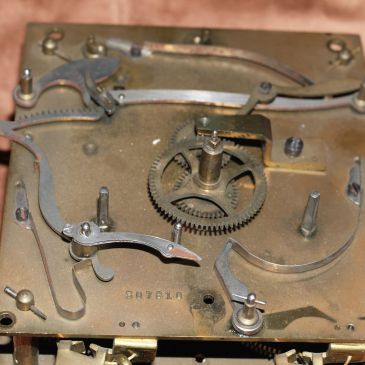

Original GB movement with parts missing

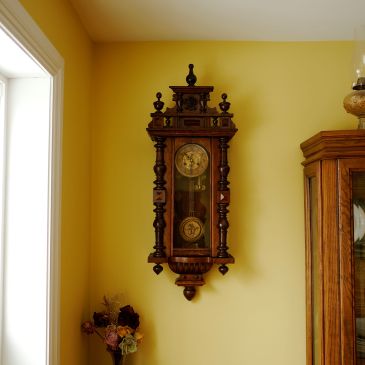

How does it look on the wall? A trained eye will see the minor incongruities. To the casual observer it is a beautiful wall clock befitting the grand period of German clock-making a century ago.

Servicing a Sessions American No. 2 mantel clock Part III

Olie Baker spring winder

Sessions American No. 2
Sessions American No. 2

The movement is disassembled and now it is time for further inspection, cleaning, servicing the mainsprings, pegging the pivot holes, polishing the pivots and installing bushings where needed. In this, Part III we will cover cleaning and mainspring servicing.

Ultrasonic cleaner
Ultrasonic cleaner

I have a small ultrasonic cleaner so I tend to clean parts in batches since this one does not have a large capacity. An ultrasonic cleaner is not an absolute must as you can easily clean by hand but having one certainly helps.

Front and back plates
Front and back plates

Old toothbrushes are great for getting into the crevices and I use one especially for the lantern pinions as a lot of dirt and old oil tend to accumulate in those particular areas.

indicating wjehere bushings will be installed
indicating where bushings will be installed

This photo shows a couple of bushings that I will install. I realize that some prefer to install bushings by hand and I applaud them as it does take considerable skill but I use a Bergeon Bushing Machine which I believe simplifies the task (for me, at least). More on bushing in the next part of this series.

Olie Baker spring winder
Olie Baker spring winder

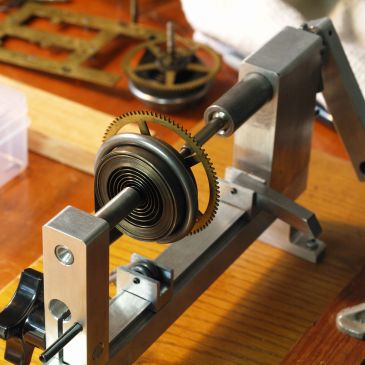

An Olie Baker spring winder is an indispensable tool. You can easily make one of your own to save a little money if you are handy with building things. A spring winder permits you to inspect for cracks or breaks, clean and oil the springs before reinstalling them. The photo shows a C-clamp securing the mainspring prior to cleaning.

OLYMPUS DIGITAL CAMERA

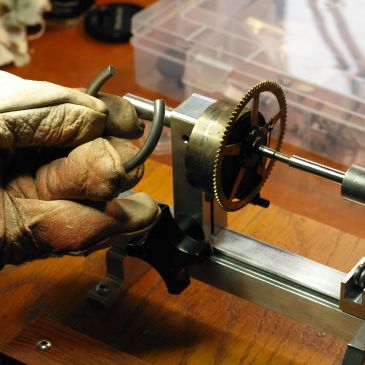

leather gloves are used to secure the spring on the winder

I have never lost an eye or a finger but I believe in safety first especially when working with mainsprings. Always wear leather gloves and eye protection. You never know when a 100 year old spring will break and fly across the room.

Click replaced
Click replaced

I discovered that one click had to be replaced as it was almost slipping off the ratchet. As some clock repair folks know, Sessions clocks have a reputation for bad clicks. I had a Sessions click in my supply box, fortunately. It is an easy job; just take the old one out with pliers, secure the new click and bang the rivet (supplied) into the existing hole with a ball peen hammer.

Serviced springs
Serviced springs

The springs have been cleaned and oiled with Keystone Mainspring Oil and are completely serviced including the installation of one new click. Now comes the bushing work, re-assembly and testing. Stay tuned to Part IV of this series.

Servicing a Sessions American No. 2 mantel clock, Part I

Sessions American No. 2
Sessions American No. 2

I am going to take you, the reader, through the process I follow when servicing a clock. There will be several posts in this series. I am not a trained expert in clock repair, nor do I do this for profit and have learned most of what I know through trial and error, careful study and of course, listening to the advice of many experts and newfound friends on the forum site at NAWCC.

If you into clock collecting you’ve probably seen one of these mantel clocks at one time or another in your travels. Literally thousands were made. This attractive little mission styled oak-cased time and strike mantel clock is a Sessions “American No. 2” dating from 1921 according to Trans Sessions book, page 121.

When I opened the back access panel to service the movement I discovered an inscription which reads, “Jim A. Kennedy, Nov 3/63, a clear, cold nite”. One can only imagine that on that particular clear, cold night, Jim A. Kennedy was doing some work on this lovely clock. It does not say where Jim lived but Jim, wherever you are and if you are still with us, your clock lives on.

Although this clock has been running steadily since I acquired it about two years ago, the time is right to put it on the workbench. American made clocks like this tend to run on and on despite requiring much needed bushing work and this one is no exception, but now it needs some loving.

I took the movement out of it’s case and examined it closely. Fortunately it has not been botched by poor repairs over the years that one sees from time to time. Things looked good, no surprises. Although no bushings have been installed on the top (back) plate there were five bushings that were installed on the bottom (front) plate at some point in this clock’s life, perhaps on that cold, clear evening in November. My initial inspection reveals that there is wear in some pivot holes and that six bushings must be installed on the back plate and of the five previously installed bushings on the front plate, two need to be replaced and at least one new bushing is required on the pallet arbor.

Although the movement appears clean at first glance it really is very dirty. This is an example of the sludge (indicated by the arrow) that has built up in this particular pivot over the years. There are other such examples on this movement.

top plate showing a build-up of dirt around a pivot hole
Top plate showing a build-up of dirt around a pivot hole

Once I tear it down completely I will be able to determine the condition of the pivots and other moving parts. I intend to clean the entire clock and clean/oil the springs as well as replace/install the aforementioned bushings. My first impression is that the mainsprings are in good condition. The clock easily ran eight days on a wind. The clicks are another matter. At least one looks like it needs replacement. Sessions clocks are notorious for their bad clicks but to put things in perspective the clicks have been in this clock likely since it was made (or perhaps 1961).

Time and strike movement with single hammer strike on a coiled gong
Time and strike movement with single hammer strike on a coiled gong

The escape wheel teeth may need to be filed but I will determine if filing is required once I inspect it more thoroughly.

escape wheel tooth tips
Escape wheel tooth tips

Safety first. The first task other than taking the suspension spring/rod/bob off the movement is to secure the mainsprings using mainspring clamps that are available at any clock supply store. Mainsprings can be very dangerous and it is important to contain their power when working on a clock. I always wear eye protection and leather work gloves before I let the mainsprings down with a let down key. Once you’ve released the clock from the ratchet by moving the retaining spring out of the way, the power of the spring is transferred to the let down key which allows one to gently release it until it is contained in the C-clamp. After the springs are restrained you can safely disassemble the clock.

Let down key and C-clamp
Let down key and C-clamp

.

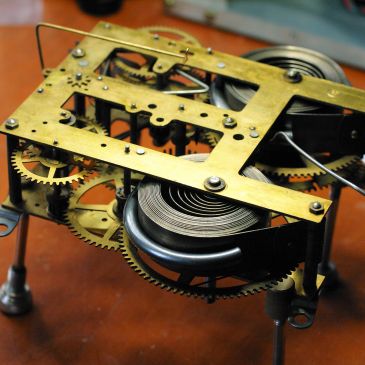

Movement on stands
Movement on stands

The clock is now ready to be disassembled. Tune into Part II where I will post photos of the complete disassembly stage and report on what further work needs to be done.

Request for assistance – attention Gustav Becker afficionados

GB movement

RSa GB movement in no weights (1)
Gustav Becker with Braunau movement

As you know from reading my last post concerning this fine timepiece I am appealing to anyone who knows anything about these particular clocks to assist me in finding a critical part for the strike side. The part is called the “star wheel / snail”. Without it the strike side will not function. The time side will happily run without it.

The photo that follows is a movement with the star wheel intact (my apologies, it is a grab from EBay). Look closely towards the bottom just off centre you will see a wheel shaped like a star with a snail type assembly on top, hence the name. That is the one I am missing. Why it was taken off my clock movement is a mystery to me but it is what it is. A couple of guesses; someone did not want the clock to strike for whatever reason or two, it was a donor clock for another.

If you look closely in the next photo towards the bottom centre it shows my clock without the star wheel. Both of these are Braunau movements.

gb2
Showing the star wheel and snail which are one piece



OLYMPUS DIGITAL CAMERA
My clock showing missing star wheel and snail



Gustav Becker clocks of that era were essentially made in two factories, the Frieberg Works and the later Braunau Works.  My clock is from the Braunau factory. The star wheel must be from a Braunau clock as the design of that wheel was slightly different than ones from Silesia clocks.

If you know of a source or you happen to have one lying around (LOL) please email me.

Oh, and one more thing. If you happen to know the size suspension spring I need that would be great.  I am missing that too.

advertized on EBay (6)
Pendulum rod near suspension spring mount. The strike rod is just to the left

There is no prize for assisting me but if you do I will give you digital hug!

Thanks for reading my blog.

Sessions Westminster A Mantel Clock

This article describes my latest mantel clock find, an American tambour style time, strike and chime clock that has some very interesting features.

Weak clicks, a common Sessions problem

It is a Sessions Westminster A mantel clock made in Forestville Conn. The first year of production for this model was 1927. Between 1903 and 1933 Sessions produced 52 models of mechanical clocks, ranging from Advertisers, large and small clocks with logos of various businesses, to wall, or regulator clocks, and shelf or mantel clocks, designed for the home. Some of the Sessions clocks from this period are prized by collectors.

RS Sessions Westminster chime circa 1931 (12)
Inlay adds to the charm of this clock

This case is 21 inches long and 10 inches high, has a mahogany finish with a faux wood inlay and raised metal gold-coloured numerals. It has an 8-day Westminster quarter-hour chime movement. The strike and the chime are on the same train. This clock has 2 gear trains to perform what is usually done with three gear trains in most clocks. Rare but not unique.

Although made in the 1920’s, Sessions had to compete with every other American clock company as chime clocks became very popular. Movements with 3 gear trains were the norm; three arbours, one for each train. Sessions chose a radical approach, and designed the two-train Westminster movement with only two mainsprings. Economies of scale meant that the dial fit other time & strike mantel clocks as well.

RS Sessions Westminster chime circa 1931 (11)
Drum and pin chime arrangement

This particular clock was sold in 1931, an inscription testifies to the date. The sale price in 1931 was $29.95,  a working man’s salary in the 1930’s. This is a $20 flea market find.

The time side runs well but the chime and strike side is not working. It has either a broken or a disconnected mainspring or perhaps some other major issue is lurking within.

This clock has a reputation for being difficult to work on. Some horologists will not touch it because of its quirkiness and the amount of time it takes to repair but I plan to give it a shot, not now  but once I gain moire experience in clock repair.

A Barrel of Fun – Dugena mantel clock issues

Mainspring barrel

I am continuing work on my Dugena mantel clock with a Hermle movement. Everything seemed to go well after re-assembly but the strike barrel.

A serious problem or simple fix? The latter, thankfully. Something was definitely amiss since the winding arbor was not engaging on the mainspring. The spring was either broken or had not engaged the winding arbor sleeve.

OLYMPUS DIGITAL CAMERA

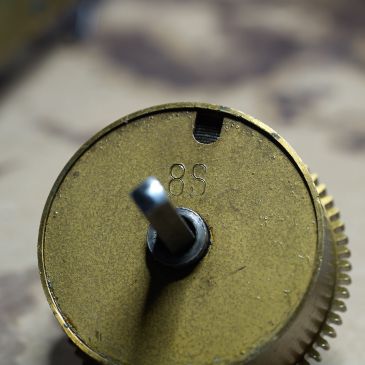

Mainspring barrel

I had no choice but to open up the barrel but it was not much fun getting the cap off. Some suggestions I received on a clock forum site were to bang the arbor with a steel hammer or a rubber hammer and it would pop neatly into my hand. This did not work. Finally someone suggested that if it was really stubborn to find a piece of hardwood, hold the barrel in a gloved hand and bang it with some amount of force on the hardwood. It worked!

Once I got the thing apart I inspected the spring and arbour for possible damage. I initially thought the spring catch (see photo with black arrow) was broken but a member of NAWCC (National Association of Watch and Clock Collectors) assured me that this was quite normal. I re-positioned the catch onto the spring, tested it and snapped the cap back on.

OLYMPUS DIGITAL CAMERA
Strike mainspring barrel on the left

The barrel can be easily slid back into the clock without taking the movement apart. Using the clock key I gave it a few turns, tested the action of the strike side and everything seemed to be working.

OLYMPUS DIGITAL CAMERA
Arbor sleeve spring catch

Now for bench testing. I put a make-shift hour hand for the clock to see if it marked the hours properly. Testing for a week or so will reveal any issues and allows for finer adjustments before I install the movement back into its case. Everything looks good at this point.

OLYMPUS DIGITAL CAMERA
Mainspring with barrel cap off

The original problem was that the clock was running too fast and no amount of adjusting would slow it down. I am hoping now that after a good cleaning it will run as it should.

Dugena Mantel Clock Progress

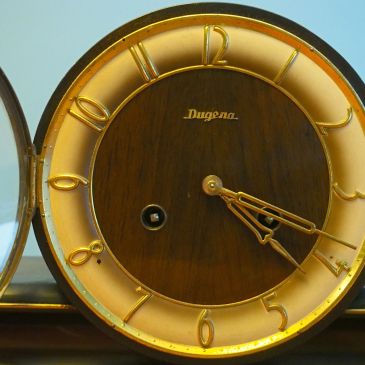

Dugena clock



OLYMPUS DIGITAL CAMERA
Dugena mantel clock

If you are following the progress on my Dugena mantel clock project it seems to be going fairly well though there have been some minor issues.

I had no trouble taking the movement apart and cleaning all the parts to the best of my ability. Everything seemed to be in good order with minimal wear. My initial method months ago of dunking the assembled clock in a solution clearly did not work. The clock did not run at all after that procedure. So, I put the clock aside to decide what to do. Dis-assembly is the only way to do the job correctly as I am learning. After a thorough cleaning comes re-assembly.

I have learned from taking apart movements that getting it back together means that once the back plate is on it is better to work from the bottom up, by getting the barrels in place, the main wheel and then working up to the top of the clock. Once I have the barrels in place I put on the lower nuts. I am not sure if that is the correct procedure but it works for me. I then use a pair of tweeters to carefully move the pivots in their proper place.

7ff7a-dugenaclock
The hammer assemblies are on the right side

The hardest part was re-aligning the hammer assemblies since the hammer wires are located outside the back plate. You can see this in the photo. I later learned that even when the clock is fully assembled the barrels will come out by simply removing the winding arbors and sliding them out. It’s all good learning!

It took a lot of fiddling to position the hammer assembly properly. With time (no pun intended) it all came together. Once the back plate was on securely next came the balance wheel escarpment and aligning the fork correctly which I think I did. I then put the clock in beat, oiled it and started it up. It did not run. Whoops, it needs power and had to be wound. I immediately noticed that the time barrel spring would not wind at all. I am guessing that the spring had, at some point become un-clipped from the barrel. I say un-clipped because I did not hear a broken spring sound. I switched barrels (#8S spring barrel) since they are the same for both time and strike. Once I got the barrels switched I gave the spring a few turns with the key, gave the balance wheel a little shove and the clock has been running for 24 hours as of this writing.

Does it keep time, I have no idea at this point? I suspect it does with a little adjustment. As for the strike side, if I can re-attach the mainspring within the barrel I am on my way to re-installing the movement back into it’s case. I know the strike side is working properly because when I had the good spring on that side for a brief period the strike assembly seemed to be working as it should.

Should I try to fix the mainspring or buy a new (or NOS) barrel and mainspring? I am not keen on fixing a mainspring because of potential injury but if I can scour around and get a used 8S barrel and mainspring for a reasonable price that would be the better option in my view.

As I said, it’s all good learning!

Dugena Mantel Clock Dis-assembly, Cleaning and Adjustment

Dugena was a German retail clock company. The name Dugena still exists today but whether or not it is related to the Dugena company of the 1950s is anyone’s guess. This particular clock has a Hermle floating balance movement which is both reliable and dependable. Dugena, like many other clock companies at the time contracted out to a number of movement manufacturers during it’s heyday.

I bought this Dugena mantle clock for very little money. The previous owner assured me that it was an old clock and not to expect it to be perfect. He was right, it is not perfect. It is a 2-train time and strike Bim-Bam clock. When I got it it had no trouble starting. However, I could not get the clock to keep time (ran too slow) despite numerous adjustments to the balance wheel which was a little frustrating. I had to remind myself that the previous owner did say it was not perfect. There is also something amiss about the strike train side because it  strikes incessantly till the clock winds down. No doubt something is either worn, broken or misaligned. Misaligned rack and snail, I hope!

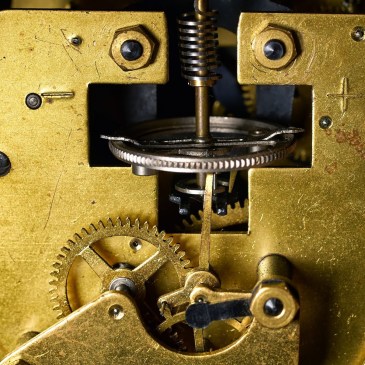

Dugena clock movement showing floating balance escapement
Dugena clock movement showing floating balance escapement
Hermle movement showing balance wheel escarpment

My first attempt at cleaning the clock involved taking out the movement and placing it in an ammonia bath with some Murphy’s soap, the so-called Dunk and Swish method. The net result is that once I dried it completely it functioned no differently than before, maybe even worse.

As mentioned it has a balance wheel escarpment and I am assuming the spring might be weak because the wheel does not spin more than 180 degrees. Either that or the darn thing is losing power from somewhere else. The bottom line is that it needed to be taken apart and cleaned properly. That is exactly what I am in the process of doing. My first assessment is that the clock is pretty tight and the pivots, pivots holes, pinions and arbors are in pretty good shape with a minimum of oily gunk. The springs are in barrels and at this point I am not going to service them. Reason, I don’t have the tools.

I have taken clock movements apart in the recent past and I have a pretty good understanding of what goes where and why as well as a basic set of tools to get me through. I can clean and oil but I don’t (can’t) do bushings. My hope is that once I have finished cleaning, assembling and oiling the clock it should work correctly though if it doesn’t it is no great loss. Good learning though.

So, I have a couple of choices. I can get the clock to function or I can investigate a replacement movement if it doesn’t.  The replacement movement (last photo) is $128CDN for a pendulum movement or $198CDN for a balance wheel escarpment. I will go for the pendulum movement since it is easier to work on, has fewer parts and makes that distinctive tick-tock sound. There is a third option, throw the movement into the parts pile and junk the case. We’ll see.

Balance wheel escarpment



possible replacement movement from Hermle

If I bought a new movement the clock would likely run trouble-free for years. Is it worth it? I am not sure. The case is in pretty good condition for it’s age and it would not take much to make a few cosmetic improvements to make it presentable but obviously not brand new looking.

Leave a comment for me if you have any advice.

All photos (except the last on) were taken with an Olympus E330, Zuiko 50mm F2 macro lens



Website Powered by WordPress.com.

Up ↑
