Gustav Becker March 2016 update part 2

As I mentioned in a previous post my Gustav Becker two weight regulator arrived with some issues. I was aware beforehand that there would be some problems as it was advertised as a ‘project” clock and that is what it has become, but not in an entirely negative way. It is all good learning.

My donor GB clock movement arrived from Poland this week. As mentioned previously the original movement came without a star wheel/snail (not disclosed by the seller), a hammer assembly and a couple of non-operational parts which necessitated the acquisition of another movement. The gathering pallet which I originally thought was bent on the original movement has a piece broken off as I discovered when I compared it with the newer movement.

At a glance the two movements look identical but I am learning that there are key differences between the movement made in 1902 and the donor movement, made in 1918. The “newer” movement has thinner plates. The centre arbor is thicker on the new movement but the star wheel/snail is an exact fit. The escape wheel is slightly smaller. The fan on the new movement created an obstruction when I tried to install it on the old movement so out it came and replaced by the old fan. I was also able to transfer the gathering pallet as well. This time it works correctly as it advances the rack. The escape wheel is smaller on the new movement and I gather that the pendulum for the newer movement is a little shorter i.e faster rate. I am also able to salvage the hammer and hammer rod on the replacement movement though I have not attached it as yet. It would need some adjustment.

During the testing phase the clock is running without its dial face and hands. I am checking and calibrating the hour and half hour strike while observing the action of the strike side specifically the advance of the star and snail. All seems to be working as it should. The time and strike weights are also descending at the same rate so I am assuming that the clock is going through its correct cycle on the hour and half hour.

More testing in the next few days after which I will install the hammer assembly, the face and hands and string new cable for the weights.

March 22, 2016

Gustav Becker update

OLYMPUS DIGITAL CAMERA — GB movement before dis-assembly

I got a lead through a email a few days ago on a Braunau movement that was up for sale on EBay and I am happy to say that I purchased it today. It should arrive by post in the next few days.

My plan is to either take the parts out of the replacement movement or use it if it is in better condition. My inclination is to keep the movement that came with the clock rather than create a “Franken-clock”. It is preferable to keep the clock as true to the original as possible.

However, I am sure that over the years many clocks have benefited from replacement parts and after 114 years clocks such as this probably had repairs that might have included the odd part replaced. On my movement there have been 4 new bushings installed and one lever post repaired. Who knows what other parts might have been added over the years. The top plate is the only real indication I have that the clock was made in late 1902 and the clock case certainly fits that period.

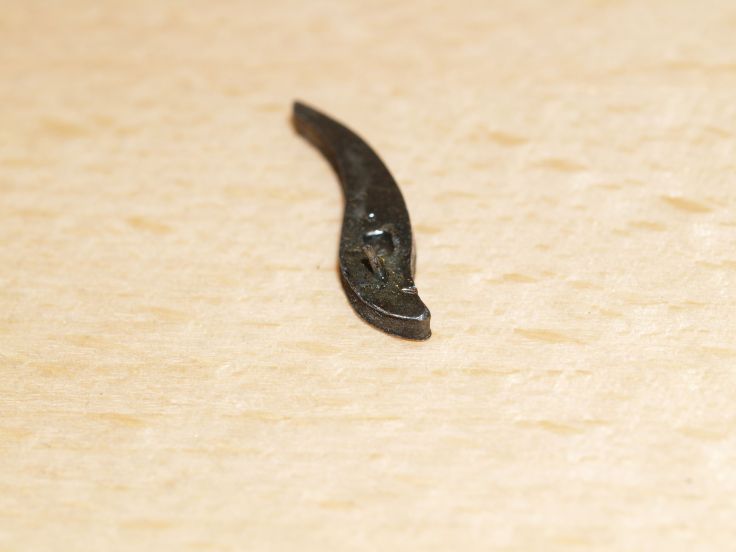

This movement has one other issue that I can see. There is a lever with a pin that rotates and advances the rack. It is the gathering pallet. In the photo below you can see the pallet, indicated by the black arrow. In the photo that follows you will see that the pin that is attached to the pallet is bent. The bent pin does not allow the pallet to advance the rack. Hence the strike train does not work. So, it must be unbent or replaced.

The risk is snapping the pin off if I make an attempt to straighten it. I will wait to see if the replacement movement has a pallet that is in better condition and if so, a straight swap.

The last photo shows the movement almost apart and prior to cleaning and polishing.

This Gustav Becker came to me as a project clock and I am determined to get it running. In the meantime I have installed the time side gears to check the time train and the clock is running and keeping proper time. Obviously it does not strike but in time that will be rectified.

February 18, 2016

Request for assistance – attention Gustav Becker afficionados

RSa GB movement in no weights (1) — Gustav Becker with Braunau movement

As you know from reading my last post concerning this fine timepiece I am appealing to anyone who knows anything about these particular clocks to assist me in finding a critical part for the strike side. The part is called the “star wheel / snail”. Without it the strike side will not function. The time side will happily run without it.

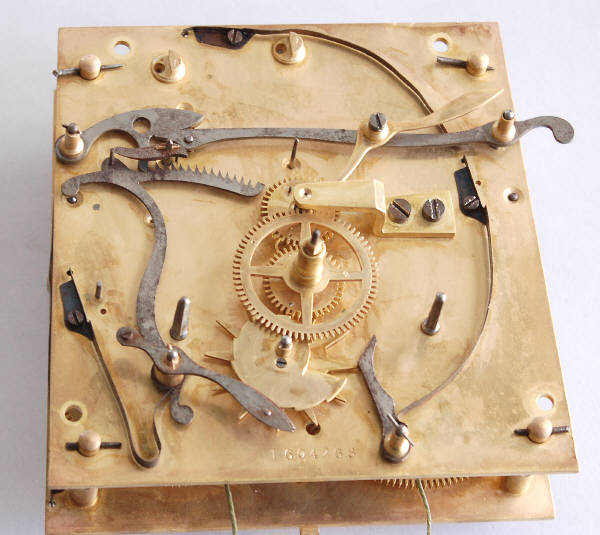

The photo that follows is a movement with the star wheel intact (my apologies, it is a grab from EBay). Look closely towards the bottom just off centre you will see a wheel shaped like a star with a snail type assembly on top, hence the name. That is the one I am missing. Why it was taken off my clock movement is a mystery to me but it is what it is. A couple of guesses; someone did not want the clock to strike for whatever reason or two, it was a donor clock for another.

If you look closely in the next photo towards the bottom centre it shows my clock without the star wheel. Both of these are Braunau movements.

gb2 — Showing the star wheel and snail which are one piece

Gustav Becker clocks of that era were essentially made in two factories, the Frieberg Works and the later Braunau Works. My clock is from the Braunau factory. The star wheel must be from a Braunau clock as the design of that wheel was slightly different than ones from Silesia clocks.

If you know of a source or you happen to have one lying around (LOL) please email me.

Oh, and one more thing. If you happen to know the size suspension spring I need that would be great. I am missing that too.

advertized on EBay (6) — Pendulum rod near suspension spring mount. The strike rod is just to the left

There is no prize for assisting me but if you do I will give you digital hug!

Thanks for reading my blog.

February 11, 2016

Gustav Becker Vienna Regulator Braunau factory circa 1902

RS GB movement in no weights (5) — Gustav Becker Vienna Regulator

This is a Gustav Becker 2 weight “Vienna Regulator” made at the Braunau factory in 1902. The serial number is a confirmed match for the numbered series built during that period. The clock was made in the Gustav Becker Braunau works in Bohemia (now Broumov, Czech Repulic), in mid-1902. The Braunau operation started up in February 1888 and would have been producing clocks up until 1925. Bohemia is a province in the Habsburg Austrian Empire hence the reference to clocks during that period referred to as Vienna Regulator style. The definition of a Vienna Regulator is a debatable point and I will leave that up to the reader to decide.

Some notable features are the inverted keyhole movement mount, rod gong and a wood pendulum rod with brass covered zinc. There are intricately carved trim pieces, certainly a common feature of the craftsmanship found in higher end clocks of that period. The clock is 51 inches tall and is a commanding presence on any wall and certainly a great addition to our living room.

What is missing in the photo are the two weights which at this point are not attached; the condition of the cables are suspect. Replacement cables are on the list. There is also a small part of the right bottom finial which has to be reattached (glued).

The bottom middle finial is also not attached. The bottom middle finial is in the freezer right now because I noticed that it was the only part of the clock with woodworm holes. I inspected the finial carefully, banged it on white paper and not a bit of dust or dead insects. This is a good sign and one indication that the worms and their larvae have been long gone but as an extra precaution a few days in the freezer won’t hurt and once it gets to -30C here in Nova Scotia a little time outside won’t do any harm either. I am not at the point where I will introduce it to chemicals as my best guess is that the problem insects have simply left their mark and have since departed. There is no indication of any worm holes on the clock itself which leads me to believe that the bottom middle finial may not be original. Chemical eradication appears to be the only course of action it seems as freezing does nothing.

RS the case (5) — some pieces had to be reattached

At the moment this clock is not working. The clock needs a very good cleaning and possible bushing work. I have not opened it up yet to investigate further but my first inspection of the moment is that it has not seen maintenance in some time. This will be one of my first steps.

This is a good project and from time to time I will detail my progress on this fine European clock.

February 9, 2016

Gustav Becker 2-weight regulator wall clock

3Clock Cake1 [3086218] — This takes the cake

My wife bought me a Gustav Becker 2-weight regulator at a popular auction site and while I haven’t received it just yet she had to show me what it looked like in a most unusual way. She thought that a photo would not do so she had someone make a cake from the auction site photo so that I could enjoy it before it came. That someone has a cake making business and as you can see she is very talented. It was awful hard to cut into it though.

The Gustav Becker clock which should be here in the next few days was advertised as a “project” clock so I am not expecting a perfect clock. According to the seller the strike hammer is missing although the crown, movement, weights, base, dial and pendulum are said to be original. We’ll see what else is missing when it arrives.

You can see the real clock in the following images.

$_57 — Seller’s photo of Gustav Becker wall clock

Clock collectors usually pride themselves in having at least one Gustav Becker (GB) clock in their collection with earlier clocks commanding high prices. Indeed, Gustav Becker is one of the better known clock companies of the mid 1800s to 1930. In 1850 Gustav Becker opened workshops in Freiburg and Silesia, Germany. At first, Becker struggled with untrained help, but won the “Medaille d’Or” for design at the 1852 Silesia Trade Exposition. Becker incorporated that first medal and his initials, G.B., into his trademark and into many components of his clocks, from movement, mounts to wall standoffs to beat-plates and pulleys.

Once he received the award he was able to attract skilled craftsmen to his various workshops. Until 1880 most Becker clocks were weight driven regulators but spring driven clocks followed.

Becker clocks are not too difficult to identify. Serial numbers on the clocks identify the year of manufacture. The cases of these clocks reflect the ornate furniture trends of the day and range from very simple to elaborately constructed. The casework is extraordinarily well done and often incorporates hand carving. Germany has never lacked for skilled carvers and the talent of the region’s artisans is evidenced in the Becker clock cases.

In 1926 the brand as well as the later acquisitions of Lenzkirch and Thomas Haller were absorbed by Junghans. Junghans continued to produce clocks under the Gustav Becker name until the early 1930s. While GB clocks are relatively easy to identify by their serial numbers, one way to identify a GB under the Junghans name is the serial number which was restarted at 0001 after the take over.

Does frustration await me? We`ll see. I will be posting updates on this fine timepiece as I progress through the restoration process.
