Oiling your mechanical clock is an essential part of its maintenance, ensuring smooth operation and longevity. Proper lubrication reduces friction between moving parts, preventing wear and tear while keeping the movement running smoothly over time.
During the summer of 2016, my wife and I were traveling through the Muskoka area of the province of Ontario and stopped at a quaint village called Halliburton where we happened upon the only antique shop in town. There were a large number of clocks in the store that the proprietor had brought over from Ireland and each one was interesting.
Though there were plenty to choose from we settled on a Smiths Enfield Art Deco style oak cased mantel clock pictured below.
Smiths Enfield time and strike
It was sold as-is and non-working, with the clerk noting that the pendulum bob was missing, which explained a lower price. However, when I got the clock home, I discovered the bob wrapped in brown paper along with the key, tucked inside the clock. After attaching the pendulum bob to the rod and a bit of adjustment, I found the correct beat, and the clock started running.
At my summer place, I do not have the necessary tools to service clocks but decided to take the movement out to oil it.

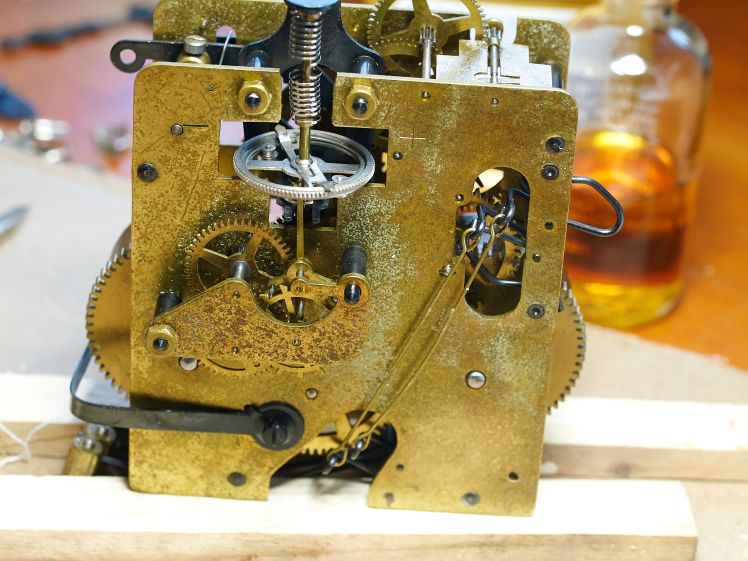

Once out of the case, I discovered that someone had oiled the movement by spraying it with an unknown lubricant. Spraying a clock with any lubricant is a bad practice. Indiscriminate oiling attracts dust and grime that will accelerate wear and eventually lead to stoppage.
Given the indiscriminate use of oil, there was no sense in operating the clock so I decided to put it aside until I got home where I could disassemble, clean, and properly service the movement.
Oiling Your Mechanical Clock
Lubrication is essential to the good running of any clock movement. Oiling a movement without first dissembling and cleaning it is normally a bad practice. The addition of new lubricant to old will mix with the dirt and grime to form a paste which acts as an abrasive that will hasten pivot and pivot hole wear.
The purpose of lubrication is to reduce wear, and applying the correct amount of oil is crucial. The only exception to this is when the oil sinks are dry— in such cases, oiling the movement without disassembling it is acceptable.
Apply only as much oil as required, a tiny drop goes a long way. Clock oil should occupy about one-half the capacity of the oil reservoir. Use an approved clock oil and a pin-type oiler to apply the oil.
Clock pivot oil
Key Points Regarding Oiling
Lubricant:clock oil has the correct viscosity and has a low tendency to evaporate, spread or react adversely to various metals. Pivot oil is for pivots and spring oil is for springs; there is a difference! Clock suppliers such as Timesavers or Perrin will shave the correct oil for your clock. Do not uses household lubricants and especially WD 40 which is not a lubricant but a water dispersing agent. Synthetic oil is preferred since it retains its properties for a longer period but I work with mineral oil which is cheaper and just as effective.
When to oil:Some say that one should apply oil only after disassembling and cleaning. Others say that a clock’s service cycle might be an average of 5 years or more and oiling every two or three years without a thorough cleaning is acceptable. If there is a visible build-up of black, contaminated oily sludge in the pivot holes, a disassembly and thorough cleaning is necessary prior to oiling. A clock’s the environment will play a significant role since dusty, smoky environments contribute to accelerated wear. A sealed case will also keep out dust and lengthen the cycles between oiling.
How much oil:After oiling there should be a visible presence of oil in the oil sinks around the pivot holes. Oil running down the plates is to be avoided and is a indication that too much oil has been applied. I use a clock oiler with dispenser. Oil cup reservoirs are also very helpful as they prevent any foreign material from getting into the oil bottle when dipping with a pin type applicator. Long case clocks with larger pivot holes will require more oil than a small carriage clock.
clock oiler with dispenser

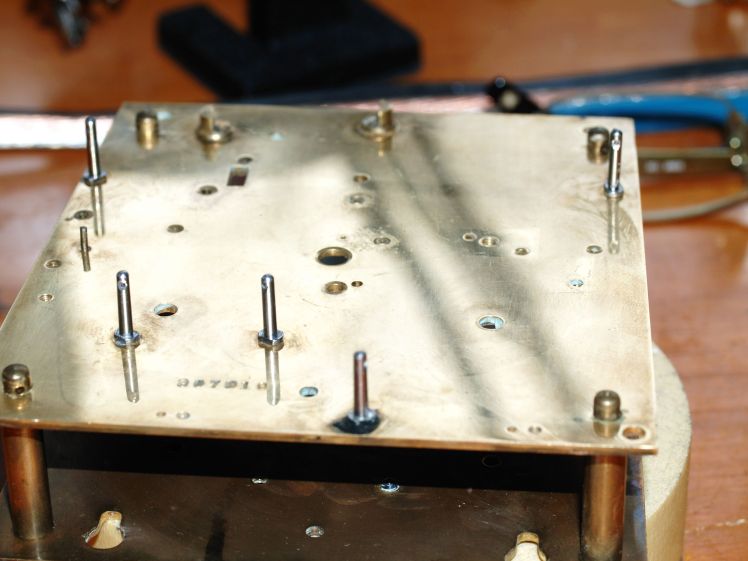

What to oil:While looking at a clock plate (front or back) work from the top to the bottom. First and foremost are the pivot holes in the plate, then the points of contact between the pendulum and the crutch, escapement pallets faces and centre and motion works arbours. I generally do not apply lubricant to the mainsprings unless I have unwound them. Once out of the clock and assessed as to their condition and cleaned, I apply Keystone mainspring oil prior to re-installation. Do not oil the gear teeth.
Mainspring winder
This short primer on oiling your clock is not meant to be a definitive guide but will give you enough information to get you started if you have just found that mechanical clock you have always wanted.
In conclusion, a properly oiled clock, combined with regular servicing, is key to maintaining its functionality and extending its lifespan. Regular lubrication helps reduce friction between the moving parts, ensuring smooth operation and minimizing wear and tear. By performing periodic maintenance, such as cleaning and oiling, you can keep the clock running efficiently for many years, preserving both its accuracy and its value.
In the year or so I have been running this blog I never imagined that it would have achieved so much. It is at 8500 and climbing page-views.
In the late spring of 2015 I attended a workshop on WordPress blogging. I was impressed how a powerful blog tool it is. I had already had some experience blogging and still maintain my Blogspot site though it was always intended to be a general interest blog only. However, I had been collecting antique and vintage clocks for about 4 years and I wanted to narrow the focus to clock collecting / repair so this was a good time to start a brand new blog and explore something more in line with my current interests.
Like any blog the first 2-3 months was a little discouraging. I was getting very few page-views, struggled with the content and tried to improve my writing style. I am sure that many out there become frustrated to the point of quitting but I was determined to press on.
Things began to pick up in the fall of 2015 with a steady increase in daily page-views. Obviously someone out there in cyberspace was interested in what I had to say. It is a lot of work and I also discovered that to improve traction to the site I had to reach a wider audience and use social media more effectively. I slowly learned that I had to not only appeal to those with a modest interest in antique clocks but those with a deeper knowledge thereby striking what I think is a comfortable balance.
Because my own knowledge about clocks was expanding I was more at ease with the content and I was developing a writing style that felt more like me. I also learned that in writing one has to edit often to ensure that the message is exactly what you intend it to be. I often save up to 20+ drafts before I publish (yes, WordPress has a really nice “save draft” feature.
I have received many comments in the last few months. Some offer suggestions and advice on projects I am working on while others are looking for direction on their particular clock problem. As for for advice given to me, I do what I can within the limits of my knowledge. Even those readers with more extensive knowledge graciously comment which I appreciate. Suggestions and the critiquing my work is all part of my learning.
As for some of my stats. My best day was in February of this year when I hit 109 page-views. On a good day I receive 45 or more page-views while the average is 32 per day with roughly 257 per week. Monday is my most active day. I have 259 followers and a few who comment regularly. I have been viewed in 88 countries. The top 6 are; USA, Canada, United Kingdom, Australia, Romania and South Africa. I am sure that there are a great many sites which do far better but I am encouraged by the steady rise in interest from those from around the world from month to month as I make continued improvements.
Since I am an amateur photographer, clocks and photography have become a happy marriage, especially the area of macro photography. Below is an example of a floating balance from a Dugena mantel clock taken with a 50mm Olympus Zuiko lens. I am using a 10 year old (old by digital standards) Olympus E330 as my go-to clock camera.

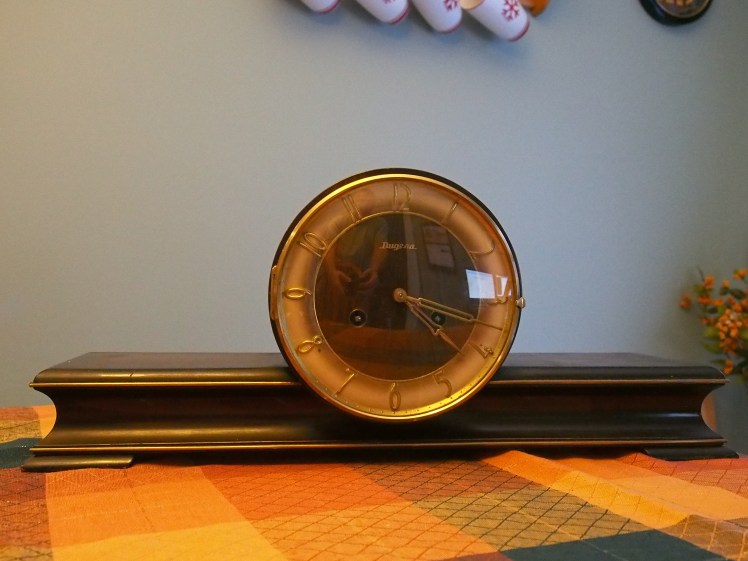

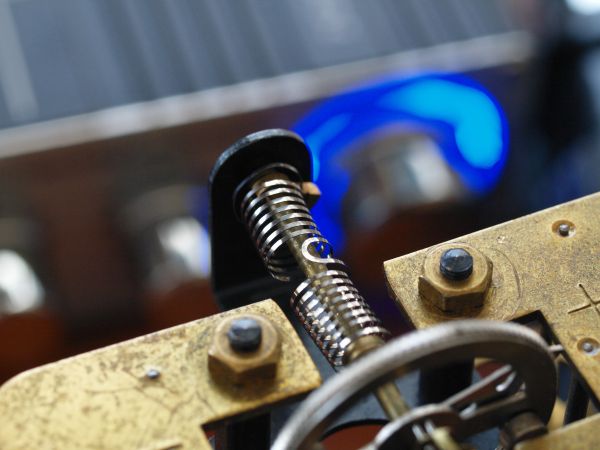

Floating balance from a Dugena mantel clock
I am also producing short YouTube videos with a Panasonic G6 which you can see on this blog from time to time.
Panasonic G6 interchangeable lens camera
Is blogging fun? Of course it is, but it is also a lot of hard work.
Let me know what blog experiences you have had that have been positive or negative

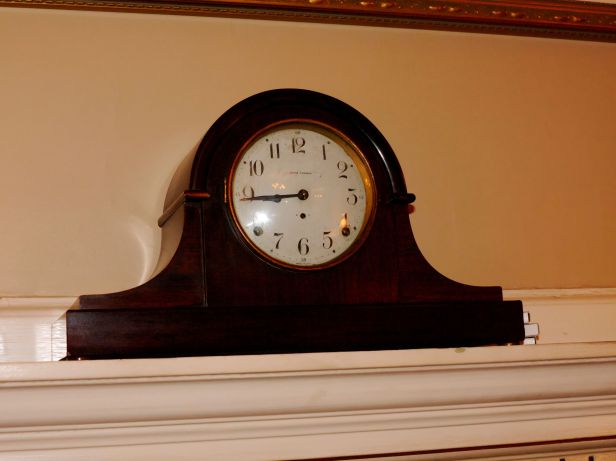

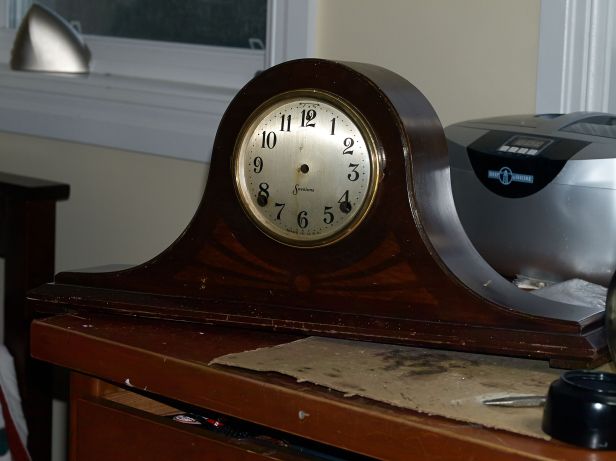

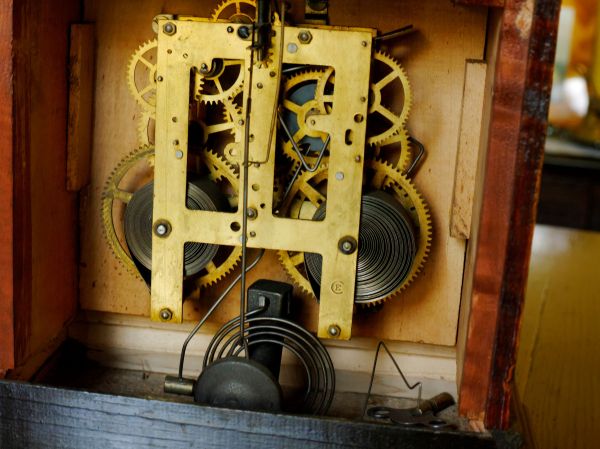

Regular readers might have followed my progress on this 1927 Sessions tambour style clock.
After installing 10 bushings, replacing the pendulum bob and suspension spring and reassembling and oiling the clock and the springs I am now in the process of regulating this old clock. I am finding that despite all the work I have put into this clock, it will run for only 6 days and it does not seem to want to run the full eight day cycle. Perhaps there is other wear that I am not detecting or the springs are weak.
I wound the clock again this morning and we will see how long this cycle will go before stopping. Everything is synchronized thanks to Steven Conover’s helpful book on striking clocks. Is it a success since it was a non-running clock when I acquired it last fall.
Researching clocks at the Canadian Clock Museum in Deep River, Ontario, Canada.
Taking a little time off seems like an amusing title for a clock blog. It just struck me (there I go again).
In the next few weeks you will see fewer posts as I am spending some quality time with friends and family at our summer get-away in central Canada. While in that area I intend to make my third visit to the Canadian Clock Museum in Deep River, Ontario. It is always exciting to see the newly added pieces to the museum collection and to chat with it’s knowledgeable curator.
Regular readers have no doubt observed that my usual practice in the past year is to post at least one article per week in an effort to keep readers interested and of course help me, the writer, offer the kind of content that appeals to a broad spectrum of clock enthusiasts. I typically profile my own clock collection and the trials and tribulations of maintaining and repairing my clocks plus some articles of interest based on observations in my travels and general interest clock subjects as I navigate through the fascinating world of horology.
From time to time (pun unintended) you will also find special interest articles that I write to give a broader perspective of the world of horology and I hope you enjoy reading them as much as I enjoy the research side of the equation. Even though I will be away I will try to maintain a presence on my blog by posting every two weeks or so which means you can still come back regularly. I also invite you to browse through my archive, there’s bound to something that will interest you if you are clock lover like myself.
In the weeks to come I am planning articles on Bracket clocks, how to oil and maintain your clock between servicings, a historical piece on a most interesting 17th century French cabinet maker and his contribution to horology and thoughts on the pros and cons of converting a clock from a mechanical movement to quartz.
Converted from a mechanical clock
If you have a comment on any of my posts please feel free to leave one though it may take some additional time for me to respond, so, a little patience would be appreciated.
In September I will resume my weekly posting schedule. As they say in the show business world – stay tuned!
Have you ever stayed at an inn or B&B? If you have you might have noticed those that have some sort of historical significance with furniture dating back a 100 years or more, have the odd antique or vintage clock. However, it frustrates me to no end to see them not running.
In the summer of 2014 my wife and I stayed at a beautiful century-old inn in Ganonoque, Ontario, Canada. There were at least 8 clocks in various locations within the inn. They were quite nice and appeared to be in good shape but none were running. A shame! Perhaps there are a number of reasons; clock(s) need(s) servicing / does not run, broken for whatever reason, laziness; staff cannot be bothered to keep them running, unsure how they work or fear of breaking the clock if staff attempt to wind or regulate it (them). I did not inquire.
I’m going to tell you about a pleasant exception we found on our travels. My wife and I were in Bar Harbor, Maine, USA in early June (2016) and I am delighted to say that I discovered that at the Bar Harbor Inn which is, I might add, a beautiful and stately inn prominently located on the village harbor(!), antique and vintage clocks inside the front room of the inn that were actually running.

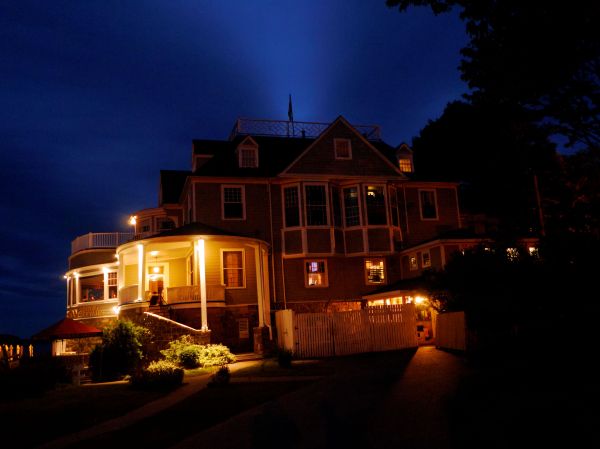

Bar Harbor Inn, Bar Harbor, Maine
I was so amazed that I stopped to examine the clocks without touching them, of course, and while doing so was approached by an elderly gentleman who identified himself as the bell captain. At the time (pun unintended) I was looking at what might be a German Mauthe long case round top, time and strike clock (please tell me if you know otherwise). He mentioned that it was brought over at the end of the Second World War by an American serviceman. Despite working at the inn for over 30 years and maintaining the clock on a weekly basis, he could not tell me the maker. He was no doubt enamored with the clock and obviously not concerned who made it.

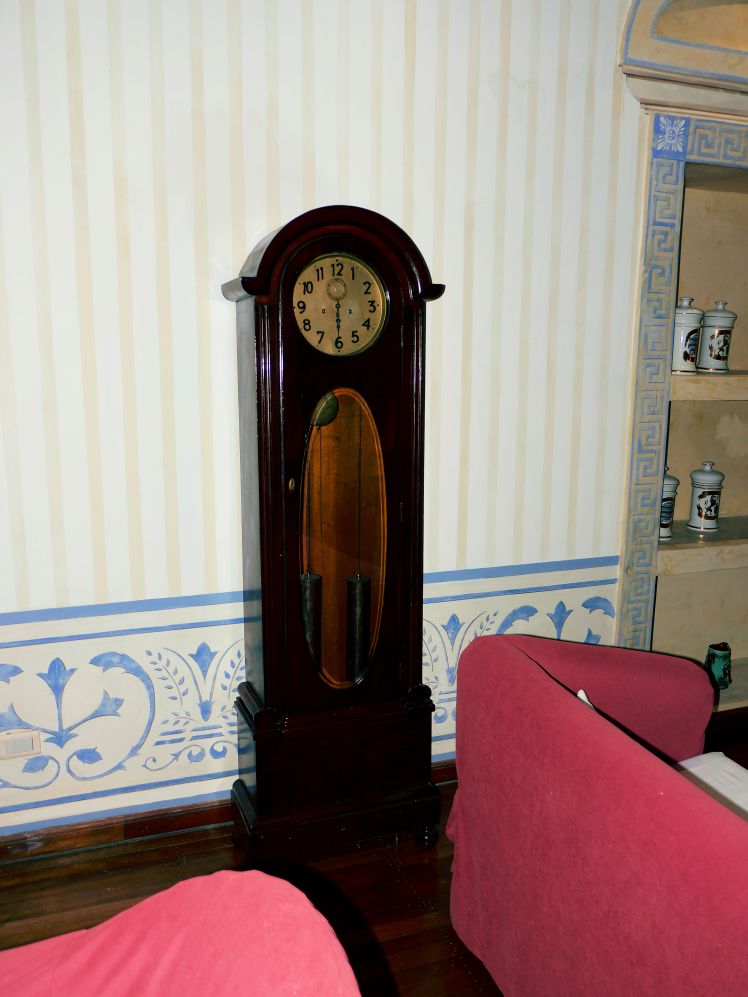

Possibly Mauthe tall case
He showed me another clock, a Seth Thomas time and strike which for some strange reason he was not permitted to wind or even touch for that matter. That duty was obviously left to a specially designated person since the clock must have had some particular relevance. Now, it doesn’t take much to wind a clock but some familiarity with how these old clocks work certainly goes a long way to preserving them.
American Seth Thomas time and strike tambour style shelf clock
If you are, like myself, a clock person, the next time you are in an inn or B&B praise the owner / staff if the antique and vintage clocks are running or politely question why they are not. They deserve to be running.
I noticed this topic in a well frequented clock forum site and it prompted me to write this article.
Many clock collectors realize that presentation is everything. I have about 25 clocks on display in my home and in each case I try as much as possible to situate the clock so that it catches the eye, enhances the room and stimulates conversation from friends and family.
I try not to place more than one clock in one particular location. However, I also recognize that some collectors wish to display their entire collection by having multiple clocks in one particular spot. If this is your choice, it makes perfect sense to group your clocks into types. They may be according to maker, style, type, vintage / age, or country of origin. For example, a collection might have wall clocks in one area or room, shelf clocks in another area or room, European clocks in one area, North American clocks in another and so on. I have observed that some presentations are very well thought out with a distinct theme running through while I have seen other collections that are haphazard and confusing. It takes a little care and attention when arranging your collection.
Some collectors place limits on how many clocks are displayed at one time and how many are actually running at one time. Most of the clocks I have on display are running continually but I tend to allow some clocks to stop for a “break”. Occasionally I will change the location of some clocks for a little variety keeping in mind that some are quite sensitive to being moved.
Let me show you some examples of my arrangements. You can see just three clocks in the following photo. There are in fact 7 clocks in this room but since it is a fairly large room the clocks can be nicely spread out. The most prominent is a 2-weight Gustav Becker circa 1902 which I have written about in several posts. It is 51 inches in height and certainly commands the room. At the bottom centre is a Seth Thomas time and strike round-top cottage clock made in the 1930`s and to the right is an Ansonia time-only short drop octagon, circa 1895.

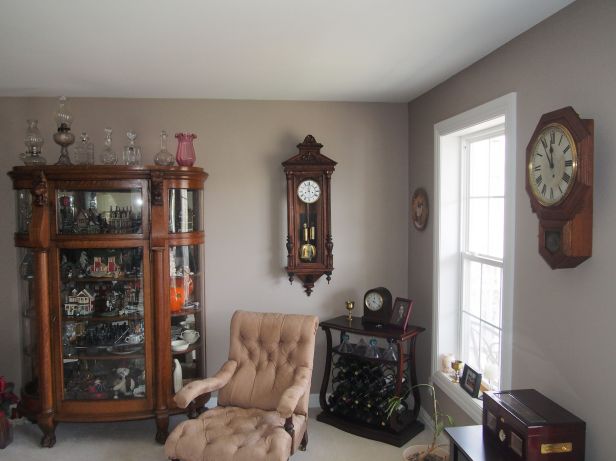

Clocks in a front room
If you prefer your collection confined to one room rather than spreading the clocks throughout the house, that is certainly another option. While some prefer to consolidate their collection in one area of the house others, like myself, prefer to have clocks in almost every room. It is a matter of choice and of course, what your partner can tolerate.

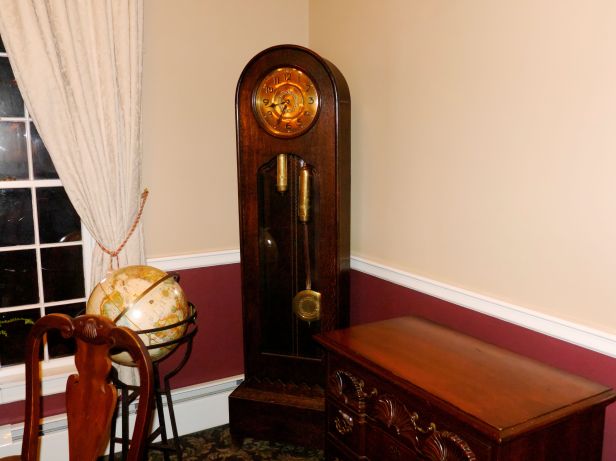

Ridgeway tall case clock
In another example my Ridgeway tall case (or grandfather clock) is one of two clocks in an entrance hallway. Unfortunately, this tall case clock is the only one I have room for. If I find another, this one would have to go. The other clock in the entrance hallway is an Arthur Pequegnat Canadian Time wall clock seen here.

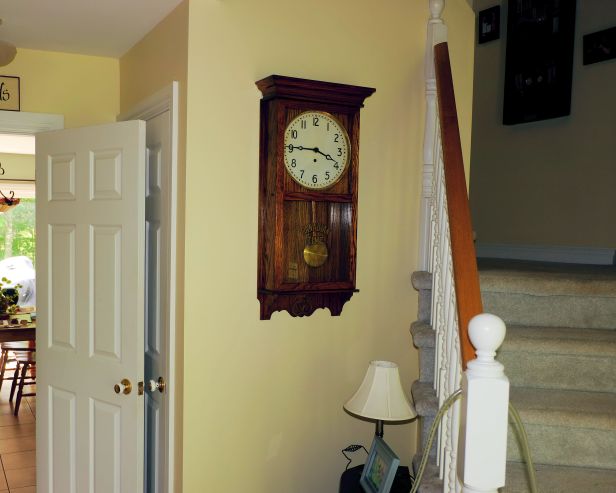

Arthur Pequegnat Canadian Time clock
Arthur Pequegnat Brandon schoolhouse clock
This schoolhouse clock is on the second floor of my home. We have a very simple rule; no striking clocks on the second floor for obvious reasons. The sound of a striking clock tends to keep some folks awake.

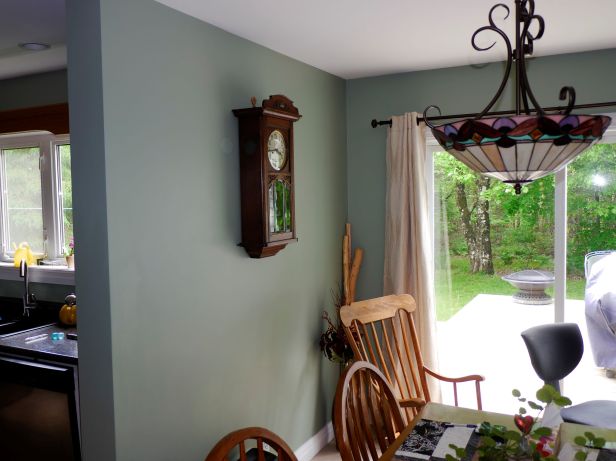

This U.M. Muller time and strike wall clock is our go-to kitchen clock.
U M Muller wall clock
And finally here is a Mauthe Westminster chime mantel clock appropriately placed on top of a 1947 Stromberg Carlson console radio in our dining room.
Mauthe mantel clock
It does not take much to carefully place clocks in the home but it does require some amount of thoughtfulness, care and attention. Let me know what you think about arranging your collection.
Clock collectors understand the importance of presentation when displaying their collection. While it’s generally recommended to avoid placing multiple clocks in one location, some collectors choose to showcase their entire collection together. In such cases, grouping the clocks based on maker, style, type, vintage/age, or country of origin can create a cohesive and visually appealing arrangement. Thoughtful and well-planned presentations with a distinct theme running through them tend to be more successful than haphazard and confusing displays.
It’s common for collectors to set limits on the number of clocks displayed and running at any given time. Some clocks may be allowed to stop for a “break” while others continue to run continuously. Occasionally changing the location of clocks can add variety, but it’s important to consider the sensitivity of certain clocks to being moved.
For example, in one photo, there are three prominently displayed clocks in a large room, including a 2-weight Gustav Becker clock from 1902, a Seth Thomas round-top cottage clock, and an Ansonia short drop octagon clock. The arrangement allows the clocks to command attention without overcrowding the space.
Another option is to confine the collection to one room, while others prefer to have clocks distributed throughout the house. The choice depends on personal preference and the tolerance of one’s partner.
In an entrance hallway, the Ridgeway tall case clock shares space with an Arthur Pequegnat Canadian Time wall clock. The limitations of the hallway restrict the number of clocks displayed.
A schoolhouse clock is placed on the second floor, following the rule of avoiding striking clocks in upper-level rooms to prevent disturbing sleep.
The kitchen features a U.M. Muller time and strike wall clock, which serves as a reliable timepiece for the household.
Lastly, a Mauthe Westminster chime mantel clock sits atop a 1947 Stromberg Carlson console radio in the dining room, adding a touch of elegance to the space.
Arranging a clock collection requires thoughtful consideration, care, and attention. It’s essential to find a balance between showcasing the clocks and maintaining a visually pleasing and harmonious environment. Each placement decision contributes to the overall aesthetic and impact of the collection within the home.
The curator of The Canadian Clock museum was kind enough to respond to an email I sent concerning the absence of Martin Cheney clocks as well as provide further information on the collection.
First of all, Mr. Symons explained that the museum profiles two centuries of Canadian clocks, which include many Canadian manufacturers that represent 90% of the collection of over 2600 examples. The problem, he says, with Martin Cheney clocks is the cost. He is most certainly correct; most I have seen have been in the $5000-10,000.00 ballpark. The museum always considers donations, and if anyone out there feels they can part with their Martin Cheney wall or tall case clock, I am sure that Allan Symons would graciously accept it.
Mr. Symons notes one clarification. “The Seth Thomas Clock Company in the U.S. (dating back to the early 1800’s) became part of a larger company that owned Westclox in the early 1930s. Starting then, Seth Thomas “brand” mantel, alarm, and wall models were made in part of the existing Westclox Canada factory in Peterborough. Ontario, Canada. That new factory had opened in 1923 to produce Westclox clocks for the Canadian market, after about three years in rented space in Peterborough.”
Westclox collectionat the museum
The reference library now has over 500 titles on all aspects of horology, and visitors are welcome to sit down and conduct research on clock companies in general or a specific family clock.

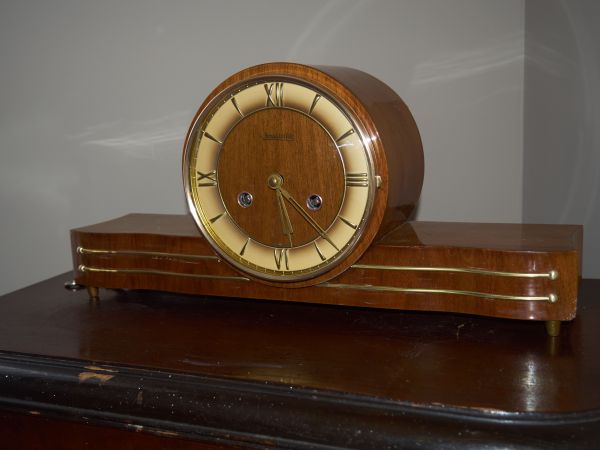

Conducting research on a Forestville mantel clockCatalog of Canadian makers
Thanks for an email from a reader in Romania who provided information on the Clock Museum in Ploiesti, Romania. This museum recently reopened after undergoing some renovation work and profiles European clocks from the 18th century. From their website, “Those who visit the museum have the occasion to follow the way in which the means of measuring the time had developed, from the first “clocks”- the sun dial, the burning clocks, the clocks with water (the outline of the clock with water being taken over from d’Horologerie Ancienne) or the clocks with sand; up to the “ancient” mechanical and modern ones.”
“Muzeul Ceasului from Ploiesti shows us such “folk clocks”, some with simple or double ringing with flute players, some others quite monumental, with rich ornamental design, dated in the 18th and the 19th centuries. The folk influence inspired the creation of the wall clocks in straight cases, made by lathering. Some of them are created in Romania, having German or Austrian mechanismes.”
Every museum I have ever been to has allowed me to walk away with the feeling that I have learned something new. All museums document interesting histories that are intended to educate and inspire visitors. The Canadian Clock Museum at 60 James Street, Deep River, Ontario, operated by curator Allan Symons is one such example.

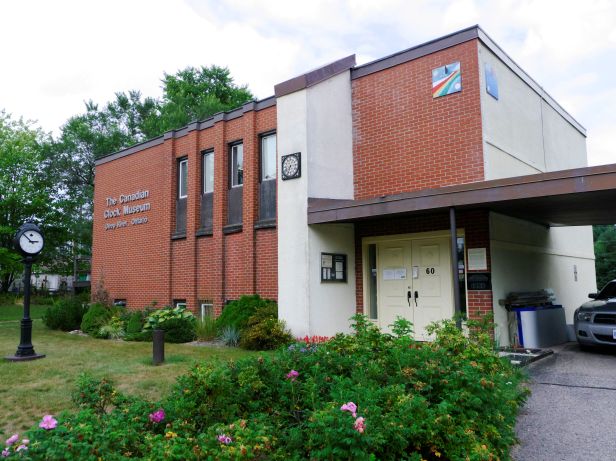

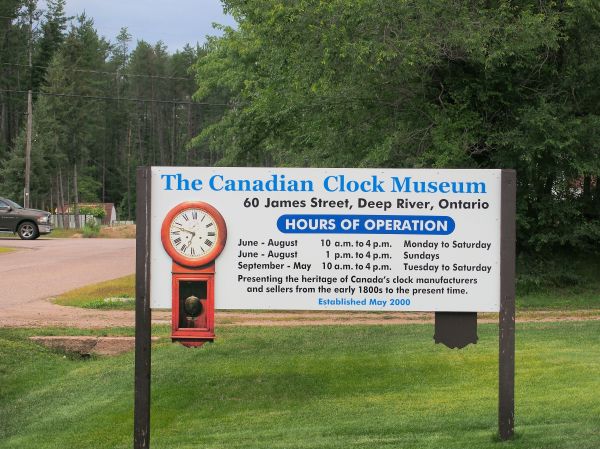

The Canadian Clock Museum
The Canadian Clock Museum in Deep River, Ontario is a 2 1/2 hour drive from the nation’s capital, Ottawa, Ontario. I have visited it twice and I found myself learning even more on my second tour. It has a fascinating collection of clocks that are largely from North America. However, it has the most extensive collection of Arthur Pequegnat clocks that I know of outside a private collection.
A collection of Pequegnat mantel clocks found at the museum
The Arthur Pequegnat Clock Company made clocks in Kitchener, Ontario (called Berlin, Ontario up to 1917) to 1941 when the company ceased production. Pequegnat clocks were wholly made in Canada while their counterparts built and assembled cases in Canada and imported movements from the US, England, France and Germany. The Canada Clock Company and Hamilton Clock Company had a 12 year span also made both cases and movements but not at the volume of Arthur Pequegnat.
I have written about Arthur Pequegnat clocks in previous posts and I have been slowly building a modest collection for myself.

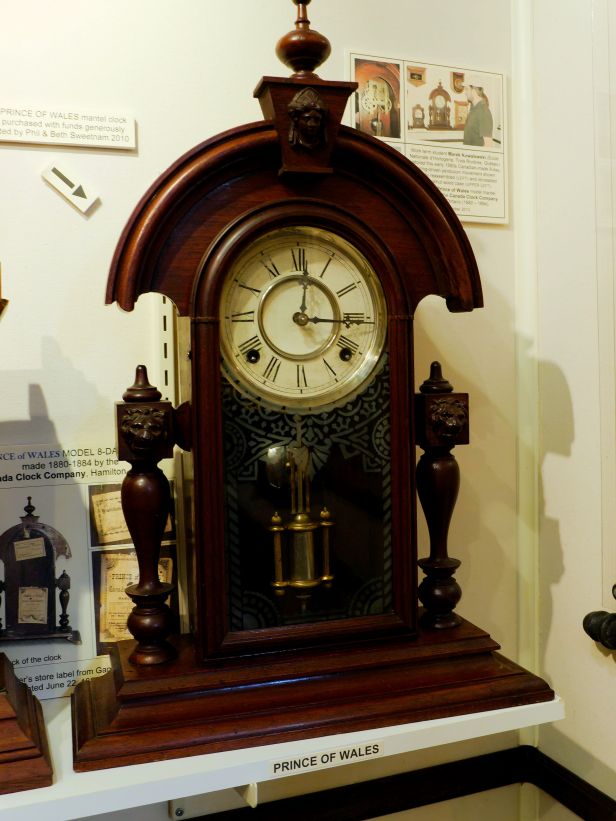

Prince of Wales parlour clock, Canada Clock Company circa 1880
Three tall case Arthur Pequegnat clocks
Many manufacturers are represented at this museum and even if you have only a passing interest in clocks you would no doubt find the displays both interesting and thought provoking. Companies represented are the Western Clock Company, Walter Clocks, the Snider Clock Corporation, Seth Thomas that operated a factory in Peterborough from the 1930’s to the 80’s, Breslin Industries, the Hammond Company of Canada Ltd to name just a few. Canadian Clock Maker Martin Cheney who briefly made high quality wall and floor clocks in Montreal in the early 1800’s is not represented, unfortunately.

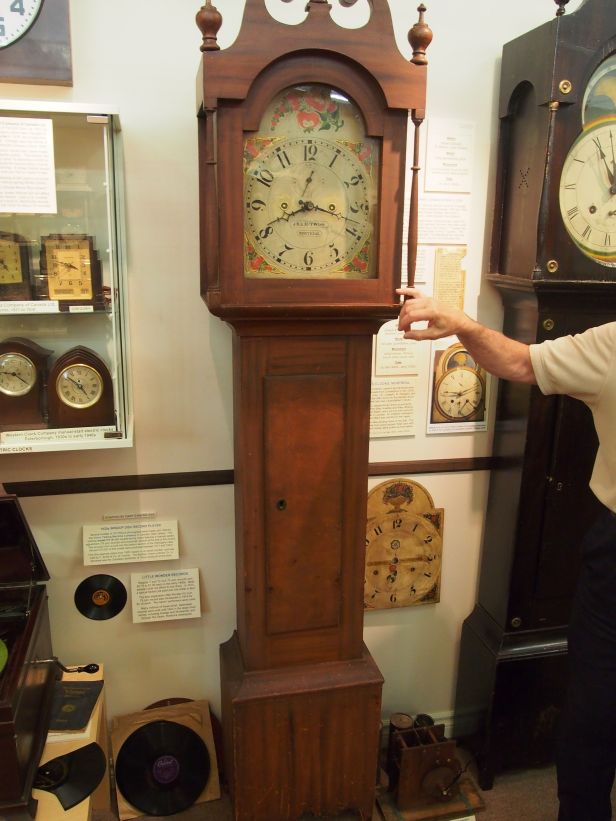

Twiss tall case early 1800’s

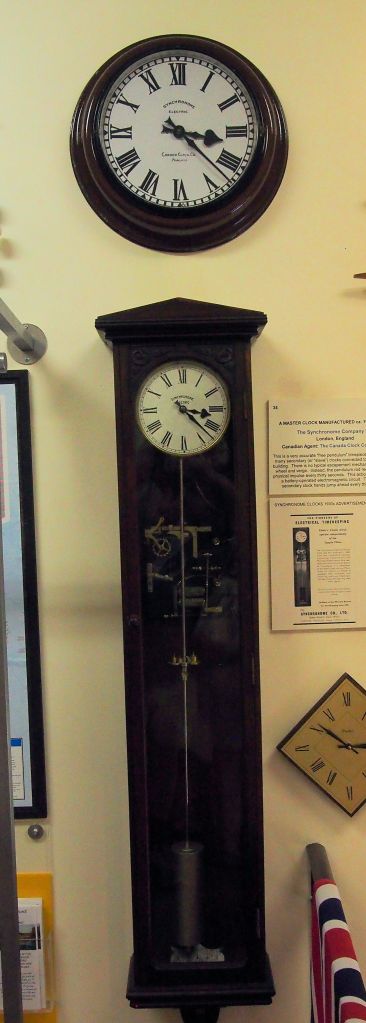

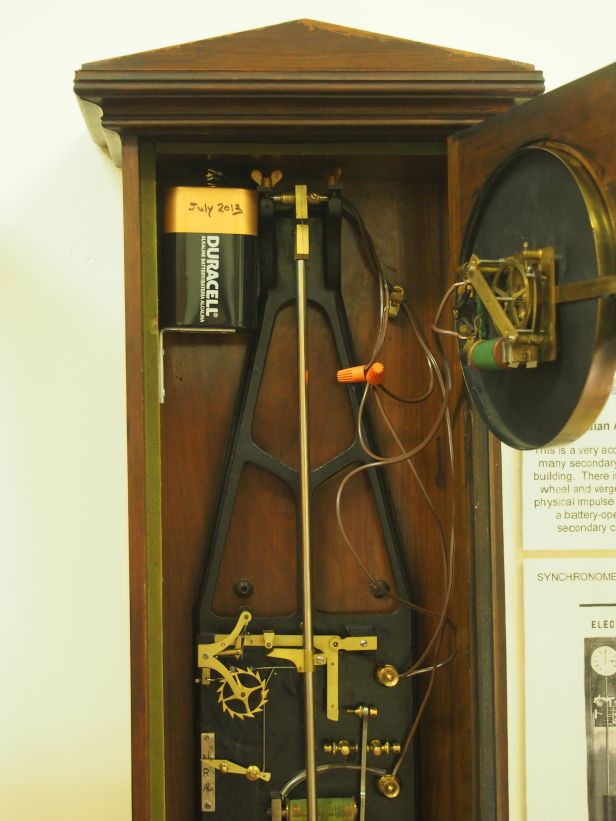

There are even some special clocks such as this Synchronome electrical impulse master clock from the 1930’s.
Master clock mechanism
Master clock with slave clock at top
So, spend time at the museum talking to its knowledgeable curator or avail yourself of the manuals and documents at hand and conduct your own research into a specific clock.
This museum is modest by museum standards and not quite up to the scope and scale of the National Association of Watch and Clock Collectors Museum located in Columbia, Penn, USA but don’t let its compact size fool you. There is plenty to see.
If you have any interest in clocks I strongly urge you visit this one if you are at or near the Deep River area. Outside Canada? I encourage you to seek out clock museums in your own country and take the time to understand the history of clocks from around the world. Its about time!
Every clock owner wants to know what their clock is worth and every clock seller wants to know what price they can ask for. This article will provide a guide to buying or selling an antique or vintage clock.
I will attempt to answer the following questions beginning with comments about the unpredictable clock market.
What factors are considered when assessing the value of a clock?
Is it original?
What type or style of clock is it?
Does the clock have a label, trademark, or prominent name?
Is it from the correct period or is it a “knock-off” or “re-issue”?
Does the clock have provenance?
What is the age and condition?
Is the clock collectible?
What is the mechanism type?
It all comes down to research
The unpredictable clock market
Unfortunately, in this unpredictable market, it is almost impossible to determine the value of a clock. What you think your clock may be worth today may not align with what the experts say and what others are willing to pay. What has value today may not have value tomorrow. Many factors influence the buying and selling of clocks and the clock market can be a battlefield with many casualties.
Recently, I saw a mid-1990s Howard Miller grandfather clock listed for sale on a Facebook site. I tracked the ad over the course of several days. The owner originally wanted $3000 but later stated they would take “no less than $1500” when it became obvious to them that the ad was not attracting attention. Personal value tends to be subjective and while the owner might have paid $3000 or more for a beautifully carved oak grandfather clock, its present value is not anywhere near what he thinks it is worth. I stopped following the ad but the seller likely withdrew it from sale.
Even an appraised value is the subjective opinion of an expert assessment based on condition and collectibility which is always subject to shifts in the market. My Ridgeway grandfather clock is in excellent condition, runs well, and has a command presence in my home but it is not worth much in today’s market.
Ridgeway Grandfather clock, Hamilton Country
What factors are considered when assessing the value of a clock?
Is it original? Original clocks attract buyers. The value of a clock decreases if some or many parts have been changed out. Determining whether or not a clock is original can often be difficult to determine unless viewed by an expert. The many “Vienna Regulator” clocks found on eBay and other online for-sale sites are missing parts, have had parts added such as crowns, finials, dial faces, hands, and even movements, and have weights that are not original to the clock. Back in the 1960s, many Vienna Regulators came to America in wooden crates consisting of loose movements and cases which were then married, assembled, and sold.
Would you expect a 100% original clock when the seller suggests that it is complete and original while at the same time admitting that they know nothing about clocks? Reputable auction houses have more accurate descriptions of the clocks they offer for sale when they describe condition and state if parts are missing or questionable. Moreover, they do not exaggerate the condition of a clock if they value their reputation.
Gustav Becker 2 weight regulator clock. It looks good but many parts have been replaced over the years.
What type or style of clock is it? Many mantel clocks in my collection are worth almost nothing since thousands were made and few good ones have survived. That said, some American mantel clocks are desirable and command high prices such as the Patti line of clocks from E N Welch or Sonora clocks from Seth Thomas. An 18th-century English bracket clock, an ornate French Cartel clock, or an American jeweler’s regulator are styles and types that are sought after by collectors and have retained their value over the years. On the other hand, tall-case or grandfather clocks, some as old as 200 years, can be had for a fraction of their value. Wall clocks tend to command higher prices than mantel clocks.
Does the clock have a label, trademark, or prominent name? Clocks that have an identifying label or trademark are more desirable than those that do not. Collectors often ask if the label is intact or if the movement is marked. Replacement labels are frowned upon by collectors and unmarked movements are less desirable as they may be replacements. Clocks made by prominent clock-makers add value. Old English bracket clocks with subsidiary dials, made by prominent clockmakers come to mind. A marked E. Howard or an authentic Willard banjo clock has more value than an un-named/unmarked clock similar in style and age.
The rear panel of an Arthur Pequegnat kitchen clock showing the label
Is it from the correct period or a “knock-off”? Is it original or a reproduction? There are excellent examples of reproduction wall clocks that look very much like period clocks from the early 1900s that are no more than 30-40 years old. Seth Thomas made a reissue of the iconic Regulator #2 in the 1970s which is not as desirable as the original #2. Often the differences are very obvious and sometimes quite subtle.
Does the clock have provenance? Does the clock have a story or does it have historical significance or can it be placed within a historical context? This Arthur Pequegnat Canadian Time clock spent most of it’s life in a train station waiting room not 30 minutes drive from my home. In the early nineties when the station was decommissioned it was purchased by a collector and was in his hands until I bought it from him about a few years ago. This is a key selling point and may add value. The history of the clock may be an important element in a sale.
Canadian Time clock by Pequgnat C.1929

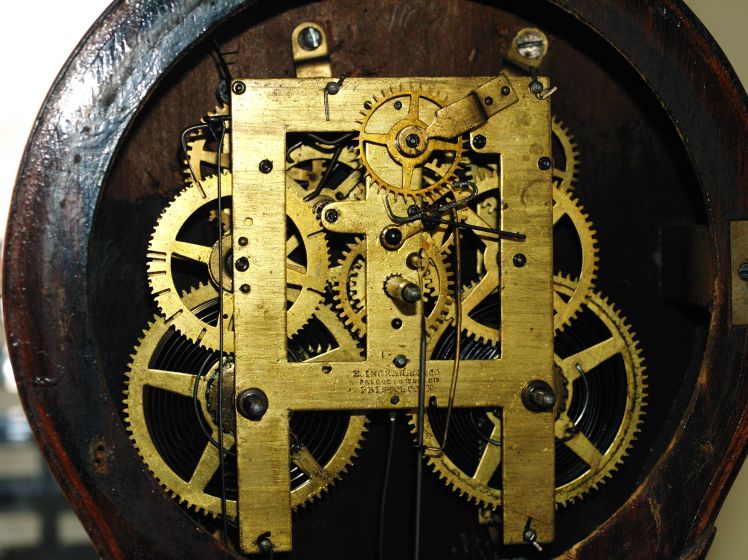

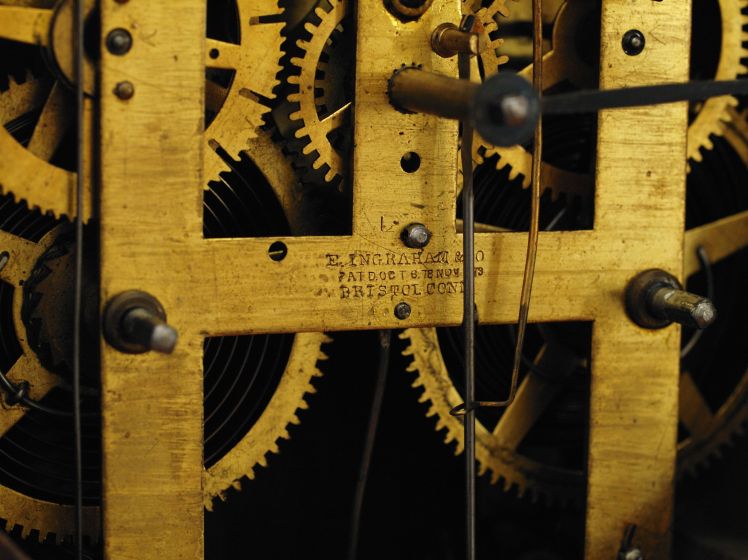

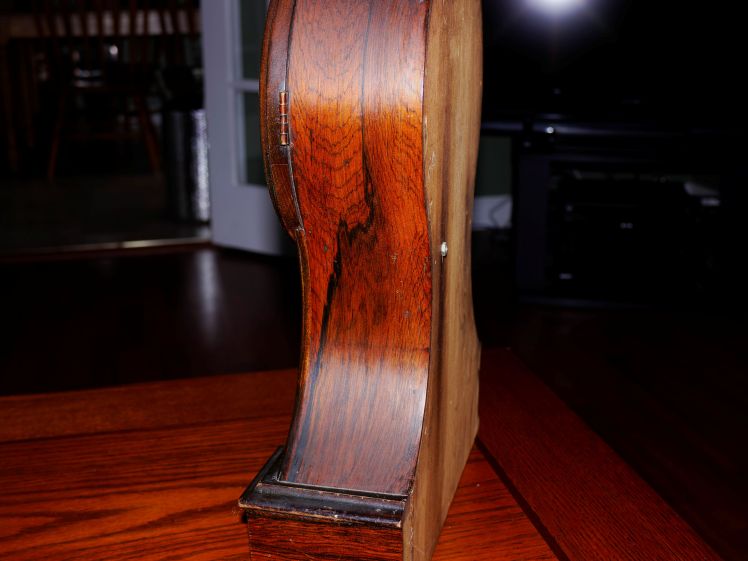

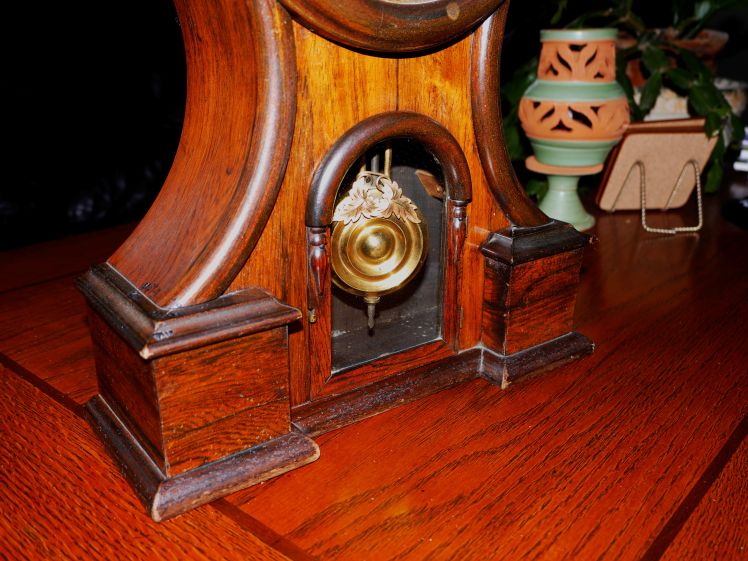

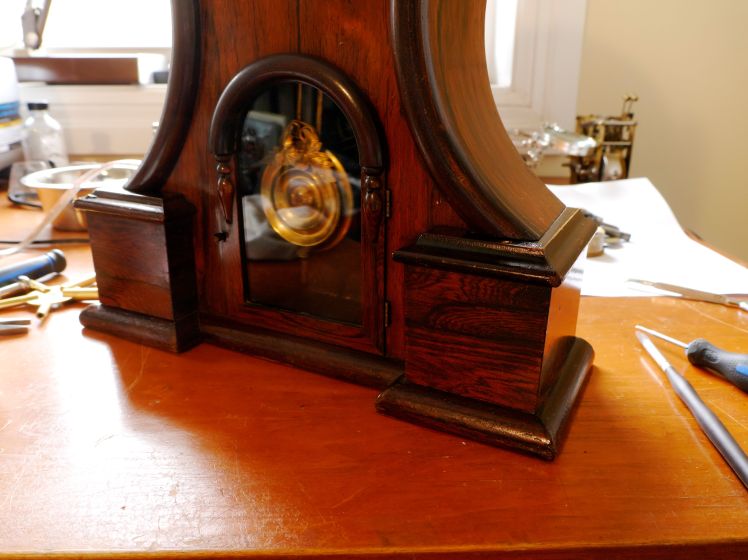

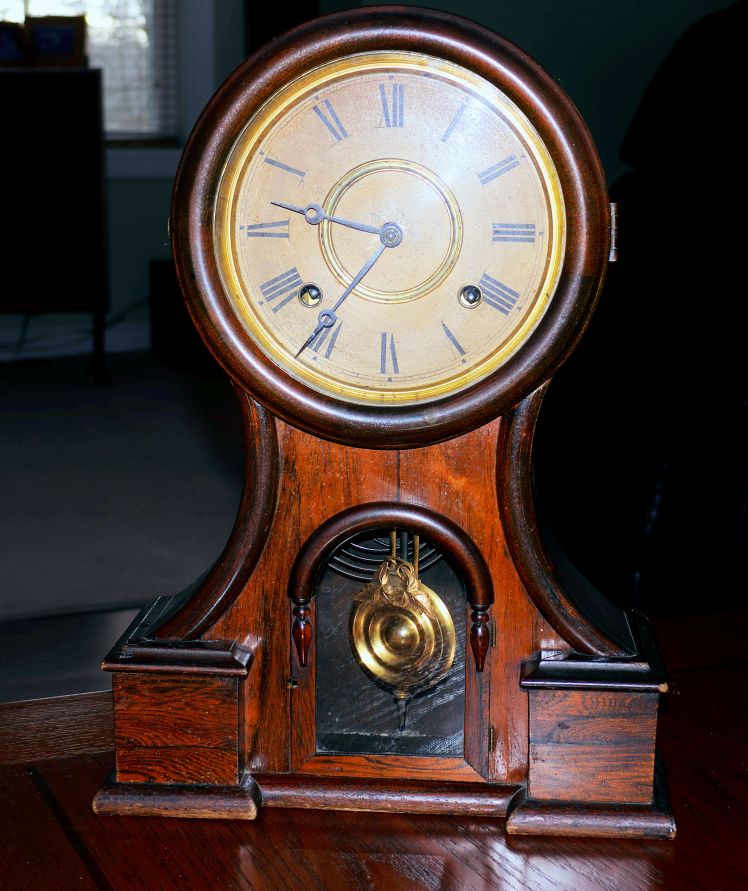

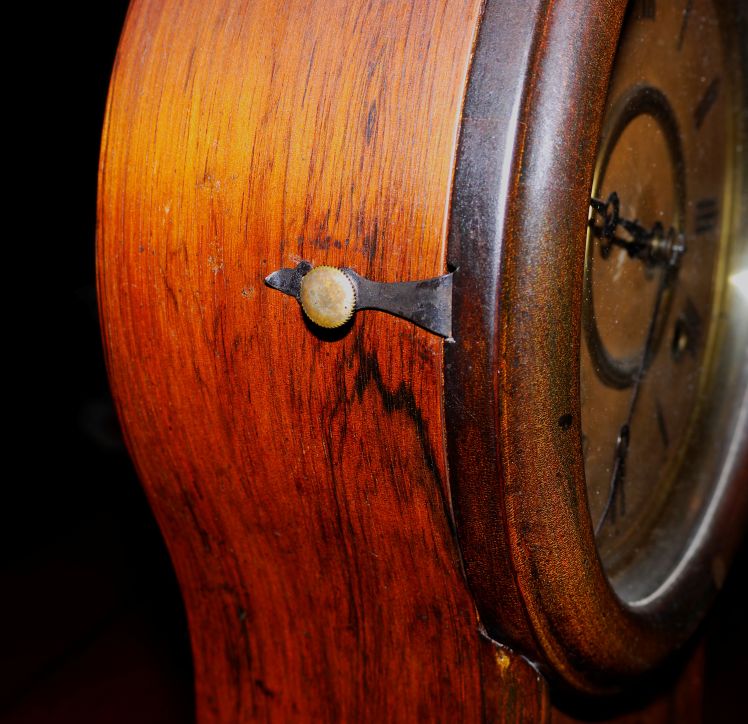

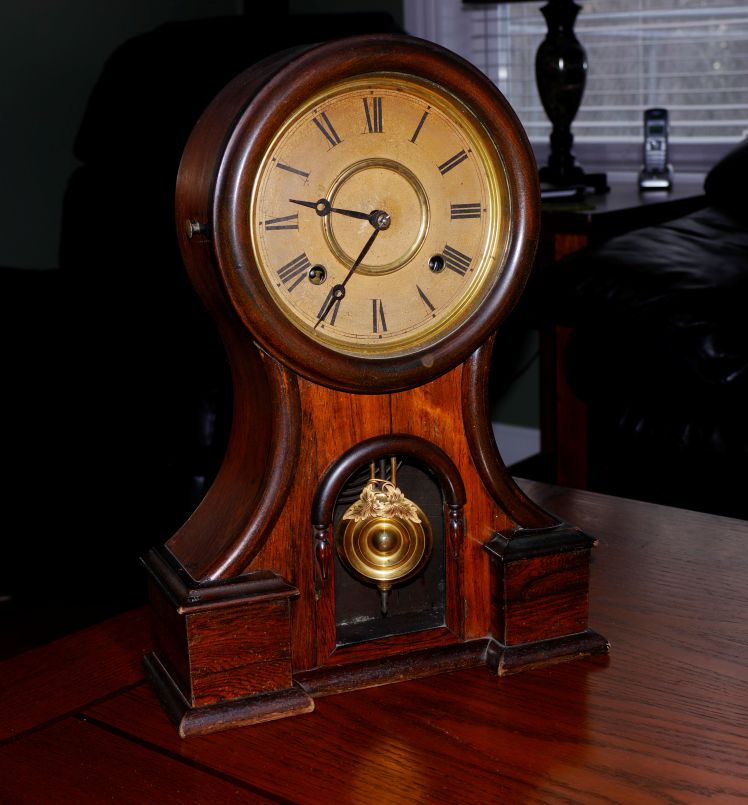

The Ingraham Huron shelf clock (below) had been with a Bridgewater, Nova Scotia family since the 1890s. Balloon clocks, as they are called, seldom come up for auction and are valued by collectors because of their interesting design and limited production. In the case of this clock, This model was made between 1878 to 1880.
Ingraham Huron shelf clock C.1878
What is the age and condition? Many people think their clock is worth a lot of money when they see a similar clock by the same maker sell for a high price at auction. If their clock is missing case pieces, large sections of veneer, the hands are broken and so on, the value will be adversely affected. If the dial has been badly repainted or there have been poor repairs, the clock is not considered as valuable.
The age of a clock does not always mean that it has more value. A clock may be a style, or by a maker, who, regardless of age is not popular with collectors. Sperry and Shaw 4-column New York-style 30-hour clocks, while attractive, and over 125 years old, are not sought after by collectors as Sperry and Shaw, retailers rather than clock-makers, were clock merchants who used questionable assembling methods and dishonest selling practices.
172-year-old Sperry & Shaw 4 column clock
Thousands of gingerbread or kitchen clocks were made during the period 1885 to 1915. Despite their age, few have any value.
Is the clock collectible? Rare clocks are rare because few exist or rare because few owners want to sell them. OG (Ogee) clocks are clearly antiques, some more than 150 years old, but because thousands were made they are not as collectible as a one-of-a-kind 17th century English lantern clock. 30-hour Ogee clocks are also tough to sell because of the hassle of winding them every day.
Desirability is also region-specific. Of the many parlour clocks made in Canada, those made by the Hamilton Clock Company in the 1880s (Hamilton, Ontario, Canada) are very desirable by Canadian collectors. Arthur Pequegnat clocks, wall clocks, hall clocks, mantel clocks, or kitchen clocks fetch higher prices than similarly styled clocks because they are actively sought after by collectors in Canada. Outside of Canada, they are worth far less.
Martin Cheney clocks (1810) made in Montreal (Canada) are highly collectible, of exceptional quality, and are very rare. True Vienna Regulator clocks such as those from the Biedermeier period made prior to 1850 and authenticated as original are very desirable, reflect high asking prices, and are valued more than contemporary versions.
The key is research. Check eBay, reputable auction houses, local buy-and-sell sites, clock shops, antique stores and online message boards to get a feel for the range of prices and bear in mind that markets are very volatile
Cartel clocks are exceptional 18th-century French clocks and those fabricated by clock-makers such as Joseph de Saint-Germain or Duponchel à Paris command prices in the many thousands of dollars.
What is the mechanism type? Generally, three train clocks (time, strike, and chime) are mechanically more complex and are normally valued higher than two trains (time and strike) clocks. Three-weight Vienna Regulator Grande Sonnerie clocks generally command higher prices than a single or two-weight Vienna Regulator.
American clock company Sessions sold inexpensive clocks for the masses and produced many thousands. The Sessions Westminster-A tambour style clock has an unusual 2-train chime movement (chiming clocks generally have three trains) and fetch higher prices on auction sites than other Sessions mantel clocks.
Weight-driven clocks generally command higher prices than spring-driven varieties.
Sessions Westminster A mantel clock, C.1927
It all comes down to research
Do your research: Check eBay, reputable auction houses, your local buy-and-sell sites, clock shops, antique stores, and online message boards to get a feel for prices. Keep in mind that markets are extremely volatile. Do your homework prior to making any purchase. What may have sold for several hundred dollars years ago (30-hour Ogee clocks) are worth much less today.
Ask questions before you purchase your next clock and if you are a seller, provide an honest description of your clock and disclosures (new pendulum, new mainsprings, etc.). Chinese, Korean, and most Japanese clocks are not particularly collectible or desirable. If you firmly believe your prized Chinese-made Daniel Dakota family heirloom is worth over $150, potential buyers may not be beating down your door but a fair price of $40-50 might result in a quick sale.
This 1960s vintage Daniel Dakota wall clock is worth almost nothing
Clock prices are all over the map and we will not see a stabilization of prices any time soon. With the advent of the internet, many clocks thought to be rare have flooded the market depressing prices. The law of supply and demand applies. As demand increases, supply decreases, and prices rise. As supply increases and demand decreases, prices drop. The only constant is high-end clocks, sought after by serious collectors that have managed to retain their value. But how many of us can afford them?
Now is a good time for that special clock. There are certainly bargains to be had if you search carefully, learn as much as you can along the way, and tread lightly into the buyers arena or if you are placing a value on your clock to prepare it for sale.
I do not mean marriage in the traditional sense. In the clock world a marriage is defined as a bringing together of parts to make a complete functioning clock. Among clock circles it is generally accepted that if a clock has significant parts from another source, such as a movement, pendulum, weights, put into a different though correct case it is considered a marriage.

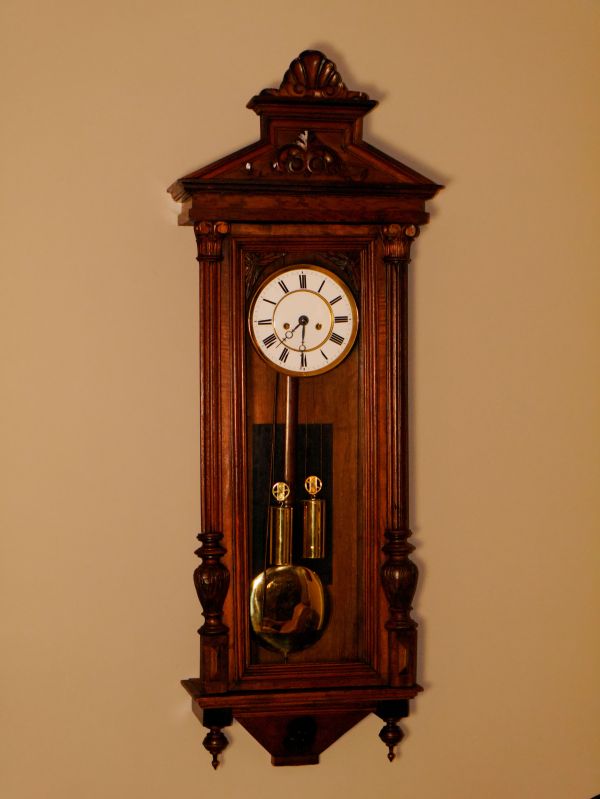

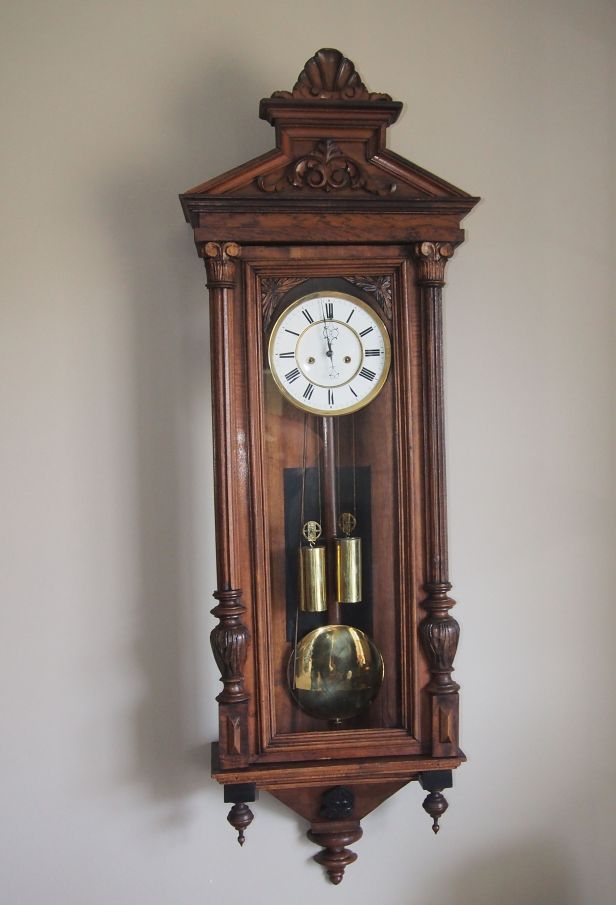

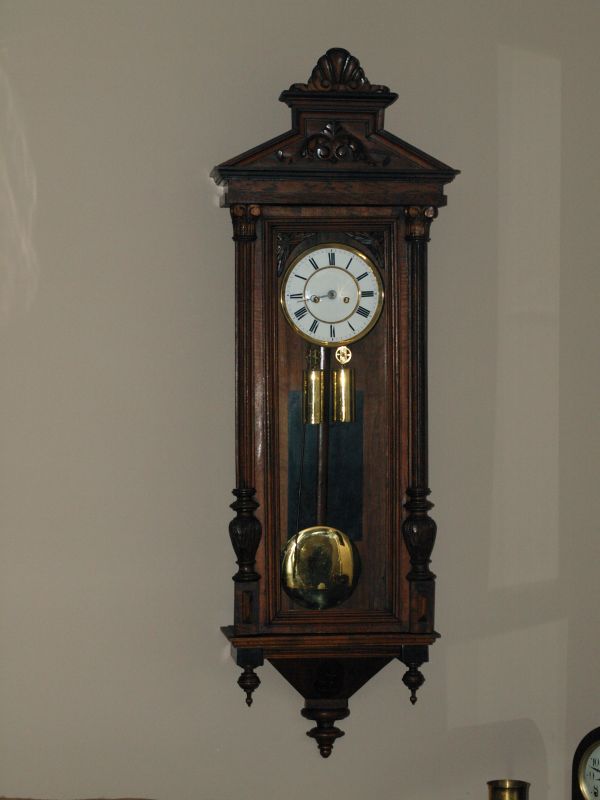

Gustav Becker 2-weight regulator
If it has a large number of parts from a variety of sources, even parts not original to the period or correct to the clock it might be considered something else. See my previous post for a discussion on Frankenclocks.
I am in a bit of a quandary.
I have written a number of blog posts concerning a Gustav Becker two-weight regulator clock that I bought in February. I am fascinated by what I have learned about this clock but the journey has been both enlightening and frustrating as I attempt to get it to run reliably.
I purchased it as a project clock and knew that I would have to source parts that were missing from the movement which the seller disclosed at the time of sale. I decided to buy another GB movement. About a month after I bought the clock my search on EBay bore fruit. The movement I found (from Poland!) was a Braunau movement which is the same factory but newer by 16 years (1902 versus 1918). It was an excellent fit for my clock project since up to 90% of the parts are interchangeable and the price was very reasonable.

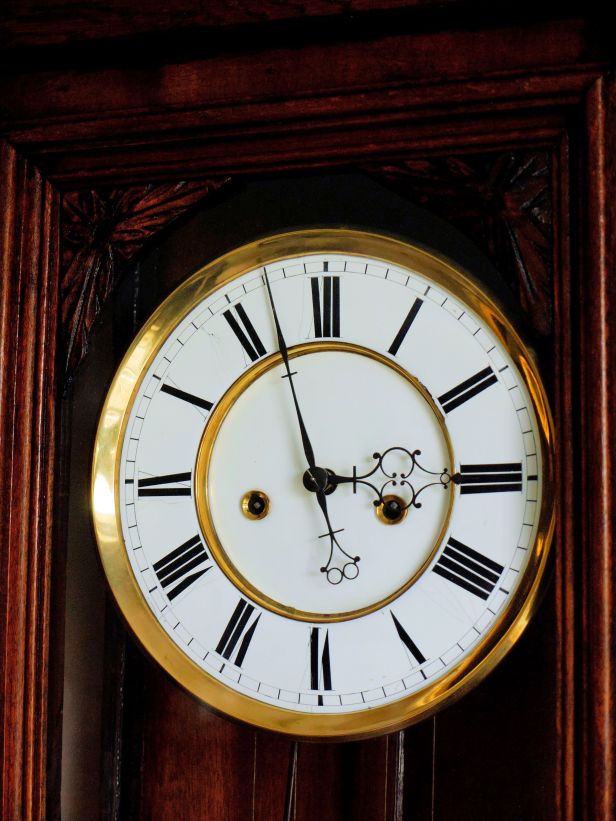

Clock face with replacement VR hands
My intent was to part out the 1918 movement to supply the 1902 movement with the parts I needed such as two springs, a snail / star wheel, hammer assembly and gathering pallet. While I took what I could from the 1918 movement to get the original movement running I had mixed success. It ran well for a while and then it would stop and lock up for no apparent reason. It stopped several times. Each time I took it apart, inspected the parts I thought might be problematic but found nothing amiss. After I dis-assembled, cleaned and oiled the movement each time I had it out, I returned the movement to it’s case and the clock would run for a while, a couple of weeks, a couple of days, hours perhaps before it would just stop abruptly. I am sure that if I investigated further I would find a slightly bent pivot, worn pinion or problematic gear tooth somewhere. Now for plan B.

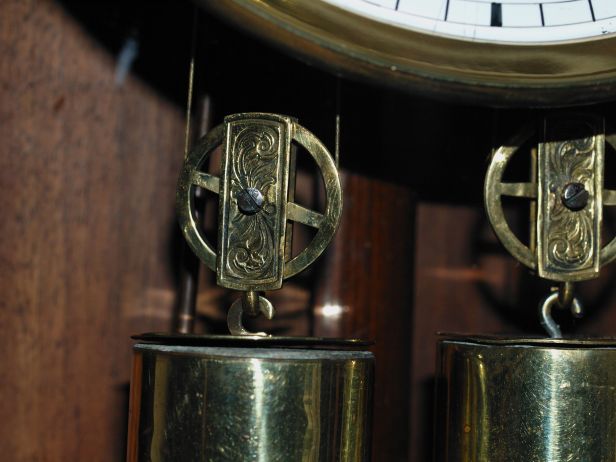

Weights for Regulator clock
I thought, well I do have the 1918 movement, why not switch them and see what happens. I returned all the parts such as star wheel / snail, springs, hammer assembly etc. from the 1902 movement to the 1918 movement and hoped that the 1918 movement once installed in the case would run and run well. I was initially concerned that the newer movement, a P27 requiring what I thought was a longer pendulum would not fit the case case but it seems to be sized perfectly. It is a mystery to me how pendulums are measured. The movement has now been in the case for the last fourteen days and it is not only running well but keeping excellent time.
The question remains, should I leave the 1918 movement in the case since it is now running well? Although it is the “correct” movement though not the original one, could the clock now be considered a “marriage”? The answer is, yes!
If I were to sell the clock I would disclose that the movement is not original to the case which would certainly affect its overall value. I could make the deal more attractive by providing the original movement as part of the sale considering that it is repairable, if I sold it! These situations occur quite often in the world of EBay et al when the clock seller chooses not to give too much detail in their description of the item when they know some parts are not original. Furthermore, from a buyers perspective there is no guarantee that the clock they are looking at is 100% original.
Gustav Becker clock occupying a prominent location in the living room
This is my first marriage. Would I do it again? If faced with similar circumstances in the future I would probably do the same thing but it has also taught me to be cautious with any potential clock purchase by asking key questions prior to any decision.
Of course this clock is not for sale. I think the clock looks outstanding on my living room wall.
Let me know if you have you performed any marriages or if you think it is an ethical practice?
There are literally thousands of clock photos posted on the internet. Being an amateur photographer myself I marvel at the care and attention that some put into the actual capture of an image for all the world to see yet others feel that their cell phone is, well, good enough. It is frustrating to see blurry and out of focus pictures taken in poor light when you really want to see the detail they are attempting to describe. Specialized cameras do have distinct advantages when it comes to capturing the fine detail of a clock, watch etc. and I will explain why this is important.
Macro shot of a lantern pinion
For example I saw a bracket clock advertised in a local online for-sale site. The photos were terrible but I knew details about the clock the seller was advertising. Too bad most of the people viewing the ad saw a blurry photo lacking detail. I pounced on it. As it turned out I was the only one who inquired. The clock was in excellent condition and the movement looked like it “came off the showroom floor” and on top of that I managed to save quite a bit of money. Had the seller taken the time to photograph the item with care and attention they would have realized much more money for the clock.
I offer you tips on how to photograph your clock whether you are showing it off, selling it or if your interest is clock repair and maintenance.
My 7 tips for effective image capture.
1) Camera: Get a decent camera that will shoot macro. No matter what you might think of cell phones as cameras its not the resolution…its the lens. Some people swear by their cell phone – for decent photography I would be swearing at it!
I use a 9 year old Olympus E330 DSLR with an equally old 50mm macro lens. Another option is to uses a set of magnifier lenses that will screw onto standard lenses which will take macro to the extreme. Some bridge cameras will do just fine and they are not all that expensive.
How about the other end of the spectrum when it would be good to have everything in focus using F22, long exposure on a tripod with indirect natural lighting. Taking pictures of a clock movement before dis-assembly is a real challenge. Pointing the camera into the chasm between the plates with all the parts and hoping to get something usable upon re-assembly sometimes works and sometimes doesn’t but it helps if everything is in focus. Using a telephoto or zoom lens as a macro also helps if a macro is unavailable. Just step back far enough to take the shot.
The newest Panasonic ILC (interchangeable Lens Camera) cameras have an interesting feature in their latest firmware update which allows post capture re-focusing that I think would be a boon to horologists. What happens essentially is that it is a focus bracketing function that stacks a burst of images together into a single file and you touch the focus point that you prefer. Great for that side shot of the internal workings of a movement. You can then shoot 30 frames per second with 30 different focus points. I might be looking for this feature in my next camera purchase.
Seth Thomas cottage clock
2) Stability: Find a tripod at a garage sale or get your old one out of the closet or at the very least put the camera on a pile of steady books. I have a sturdy Manfrotto tripod that is probably 12 years old but works very well. A tripod is a must particularly when low shutter speeds are used and it is even more important when shooting video.
3) Light: Be conscious of the light on your subject. Turning your clock around to a window in the daytime with the sun shining in will mean nice natural colors. In a dark room a flash on your camera is helpful but flashes tend to bounce light off shiny surfaces resulting in harsh images, so, indirect light is better. I use a CFL continuous lighting kit and if I need less harsh light I use a soft-box. For proper colour tones, shoot your photos in RAW and post-process for colour temperature correction.
4) Distractions: Be mindful of what else in in the shot. Your favorite clock with your equally favorite brew may not leave the best impression for some. Clear the area around the object prior to shooting or use a back-drop. A white bed-sheet will do in a pinch. In the shot below I eliminated any distractions by using a macro lens to blur the background.

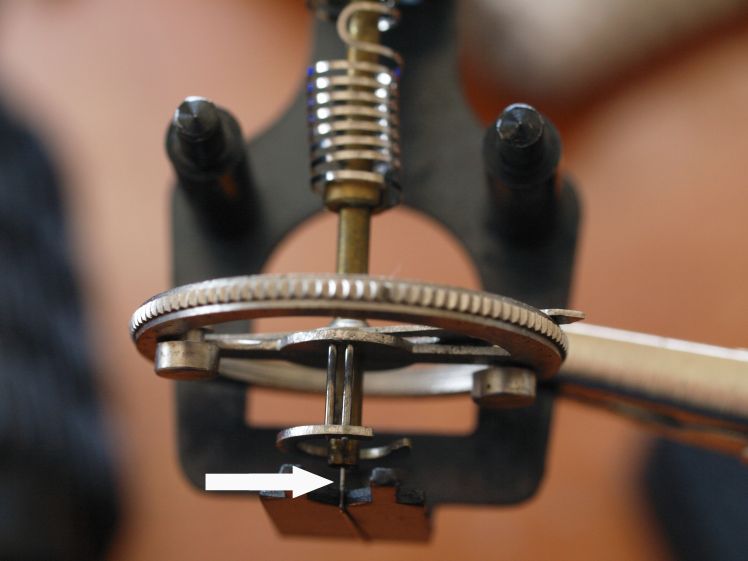

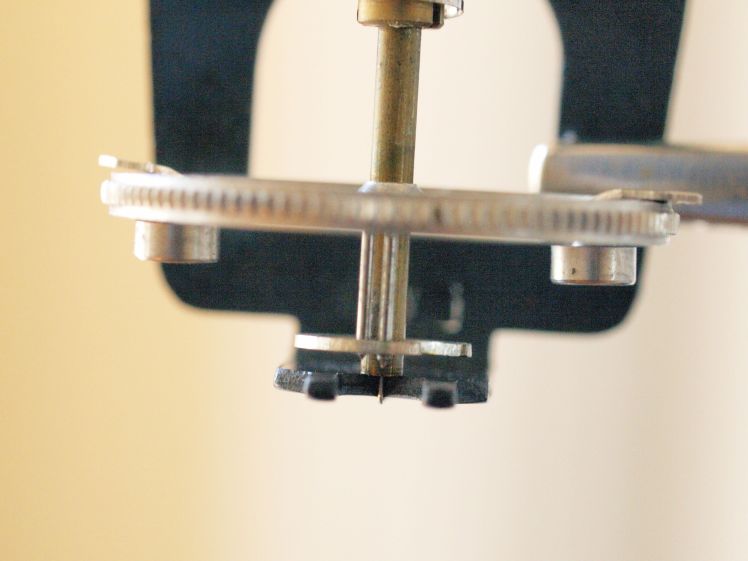

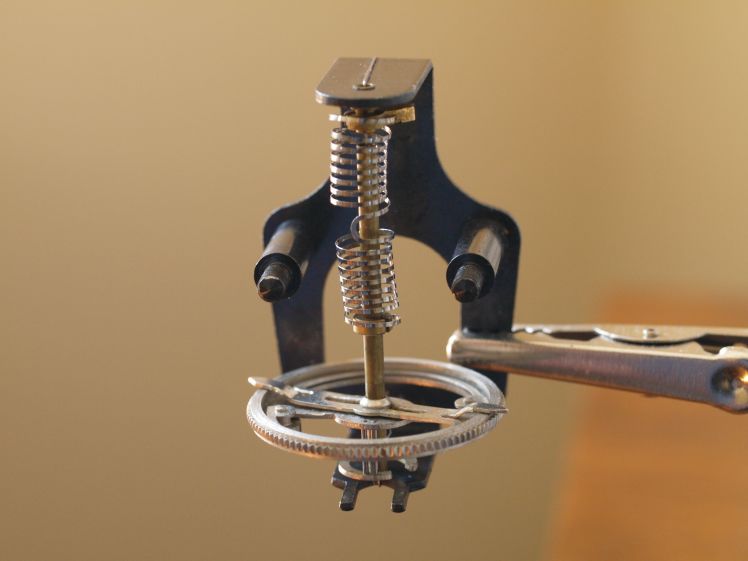

Floating balance for a clock movement
5) Cropping: This related to # 4). Crop out any distractions or crop for more impact. Sometimes we don’t need to see everything, crop out what is not needed.
6) Composition; the ability to make things stand out in your photo in a particular way. Using a large aperture on your lens can result in a particular part of a clock stand out in focus while everything else is blurred. The camera sees everything which means your photo can be cluttered. Take some objects out of the photo and consider a focal point, something that naturally draws the eye.
7) Re-size: Re-size for the web. Re-sized photos retain much of the same quality as the original but are easy to upload and serve to protect your copyright.
What is a shelf clock? If you have a number of clocks as I do it can be quite confusing to describe each specific type to the average person but it is really quite simple. Let me explain how you can identify the clock you might be looking at. The term shelf clock is a broad category but I believe it can be classified in the following ways.
Some 180 years ago the first shelf clocks were OG (Ogee) clocks. These were the first mass-produced American clocks, were inexpensive, and were made up to about the late 1870s. They represented the early years of American clock-making and the transition from more expensively produced wood movements to cheaper brass movement clocks. OG clocks are so named because of the double-curved molding on the front of the clock. The curved molding was designed to hide the weights. Many of these clocks were weight driven with 30-hour or 8-day movements and had mirrored or painted tablets. OG clocks were usually 25 inches in height and 15 inches wide and had hardwood veneers covering a softwood frame. They were surprisingly accurate and reliable.
Spring-driven and weight driven 30 hour OG (Ogee) clocks, made by the Canada Clock Company, circa 1872-76 (Canadian Clock Museum)
Later, more stylish clocks could be found. These are called Column clocks because they would either have a half-column or full column on the left and right or even stacked half or full columns such as the one pictured below. Moldings on the top and bottom would be brought together by columns on each side of the clock with mirrored or painted tablets. Column clocks were almost exclusively weight driven with 30-hour or 8-day movements.
Stacked Column clock, circa 1870 (Canadian Clock Museum)
At around 1840 Steeple clocks were introduced. They had a peaked centre section bordered by columns topped with finials and a peaked sash with a decorated (often hand-painted) lower tablet. They were spring driven with 8-day movements. Steeple clocks are very distinctive, stood about 15 inches high with veneered hardwood over softwood, often with reverse-painted scenes and are made by a number of well-known companies.
Arthur Pequegnat Maple Leaf “fan top” Kitchen clock, circa 1905
Kitchen clocks (Gingerbread) were simple or ornate with carved or steam-pressed patterns made by quick-saws and heavy steel presses, stood 22-24 inches in height and about 15 inches wide, and had a decorated sash which could be a very simple design as you see here or a much fancier reverse-painted glass scene. These inexpensive, visually pleasing timepieces sat in the kitchens of lower and middle-class homes and were produced by the thousands. They were so named because of their likeness to the design of gingerbread houses at the time (early 1900s). They are usually made of oak, walnut or even walnut trimmings on oak with a metal clock face and many had a simple alarm mechanism. The Gingerbread clock you see here is the Maple Leaf “fan top” by Arthur Pequegnat. The Maple Leaf came in 4 unique styles all characterized by the maple leaf decal on the glass door.
Some kitchen clocks had beautifully carved features and figurines such as this stunning clock made by the Hamilton Clock Company (Canada), though a clock such as this might be found elsewhere in the home and considered a parlor clock.
City of Hamilton, made by the Hamilton Clock Company, circa 1880 (Canadian Clock Museum)
When spring-driven clocks were introduced the Parlor clocks like this Hamilton Clock Company model became popular. They tended to be narrower than column clocks because they had spring-driven movements. These clocks mirrored the furniture styles of the time. This one reflected the Victorian era with its bold figurines, carved finials, elaborate patterns etched into its wooden frame, and the hand-painted floral design of the sash.
Seth Thomas round top cottage clock, circa 1930
Cottage clocks are less than 15 inches high and typically 8 inches wide are small, simple in design, and take up very little space. Many have basic alarm mechanisms but have one feature that distinguishes them from other pendulum clocks. They have a clip or a clasp that secures the pendulum rod for travel. The “round top” you see here was sold by Henry Birks and Sons an upscale Canadian jeweler. Others had “beehive” tops, flat tops, or octagon tops.
Pendulum rod clip for Seth Thomas round top
Smaller clocks are often referred to as desk clocks. They are usually mainspring driven with a flat dial. This Kundo 400-day anniversary German clock is an example of a desk clock but it might also be described more specifically as a torsion clock. This one stands less than ten inches tall and has a glass dome, a weighted wheel with 4 balls suspended by a ribbon called a torsion spring, and an exposed movement. It was typically given as a wedding gift.
Kundo 400 day anniversary clock, circa 1970
Finally, the mantel clock.
Mantel clocks can be ornate, larger, and the centerpiece in a room. This particular clock, a Mauthe pendulum mantel clock offers a precision-built sophisticated German Westminster chime movement in a relatively non-descript but attractive and well-built cabinet that is simple yet elegant.
Mauthe time. strike and chime, circa 1970
ASIDE: Is it mantel or mantle? I have always considered a mantle as something you wear, a garment or a part of the earth’s crust. A mantel on the other hand is a shelf above, say, a fireplace. I see this word interchanged so often when clocks are advertised or described that either word is universally accepted. I prefer the word “mantel”.
Ingraham Huron shelf clock, circa 1878
Mantel clocks were inexpensive to make, occupied very little space, and were part decoration and part practical timepieces. Mantel clocks were made with brass, wood, porcelain, slate, Bakelite, and metal though for the most part they were designed to be lightweight (slate clocks and cast iron clocks would be the exception), simple in basic design, and very practical. Mantel clocks have lasted so long, over two centuries, because they are dependable, versatile, and work so well in many domestic situations.
The categories of shelf clocks also include carriage clocks and lantern clocks. One of the first clocks whose movement and external structure was made predominantly from brass instead of iron or wood was the lantern clock. Although the shape of the clock looks somewhat like a lantern, the derivation of the name probably stems from the French word “laiton”, meaning brass. The earliest lantern clocks had striking mechanisms; later in the 17th-century alarms were sometimes added. Some lantern clocks had pendulums and could be hung on the wall.
Carriage clocks were spring-driven clocks developed in 19th century France and are made of plain or gilt brass. They are often no more than 8 inches tall, designed to be portable, and are characterized by a rectangular shape, glass or porcelain panels, and a carrying handle on the top. If you have a Breguet carriage clock as part of your collection you are very lucky indeed!
This is by no means an exhaustive description of the types of shelf clocks. There are others such as swinging clocks, tambour clocks, pillar and scroll, and so on. Whether you are shopping for a clock as a gift or adding one to your collection or even describing what you have seen to a friend, it is important to understand the distinctions between one type and another.
Black Forest Clock Company of Toronto, clock in as found condition
Shelf clocks such as the one pictured have always been hard to find though I did stumble upon this one very recently (April 2016) at an antique store in Great Village, Nova Scotia. Why, because of their cheap construction and inexpensive movements, not many of these clocks have survived over the years.
This one might have had a special meaning to someone at one time because it is a memento of the King George VI coronation of 1937 which nicely dates the clock. He became King George VI of England in December 1936 following the death of his father George V and the abdication of his brother. He had been a heavy smoker and in 1951 had his left lung removed then died suddenly in the winter of 1952. Elizabeth became queen later that year.
Black Forest shelf clock after case restoration
Another view of refinished case
This Blackforest shelf clock is only slightly larger than the first Blackforest clock I picked up last summer (2015) and like the other, is time-only.
Company plate on rear of clock
The time-only movement is very simple in design. The pendulum rod, bob and pallets are one piece.
One piece pendulum assembly
To adjust the beat rate you either rotate the bob left for slower rate or right to make the clock run faster or slower. Outside the back plate sits the mainspring which is housed in an open barrel and there are 5 gear wheels plus the escape wheel between two solid plates. This is an identical movement as found in my other Blackforest shelf clock but unlike this clock it was in very poor condition. The movement is German and could have been made by a number of companies at the time; Keinzle, Mauthe, Hermle or Junghans. There are no stamps or markings on this so-called “plate” movement to give any indication of the maker. Typically many Canadian companies such as the Blackforest Clock Company of Toronto (the Forestville Clock Company after the war) imported German movements before the Second World War and installed them in Canadian made cases.
Plate clock movement
Commemorative Edition – 1937 Coronation of King George VI
To refinish the case I cleaned it thoroughly using Murphy’s Soap, applied three coats of dark walnut stain taking care to wipe the stain with a cotton cloth 5-10 minutes after each application. My intent was to fill in the scratches and abrasions rather than radically alter the colour. I then rubbed the cabinet with 0000 steel wool between coats and applied two top coats of clear polyurethane satin finish. I cleaned the numerals but decided against repainting rather preserving the original patina, though I applied Brasso to bring back the finish on the key wind bushing. In the end the case is a little darker but likely closer to its original finish.

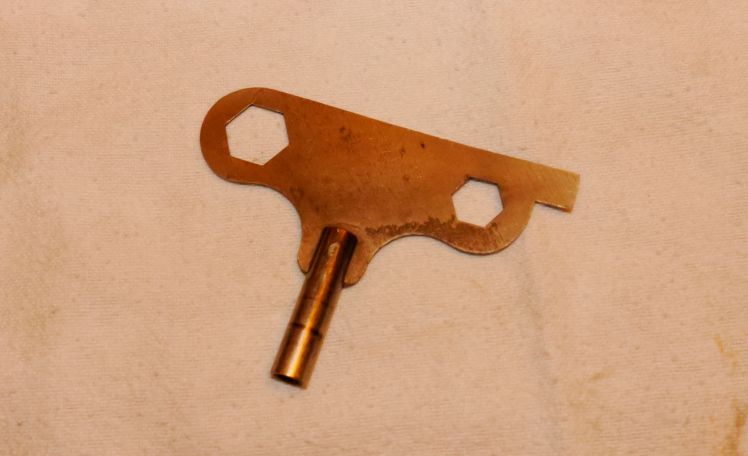

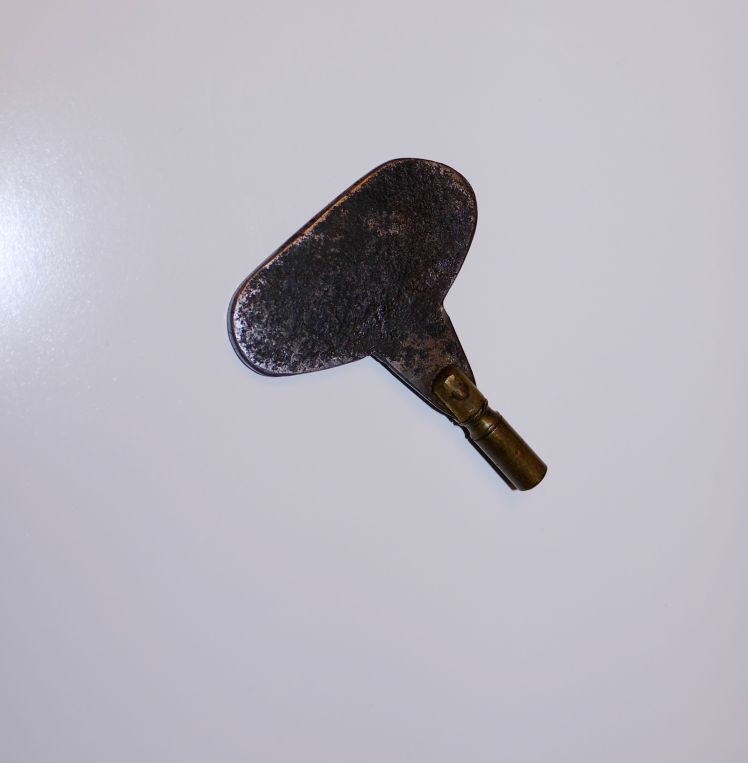

Original winding key
I haven’t quite figured this out yet but I think the winding key has a “bottle opener” design to allow the pendulum to be locked during travel. Ideas?
This clock would make a great addition to a any bedroom. It is small enough for a dresser or even a side table, quiet enough (for a mechanical clock) and is still attractive in design after all these years. Heck, you can even wind the clock in the 6 o’clock position.
Anyone who collects clocks knows that Waterbury clocks have had a long and illustrious history but did you know that the modern day Timex watch can trace it’s roots all the way back to the Waterbury Clock Company?
Let’s start with my Ingersoll-Waterbury time and strike mantel clock that I picked up late last year (2015) and following which we will explore this most interesting company.

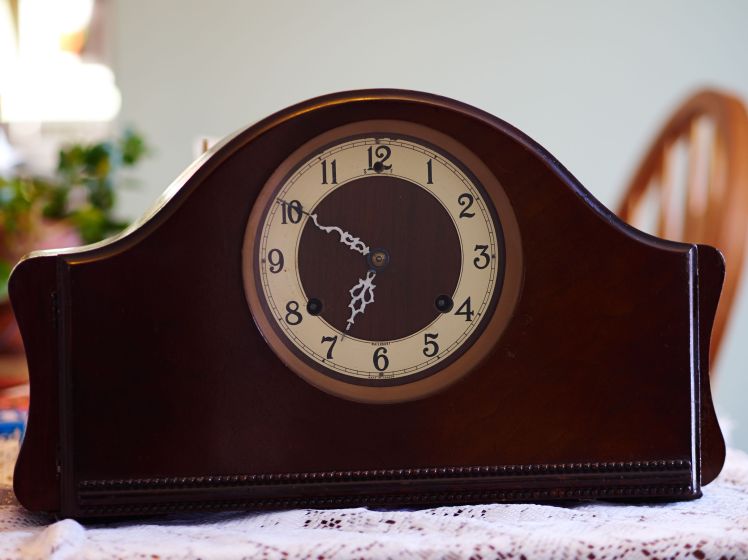

Ingersoll-Waterbury mantel clock
This mantel clock was sold to retail outlets by the G.R. L’Èsperance Company of Montreal, Canada who advertised themselves as the sole distributor. “Made in Canada” it says on the case but as is typical of clocks sold in Canada before and during the Second World War the movements were made in the USA, assembled and shipped to Canada to be installed in cases that were sold in many stores across the country. Other clock companies such as Seth Thomas established a similar practice. Aside from the very rare Martin Cheney clocks made in Montreal in the mid 18th century, the only clock company that made their own movements and built their own cases was the Arthur Pequegnat Clock Company based in Kitchener, Ontario in the early 1900s to 1941.
This Ingersoll-Waterbury mantel clock was made in 1943 and likely very popular at the time.

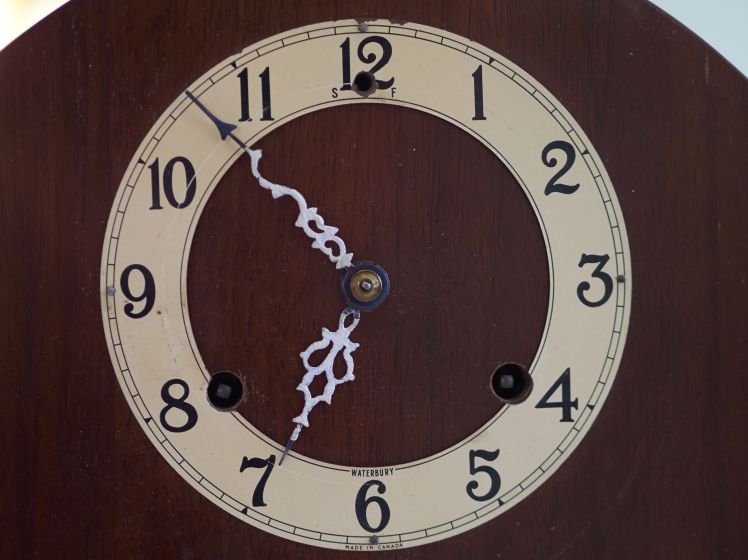

Clock face showing somewhat flimsy hands
It has a conventional pendulum adjusted by a small arbor under the “12” and the company logo “W” in raised relief on the bob. It has a common recoil escapement. The clock face is paper with the inscription “Waterbury” on top of the “6” and”Made in Canada” below it.
Label showing instructions for operating the clock
The label is a generic one found on a wide variety of clocks to save printing costs. The swinging front panel door is unique to this clock and there is a small catch underneath the right hand side to secure it.
The hands may look very ornate but they are in fact quite cheap looking. A quick search on the net reveals that are, in fact, original. The inexpensively made hands and paper face are not unexpected for a mass produced clock.

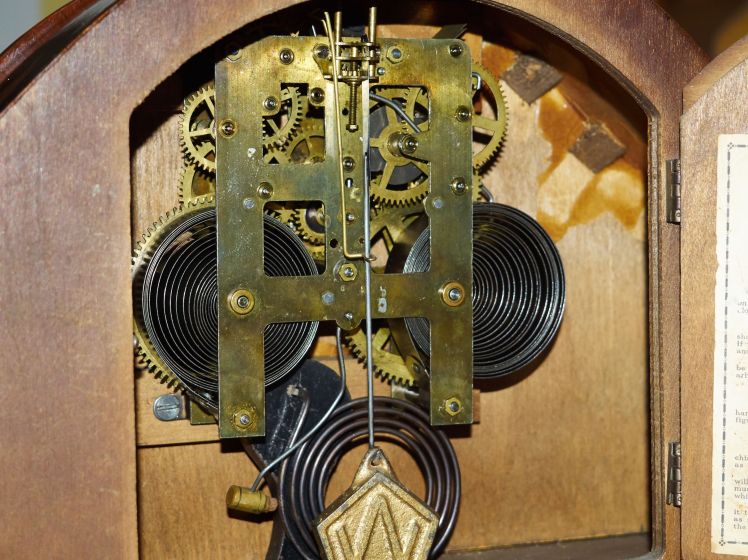

Time and strike movement
The veneers on either side of the back panel were split open when I first received the clock but clamping and carpenter`s glue tightened things up. It is very common for clocks of this vintage to have chipped or missing pieces of veneer which unfortunately reflects their cheap construction. However, this clock presents well and is free of serious flaws on the case itself.

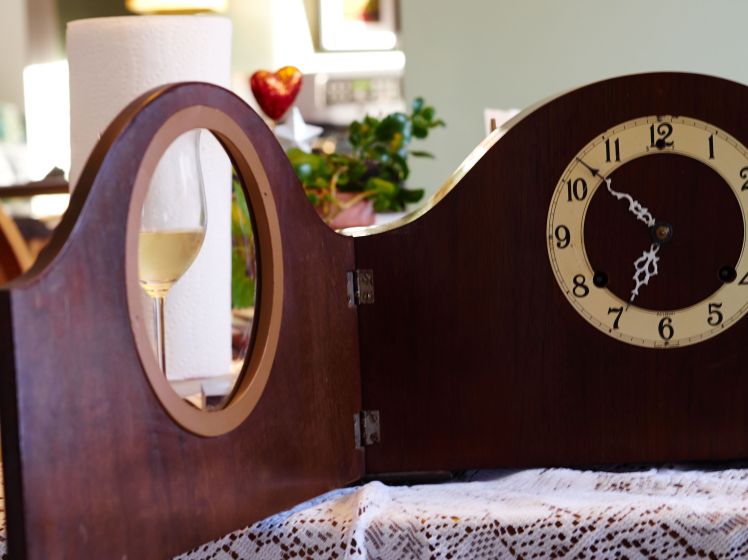

Swinging front panel door
The Waterbury name has been around since 1857. From my research I found that in 1922, the Waterbury Clock Company purchased the Ingersoll operation whose business had begun to decline after 1910 and had gone bankrupt two years previously due to poor management. Waterbury’s operation was particularly hard hit by the Great Depression of the 1930s. Clocks were considered luxury items and many could ill afford a timepiece for the home.
By 1932, their huge factory complex was almost idle when demand was so low. The company avoided bankruptcy and the firm was reorganized as the Ingersoll-Waterbury Company with investors raising half a million dollars in new capital. During this period (1933) the popular “Mickey Mouse” character watch was made and electric clocks were added to the line which revived the company. The Mickey Mouse watch was known as the “mouse that saved the day”. Draw any conclusion you wish.
After the USA entered World War II, the Ingersoll-Waterbury Company switched almost entirely to manufacturing war products though a small number of clocks were still produced. However, in 1942, the company was purchased by a group of Norwegian investors and a new factory was built at Middlebury, CT. Two years later, in 1944, the firm changed its name and became known as the United States Time Corporation. They introduced the widely popular “Timex” watch a year later. In November, 1969, U.S. Time was succeeded by Timex Corporation (now Timex Group), whose corporate headquarters are located in Middlebury, CT. to this day. The Timex museum, located in Waterbury, Connecticut, USA, is said to be “both the birthplace of Timex, and of modern timekeeping”.
So there you have it. My clock and Mickey Mouse are indeed related!
I hear this so often when I am purchasing clocks for my collection. Time and time again (pun not intended) I walk into someone’s home with the intent to purchase an antique clock and I am greeted by the same words more often than not, “It was my mother’s clock” or a variation, “My grandmother had this clock” or “My wife loved this clock”.
Some time ago (April 2016) my wife and I took a trip to the Bridgewater which is located about two hours from our home in Nova Scotia, Canada. I knocked on the door walked into a modest home and spoke with the seller who explained that the clock he was about to say goodbye to had been in his family for over 70 years, perhaps longer. When I was “so high”, he motioned with his hand, “I remember this clock in my grandmother’s home”. Although I did not ask him why he was selling it I could not understand his motivation for parting with this “family” clock.
Mothers and grandmothers seem to be the keepers of the the flame, the maternal spirit of sentimentality. No doubt the clocks were originally purchased by the “man of the house” because it was the man’s station to life to make important decisions for the home though the person who invested emotionally in the acquisition was the wife. Has this changed?
Ingraham Huron
Another example. We traveled to Halifax, Nova Scotia to see a grandfather clock. Now, I have always wanted a grandfather clock. Twenty five years ago my wife and I put a deposit on a beautiful grandfather clock with the hope that it would one day be proudly displayed in our home and our homes to come. Life got in the way, the money was required for a deposit on a new home so we canceled the order. That has always been a deep regret. Fast forward to three years ago. That grandfather clock that I always wanted was staring me in the face when I saw it on a for-sale site. The price was very reasonable. On the phone I asked the seller. “What condition is in in?” and he replied, “You have to see it to believe it”. We visited the seller who explained that the clock was his mothers. He was sorry to see it go but it and several other beautiful clocks just had to go to make room for the “next phase of my life”, whatever he intended that to be. It was in truly exceptional condition so we bought it. I often wonder what he must have told his mother or if he had any regrets when we walked out the door.
Ridgeway tall case clock circa 1996
We were in the Annapolis valley (about 3 hours from our home) checking out an Ansonia Short drop schoolhouse wall clock in the fall of 2015 and settled on a price with the seller on the phone. When we arrived the seller explained that the clock had been in the family for a number of years. His mother had passed on and they were in the process of managing her estate. I asked him if he knew anything about the clock. The seller was in his late fifties and said,”I remember it hanging on the wall of my mother’s home when I was a kid, but I never actually saw it running”. “She loved it and she brought it especially to Nova Scotia from a school in Ontario”. We bought it.

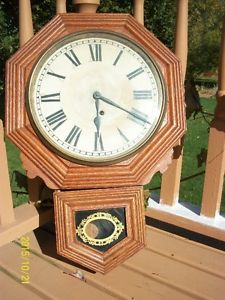

Ansonia Short drop schoolhouse clock
We saw an ad on a local for sale site. It was for a spring driven Mauthe wall clock with a horse crown (top piece) made in about 1895. An elderly couple was in the process of down-sizing and made the decision to divest themselves of some of their keepsakes, his mostly it seemed. He was obviously in a new relationship and explained that his wife had passed away some three years ago and she always loved the Mauthe clock which she considered a family heirloom but it as well as other keepsakes had to go.
Mauthe clock with middle finial missing
He told the story about how she had brought it and a number of other items in a suitcase from the Netherlands in the 1980s. The bottom middle final was missing because I suspect that it simply did not fit in the suitcase and somehow got lost over the years. It was the only thing amiss with the clock. It must have been hard for him to see the clock go but he seemed heartened to see that it was going to a good home.
We were on our way to Tantallon (near Halifax, Nova Scotia) to look at a small wall clock, a Waterbury Arion short drop schoolhouse / office clock. The gentleman we spoke to on the phone said that he wanted to reduce his collection of clocks. We arrived and I was quite surprised at the size of this particular clock. It is really quite diminutive with a dial of less than 8 inches and 19 inches from top to bottom. It was missing the glass and bezel but the oak case was in excellent condition. The dial face was in poor condition with barely readable numerals from 6 to 10, however, the price was right. I then asked, “Where did you get this clock”. He replied,”I didn’t; my wife bought it from a fellow in Debert”. “She buys them and I fix them”, he said. I looked around the house and there were some truly beautiful clocks of all types and they were all well cared for and each one was purchased by his wife and cared for by him. A truly symbiotic relationship!

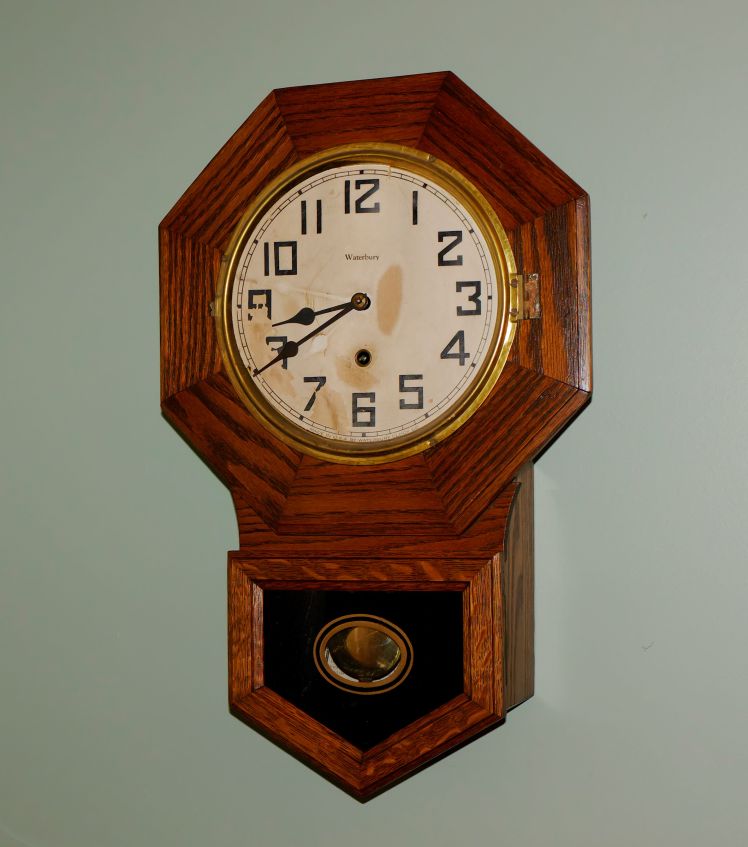

Waterbury Arion short drop wall clock
In my journeys throughout Nova Scotia and elsewhere in Canada I have been amazed at how many clocks were collected and cherished by women. In many cases the clocks are in excellent condition, a tribute to those who cared for them, the Mothers.
Restoring the case was relatively simple. After a thorough cleaning to lift the accumulated grime, a wax overcoat, touch-ups in discrete areas with yellow shellac, the case is very presentable for a 138 year old clock. I cleaned up the brass bezel but left the paper dial untouched. The hands are original and left those alone. The lacquer on the pendulum is still intact; no work needed on it.
And now to a further investigation of the movement.
After taking the dial pan off a couple of days ago my first impression was that the movement appeared to be in good condition. There are a number of newer bushings on the front which would have been expected for a clock of this vintage. The servicing of the front plate looked like a capable repair. I oiled the front pivots and gave the pendulum a push, adjusted the verge and found a good beat. It ran continuously through the night. The next day I decided that if I were to keep this clock running until I can do some work on it, the movement should come out to oil the back pivots. It must have been years since this movement last saw pivot oil.
No problem. Four screws and out it came.

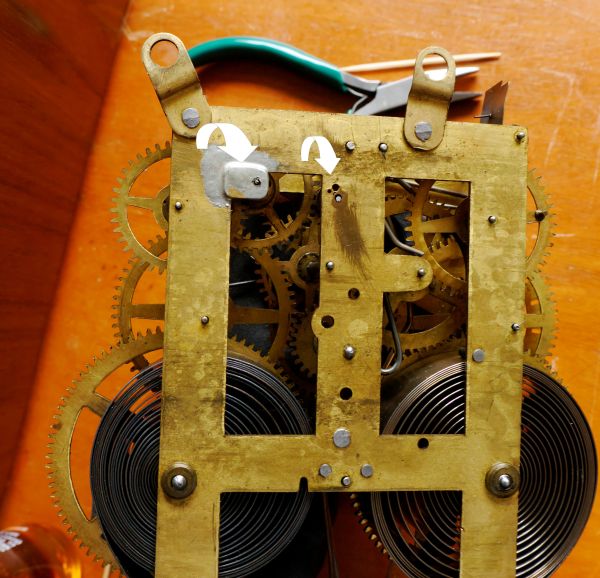

The secrets of this clock were now being revealed. Here you can see the back plate. I immediately observed several distressing issues with the movement. The first two problem areas are indicated by the white arrows. The left one shows a piece soldered onto the plate to address a pivot issue. The second shows a new bushing where one should not ordinarily be.
Back plate showing two problem areas
The addition of a new bushing in that location must have been done for a reason. At this point I cannot speculate why it had to be done this way but it looks like shoddy workmanship. Otherwise, I do not see any other conventional bushing work.

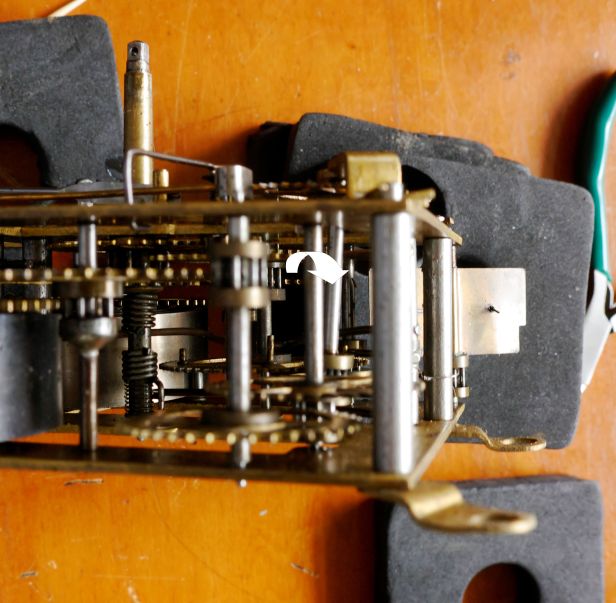

You can see that the escape wheel arbor is clearly misaligned in the following photo. It works though theoretically it should not. Despite the fact that the clock is happily ticking away it is a poor fix for an unknown (to me) problem.
Arrow showing a misaligned escape wheel arbor
The next issue is a soldered lantern pinion seen here just off the main gear (see arrow).
Soldered lantern pinion
It is not a problem now unless one had to work on the pinions on that gear at some later date.
The fan was also repaired with solder. It looks ugly but it does not effect the running of the clock.
So what to do? A simple bushing job I can do but serious bushing work is obviously required from someone with the experience and knowledge of Ingraham movements and I don’t have that level of expertise – yet. I may put this aside until I gain more experience or have it professionally repaired.
I did discover one unusual feature. Although it has a wonderful gong tone on the hour it does not strike on the half hour.
For the moment is is ticking away and keeping good time.
Ingraham Movement with two patent dates, Oct 6, 1878 and Nov 6, 1879
In my last post I profiled my latest acquisition (April 2016), a Ingraham Huron shelf clock, and now we will look at the movement, the case in more detail and other aspects of this fine clock.
Rosewood veneers with striking grain effect
Ingraham Huron shelf clock
What makes this clock special is the case. The movement, a time and strike, was found in thousands of Ingraham clocks. There is nothing unique about it.

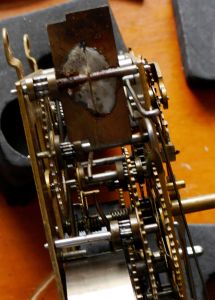

I had an opportunity to take a closer look at the clock movement today (April 12, 2016) and here are my impressions. When I took off the dial pan I immediately observed how much cleaner and brighter the movement was than I expected. A pleasant surprise.
It was clearly evident that the clock had been worked on at least once in its life. A number of bushings had been installed, 8 in the front alone (and perhaps a number on the back plate), however, there was no evidence of poor repair. The clock was serviced by a clock repair shop owned by a gentleman named Hebb in 1944, Bridgewater, Nova Scotia as he left his pencil notation to that effect inside the case. There is no label on the inside of the clock; it would have been nice to see one. However, I do not see any evidence that one was ever there.
Ingraham time and strike

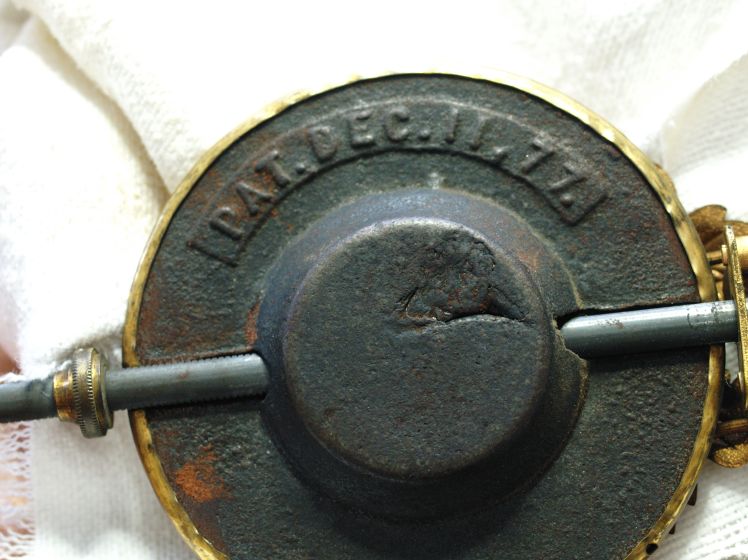

Pendulum with patent from Dec 11. 1877
I discovered the suspension spring was bent so much so that the pendulum bob was striking one side of the case. It was likely transported with the pendulum attached. That could have been years ago and perhaps the seller thought it was not repairable.
A quick fix. Take the rod and suspension spring (one piece) off the post and unbend it, reinstall it and give the pendulum a push and adjust the verge to find the beat. I applied a little pivot oil to the bushings in the front of the clock and observed the action. I was initially getting 3-5 minutes before the clock simply stopped. Okay, let’s try this again, I said. In time up to 10-15 minutes and now as I sit here it is running 2-3 hours before stopping. The escape wheel is wobbly (bad bushing) and a few other bushings are suspect but if I can get to to run reliably for several hours I will pull the movement out and lubricate the bushings on the other side. Granted, this is no substitute for a proper servicing but it allows me to determine how much of a repair it requires. On the other hand, the strike side seems to be functioning normally.
On the upper right side of the movement there is a long rod that is looped at both ends. One end is attached to the count wheel lever. I am thinking two things, first, a way of determining the time in a darkened room or or secondly, a method of syncing the strike with the time. It is in a very awkward location and I wonder, why not just turn the hour hand, which is a friction fit, to the corresponding strike if it is for syncing the time.
Otherwise the case hardware, hinges and clasps are in excellent condition. The glass is perfect. The hands look a little unusual though I believe they are the original.

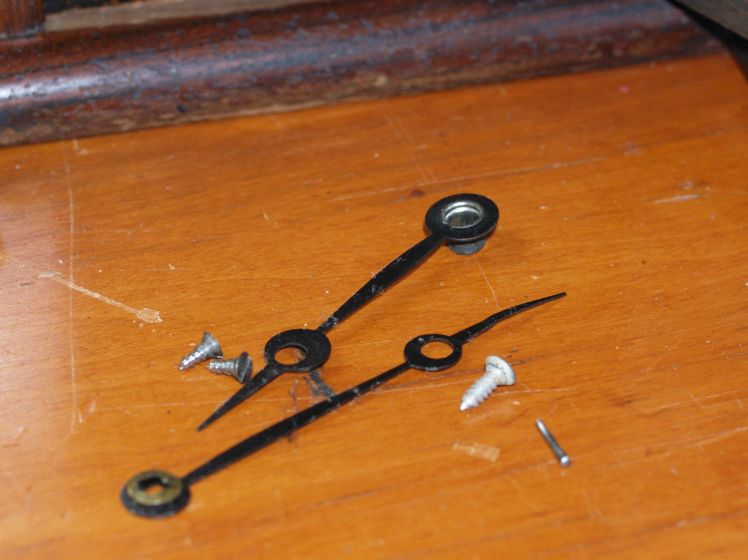

clock hands
I let the clock sit for a couple of days to give me an opportunity to work on the case. Such a beautifully designed case with rich rosewood veneers. It was very grimy with years of oils and dirt. I used my go-to cleaning solution, Murphy’s Soap which quite literally took off all that dirt and grime. The soap leaves a little residue which can be polished out much like wax. The gleam of the rosewood veneer suddenly came to life.
My first inclination when I first looked at the clock was that some minor case restoration was needed but after cleaning the case I was really impressed with the results. Not much else has to be done but the only area that concerned me was the base trim which I thought could use a little attention. You can see here where the finish has been abraded due to years of cleaning around the clock.
Here are some before and after shots of my work on the case. The rosewood veneers are in fine shape but you can see the base pieces had been scuffed and marred over time. The first is the before photo showing marred corners and areas where finish has lifted off the trim.
Before cleaning the case and it’s trim piece
The second and third photos show the results of a very through cleaning of the case and base trim pieces which included taking off what I believe was a whitish patch of lifted finish with a sharp razor followed by a light application of yellow shellac.

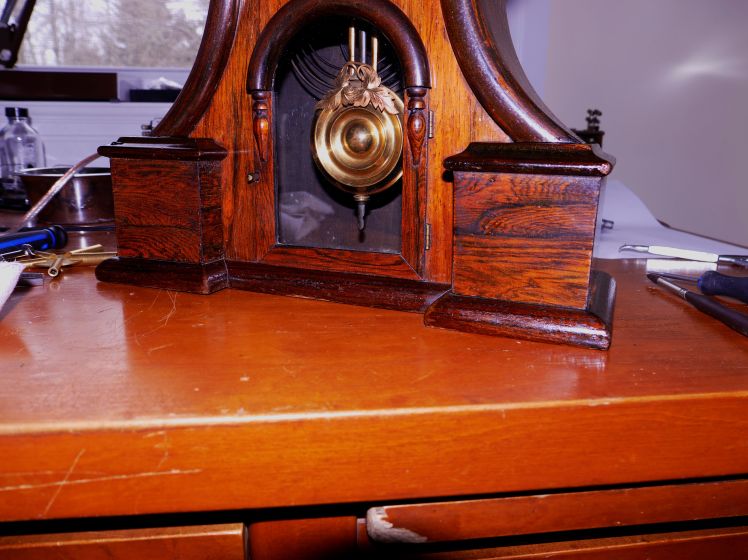

After a thorough cleaning and a light application of shellac
Second photo taken with a camera flash showing the base pieces
Shellac, a protective wood covering would have been used at the time the clock was made. I am pleased with the results and now on to the movement itself.
So far so good. This clock will certainly occupy a prominent location in our home.
My most recent acquisition (April 2016) is an Ingraham Huron shelf clock. The Huron is one of the less commonly found Ingraham models, having been manufactured briefly between 1878-80.
The clock you see here is Rosewood Veneer “Huron” Shelf Clock, by E. Ingraham & Co., Bristol, Connecticut. It has paper on a zinc dial with a round glazed door and lower glass access panel. The maker’s label is inside the backboard. It is a brass eight-day spring-powered movement, with a height of just under 41 centimeters.
The case is in very good condition. The veneers are in excellent shape (no splitting or cracking), the clock face has a build-up of grime which I may leave as is, the base corner pieces have a little wear but the 2 door catches are sound, the glass is perfect, the door hinges are in very good condition and the doors, top and bottom, still fit with precision. The pendulum retains it’s original lacquer and presents well. I have not looked at the movement yet but a little push of the pendulum tells me that something is amiss. Could simply be wound down springs or something more involved. I will leave as is until I have the time to look at it further this coming week and I will post my findings later.
I asked the seller who is about 70 years old, “what do you know about this clock?”. He extended his hand palm down out to about a meter from the floor and said, “I was this tall when I can first remember it in my grandmother’s home”. There is a penciled marking just inside the case indicating that it had been serviced by a person by the name of Hebb in 1944. The seller recalls a Hebb family who at one time lived in the Bridgewater area of Nova Scotia near where I purchased the clock.
Base of the Huron
The company had a long and renowned history. Elias Ingraham was the founder of this 19th-century Connecticut company that bore his name.
Ingraham won 17 patents between 1853 and 1873, all protecting the unique design of his clocks, most of which were made to hang flat on a wall or sit on a shelf. Ingraham was able to devote his attention to the physical look of his clocks because the technology inside them was rapidly becoming commonplace. By the middle of the 19th century, spring-driven clockworks were replacing weight-based ones, which allowed clocks to be smaller and lighter. These innovations permitted Ingraham to focus on the look of his clocks in order to differentiate himself from his competitors.
Dial door clasp
And that is precisely what he did. In 1844, he and his brother Andrew joined with Elisha Curtis Brewster to form the Brewster & Ingrahams (plural) company. The firm would become E. and A. Ingrahams Company in 1852, Elias Ingraham and Company in 1857, E. Ingraham & Company in 1861, The E. Ingraham & Company in 1881, and The E. Ingraham Company in 1885. These subtle name changes might seem overly petty, but they provide the modern collector of antique Ingraham clocks with a accurate way to date clock styles that were produced during a span of years.
Ingraham shelf clocks ranged from painted timepieces richly decorated with mother-of-pearl to round Venetian and Grecian styles clad in rosewood veneer and adorned with gilt columns. Versions of these shelf clocks were also created for walls—the Ionic style was so popular that Ingraham made it from 1862 until 1924.
Clock face showing what I believe are original hands
Side of clock showing striking veneer
In 1885, Elias’s son Edward took over the company and continued its innovation in clock case design. Double-dial wall and shelf clocks produced during this period told the time of day, the day of the week, and the month. As the 19th century wore on, Ingraham made mantel clocks with Chinese motifs and carved dragon’s feet, as well as a number of patriotic clocks depicting American war heroes.
winding key looks home-made
The Ingraham Clock Company continued to produce clocks through the 1920s continuing with the tradition of unique clock cases with Oriental designs and patriotic themes. Throughout the war years the company diversified into pocket watches and wrist watches. During the post war period the Ingraham company continued to produce wall clocks, mantel clocks and wrist watches but by 1967 the company was acquired by McGraw-Edison who converted production into making more profitable fuses spelling the end of formal clock production and the end of the Ingraham tradition of producing uniquely designed clocks for the masses.
Much of the information for this post came from this site.
This article is about a curious term that you might have heard concerning clocks and clock collecting. The term is FrankenClock. Let me explain.
Have you ever bought a clock and as much as you hoped that every mechanical part, finial and piece of trim is original and you later found out through experience, research or knowledge that it is not, how then do you feel about your purchase? Obviously you might feel disappointed, even cheated. So if a clock has parts that are not original what would it be called? Some would call it a FrankenClock.
Gustav Becker 2 weight Vienna Regulator
Let me explain further. Here is my Vienna regulator clock as it is today. It shows well, keeps excellent time after a replaced movement, a thorough cleaning, oiling and case repairs. It is original? Well, mostly. As I said in a previous post this clock was sold as a “project” clock and the seller made no pretense that everything was absolutely original and that is fair game. Here is a summary of what I have discovered so far.
Clock glass panels
Let’s begin with the side and front glass panels which I believed were original when I recieved the clock. The glass was broken during shipment and had to be replaced. In fact, the case was broken is several parts, but that is another story. Although I thought I was replacing the original glass I found out that the broken glass was likely not original to the case. When I brought the case into a glass installer I was asked two simple questions. Why is the side glass thicker than the front glass and why are finishing nails used to anchor the glass? Good points. So, just how many times was the glass replaced on this clock?
GB weights
Weights
The weights at first glance looked identical but closer inspection reveals that one weight has a slightly different hook design than the other. I doubt the factory would have provided dissimilar weights.

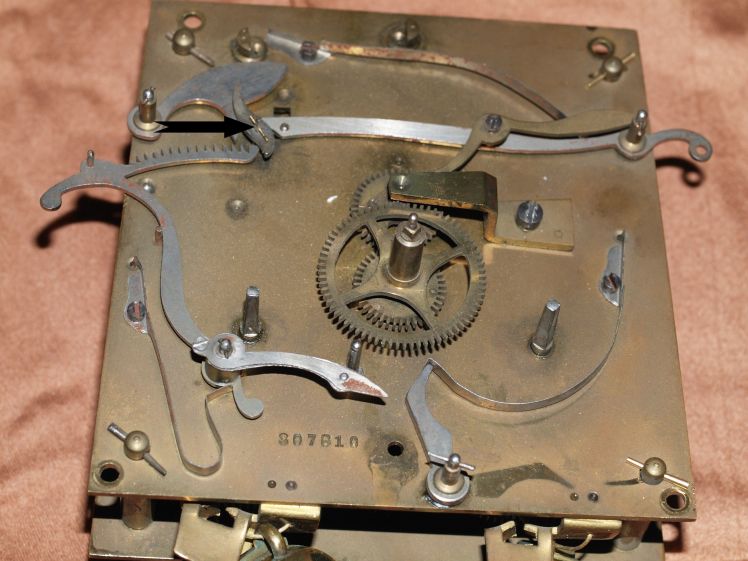

The movement
The movement appears to be a match for the case and it is appropriate to the period but is it original? The movement had parts missing which the seller kindly disclosed when the clock was advertised for sale. Parts missing were the star wheel/snail and the strike hammer and rod. The gathering pallet for the rack was bent and therefore could not advance the rack. In any event the strike side did not function at all. Thus began my search for a donor movement.
I was specifically searching for a Gustav Becker “Braunau” factory movement to provide the correct parts for my clock. The donor movement came from Poland. From the serial number on the donor movement I was able to determine that it was made 16 years after the movement that came with the clock. Minor differences were expected. The plates were thinner, the lever springs were a different design, the minute arbour shaft was slightly thicker and the star wheel/snail, gathering pallet and hammer/rod and were not a good fit for my old movement. A disappointment, the parts were not interchangeable. Out went the old movement and in went the new movement.
NOTE: I kept the old movement and if I sell the clock in the future I will disclose that change and others.
On to other issues

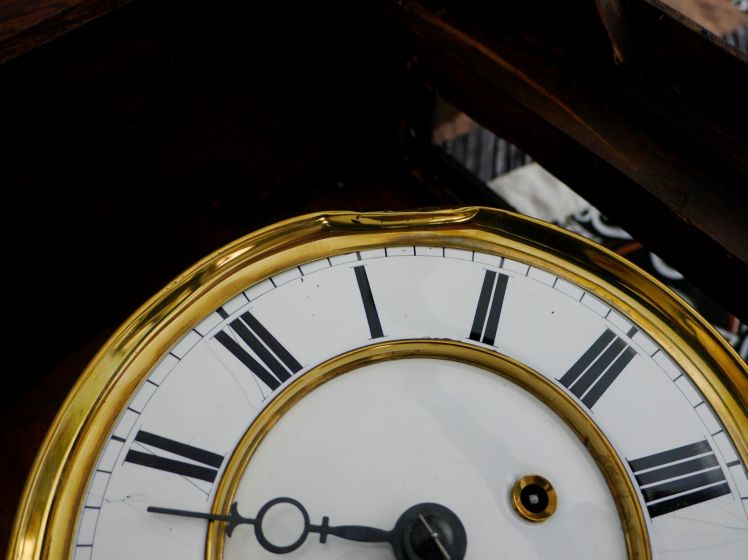

The spun brass dial bezel is a replacement though correct for the period.
Upper left side trim piece
There are a couple of trim pieces that I suspect were probably added later on though when, I do not know.
Bottom centre finial
The bottom centre finial appears to be a replacement though probably correct for the period. The bottom finial has wormwood holes but the clock case itself does not have one bit of worm damage.
showing hour hand on dialMinute hand missing it’s centre bushing
The clock did not have Vienna regulator hands. They are Ogee clock hands. I searched the supply houses in Canada, the US and Britain and was surprised at the limited selection of Vienna regulator hands. The photo below shows replacement hands with the correct measurements. The hands are also from Poland. There must be quite a successful business in Poland parting out clocks and selling the pieces. The hands have not arrived yet.
Vienna clock hands
i later discovered that they are not the correct hands but they look good and they will do for now.
Are there other parts of the clock that are not original? Yes, but it does not change how I feel about this clock. It has provided me with an excellent learning experience and it allows me to view future purchases with a much more critical eye.
Caveat Emptor
There are many examples of FrankenClocks and you may even have one or two in your collection. There is a popular expression that I always find appropriate in these cases. It is Caveat Emptor (let the buyer beware), the principle that the buyer alone is responsible for checking the quality and suitability of goods before a purchase is made. Reputable auction houses will disclose repairs and replacement or questionable parts on a clock but do not depend on what the seller says on most popular online auction sites. It’s a jungle out there!
I am writing about an experience I had on a local for-sale site today and wonder if others have had the same happen to them. I found this Waterbury Halifax time-only wall clock for sale at a reasonable price.

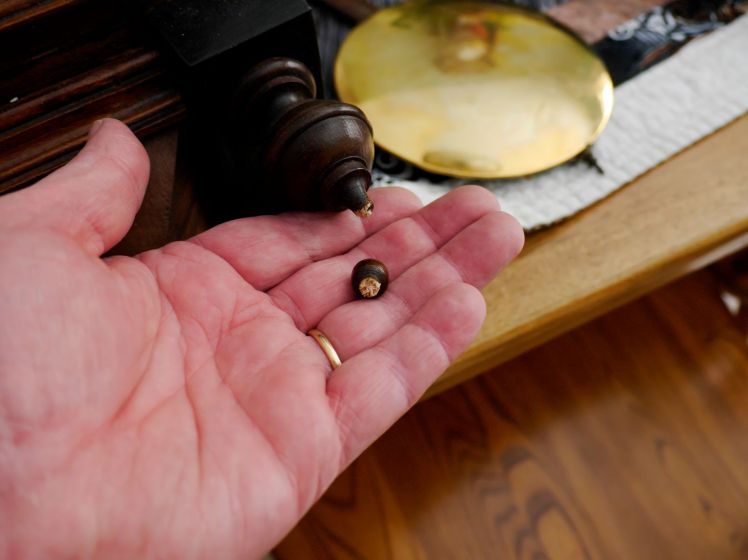

It had issues. It was not running and the top centre finial was missing. I was assured by the prospective seller that they had the finial but that the spring was “broken”. The seller was not clear whether they meant the suspension spring or the main spring. A suspension spring replacement is an easy fix, the mainspring is a little more difficult. Since it only has one spring it was obvious that if either spring were “broken” the clock was not running. I was prepared to accept that since I can make the necessary repairs. Still, the price was reasonable.
We exchanged emails for a day or so. I asked questions about it’s condition and if there were any other issues and they responded appropriately all the while courting me as the buyer. Finally, I agreed to look at the clock with the intention of buying it and we arranged a time and a place for the exchange. It was a cash deal so a trip to the bank was necessary beforehand.
We set the time between 2 and 4 pm. At around 11:20 am I received an email which stated.
“Morning . The clock has been sold as of a few minutes ago. Thank you for your interest, have a great day.”
I replied, “Not very ethical”, and left it at that.
I believe I am correct. It is clear that the seller received a better offer though I have no way of knowing.
Floating balance movements began appearing in mechanical clocks in the early 1950s. The floating balance has distinct advantages over pendulum clocks. It is robust, dependable and not susceptible to disturbance. It will tolerate being out of level unlike pendulum clocks which must be on a level surface.
Hermle movement showing floating balance escapement
This Hermle movement was taken out of a Dugena 1960s vintage Mantel clock and is otherwise unmarked. The seller advised that it loses time and might just require a simple adjustment. This is code for, “it’s worn out”. The clock has been completely disassembled, cleaned, reassembled, oiled and tested. have I have eliminated friction loses in the trains. Not sure, but let’s see.
To function correctly the balance wheel rotates back and forth and maintains the steady beat of the clock through a pallet fork assembly. There is a speed adjustment and after adjusting it enough it becomes clear that the problem is within the balance wheel itself since it continues to run slowly.
The floating balance assembly consists of a balance wheel, 2 jeweled bearings on each end of a hollow tube riding on a pivot wire supported in a u-shaped frame.
Dugena time and strike mantel clock
The most common reasons for sluggish balance performance are dirt, rust/pitting/roughness of the wire, bent or weak wire or excess oil on the wire & jewels.
Removal is simple – take out two screws, tilt the balance to avoid bending the pallet fork and pull out. Here is the assembly removed from the movement. The bad news is that the helical hairspring appears to be distorted. Ideally it should enclose the balance shaft without bending.
Floating balance
The balance wheel should float on the wire that goes through the cylindrical shaft like the next photo. While in this position a push on the balance wheel should allow it to rotate freely for a minute or more. No more than a few seconds for this one, however.
Arrow shows a properly functioning floating balance
The thin wire is actually resting on the banking forks (or base). If the shaft rests on the base, additional friction slows the rotation of the balance wheel and will eventually slow the clock.
Cylindrical shaft is resting on the banking pins
In this case either the jewels are cracked or the spring has lost its strength. The solution is to either find a new helical torsion spring or find a replacement balance wheel assembly.
Given what I paid for it, it is probably not worth additional resources.
Call it a learning experience. Into the drawer it goes and perhaps someday it will provide parts for a better running movement.
During two vacation trips to Cuba in the last 4 months I managed to locate a few clocks in my travels. Though some clocks were very intriguing none that I saw save for the tower clocks were in working condition. Nonetheless it made me wonder about their provenance in a land that time seemingly forgot.
At Christmas time my family and I traveled to Trinidad of Cuba. We stayed overnight at Los Helechos Hotel in Topes de Collantes which is located about a half an hour bus ride from Trinidad of Cuba. The next day we spend our time exploring the wonders of Trinidad of Cuba.
I saw some interesting clocks in a couple of restaurants. The first is a Wm L. Gilbert time and strike wall clock with calendar dial from Winsted Conn., USA. It looked like a reasonably well preserved dark walnut regulator clock with an 8-day brass movement with pressed features dating to about the 1900s.

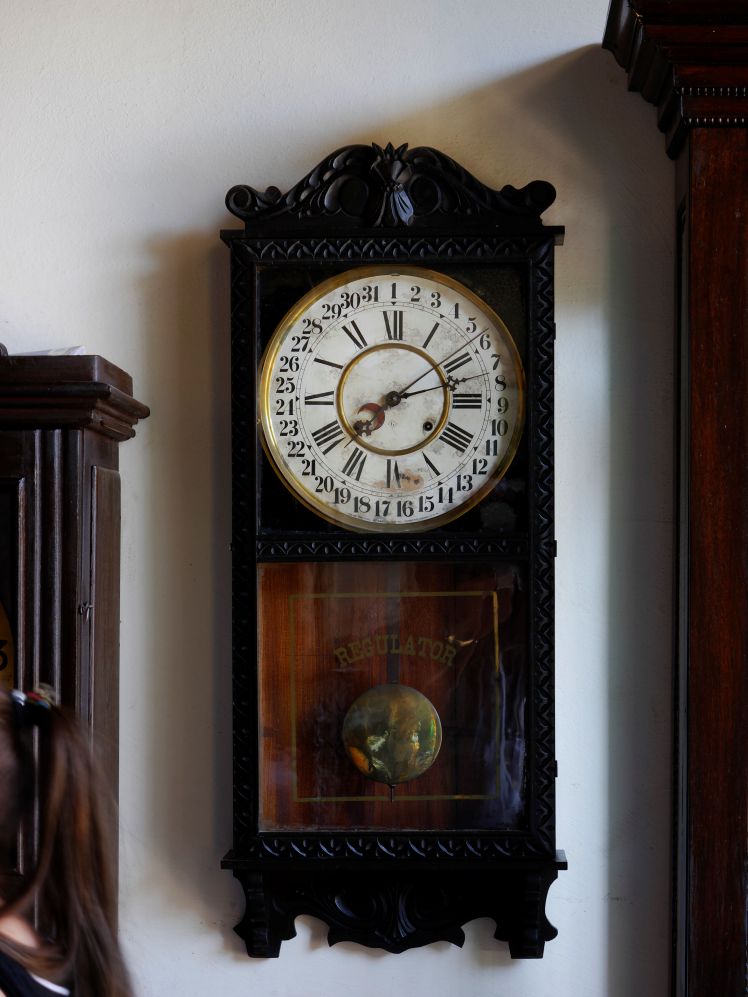

Wm L. Gilbert clock found in a restaurant

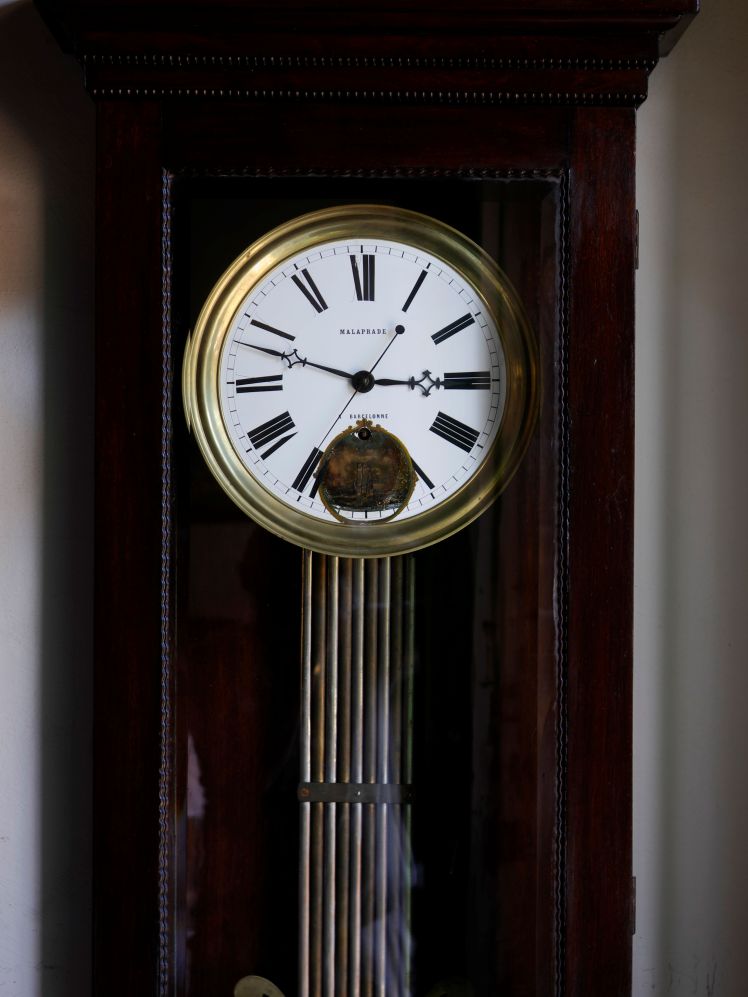

The next is unknown to me. It is a Spanish clock. Whether or not Malaprade is the maker was difficult to determine as I could find no information on the internet. However, it is clear that this spring wound time-only clock with second hand feature was made in Barcelona. I would date it to pre-1930. It is a relatively short clock and might have been originally designed as a wall mounted clock as it stands less than 5 feet tall. I am not sure what the area around and below the keyhole represents. I cannot make out any sort of design if there is one.
Malaprade Floor or wall clock

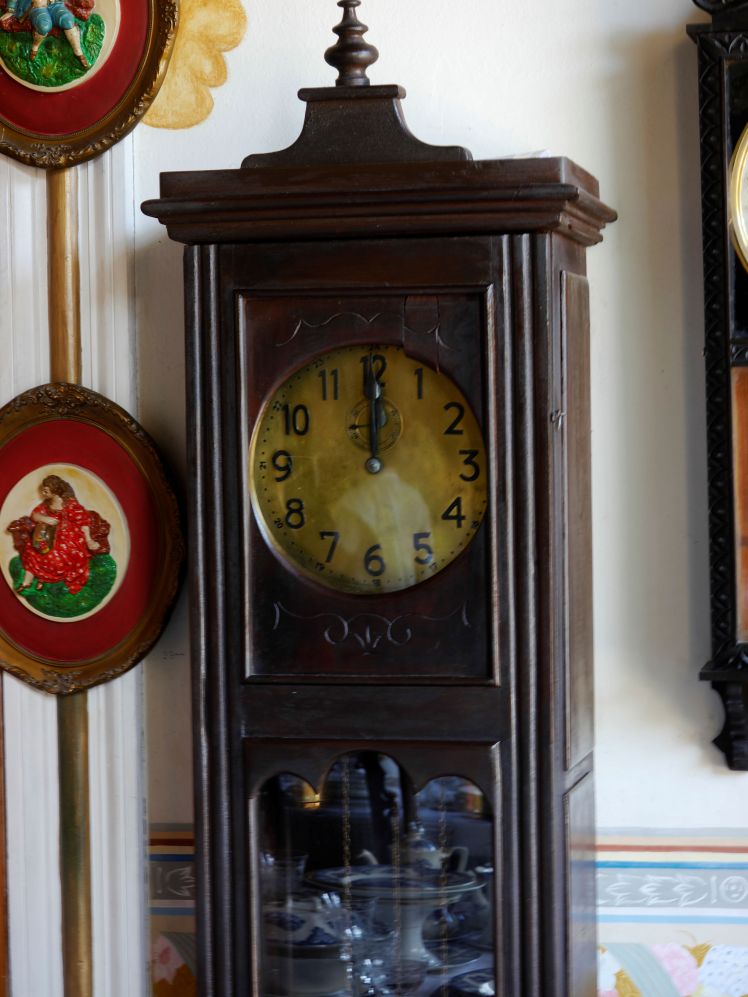

Next is a floor clock. Again the maker is unknown. I do not see any winding arbors on the dial face and can only assume that it is weight driven (the weight was not attached) and that the weight (or weights) were pulled up by chain to reset the clock likely once every 8 days. This clock was clearly in meed of restoration as were most of the clocks that I saw.
Floor clock of unknown maker
In March we stayed at the Paradisus Rio de Oro in Holguin province located on Playa Esmeraldo near Guardelavaca. The resort is set on a beach next to Bahía de Naranjo Natural Park. In it are a number of interesting clocks.

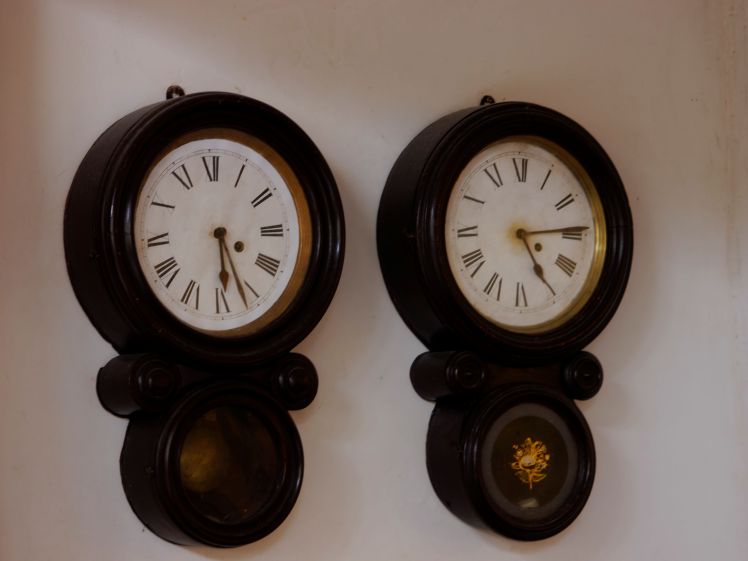

Time only lobby clocks
There were a total of 4 of these lobby clocks which were originally intended to display time zones for the guests. They are time-only and the cases appeared to be in good shape but I do not think they have been running for quite a while. My thought is that there is nobody at the resort tasked with the responsibility of maintaining these and other fine clocks.
Face of unknown floor clock, second hand is missing
Unknown floor clock
This clock actually works though it needs servicing. It is located in an ante-chamber adjacent to a Mediterranean themed restaurant. I opened the front door of the clock and found the rod gong impeding the pendulum. Once I dislodged the gong the clock happily began to function and it was in beat, surprisingly. Although it had two weights there were three winding arbors and I would be curious to see the internal workings of that movement. Inside the door was an official seal from the Ministerio de Cultura.

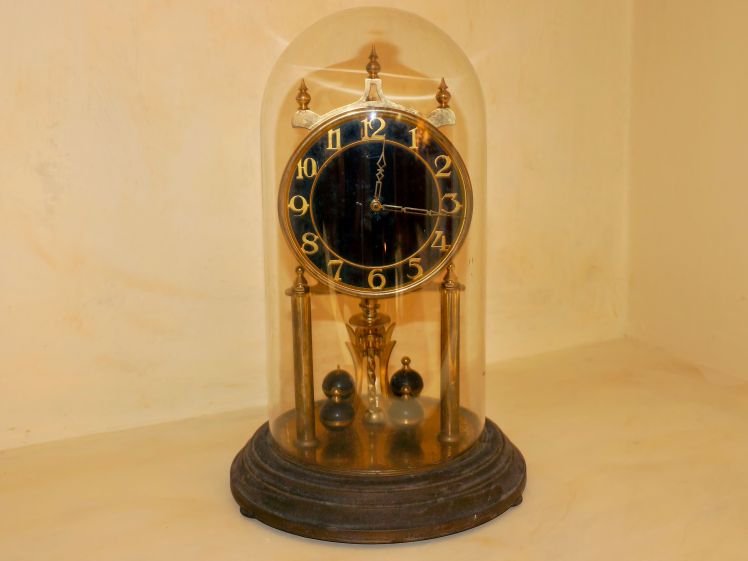

400 day clock
This 400 day clock was made in Germany. There were no other markings that I could determine. It could be a Kundo Kieninger & Obergfell dating to about the 1940s or so but that is just a guess. It needs a thorough servicing and clearly it has been neglected for some time.
Carriage or wall mounted clock
This is another an anniversary mantel clock but it appears to have a wall mounting bracket on the rear. Not sure why as these clocks are not meant for wall mounting. Again, an unknown maker but possibly German and in very poor condition. The front glass looks like it can be lifted up for adjustment purposes.

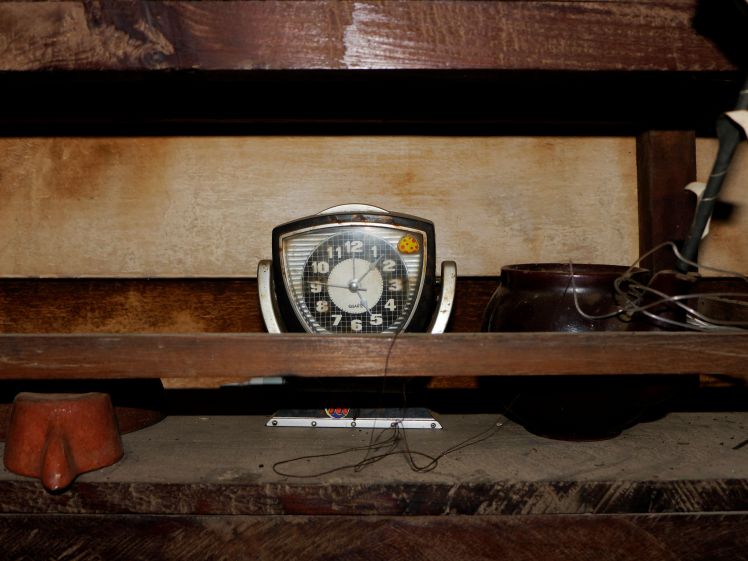

Clock in a peasants home
While hiking through El Cubana National Forest we came across a small dwelling and we were able to briefly tour inside. In it I found an old quartz clock dating from the 1980s or earlier.

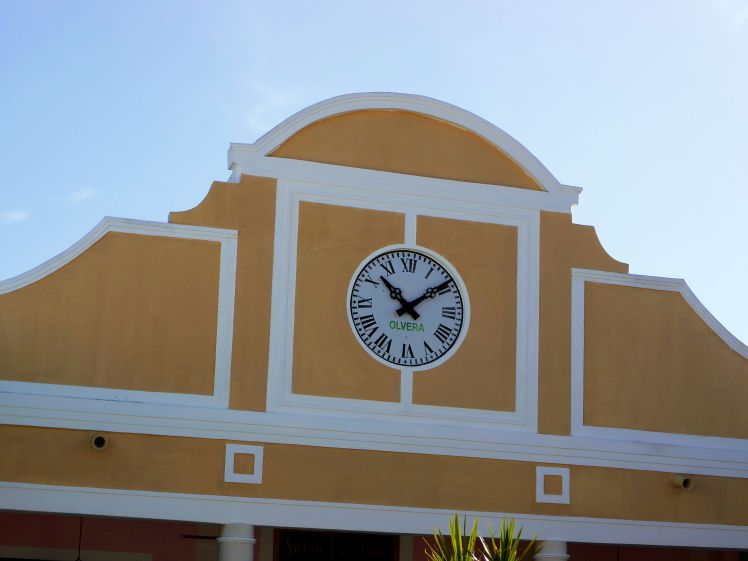

Tower clock at Peublo La Estrella tourist village

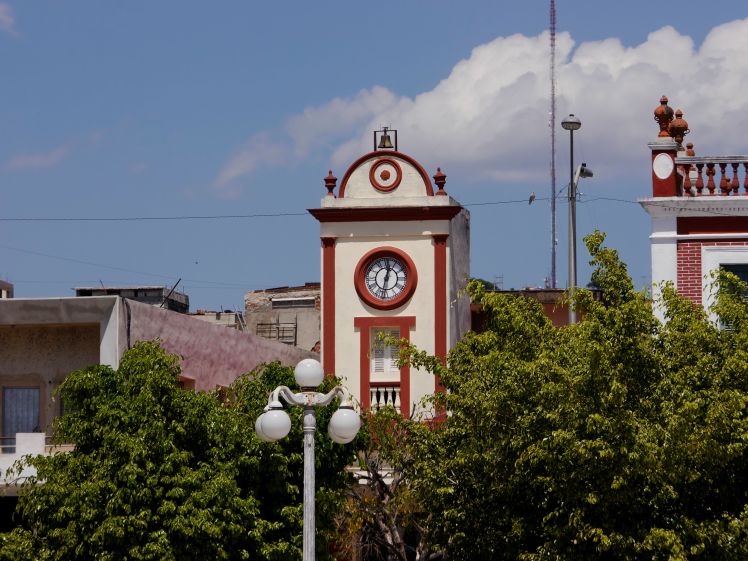

Tower clock in Holguin
The first tower clock is located in a tourist village in Cayo Santa Maria called Peublo la Estralla while the next is in a downtown principle square in the city of Holguin. The Olvera clock is a modern electric clock and I am assuming that the tower clock in Holguin might also be electric.
I am told that my next stop in Cuba (another time) should be the Paladar Decameron restaurant in Havana, a fixture in the paladar scene that’s located in the leafy residential district of Vedado. The restaurant is said to said have an old world charm with a collection of various collectibles including antique clocks of all shapes and sizes.
Cuba is a fascinating country and certainly worth exploring time and time again.

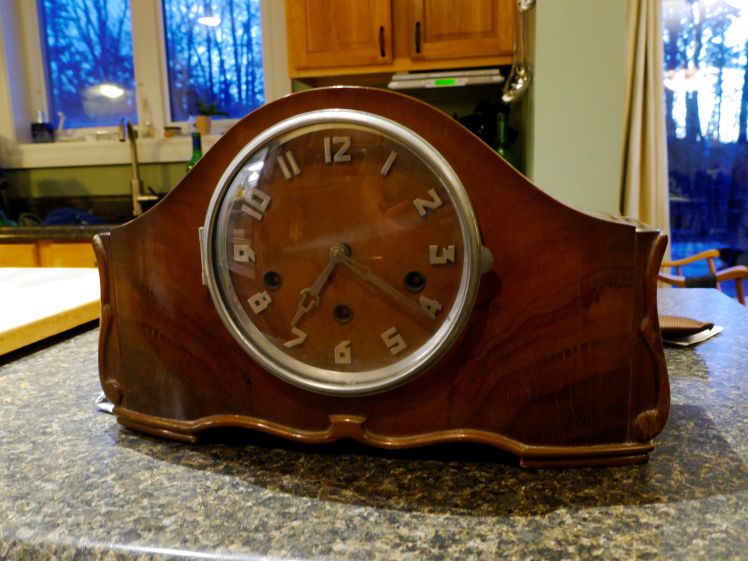

This fairly non-descript mantel clock is a puzzler. It has a nicely constructed case with curved wood relief features and a westminster chime, hence the three winding arbors. It is in very good condition and required a simple de-greasing of the cabinet to bring it back to it’s former glory.
The clock was presumably made after the war years, perhaps the late 1940s and has a pendulum movement. Most mantel clocks beginning in the 1950s had balance wheel escapements so I am putting this in the late 1940s perhaps even the early 1950s. This particular mantel clock has a French Girod westminster chime movement.
Girod was a clock maker based in the Morbier-Jura region of France and produced clocks from the 1930’s into the 1960’s. The firm of Girod was founded in 1865 by brothers Leon and Auguste Girod. The clocks were made almost exclusively in the Art Deco style. This clock has Art Deco features particularly the formation of the dial numerals but I would not say it was sold as a Girod clock.

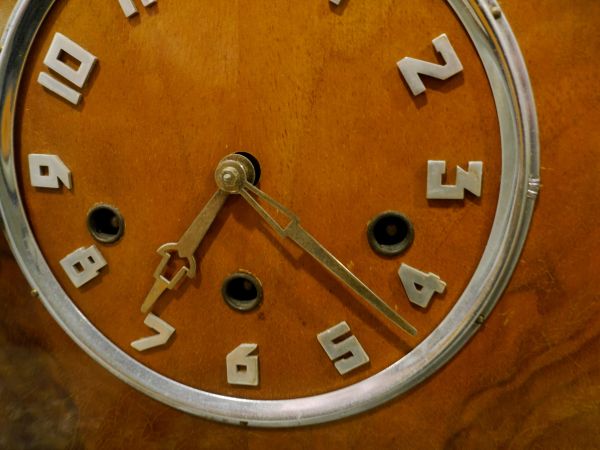

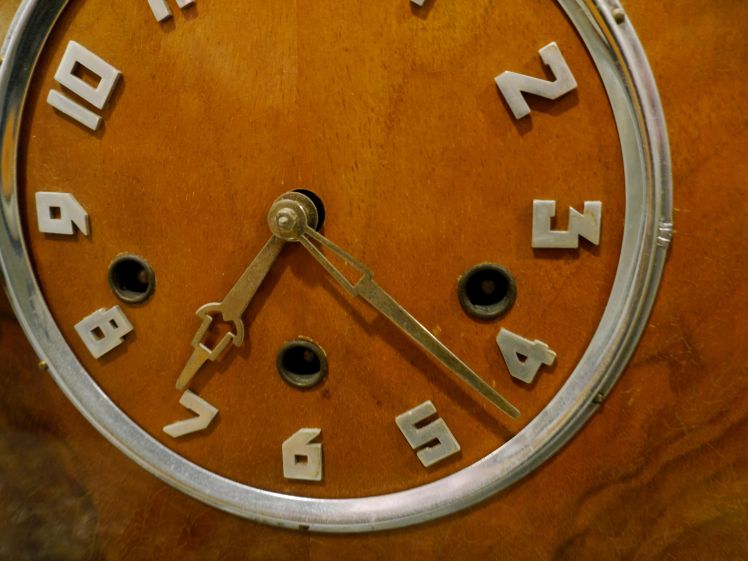

Dial face
Girod clocks (both mantel and tall case) often came with Westminster chimes, and often a second chime named Cloche de Jura, using the same notes as the Westminster chime. A handful of clocks were built with Ave Maria de Lourdes, and St. Etienne chimes. This clock is westminster chime only; no double chime feature unfortunately. Girod cases usually featured carved walnut appliques and were very ornate, almost garish. Mine is very plain and as I said non-descript.
So, what is it? Well, from my research I have discovered that despite the fact that the clock movement is stamped Girod, it might be a German Kienzle movement. Girod movements had the distinctive feature of split plates, this one has solid one-piece plates. Again my research reveals that as a result of the post-war German reparation effort, Kienzle clock movements were brought from Germany into the Girod factory in France, assembled and stamped as a Girod movements for, it is my guess, export to Canada and other countries.

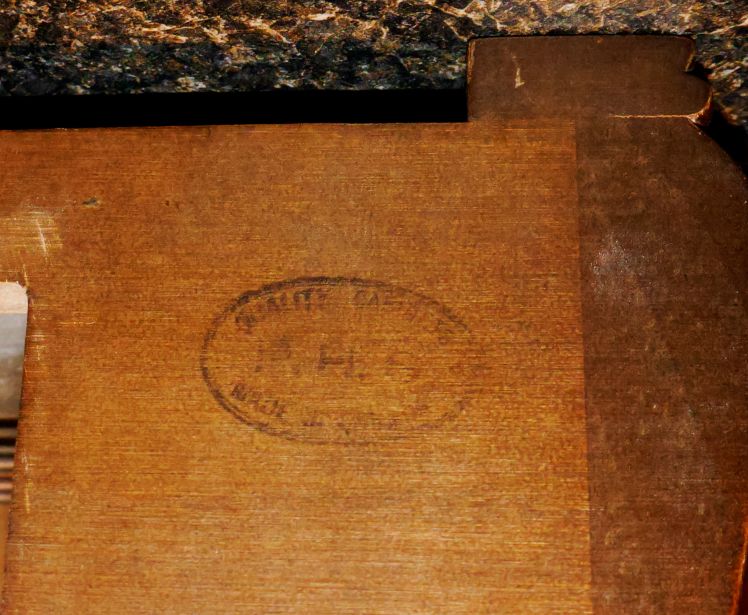

Another clue. The case has a stamp on the back. It is a little faded but it says, “Quality Cabinet Made in Canada”. There are three letters in the middle that I cannot make out. PHS or FHS perhaps?
Upside down stamp on back
There is no trademark on the dial face which would normally indicate the retail seller or manufacturer but my guess is that it was likely sold as a Forestville mantle clock (the Forestville Clock Company was based in Toronto). The logo (??) punched into the hour hand makes me wonder though.
Look at the key. Why two wrench punch-outs and a screw driver end?
Key with screwdriver and wrench punch-outs

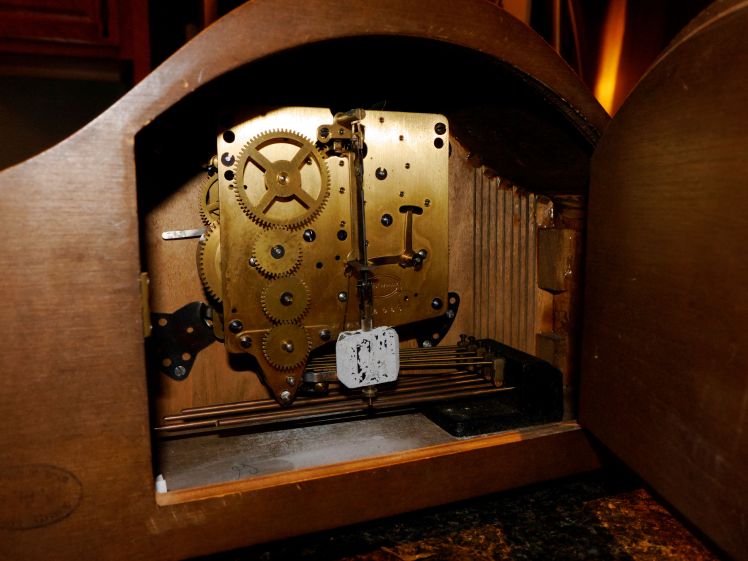

Girod movement showing chime rods and unusual pendulum
The above shot shows the movement. It has five strike hammers, 4 of which carry the Westminster chime and three hammers for the on-the-hour strike. The strike feature is quite loud. The rods appear to be differing lengths of copper and the pendulum has a relief of the Eiffel Tower that you can just make out. There is also a lever on the upper front of the movement which serves as a repeater. The movement appears to be very sturdily built and reflects German (??) quality.
Again my best guess is the Forestville Clock Company of Toronto but if you have other information or if you know more about the history of Girod clocks please drop a line.
A few changes have taken place since I last posted but the clock is still not 100% correct.
Some changes to note. The bottom right finial was repaired.
Broken finial tip
To the casual observer it looks impressive but a keen eye would reveal the repair. The middle finial is not attached as yet as there are still some minor cosmetic details that need to be addressed before I attach it to the base.
This past week I had contacted a local glass repair shop to make and install new 3 mm glass. Thicker than I thought but true to the original that is, if the glass that was broken was truly original. I say this because the glass shop noted that the previous glass was installed using finishing nails the shape, style and size of which would not have been available at the time (1902). So, putting new glass into the clock may not change the value since the glass that was broken during shipment was likely not original.
The movement was given a thorough cleaning and oiling including a nice polish to the plates. As all the striking levers are on the front plate they were very simple to re-attach. Re-assembly of the gears is quite easy compared to North American clocks I have worked on. No fiddling with levers and helper wires between the plates. Overall, the parts are of a very high quality as one would expect from the maker, Gustav Becker. There was no evidence of worn bushings or any other troubling areas and I did not see any other work required for this movement other than the obvious missing parts. Ultrasonic cleaning, pegging and polishing the pivots and cleaning the plates was all that was required. All parts are back in the clock save the star wheel lever and the hammer assembly which I do not have.
The top plate, polished and presentable

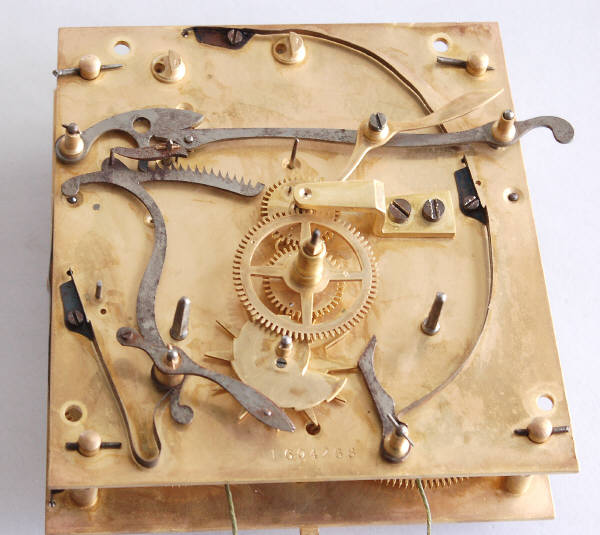

Gustav Becker movement
The above image is pulled from an online source. My apologies to the author of the photo. This GB Braunau movement shows the star wheel / snail gear which I am missing on my movement.
Replacement star wheel top
Repalcment star wheel bottom
The movement below shows mine without the star wheel (bottom centre), and that is how I received it. I later received a “replacement” star wheel from the seller but unfortunately is does not fit. It might be from a later Braunau movement or a Silesia one, I am not sure. I am not going to force it, it really does not fit. The Braunau movement that I ordered online has not arrived as of this date but my hope is that I can interchange the parts that I am missing. We will see.
Braunau movement form GB clock
There are several other issues with this movement. As mentioned, there is no rod and hammer which is an obvious problem because without it the clock will not strike. It is my hope that the replacement movement will have one that I can adapt to my clock.
Gather pallet
The next issue is the pin on the gathering pallet. The gathering pallet rotates to advance the strike rack. Despite straightening the pin on the pallet it still does not want to engage. My thinking is that the pin is either too short for whatever reason or that a piece of it likely snapped off at some point in the clock’s life. Again, I might be able to take a good one off of the replacement movement.
I also received a replacement dial bezel in the mail which is a definite improvement over the one that was dented in shipment. You can see the damage on the original bezel below.
damaged bezel
Lastly, I have ordered 0.80 mm brass cable to replace the cat gut and a number 1 regulator crank which also did not come with the clock.
At this moment the time gears are working fine, the clock is ticking away and it actually tells the time.
All in all it has been an interesting project so far and some very good learning on my part.
If you’re expecting a post about clocks from the Black Forest region of Germany, I apologize for the mix-up. This article is actually focused on the Forestville Clock Company of Canada.
Forestville clocks were assembled in Canada with foreign movements in local and foreign-made cases through the late 1920s to the mid-1970s.
This particular Forestville mantel clock is not particularly special but it comes with a story.
In 2013, during a visit to the Thousand Islands, my wife and I stopped by an antique store in Gananoque, Ontario. While browsing, I was drawn to a clock that caught my attention. I was somewhat familiar with the Forestville name, as the Forestville Clock Company of Toronto had assembled thousands of these clocks. The price tag on the back was $175, which seemed a bit high to me. We stayed overnight in the area and decided to return to the store the next day. When we did, a different clerk was on duty. Although I knew the price listed, I asked him what the clock was priced at, just out of curiosity. Without checking, he replied, “It’s $75,” and I bought it. Afterward, he noticed the price tag on the back and said, “You got a good deal.” I think he learned something that day.
History of the Blackforest Clock Company of Toronto
The Blackforest Clock Company of Toronto, Ontario was founded by Leopold and Sara Stossel in 1928. Both clock movements and complete clocks were imported from Germany and sold through department and jewelry stores across Canada. Their son Ed Stossel started working part-time with his parents’ company in the 1930s and later became a full-time employee in the late 1940s.
Some assembly work was carried out in their Wellington Street East factory. Initially, imported mantel clocks and grandfather clock movements were installed in cases made in Kitchener, but later the complete mantel clocks were imported from Germany. This arrangement was interrupted by the Second World War, which also led to a name change to the Forestville Clock Company in 1941. During the war years, this company imported its clock movements from England, the United States, and even France. However, starting in the mid-1950s German factories again became the source of most Forestville clocks, with Mauthe being a major supplier. (source: The Canadian Clock museum)
The Forestville Clock Company was very successful during the middle decades of the twentieth century. Ed Stossel retired in 1979 and unfortunately, the company survived just a few more years under new leadership.
closeup of the dial
Both the movement and case were imported from Germany probably in the late 1960s or the early 1970s and the style reflects that period. There is a serial number on the backplate but it is not much help in dating the exact year the clock was made.
Movement showing evidence of over-oiling
As clock manufacturers were searching for efficiencies, lever escapements replaced floating balances and pendulums in the 1960s and 1970s. I much prefer a pendulum clock but clocks such as this have the advantage of operating on surfaces that are not level.
Lever escapement with speed regulator
This is a closeup of the strike lever mechanism.
Lever mechanism for strikeLifting mechanism for strike function
The three strike rods give the clock a “bim-bam” sound on the half-hour. Not unique but disctinctive.
This mantel clock is a handsome piece with great lines and makes a wonderful addition to my growing collection of antique and vintage clocks. However, it is quite dirty and will need a thorough cleaning. I’ll save that task for another post.
Antique and Vintage Mechanical Clocks
You must be logged in to post a comment.
