Clock Repair Tools

RS Brandon — Arthur Pequegnat Brandon time only wall clock

It is time to buy the tools I need for clock repair. I already have a number of basic tools to get me started; pliers, letdown chucks, screwdrivers, etc.

However, my first significant tool is an Ollie Baker Mainspring Winder which arrived from the USA today. It is pictured below. The Ollie Baker comes with an assortment of collars for every size of mainspring.

The spring winder will enable me to inspect, clean, and re-install barreled or open springs on all the clocks I will be servicing. My first impression is that it is a robust and well-machined tool that will give years of service. Indeed, one of the most important tools for clock repair enthusiasts is the spring-winder.

I also ordered bushing kit #5488 from Perrins today which will enable me to have the bushings I need in order to use the Bergeon Bushing Machine that I will purchase later on this year.

The Bergeon Bushing tool is “Swiss made” and exudes quality. In every clock, due to considerable wear, the plates have to be bushed from time to time. This tool allows the bushing of plates of various sizes. The kit includes driving punches, centering bit, stakes, and reamers. I can bush by hand which some folks do by using appropriate reamers and files but I know that a bushing machine is a must-have. The first photo shows a clock movement that I had professionally bushed. It required 5 bushings in all in addition to cleaning and oiling and it runs very well.

With these tools, I can progress more seriously into this most interesting hobby.

January 4, 2016

Maple Leaf case restoration Part 2

I have had this Arthur Pequegnat Maple Leaf fan-top clock for several weeks now and have decided to keep it in my collection. I was not satisfied with the condition of the case when I first saw it and knew that something had to be done. After several hours of work on the case I can finally say that the results have been very good…not excellent because there are one or two things I would have done differently. For example, I originally used a cotton cloth to bring down the finish and ended up rubbing too aggressively in some sections. Looking back I would use 0000 steel wool from start to finish.

This shot is a comparison between the original finish and taken after hours of restoration.

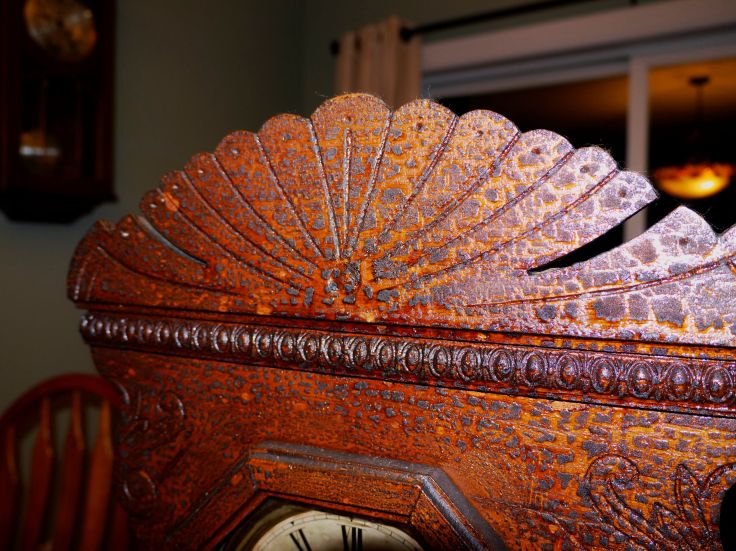

RS Pequegnat fan top (6) — Condition of clock when first brought home

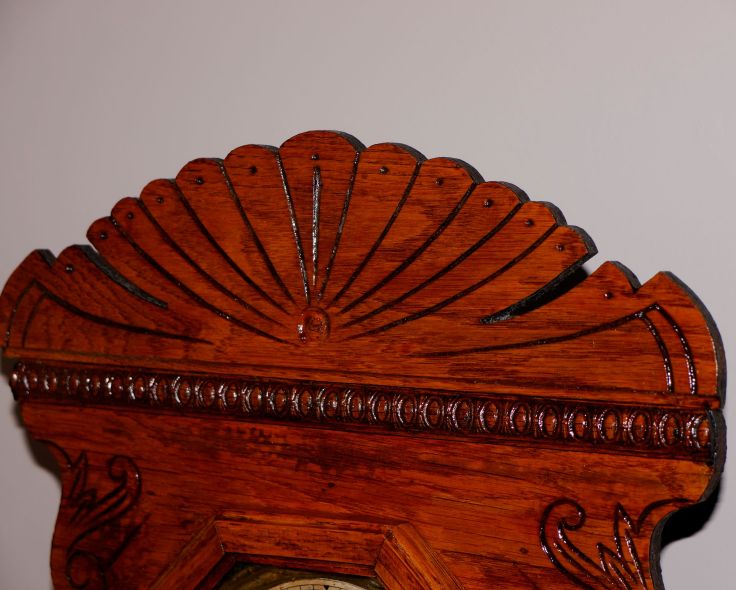

RS fantop — After hours of rubbing and scrubbing

As you can see in the second photo the oak grain is natural and pronounced; the mottling has disappeared. As mentioned there were one or two spots where I was a little too aggressive with the steel wool which I may address later on but for the moment I am going to live with it.

I applied four coats of Amber Shellac and between coats I rubbed the finish with 0000 steel wool. Shellac is the proper approach for case restoration as that product would have been used at that time. The clock now looks very close to what it would have looked like at the time it was made which would be about 1910. The next photo shows the clock fully re-assembled and on display and the next, how it looked when I brought it home.

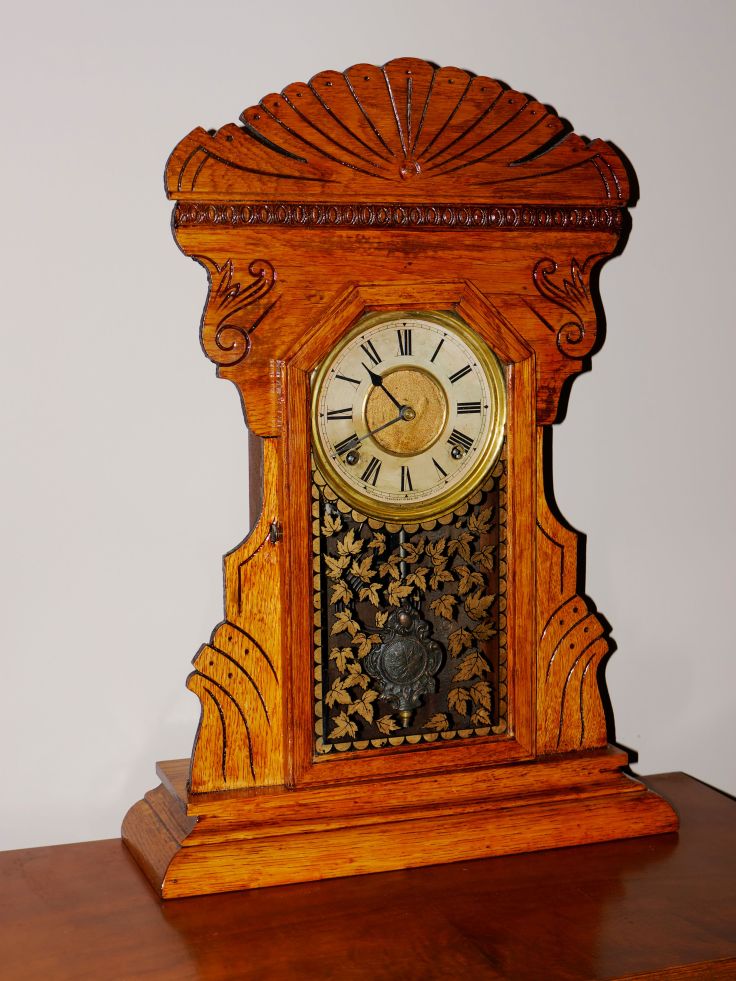

RS on display — Ready to be brought to the clock shop for repair

RS Pequegnat fan top (3) — Just brought home

Although I am able to dis-assemble, clean and oil a clock mechanism there is a problem with the center arbor not engaging the strike side of the clock. It is off to Doctor Clock in Halifax for repair and cleaning of the movement.

December 7, 2015

Update on Smiths Enfield clock

Servicing this Smiths Enfield clock went without a hitch, well almost.

All parts underwent Ultrasonic cleaning, the pivot holes were pegged and oiled and once re-assembled the clock was oiled, then bench-tested out of it’s case to check for beat and proper strike.

On Sept 30^th – back in the case without destroying 2 U-shaped retaining clips. Took it back out as the strike train was not engaging. Oiled one component on the strike train and put back in the case. Tested the strike. Seems to be okay but the minute hand was not preset so it strikes 10 minutes before the hour. Some re-adjusting

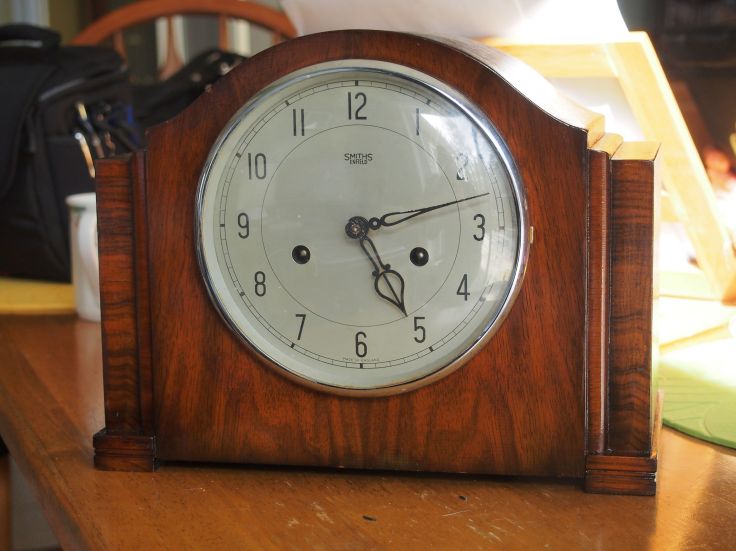

OLYMPUS DIGITAL CAMERA — Back in it’s case

is required. However the clock is running well so far. Although not in bad shape, there are two pivot holes that are suspect. In two years time I will take a look and see if there is any further wear.

September 30, 2015

Sessions Raven clock

I acquired my Sessions Raven clock about a year ago. It had been serviced by someone knowledgeable about clocks and arrived in excellent condition. The movement had clearly been disassembled, oiled, tested, and the case carefully reconditioned. Interestingly, it also came with a set of instructions from the person who had worked on it.

Sessions clock — _{Ebony in colour and very attractive}

Sessions mantle clock (12) — _{Detailed operating instructions}

I imagine he wanted to ensure the clock found a good home—and it certainly did! The only drawback was the absence of a label, which is always a consideration when purchasing antique clocks. Otherwise, everything appeared to be in order. According to Tran’s book, the leading authority on American clocks, the Sessions Raven dates to the 1920s. It is a time-and-strike clock, featuring a bell for the half-hour and strike rods on the hour. I suspect it was named the Raven because of its deep ebony color—quite striking, in fact.

Sessions mantle clock (17) — _{Time and strike movement showing the bell}

The Sessions Clock Company emerged from the E.N. Welch Clock Company in the early 1900s and was once one of the most recognized American clock manufacturers. However, like many others, it struggled to compete with the rise of electric clocks. Despite its efforts to adapt, the company persisted until the late 1960s before ultimately being forced into liquidation in 1969—a bittersweet end to a once-prominent name in horology.

My clock holds a prominent place in my family room. Its simple design reflects the style of its era and blends seamlessly into any space.

September 19, 2015
