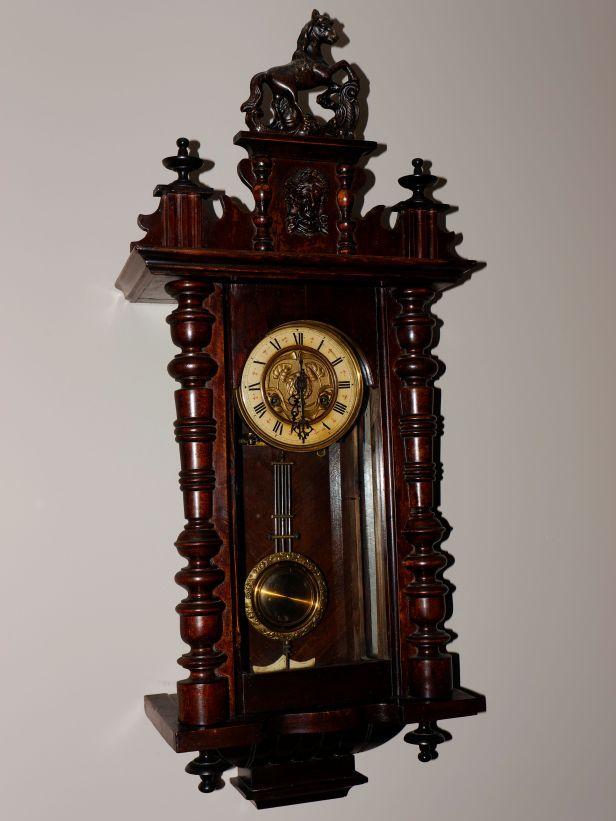

Turn of the century Mauthe (FMS) wall clock with Adler gong

The family was in the process of downsizing and this was one of the items that had to go

This attractive antique Victorian style German wall clock was purchased locally from a family that once lived in the town of Parrsboro over 100 years ago. Parrsboro is a picturesque Canadian community in Cumberland County, Nova Scotia and one of the oldest settled areas of Canada. It had hung for many years in the Parrsboro Mansion pictured below. Today the mansion is a popular bed and breakfast destination.

Parrsboro Mansion, Parrsboro, Nova Scotia, Canada

I found the clock on a local online for-sale site. It looked interesting but there was no price listed. I contacted the seller but they were asking considerably more than I was willing to pay. I explained the work that had to be done to the case and movement and the fact that had it been in better condition they would easily receive more for the clock. I concluded the phone conversation with my top offer for the clock. They contacted me 4 days later and met my price.

I was curious about its history. The seller explained that the clock was brought over from Europe when her husband’s family moved to Canada in the 1890s and had been in the family ever since. The family was in the process of downsizing and this was one of the items that had to go. I was pleased that the seller expressed an interest in seeing the final restoration and I assured her that I would keep in touch. Knowing the history of the clock, or any clock for that matter, is value added in my view; provenance is so important when it comes to any antique.

Using the serial number and trademark I have determined that it was made between 1890 and 1910, consistent with information provided by the seller

It is a Mauthe time and strike wall clock with an Adler gong. I have been assured that the clock is original in every way and using the serial number and trademark I have determined that it was made between 1890 and 1910, consistent with information provided by the seller. The eagle emblem on the Adler gong suggests that it was made after 1898. The turn of the century would be fairly accurate dating for this clock. It is a 120 year old clock that is not overly garish and reflects the style its period.

Adler coil gong

The clock case is in need of a restoration. There are pieces missing and it appears that it was either in a hot environment for some of its life, an attic perhaps or hung over a fireplace; the finish is alligorated. Alligorated finsihes are those that have encountered heat damage and are characterized by a finish (shellac or lacquer) that softens and pools into globules collecting dirt as it re-hardens.

Alligorated finish

It is missing a finial on the crown, a trim piece on the top of the access door, the wall stabilizers and a corner piece on left side of the crown. Some of these parts are available through parts suppliers, other pieces must be fabricated.

Crown with missing finial and small corner piece on the top left

I am anxious to start on the case and must decide whether to clean the surface or strip to the bare wood. The dial is a separate issue. It is cellulose and very dark. Can it be cleaned? Not likely but I am doing some research to find a solution. In the meantime the movement has run strong for the past 4 days and strikes as it should. It will need a cleaning and possibly new bushings but I will know more once I examine it more carefully. At this point I do not see any major issues with the movement.

I am completing the restoration of a Waterbury wall clock and once done I will commence work on this clock project.

As I proceed with this project I will document my experiences restoring this early 1900s FMS Mauthe time and strike wall clock with an interesting history.

Perspective on Horological (clock) Development

Need a quick primer on developments and inventions in horology. You have come to the right place.

18th Century shelf clock Porto, Portugal

Though by no means a definitive guide the following are some important dates in the history of the clock as gathered through a number of sources. The difficultly in affixing some dates with precision results from discrepancies among sources.

Horological developments during the centuries before the mechanical clock are left out altogether. Water (Clepsydra) and sun clocks of the middle ages and astronomical clocks of ancient China deserve special mention but are the subject of a separate discourse and are not included here.

Important dates in Horological Development

  • CA. 1300 – First mechanical verge clock, Europe
  • 1364 – Astronomical clock conceived by Giovanni de Dondi, Italy
  • 1386 – Tower (turret) clock Salisbury Cathedral, England
Salisbury cathedral clock, photo by Dr. Meghan Joiner
  • CA. 1400 – Fusee invented by Jacobs, Czechoslovakia
  • CA. 1450 – Table clock with spring and fusee, Phillip the Good of Burgundy, France
  • CA. 1500 – Mainspring invented, Germany
  • CA. 1510 – Watch invented by Peter Henlein, Germany
  • CA. 1560 – Spring driven portable clock, Germany
  • CA. 1570 – Oldest known clock with a second hand, Orpheus clock, Germany
  • 1637 – Galileo, swinging temple lamp, pendulum control conceived, Italy
  • CA. 1650 – First tower clock appears in Colonies, America
  • 1656 – Pendulum clock devised by Huygens, Holland
  • 1657 – Verge and foliot gives way to pendulum control, Huygens, Holland
  • 1658 – Long-case prototype made by Fromanteel adapted from lantern clock, England
  • 1660 – Balance wheel conceived by Hooke, England
  • CA. 1675 – Richard Towneley invents the dead-beat escapement, England
  • 1675 – Balance wheel with spiral spring invented by Huygens, Holland
  • CA. 1675 – Recoil escapement and crutch invented by Hooke in collaboration with Clement, England
  • 1676 – Rack striking developed by Barlow, England
  • 1680 – 1700 – famous horologists of this era were Arnold, Earnshaw, East, Graham, Knibb, Compion and Windmills of England; Berthoud, Breguet and LeRoy of France
  • 1701 – St Sulpice seminary tower clock (imported from France), Montreal, Canada
  • 1713 – Harrison invents marine chronometer, England
  • CA. 1715 – Break-arch dial introduced
  • 1715 – Graham perfects deadbeat escapement, regarded as the “father” of the dead-beat escapement
  • 1717 – First tower clock of America, Benjamin Bagnall, Boston
  • 1726 – Mercurial pendulum invented (temperature compensating pendulum), Graham, England
  • 1726 – Wall clock by Thomas Bennett, 8 day brass, weight driven, America
  • 1736 – Harrison’s marine chronometer tested at sea (accurately ascertaining longitude), England
  • 1770 – White dials appear in English longcase clocks
  • 1776 – Independent seconds train invented for watch, Pouzait, Switzerland
  • 1790 – Vienna regulator style case emerges in Austria
  • 1790 – American woodworks clocks begin to be appear
  • 1802 – Willard patents his banjo clock, America
  • 1806 – Terry introduces Pillar and Scroll clock, America
  • 1809 – Martin Cheney leaves America to set up a clock-making shop in Montreal, Canada
  • 1810 – Carriage clock (Pendule De Voyage) introduced by Breguet of France
  • 1818 – Heman Clark makes wrought brass movement for Pillar and Scroll case, America
  • 1825 – Rolled brass production begins in America
  • 1837 – Noble Jerome 30-hour brass movement patent approved, America
  • 1840 – American brass movements in mass production
  • 1842 – American brass movement clocks exported to England by Chauncey Jerome
  • 1845 – Wood-works movement production ends, America
  • 1850 – Westminster tower clock designed by Lord Grimthorpe and made by Dent, England
  • CA. 1850 – Brocot (pin-wheel) escapement and pendulum suspension introduced, France
  • CA. 1850 – American mass production of watches begins
  • 1860 – Junghans (Germany) sent to America to study American mass production techniques
  • 1870 – Decline in English long-case clocks
  • 1874 – Mass production of mantel and wall clocks begin in Whitby, Canada,
  • 1900 – American clock production is at its height; makers are Ansonia, Ingraham, Gilbert, Howard, New Haven, Seth Thomas, Waterbury, and Welch
  • 1904 – Arthur Pequegnat begins clock production in Berlin, Canada
  • 1906 – Eureka electric clock introduced, America
  • CA. 1910 – Torsion pendulum clock (400-day) introduced, Germany
  • 1920-40 – Decline in American mechanical clock production
  • 1941 – Arthur Pequegnat ceases production, Canada
  • CA. 1960-70 – End of mass produced mechanical clocks, America (though cheaper Japanese, Korean & Chinese mechanical clocks flood North America)
  • Present day – Some movement and clockmakers remain; Howard Miller (Ridgeway), Keininger, Hermle, Chelsea, Jaeger LaCoultre among others

The clock is one of mans greatest achievements. The development of instruments to tell time is the unwavering toil of brilliant minds from many disciplines who, over 800 years, worked tirelessly to create, innovate and improve methods for telling the time.

Horology is not only the study of time but the synergy of art, joinery, fashion, design, décor, physics, engineering, metallurgy and mathematics. Indeed, the study of the mechanical clock is a microcosm of our society.

Time rules life – like it or not.

Tick-Talk Tuesday #17 – Can you tell me something about my Mauthe wall clock

Tick-Talk Tuesday
Tick-Talk Tuesday is about the letters and comments I have received from you, the reader, concerning your clock, issues you might have had, questions about its origin, challenges you face or a clock you would like me to profile and my responses to your questions with advice on your particular clock concern. For those comments and questions that stump even me, I consult within my clock circles for the best possible answer.
Mauthe time and strike box clock
Mauthe time and strike box clock

RC writes,

“I was looking online for information on the exact Mauthe Box clock you have.  I am going through my late fathers estate & trying to find out what it’s worth. It belong to my great uncle and passed onto my dad. Every since I was a little boy I can remember this clock being at my great uncles home.

Any information you could give me would be greatly appreciated. I have attached a picture of the clock.”

This is my box clock.

Box clock
Mauthe time and strike Box clock

My reply,

“You have a time and strike box clock. These have excellent movements and should run for years. A servicing would be due, however.

It might have the 3-rod “Divina gong” which, according to the standard German reference, Hans-Heinrich Schmid’s (2005) Lexikon der Deutschen Uhrenindustrie 1850-1980, is a Mauthe trade-name registered in 1912. It would have a pleasant two-tone, bim-bam sound. Unmarked box clocks like mine were likely sold as a Solar house brand by Eatons. Your is marked and was likely bought from a jeweler.

Thousands of German “box clocks” were made in the first third of the 20th century. The box clock replaced the classic “Vienna Regulator” after the First World War and reflected a minimalist approach to clock design. Most were made in Germany. I would date your to about the 1930s.

The following is excerpted from one my blog posts.

Mauthe clocks have had a long and illustrious history in Germany.  In 1844 Friedrich Mauthe and his wife Marie founded the company in Schwenningen to produce watch parts. At the end of the 1860s Mauthe began to produce their own wall clocks (and movements). The Mauthe sons Christian (1845-1909) and James (1847-1915) took over in 1876. In 1886 Mauthe began manufacturing its own springs. Around 1900, alarm clocks, pendulum wall clocks, grandfather clocks, office clocks and so called “Buffet Uhren” or “Buffet clocks” were offered. In 1904 the 3rd generation took over (Eugene Schreiber (1877-1939) – son of Christian Mauthe, Dr. Fritz Mauthe (1875-1951) – son of Jacob and Mauthe Alfred (1879-1911) – son of Jacob Mauthe to build on the base of the company.

In 1925 Mauthe announced a new trademark. It shows a right-looking eagle with outstretched wings, holding in its talons a three-part round plate with the letters F, M and S.
In the  1930s the company at its peak produced about 45.000 clocks per week.  About 60% were produced for export markets such as England. In the Mid-30s Mauthe started to manufacture their first wrist watches and some were supplied to the German Army (“Wehrmacht”). From 1946 on Mauthe re-started with the production of wrist watches. Shortly after that the company eventually fell into decline.

As to value, Mauthe wall clocks are currently in the $200 and $500 range depending on condition. A serviced clock would fetch more.

I would clean it up, service it and proudly display it.”



What is this clock thing for? #2 – the strike rod lock

Strike rod stabilzer

If you ever need to transport a German box clock or a similar style wall clock there are several steps you must take before you remove it from the wall.

German "box" clock by Mauthe
German “box” clock by Mauthe, sold under the Solar or Forestville name in Canada

One of these procedures is to secure the strike rods. The gong or strike rods are screwed into the gong block. If allowed to move during transport there is a risk that the rod(s) will break. Although they are strong and withstand years of striking they are also brittle and can easily snap. Clock-makers have several solutions for securing the rods. This is one of them. Yours may be similar.

Gong block
The gong block

On some clocks, you may find a fork-like device that turns to secure the rods.

Strike rod stabilzer
Strike rod stabilizer

By turning it clockwise the three gong rods will fit into the forks as shown in the next photo.

Rod Stabilizer
The pendulum is removed and rods are now locked in place

Once the rods are secured in place and you have removed the pendulum rod and bob as well as secure the access door, you can now safely remove your clock from the wall.

What is this thing for? #1 – The clock case stabilizer

Wall stabilzers
Gustav Becker two weight regulator

My Gustav Becker Vienna Regulator wall clock is 51 inches in length. It is a 2-weight regulator that runs on an eight day cycle. In order to bring the weights up I must open the access door and insert the winding crank into the arbours on the clock face. I then raise the weights to their highest safe level. During the process of opening the access door and winding the clock there is always the risk of moving the clock, disrupting the level thus creating a condition where it is out-of-beat. In short the stabilizers, located on each side, keep the case from shifting while winding the clock.

Clock-makers provided stabilizers on many clocks so that they would not move during regular winding or remain stable in the event of vibration or shock (accidentally bumping into it).

The stabilizer is usually about an inch in length, has a knurled brass knob on one end and is mounted on a brass or steel plate which is then fixed to the back of the clock case by means of wood screws.

Brass stabilizer
Brass stabilizer

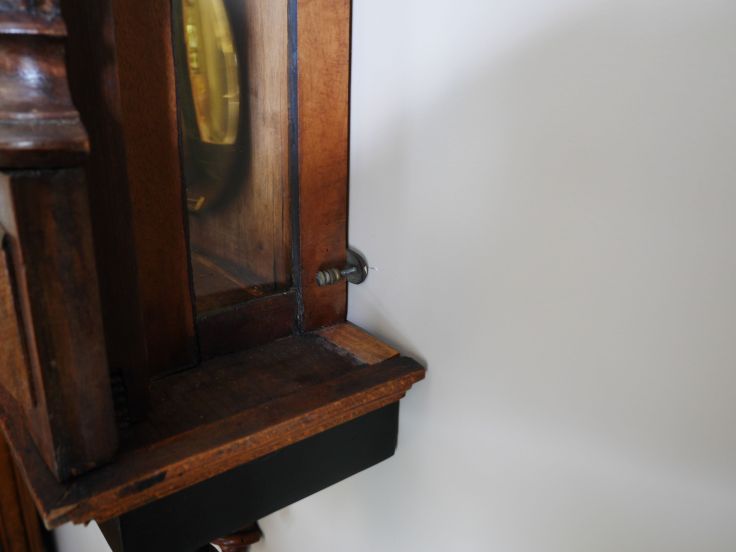

This is the right stabilizer on my Gustav Becker.

Right stabilizer
Right stabilizer
Junghans Crispi wall clcok with compensating pendulum
Junghans Crispi wall clock showing one of the stabilizers

If you find two small holes on either side of the back and near the bottom of the case of a wall clock you can bet that you are missing the wall stabilizers. You can order them from any clock supply house.

They not only complete the look of a wall clock but are functional as well. A very simple solution to a potentially frustrating problem.

Tick Talk Tuesday #14 – Can you tell me something about my Forestville clock

Tick-Talk Tuesday
Tick-Talk Tuesday is about the letters and comments I have received from you, the reader, concerning your clock, issues you might have had, challenges you face or a clock you would like me to profile and my responses to your questions with advice on your particular clock concern. For those comments and questions that stump even me, I consult within my clock circles for the best possible answer.
GGs Forestville Mantel clock
GGs Forestville Mantel clock

GG writes: “Hello there,,,I was wondering if you know much about my mantle clock and maybe it’s value?

I have attached some photos!”

My reply: “Thanks for coming to my blog. That is one of the nicest mantel clock cases I have seen on a Forestville and it appears to be in good shape.

Forestville is a Canadian Company based out of Toronto. They went out of business in 1979. They did not make their own movements instead sourcing them from England, France, the US and Germany though they made their own clock cases.

GGs clock showing German made movement and pendulum bob
GGs clock showing German made movement and pendulum bob

You may or may not know that Forestville was called the Blackforest Clock company prior to WWII. So, you have a post war clock made in the late 1940s or early 50s. Later on In the 1950s Forestville went from using pendulums in their clocks to balance wheels (no pendulum). Forestville also sourced German movements exclusively after the war. Your movement (the brass works) was likely made by Mauthe or Hermle, both well known and well respected German companies.

You have what is known as a time and strike Bim-Bam clock. It strikes the respective hour and once on the half hour but makes a distinctive “Bim-Bam” sound as a result of one hammer striking one rod while the other two strikes two rods simultaneously.

Unfortunately there are thousands of similar clocks and Forestville clocks are not particularly distinctive but a clock such as this in good running condition might fetch about $100.”

GG writes back to explain that the movement is an Enfield from England which stands to reason if it was made immediately after the Second War.

Blackforest shelf clock (Canadian made) gives me grief but decides to run again

Blackforest movement on the test stand
Blackforest shelf clock
Blackforest shelf clock

The clock is a 1937 Blackforest Royal Tour commemorative edition shelf clock with an 8-day time-only “plate” clock movement. Plate clock movements are so-called because they were typically used on kitchen clocks with Dutch Delft plates such as this one in the next photo.

Delft Clock from Forestville
Delft Plate Clock from Forestville

The movement is likely German and could have been made by a number of companies. There are no stamps or markings on the movement to give any indication of the maker. Canadian companies such as the Blackforest Clock Company of Toronto (the Forestville Clock Company after the war) imported German movements before the Second World War and installed them in Canadian made cases.

Grimy movement prior to cleaning
Grimy movement prior to cleaning

This clock had been happily running for about a year and then last week it suddenly stopped after a winding. I nudged the pendulum in an effort to make it go, checked to see if it was in beat and level but no luck. I nudged the pendulum a few more times, left it for a day or so, tried it again and still no luck. I was at the point of disassembling the movement to investigate the problem. Two days later I wound it tight and gave the pendulum a push and it sprang to life. I think I know what happened.

I thought I did a good job of servicing the movement including the mainspring over a year ago but apparently not well enough. You may have heard the expression, “you overwound the clock so that’s why it stopped”. There is a grain of truth in the expression because if you wind the spring till it winds no further the mainspring is at it tightest. If there are dirt, grime and rust on the mainspring the mainspring will actually cease in place, hence the clock stops. I believe this is what occurred in this case. Although it is running now it will need to be properly cleaned. In the meantime, I will let it run and see if it completes its full 8-day cycle.

Clocks we saw while on a visit to Spain and Portugal

In the early spring, my wife and I travelled to Portugal and Spain. We attended our daughter’s destination wedding in Sintra, Portugal and we decided to expand our stay, visit Spain and see the sights in Barcelona and Montserrat. Spain has always been on our bucket list and it did not disappoint.

Being a clock enthusiast I did a little research beforehand to find out if there were any clock museums along our travel route. Alas, we travelled to places that were very distant from the well know clock museums. Clocks in Europe were made in specific regions and that is where you will find clock museums. Here are a few clocks that I found in various places in Spain (Barcelona) and Portugal. I will let the photos tell the story.

Tall case clock in a cathedral
Tall case clock in a Barcelona cathedral

Little card on the side simply said "High box clock, school clock"
Little card on the side simply said “High box clock, school clock”, Barcelona

Marriage of movement and case found in a shop in Porto.
A marriage of movement and case found in a shop in Sintra, Portugal

Town clock in downtown Sintra, Portugal
Town clock in downtown Sintra, Portugal

Very ornate clock in poor condition, Pena Palace, Sintra, Portugal
A very ornate clock in poor condition, Pena Palace, Sintra, Portugal

Pena Palace, Sintra, Portugal
Pena Palace, Sintra, Portugal

Tivoli Hotel, downtown Sintra. Unknown tall-case clock
Tivoli Hotel, downtown Sintra. Unknown tall-case clock

The most ornate clcok is this working example at the Porto basilica
The most ornate clock I found is this working example at the Porto basilica

Unknown mantel clock, Tivoli Hotel, Sintra, Portugal
Unknown mantel clock, Tivoli Hotel, Sintra, Portugal

Unknown gallery clock. I could not find an opening on this clock. No arbor holes on the clock face.
Unknown gallery clock. I could not find an opening on this clock. No arbour holes on the clock face. Found on an estate in Sintra, Portugal

Flea market clock. Time and strike English or German clock, 1960s
Flea market clock. Time and strike English or German clock, the 1960s

Flea market clock. Time and strike French clock with matching candelabra
Flea market clock. Time and strike French clock with matching candelabra

Used goods store, time and strike wall clock, possibly French
Used goods store, time and strike wall clock, possibly French

I was not specifically looking for these clocks but as we visited churches, museums, shops and public places I photographed any I discovered in our travels.

Tick Talk Tuesday #13 – Mauthe wall clock circa 1960s

Tick-Talk Tuesday
Tick-Talk Tuesday is about the letters and comments I have received from you, the reader, concerning your clock, issues you might have had, challenges you face or a clock you would like me to profile and my responses to your questions with advice on your particular clock concern. For those comments and questions that stump even me, I consult within my clock circles for the best possible answer.

Modern Mauthe wall clock circa 1970S
Modern Mauthe wall clock circa 1970S

DK writes, “I just received this clock.  I’m hoping you can help me identify it and maybe help me to fix it. I’d like to see if I can repair it if possible. Hope to hear from you.”

I write back, “Can you send a photo of your Mauthe clock with the door closed?”

An attractive wall clock by Mauthe
An attractive wall clock by Mauthe

DK, “I seemed to have fixed it so it is working, however the Lewis girl at the bottom of the pendulum I turn it to increase a time or decrease the time how does it go or work?”

Me, “Your Mauthe clock is from the 1960s. It is a time and strike and should run reliably for years. To adjust the rate, turn the thumbscrew at the bottom of the pendulum clockwise to speed the clock up or counterclockwise to slow it down.”

DK, “Thanks Rockin Ronnie. Does this clock have any value?”

Me, “Not especially. Depends on the market but perhaps upwards of 100US in top condition.”

DK, “Thanks Ron I kind of figured as much. Have yourself a good day and thank you for everything!”

Note: In 1970, Mauthe struggled for survival, and in 1975 the company was in receivership and forced to close in 1976.

Mauthe mantel or “buffet” clock – can you tell me more about the maker?

Tick-Talk Tuesday

Mauthe Westminster chime mantel clock
Mauthe Westminster chime mantel clock similar to LL’s clock

Tick-Talk Tuesday is about the letters and comments I have received from you, the reader, concerning your clocks, issues you might have had and challenges you face and my responses to your questions with advice on your  particular clock concern(s). For those comments and questions that stump even me, I consult within my clock circles for the best possible response to your question

LL writes, “I just had my Mauthe 3-train Tambour mantel clock cleaned and repaired. This is the first I’ve heard it chime in decades! I know my brother bought in England in the eighties but that is all I know about it. Can you tell me any more about the maker?”

Mauthe would have called your mantel clock a “buffet clock”.

Mauthe clocks have an interesting history. In 1844 Friedrich Mauthe and his wife Marie founded a company in Schwenningen, Germany to produce watch parts. At the end of the 1860’s Mauthe began to produce their own wall clocks (and movements). Some have been produced by home-work by so called “Gewerblern”, others have been produced in a more “industrial” way.

The Mauthe sons Christian (1845-1909) and James (1847-1915) took over in 1876. In 1886 Mauthe began manufacturing its own spring mechanism.

Around 1900, alarm clocks, pendulum wall clocks, grandfather clocks, office clocks and so called “Buffet Uhren” “Buffet clocks” were offered. The number of employees at that time went up to about 1,100 people. In 1904 the 3rd generation took over (Eugene Schreiber (1877-1939) – son of Christian Mauthe, Dr. Fritz Mauthe (1875-1951) – son of Jacob and Mauthe Alfred (1879-1911) – son of Jacob Mauthe.

In 1925 Mauthe announced a new trademark. It shows a right-looking eagle with outstretched wings, holding in its talons a three-part round plate with the letters F, M and S. My Mauthe mantel clock is unmarked. Early in 1930 the company produced about 45.000 clocks per week (with 2000 employees). About 60% were produced for export markets, England for example was one of those export markets.

Mauthe mantel clock sitting atop a Stromberg Carlson console radio
Mauthe mantel clock sitting atop a Stromberg Carlson console radio

In the mid-1930’s Mauthe started to manufacture their first wrist watches, some were even supplied to the German Army (“Wehrmacht”).

From 1946 on Mauthe re-started with the production of wrist watches. Though largely successful during the post war years, sales began to decline and the company eventually declared bankruptcy closing in 1976.

These precision German movements keep very good time and are certainly worth keeping and repairing. Enjoy yours now that it chimes.

What and the shipping is how much?

Look at the shipping cost
Look at the shipping cost

Okay, there are 9 hours left on the bid for this Vienna striking clock and it is at 104GPB (178CDN) so it could go a lot higher. But 257CDN for shipping!!! Factor in the exorbitant shipping cost and import duties (~40CDN) you are now looking at close to 300CDN + the clock. I suppose as a seller you gotta make your money somehow!

Mercedes clock – not made by the car folks

Porcelain Mercedes clock

Mercedes makes a great car. Do they make clocks? No! Is this Mercedes novelty timepiece a great clock? Read on.

Attractive Porcelain clock
Attractive ceramic clock with time-only movement

This very attractive 30-hour Mercedes ceramic mechanical shelf clock of the Baroque Meissen style (debatable) from the 1970s is more of a novelty item than a clock.

It is a time-only alarm clock movement made by Gebrüder Hauser and marketed under several names one of which is Mercedes. Ceramic clocks on eBay or any other auction sites will reveal the Mercedes name as well as other retail names on similar-looking clocks. For example here is a similarly styled Alana clock. Same casting sans gold detailing.

The Alana, similar to Mercedes but without the gold coloured accents
The Alana, similar to Mercedes but without the gold-colored accents

This Mercedes novelty clock is in excellent condition with no chips, cracks or any sign of wear. But is it worth anything? Not a lot.

History of the company

The Gebrüder Hauser clock factory (Die Uhrenfabrik Gebrüder Hauser) was founded in 1923 by Otto and Josef Hauser in Weigheim, Germany. Josef Hauser resigned in 1926 and moved on to form his own company. The company name Gebrüder Hauser then received an additional owner, Otto Hauser. Aside from alarm clocks, clocks with pendulums and chess clock works were produced.

Winder and time set screw on rear of the clock
Spring winder, time set screw and speed lever on rear of the clock

In 1951, the son, Eduard Hauser joined the company. From 1955 onward small affordable alarm clocks and chess clockworks were manufactured. In 1965 Norbert Hauser joined the company and the company name was changed to KG.

The Gebrüder Hauser KG clock factory in Weigheim was eventually closed on 31 July 1998.

Are they common?

There are a number of variants of this clock, mechanical, electrical, and quartz. The mechanical version will command higher prices and is more desirable. Unfortunately, they are throwaway clocks and the cost of servicing would be far more than they are worth.

Nevertheless, it makes for an attractive mantelpiece and as a gift, it is likely the recipient will not keep it wound.

The Cuckoo clock – A brief history

This weeks profile is about the cuckoo clock. I do not have one in my collection but I am always open to new additions. I  know almost nothing about them so I have to rely on knowledgeable people like Megan to fill in the blanks. Earlier this summer (2017) I received an email from Megan. Megan runs a site that specializes in Cuckoo clock products for sale. She asked me to profile her site and I said I would be happy to do so.

“I came across your clock blog and have really been enjoying it. I myself run a Black Forest cuckoo clock blog and I have an article about the history of the cuckoo clock that I think your audience might find useful. I have posted it below and should you find it useful, I would love to have it featured on your blog. If you want to check out my site, visit www.designedintime.com

Perhaps one of the greatest contributions to the Black Forest’s fame is the cuckoo clock. While it is easy to appreciate their charismatic beauty and charm, few realize how deeply rooted these clocks are in Black Forest history. It has been a long journey that has involved several hundred years and thousands of people in one small town.

The story of these incredible clocks starts several hundred years ago in Germany’s royal family. The first description of a cuckoo clock was in 1629 and made by a German nobleman, Philipp Hainhofer. He described a curious little clock that belonged to Prince Elector August von Sachsen. It was said to contain a bird that resembled a cuckoo and it was therefore called a cuckoo clock. Though these clocks were very primitive they did not make any noise.

Enter Franz Anton Ketterer! Ketterer was a clock maker from the Black Forest and is often credited with the invention of the cuckoo clock. It was one day in the 1730s, after pondering the mechanism of a church organ’s bellows that he was inspired to recreate the mechanism inside a clock that contained a cuckoo bird. Thus, the first cuckoo-calling mechanism was born.

Word spread of these fascinating little clocks and it wasn’t long before the cuckoo clock was on the rise in the Black Forest. Most of the villagers in the Black Forest were farmers, but as the eldest sons of the family often inherited the farm, it left the others with a need for supplemental income. Cuckoo clock making was, therefore, a wonderful opportunity for villagers to support their families. During the deep snowy winters, the villagers would toil away at their clock making skills and when the snow melted in the spring they would take their clocks to display in the town. These people, the early cuckoo clock makers from the Black Forest were given the name “Häuslers”.

At the time, hourglasses were the most commonly used timekeepers and the clocks became not only a much more accurate replacement but were also much more artistic. Germany, always a leader in the arts, once again did not disappoint. It wasn’t long before the villagers would have contests to see who could make the most unique and artistic cuckoo clock. People far and wide caught wind of these incredible timekeepers and it wasn’t long before there was an international demand for cuckoo clocks.

Therefore, in 1850, the Duke of Baden founded a clock-making school that offered classes in standard subjects such as math and writing, but also advanced clock-making.

As clock-making flourished a grand contest was offered by Robert Gerwig, the director of a Clock-making School in Furtwangen. It was open to any clockmakers who would compete for the best contemporary clock design. The winner would be funded to complete their design and the winning design was created by Friedrich Eisenlohr. Eisenlohr was an architect whose then-current project was building a new railway through the Black Forest and it was no surprise that the winning design was a cuckoo clock. This clock, however, resembled the rail houses and the design soon became a popular idea that would take over the early designs of the shield clocks. The box and roof style of the rail house design was the precursor to the modern day chalet clock that we see all over the world. Ironically though, there was only one difference between Eisenlohr’s design and the final product. This change would be that Eisenlohr’s design included a cuckoo, however, when the design was put into action, there was not sufficient funding to complete the cuckoo mechanism. Despite this, other Black Forest clockmakers soon figured how to merge both the cuckoo mechanism and the rail house design. Therefore Eisenlohr is still credited with the modern style.

Today, the Black Forest cuckoo clock is a world renowned treasure that has made the small, but beautiful Black Forest villages famous. It comes in a variety of sizes and styles including chalet and carved. While a true Black Forest cuckoo clock is mechanically operated, there are also battery operated clocks called quartz clocks. These can be made in the Black Forest and are often more affordable as they are not authentic like mechanically operated cuckoo clocks.

While visiting the Black Forest I strongly recommend stopping by some of the world-renowned clock makers, such as Hones, Rombach and Haas and Schneider. There are also a number of museums that contain some of the original shield and rail road clocks that are definitely worth checking out. Perhaps my favorite is the German Clock Museum in Furtenwagon as they contain some of the oldest cuckoo clock histories to date.

Next time you see a cuckoo clock, you can appreciate not only the skilled craftsmanship but also the hundreds of years of history that stand behind it!

Photos reproduced with permission. For more information on cuckoo clocks, visit Designed in Time, www.designedintime.com



A tale of two similar but very different carriage clocks

German musical alarm clock
At first I thought they were identical

While at an antique store in Kazabazua, Quebec my wife made an offer on one of these two carriage clocks. The other clock was found at an antique barn just outside of Campbell’s Bay, Quebec, literally an hour’s drive apart and about a week between the two purchases.

I was surprised to find two seemingly identical clocks not far from each other. At first I thought they were identical.

Italian made versus German made carriage clock
German versus Italian made carriage clocks

The one immediate difference is readily apparent. The dial on the left has Arabic numerals whereas the one on the right has Roman Numerals. They have similar dimensions but if you look closely the bases are not the same height. Both are alarm clocks. Both have a “second” hand at the top and a set-time indicator at the bottom section of the dial. Both have seemingly identical carriage style cases made of very similar materials. Both I believe, are 30 hour clocks. There is an access panel on the back of each clock for winding and adjusting. However, that is where their similarities end.

Musical alarm on the left and bell strike on the right
Musical alarm on the left and bell strike on the right

Musical versus bell strike
Musical versus bell strike

I would estimate that they were both made sometime after the First War

The one on the right is made by Junghans or Kienzle, both German clock companies with long and illustrious histories. I tried comparing the plate design and dimensions to a database found here and the closest I could find was Kienzle. However, it is also very similar to Junghans “Joker” style clocks that I have seen for sale on EBay. At one time (around 1905) Junghans had a branch in Venice (Italy) likely a delivery depot for clocks made in Germany. But it is also possible that some assembly may have been done there hence, no definitive markings. I would estimate that they were both made sometime after the First War.

Side views
Side views

Back access panels
Back access panels

The one on the right is made by an Italian maker, Fratelli Borletti. Fratelli Borletti was the only clock factory in Italy prior to WWI and produced only alarm clocks. Fratelli Borletti was later renamed “Veglia Borletti” and produced many car instruments for Fiat, Lancia, Daimler and so on. Today, Veglia Borletti belongs to Magneti Marelli.

The Junghans or Kienzle clock is a musical alarm clock while the Fratelli Borletti clock has a bell type alarm with a striker, though the striker on this particular clock is missing.

One (the musical alarm clock) is working and remarkably clean, the other needs a lot of work. Two very unusual clocks found not far from each other.

Low antique clock prices – are they here to stay

Box clock

There is a peculiar phenomena happening in the clock world today and that is tumbling clock prices. French cartelle clocks, American jewelers regulators, original E. Howard and Willard banjo clocks to name a few have retained their value but clocks that would have sold for hundreds of dollars a few short years ago can be had for almost nothing today. It is not a great sellers market.

Rare Ingraham Huron found on a local online for-sale site
Rare Ingraham Huron shelf clock was once sought after by collectors

Prices will not rise any time soon as modern generations have been conditioned to discarding old for new irrespective of merit and in contradiction to the ideology that recycling saves the planet

Why are clock prices so low?

I have acquired some very nice clocks for ridiculously low prices. While it is part luck there is ample evidence that recent clock prices have never been lower.

There are so many clocks that no one seems to want. Gingerbreads, school house clocks, mantel clocks, Ogees (30 hour or one-day especially), calendar clocks and most garden variety clocks go for very low prices. Good for collectors, not so good for sellers. Prices will not rise any time soon as modern generations have been conditioned to discarding old for new irrespective of merit and in contradiction to the ideology that recycling saves the planet.

Millennials are also facing a very different world than I and my contemporaries faced. Factory work or clerical positions are now considered a good job and young people are staying with mom and dad living in their old rooms as they try to pay off mortgage size student loans. Under those circumstances you will not consider buying a tall case clock or an 18th century French clock.

Thanks but I have no place to put one

My generation (I am in my 60s) did not typically have mechanical clocks in their homes (aside from Grandfather and cuckoo clocks), so younger people today do not have those kind of memories to inspire nostalgia. In my day mechanical clocks were thrown in the trash when they wore out to make way for the electric clock. For young people today the old clocks we loved are not in their sights for purchase. An offer to gift a clock to a millennial is often met with the reply, “Thanks but I have no place to put one” and of course, winding it is always a hassle. A visit to any antique store or clock fair says it all when observations show the average age of visitors and traders are often in their “senior” years.

Junghans Crispi wall clock, not rare but a fascinating history

Prices of clocks really did not begin their rise in value (at least in North America) until the mid to late ’50’s. Since then and up until the late nineties many ordinary clocks commanded high prices. Since the year 2000, the economy has been spiraling downward. Paralleling the declining economy is the decline of prices for antiques of all types. The at-times spectacular and troubling declines in real estate values, increasing unemployment and fewer discretionary dollars have all had an deleterious effect on dropping clock values. With the up-tick in the economy perhaps things will change

I collect clocks and other antiques for interest and history alone

I collect clocks and other antiques for interest alone and only those I can afford which often means that I will try to buy a clock for as little as possible. Collecting in this way allows me the comfort in knowing that there is no worry about future rises or drops in value. I acquire clocks simply because I want them, and pay a price that is worth it to me. If I see something that I do not have, it is unique or has some historical value and it is a reasonable price (to me), I will buy it.

However, many of us collectors are aging and downsizing. Few are in buying mode and many want to sell. The result is a glut of often lesser quality clocks that were once bought at higher prices.

French mantel clock
French mantel clock, a very nice clock at a ridiculously low price

Unless you are prepared to learn how to repair or somehow care for an old mechanical clock you are faced with the prospect that the cost of repair far exceeds the value of the clock. Sentimental reasons always trump repair costs but the message from the clock repair person with integrity is clear, “keep it, it is not worth the cost of repairing”.

Will prices get better? Prices for antiques and collectibles is cyclical and chances are that they will go up again.

Aug Schatz & Sohne W3 – help me find a case for this fine movement

Arrows show new bushings and a newer click spring

W3 refers to the 3 chimes, St Micheal, Whittington and Westminster

This W3 Aug Schatz & Sohne movement is local antique store find for under CAN$20 though it came without a case and chime rods. W3 refers to the three chimes, St Micheal, Whittington and Westminster. The Whittington chime is my favorite.

Aug. Schatz, a German company, are known today for two types of clocks: the Schatz 400-day clock (including the 1000-day clock) and the ships clocks. They are not typically known for shelf or mantel clocks.

The movement has a platform escapement though earlier versions of the W3 came with a pendulum. I believe that this platform escapement has 2 jewels. Later platform escapement had up to 7 jewels. The front and back plates are solid. It has higher quality leaf pinions rather than lantern pinions and there are 8 chiming hammers, three for the hourly strike.

Rear plate
Rear plate

It has been worked on before, perhaps more than once, but it seems to be clean and in very good shape. There are at least 13 new bushings and a newer click spring.

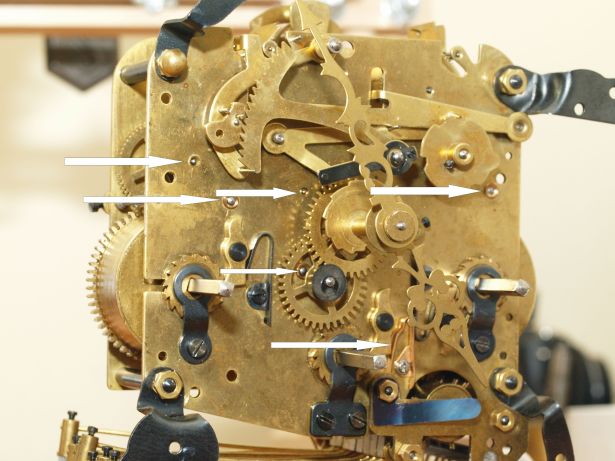

Arrows show new bushings and a newer click spring
Arrows show new bushings and a newer click spring (bottom arrow)

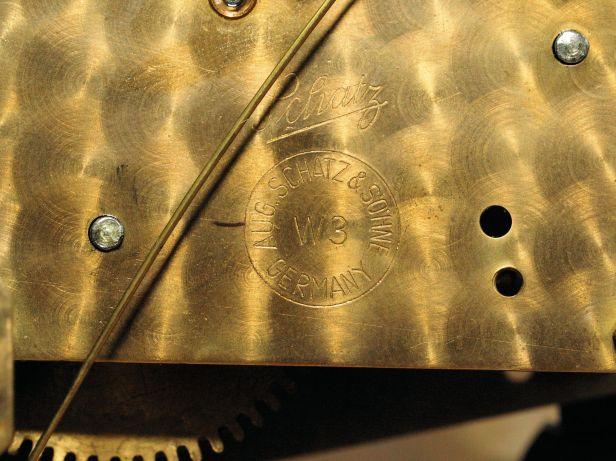

Aug Schatz and Sohne trademark
Aug Schatz and Sohne German trademark showing W3 stamp

I oiled the movement and I wound all three arbors and it has been running happily for a week now, going through its quarter hour chime sequence flawlessly and hammer striking on the hour as it should. Well, at least the hammers moved.

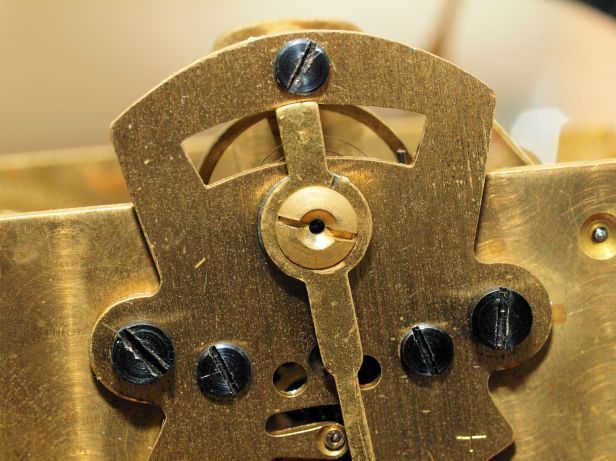

Platform escapement
Platform escapement, jeweled or not

If you have a spare case lying around in your shop I’d be very happy to take it off your hands

If you have a spare case that would fit this movement lying around in your shop I’d be very happy to take it off your hands. It would have been a mantel, shelf or bracket styled clock. If a mantel clock it might look similar to this Juba Schatz bim-bam clock.

Juba Schatz time and strike clock
Juba Schatz time and strike clock

Having a movement without a case is like have a car engine without the body. If you have or know someone with a case that will fit this fine movement please drop me a line.

Doesn’t all that ticking drive you crazy?

Circa 1890 French Black Marble mantel clock

No!

As a clock collector I have quite a few clocks in my home. Most are running daily. There are 34 clocks ticking away in my home as I write this blog article.

I have accepted them as normal sounds in my home

Some collectors have a dedicated clock room in their home but mine are scattered throughout the house. I try to arrange each one so that it fits more or less into the decor of the room. It is a big house and thankfully we have quite a few rooms in which I can display my clocks. I have all manner and styles of clocks including mantel, wall clocks, shelf clocks, carriage clocks, desk clocks, anniversary clocks but just one floor clock. My particular preference is wall clocks; I have 13 of them.

Kienzle clock on display with Ingraham Huron
Kienzle clock on display with Ingraham Huron balloon style shelf clock

Gustav Becker Vienna Regulator and Seth Thomas round top

Arthur Pequegnat Brandon in an upper hallway
Arthur Pequegnat Brandon in an upper hallway

Mauthe Westminster chime mantel clock atop a Stromberg Carlson radio
Mauthe Westminster chime mantel clock atop a Stromberg Carlson radio

So how do I put up with the cacophony of clock noises in the house? One, I thoroughly enjoy the sound of a mechanical clock and two, I have accepted them as normal sounds in my house.

However, there are rules in our house.

  1. No striking or chiming clocks in or near the master bedroom.
  2. No clocks in the bathrooms.
  3. Clocks are stopped in those areas where guests are sleeping unless they do not object.

Are there clocks in the bedroom? Of course, three to be exact. Two are 400 day clocks like the one in the next photo and the third is a banjo clock.

9 inch 400 day Kundo clock
9 inch miniature 400 day Kundo clock

The Ingraham Nordic banjo clock has a front-wind lever escapement and I would challenge anyone to hear this clock across a room. Is is no louder than an old alarm clock. The 400 day clocks are, of course, virtually silent.

We have a Mauthe box clock in our family room that makes such a wonderful sound that I actually pause the TV to listen to it

Ingraham Nordic Banjo Clock
Ingraham Nordic Banjo Clock

This is my advice to those of you who love mechanical clocks but are bothered by the “noise”:

  • Some clocks are loud tickers and some are not. As a general rule American clocks tend to be much louder tickers than German or French clocks. Loud clocks should be placed in noisy areas
  • Avoid clocks that have a striking or a chiming train. If you are not fond of the sound of an hourly or quarter hour strike clock, simply search for a time-only clock.
  • Most chiming clocks (Westminster chimes are the most common) have a shut-off feature located on the dial face.
  • For time and strike clocks simply wind the time side only. However, purists would say that this is not good for the clock.
  • Carriage clocks, clocks with lever escapements (like the Nordic above) and 400 day clocks are exceptionally quiet and do not normally strike or chime (however, some carriage clocks do strike).
  • Locate your clocks in an area where you will not be bothered by them, a dedicated room, for instance.
  • Stop your clock or never wind it. Perhaps you can appreciate your clock as a piece of art or furniture rather than as a timepiece.
  • For the nostalgic, run your clocks only at certain special times of the year.

Box clock
Mauthe Box clock

I rarely hear my clocks. Yes, I am aware of the ticking if I stop and listen. By and large I am not at all bothered by the sounds of my clocks. In fact, we have a Mauthe box clock in our family room that makes such a wonderful bim-bam sound that I actually pause the TV to listen to it.

Junghans Crispi wall clock – from a clock-in-a-box to a clock that rocks!

Junghans Crispi dial face

This post describes the final detail work on my Junghans clock.

My winter (2017) project was an antique German Junghans Crispi time and strike spring driven wall clock made in the style of a Vienna Regulator. It was manufactured in Schwenningen, Germany in 1899. It came to me as a box of parts. To some a box of clock parts and pieces is discouraging but to me it was the challenge I was waiting for.

A clock in a box, how it came to me originally
A clock in a box, how it came

I wrote a multi-part series on the restoration of this clock. Use the search feature on this site to find past articles. I discovered this antique clock from a seller on an online for-sale site in January (2017) and was intrigued with its incredible history as a survivor of the Halifax Explosion on Dec 6, 1917.

On the morning of 6 December 1917 the SS Mont Blanc a French cargo ship laden with high explosives and Benzol collided with the Norwegian vessel SS Imo in the Narrows, a strait connecting the upper Halifax harbour to Bedford Basin. A fire on board the French ship ignited her cargo, causing a large explosion that devastated the Richmond District of Halifax. Approximately 2,000 people were killed by blast, debris, fires and collapsed buildings, and an estimated 9,000 others were injured……and a Junghans clock fell off the wall in a house on Princess court, North End Halifax

At first I was not sure how far I would go with this project but I decided I must go all the way towards restoring this clock to its former 19th century glory.

Most of the clock is original; the movement, the pendulum, coil gong and movement bracket as are the bottom base and top part of the case plus the crown, the backboard, the vertical columns and most of the decorative trim. What has been replaced is the box frame, the front piece that supports the right and left columns. I can only assume that parts of the clock were destroyed beyond repair on that fateful day.

Thirty years ago the previous owner used contemporary materials and techniques to reconstruct the frame and front piece. Although not authentic, I have no objection for two reasons; much of what he has done is unseen and care was taken to replicate period woodworking techniques to reconstruct the case except for the Robertson screws. During the restoration process I have added or in some cases made:

  • Front glass and 2 side glass panels,
  • 3 glass support rails,
  • 3 top replacement finals,
  • 2 newly constructed top finial bases,
  • 2 brass door hinges,
  • 2 brass door catches,
  • 2 brass case stabilizers,
  • 2 hardwood trim pieces and
  • 6 decorative buttons.

Original 1899 catalog image
Original 1899 catalog image

I disassembled the movement and in the process made two errors. In my attempt to re-position the star wheel paddle by bending it just a little bit, I managed to snap it off. Although I might have been able to fix it I do not have the tools, yet! I also managed to snap off the paddle wheel arbor spring which is essentially a thin steel rod. Again, I could have fixed it if I had the tools. As a result the strike side did not function. I cleaned and re-assembled the movement, got the movement running and thought, what is my next move?

Very dirty movement
Very dirty movement; after all it had not been running in years

I might have been content with a time-only clock but I decided that my mission was to have it fully restored. I decided to bring the clock to a horologist that I have used in the past. While it was in the shop, why not have it serviced completely. The horologist did a great job and when I picked it up she remarked that it was the first style of clock she had ever worked on.

What remains? There are two trim item on the left side just below one of the buttons as you can see in the photo below and a corner piece on the right side of the case in the same area.

Let’s see if my skill with router can address these issues.

Missing trim piece
Missing trim piece, not quite finished!

I took out my vintage Black & Decker router and managed to find the correct bit. Since it is a very small trim piece birch rather than oak would do. I made the measurements using my micrometer. The dimensions had to be precise in order to duplicate the trim piece exactly. I am very pleased with the result. Now for the right side.

Last trim piece, left bottom side
Last trim piece, left bottom side

matching trim pieces
matching trim pieces

I made a corner piece out of birch and glued it in place. In the next two photos you can see the very small piece that fits into the corner trim.

Corner piece is missing
Corner piece is missing

Hardwood replacement piece
Hardwood replacement piece

Corner piece is glued into place
Corner piece is glued into place

I am very pleased with the repair.

I posted a reference to this clock in one of my blogs and received a curious letter from someone who thought it was a Chinese clock. I fully understand the comment because the clock is so “blingy”. The many brass buttons and trim items might make one think that it was made in China. It simply reflects the Victorian era, a grand excess of ornament and an eclectic revival of historic styles mixed with middle east and Asian influences in furniture design. A Chinese clock? No, but an understandable error.

Garish Victorian excess but I like it!
Garish Victorian excess but I like it!

It is a clock that will be in our family for years to come

Was it worth the hours of toil and the money to bring this Victorian style clock back to its former glory? Absolutely, without question! The clock works perfectly. The coil gong on the hour and half hour sounds terrific and resonates throughout the house. Visitors to my home are immediately drawn to the clock because of its unique Victorian style. Indeed, it is a clock that will be in our family for years to come.

From a clock in a box to a clock that rocks.



Tick Talk Tuesday #11 – clocks of Cuba

Tick-Talk Tuesday

Tick-Talk Tuesday is about the letters and comments I have received from you, the reader, concerning your clocks, issues you might have had and challenges you face and my responses to your questions with advice on your  particular clock concern(s) and of course, general comments. For those comments and questions that stump even me, I consult within my clock circles for the best possible answer.

On my trip to Cuba in March of 2016 I happen to capture a number of interesting clocks. The two pictured below prompted a comment from JC.

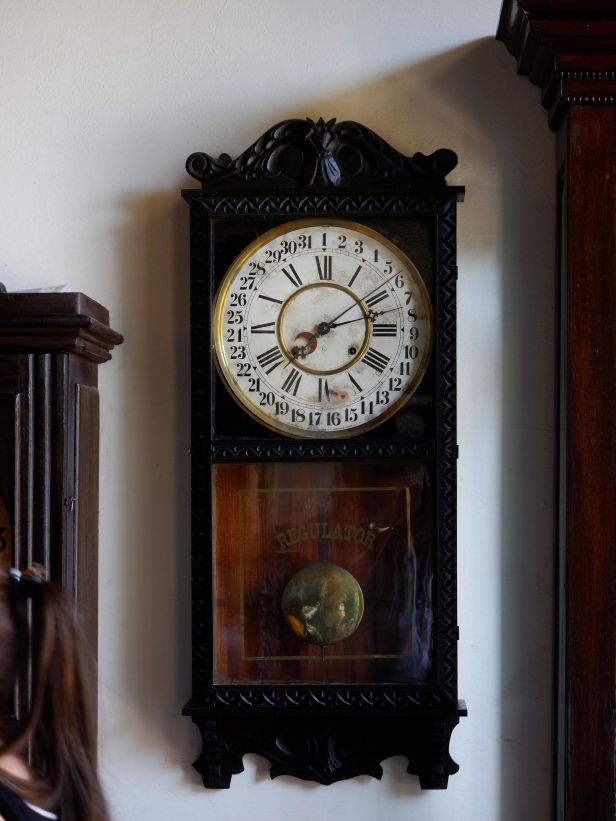

wall clock
Wm Gilbert clock found in a restarant

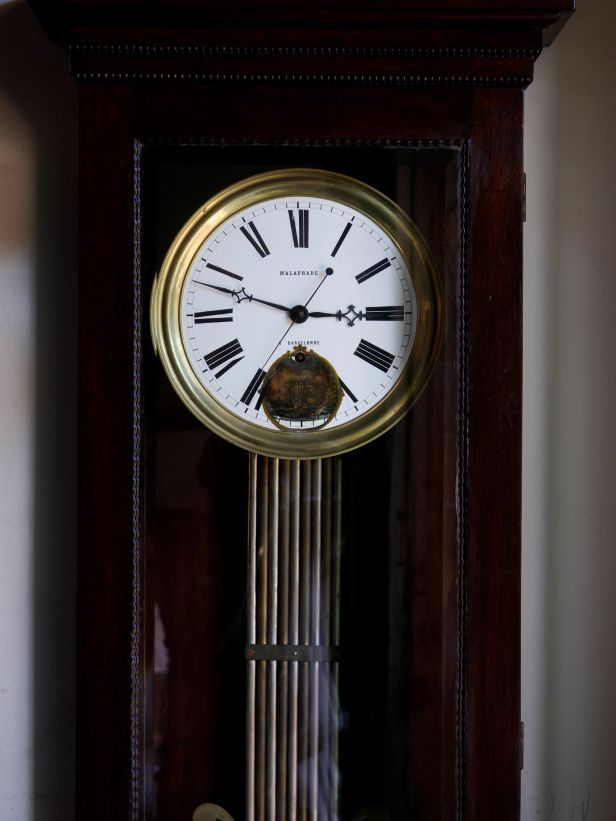

Floor clock
Malaprade Floor clock

The first two clocks are the most interesting to me. The Gilbert looks fairly standard (often called a “Store Regulator”) but I think it’s been painted black. Normally these are in oak cases, occasionally (but rarely) in walnut. The colour would have matched the interior back.

The second clock looks like a fine and expensive Jeweler’s Pinwheel Regulator. I’m wondering if you’re wrong about it being spring driven. These are normally always weight driven. The weight normally hangs behind the pendulum. Is it possible you didn’t see the weight? The movements from these are almost always Swiss made (near the Jura region of France), with pinwheel escapements. They are VERY EXPENSIVE clocks. The movement alone would fetch around 1000$. I have no idea what that circle is on the dial. I’ve seen some with inlaid marble dials, but most have enameled dials like this one. Cases can range from plain to extremely elaborate, and from 5 feet to 9-10 feet.

The name and place on the dial is the retailer where the clock was sold. It is never the manufacturer (this is typical on all French and some Swiss clocks of this type/vintage – the same is true of Comtoise clocks and French mantle clocks).

The rest of the clocks (with the exception of the 2 figure 8 wall clocks) seem to be imported German clocks from 1930 and later. These include both tall clocks and all the 400 day clocks shown. The figure 8 clocks are either American or Asian made copies (likely from Japan) from the early 1900s.

Jauch Drop Octagon – one problem I cannot address…..yet!

Jauch Movement

Jauch wall clock
Jauch German drop octagon wall clock

We often cruise the HiBid sites. While they may be wholly Canadian I am sure there are similar sites in the US. HiBid are a hosting service for antique online auction companies and from time to time clocks come up on estate sales.

One day in early February 2017 we were on a Nova Scotia HiBid auction site and noticed a Jauch drop octagon with a PL42 movement. I made what I thought was a reasonably good bid. We had errands to run that day so I just left the bid, got home later and realized and surprised that I had won. It was a good purchase. After running for several weeks I opened the case up and discovered its hidden secret.

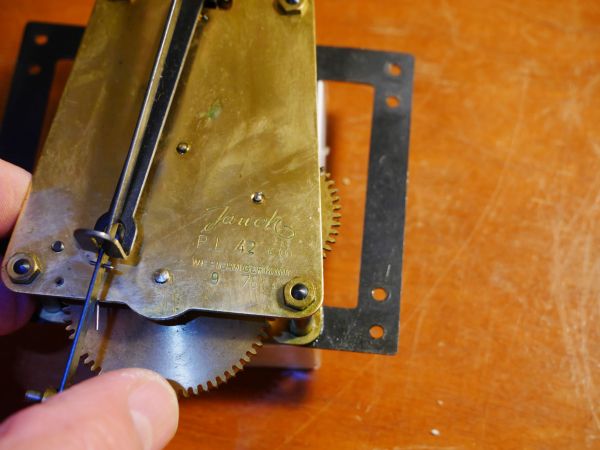

Time only movement
Time-only Jauch movement

The clock easily runs a full 8-day cycle but it gains about 5-7 minutes at the beginning of the cycle and loses the same at the end of the cycle. A dramatic difference! A properly functioning clock is designed to run at an acceptable rate of + or- 1 minute per week but this depends on adequate power to the escapement with very little fluctuation in that power.

Scored pivots and worn barrel arbor holes are real issues for this movement. The pivots are small, a light touch with a buff stick and a minimal polish along with pegging and round broaching the holes should be the first steps in reviving this clock. Bushing work is also quite possible. The barrels are another matter. If worn, they require bushing. The cap is too thin to bush without making a thin flange or leaving the bush a bit proud and peening both sides. The barrel is narrow and it is said that they really get the wobbles when worn.

This is an inexpensive German movement but finely made and well engineered. An overhaul should result in a good long run.

I took the movement apart and discovered two things. One, it needs at least 3, perhaps 4 bushings and secondly, there is a significant gap in the barrel cap as seen in the photo below.

Barell showing a very wide gap
Barrel cap showing a wide gap caused by wear around the arbour, weak point of this movement

Front plate is removed
Front plate is removed showing going train

The real issue for me is the barrel cap. I can attempt to bush the cap but the bushing would likely not hold unless it is peened. The gap is causing an unbalance in power transmitted through the gears as a result of the wear. The soft brass barrel cap is definitely a weakness of this movement. The result is the erratic running described above and a wobble in the pendulum. I contacted a gentleman in Arizona who would be prepared to correct the wear by installing two new bushings on the gear side and cap of the barrel. The cost is 1 1/2 times the value of the clock so I have decided against that option. It is just not worth it!

1 Day Later

I installed 3 bushings. The front side of the escape wheel arbour, the front side of the second wheel and the minute shaft. I re-assembled the movement, oiled it, adjusted the pallets, reinstalled the worn barrel and have put the movement back into its case. It is now running and in the next week or two I will see what effect new bushings will have on the running of the clock. My hope is a marginal improvement given the worn barrel.

A barrel repair will have to wait until I have the proper tools.



Tick talk Tuesday #9 – Mauthe Horse Crown clock

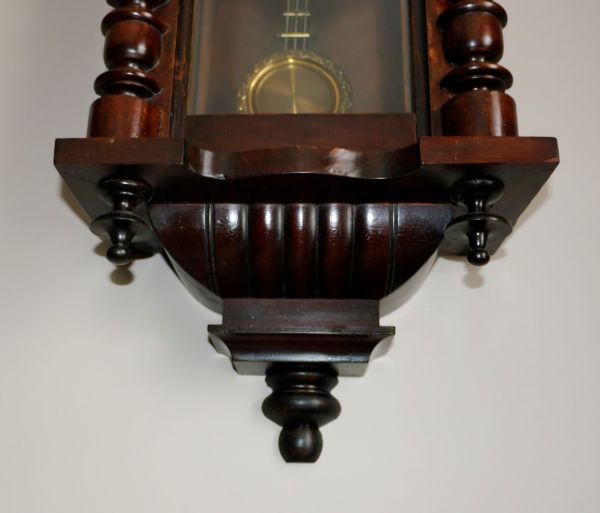

Bottom 3 finials

Tick-Talk Tuesday is about the letters and comments I have received from you, the reader, concerning your clocks, issues you might have had and challenges you face and my responses to your questions with advice on your  particular clock concern(s). For those comments and questions that stump even me, I consult within my clock circles for the best possible answer.

This an antique (circa 1895) Mauthe Horse Crown Clock. Some would say it is ugly but I disagree – it is a beautiful clock. Some would even say it is a Vienna Regulator style of clock. PS has a different opinion.

PS says. “Happy to see this – my parents in law had exactly the same clock ! The wood was brighter and the horse stood (a bit loose) on the roof directly, so most likely a part was missing. We have destroyed (yes! yes!) the wooden case – quite a tough job, German quality. We found it sooo ugly, sooo old-fashioned! We left the the metal parts alive, though. The clock needs maintenance, because it does not continue to tick. I could send it for free to a clock-lover for a build-in somewhere. Any hints? Greetings from Brussels, Belgium”.

This why it is called Horse Crown clock

My reply. “Beauty is in the eye of the beholder. I think it is a good looking clock but it is only my opinion. If it has the same movement as my Mauthe you could send it to me for use as parts should my Mauthe decide to stop.”

Alas PS did not send the movement.



Mauthe box clock – Sold by Eatons under the Solar name or a Forestville?

Dial face with abraded numerals

German box clocks are quite common. Prices for these clocks are all over the map, some ask hundreds of dollars but they can be had for very little money like this Mauthe box clock I picked up in a flea market outside Peterborough Ontario. The hands were faded and the case was in rough shape but I knew it was a good deal.

Mauthe box clock
Mauthe box clock, as found

Thousands of German “box clocks” were made in the first third of the 20th century and even to the middle of the century. The box clock replaced the classic “Vienna Regulator” after the First World War and reflected a minimalist approach to clock design. Most, if not all, were made in Germany. Despite the absence of markings, I have no doubt that this clock was made in Germany by Mauthe.

This vintage clock is 29 inches long by 13 inches wide and 7 inches deep. It has a 7-inch silvered Arabic dial with a spade hour hand and speared minute hand. The lower section of the case door has 5 beveled glass panels (middle one is arched) with brass connecting strips. There are two fluted columns that frame either side of the door and circular glazed viewing panels on each side. The movement is mounted and secured by thumbscrews on a seat board. The clock case is in fair to good condition with no gouges, deep scratches or missing pieces. Refinishing at some point in its life combined with environment factors has resulted in a darker walnut shade. The case is made of cheaper pine rather than the more expensive oak found in higher end box clocks.

The door has its original glass, catches, hinges and swings very easily. There are no case stabilizers (stand-offs) which I found curious given the height and weight of the clock. It has a rod gong twist locking feature about one third up from the longest rod to secure the rods during transport. Rods are brittle and can easily snap off if unsecured when moving the clock.

Rod twist lock
Rod twist lock to secure the rods during transport

I would comfortably date the clock to the 1930s

The dial face has been “messed with” in some fashion. I suspect someone tried to clean the face with an abrasive cleaner as there are scratches on the numerals. The numbers were touched up with flat black acrylic metal paint. Evidence that it was distributed by a Canadian clock company is a maple leaf applique on the crown.

Maple leaf applique and Divina gong
Maple leaf applique and Divina gong

The five-point maple leaf is a common symbol for Canada. There are two possibilities. It might have been sold by the Forestville Clock Company of Toronto or Eaton’s department store under the Solar (Soler?) brand name. I would date the clock to the 1930s.

The price was right so I bought it

The rack and snail, time and strike, spring powered movement with recoil escapement has no markings but for the numbers 42 (pendulum length in cm) and 105 (beats per minute), the letters C,A, with numbers, 79/9 engraved in the lower right of the front plate, presumably a clock-makers mark for servicing in September of 1979 and a serial number, 25226. The back plate is solid brass while the front plate is open. It also has a repeater function on the strike side.

Mauthe movement front plate
Mauthe movement front plate

This is an antique mall find and the seller left a note saying that the clock required servicing (code for not running). While on the wall in the store the clock ran for a few seconds and then stopped. So, yes, it needs servicing. The price was right so I bought it.

Mauthe movement back plate
Mauthe movement back plate

I took the movement out of its case, inspected it and found it very clean. I looked for any obvious signs of wear or damage such as bent arbors or broken teeth and found nothing. The pivots holes were dry though absent of the tale-tell signs of thick black or green oil indicating wear. The mainsprings were wound tight as I would have expected. I oiled the movement, ran it outside the case for a few hours, returned it to its case, re-positioned the 3 strike hammers for the rod gongs and it ran strong, striking as it should on the hour and half hour.

The 3-rod “Divina gong” was, according to the standard German reference, Hans-Heinrich Schmid’s (2005) Lexikon der Deutschen Uhrenindustrie 1850-1980, a Mauthe trade-name registered in 1912. I compared the movement to similar Mauthe movements online and but for minor details it is the same. The case design is plain and free of decoration and is quite unremarkable save for the aforementioned beveled glass panels.

Divina rod gong
Divina rod gong, patented by Mauthe in 1912

I refreshed the case by first giving it a good cleaning with Murphy’s Soap. The cleaning revealed some light and dark patches so I opted to give the case a light coat of walnut stain followed by Poly Wipe Satin clear coat.

Box clock after case refresh
Box clock after case cleaning and refresh

There is not much I could do with the unsightly black smudges on the dial without lifting the silvering so I left that untouched but it still retains that vintage look.

Repainted numerals
Repainted numerals and hands

There were a number of unsightly black marks on the pendulum bob that I cleaned up using Brasso. Brasso was also used to clean up the brass bezel. The beveled glass and the brass strips were cleaned as well.

The Divina rod gong bim-bam strike has an especially pleasing resonance that echos through the house.

For a 50CDN investment the result after a refresh, is remarkable. It shows very well and it is a welcome addition to my growing clock collection.

Tick-Talk Tuesday #7 – SP’s thoughts on dating a Kienzle Weltzeituhr clock

Tick-Talk Tuesday

Hitler's clock
Kienzle Weltzeituhr clock presented to Adolf Hitler in 1939

Tick-Talk Tuesday is about the letters and comments I have received from you, the reader, concerning your clocks, issues you might have had and challenges you face and my responses to your questions with advice on your  particular clock concern(s). For those comments and questions that stump even me, I consult within my clock circles for the best possible answer.

On display in an antique store in Quebec Canada
On display in an antique store in Quebec Canada

Weltzeituhr is German for “World clock”.

The first Kienzle World Time clock was presented to Adolf Hitler on his 50th birthday in 1939 by the government of Würthemberg. The classical design with the world map in the “Mercator” style (cylindrical map projection presented by Gerardus Mercator in 1569) and the moving narrow scale with the time in the denoted cities came from the Heinrich Johannes Möller hired at age 27 and Kienzle’s principle designer from 1931 til about 1970.

The original clock had a bulky “foot” or base (first photo) and was decorated with swastika patterns on the edge. After the war, the decoration was necessarily altered, the base became smaller but the general layout of the dial was preserved through all permutations of the clock, from the early mechanical versions to the electro-mechanical versions and finally the quartz movements in the 80s. A unique feature of this clock is that it shows Germany to be the centre of the world.

Time sequencer
24 hour time sequencer

SP writes, “One way to narrow down date of one of these clocks is to look at the names of the cities. For example, mine has Jakarta, Indonesia as ‘Batavia’ which was the name given by the Dutch who ruled until the Japanese took over in WWII. The name was officially changed Dec. 27, 1949.”

Side view of World Time Clock showing substantial brass surround

Your clock says ‘Germany’ and has ‘Djakarta’. It could have been made between 1942 and 1949

SP wrote further, “I got to thinking and I suspect that further sleuthing may be in order. If you go to the Wikipedia article on ‘Batavia’, you’ll see that the name was changed when the Japanese took over in 1942. It also says that the name change from ‘Batavia’ to ‘Djakarta’ was ‘internationally recognized’ on Dec. 27, 1949 so that there was a seven year period when it was called ‘Djakarta’ by part of the world and ‘Batavia’ by another (Keep in mind that the Germans, allies with Japan, would have been partial to seeing things the Japanese way). Then, at the ‘West Germany’ Wikipedia, I see that ‘West Germany’ was declared on May 23, 1949. Your clock says ‘Germany’ and has ‘Djakarta’. It could have been made between 1942 and 1949 if the names on the dial were determined by Kienzle in strict conformity with official names. Of course, whether or not they were strict in that way would be hard to pin down but it seems to me that an earlier date for your clock’s manufacture seems just as plausible as a later one. It does seem to me, however, that, if it was made in 1950 or later, it would very likely say ‘West Germany’ given the 7-month lead time and the earth-shaking importance of the name change at the time.

Is it a clock or a work of art? Both it would seem

I replied that the clock was likely not produced during the war years when many German plants turned their attention to the war effort. My clock was either made in 1942 or close to 1949.

Kienzle World Time clock
Kienzle World Time clock, circa 1942-49

SP wrote back some time later and shared this with me, “I was also thinking that the war years are unlikely for the same reason. I was just doing a little exercise in marking rough parameters. Another rough parameter: mine has no country of origin as in ‘Made in Germany’ or ‘Made in West Germany’ — perhaps an indicator that it was made for the domestic market. I came here originally to learn how to calibrate the ‘world time zone’ scale. Then I took the clock to my local clock maker to have it serviced and he explained that, on my model at least, you have to take the back cover off and manipulate the metal disk inside with your finger. I see that some clocks, including yours, have a little button or knob on the back half-way down from the center knob that controls the hands and I assume that it controls the time zone scale. Anyway, if you are a visitor to this site looking for the same information, now you have my report.”

Winding crank
Winding crank

On my clock the tiny knob controls both the hands and the zone scale. As I rotate the knob the zone advances incrementally.

I am certainly on the lookout for more Art Deco styled Heinrich Johannes Möller clocks to add to my collection and when I come across another I will be sure to write about it.

Thank you, SP, for sharing your knowledge and experiences concerning this wonderful clock.

So, it seems that my Kienzle was made between 1942 and 1949.

Is it a clock or a work of art? The latter I would submit. Thanks to Heinrich Johannes Möller and his ability to turn a timepiece into a true work of art.

German “schoolhouse clock” by Gebruder Jauch?

Time only movement

The Germans would not have called them schoolhouse clocks, rather, short drop octagon wall clocks. The term “schoolhouse clock” is typically an American description.

The stylistic features of the Jauch reminds me of my Canadian made Arthur Pequegnat Brandon II wall clock

Jauch wall clock
Jauch wall clock

We often cruise the HiBid sites. I am not sure if they are wholly Canadian but may be in the US as well. HiBid are a hosting service for antique online auction companies and from time to time clocks come up on estate sales on various sites. One day in the past week (early February 2017) we were on a Nova Scotia HiBid auction site and noticed a Jauch drop octagon with a PL42 movement and I made what I thought was a reasonably small bid. We had errands to run that day so I just left the bid, got home later and realized that I had won. It was a good purchase.

The stylistic elements of the Jauch reminds me of my Canadian made Arthur Pequegnat Brandon II wall clock pictured here.

AP repaired_3
Brandon II by the Arthur Pequegnat Company of Kitchener Ontario, Canada

I picked the clock up yesterday (mid February 2017). There is very little wrong with it. I took the movement out of it’s case, inspected it, noticed that it was not very dirty, gave it some oil, and put it on the wall and it ran like a charm. Since it is not in dire need of disassembly and cleaning I decided to leave that for another day.

It has some unusual features. The case is solid oak, no veneers and surprisingly heavy for a clock made in 1976. The finish is light oak. The case measures 15 inches wide by 23 inches long, 5 1/4 inches deep. The movement is a time only, typical spring driven recoil escapement stamped PL42, is heavy and is well constructed with quality gearing. The date of manufacture for the movement is September, 1976. The dial bezel is hinged at the top and the spade hands are what you would typically find on this style of clock. The dial is paper on tin. The pendulum has a large and heavy nut on the back of the bob that may not be original to the clock and I am inclined to think it is a replacement. The bob can be seen through a glazed lower access panel. The previous owner made a crude “adjustment” to the case to accommodate the pendulum swing (last photo). One of two wall stabilizer screws can be seen in the fourth photo below. There is a missing top section access panel on the back of the clock that I may or may not replace.

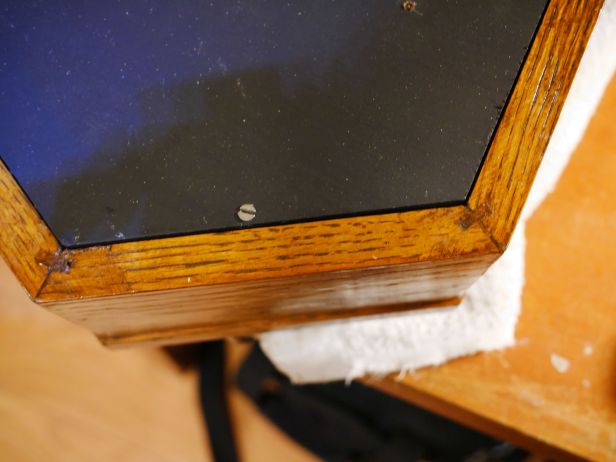

Solid oak construction
Well made solid oak construction

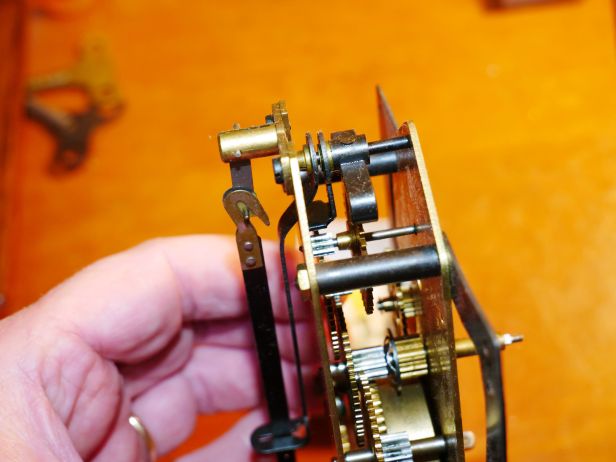

Movement showing escapement
Movement showing escapement

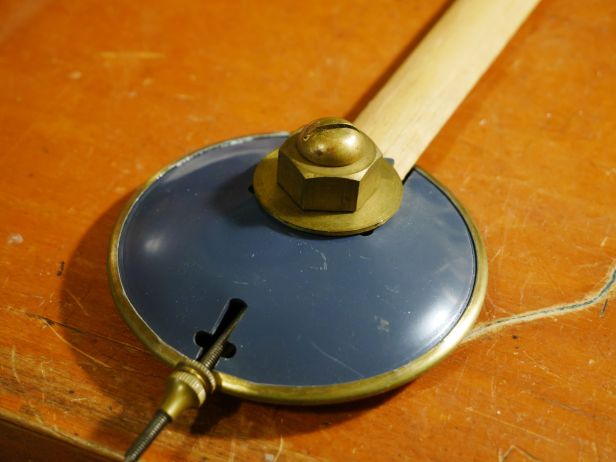

Pendulum and adjustment nut
Pendulum and adjustment nut

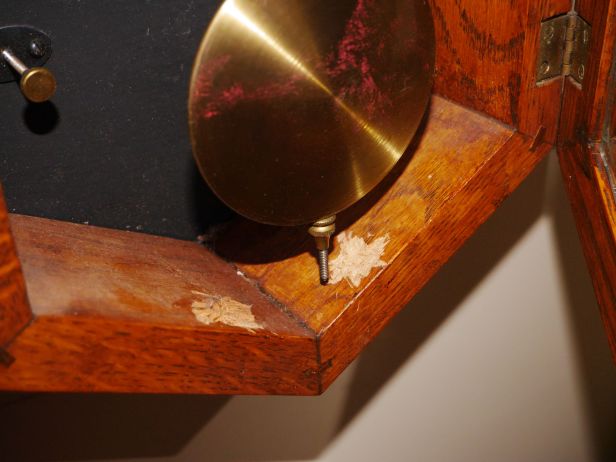

Jauch pendulum adjustment
Jauch pendulum adjustment

The clock is a Gebruder Jauch wall clock. Gebruder Jauch was a clock company from Schwenningen, Deisslingen, Germany. The Gebruder Jauch company manufactured hall, wall, and mantel clocks. They made movements for the trade, both spring and weight driven. In the late 1970’s the company fell victim to curtailed exports and the last recorded year of operation was 1978. The year they began is unclear but 1912 seems to be the consensus. Otherwise, I could find very little on this clock company. Perhaps someone can enlighten me.

Halifax Explosion and the Junghans Crispi clock – Part 3.5 – Postscript

My current project is an antique German Junghans time and strike spring driven wall clock made in the style of a Vienna Regulator. It was made in Schwenningen, Germany. It came to me as a box of parts. To some a box of clock parts and pieces is discouraging but to me it is a challenge.

This is Part 3.5 of a now three point five part series on my newly acquired Junghans Crispi wall clock.

This is Part III and a half of a series on my newly acquired Junghans Crispi wall clock. In Part I described the circumstances by which I came across this clock and it’s incredible story as a survivor of the Halifax Explosion on Dec 6, 1917. In Part II I walk the reader through the servicing of the time and strike movement. In Part III I talk about the challenges of restoring the case.

I felt compelled to write Part 3.5 of the series showing the work I completed on the crown and the additional case work. I wasn’t sure how far I would go in restoring the case but the top finials are so essential to the final look of the clock that I decided to add these important elements.

The original finials might have been a little taller and wider much like the bottom centre finial

I bought three 3 and 3/4 inch finials from Timesavers. A wood lathe would have been ideal if I had one. I tried to imagine how the original finials looked and took a chance on what I felt were the most ornate without being too ostentatious. I believe they do it justice and complete the clock. The original finials might have been a little taller and wider much like the bottom centre finial but Timesavers has a rather limited selection. If I come across something closer in design in the future I can simply pull these out since they are not glued in place.

Support post for middle finial
Support post for middle finial

As you can see above, I have clamped the final bases to the crown and test fit the three top finials which had just been given their first coat of stain. The support post is made of oak and anchors the crown to the case. It will eventually be screwed in place. The post not only attaches the crown to the top of the case but also supports the middle finial base (next photo).

Test fitting the top finial
Test fitting the top finial

The lion’s head on the crown has also been nailed in place using its existing holes.

Buttons and decorative nails
Buttons and decorative nails

The case has an unusual number of decorative nails and buttons. Fortunately most of these decorative trim items came with the clock. Everything you see in the photo above is original save for the upper two floral brass buttons. Years of grime and dirt has been removed from the original decorative buttons, nails and pins.

Crown in place with all three finials
Crown in place with all three new finials

The clock reflected the Victorian era (1837 to 1901) of showy complicated designs with an emphasis placed on bright and brassy surface decoration

The crown is in position although for the moment it is merely sitting in place. I have added two new decorative nails to the finial bases. Although they are not exactly in the style of the other decorative nails, they are in keeping with the period look of the clock. The two brass buttons on either side of the movement support bracket (above photo) are replacements. The buttons, nails and trim pieces on the top part of the case, are original and cleaned up nicely.

Full view of case
Full view of case

This is a full view of the case with all decorative nails, buttons and trim pieces attached. Below the movement support bracket and on the side columns are two half moon wood pieces (one round decorative pressed wood applique cut in half) that replicate the original detail.

The clock is very garish; some might even call it gaudy. Other clocks I have from this period (1899) are not as pretentious as this one. This look may not be everyone’s cup of tea, but it appeals to me. I am sure that it will always be an interesting conversation given its fascinating history. Overall, I would say that the clock accurately reflects the Victorian era (1837 to 1901) with showy complicated designs and an emphasis placed on bright and brassy surface decoration.

final look
Final look with crown attached and movement installed

The above photo shows the case with movement, pendulum, face, brass bezel and hands attached. At this point the clock is about 90% complete. The final steps in this project are securing the door to the frame with hinges purchased from a supplier, attaching the door catches, installing “new” glass, applying a protective top coat finish using Minwax semi gloss wipe-on poly and finding a way to replicate a wood trim insert piece on the left column just above the rectangular brass decorative piece.

Arrow indicating missing trim piece
Arrow indicating missing trim piece

The clock came without the glass and it obviously must be replaced. I managed to find an old glass window in my area with sufficient “waviness” to replicate the glass at the time. I will have the glass cut and installed by a repair shop locally.

In the final analysis is this a restoration, repair or a replication?

Much of the clock is original; the movement, the pendulum, coil gong and movement bracket as are the bottom base and top part of the case and the crown, the back board, the vertical columns and most of the decorative trim. What has been replaced is the box frame and the front piece that supports the right and left columns. The previous owner used contemporary materials and techniques to reconstruct the frame and front piece. Although not authentic, I have no real objection because much of what he has done is unseen. I have added or will have added some decorative trim pieces, new glass, 3 new finials, hinges and catches, finial bases, used yellow carpenter’s glue where absolutely necessary,  stained the case and will remove the rust on the coil gong.

In the final analysis is this a restoration, repair or a replication? Perhaps all three. However, to the casual observer it is an attractive albeit brash, lovingly restored antique Junghans Crispi wall clock that fell off a wall, in Halifax, Nova Scotia on that fateful day, December 6, 1917.

I hope you enjoyed the series and if you have any comments, ideas or suggestions do not hesitate to leave me a message.



Website Powered by WordPress.com.

Up ↑
