Waterbury 30 hour Ogee clock – servicing Part I

My hope was that it would be a relatively straight forward exercise

This is Part 1 of servicing this 30 hour Waterbury time and strike movement. I honestly thought it would be relatively straight forward exercise. Dis-assemble, clean the parts, polish the pivots, do a little bushing work and voila! Not so.

I have worked on many clock movements but I have never seen quite the extent of wear that I found on this movement. 150 years certainly takes its toll.

Ogee clock showing replacement pendulum bob

Some time ago I profiled this Ogee clock. To reiterate, in 1839 the first prototype movement was produced for Chauncey Jerome by his brother Noble in Connecticut, USA. Jerome thought that a simple one-day clock could be produced far more cheaply than those with wooden movements at the time. Brass movements were more robust, could be transported easily and were unaffected by humidity. The simple case added to the movement was the Ogee named for its “S” shaped moldings. The success of the Ogee clock convinced other makers that there was money to be made in clock production.

This particular 30 hour time and strike Waterbury Ogee clock was produced at the height of Ogee clock production (1870s) and many thousands were sold. This is a very fine example. Absolutely nothing needs to be done to the case; it is in exceptional condition. The movement, well, that’s another story. This was not a working clock when I got it.

After disassembling the movement I discovered two things. One, there was evidence that it had been worked on before – as expected. There were punch and stake marks on the movement plates to close pivot holes and there was considerable wear in the lantern pinions.

Four of the wheels have lantern pinions, with 5 trundles apiece. Trundles are the loose wires within the 2 shrouds. Dust and dirt as well as misalignment of wheel and pinion due to worn pivot holes can exacerbate the wear issue. The trundles on all 4 lantern pinions are very worn as you can see in the next two photos. I discovered why this clock does not run. When the gear teeth hits two worn trundles at precisely the right angle it locks the gear and stops the clock.

Another wheel with worn trundles within the lantern pinion

Professional clock-makers encounter these issues fairly regularly. Indeed, one of the most common operations in clock repair is replacing bent, broken or worn trundles. There are different methods of performing this service and the method I will employ is to drill into the shroud, extract the worn trundles, cut new ones out of pivot wire, insert them and re-knurl the shroud.

In the meantime bushing work was performed; 10 bushings were installed, 5 on the back plate and 5 on the front, including one on the escape wheel bridge. I re-assembled the movement knowing that the trundles had to be replaced, but despite new bushings the movement ran only marginally better.

Part II (Jan 2nd) details the procedure I followed to replace the trundles in the lantern pinions. Stay tuned.

December 9, 2017

Waterbury Ogee (OG) 30 hour weight driven clock and why they are so undervalued

Why are these clocks so cheap? Discounting the wild prices some seem to be asking on online for-sale sites, a good example can be had for almost nothing. Why? Allow me to explain.

This 30 hour time and strike Waterbury Ogee clock was discovered at an antique store an hour’s drive away. The store has a well-deserved reputation for pricing items for a quick sale and each time we visit there is always a new selection of interesting clocks as well as plenty of other fascinating antiques.

Ogee clock, clock design that originated in the United States in the 1830s, distinguished by a case (usually pine) the front outer edges of which are curved into an S-shape (ogee). This shape is formed by the union of a convex and a concave line. A mass-produced variant of the shelf clock, the ogee clock stands about 30 inches (75 cm) high and is usually weight-driven. The movements were usually made of brass and were made to run for 30 hours or eight days. (Brittanica.com)

The Ogee clock – the beginning

In 1839 the first prototype movement was produced for Chauncey Jerome by his brother Noble in Connecticut, USA. Jerome thought that a simple one-day clock could be produced far more cheaply than those with wooden movements at the time. Brass movements were more robust, could be transported easily and were unaffected by humidity. The simple case added to the movement was the Ogee named for its “S” shaped moldings. The success of the Ogee clock convinced other makers that there was a lot of money to be made in clock production.

My new acquisition

The seller knew nothing about clocks and his only interest was to move the item. The proprietor said it was not working. Just as well, I bought the clock for almost nothing. In my opinion these clocks are terribly undervalued.

It came with a winding crank and both weights but no pendulum. A 2.2oz pendulum bob was later fitted to the movement.

The dimensions are 4 1/4 deep X 15 1/4 wide X 25 3/4 inches high. The clock strikes on the hour to conserve the weight drop. The coiled gong on the Waterbury stamped base is loud, and the striking is frantic.

The movement will run and stay in beat (relatively!) but stops after about 15 minutes. That is to be expected and a thorough servicing is in order. Stake and punch marks throughout the movement tell me that the movement has been worked on more than once.

Ogee clock label shown with a 2.7 oz pendulum, also testing with a 1.7 oz pendulum

The Rosewood veneer is in remarkably good condition though the outside four corners have been compromised. The label is in very good condition with two small pieces missing at the bottom edge and water staining on the right side. The painted zinc dial with Roman Numerals has some flaking and the numbers are somewhat faded but it otherwise looks very good for the age of the clock. Both spade hands and Ogee hands are on similar dials I have seen so I do not know if these are correct/original. The lower reverse painted tablet is silk screened, looks to be marred around the centre area and the entire scene has minor crackling but it is vivid and largely intact.

This is a Type 2.411 movement introduced by the Waterbury Clock Co. when Chauncey Jerome worked for them briefly in 1856-1857 after he went bankrupt. Found in Chauncey Jerome-labeled clocks with movement stamped, “C JEROME.” and also stamped “Waterbury Clock Co. CT” in later (1870) Waterbury clocks. This movement has the Waterbury stamp.

There is a Canadian connection to this movement. The Canada Clock Co. of Whitby, Ontario 1872-76 made 30 hour weight driven, time and strike movements based on an American design. Research indicates that the Collins Brothers (there were three: William, John, and Edward Collins) made a close copy of the OG movement used by the Waterbury Clock Company in Connecticut, a testament to the excellent design of this movement.

Why are these clocks so undervalued?

The economic collapse of 2008-09 prompted many to sell their clocks and glut the market.
The generation of folks who cherished these clocks are dying off.
The newer generation consider them irrelevant and are not interested in them.
30 hour clocks are a tough sell because of the hassle of winding them daily.
Winding them daily means that most have considerable wear and the cost of repair exceeds the value of the clock
Lastly, many tens of thousands were made so they are not especially rare.

Ten years ago an Ogee in good condition would easily sell for $200 to $300. Today I see prices all over the map but none close to the prices they once commanded.

Expect a report on the servicing of this 30 hour Waterbury Ogee in the weeks to come.

November 22, 2017

Timezone clocks – keeping track of family across the country

It this day and age it is very common to have family scattered to the four winds. What time is it is such and such? Why not create timezone clocks? I live in Canada and I have one daughter in Calgary, Alberta, one of our mid-western provinces and one in Victoria, BC, on the west coast of Canada. We keep in touch with Skype and telephone and as I am working on my computer in the kitchen area of my home all it takes is one glance upwards to see what time it is in Calgary or Victoria.

This is my trio of clocks. The two on either side are eight inch while the centre clock has a 12 inch dial. The centre clock is a New Haven time and strike from the 1930s taken out of a decommissioned school house in Saskatchewan in the 1950s. My aim is to have three 8 inch dial clocks. Once I find another 8 inch time-only clock the New Haven will be replaced.

The clock on the left is a Waterbury Arion. It came to me without glazing and bezel but ordering a replacement was easy enough through a clock supplier, Perrin in Canada. While writing this blog I decided to touch-up the 7, 8, and 9 numerals. It is the quietest of the three clocks.

The one on the right is Sessions Drop Octagon. The dial face is in rough shape but I decided to leave it as-is. The clock came from a decommissioned schoolhouse in Springhill, Nova Scotia in the 1960s.

It is by far the noisiest of the three but you get used to the sound. All three will be time-only clocks, preferred if you are looking for the dedicated function of simply telling the time. Of the three my favorite is the Waterbury. Even with the “messed-up” dial face, it is the most accurate of the three and will run for 12-15 days on a single wind.

Keeping track of family all over the country is part of being a normal modern family and timezone clocks certainly help.

July 24, 2017

New Haven Short Drop Octagon – two curious features

I recently purchased a vintage Canadian made New Haven 8-day short drop octagon time and strike clock. It is in the familiar style of a schoolhouse clock.

The New Haven Clock Company lasted just over 100 years.

Sadly, The New Haven Clock Company lasted just over 100 years. Much of the history of the New Haven Clock Company comes from this informative site.

In 1853 the Haven Clock Company was founded in New Haven, Connecticut by Hiram Camp (1811‑1892) and other clock-makers. The company’s mission was to mass produce inexpensive brass clock movements for use in clocks. In April, 1856 The New Haven Clock Company buys out a competitor’s company, the Jerome Clock Company. They move their production to the former Jerome factory and New Haven begins making clocks under their own trademark. In 1870 some of New Haven’s clocks are marketed under the Jerome & Co. brand.

In 1885 the company stopped selling clocks other than their own New Haven brand. In 1890 the company developed serious financial problems and efforts were made to keep it solvent until 1897 at which time the company emerges from reorganization. In 1902 Walter Chauncey Camp (1859-1925) began to turn the company around. In 1923 Walter Camp steps down as head of the company and is succeeded by Edwin P. Root.

In 1929 Richard H. Whitehead replaces Root as president of the company but by this time New Haven is again facing financial difficulties which is compounded when the Great Depression hits in November, 1929. Whitehead is able to keep the company afloat during these troubled times and the firm becomes profitable once again. From 1943 to 1945 the company uses its manufacturing plant to aid in the war effort, producing products almost exclusively for military use. In March of 1946 The New Haven Clock and Watch Company becomes the new name of the firm after it reorganizes once again. It returns to what it did best before the War, once again making clocks and watches.

The 1946 reorganization eventually leaves the company vulnerable to foreign investors and it loses control to a consortium of Swiss watchmakers. The man who had successfully shepherded the company through the hard times of the Depression years, resigns as president. In 1956 the New Haven Clock and Watch Company files Chapter 10 bankruptcy in a U.S. court. Its fortunes have declined precipitously since Whitehead’s departure and it never recovers. In 1960 the company goes out of business and the production lines are closed. The facilities are sold through a combination of public auction and private negotiation in March of 1960.

The New Haven Clock Co. of Canada was established at Brantford, Ontario (Canada) in 1906. The New Haven Clock Company of Canada was a subsidiary of the New Haven Clock Company of America. Both mantel and wall clocks were made in the Brantford plant with Canadian wood cases, but the spring-driven pendulum movements were brought in from the U.S. The Canadian arm of the New Haven Clock Company closed in 1956.

This clock was made in the 1930s and taken out of a decommissioned one-room schoolhouse in 1963.

I am always fascinated by a clock’s history and I always ask a seller how much they know about it

I am always fascinated by a clock’s history and I always ask a seller how much they know about it. I believe a clock’s provenance is almost as important as the clock itself. The seller, a man in this seventies, related in great detail how he acquired the clock from the Lone Spruce School in Invermay Saskatchewan in 1963 when the municipality was selling off school assets. Saskatchewan is a western province of Canada. Invermay Sask is a village in the east-central region of Saskatchewan, Canada with a population of 247 in 2011. Invermay is about 75 km west of Canora or about 50 km east of Wadena on Highway 5.

Lone Spruce school was built between 1913 to 1915 on the west side of section 1 township 34 range 8 west of the second meridian, and it is noted by local historian Caroline McDonald, that the school was 1/2 mile north from each of the north and south corners of the section of land. Classes opened under Mr. Oliver, during World War 1. A new school was needed around 1950-1951, and the new school yard chosen was section 8 township 34 range 7 west of the second meridian, the old school yard having been two miles to the west of the new school. The old school house sat empty for 10 years and was removed in 1959-60. When the new school closed for classes, the Lone Spruce school house was re-located into Hazel Dell around 1959-1960 and decommissioned in 1963 at which time its assets were sold.

Why a school board would order time and strike clocks is an interesting question.

#331 appears on the inside access door. The number 331 was likely an inventory number that referred to one of a lot purchased by the municipality in the 1930s. Why a school board would order time and strike clocks is an interesting question. My other schoolhouse clocks are time-only. Why the access door is a solid sash rather than glazed is another curious question. The combination of the solid sash and time & strike movement must have hit a particular price point for the school board at that time. The teachers were likely instructed not to wind the strike side.

The New Haven clock is now one of three “time zone” clocks on our kitchen wall. I have a daughter in Victoria BC, and a daughter in Calgary, Alberta and at a glance I can see the time in those two regions of Canada. The New Haven clock is our local time; the Victoria clock is a Waterbury and the Calgary clock is a Sessions.

This clock is on my calendar for servicing which I will cover in an upcoming article.

February 15, 2017

Ingersoll Waterbury mantel clock servicing and a little mystery thrown in for good measure

OLYMPUS DIGITAL CAMERA — Ingersoll-Waterbury time and strike mantel clock

When I bought my Ingersoll-Waterbury clock a year ago I knew that it had not been serviced but the price was reasonable and it was running. I got a lot of other projects out of the way and have finally gotten around to giving this clock a little care and attention.

Ingersoll-Waterbury clocks were sold in Canada; had Canadian made cases using American made Waterbury movements and were sold in department stores across Canada. This clock was distributed by the G. R. L’Esperance Co. from Montreal, Quebec. The label on the inside of the back access door says “Ingersoll-Waterbury Co. a division of Waterbury Clock Co.”. Ingersoll-Waterbury was the Canadian arm of the Waterbury Clock Co. Year of manufacture, I am estimating was somewhere between 1940-1944 when brass was in short supply.

The case is in very good shape though it was likely inexpensive to make. Some cost savings are evident in the use of a paper dial, flimsy clock hands and a plastic bezel with flat glass. However, I was impressed with the well designed and sturdily built movement and surprised that it did not take much to service this clock.

One unique feature is a swinging door with plastic bezel and flat glazing attached to the case by two hinges that open up to reveal the clock face and hands.

The clock has a steel frame with a brass electro-plating as a rust inhibitor and brass bushings punched into drilled holes in the steel. Steel plates are not unusual as there were a number of manufacturers which used steel as a cost savings measure, for additional strength or because brass was in short supply. The plates were often plated with nickle as in the case of Arthur Pequegnat clocks or brass as in the case of this clock. One of the first things I noticed when I dis-assembled the clock were the number of punch marks adjacent to the bushings an example of which can be seen in the next photo. It must have been difficult to achieve a tight fit for the brass bushings; factory punching ensured that the bushings remained in place.

I have just completed the servicing. The clock required three new bushings. Punching new brass bushings into the factory bushings took a little more care and attention than usual as I did not want to loosen the existing bushings.

Dis-assembly, cleaning, servicing the mainsprings, installing new bushings are no different than any other American movement. Re-assembly of the strike side requires the synchronizing of the strike side by aligning the levers and wheels correctly which usually takes several attempts for me.

The one real challenge I had was aligning the strike hammer so that it would actually strike the gong. I must have bent it when I took the clock apart. What was I thinking? I could not see the solution so I put it aside until I came up with the fix. I ended up bending it back to its correct position.

While re-installing the movement into it’s case I noticed something strange on the bottom of the clock, a mysterious hatch. On the bottom right hand side of the clock (indicated by the arrow) there is a hatch that measures 2 3/8 inches by 2 3/8 inches. On it there is an inscription which reads

“FRONT, if you know what this hatch is for, you know more than I do” signed J.H.Ross May 24, 1967.

“Front” refers to the orientation of the hatch. What is it for? I posted this on the NAWCC discussion board site and so far no-one has come up with the answer.

Why would anyone put a hatch on the bottom of this mantel clock?

Was the hatch added later on? There is a lighter colouring of the wood to the left of the green felt which seems to indicate that a hole was cut out later to accommodate the hatch.

A clasp on the other side of the hatch secures it in place and allows it to be removed.

Was the trap door a chamber to hide items? Why, when it simply opens up into the case interior.

And there’s more! Here is a view of the entire bottom showing a second cutout (see arrow) on the left side. Why go through all this trouble?

The clock is all back together and in the process of being regulated but I sure would like to solve this mystery. It has taught me one thing, always look at the bottom of a case.

November 30, 2016

New glass and bezel for Waterbury Arion

I am not sure where you would have found a Waterbury Arion. It is really too small for a schoolhouse clock or an office clock unless it was a tiny office. Nevertheless, enough of them were made since they are fairly common.

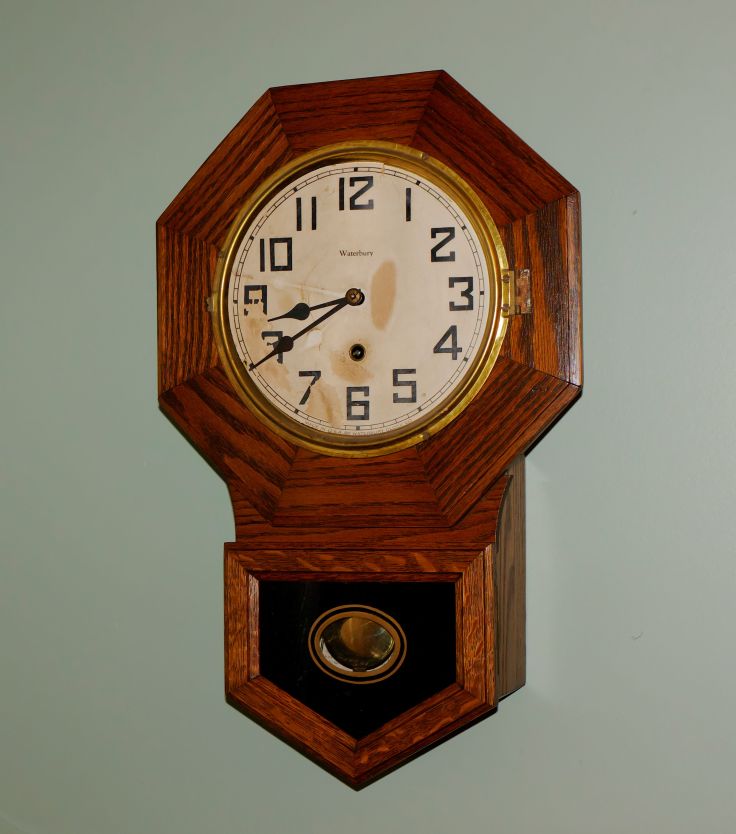

rs_1080437 — Waterbury Arion octagon short drop without glass and bezel surround

I bought this time-only clock from an older gentleman in Halifax, Nova Scotia.. When he advertised it on a local online for-sale site the photo was so poor that I did not notice that it was missing a bezel and glass so when I arrived at his home we negotiated a slightly lower price.

The oak cabinet is in very good condition as is the reverse painted glass sash. On the other hand, the paper dial is not in great shape but I have decided to leave well enough alone. I think it adds character to the clock. It is a strong runner and keeps very good time. Since it is only 19 inches tall it will fit just about anywhere in a home. A year has gone by and I like the clock so much that I felt it was worth putting on a glass dial and brass bezel.

I measured the clock face and ordered a new bezel and glass. Not having done this before, I thought the glass and bezel would come as one complete assembly or if not complete, a simple way of attaching the glass. What came were 4 brass clips, a hinge without screw holes, the brass bezel, convex glass sized to fit and a 1 1/2 inch long brass tab. Not what I expected!

rs-waterbury-octogon-short-drop-9 — Original hinge prior to sanding and cleaning

I did not see the need to replace the original hinge as it is in very good condition. I learned that soldering will only hold if the parts to be soldered are cleaned/sanded beforehand and petroleum-based plumber’s flux paste is used, plus I chose to use a propane torch rather than a soldering iron to get as much heat to the parts as I could. Capillary action is required to make the solder flow so there must be sufficient heat.

Although I need more practice soldering I achieved a strong bond. At hand were Robertson screws to secure the hinge to the case which will be replaced with slotted screws at a later date.

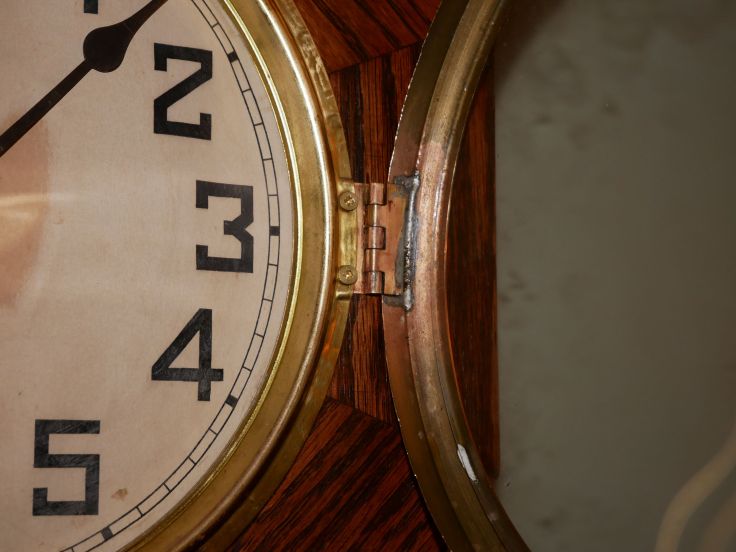

rs-bezel-and-glass-on-a-waterbury-_4 — New bezel installed with old hinge

Next was getting the glass into the bezel. Here is one of the clips that I soldered into place. There are 4 of them and each one was a minor frustration. If the solder bond is strong enough the clips can be safely bent and I was able to bend these with ease.

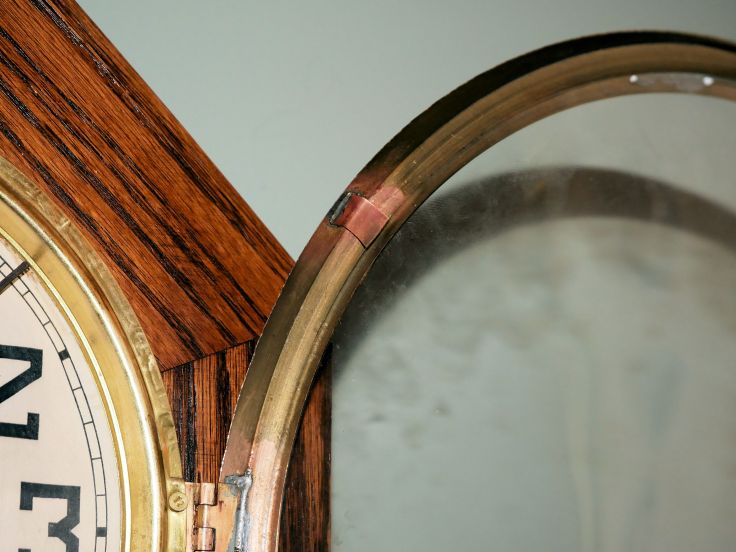

rs-bezel-and-glass-on-a-waterbury-_3 — Bezel showing a clip soldered into place

The high heat of a torch will discolour the brass. Too much heat and the outside of the brass will also be discoloured. Must be beginners luck, the outside of the bezel is fine.

When pushing the tabs down to anchor the glass I put a small chip in the glass which is not otherwsie noticeable. I did not want to put an anchor slot in the left side of the bezel which is what the 1 1/2 inch tab is for so I decided to trim it and use it as a bottom support for the bezel assembly, just under the number “6”. Not ideal but very functional.

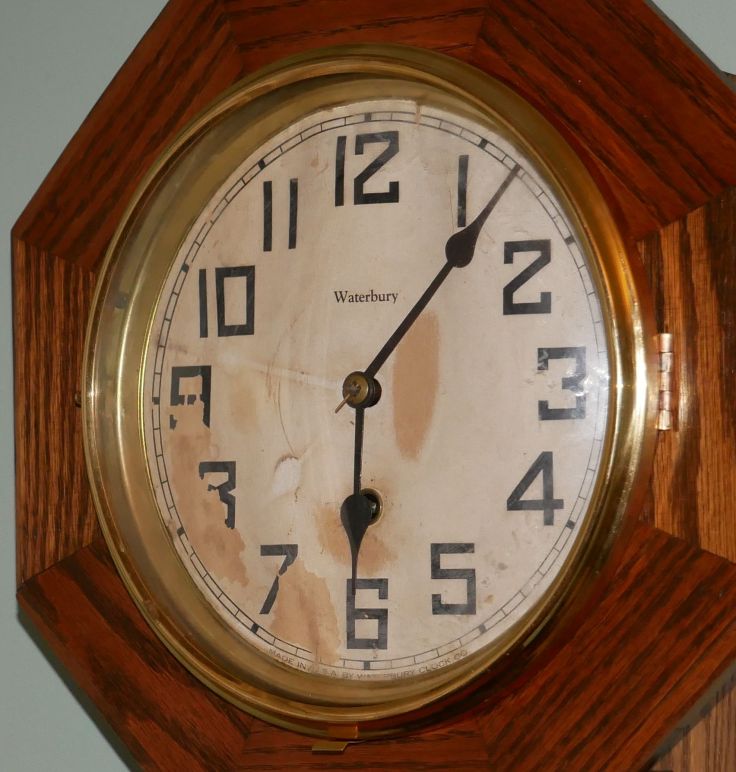

rs-2bezel-and-glass-on-a-waterbury-_1 — You can just see the support tab under the 6

In the process I also cleaned up the brass around the dial pan to match the new bezel/glass surround. Despite minor frustrations and the need to stop and think as I went along the project is now complete and the clock looks much more better.

rs-bezel-and-glass-on-a-waterbury-_1 — Completed bezel project.

A great little project and I learned more about soldering along the way.

Now to repaint the numerals.

November 17, 2016

What the term a “fully serviced” clock really means

Everybody appreciates a serviced clock when they are making a purchase. However, there is no acceptable definition for the term “Fully Serviced”. Fully serviced may mean one thing for the amateur clock collector and repairer and another to a professional clock repair shop.

The other day I was responding to a FaceBook post which offered a mantel clock for sale. The owner said that the clock, a 100+ year old antique, had been “fully serviced” so I asked him what he meant by that since I was curious. He said the clock was ultrasonically cleaned, the pivots were inspected, and the clock was oiled. He did not actually state that the clock was disassembled before cleaning but I assume that it was done properly although dunk and swish (or duncan swish) techniques are used more often that we realize. Dunk and swish involves immersing the entire unassembled movement into a cleaning solution and calling it “cleaned”. However, no reputable clock repair person (horologist) would employ this method. By using the term “fully serviced” the seller naturally expects to get several tens of dollars more for the clock.

No doubt who ever buys the clock will get a couple of years of service before it again needs attention. My concern is the state of the bushing holes and of course the pivots in a 100 year old clock and chances are it was not serviced properly in it’s past life.

I have disassembled and serviced a few clocks in my limited experience and my observation is that the older the clock the more the need for bushing and other repairs. My definition of servicing is this; disassemble and totally strip down, ultrasonically clean, springs unwound, inspected and oiled, pivots inspected and polished, pivot holes pegged and bushings installed / replaced if necessary, other parts inspected and addressed and the movement tested and regulated before re-installing in the case. My servicing also includes a case refresh. I serviced a 1920s Sessions Beveled No. 2 clock this spring (2016) that required 12 bushings.

Sessions Beveled No. 2 case — Sessions Beveled No. 2 time and strike in as-found condition

My Arthur Pequegnat Maple Leaf kitchen clock pictured here was professionally serviced in 2015 by a reputable clock shop and also required 12 bushings.

RS Pequegnat fan top (3) — Arthur Pequegnat kitchen clock in as-found condition

I am currently working on a 1940s Ingersoll Waterbury which was not too badly worn but still required 3 new bushings.

This American Ingersoll Waterbury clock, circa 1940, required 3 bushings,

If you poke around some of the clock for sale sites you will see a description that reads something like this, “all of our clocks are fully serviced and tested to ensure reliable running”. But if you bring up the profile on any one of the clocks offered for sale they generally do not describe how it was serviced and / or the actual service done on the clock.

I see plenty of antique and vintage clocks on the local online for-sale sites. Many have not been serviced as you would expect but some sellers claim that their clock has been fully serviced without providing any detail about what was actually done or whether it was a backyard tinkerer who did the servicing or a professional shop. The Juba Schatz mantel clock you see in the first photo might even be described as “serviced” but all I did was take the movement out of it’s case, inspect the pivots and other parts, oil the movement and return it to its case which took about 10 minutes.

“Fully serviced” to me means defining the term when selling a clock. A reputable for sale site should say something like this, ” has been fully serviced, having been totally stripped down, ultrasonically cleaned, reassembled, runs the full length of the wind and keeping excellent time, +/- 2 minutes per 7 day period”. A little more detail would be beneficial such as specific areas that needed to be addressed or particular repairs made if required but that is about as close as you will get and for those serious about a clock purchase it might be good enough.

Fully serviced means different things to different people. Always ask before you buy.

October 26, 2016

Ingersoll-Waterbury time and strike mantel clock

My next project is this vintage Ingersoll-Waterbury time and strike mantel clock. Ingersoll-Waterbury clocks were sold in Canada and had Canadian made cases using American made Waterbury movements. G.R. L’Esperance of Montreal were the sole distributors of Ingersoll-Waterbury clocks in Canada.

Waterbury has a long history going back to 1857. Like many American clock companies the Waterbury clock company had its boom periods (late 1800s) and its low period (1930s). In 1942 a Norwegian company ended up buying the Ingersoll-Waterbury Company. They built a brand new factory in the nearby town of Middlebury, CT. and in 1944 the company name was changed to United States Time Corporation; this clock was made prior to that year.

What makes this clock interesting is that it actually has a steel frame with a brass electro-plating. The plating was evidently used to stave off rust. It is very likely that this clock was made at some point through the war years (1941-44) when brass was in high demand hence the use of steel for the plates. To accommodate the pivots, brass bushings which were pressed into the steel pivot holes at the factory. My only other experience with steel plates is my Arthur Pequegnat Maple Leaf kitchen clock which has nickle-plated steel plates. The Maple Leaf by Arthur Pequegnat is shown in this next photo.

Arthur Pequegnat Maple Leaf kitchen clock with nickle-plated movement

As you can see the movement is quite dirty and will require a thorough cleaning which can only be accomplished by a complete dis-assembly. Once disassembled comes the inspection and servicing.

Reverse side of punched bushing showing oil cup

This clock has never been bushed. The punch marks found adjacent to three of the bushings were likely factory made to set the bushings in place. There is one tooth repair (fourth photo) on the centre canon gear which appears to be the only evidence of work performed on this clock after it left the factory and the only indication that this clock was ever serviced.

The case is in very good condition requiring only a cleaning and polishing. I may touch up the clock hands with a little white paint.

I have determined that only 5 bushings need to be “replaced”, so time to get started. I will report on my progress with this clock in an upcoming article.

October 17, 2016

So, my sister also loves clocks

After not having visited my sister in some time I was surprised to find that she is an avid clock collector. I must stress the word collector because although she appreciates the beauty of each clock she has acquired over the years how they run is somewhat of a mystery to her and that is just fine. While visiting her this summer three of her clocks were out of adjustment and it took no time (no pun intended) at all to get them running again. No sense paying someone to do it, that`s what brothers are for.

In my opinion the most interesting clock she has is a French time and strike bracket clock that has no visible markings yet appears to be over 100 years old. It is in beautiful condition with only a slight patina on the finish. I would love to have found out more about this clock but my stay was brief. Perhaps next time.

The next clock is one my sister absolutely loves and it is a great sounding Westminster chime grandmother clock she bought some 20+ years ago. This quarter chime clock made by Craftline Industries in the early 1990s has a Canadian made case with a German movement, likely by Hermle.

Next is a curiosity. When I saw the Sessions name on the dial I wondered why I had not seen this particular style of Sessions clock. Further investigation revealed it to be a six pillar Adamantine Seth Thomas case. The movement was clearly marked ST and as I said the case is certainly a Seth Thomas. So, why the Sessions clock face? Likely the original dial face was so badly marred as to be unreadable that the owner many years ago simply told the clock repair person to find another face, which he did. Since the replacement was a Sessions electric clock face he had to drills the holes to accommodate the winding arbors. Who would know! To those less knowledgeable it looks great.

Session Seth Thomas mantel clock — Sessions / Seth Thomas mantel clock

I found this little antique time-only Hamilton and Co. French-style carriage clock made in India (Calcutta) to be very interesting and so diminutive. Hamilton and Co. is probably the best known and most celebrated British clock maker in India. I would put this clock at around the 1890s. It probably needs a good cleaning since it is not in working order.

Hamilton and Co Calcutta — Hamilton and Co. Calcutta

I am not a huge fan of steeple clocks but this Waterbury clock is in very good condition save for a damaged right steeple tip. The Waterbury Clock Company is one of many 19th century Connecticut-based clock firms with a history going back to the 1850s though it closed is doors for good in 1944. More memorable are Waterbury wall and mantel clocks but like many makers of the day they had a successful line of steeple clocks.

Next is a New Haven time and strike tambour style mantel clock from about the late 1920s or early 1930s. Aside from the grandmother clock which my sister bought new the New Haven mantel clock was a wedding gift of her late husband’s parents and has been in the family ever since.

Lastly, this Chelsea ship’s bell clock is a polished beauty. A ship’s bell is used to indicate the time aboard a ship and hence to regulate the sailors’ duty watches. Unlike normal clock bells, the strikes of the bell do not correspond to the number of the hour. Instead, there are eight bells, one for each half-hour of a four-hour watch. Three bells, for example, would mean that a sailor would be 1 1/2 hours into a 4 hour watch. Each watch would take its turn with the essential activities of manning the ship’s helm, navigating and keeping a lookout.

I was quite impressed with my sister`s collection and each clock occupies a special place in her home. I find it facinating going into peoples homes and discovering the joy they experience in collecting, be it clocks in this case or anything for that matter. Collectors are truly unique people!

September 13, 2016

My clock and Mickey Mouse are related!

Anyone who collects clocks knows that Waterbury clocks have had a long and illustrious history but did you know that the modern day Timex watch can trace it’s roots all the way back to the Waterbury Clock Company?

Let’s start with my Ingersoll-Waterbury time and strike mantel clock that I picked up late last year (2015) and following which we will explore this most interesting company.

This mantel clock was sold to retail outlets by the G.R. L’Èsperance Company of Montreal, Canada who advertised themselves as the sole distributor. “Made in Canada” it says on the case but as is typical of clocks sold in Canada before and during the Second World War the movements were made in the USA, assembled and shipped to Canada to be installed in cases that were sold in many stores across the country. Other clock companies such as Seth Thomas established a similar practice. Aside from the very rare Martin Cheney clocks made in Montreal in the mid 18th century, the only clock company that made their own movements and built their own cases was the Arthur Pequegnat Clock Company based in Kitchener, Ontario in the early 1900s to 1941.

This Ingersoll-Waterbury mantel clock was made in 1943 and likely very popular at the time.

clock face — Clock face showing somewhat flimsy hands

It has a conventional pendulum adjusted by a small arbor under the “12” and the company logo “W” in raised relief on the bob. It has a common recoil escapement. The clock face is paper with the inscription “Waterbury” on top of the “6” and”Made in Canada” below it.

operating instructions — Label showing instructions for operating the clock

The label is a generic one found on a wide variety of clocks to save printing costs. The swinging front panel door is unique to this clock and there is a small catch underneath the right hand side to secure it.

The hands may look very ornate but they are in fact quite cheap looking. A quick search on the net reveals that are, in fact, original. The inexpensively made hands and paper face are not unexpected for a mass produced clock.

clock movement — Time and strike movement

The veneers on either side of the back panel were split open when I first received the clock but clamping and carpenter`s glue tightened things up. It is very common for clocks of this vintage to have chipped or missing pieces of veneer which unfortunately reflects their cheap construction. However, this clock presents well and is free of serious flaws on the case itself.

The Waterbury name has been around since 1857. From my research I found that in 1922, the Waterbury Clock Company purchased the Ingersoll operation whose business had begun to decline after 1910 and had gone bankrupt two years previously due to poor management. Waterbury’s operation was particularly hard hit by the Great Depression of the 1930s. Clocks were considered luxury items and many could ill afford a timepiece for the home.

By 1932, their huge factory complex was almost idle when demand was so low. The company avoided bankruptcy and the firm was reorganized as the Ingersoll-Waterbury Company with investors raising half a million dollars in new capital. During this period (1933) the popular “Mickey Mouse” character watch was made and electric clocks were added to the line which revived the company. The Mickey Mouse watch was known as the “mouse that saved the day”. Draw any conclusion you wish.

After the USA entered World War II, the Ingersoll-Waterbury Company switched almost entirely to manufacturing war products though a small number of clocks were still produced. However, in 1942, the company was purchased by a group of Norwegian investors and a new factory was built at Middlebury, CT. Two years later, in 1944, the firm changed its name and became known as the United States Time Corporation. They introduced the widely popular “Timex” watch a year later. In November, 1969, U.S. Time was succeeded by Timex Corporation (now Timex Group), whose corporate headquarters are located in Middlebury, CT. to this day. The Timex museum, located in Waterbury, Connecticut, USA, is said to be “both the birthplace of Timex, and of modern timekeeping”.

So there you have it. My clock and Mickey Mouse are indeed related!

April 19, 2016

Waterbury “Arion” Small Octagon Short Drop wall clock

A diminutive size, this clock was made around 1930 just a couple of years before the Waterbury Clock Company was placed in receivership. It is a solid oak case measuring 19 inches long by 12 inches wide, with a paper dial marked Waterbury, a black and gold pendulum aperture, and 8-day time-only movement. The bottom of the dial says, ” Made in the USA by Waterbury Clock Company”, Connecticut.

While the clock is a strong runner there are obvious issues concerning the paper dial and the lack of a brass bezel. The dial plate does not have to be changed out but the clock is in need of a brass bezel, hinge and convex glass. Although the style might be slightly different on a replacement bezel, it is clearly required to complete the look. I have decided to retain the paper dial as an exact replacement is impossible or so I have found so far in my research. Half of the paper dial has become unglued from the dial pan. Two-sided tape in three locations was the fix. I may touch up the numbers 7, 8, and 9. We`ll see.

RS Waterbury Octogon short drop (10) — Pendulum bob

The Waterbury Clock Company was incorporated in the city of Waterbury, Connecticut, on March 5, 1857. Up until the Great Depression Waterbury had been quite prosperous. But like so many companies, most of the profits lined the pockets of its Directors instead of being reinvested in new equipment and updated facilities thus hastening its rapid decline. In 1932 the company was bought and re-organized under the name Ingersoll-Waterbury.and in later years the company morphed into the Timex Corporation. If you peruse the Timex site today you will see a line of Timex watches called the Waterbury collection. Timex is certainly acknowledging a link to its past.

RS Waterbury Octogon short drop (8) — Instructions for the clock

The instructions came with the clock and I smiled when I read them. “The long hand is the minute hand and the short hand is the hour hand”.

A inexpensive acquisition and only a few dollars to add glass and a bezel to complete the clock.

February 14, 2016
