The Clock That Wasn’t Complete: My Waterbury Suffolk Discovery

This clock wasn’t one I set out to find. My wife and I were wandering through a sprawling antique shop in Almonte, Ontario—the kind of place where time itself seems to stand still. She drifted upstairs while I lingered below, each of us lost in our own quiet hunt. A few minutes later, she appeared at the top of the stairs and called down, “Take a look at this!” I climbed up, curious, and there it was—a clock that neither of us had expected to see, yet somehow felt right. We looked it over, exchanged a knowing glance, and decided the price was fair. A few moments later, it was ours.

For a while, I admired the clock just as it was—until a small detail caught my attention and led me down another path of discovery.

I initially thought the clock was complete until I posted a query on an online clock forum site and discovered that it was missing two trim pieces.

First photo of the clock

However, I also learned that the clock was named the Suffolk and was offered for sale by Waterbury from about 1907 to 1915. The clock is shown in Tran Duy Ly’s Waterbury Clocks book on page 270, which includes an image.

It is cased in mahogany, has an eight-day movement, and features a half-hour strike with a coiled gong. The six-inch “ivory” (porcelain?) dial has spade and spear hands and a visible or open escapement. It includes a cast gilt sash and bezel with convex beveled glass. The clock is tall at 15½ inches and 11¾ inches wide, with wooden biscuit feet.

The time and strike movement on a coiled gong

I asked myself what I should do about the missing trim pieces. I also wondered how they had fallen off, but it appears they were glued on at the factory and may have been vulnerable to coming loose if struck. In my experience, once a piece comes off and becomes separated from the clock, it is unfortunately lost forever.

The original pieces were carved mahogany blocks with a center cut-out. Since I don’t have the tools to duplicate that process, and the router bits I have are far too large for this type of work, I decided to come up with what I felt was an acceptable alternative.

I didn’t have any mahogany among my scrap wood selection, but then I remembered some trim pieces I’d received from a friend’s old pump organ about a year ago. At the time, I had no idea how I would use them, and as I suspected, they turned out to be made of mahogany.

Using a table saw, I cut out two test pieces to determine if the repair would work. They looked acceptable, even if not quite sized correctly, and since I had enough mahogany, I set about carefully measuring the final pieces. I decided to stack thinner sections in a relief style—quite the opposite of the original design.

Because the clock’s case parts varied slightly in tone, I knew the new pieces would end up a shade darker.

Test pieces, narrower than the final pieces

I then cut the final pieces, sanded off the finish, glued the sections together, and attached them to the base of the clock using carpenter’s wood glue. The final step was applying two coats of finishing paste wax. The clock now looks more complete, and unless one is familiar with the original design of the missing pieces, they would be hard-pressed to notice the difference.

The final outcome

Making changes to a clock’s case is never easy, for each alteration risks straying from what once was. Yet restoration is, by nature, a communication between the past and the present—to reconcile what time has taken and what care can restore. Though the change departs slightly from the original, it brings balance to the design in my view, and renews the clock’s quiet dignity. In that sense, I am content with the outcome.

Restoring the Suffolk reminded me that even small imperfections can lead to creative solutions. While my replacement trim pieces differ from the factory originals, they complement the clock’s character and preserve its charm—proof that restoration is as much about craftsmanship and ingenuity as it is about authenticity.

For those who appreciate a visual commentary, check out a 3 1/2 minute video I made during the project:

6

Antique Clocks and the Term ‘Fully Serviced’: What Every Buyer Should Know

As the holiday season approaches, it’s wise to be familiar with some key terms if you’re considering purchasing an antique or vintage clock as a gift for that special person. One such term that often needs clarification is “serviced.”

I remember scrolling through Facebook one afternoon when a post caught my eye—a 100+-year-old mantel clock for sale, proudly labeled “fully serviced.” Naturally, my curiosity got the better of me. I messaged the seller, asking what exactly he meant by “fully serviced.”

His answer was simple: the clock had been ultrasonically cleaned, the pivots inspected, and it had been oiled. That sounded reasonable… until I realized he didn’t actually say the movement had been disassembled before cleaning.

I silently hoped it had been done properly, though in the clock world, more often than not, a “cleaned” movement is nothing more than a quick dunk-and-swish—a full plunge into cleaning solution and a hopeful shake and dry. No reputable horologist would ever call that true servicing. I didn’t pursue the clock any further, although it’s quite possible that it had indeed been “fully” serviced, as he claimed.

Newly acquired Waterbury mantel clock and ready for complete servicing

Yet the term “fully serviced” carries weight. Sellers know it can push the price up by many dollars. A clock that hasn’t been cleaned in years might still run smoothly for a while, but the real question is: what’s happening to the pivots? The pivot holes? The hidden wear in a clock that’s survived a century? Chances are, it’s been patched together before, perhaps without the care it deserved.

From my own experience, the older a clock is, the more likely it is to need bushings and careful repairs.

My idea of a full service is meticulous and follows this procedure:

  • Remove the movement from its case,
  • Completely disassemble the movement,
  • Ultrasonically clean every component, separating out parts that should not be cleaned in an ultrasonic
  • Unwind and inspect the springs, or if weight-driven, the wheels and cables,
  • Polish the pivots,
  • Peg pivot holes,
  • Install bushings where needed,
  • Check every part for wear,
  • Reassemble,
  • Test,
  • Regulate and adjust, if necessary,
  • And, finish with a gentle case refresh.

Separating out parts that should not be cleaned in an ultrasonic

I generally do not put leather hammer heads in the ultrasonic cleaner. I also avoid putting mainsprings in, though I have done so once or twice. If anything, it makes the solution unusable for further cleaning. There is also a chance one might not extract all the moisture from the coils leading to the formation of rust (though I suppose placing them in a cook oven on low heat should remedy that). Floating balances and balance wheels should also be kept out as they are delicate and risk being damaged. Any lacquered components should be avoided as well, since the ultrasonic cleaner will strip the lacquer away unless that is the intention. Likewise, any parts that are soldered should not be placed in the cleaner, as the agitation can fatigue the joints.

My Experience

I’ve seen clocks tell their stories through wear. Some years back, a 1920s Sessions Beveled No. 2 came to me needing twelve bushings. The Maple Leaf kitchen clock in my collection, professionally serviced in 2015, also needed twelve bushings.

Arthur Pequegnat kichen clock
Arthur Pequegnat kitchen clock

A 1940s Ingersoll Waterbury wasn’t too badly worn, yet it still required three bushings. Each clock reveals its life through the work it needs—a silent testimony to the decades it has kept time.

Ingersoll-Waterbury time and strike mantel clock

Confusion among sellers

Browsing online, you see phrases like “all of our clocks are fully serviced and tested to ensure reliable running.” But rarely do sellers say how they serviced it, or whether it was completed by a professional horologist or a backyard hobbyist.

As for my Juba Schatz mantel clock that I offered for sale—some might have called it ‘serviced,’ yet all I did was remove the movement, inspect the pivots, oil it, and return it to its case. Ten minutes. That’s the gap between reality and the magic words ‘fully serviced”. Don’t worry, I didn’t advertise it as such.

Juba Schatz mantel clock

To me, selling a clock as fully serviced should mean being transparent. A proper description might read:

“This clock has been fully serviced, the movement completely disassembled, ultrasonically cleaned, wear addressed, reassembled and tested.”

A bit more detail, like repairs or bushings replaced, adds credibility—but for a serious buyer, that’s about as close as you need to get.

Fully serviced means different things to different people. My advice? Always ask. Dig a little deeper. Because in the end, a clock is more than metal and springs—it’s a story, and the best stories deserve care.

7

Discovering a Rare Waterbury Clock in Almonte, Ontario

Almonte, Ontario, (Canada) is a town that practically invites you to slow down and explore, and that’s exactly what my wife and I did one afternoon in September. In fact, it is called “The Friendly Town”. We drifted from one antique shop to another, discovering all sorts of curiosities. But in one store, I found something that stopped me in my tracks—a stately Waterbury time and strike mantel clock. It felt like uncovering a hidden story, and I couldn’t resist bringing it home.

There are many antique stores in Almonte, but this is where the clock was purchased

I was drawn to the open escapement and porcelain dial—features that are relatively rare in a common American clock.

Untouched and before a cleaning

At first glance, it looked intact, but after posting the clock on a popular clock collectors’ website, I was informed that the case appeared to be missing the lower parts of the columns. I asked the poster to supply a photo for comparison. In the meantime, I carefully examined the case myself and did not find any anchor points or residual glue traces that would suggest something had originally been attached there.

However, further research revealed that there were indeed trim pieces under the columns. This photo, taken from the 1909–10 Waterbury Clock catalog, shows the complete clock. You will note that in 1909–10, the clock was listed at $23.00, slightly more than a typical middle-class worker’s weekly wages in 1910.

The clock is called the “Suffolk”, as shown in Tran Duy Ly’s Waterbury book on page 270 (and the catalog photo above). It is cased in Mahogany, has an 8-day movement, and has a half-hour strike with a coiled gong. It has a six-inch “ivory” (porcelain?) dial with spade and spear hands, and a visible or open escapement. It features a cast gilt sash and bezel with convex beveled glass. The clock is tall at 15 1/2 inches and is 11 3/4 inches wide with wooden biscuit feet.

As an aside, Waterbury also produced a Suffolk model in 1891, which is entirely different from this clock.

The poster said that it is also shown in the 1915 catalog. The patent date on the movement plate is September 1898, so it is quite possible that Waterbury offered the movement for this and other models for a number of years.

When I first looked over the movement, I could see it had been well cared for, still showing a bright, clean finish. But then I noticed something odd: the pendulum was hooked directly onto the crutch. That explained everything—of course, the clock wouldn’t run! It was likely this simple issue that led the seller to list it ‘as is,’ and therefore at a better price.

While trying to think of a way to make a new suspension spring and rod, I thought, why not check the bottom of the case? Sure enough, the original suspension spring and rod had been tucked into a crevice at the inside bottom of the case.

With the suspension rod attached and the gong in place

After installing the suspension spring and rod, I wound the movement, gave the pendulum a gentle push, and to my relief, the clock sprang to life. I’m holding off on letting it run too long until I oil the pivots. Once that’s done, I’ll let it run for a while to see if it can make a full 8-day cycle. After that, it will be set aside for proper servicing.

Despite the missing lower trim pieces and the slight chipping around the number 12 on the porcelain dial, it remains a very nice clock and is reasonably well-preserved.

From the tucked-away suspension spring & rod to the moment the pendulum first swung, it reminded me how even the simplest details can make all the difference in getting a clock to run. While it will eventually need a full servicing, seeing it come to life again was a rewarding reminder of why I love collecting and caring for these fascinating pieces of history.

4

My Antique Wall Clock Collection: A Quick YouTube Tour

Allow me to take 5 minutes of your time to watch my video of 19 wall clocks in my collection. Each wall clock is identified by its maker, where known. The video features background music throughout, with a brief segment of sound highlighting the winding of a Mauthe wall clock. Otherwise, there is no dialog.

My only requirement is that the clock must be in good working order and have an appealing appearance.

19 wall clocks in my collection

My entire collection consists of 85 clocks. Many are on display in my home, and some are in the process of restoration or repair.

Check out my Pequegnat clock video as well.

7

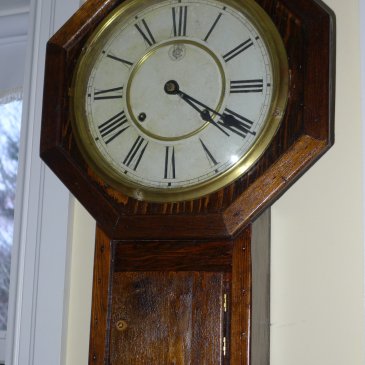

A very special Waterbury wall clock – my grandfather’s kitchen clock (a personal journey)

The Waterbury clock hanging in my office brings back memories of my grandfather, a man I wish I had known better. Call it one of life’s regrets.

Now, I didn’t know my grandfather all that well and I’m not sure that many people did. He was shy and a man of few words. I don’t think many people really knew him. In fact, I don’t recall having a meaningful conversation with him.

Rank listed as driver although he was a private in the First World War

He passed in 1962 at age 82 when I was only 12.

My grandfather and his brother came to Canada in 1906. There were many British immigrants at the time as Canada offered new and exciting opportunities for young men. Grandfather came from Shoreham, England where most of his family originated, and was employed with the Postal Service but evidently, postal work was not for him and an adventure to the colonies was a better option.

When he arrived in Canada, he chose Ottawa as a place to live. At the time his future wife lived with her parents. Her mother operated a boarding house where grandfather stayed when he first arrived in Ottawa. You might say that my great-grandmother was a matchmaker of sorts, as she encouraged my grandfather and grandmother to spend time together. She must have thought that since he came from the old country he was quite a catch.

My grandfather spoke only English, and his bride spoke only French. So, how they communicated throughout their engagement and the first few married years is a mystery to this day. Perhaps words are not important after all!

When the First World War broke out in 1914 my grandfather did not sign up immediately but waited until 1916 at which time both grandfather and his brother made the decision to join the war effort. Grandfather was not particularly patriotic, and the purpose of joining was to take advantage of an all-expenses paid trip to Europe and more specifically England where he could reconnect with his family in the Shoreham area. At that point, he had been away from his home country for 10 years.

Imagine my disappointment when I saw this

Neither he nor his brother had any idea that the war would go on for two more years. In fact, they thought, and a lot of people shared the same feeling, that the war would end by Christmas, and they would be home in two or three months. Little did they realize how much longer the war would last and the impact the war would have on two young men.

Waterbury grandfather's clock
The movement had been neglected for many years

My grandfather was a military driver during the First World War and was in Europe between 1916 and 1918. He witnessed horrific things and retained many of those memories. Today people would use the term Post Traumatic Stress Disorder but, in those days they called it “shell shock”. Post Traumatic Stress Disorder would stay with him throughout his entire life.

My grandparent’s home was very quiet but for the sound of the Waterbury time and strike wall clock. Grandfather suffered from anxiety/depression and it didn’t take much to bother him, most likely due to his experiences in the First World War.

The brass bezel was in poor shape and screwed to the case?

After the war grandfather worked for the Ottawa Transportation Commission for a number of years. He was a conductor on a streetcar and when the OTC switched from streetcars to buses, they eliminated the conductor position. Grandfather was told that he had to drive a bus and since he was unable to drive for anxiety reasons that stemmed from his experiences in the Great War, he left work at the age of 50 and never worked again. But he and my grandmother managed with the help of family.

Touch-ups were required and dirt was removed from the brass

My grandfather painted that old Waterbury clock case the color yellow to match the walls in the kitchen. I guess he thought it would blend in with the surroundings and the ticking of the clock would somehow subside into the walls. When they sold their home in Ottawa the clock was passed on to one of my cousins.

Waterbury grandfather's clock
The clock case had no drop door so, a new one had to be made

The clock was tucked in an old barn for many years and when my cousin downsized and moved into a smaller home he wondered if I would have it. In 2018 he contacted me by email and suggested I retrieve the clock. At the time I imagined it was a complete clock with movement, case, and all the important bits but when I picked it up I was disappointed that it had suffered so much through the years.

Waterbury grandfather's clock
Cleaned and ready for the next 100 years

I wish I knew what the clock looked like in its day because what I have left is not the clock I envisioned on my grandfather’s kitchen wall many years ago. I have the movement, dial face, and brass bezel. The case and a few other important parts are long gone. The case my cousin made some 40 or 50 years ago is a heavy homemade plywood concoction. He did the best he could but it was clear that he had little understanding of clock case construction and he got a few things wrong.

However, I was determined to do something with it. It now has new dial glass, a pendulum rod and bob, a verge and crutch, a winding key, and a new drop door. I cleaned up the dial as best I could, refreshed the case, and addressed wear issues on the movement.

Grandfather’s clock, plywood case and all

That old kitchen clock is in my office right beside my desk and ticking away and striking as it should. Although I remember it ticking loudly as a child in the back kitchen the truth of the matter is that it is not a loud ticker at all; it is very soothing.

I contemplated ditching the crudely constructed case and finding a period correct one but the clock with all its warts is what it is. The plywood case, as ugly as it is, is part of the history of the clock. So it will stay as it is and it will always be a reminder of a man I wish I had known.

7 Clocks in my collection that have family connections

Ingraham Huron clock face

Seven clocks in my collection have family connections, not necessarily with my own family but clocks that I am able to trace back through families mostly in Nova Scotia (Canada). No names are mentioned. The stories are sad in some cases but interesting nonetheless.

Let’s begin.

Waterbury wall clock

When I was a child back in the 1950s my grandparents had one clock in their home, a Waterbury drop octagon located in the kitchen above the sink. It was the only mechanical devcie that made a sound in their home.

Waterbury shot drop wall clock, homemade case

My grandfather was a veteran of the First World War and suffered from shell shock (PTSD) long after the war. His home had to be stone quiet with the exception of the time and strike Waterbury clock in the kitchen.

Not knowing much if anything about case construction my cousin decided to screw the bezel into the case

After he died my grandmother sold the house and moved in with one of my aunts. The clock went to one of my uncle’s kids. The original case was painted yellow to match my grandfather’s kitchen walls and either it was in poor condition or broken, and a new case was constructed by my cousin. He knew almost nothing about case construction but did the best he could. Because he did not know how to repair the movement the clock was stored in a barn for a number of years (chicken pecks on the dial face!). In 2020, he gave the clock to another cousin who was breaking up their home and asked if I would have it.

Rather than take the movement out of its homemade case and put it into something more appropriate I decided to leave it as is as the case with all its warts is part of the history of the clock.

Sawin Banjo clock from a collector in Wolfville NS

My wife found this weight drive time-only banjo clock on Facebook Marketplace. The photos were quite poor and I imagine the seller was not getting much traction on the ad. Knowing that it might be something special I made an offer, sight unseen.

Banjo clock by John Sawin or one of his associates

It had a few minor issues such as broken glass, and veneer losses but otherwise, the clock was intact including the original acorn finial.

Timepiece

I always ask the seller about a clock’s origin and in this case, the clock was from a collector in Wolfville, Nova Scotia. The seller said that her uncle had this clock as well as a number of quality clocks for as long as she could remember, perhaps 60 years or so but could not recall where the clock originally came from.

After researching this clock I discovered that it was made in or around 1840, in Boston and although unsigned has all the markings of a clock made by John Sawin (or one of his associates) an apprentice to the famous inventor of the banjo timepiece, Simon Willard.

Gilbert mantel clock Shawville

What attracted me to this clock was the condition of the case. For a 100+-year-old clock, it is in remarkably good condition.

Gilbert time and strike mantel clock

The design is simple but graceful and of course, it would have been one of the cheaper clocks in the Gilbert line.

Gilbert movement

Despite the pandemic, people were still engaged in the buying and selling of clocks. This was another Facebook ad. The price was very reasonable. The clock was bought from a family in Shawville Quebec. A family member had passed away and all household items were sold off. The seller said her mother loved the clock and polished it weekly though it had not run for years.

Because the seller did not wish to have physical contact with me the clock was placed in a recycle container on the side of the highway for me to pick up.

Mauthe Horse crown

Most would call this a Vienna-style springer. Made in or about 1885 it had been in a family since I bought it from a former superintendent of schools about 6 years ago.

In the early 1980s, his wife brought the family clock over from Holland in a suitcase. It had been in his wife’s family for several generations previously. The gentleman’s wife passed away 10 years ago and had she been alive today I would certainly have learned a lot more about its history.

Mauthe Horse Crown with replacement bottom center finial

The seller was reluctant to let this clock go since it was a happy reminder of his past life. But he was moving into the next phase of his life with a new partner and that meant divesting of furniture and other items. Like him, I think of life in phases.

Mauthe Horse Crown movement
Mauthe Horse Crown movement

The only issue was a missing bottom finial. I can only imagine that the finial had to be removed so the clock could fit in the suitcase.

Junghans wall clock Crispi

What happens when you get a clock in a box? Call it a collection of parts, pieces, and dust. To some, a box of clock pieces is discouraging but to me, it was a challenge.

Junghans clock in pieces
Junghans clock in pieces

This is an antique German Junghans time and strike spring-driven clock made in the style of a Vienna Regulator. There is no serial number on the movement which dates the clock to 1899 or earlier (in 1900 Junghans began to number their movements).

Fully restored Junghans Crispi wall clock

This clock is a witness to the day of the Halifax Explosion in 1917. The result of the explosion from a munitions ship in the Bedford basin was apocalyptical.

This clock, owned by the seller’s wife’s mother caught the brunt of the blast.

Catalog photo of the Crispi, second from left

The blast not only shattered the glass panels but heavily damaged the box frame. Most of the parts sat in a box for 100 years. Since the box frame was damaged beyond repair, the seller, an amateur woodworker, built a new frame made of oak some 35 years ago. He was at a loss as to how to repair the movement, put the project aside, and lost interest.

Wag on a wall

The style of the clock is a “wag on the wall”. It is a strange name but basically, it is a clock with the movement enclosed in a small case and with a pendulum and weights exposed. It is so named because the pendulum appears to wag on the wall like a dog’s tail.

Wag on a wall, unknown maker

My wife’s uncle was an internist (internal medicine specialist) in Newfoundland and practiced for many years but dementia and its attendant complications finally got the best of him. He spent the last 5 or so years in a locked ward of a residential facility for the elderly.

The pendulum wags like a dog’s tail

As part of his practice, he set up a home office where he would receive patients and consult with colleagues. In his office was a wall clock given to him by a former patient.

When he passed away his possessions were distributed among his family members with the clock going to his brother who, himself passed away this past year. Unfortunately, there was not much interest in the clock and it spent 15+ years in a Rubbermaid container in the basement of his brother’s home.

His wife is currently in the process of moving to a smaller home, giving away what she could and since I have a keen interest in antique and vintage clocks she determined that the best place for the clock was in the hands of someone who would appreciate it.

Ingraham Huron

The clock is Rosewood “Huron” Shelf Clock, by E. Ingraham & Co., Bristol, Connecticut circa 1878.

Rare Ingraham Huron found on a local online for-sale site
Rare E Ingraham Huron found on a local online for-sale site

It has a paper-on zinc dial with a round glazed door and a lower glass access panel. It is a brass eight-day spring-powered movement, with a height of just under 41 centimeters.

Kienzle clock on display with Ingraham Huron
Ingraham Huron balloon-style shelf clock

I asked the seller who was about 70 years old at the time, “what do you know about this clock?”. He extended his hand palm down out to about a meter from the floor and said, “I was this tall when I can first remember it in my grandmother’s home”. There is a penciled marking just inside the case indicating that it had been serviced by a person by the name of Hebb in 1944. The seller recalls a Hebb family who at one time lived in the Bridgewater area of Nova Scotia near where I purchased the clock.

He and his wife were in the process of dissolving their marriage and were selling off everything they own including many sentimental items.

Conclusion

I always make it a point to ask about the history of any clock I purchase. Sometimes, in the cases above I learn interesting things about the clock. In other cases, the seller knows nothing.

I wish I knew more about other clocks in my collection. Unfortunately many were passed on from seller to buyer and the history has been lost forever, but what stories some of them could tell.

Three small drop octagons that match – finally!

Trio of clocks

Some years ago I had this brainy idea that I would have a trio of time zone clocks above our main computer in the kitchen so, when one of our children called, all we had to do was glance at the wall to see what local time it was in their region.

Back then we had a daughter in Victoria, British Columbia, another in Calgary, Alberta, and a son in Halifax, Nova Scotia. Our daughter has since moved to Ottawa, Ontario.

It was a great idea but not perfect.

Trio of clocks
Trio of clocks representing 3 time zones

The New Haven time and strike clock (the middle one in the photo above) was not as small as I wanted but it was all I had at the time. The New Haven clock was eventually gifted and replaced by an Ansonia time-only which was also still too large.

Ansonia clock project is complete
Ansonia time-only clock

The search was on for a third 14-inch drop octagon time-only clock to complete the trio. It did not matter who the maker was. It took a while but as luck would have I saw one on an online auction in the spring of this year.

It is a Sessions time-only drop octagon and identical in dimensions to the two others.

The trouble was I was not going to pay a reserve auction bid of $100CDN (79US, 63GBP). As much as I wanted the clock the price was too high though some of you may disagree.

It appeared to be in very good condition judging from the auction photos and there was nothing much wrong with it except for incorrect minute and hour hands (it would have had longer and thicker closed spade hands).

Sessions time-only clock

We had already purchased 4 clocks at this particular online auction and elected to pick them up instead of having them shipped.

When my wife called to ensure someone was there when we arrived at the auction house she was told that all unsold clocks would be individually priced and sold without tax and buyer’s premium. Luckily the Sessions was one of few unsold clocks but the price was half the reserve. So, we bought it and now it graces our wall.

The newest (middle) in our trio of clocks, from left to right, Sessions, Sessions, Waterbury

Two Sessions and a Waterbury clock. They all look great!

Clocks won at auction – at a fair price

I never actually went to this auction but participated online. It is not quite the same as the rush of bidding in a live auction hall but exciting in its own way.

This particular auction had quite a number of clocks but I would say that most were in rough or what I would call “hobby-ready” condition.

I was looking at one particular clock but three more grabbed my attention. A total of four clocks, two shelf clocks, and two wall clocks.

My budget was $300CDN and I stuck to it. I set the maximum I would pay for each item and placed all bids within the last minute of the auction and walked away from the computer. For two of the clocks, I was prepared to let them go if bidding got too high but at the end of the day I won all four. With fees and taxes, the final invoice was $379 (a little over $300US and 240BP).

Bidding online is always a gamble. What the photos reveal does not always tell you what you are getting and I have been surprised more than once. I have a number of other photos from the auction but these are a good representation.

Hamilton Clock Co.

30-hour Ogee clock

Clock number one is a 30-hour weight-driven ogee made by the Hamilton Clock Co. based in Hamilton, Ontario in the late 19th century. This was a clock I was anxious to have since I am in the process of building a small collection of Canadian-made clocks.

I have one other clock from The Hamilton Clock Co., a 30-hour time and strike steeple clock, and one from the Canada Clock Co., a 30-hour time and strike cottage clock.

I am grouping the two companies together because one essentially grew from the other and made clocks within the same factory and with the same machinery.

Those two have etched lower tablets as on this new acquisition.

Canada Clock Co. Hamilton Cottage Extra
Hamilton Clock Co Gothic steeple clock
Hamilton Clock Co Gothic steeple clock

The Hamilton Clock Co was formed in 1876 and went out of business in 1880, a very short run for a clock company, unfortunately. The exact year of manufacture is unknown but I may know more when I receive the clock.

This clock looks like every 30-hour ogee ever made and that was the original intent, a familiar clock style that appeals to the masses. The dimensions of this Canadian-made ogee are very similar to American-made ogees and the movements, though made in Canada, are essentially indistinguishable (minor differences aside) from 30-hour ogee time and strike movements made by a number of American manufacturers of the time.

The clock appears to be intact, has its own weights and the lower etched glass tablet seems to be in fine shape judging from the auction photos but the case will need a thorough cleaning and some veneer work.

Daniel Pratt Jr

Clock number two is a Daniel Pratt Jr which I’d like to call a reverse ogee with a splat top but the splat top is missing.

I have just one Daniel Pratt Jr clock in my collection and it has an early woodworks movement. The older Pratt clock shows what the splat should look like.

Daniel Pratt Jr with woodworks movement
Reverse ogee and “splat“

According to the label on which the date 1843 is inscribed, one can assume that this is the date of manufacture, approximately.

In any event, it may have a woodworks movement. There were still a few companies who continued with the cost-effective woodworks movement but by that time the rolled brass plate movements were becoming more common.

The loss of the splat top certainly makes the clock less desirable but it was one of the cheaper clocks in this grouping and, who knows, I might have a splat made, we’ll see.

Label, weights and pendulum bob

The green banding on the upper and lower glass sections looks somewhat suspicious and could have been added later. This clock also comes with weights and what looks to be an authentic-looking pendulum bob.

The lower tablet might just be a card-stock image, again, likely not original but old nonetheless. The dial has some losses but what there is of the case looks good.

Unknown gallery clock

Clock number three is an unknown gallery clock. I have no idea of the maker and cannot even guess. I took a chance and I hope the gamble pays off.

Gallery clock

The auction information describes it as 14 inches in diameter so I am assuming the clock face is about 10 inches or so. The hands look very interesting, the case looks well-made (mahogany?) and the clock definitely has a mid to late 1800s English look.

The centrally located winding arbour tells me that it has a time-only mechanical movement.

Back of the clock

The dial looks to have been redone but I am more curious about the movement inside.

A shot of the movement from the bottom

I am not sure what I am seeing in the photo above. Certainly, a homemade door catch on the left and a large gear (perhaps a mainspring barrel), and cylinder-shaped pendulum bob. Fusee movement? I doubt it. I think it has a conventional spring-driven time-only movement but I will know in a few days.

Six-inch gallery or ships style clock

The last is a smaller gallery, ships, or marine-style clock which is spring-driven with a balance wheel. The speed adjsutment lever below the 12 is the give-away.

It is 8 1/2 inches in diameter (6-inch dial), key wound time-only 30-hour clock with a seconds bit. I cannot even guess who the maker is but could be a Waterbury, E N Welch, or some other American manufacturer.

The chunky oak case needs some attention but with a good cleaning and a coat or two of shellac, it should show nicely. Apparently, it is in working order.

Okay, so, two clock makers I am familiar with and two unknowns. I wonder what surprises await me when I open up the two unknown clocks.

In a day or so we shall see what we get. We are driving down to the auction house in the next couple of days but we will make something of our 3+ hour journey and enjoy the sites, have lunch in Annapolis Royal (Nova Scotia) and do some antiquing along the way.

Best clock acquisition of 2021

The time has come to determine the best clock acquisition of the past year. As a clock hobbyist, I have had little difficulty locating interesting clocks over the years, and despite the seemingly never-ending pandemic, I have scored a few in 2021 though the past year has been leaner than most.

In the early days of collecting, simple time and strike vintage mantel clocks were my principal focus so that I could take them apart, repair them if necessary, and generally advance my learning. Many of those clocks have been either sold or gifted. For the past three years, I have shifted my focus toward collecting interesting clocks, rare clocks, or clocks that have a special provenance that even includes the odd mantel clock.

My wife is my best clock finder. Our discussions often go something like this; “did you see that wall clock on Facebook?”. “Let me see. Yeah, it looks good, what do you think? Make an offer?” and off we go. Sometimes I will accept the offer from the seller without negotiating because I feel it is a fair price and other times there is some wheeling and dealing prior to firming the sale.

At the end of the post, you will have an opportunity to vote on what you think is the best in 2021.

In no particular order, here are my finds for 2021.

Sawin banjo clock

This is a garage sale find and even though it was purchased in the spring of 2021 it is still a work in progress. The clock is over 180 years old and in pretty decent shape.

Sawin weight driven banjo clock

It is a weight-driven banjo but it has no markings. An educated guess is that it was made by John Sawin of Boston or one of his associates on or close to 1840. I have completed minor veneer work on the case and have replaced the broken glass dial. The movement has been serviced but I am now looking at clock parts supply sources to replace a badly bent suspension spring. I want to avoid paying an outrageous price for the complete assembly; suspension spring, leader and spike.

Gilbert mantel or Shawville clock

I call this the Shawville clock because it spent most of its life in Shawville, Quebec (Canada).

It was a family clock for many years and following a death in the family, all possessions were either sold off or given away, a very common practice today. It has a time-and-strike Gilbert movement in a mahogany tinted case that has led a kind life since its manufacture in 1917. It is simple and unadorned and that’s what I love about it. I serviced the movement, cleaned the case, replaced a broken hour hand and now it is on prominent display in our home.

Gilbert time and strike

New Haven tall-case clock

An interesting $90 acquisition is this New Haven tall-case clock with a secret. Wow, a tall-case clock for $90, you say. Despite the look of a weight-driven clock, it is, in fact, a spring-driven clock. I was unaware of this until I walked through the door of the seller. I bought it anyway.

New Haven tall case clock

The weight cans are empty shells and they are simply there for show. The movement is quite large, eight-day, of course, and looks to be very robust. Despite my best efforts to determine if it was originally weight driven it had to have been spring-driven from the start, in other words, no evidence of a seat board or any additional holes for mounting the movement to the case. This appears to be an early “kit clock”, i.e. movement, dial face, hands, pendulum, “weights”, and ladder chains bought from the New Haven Clock Company and fitted to a pre-made case.

The case was very dark from years of accumulated dirt and grime and vigorous scrubbing revealed a wonderful red oak finish.

Waterbury Wren mantel clock

Ansonia Syria

Another clock with a secret is actually a disappointment. I found it in an antique store and it reminded me of an Ansonia Syria I had worked on for a friend last year, so, I was drawn to it.

Waterbury Wren mantel clock

It has a Waterbury case and what I thought was a Waterbury movement, but no.

It is missing the brass bezel and glass which is easily replaced but what is most disappointing is the mismatched movement, a Seth Thomas time and strike, which obviously replaced the original movement presumably because it was worn out. The movement is well-made and runs well but at the end of the day, the clock is destined to be sold.

Schatz Schatz carriage clock

This is a Schatz carriage clock made by August Schatz and Sohne of Germany. Thousands of these were sold and given as gifts through the 60s and 70s. It has an interesting lower visible escapement and an exposed movement.

Schatz carriage clock

Although it is working and keeping time it runs for about 4 days and stops. A cleaning is called for (on my list). It has a wind-up key in the back much like a typical alarm clock. It says West Germany on the dial and made, I would say, in the 1970s. August Schatz and Sohne closed in 1985, a victim of slow sales and a shift to quartz clocks by other makers.

Chauncey Jerome ogee clock

This clock is original in many ways, with a nearly flawless case made of mahogany veneer over softwood, moon hands, a wood dial, and a movement that matches when the case was made. Even the pendulum bob looks original. It was missing the suspension spring and rod and a wooden movement block, all easily sourced.

Chauncey Jerome 30-hour ogee clock

It cleaned up nicely and was a good candidate for a fresh coat of traditionally prepared shellac. I have three other 30-hour ogee clocks and this one is the most original of the bunch.

E. Ingraham Grecian shelf clock

This is a very nice shelf clock from an estate auction. It is an Ingraham Grecian clock with an alarm feature. If you have ever used the alarm on an old antique clock your first impulse is to throw it through a window, it is so loud and it goes on and on till the spring winds down.

Ingraham Grecian
Ingraham Grecian 8-day shelf clock

It came with incorrect hands and I had the darnedest time sourcing them but searching various suppliers in Canada and the US paid off. The case has been cleaned and the movement serviced including the infuriating alarm.

Fleet Time Co. mantel clock

An inexpensive clock that had huge potential but left me frustrated. Fleet Time Co. of Montreal had a short life of 4 years before the Second World war when they lost their source of German movements.

Fleet Time case
Fleet Time clock

I stripped the case and re-glued some sections, applied a walnut stain and I was very pleased with the final result. I serviced the movement, wound the time side completely, and BAM, kerplunk! the sound of a mainspring exploding. Sometimes you can get away with just replacing a mainspring and other times, like this, it took out the barrel teeth and a leaf pinon on the second wheel. I placed it in a plastic bag and it is now on a shelf in the basement awaiting donor parts.

Hamburg American Clock Company. (HAC) mantel clock

This German-made mantel clock has an interesting 14-day movement, an early production type from HAC. HAC is short for the Hamburg American Clock Company, a German company which had a long history up to the time it was absorbed by Junghans in the late 1920s. This clock was made in or around 1895.

HAC mantel clock
HAC 14-day mantel clock

It was another estate sale find. The case is nondescript and nothing special, but quite elegant.

So…..

Tell me what you think and I will reveal what I believe is my best acquisition this year in the next post. Let’s see if we agree.

30-hour clocks in my collection – a complete list

George H. Clark 30 hour movement

While I have over 85 clocks in my collection twelve are 30-hour or one-day clocks. One of the twelve is a relatively modern clock.

The history of mass-produced clocks in America began in the 1820s and 1830s with 30-hour clocks that had woodworks movements. While the clock business was booming with many companies selling clocks to the masses, an economic recession in the late 1830s brought clock production to a halt.

Pioneer clockmaker Chauncey Jerome, who was in the clock business at the time, considered his “business troubles and disappointments” and he along with his brother Noble formulated the idea that movements could be made from brass. Noble Jerome received patent number 1200 for his brass clock movement, issued June 27, 1839. Woodworks movements began to be phased out and replaced by brass movements which were made in the hundreds of thousands. 30-hour brass movements were made well into the 1860s and were eventually replaced by the 8-day brass movement.

Because 30-hour clocks were produced in the thousands many examples have survived to this day. Most clock aficionados today have at least one ogee clock in their collection.

Of the 12 in my collection 5 are running continuously. Yes, winding a clock everyday is a hassle but we often forget that at one time the thirty hour clock in the form of the bedside alarm clock was a fixture in every home but for this post I am excluding the dozen alarm clocks in my collection.

Half are weight driven, so let’s begin with those.

Sperry and Shaw

Sperry & Shaw 4 column clock
Sperry & Shaw 4 column clock

This, a four-column shelf clock designed in the “New York” style was made between 1841 and 1851. Sperry and Shaw were assemblers and distributors and sourced parts from various producers. The movements and cases could have been made by Silas Hoadley or Chauncey Jerome or both.

I bought the clock from student in Halifax, Nova Scotia in the fall of 2018 and he would not budge on the price. My only question to him prior to making the deal was whether or not the clock had the original wafer weights which would be almost impossible to source if missing.

Daniel Pratt and Son

This is the only clock I have with a woodworks movement. Daniel Pratt worked with others but eventually went out on this own in the 1830s. I would date this clock to around 1837. This clock was won at an estate auction for the price of $30 during a time when clock prices were hitting rock bottom. The clock has a wood dial and a mirrored lower tablet (may or may not be original) and the case is in very good condition for its age.

Daniel Pratt and Sons

Chauncey Jerome

Chauncey Jerome 30 hoir Ogee clock
Chauncey Jerome 30 hour Ogee clock

This clock is from around 1855, made just before Chauncey Jerome’s company went into bankruptcy. This was also bought at auction a few years ago. It came with an extra mirrored lower tablet and a “spare” dial. I am not sure if either the mirrored tablet or the JC Brown picture are original. The veneer, however, is in perfect condition.

George H. Clark

George H Clark 30 hour Ogee shelf clock

This is an ogee from around 1857. There is no makers mark on the works but it is a Waterbury type 2.411 movement. The case is well-preserved and in excellent condition, obviously well-cared for by a previous owner. The beehive tablet looks to be original.

Waterbury Clock Co.

This an ogee style clock from 1865. It was bought at an antique store in Halifax. There was no price on the clock. I asked the owner what he would sell it for. He said, name a price, I said $40 and he said, sold! Evidently it been in his shop for a while. It is the first clock on which I learned how to replace very worn trundles.

Cuckoo clock

Dave's cuckoo clock
Dave’s cuckoo clock

This is a 30-hour cuckoo clock with a Regula movement, made about 1976. A cheap German made mass-produced “tourist” clock that was given to me by a relation. It still works but it is on its 3rd movement.

And now for the spring driven clocks.

Ansonia Cottage clock

This cottage clock is from about 1895. This another clock that was given to me. These were probably dollar clocks at the time. They had cheap movements but were solid and reliable. Surprisingly, these command good prices on the auction sites since so few remain.

OLYMPUS DIGITAL CAMERA

Canada Clock Company

The Hamilton Cottage Extra is from about 1880. These are now very difficult to find since so few have survived. It is Canadian made and collectors will happily pay hundreds of dollars for one. It has a very cheap case made of softwood with no veneers. The acid etched lower tablet is quite unique. It was bought in a local junk store for $40. I could not believe my find.

Hamilton Cottage Extra

Elisha Manross

Elisha Manross gothic steeple

The Manross is a thirty hour time and strike and called a steeple clock. One interesting feature is that the Rosewood veneer is in a vertical orientation on the side columns unlike most that have a horizontal orientation. It is also the only clock in my collection that has brass mainsprings which were phased out in the early 1840s making the clock historically significant. Needless to say that in order to preserve the mainsprings I run this clock infrequently.

Hamilton Clock Company

The style is known as gothic steeple. The clock is from about 1876 and features a religious expression on the acid etched lower tablet, “Cling to the Cross”. There are some veneer losses but the clock is in decent shape. The steeple tips never seem to survive on these clocks.

Hamilton Clock Co. 30 hour time and strike
Hamilton Clock Co. 30 hour time and strike

New Haven

This is a spring driven time and strike ogee from around 1875. Unfortunately the veneer has been stripped from the case and the softwood re-stained but it is an attractive little clock nonetheless. The dial is a replacement and the lower tablet has some losses.

Ogee New Haven clock
Ogee New Haven clock

New Haven

This a called a Sharp Gothic according to the label. It is an American-made clock sold by a jeweler by the name of Thomas B. Spike in Halifax, Nova Scotia (Canada) in the 1880s. The lower tablet features a seaside Parthenon scene which might suggest it was one of many produced for foreign markets. There are some veneer losses but the clock is in running order and keeps reasonably good time. It has replacement mainsprings because it will run for 3 days on a wind. Not bad for a 30-hour clock!

New haven Gothic Steeple clock
New haven Gothic Steeple clock

I hope you enjoyed this little tour of a part of my collection of 30-hour or one-day clocks and please leave a comment. As for expanding my collection of one-day clocks I am not sure that I would continue acquiring them unless I came across something quite unique or if one were given to me.

A marriage of two makers, Waterbury and Seth Thomas

This clock is an antique store find not too far from where I live. It was high on a shelf and the price was not visible. I asked the shopkeeper to take it down so that I could check the price ($40) and verify that it had a mechanical movement.

Seth Thomas cabinet clock?

I opened the back panel, quickly glanced at the movement and the trademark stamp appeared to be Ansonia. I had worked on an Ansonia Syria shelf clock in the past year and it looked quite similar but it was an odd looking movement for an Ansonia. Ansonia movements generally have an arched plate, this one had a hump. No matter, I bought it.

Ansonia Syria cabinet clock

While at home I was able to examine the clock more closely.

What did I buy?

I discovered that the movement is made by the Seth Thomas Clock Co. not by Ansonia. The movement was made for about 12 years and was available from 1890 to 1902. The style of the case is also from the same period.

An exhaustive search of Seth Thomas clocks on the internet using keywords such as, shelf, parlour (parlor), cabinet, carved oak and mantel produced nothing. I then navigated to a well-known Seth Thomas database site, poured through hundreds of listings and again, zilch.

I began to realize that the case might not have been made by Seth Thomas, after all.

However, I was determined to find the maker. I searched for clocks made by other companies, starting with E.N Welch, Ansonia (because it is similar in style to the Syria), Gilbert, Sessions and finally Waterbury. When I used the term “Waterbury cabinet clock” I found it on an auction site. So, now I have a case made by a different maker than the movement.

What is a marriage?

Among clock circles it is generally accepted that if a clock has significant parts from another source, particularly the movement and put into a period correct case from a different maker, it is considered a marriage. If it has parts sourced from a number of other clocks it is a Frankenstein or Frankenclock. While this clock is not quite a Frankenclock it is certainly a marriage.

Waterbury Wren case

I am actually disappointed that this clock is a marriage

The case is a Waterbury model called the “Wren”. I found three Wren models, two with paper dials and one with the identical dial pan as my clock. It may well be that this dial pan is original to the case.

The concave brass bezel and glass are certainly more recent. When I first looked at the clock I knew that the brass bezel and glass were incorrect but that did not stop me from buying the clock. The original bezel would have been a piecrust design with flat glass. This glass bezel is from a 1930s vintage clock.

The back access door is made of plywood, a recent addition and, of course, there is no label. The original panel would have been made of solid wood and screwed to the sides of the case with a circular tin access port. The label would have been located on the outside under the port door or underneath the base,

Does the movement run?

The movement is complete with pendulum bob and ST key. It was sold as a non-running clock, but will the clock run?

While the movement was still in its case I applied mainspring oil to the tight mainspring, allowing a few minutes for penetration. I then removed the verge so that the time train would run freely, using my finger as a brake on the escape wheel. It was sluggish at first but eventually the sticky time side mainspring made several soft clunking sounds as it ran down.

You can see the very tight time-side mainspring in the next photo. Grime and built-up dirty oil over the years will seize a mainspring.

Once the mainspring was partially let down I reattached the verge and the clock would stop after a minute or so. There was definitely power going to the escape wheel but something else was amiss. It would skip a tooth or two with every rotation which told me that the pallets were too far from the escape wheel. There is an adjustment screw on an arm which allows the pallets to be moved closer (or further) to the escape wheel. I eventually found the correct distance and the clock began to run normally. At the same time I opened the crutch loop wider to allow more impulse.

This is certainly no substitute for an overhaul but a good diagnostic tool.

Meanwhile, the strike side ran perfectly.

The movement is running and keeping good time but it needs a cleaning and several wear issues addressed.

Seth Thomas 8-day time and strike movement

Next steps?

I am actually disappointed it is a marriage. Buying a clock is always a risk and if I had paid many times more for this clock I would have asked for my money back.

I am not sure what I am going to do with it but I am inclined to service it and perhaps put it on the market. If I sold it I would certainly disclose the fact that it has a period correct replacement movement from another maker.

Nevertheless, it would make an attractive clock once the case is cleaned, the movement is properly serviced and has the correct glass and bezel.

And, if I like it enough I might keep it.

Tick Talk Tuesday #28 – How do I fix my Waterbury ogee?

Tick-Talk Tuesday
Tick-Talk Tuesday is about the letters and comments I receive from you, the reader, concerning your clock, issues you might have had, challenges you face or a clock you would like me to profile. I give my responses to your question(s) and provide advice on your particular clock concern. For those comments and questions that stump even me, I consult within my clock circles for the best possible answer

8-day Waterbury ogee clock

It’s an 1870 Waterbury clock, it’s not in the best shape but it seems so sad to see family heirloom that’s was passed down over the years just tossed aside

AS writes,

I have been interested in old clocks and have 4. My maternal great grandparents were all watchmakers in England and I wished they were still alive to teach me the trade.  The other day I found this old clock in a second-hand store and I fell in love with,  It’s an 1870 Waterbury clock, it’s not in the best shape but it seems so sad to see family heirloom that’s was passed down over the years just tossed aside,  I loved it so I bought, It needs some repair and would love to repair it myself, do you have any advice on where I can get it to fix or how to fix it myself I have tried online to find a diagram of the inside so I have an idea on how to fix but found nothing.

Waterbury 8-day ogee clock movement – side view

My reply,

Hi and thanks for coming to my blog.

I have no doubt that the clock you bought is from the 1870s. The style is called “Ogee” because of the curved veneer molding. Yours is unusual in that it has two front doors rather than the typical one door. You are correct; it needs love and attention.

I have several suggestions for you. One, you can learn about servicing clocks by taking courses online. Dave LeBounty is one source. They are not free, however.

Two, there is a clock forum site operated by the National Association of Watch and Clock Collectors (NAWCC). It is free to post, you do not need a paid membership and you can ask questions about your clock and get some guidance on how to repair it.

Waterbury 8-day ogee clock movement

Three, Steven Conover has several excellent books on clock repair. He has one that focuses on time and strike movements, like yours. It is an excellent guide and easy to follow.

Fourth, You can get your hands dirty by taking out the movement and taking it apart yourself. I can walk you through the process.

Hope this helps.

Waterbury 8-day ogee clock movement – backplate

AS replies,

Thank you for your reply, and advice.  I will look into the NAWCC, Would love to try and fix it myself, as it would be a joy to learn the craft and maybe save other old clocks.  The only clock repair here in New Glasgow closed years ago, so there is no one here to do repairs which is a shame as these old clocks are a part of history and should be saved.  I have managed to get the gearbox out, it is in need of a good cleaning and does need some parts, It doesn’t have a spring but 2 ropes that wrap around 2 gears and spindles on either side then attach to 2 weights. The ropes need replacing as well as new weights, If you could walk me through it that would be wonderful. It is a grand old piece and I would love to see it working again.

Note: There are far more 30-hour ogees than there is the 8-day type. I have not come across one in quite some time. In my collection, my 4 ogees are all 30-hour clocks.

Waterbury York parlour clock – a fresh approach to addressing a non-functioning strike side

Back in December 2019, I wrote about the challenges of adjusting the strike side of this attractive parlour clock, a Waterbury York, circa 1900. Despite many attempts the strike side refused to work. Though I was close to a solution but I did not realize it at the time. I put it aside to think about it.

Attempt #2. Will I be successful? Read on.

A shot of the clock the day I brought it home.

The time side functioned perfectly but the strike side did not run at all when I first brought the clock home. Typically a good cleaning or a simple lever adjustment is all that is required though once I opened the movement up I saw it true colours. I detailed these surprises in my December post.

Continue reading “Waterbury York parlour clock – a fresh approach to addressing a non-functioning strike side” →

Waterbury York parlour clock servicing – a few surprises but ultimately a disappointment

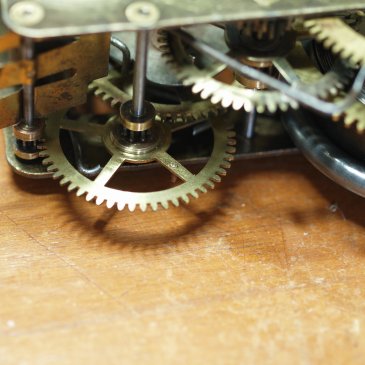

Waterbury time and strike movement

This attractive parlour clock, a Waterbury York, circa 1900, was bought at auction in the spring of 2019. Though inexpensive it is certainly worth servicing which is the subject of this article.

The time side was running but the strike side did not function at all. Usually these sorts of problems amount to simple lever adjustment issues but there were other surprises awaiting me.

The auction tag is still on the clock, the day I bought it

The Waterbury Clock Company was incorporated in the city of Waterbury, Connecticut, on March 5, 1857. Until the Great Depression, Waterbury had been quite prosperous, but like so many companies, most of the profits lined the pockets of its Directors instead of being reinvested in new equipment and updated facilities. In 1932 the company was bought and re-organized under the name Ingersoll-Waterbury.and in later years the company morphed into the Timex Corporation. If you peruse the Timex site today you will see a line of Timex watches called the Waterbury collection.

Continue reading “Waterbury York parlour clock servicing – a few surprises but ultimately a disappointment” →

Trash to Treasure – when clock restoration is the only option

Junghans Crispi dial face

I was on a Facebook clock collector page recently and I was intrigued by the work someone had done on a clock that was surely destined for the garbage bin. The transformation was given an apt phrase, “Trash to Treasure” and so I thought I would write about my own experiences resurrecting old clocks.

Preserving the original patina is always the principle goal and I do as much as I can to keep things as they are. However, when the finish has been adversely affected by environmental damage, heat, cold, humidity over the course of many years, as in a couple of examples below, the only course of action is refinishing.

There are times when the only course of action is complete restoration

My grandfather’s clock – partial restoration
 Continue reading “Trash to Treasure – when clock restoration is the only option” →

Dry home and clock case issues

Winter, along with the dry conditions of a typical Canadian home, can play havoc with wooden clock cases. In Canada we generally shut the doors and windows to keep the cold air out from mid November to mid March and we may stay inside for days at a time. During our Canadian winter we have difficulty controlling indoor humidity. Most modern homes have a commercial style air-exchanger that is designed to control relative humidity but it can only do so much.

I have dozens of clocks and most do not seem to mind the changes in humidity from season to season other than a rate adjustment. Those vintage clocks that are adversely affected tend to be clocks with thin veneers that separate from the frames of the cases. Less affected are Ogee clocks with thicker veneers.

My Ingersoll-Waterbury time and strike clock from the mid 1940s is a 70 year old clock and not a particularly valuable one to begin with but has been affected with peeling veneer. The peeling veneer is unsightly and must be addressed.

I am not opposed to using modern materials to repair a vintage clock and in this case yellow carpenters glue was used to close the gaps on both the left and right rear of the case. Yellow carpenters glue has a bonding strength of 3 tons and for maximum effect is should be clamped for 24 hours.

Split veneer on left side, rear

Both sides of the case were splitting open. The right was slightly worse than the left. Although I have several clamps I only had one to spare for this little project so, the job was spread over a few days.

Right side is clamped

Wax paper is placed between the clamp and the veneer to prevent the glue from adhering to the clamp itself.

Once the glue has bonded, the case is lightly sanded in the affected areas, the remaining cracks treated with wood filler and touched up with a dark stain.

Stain-able filler in the small cracks that remain

Two coats of shellac are then applied.

Not perfect but an improvement.

Clocks and museums

I am not fanatical about humidity as far as my collection is concerned but museums go to great lengths to control humidity. In museums temperature and humidity are interrelated, and must be monitored and controlled in conjunction with one another towards the goal of preservation. Room temperature is usually established according to the needs of visitors, and is set between 18 and 20°C. The relative humidity for the correct conservation of the works displayed usually lie in the limited range between 45 and 50%.

Clocks react to humidity differently. Clocks with wood pendulum rods need seasonal adjusting as the wood contracts and expands with changes in humidity. Wall clocks that have tight doors in the summer are easier to open in the winter as wood contracts.

High humidity can be mitigated through the use of humidifiers if there is sufficient concern about dry air and its effect on clock cases. It is a good option in the winter months.

If you have a modest collection of clocks I would not worry about humidity issues but you can be assured that seasonal changes can have an affect on your clocks.

30-hour clocks – four for your consideration

These three 30 hour clocks in the opening photo were serviced in the fall of 2018. The fourth (shown next) is a Waterbury Ogee from about 1870.

It was never my intention to collect 30-hour clocks but I am attracted to this style of clock. Thousands were made, they are surprisingly cheap and come up often on online for-sale sites. Many have the cases that have suffered the ravages of time though these are in very good condition. However, buyers and collectors tend to stay away from 1-day clocks because of the hassle of winding them every day.

I marvel at the engineering and innovative technology of clocks made over 150 years ago and how popular these clocks were in their day.

Waterbury OG clock
Waterbury 30-hour Ogee clock

On the left in the opening photo (and below) is a George H Clark, pre-1850. It features a Jerome-like movement and a wood dial.

George H. Clark 30 hour Ogee
George H. Clark 30 hour Ogee

30 hour movement servicing
All of the clocks on this page have similar movements to this Jerome

Touch-ups to nicks and scratches were all that were required to improve the look of the case but the movement required a good cleaning as well as a couple of bushings.

The middle clock (also seen below) is a Chauncey Jerome Ogee clock. The label dates the clock to about 1855-56 just prior to the company’s bankruptcy.

Chauncey Jerome 30 hoir Ogee clock
Chauncey Jerome 30 hour Ogee clock

Eight bushings were installed on this clock. Some of these clocks need a lot of work while others require a good cleaning.

On the far right (and blow) is a Sperry and Shaw 30 hour New York style 4 column shelf clock. The movement was disassembled and cleaned but did not require bushing work. The case was also freshened up.

Sperry & Shaw 4 column clock
Sperry & Shaw 4 column clock with a Canada Clock Co 30-hour steeple to the right

I am fascinated with 30 hour clocks. Yes, they require winding every day but I enjoy it and it has become one of my daily rituals. The sound of the gong is not particularly pretty but it is distinctive. You always know when an Ogee clock is striking in a house.

What other mechanical devices keep running after 150+ years?

Lessons learned restoring grandfather’s old clock

Photo of Waterbury time and strike wall clock sent to me by my cousin

I’ve thought about this clock, dreamt about it, wondered where it was all these years……and now I have it. I was confident that I could do something with this clock since I had just finished a major restoration project.

I had no idea that the clock I was getting was a movement in a homemade case

I have a vivid memory of this Waterbury octagon short drop time and strike schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. After church on Sundays, my father would take (drag?) us kids for a visit; it was a weekly ritual. The house was stone quiet except for the sound of a clock ticking loudly in the kitchen. My grandfather was a veteran of WWI and was bothered by noises, shell shock they called it, but he did not seem to mind the rhythmic sound of a mechanical clock.

When I was a kid in the 1950s it looked impressive.

So, I jumped on this project and have learned a few things along the way.

The following are lessons learned restoring grandfather’s old clock.

When it comes to family, lower your expectations

I made some inquiries within the family and when I first saw a photo of grandfather’s old kitchen clock and discovered that the case was homemade I was very disappointed. I had no idea that the clock I was getting was a movement in a homemade case. The original case, long gone is but a family mystery. Nevertheless, my cousin said, “You can have it”.  I wondered what I would do with it. I explored several options but at the end of the day I wanted a working clock no matter which direction I took.

Work with what you have rather than dream of significant changes

I could have radically altered the appearance of the clock completely but would it be the same? It is a philosophical dilemma. If too much is done to restore a clock it is not fundamentally the same and cannot be considered original. The homemade case is crude and made some 30-40 years ago but it is part of the clocks history. The chicken pecks on the clock face tell the story of a clock that likely sat in a barn for many years.

Envision what the final outcome should be before you begin and resolutely stick to your plan

Should I restore the clock or preserve what I have? It was an interesting dilemma.

My options:

  1. Do absolutely nothing.
  2. Take the movement out, find an appropriate period donor case or
  3. Make some minor changes but preserve the provenance

I chose #3 for several reasons:

  • To preserve the bygone times of a clock passed on through the family, despite its many warts
  • Labour aside, it was cost effective; my entire monetary outlay was less than $50
  • Ignoring aesthetics, the case was crude, heavy but very sturdy and should last forever

Be content that the clock tells a story no matter how ugly or homely it might look

It may not be the prettiest clock on the wall but it will be a great conversation piece and after 70 years (??) it is finally functional. I can only imagine my grandfather standing under the clock, comparing the time with his pocket watch and deciding if he should make just one small adjustment.

Retouched dial face

Changes I made

  • Sanded, stained and shellacked the case
  • Brass bezel was separated from the dial bezel (don’t ask me why the two were screwed together), new bezel hinge installed, and door catch
  • New convex glass dial installed
  • Brass was cleaned and polished
  • New clock hands
  • New pendulum, pendulum rod, verge and crutch
  • Movement completely serviced, several bushings installed
  • New hinged access door made from century old clock case wood

After servicing, a fully functional Waterbury time and strike movement

What I did not change

  • The overall “character” of the clock
  • The holes in the brass bezel were left as-is; it is what it is
  • Dial is original though touched up in some areas; I considered a new paper dial but decided to retain the original and came very close to matching the colour of the dial face
  • The case is made of thick plywood; it is utilitarian, very solid and will likely outlast the movement

Yes, it is ugly but it works and it tells a story

Final thoughts

I am actually very pleased with the outcome. The changes manage to preserve the provenance but not enough to radically alter the look of the clock such that it is. It is now worthy of being placed on a wall and it will certainly occupy a prominent spot in my home, plus, it tells a fascinating story.

Here is the story told by yours truly.

Antique and vintage wall clock collection

one-weight Vienna wall clock

It has taken me 6 years to assemble my collection of antique and vintage clocks. Although I have many clocks, wall clocks are my particular favorites. Check out my collection of antique and vintage wall clocks in this YouTube video I made in January 2019.

Feel free to comment.

Grandfathers clock – the drop door, the movement and other things – Part IV

This is the fourth and final article on this curious and somewhat homely Waterbury time and strike schoolhouse clock. I have a vivid memory of this Waterbury octagon short drop schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. Now that I have it what do I do with it.

It is a clock that had been passed down within the family and as you can see it went through a significant change. I thought about next steps and considered advice from friends and family. It came down to three options:

1) Do absolutely nothing, preserve it as-is and store it in a closet,

2) Discard the case out, buy a donor case and install the parts I have in the new case or,

3) Preserve it, that is, not change it in a significant way but make some cosmetic changes and have it run reliably.

The drop door, movement and other things

The next photo shows the clock after the glass bezel was installed, the dial face was refreshed and the case was given a coat of dark walnut stain (the number “IIII” has a reflection from an overhead light). You can still see the plywood and the nail heads but my objective was to clean it up, refresh and preserve the character of the homemade case.

Dark walnut stain, dial re-freshened and glass installed

The access drop door:

The clock requires an access door on the short drop, the opening is unsightly. As you can see in the photo above the cut-out is rough and a door will effectively hide it. Making a n access door is a simple project and will enhance the appearance of the case.

I have an old Ogee clock case that I use for any wooden parts required for clock projects. I cut a 1/4 inch piece and fashioned the door panel using a paper template for the dimensions. There are two panels which make up an inner and outer door sections.

First, I used paper as a template to draw the new door.

The template is a sheet of paper

I cut the inner and outer door panels using a table saw and sanded all sides.

Inner and outer door, cut and sanded

Next, using masking tape I taped one piece to the other. I positioned my hand in the drop area so the inner piece would be aligned correctly with the door panel.

Glue applied to both panels

Once the panels were aligned I removed the masking tape, gave the panels a final sanding, then applied yellow carpenters glue to both panels. Hide glue would have been used originally but the goal for this little project is to hide the crude cutout, not to replicate woodworking methods at the time it was constructed. Yellow glue is appropriate for this project; it is stronger and has a high bonding strength.

The two panels are clamped together.

Next, a dark walnut stain was applied to the door panel to match the case. Installing the door to the case required two small brass hinges mounted on the right side. For the pull handle, I decided to go with a wood knob stained in dark walnut.

Drop installed and stained to match case

Final steps:

A small piece of wood was affixed to the inside of the dial cutout to ensure that the hinge screws had something to bite into. Following this, the glass bezel door was attached.

Block on left is glued in place to screw the door hinge to the case

Next are dummy slotted wood screws for the bezel holes, basically to conceal the holes.

The drilled holes in the bezel are unsightly

The door project is almost complete, door pull missing in photo

Having sorted out the striking issue the movement is now installed in the case.

My thoughts on this project:

Prior to the first pictures I saw, I had visions of a clock that needed a little work to restore it. When I discovered that the case was homemade it was a disappointment. After giving it much thought it seemed that the most appropriate course of action was to preserve what I had.

Overall the cost of bringing this clock back to running condition and refreshing the case was minimal. Was it worth it? Yes! It is now complete, it shows better and it will tell an interesting story for years to come.

It may not be the prettiest clock on the wall but it will be a great conversation piece and after 60 years it is functional and it will finally tell the time. I can only imagine my grandfather standing under the clock, comparing the time with his pocket watch and deciding if he should make just one small adjustment.

Grandfathers old clock – Preserve a memory or restore it – Part III

This is Part III of a 4-part series. I have a vivid memory of this Waterbury octagon short drop schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. Now that I have it what do I do with it.

I have devoted two previous articles to this curious and somewhat homely Waterbury time and strike schoolhouse clock. It is a clock that had been passed down within the family and it has had a hard life. Along the way it has undergone some changes, not all of them pretty. I thought about the next steps for this clock and considered advice from friends and family. It came down to three options:

1) Do absolutely nothing, preserve it as-is and store it in a closet,

2) Discard the case out, buy a donor case and install the parts I have in the new case or,

3) Preserve it, that is, not change it in a significant way but make some cosmetic changes and have it run reliably.

Option three it is.

At one time the original case was painted yellow with red trim. which is probably why it was discarded

Restoration or preservation? The restoration process consists of performing clock repair procedures on the movement as well as cosmetically restoring the dial, the case and its wooden and metal components using period procedures. Proper restorations do not change the clock’s functionality, appearance or value. Restoration of a valued clock is a serious business as many owners are emotionally attached to a clock for various reasons.

In this situation the movement can be restored and the other hardware cleaned up, however, the case is not original and was likely made 40, or 50 years ago which is why this project is part restoration and part preservation. Servicing the movement, putting the clock in running condition and making some cosmetic changes is my objective for this project.

This is what the clock looked like when I first received it.

First photo of the clock sent by my cousin

It has a homemade plywood case though it has all the essential mechanical parts. There is no dial glass. The brass bezel would have been hinged and perhaps the hinge broke and was discarded. The bezel was then screwed into the plywood.

The first step is the movement. The parts arrived from Perrin and I went to work on the movement. The movement is a Waterbury time and strike with a patent date of Sept 22, 1874. It was dirty as expected and there was some rust but it cleaned up nicely.

Before

And after servicing

The movement required 5 bushings at T2F, T2R, S2F, S2R, and S3F. As always it takes me more than one try to get the strike side functioning correctly. During testing I noticed that the strike side was sluggish. A tight bushing, bent pivot, insufficient end shake? I will know when I take it apart and take a second look.

Walnut stain and clear coat, hiding the plywood and nail heads, for the most part

I gave the case a thorough cleaning, then a sanding and applied one coat of dark walnut stain followed by three coats of shellac. A dark Walnut stain is the optimal way to hide the plywood and the nail heads. It does not hide the plywood completely but the intent for this project is to refresh the case rather than conceal imperfections.

At one time the original case was painted yellow with red trim, my grandfather’s idea of matching the clock to the paint and trim in his kitchen. The original case was likely in such poor condition that it was thrown away.

Next, the brass. It was painted red at one time so it took a little Brasso muscle to remove a combination of red paint and tarnish.

The brass was quite black

The result looks good

The dial was a challenge. Cleaning up the pit marks and faded numbers was my key objective. The nicks are chicken pecks while stored in a barn. Again, I was not interested in replacing it but touching up the nicks and rust spots while preserving the character of the dial. I have a supply of acrylic metal paint and it is a matter of mixing the right colours to determine the closet match.

The numbers were painted with flat black acrylic metal paint. The dial touch-ups would fool most people at a distance. I removed the rust from the hands and gave them two coats of flat black paint. The coil gong base was cleaned and also painted black.

Colour matching to hide paint loss

I ordered 10 1/4inch convex glass for the bezel plus a door hinge. The hinge was soldered into place as were brass tabs to hold the glass. Although the hinge is not affixed in this photo, this is what the door complete with dial glass looks like. There is not much I can do about the screw holes on the bezel; it remains part of its provenance. I may cut the heads of some brass slotted screws and solder them to the holes or simply leave the holes as-is.

Glass installed in bezel. Hinge installed but not fit to case in this shot

The clock requires an access door on the short drop, the opening is unsightly. As you can see in the photo above the cut-out is rough and a door will effectively hide it. I plan to make a solid door much like the one on this New Haven schoolhouse clock.

Drop door on a New Haven schoolhouse clock

It may not not be the prettiest clock in my home but it will be a great conversation piece and after 60 years it will finally tell the time. I can only imagine my grandfather standing under the clock, comparing the time with his pocket watch and deciding if he should make just one small adjustment.

Next is new drop access door and final assembly which I will detail in the next and last post for this project, Part IV in 4 days.

What to do with this old clock was a difficult decision. What would you have done?

Waterbury, New Haven or EN Welch – A true Frankenstein clock

E N Welch case

Is this attractive 30 hour weight driven Ogee a Waterbury, a New Haven or an E.N. Welch? All of the above, actually and perhaps more.

The older the clock and the greater the number of owners means there is an increased chance that there have been minor and even significant changes to the clock

Is it a marriage or a Frankenstein?

When horologists speak of a marriage they mean the clock in its entirety is not original. It generally means the movement is not original to the case but it can have other meanings as well. Various parts and components might have been added or changed over time. Over the life of a clock it has often been in the hands of many owners particularly if the clock is well over 100 years old. The older the clock and the greater the number of owners means there is an increased chance that there have been minor and even significant changes. Each owner may add or take away components in the interest of having a reliable clock while sacrificing authenticity. Functionality trumps aesthetics. When a clock goes well beyond the horologists definition of a marriage, it is called a Frankenstein.

A Frankenstein clock is made up of a mixture of clock parts from many makers. In this case, a previous owner acquired a number of non-working Ogee clocks, took what was salvageable from each one and constructed a working clock.

New Haven 30 hour movement

This clock was purchased at auction as a non-running example and cost the owner very little money. I was asked to take a look at it and perhaps “do something to make it run”. It came complete with weights for both sides missing only the pendulum bob and the correct key. The key that came with it was a #3 mantel clock key as the original would have been a crank style key. One weight was stuck in the right channel past its hook; the other was loose in the case; not a good way to transport a clock. Though difficult to tell if they are original to this clock, the weights are those typically found in a 30-hour brass time and strike movement.

The numbers have been repainted by the writer

The dial is not original to the case though it is correct for the period. There is a stamped impression in French on the back of the dial suggesting that the clock it was attached to was intended for export to France (Chauncey Jerome?).

Tablet design

The tablet is a nicely detailed floral design but has some loss as one would expect given its age. However, the tablet and the door do not appear to be original to the case. There are small blocks under each hinge suggesting the door was “made to fit” this case. Nails are used on one hinge and screws on the other.

Waterbury coil gong

The case is an E.N. Welch, the time and strike weight driven movement is New Haven and the coil gong is a Waterbury.

The aluminum spindle for the cable just above the movement on the right side is an curious touch.

Aluminum spindle

A wall hook at the top and back of the case suggests that it was hung rather than having sat on a shelf. Knowledgeable Ogee clock owners know that these clocks were never meant to be hung though many were displayed in that manner.

I took the movement out of the case, inspected it for wear and found it to be in very good condition with no obvious pivot, tooth, pinion or click wear. The verge and escape wheel similarly had little wear. The cables for the weights should be just long enough to bring the weight to the bottom of the case with a little to spare. On both sides the cables were twice as long as they should have been. The suspension spring and rod which is a later replacement, is too long as the bottom of the spring touches the crutch loop. The crutch loop had been incorrectly turned 90 degrees requiring a simple twist with pliers to correct it. How it ran is a puzzle since there was no impulse transmitted from the crutch to the pendulum rod. A previous owner, though well intentioned had little knowledge of how a movement functioned.

Incorrect grain direction on top piece

The rosewood veneer though dulled with age is in fair shape and had acceptable repairs with the exception of the flat horizontal strip on the top front, which upon closer inspection, is a replacement with simulated grain oriented in the wrong direction. Other issues are minor chips on the bottom edge of the case, two pieces of missing veneer on the right side and slight bubbling of veneer on the top left side panel.

Veneer issues

So, what is this clock exactly?

The answer is that it is a 30 hour Ogee clock. It is also an amalgam of many clock parts, a Frankenstein. From afar the entire clock looks very good, but closer examination immediately reveals it many sins. As they say, “Nice from afar but far from nice!”. A resourceful person took all the good parts from a variety of clocks and combined them to make a clock that actually runs and keeps good time.

Is it a keeper?

For discerning clock collectors this example is far from acceptable and certainly diminishes the value of a clock considerably even if it runs well. An expert looks for precisely these things prior to any decision and any serious collector of Ogee clocks would instantly walk away. For someone either interested in the history of clock production or those entering the world of clocks wanting a cheap clock to practice and learn with, it is certainly worth keeping.

The clock is running strongly and striking as it should following a cleaning and oiling. This 30 hour New Haven, Waterbury, E.N. Welch Ogee clock from the 19th century would fool most people.

It reminds me of that old expression….Caveat Emptor (Let the Buyer Beware)!

Grandfathers old clock – now what do I do with it? Part II



Photo sent to me by my cousin

I posted Part I of a four-part article on this curious schoolhouse clock recently. In this, Part II I discuss the what I like and what frustrates me about this project.

I have a vivid memory of this Waterbury octagon short drop schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. Now that I have it what do I do with it. I thought long and hard about what my next steps should be and considered advice from friends and family.

  1. Do absolutely nothing,
  2. Discard the case, buy a donor case and install the parts I have or,
  3. “Preserve” it, that is, not change it in a significant way but have a working clock.
I had hopes of restoring this clock to its former glory but after discovering a home-built case I have decided to proceed differently

The good stuff: The dial face is definitely showing its age. There is rust and pitting throughout but the Roman Numerals are fairly clear despite some fading. The Waterbury trademark is visible on the dial just above the centre arbour. The spade hands appear to be original, though rusted. The time and strike movement is intact sans suspension spring, pendulum rod and pendulum bob. There is a Waterbury trademark on the front plate of the movement with a patent date of September 22, 1874. Just how long Waterbury used this movement deserves some research but the clock works look to be from the 1890s. The coil gong is clearly marked Waterbury. The bottom line; there is strong evidence that the movement, dial, bezel, clock hands, and coil gong are all from the same clock.

When I picked up the clock I immediately discovered that it was twice as heavy as it should be

Plywood was not available as a general building material until 1928

The frustrating stuff: When I picked up the clock I immediately discovered just how heavy it was. Makers go to great lengths to make clocks as light as possible; this one is very hefty. The backboard and front face are constructed of ½ inch plywood. Plywood would not have been available in the 1890s or even some years afterwards. The centre frame appears to be 3/4 inch board. The movement sits high on a block of wood to bring the arbours closer to the dial but the result is that they protrude too far above the face. Robertson and Phillips screws (the former invented 1909, the latter in 1932) are used everywhere. The “newer” case is very sturdy and would likely last a long time but weighs twice as much as it should. It is an interesting homemade case.

Plywood construction, twice as heavy as a typical clock case should be

The handyman, be it my grandfather or someone who it was passed on to certainly had the best of intentions. The original pieces such as the dial, movement etc. were retained but the original case was discarded. My grandparents were poor and lived modestly. In those days if things wore out folks would go to great lengths to keep them running often resorting to home repairs with materials at hand. The goal was functionality not aesthetics.

The movement, coil gong, dial face, bezel and hands are all from the same clock

Four screw holes were drilled into the original brass dial bezel and at one point in its life it was painted red. The bezel would have been originally hinged to the front face of the clock. The dial glass is missing, perhaps discarded after it broke. Aside from the 4 screws holding the dial bezel, I counted 20 more screw holes once I lifted up the bezel.

Lastly, the short drop section is without an access door.

Next steps: I had hopes of restoring this clock to its former glory but after discovering a home-built case I have decided to take another course of action.

The dial, bezel, movement and coil gong are the important mechanical bits which are in good shape. Missing are the suspension spring, pendulum rod and pendulum bob, all easily available through any clock supplier. The movement wheels run free and the mainsprings are good; all the parts are there aside from those mentioned above and there is no reason why it should not run reliably after cleaning and servicing.

The clock is waiting for me on my cousins kitchen table

The case is what it is, it is part of my history, part of my family history. It will be sanded and stained dark walnut followed by a clear topcoat. I will affix a brass plaque in memory of my grandfather and proudly hang it on the wall.

But first: The first order of business is to clean up the clock including the brass dial face sections. Next, buy new glass for the dial and a hinge for the bezel plus the movement parts that are required. Finally, I will fashion a new drop door using old wood from a donor clock.

And that’s where it ends. It can be no more than what it is.

It may not be the prettiest clock in my home but it will be a great conversation piece and after 70 years it will finally tell the time. I can only imagine my grandfather standing under the clock, comparing the time with his pocket watch and deciding if he should make just one small adjustment.

The clock is now on my project bench and I will post two more blog articles in November detailing the steps towards preserving this interesting clock.

Grandfathers old clock – I asked for it, now what do I do? Part I



Photo of my grandfather’s clock sent to me by my cousin

I’ve thought about this clock, dreamt about it, wondering where it was all these years…….and now I have it. Now, what do I do?

I have a vivid memory of this Waterbury octagon short drop schoolhouse clock that hung in my grandparent’s kitchen when I was a young boy. After church on Sundays, my father would take us kids by for a visit; it was a weekly ritual. The house was stone quiet except for the sound of a clock ticking loudly in the kitchen. My grandfather was a veteran of WWI and was bothered by certain noises but did not mind the sound of a mechanical clock.

When I was a kid in the 1950s it looked gigantic and for some curious reason, it was painted yellow with red trim. What did I know, I thought old clocks came in all sorts of colours.

My grandfather, William George Joiner, taken during WWI

But he loved that clock. There is a story that my grandfather was fanatical about keeping the clock on time; he would constantly compare the time to his pocket watch and make adjustments, sometimes several times a day. They left the house on Olmstead Street in Eastview (now Vanier, Ontario, Canada) several years before his death and the clock was passed to a son (my uncle) and eventually handed down within his family. My grandfather passed away in 1962.

Movement is essentially intact except for the suspension spring, rod and pendulum.

A year ago I decided to track down the clock and learned that it had stayed within the family. My cousin sent a photo of the clock but upon examining it I could see that something was not quite right. It was missing parts, it looked pretty rough and that case looked homemade. At that time I replied,

Yes, it is indeed a Waterbury time and strike clock. Your description of it as a school clock is correct though it would not have been called a schoolhouse clock at the time. It would have been sold as an office clock. The patent date tells us that the clock was made after 1874 but likely manufactured in the 1890s to 1900.

In clock circles it would be described as a time and strike 8-day octagonal short drop wall clock, Roman Numeral dial face with spade hands. From the photo I can see that it is missing the pendulum (as you said) the hinged wooden drop access door which would have had a glass tablet and the brass/glass bezel which would have covered the dial. I assume these items are long gone.

It also appears to have been in a damp environment judging from the tarnished brass and the fact that the rust from the iron nails has bled through the wood. However, it is not unusual for a clock of this age to be in such a condition. I have seen far worse.

At a recent family get-together, my cousin said that if I wanted the clock I could have it. Yes, I said and I brought it home thinking about my next steps with my new clock project.

There are 4 posts in this series. Part II is in 4 days. In Part II I consider those next steps. Parts III and IV will be in November.

Let me know what you would do with this project.

Waterbury 30 hour Ogee clock – servicing Part II

Waterbury clock movement

Waterbury OG clock
30-hour Waterbury Ogee with a beautiful veneered case

This 30 hour Ogee clock was purchased in the fall of 2017. I was eager to add this clock to my collection as it is the one particular style of clock that I do not have. From my research on Waterbury clocks I determined that it was made in or around 1870.

I decided to turn the worn trundles inward and seal them with Permatex (medium strength thread-locker) so they are fixed rather than rolling; not ideal but reversible

While the case is in remarkable condition for the age of the clock the movement has suffered the ravages of time.

Simple 30 hour movement, top plate removed
Simple 30 hour movement, top plate removed

Testing over the course of a day or so revealed that clock would not run for more than a few minutes. The movement was taken out of its case and inspected to determine what needed to be done to get it to running condition.

I expected punch marks and there were a number. In the old days clock-makers would attempt to address pivot wear by closing the pivot holes with a stake or punch. Not ideal but a common practice. Bushing work was definitely required. The pivots, on the other hand, were in very good shape and polished up nicely.

Punching the bushing home
Punching the bushing home

My first task was to address the bushings. Ten bushings were installed, 5 on each plate. The front bushing work included the escape wheel bridge, always a challenging spot to bush. Next I addressed the other serious wear issue – the trundles on all of the lantern pinions.

Lantern pinions on the escape wheel
Lantern pinions on the escape wheel

The trundles on the lantern pinions were in bad shape as you can see in the photo above. The wear seen here was identical on all 4 lantern pinions. Notched trundles were not what I expected.

The trundle work was certainly the most interesting part of the repair. My experience with lantern pinion work is zero. After some research the method I selected was to hand drill through the top shroud to release the worn trundles.

Drilling through the shroud to release worn trundles
Drilling through the shroud to release worn trundles; I used a smaller bit than the one pictured here

After releasing the worn trundles I used 1.10mm pivot wire which is ideal for this purpose and matched the worn trundles precisely.

Test fitting of pivot wire before the wire is cut to proper length

I began with the fly. I drilled into the top shroud. I then cut 1.10mm pivot wire into the required lengths then rounded the ends with a cut-off disc on a  Dremel. After the fly was completed I addressed two more lantern pinions in the same way. I staked the shroud ends to seal the trundles inside.

With three done the escape wheel lantern pinion was next and that is when I ran into a snag. The escape wheel shroud is reversed (see photo below), so I cannot drill into the top shroud without a lot of guess work. Using needle nose pliers I decided to turn the worn trundles inward and seal them with Permatex (medium strength thread-locker) so they are fixed rather than rolling. This is not ideal but it is reversible.

There does not appear to be a definitive answer as to whether the trundles should be free-moving or fixed although I suppose they are designed to roll with the gear teeth. At some future point the trundles on this wheel will need to be replaced.

So, how do you get at those trundles?
So, how do you get at those trundles?

The clock did not come with a pendulum bob so, a new one was attached. The suspension spring and leader was replaced to address a crimped spring that resulted in a wobbling pendulum bob. I used .09mm suspension spring in the correct length. The clock now runs well and it has completed a number of 30-hour cycles.

I suspect that this will be a clock that will not be run daily, the inevitable hassle of constantly winding a 30 hour clock but I am pleased that it is back in running order and I will ensure that is runs on special occasions.

Website Powered by WordPress.com.

Up ↑
