The challenges of restoring an Ansonia Drop Extra wall clock when the clock is rare and parts are hard to come by

I acquired four old clocks in a barn find. Two, a 30 hour Ogee and a mantel clock were totally unsalvageable although I managed to take off some veneer, case parts, a movement, boards, case hardware and a few other items.

Two others were worth a second look. One is an Elisha Manross 30 hour Gothic steeple clock that is worth restoring and the other, an Ansonia Drop Extra wall clock, the subject of this article.

There are a number of variations of the Ansonia Drop Extras and the one most sought after is the time, strike and calendar version. This is merely a time-only version and would fetch a price in the lower end of the range.

The largely intact label says,

Eight-day and thirty hour brass clocks, pendulum clocks, a variety of……., Also sole manufacturers of Jeweled Marines and eight-day gilt time pieces, Ansonia Brass and Copper….Ansonia Conn.

This clock was manufactured by the Ansonia Brass & Copper Co. around 1880. It is 26 inches high, 16 inches wide and 5 inches deep. It has a 16 inch round wood door bezel on a large 2 inch hinge. The drop section has serpentine sides and teardrop finials. The bottom access drop door opens downwards. Other Drop Extra access doors open to the side.

Much has been written about the Ansonia clock company. The company history can be found here. Formed in 1844, the Ansonia Clock Company went into receivership just before the stock market crash in 1929. The machinery and dies were sold to a Russian Company in 1931 thus ending the long reign of a glorious American clock manufacturer.

The Lima (Ohio) News gave this account in a March 12, 1931 news report:

“…there came an order to supply the Soviet union with men and machines to make watches and clocks, neither of which products ever had been manufactured there. Representatives of Amtorg went to the Ansonia Clock Company in Brooklyn and to the Duber Hampden Watch Company of Canton, Ohio, and bought them lock, stock and barrel. Then they hired most of the skilled employees of the plants to go to Russia and operate the familiar machines. These have been installed in a new, many-windowed building in Moscow, where Russian apprentices are beginning to master the trade.”

The time-only movement appears unusual because of the oversize 2nd and 3rd wheels. The dial glass is original as is the painted dial which is 11 1/2 inches wide. The painted zinc dial has black Roman numerals, is flaked in some areas and requires stabilization. The flaking dial could use some work if only to arrest the deterioration of the finish. In the meantime the numerals have been touched up with black metal paint.

Siezed time-only movement — Seized time-only movement

The clock is in generally poor shape, what I would consider a diamond in the rough. A challenging project? Yes, because there are so many missing parts. Missing are the brass dial bezel, clock hands, pendulum bob, verge, drop access door with its hardware, right tear drop finial and 3 hinges. The finish is completely gone, down to the bare veneer. The veneer has some minor losses that are in hidden from view but for the most part the case is in good condition.

The movement was rusty and the wheels were seized. Obviously the clock had not been running in a number of years. After applying some WD-40 I managed to free the gears. In addition, two bent wheels (2nd and 3rd) had to be straightened. The rust was removed and the movement cleaned up surprisingly well. Only one bushing was required on the escape wheel bridge. The movement is presently installed in the clock and running well with the addition of a new verge, pendulum rod and bob.

There is nothing special about bringing the veneer back to life. After a thorough cleaning with Murphy’s soap I applied three coats of shellac lightly sanding after each coat. The photo shows the clock after the third application of shellac.

Ansonia backboard with partial label & movement mount blocks

A section on the right side of the backboard was missing. I salvaged a piece of board from a donor Waterbury Ogee from about the same period and traced a pattern to fit the missing piece. Replacing the entire backboard might have been an option but I felt it necessary to preserve most of the label. Hide glue was used to bond the two boards which were then clamped for 24 hours. The gaps were filled with a combination of hide glue and sawdust one day later.

Ansonia movement in case — Ansonia movement running and installed in the case

Unfortunately, this is as far as I can go with this project. Unless the previous owner finds the missing pieces which is doubtful or I find another clock to marry the two together this clock will simply be a curiosity on a wall. In the meantime I have contacted some clock suppliers and have had no luck so far. My inquiries on clock oriented social media sites have also produced no results.

Rosewood veneered dial bezel in position

The movement has been running reliably for a full 8-day cycle and has run for the past 4 weeks. Despite not having the parts I require to complete the project there is a certain satisfaction in making a clock run that has not run in years.

Thoughts on where else to search?

March 20, 2018

Kundo 400 day clock and why I love anniversary clocks | Part I

The 400-day anniversary clock, also known as long-duration clocks, is a fascinating category of clock known for its ability to run continuously for a full year without needing to be wound. These clocks, often featuring intricate designs and beautifully crafted mechanisms, were first introduced in the late 19th century and have since become a beloved collectible.

In this article, we’ll explore the history, mechanics, and appeal of these interesting clocks. This is a two-part series. The first part describes my most recent purchase, a 400-day Kundo anniversary clock. Part II involves the installation of the suspension spring, cleaning, testing, and post adjustments.

400-day clocks are known for their inaccuracy, although they are undeniably beautiful and fascinating to observe. A minute lost each day adds up over the course of a year, potentially totaling many minutes—or even hours—by the end. Despite this, I still find great joy in owning and appreciating them.

A brief history

400 day clocks have been with us since about 1900. There were torsion clocks produced before 1900 but in limited numbers from about 1894 onward but the real push was after 1900. The Kundo model you see here was made in the late 1950s or early 1960s, probably the peak and subsequent decline of the anniversary clock era.

Once quartz clocks were introduced mechanical versions declined precipitously. Kundo is one of many companies making anniversary clocks in the 1950s and 60s. Kundo is a combined form of Kieninger and Obergfell. The company exists to this day as Kieninger, a subsidiary of Howard Miller which is part of a larger company.

This particular clock is a good example of a typical anniversary clock of the period. There are signs of wear as one might expect, dents on the base where an unrestrained pendulum did its damage and a snapped suspension spring but all the parts are there, complete with its dome.

_{Dents from weights bouncing around during transit}

The clock was purchased at a local antique store. It is not in running condition. These clocks typically sell for around $50 to $100 or more on online marketplaces. Domes are often chipped or missing entirely. The glass dome on this one is free of chips.

I have ordered a Horolovar spring (.0032″) and will report on the installation, cleaning, and testing of this 400-day clock. Look for the second part of this series.

October 11, 2017

A pretty little Delft clock by Forestville

Purchased earlier this year (2017) I thought it would make the perfect cottage clock. A relative attended an estate auction in Ottawa while I simultaneously bid online in Nova Scotia for the clock. She brought it to her home and it was months later before I actually got to see it. But for one low resolution auction photo, it was bought unseen and as-is.

It is a Delft style, triangle shaped front-wind 8-day time-only porcelain clock with a lever escapement similar to those found in marine/alarm clock movements. It is marked Forestville. While Forestville is a Canadian company the clock is not Canadian made. The Forestville Clock Company is often confused with clocks made in Forestville, Connecticut. According to the following historical information they are not the same.

The Forestville Clock Company of Toronto began its life as the Blackforest Clock Co. of Toronto headed by its founders, Leopold and Sara Stossel in 1928. Both movements and complete clocks were imported from Germany and sold through department and jewelry stores across Canada. Their son, Ed Stossel started working part-time with his parents company in the 1930s and later became a full time employee in the 1940s.

Some assembly work was carried out in their Wellington Street factory but most clocks were imported fully assembled. At first, imported mantel and grandfather clock movements were installed in cases made in Kitchener, Ontario but later complete mantel clocks were imported from Germany. This arrangement was interrupted by the Second World War which also led to a change of the company name to Forestville Clock Company in 1941. During the war years the company imported their movements from England, the United States and even France. Starting in the early 1950s German companies resumed production with Mauthe being a major supplier.

Clocks with a Dutch motif reflected a popular trend in the 1950s and 60s perhaps in recognition of Canada’s close relationship with the Dutch people since the war years

The Forestville Clock company was quite successful during the middle decades of the 20^th century and many Canadian homes proudly displayed time-only, time and strike and chiming clocks retailed by Forestville. When Ed Stossel retired in 1979 the company survived just a few years without his guidance and leadership.

Clocks with a Dutch motif reflected a popular trend in the 1950s and 1960s perhaps in recognition of Canada’s close relationship with the Dutch people since the war years. Canadian troops liberated Holland at the end of the Second World War, the Dutch holding a particular fondness with Canadians since that time.

It is an attractive but a simple design. There is one scene on each “point” of the “squared off” triangle; a woman in traditional dress carrying water and accompanied by a child on the right, three single-mast sail boats (one large and two small ones) on the left and a Dutch windmill beside a small house on top. The violin bow styled hour and minute hand design is shared with other Forestville clocks.

The clock ran slowly for the first day or so. On the back of the movement is a speed regulator that one would typically find on an alarm clock, an easy method of making small adjustments.

There are no chips, cracks or blemishes on the face. It appears to be in excellent condition and runs well.

It is a welcome addition to our cottage kitchen.

September 9, 2017

Jauch Drop Octagon – one problem I cannot address…..yet!

Jauch wall clock — Jauch German drop octagon wall clock

We often cruise the HiBid sites. While they may be wholly Canadian I am sure there are similar sites in the US. HiBid are a hosting service for antique online auction companies and from time to time clocks come up on estate sales.

One day in early February 2017 we were on a Nova Scotia HiBid auction site and noticed a Jauch drop octagon with a PL42 movement. I made what I thought was a reasonably good bid. We had errands to run that day so I just left the bid, got home later and realized and surprised that I had won. It was a good purchase. After running for several weeks I opened the case up and discovered its hidden secret.

Time only movement — Time-only Jauch movement

The clock easily runs a full 8-day cycle but it gains about 5-7 minutes at the beginning of the cycle and loses the same at the end of the cycle. A dramatic difference! A properly functioning clock is designed to run at an acceptable rate of + or- 1 minute per week but this depends on adequate power to the escapement with very little fluctuation in that power.

Scored pivots and worn barrel arbor holes are real issues for this movement. The pivots are small, a light touch with a buff stick and a minimal polish along with pegging and round broaching the holes should be the first steps in reviving this clock. Bushing work is also quite possible. The barrels are another matter. If worn, they require bushing. The cap is too thin to bush without making a thin flange or leaving the bush a bit proud and peening both sides. The barrel is narrow and it is said that they really get the wobbles when worn.

This is an inexpensive German movement but finely made and well engineered. An overhaul should result in a good long run.

I took the movement apart and discovered two things. One, it needs at least 3, perhaps 4 bushings and secondly, there is a significant gap in the barrel cap as seen in the photo below.

Barell showing a very wide gap — Barrel cap showing a wide gap caused by wear around the arbour, weak point of this movement

Front plate is removed showing going train

The real issue for me is the barrel cap. I can attempt to bush the cap but the bushing would likely not hold unless it is peened. The gap is causing an unbalance in power transmitted through the gears as a result of the wear. The soft brass barrel cap is definitely a weakness of this movement. The result is the erratic running described above and a wobble in the pendulum. I contacted a gentleman in Arizona who would be prepared to correct the wear by installing two new bushings on the gear side and cap of the barrel. The cost is 1 1/2 times the value of the clock so I have decided against that option. It is just not worth it!

1 Day Later

I installed 3 bushings. The front side of the escape wheel arbour, the front side of the second wheel and the minute shaft. I re-assembled the movement, oiled it, adjusted the pallets, reinstalled the worn barrel and have put the movement back into its case. It is now running and in the next week or two I will see what effect new bushings will have on the running of the clock. My hope is a marginal improvement given the worn barrel.

A barrel repair will have to wait until I have the proper tools.

June 30, 2017

More fascinating terms – the language of clocks

Regular reader and contributor JC suggested a few more clock terms I thought readers and fellow horologists might find interesting.

My source for this article is the Watch and Clock Encyclopedia by Donald de Clarke, published by Bonanza Books (1984) which is still available on Amazon.

Gridiron pendulum: A pendulum consisting of alternating steels and brass rods coupled together to compensate for downward expansion so that the centre of oscillation of the pendulum remains consistent with changes in temperature, invented by John Harrison in 1725.

final look — Gridiron pendulum on a Junghans Crispi wall clock

Broaches: To broach is to open and enlarge a hole. A Broach is a steel cutting or smoothing tool with a tapered or parallel sided edge used to cut or “finish” holes in a clock plate. Used to enlarge and then finish (smooth) a newly installed bushing on a clock plate.

Swiss made smoothing broaches — A set of Swiss made smoothing (or finishing) broaches

Motion Works: The train or wheels of a clock directly connected with the hour and minute hand.

Great wheel: The teeth that form part of the barrel of the going barrel. It is also the wheel to which the mainspring is attached.

The motion works of a clock; the largest wheel on this movement is the great wheel (Pequegnat Clock Co.)

Maintaining Power: A method to maintain the driving power while the weight is being lifted or mainspring with fusee is being wound. In effect keeping the mechanism going while winding.

Weight driven movement with maintaining power, (unmarked Vienna Regulator)

Huygens Endless Rope Drive: It is a method of providing maintaining power to drive the clock while the weight was being raised. The endless cord passes over pulley A which is attached to the great wheel and supports the driving weight B, it then passes over pulley C which has a ratchet to support small weight D. As cord E is pulled down to wind the clock ratchet C turns under it’s click to raise weight B which continues to drive the clock as it supplies torque to wheel A. This ingenious system is found in some 18th century long-case clocks.

Locking Wheel (or Count Wheel): A count wheel is the wheel that determines the number of blows to be struck in striking mechanisms.

The left wheel with notches is the count wheel

Ratchet wheel: A toothed wheel into which a click engages permitting the wheel to revolve in one direction only.

Click replaced — Toothed ratchet wheel and click

Cam: Usually a disk so that upon revolving it transmits movement to or exerts pressure upon a connecting unit.

Arrow showing location of a cam, the fly is located in the upper right

Fly: Often called the governor or controller of a chime or strike train. It is the last piece in a train of wheels.

The language of the clock world always amazes me. There are a plethora of other clock terms that I will be happy to explore in future blogs.

June 23, 2017

Ingraham Nordic Banjo Clock

I did not have a banjo clock in my collection and my latest acquisition is certainly a banjo styled clock but not in the tradition of a true weight-driven American banjo clock which continues to allude me.

There is no scarcity of spring driven recoil escapement (lever escapement) banjo clocks. This particular clock has a balance wheel/hairspring escapement which Ingraham calls a “marine” movement.

Balance wheel/hairspring escapement — Balance wheel/hairspring movement

This is the Nordic, one of a series of small, hairspring banjos that Ingraham produced in the late 1920s and 1930s. The Nordic is one of three that Ingraham introduced during the aforementioned period, the others being the Norfolk and The Norway. In the mid 1920s it would have cost about $11.00.

Nordics come up occasionally on EBay and seem to be very desirable if in very good condition. Often the throat or bottom tablet is cracked or missing and the clock face is distressed in some fashion. This particular clock is in exceptional condition for its age and shows very well. It is both diminutive and attractive.

Marine movements were (and are) very accurate eight day lever movements which are key wound and key regulated. It is wound from the front unlike Gilberts and others that must be taken down from the wall to be wound. The movements are constructed with extra heavy brass plates, steel cut pinions, a double roller escapement and are made to last.

The case is described by Ingraham as having a “fine rubbed mahogany finish”. Fake done nicely!

These movements are not commonly found outside the confines of a case. They were also used in other Ingraham wall clocks. Tran Duy Ly’s book on Ingraham Banjo marine movement clocks shows them from the 1927 catalog.

Clock face showing silvered dial and press-fit hands

Handsome Banjo Clock — A Handsome Ingraham Banjo Clock

Both the hour and the minute hand are “pressed-on” friction fit. It has solid brass side arms, brassed eagle and a circular finish silver-plated dial with a non-tarnish-able gilt sash. Framed glass panels with coloured ship scene and floral throat complete the look. It is 26 inches in length. It lacks a label which would normally be affixed to the back of the clock.

As the most inexpensive of banjo clocks many homes could have one to avoid the higher cost (though higher quality) of a weight driven banjo clock.

June 2, 2017

Ansonia Schoolhouse Clock – Part II – cleaning, bushing work and final testing

Bushing installed on escape wheel arbour

The Ansonia octagonal short drop wall clock was (is) commonly known as a schoolhouse clock. This clock was manufactured in 1912. The number “12” , the year stamp, is found on the lower front plate of the movement. The letter “N” is also stamped on the movement.

In this post, Part II, I will proceed with cleaning the movement and performing required bushing work in addition to assembling and final testing.

This is my one and only Ansonia clock. Since it is a fairly conventional time-only movement with an outboard escape wheel, it is fairly simple to work on and for those of you starting out, this is the first movement you should attempt.

Movement is running well and in beat — _{Movement in the case prior to disassembly}

After applying a C-clamp to the mainspring to contain the spring’s power, I disassembled the movement, placed the parts in the ultrasonic cleaner, then cleaned and polished the pivots prior to the bushing work. The clock required six bushings, three on the front plate and three on the back. The worst was the third wheel, as you can see in this photo. This is not unexpected because of the constant power and stress produced by the mainspring, but it definitely indicates a very worn pivot hole.

_{Close-up of bushing wear, the circle indicates where the pivot resides}

Springs were inspected and cleaned — _{The mainspring was inspected and cleaned}

_{Using a micrometer to check pivot diameter}

Bergeon Bushing Machine, a_{n indispensable tool for bushing work}

The only challenge I had was dealing with the brass arm that supports the front plate pivot on the escape wheel (arrow). To install the bushing I had to stabilize the arm on the bushing machine without bending or breaking it, and using very light hammer strikes to seat the bushing.

_{Arrow indicating tricky bushing install}

The bushing went in nicely, as you can see in the next photo. Otherwise, the remaining bushing work went as expected.

Bushing install on escape wheel arbour — _{Bushing installed on escape wheel arbour}

Although I have an excellent clock stand, I decided to test the movement in the case due to the acute mounting angle of the movement. I tossed out the old screw,s which did not appear to be original, and used new slotted brass screws to attach the dial pan and the hinge for the brass bezel. In the process of fumbling with the glazed bezel, I knocked off the brass catch that fits into a slot on the case front. An angled wood block fits into the notch on the catch when the bezel is closed. I got out my torch and, with some sanding, an application of flux, and sufficient solder, the catch operates as it should.

Since I serviced the movement, why not go one step further and refresh the brass? I gave all the brass a good cleaning with Brasso, bringing back its original luster. Someone messed with the clock face some time ago, which is unfortunate, but I have decided to leave it as-is. A new paper dial face would not look right.

A simple project that can be done in half a day, enough to extend the life of this handsome antique schoolhouse wall clock that will tick along for years to come.

April 9, 2017

Kienzle World Time clock – a second look

I put a quick article together on my newly acquired modern Art Deco brass Kienzle World desk clock in August and with only one photo in my post I really did not do this fine looking timepiece any justice. I hope the following photos will show that this clock really impresses. As I mentioned in my last post regarding this clock, this is one of many clocks conceived by renounced German designer Heinrich Moeller. Moeller, who was trained as a cabinet maker, began working with Kienzle as chief designer in 1931 and through to about 1970.

This vintage clock is from the period 1950 to 1960 judging from the many offerings on EBay. I noticed that this style is occasionally advertised as a 1960s clock but judging from others I have seen I am fairly confident that this is from 1950 give or take a year. This style seems to be the most desirable of the series. Later ones had quartz movements and were in less demand, judging from the lower prices. The weight is very substantial and it measures 13 and 3/4″H X 10″W X, 2 and 1/2″D.

Back of Kienzle clock — Back showing winding key, speed adjustment access port and time adjustment knob

This clock is in excellent condition with minimal wear and tarnish. In fact, observe the front and side views for an appreciation of the pristine condition of this clock. The case was grimy as one might expect and a little polish brought up the finish very nicely.

Quite often small parts are missing in clocks such as this, for example, the time adjustment knob or the cover for the speed control needle. In this case everything is completely intact. It is in very good working order and will run for a full 8 days.

Will I service it? I am not sure. According to comments on the NAWCC message board some members have not had much luck working with this clock. Given that it seems to have had minimal wear and tear it may not have had a lot of use over the years so it might be wise to leave well enough alone, for now. I would like to oil it, however!

I am very pleased with this acquisition. The clock is certainly a singular work of elegance, magnificence, style and a stand-out in any room.

September 25, 2016

The ethics of buying used clocks – one that got away

wall clock — Waterbury Halifax – One that got away

I am writing about an experience I had on a local for-sale site today and wonder if others have had the same happen to them. I found this Waterbury Halifax time-only wall clock for sale at a reasonable price.

It had issues. It was not running and the top centre finial was missing. I was assured by the prospective seller that they had the finial but that the spring was “broken”. The seller was not clear whether they meant the suspension spring or the main spring. A suspension spring replacement is an easy fix, the mainspring is a little more difficult. Since it only has one spring it was obvious that if either spring were “broken” the clock was not running. I was prepared to accept that since I can make the necessary repairs. Still, the price was reasonable.

We exchanged emails for a day or so. I asked questions about it’s condition and if there were any other issues and they responded appropriately all the while courting me as the buyer. Finally, I agreed to look at the clock with the intention of buying it and we arranged a time and a place for the exchange. It was a cash deal so a trip to the bank was necessary beforehand.

We set the time between 2 and 4 pm. At around 11:20 am I received an email which stated.

“Morning . The clock has been sold as of a few minutes ago. Thank you for your interest, have a great day.”

I replied, “Not very ethical”, and left it at that.

I believe I am correct. It is clear that the seller received a better offer though I have no way of knowing.

What would you have done if you were the seller?

April 6, 2016

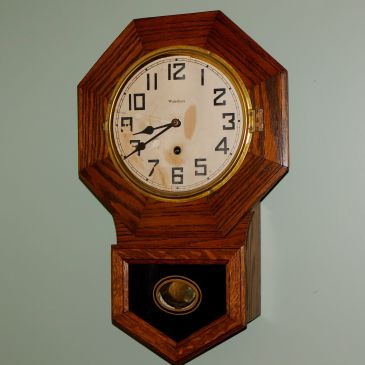

Waterbury “Arion” Small Octagon Short Drop wall clock

A diminutive size, this clock was made around 1930 just a couple of years before the Waterbury Clock Company was placed in receivership. It is a solid oak case measuring 19 inches long by 12 inches wide, with a paper dial marked Waterbury, a black and gold pendulum aperture, and 8-day time-only movement. The bottom of the dial says, ” Made in the USA by Waterbury Clock Company”, Connecticut.

While the clock is a strong runner there are obvious issues concerning the paper dial and the lack of a brass bezel. The dial plate does not have to be changed out but the clock is in need of a brass bezel, hinge and convex glass. Although the style might be slightly different on a replacement bezel, it is clearly required to complete the look. I have decided to retain the paper dial as an exact replacement is impossible or so I have found so far in my research. Half of the paper dial has become unglued from the dial pan. Two-sided tape in three locations was the fix. I may touch up the numbers 7, 8, and 9. We`ll see.

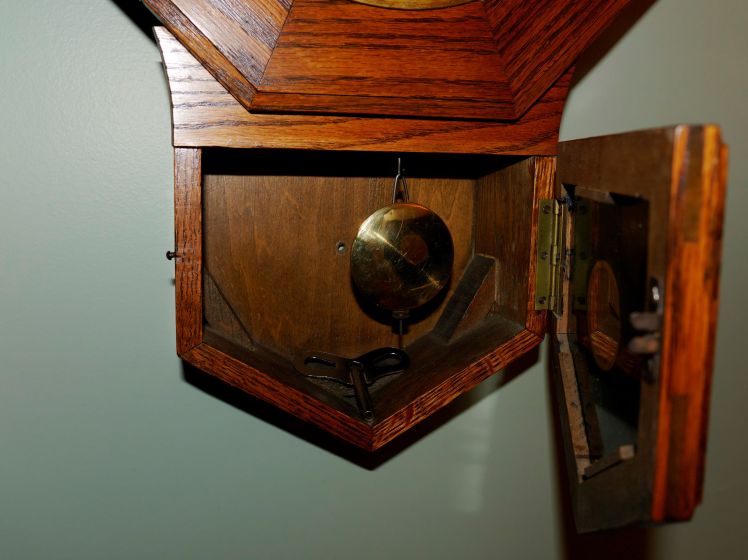

RS Waterbury Octogon short drop (10) — Pendulum bob

The Waterbury Clock Company was incorporated in the city of Waterbury, Connecticut, on March 5, 1857. Up until the Great Depression Waterbury had been quite prosperous. But like so many companies, most of the profits lined the pockets of its Directors instead of being reinvested in new equipment and updated facilities thus hastening its rapid decline. In 1932 the company was bought and re-organized under the name Ingersoll-Waterbury.and in later years the company morphed into the Timex Corporation. If you peruse the Timex site today you will see a line of Timex watches called the Waterbury collection. Timex is certainly acknowledging a link to its past.

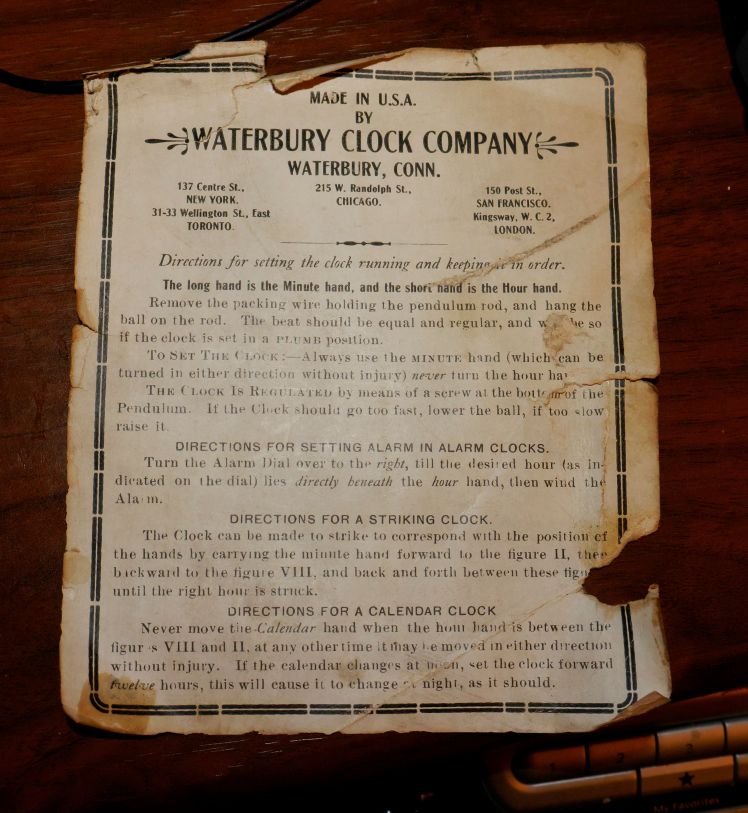

RS Waterbury Octogon short drop (8) — Instructions for the clock

The instructions came with the clock and I smiled when I read them. “The long hand is the minute hand and the short hand is the hour hand”.

A inexpensive acquisition and only a few dollars to add glass and a bezel to complete the clock.

February 14, 2016

Blackforest shelf / kitchen / cottage clock

RS together but not working (2) — Finished case

This is a Blackforest shelf or kitchen clock made before the Second Word War. Blackforest is a Canadian clock company. The Blackforest Clock Company of Toronto, Ontario was founded by Leopold and Sara Stossel in 1928. Both clock movements and complete clocks were imported from Germany and sold through department and jewelry stores across Canada. Their son Ed Stossel started working part time with his parents’ company in the 1930s, and later became a full-time employee in the late 1940s.

Some assembly work was carried out in their Wellington Street East factory. Initially, imported mantel clock and grandfather clock movements were installed in cases made in Kitchener, but later the complete mantel clocks were imported from Germany. This arrangement was interrupted by the Second World War, which also led to a name change to the Forestville Clock Company in 1941. During the war years this company imported its clock movements from England, the United States, and even France. However, starting in the mid nineteen fifties German factories again became the source of most Forestville clocks, with Mauthe being a major supplier. The company did not survive much past the late 1970s.

I found this in a antique shop in Kazabazua Quebec and it was in sad shape. This particular clock would have been the least expensive in the Blackforest catalog. I had an opportunity to go through the Blackforest catalog during my visit to the Canadian Clock Museum in Deep River this past summer and could not find a listing. I have no idea of the model name or number as there is no label on the clock. The only feature it shares with other Blackforest mantel clocks is the metal bezel, numerals and hands. Otherwise it is a one train time-only movement with a minimum number of gears and a unique twisting pendulum adjustment. The movement is as simple as it gets so it is easy to work on.

The photo shows the movement out of the clock and as you can see, it is quite dirty. I am in the midst of dis-assembly, cleaning (in my new Ultrasonic cleaner) and oiling. My initial observation is that the pivot holes, pivots and lantern gears are in good shape and the mainspring seems strong. Not a lot of wear for a 75+ year old clock.

RS Blackforest mantel clock (66) — Single train time-only movement

The next photos show the condition of the case when I bought it and the second is the first phase of stripping. You will notice that I did not disturb the decal; it would have been impossible to find a replacement. It was in terrible condition, likely sitting in a attic or garage for quite a few years. The spring was wound very tight and I am assuming at this point that dirt and grime caused it to cease. Although I paid $15 for it at the time it seemed too much after I got it home. Nonetheless, I went to work on it and if I can get it to function it might be worth more than I paid for it. As far as restoring this clock I used a latex dark walnut wood satin and a polyurethane top coat, not what would have been done at the time which likely would have been a dark lacquer finish. This method will be more durable. The first photo shows the case is in a restored condition and as you can seeing it is a striking little clock.

September 1, 2015

Eight-day and thirty hour brass clocks, pendulum clocks, a variety of……., Also sole manufacturers of Jeweled Marines and eight-day gilt time pieces, Ansonia Brass and Copper….Ansonia Conn.
