Clocks at our summer retreat

Taking a look at this Ansonia cotteg clockwith the dial off

At our seasonal cottage located in central Canada, we enjoy displaying a small selection of clocks, during the summer months.

The first clock, displayed for a number of years, was a Danial Dakota time and strike clock, which we had converted to a quartz movement. This clock, originating from the 1960s, incorporated Chinese design elements that were inspired by American clocks of that era. It required minimal maintenance and provided very good accuracy.

To operate, it relied on a “C” cell battery. This chiming clock offered both Westminster and Whittington chimes, with my wife and I favouring the Whittington chime.

However, after a period of time we grew weary of the clock’s artificial electronic musical tone, and thus we decided to replace the Danial Dakota clock with a proper mechanical clock.

The Mauthe time and strike box clock we acquired as a replacement at the cottage features a raised maple leaf on its crown. This detail leads me to believe that it was likely sold under a Canadian brand, possibly marketed specifically for a department store or jewellery store. The distinctly Canadian touch with the maple leaf emblem, adds to its charm and appeal in our Canadian cottage setting.

_{Mauthe box clock with maple leaf emblem on the crown}

Next to the box clock is a captivating oak-cased gallery clock produced by the Empire Clock Co. of England. It was acquired through an auction in Nova Scotia and boasts a unique feature — a 10-inch dial instead of the more common 12-inch dial seen in similar gallery clocks.

Despite its resemblance to a fusee clock, it operates with a conventional spring-driven mechanism, which means its timekeeping performance is average at best.

Adorning the wall of our sunroom is a familiar time-only schoolhouse clock that was recently gifted to me. It features a sizable 12-inch Roman Numeral dial and a pendulum visible through reverse-painted glass.

Although it has a few minor veneer imperfections that I plan to address later this year, I have already examined the movement and confirmed its excellent condition. After re-oiling it, I carefully placed the movement back into its case.

Displayed in our family room is a Hermle clock that harkens back to a nostalgic design known as the “wag-on-a-wall” style. This clock operates on a weight-driven mechanism and includes both timekeeping and striking functions. It emits a delightful bim-bam sound by striking on three rods.

The design aesthetic of this clock strongly resembles the clocks manufactured in the 1960s, which aligns with its likely production period. While it possesses a plain and unadorned appearance, it carries a certain charm and serves as a reminder of that era.

Among our collection of cottage clocks, we have a New Haven ogee-style clock that operates on a 30-hour time and strike mechanism. It is smaller than a conventional ogee clock and might be referred to as a mini ogee standing at just 18 inches high.

From afar, it presents an appealing appearance, capturing one’s attention. However, upon closer examination, it becomes apparent that the clock has undergone a removal of its veneer at some point in its history. The absence of the veneer adds a touch of character and reveals the clock’s journey through time, offering a glimpse into its past.

Finally, a well-worn 30-hour cottage Ansonia clock graces a bedroom dresser.

Despite its visible signs of use, this clock continues to perform well, a testament to the remarkable engineering employed by the clock’s manufacturers. Craftsmen at the time anticipated the rigours of wear and tear, and their foresight in creating such durable movements showcases their longevity.

Clocks at our summer cottage not only serve as functional timekeepers but also carry with them a unique charm and nostalgia.

Each clock tells its own story, displaying the marks of time and the craftsmanship of its makers. Whether it’s the captivating gallery clock with its distinctive dial or the familiar schoolhouse clock with its endearing imperfections, these clocks create a harmonious blend of functionality and aesthetics within the cottage.

As their hands tick away the hours, they remind us to slow down, appreciate the present moment, and savour the timeless tranquility of a summer retreat.

July 25, 2023

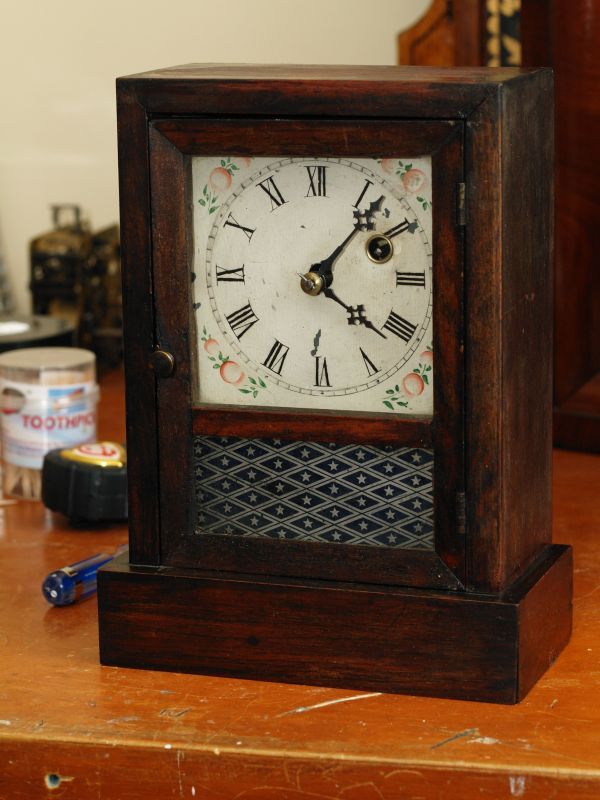

Jerome & Co. Rose Cottage clock – dial work completed

I was very close to trashing this little Jerome & Co. time-only cottage clock but decided to give myself a real challenge and bring the clock back to something presentable. So far the project is progressing reasonably well.

The door trim has been completed, and the movement has been serviced. Serviced in the spring of 2022 the movement runs perfectly.

This post details the results of in-painting the dial and some work completed on the lower tablet.

My first attempt at replicating the colour and tone of the dial produced passable results as the below photo shows. Since I had to build layers of paint I was not concerned that it was slightly off as each layer came closer to matching the rest of the dial.

As the paint dried I tackled some of the numbers using a Pitt fine-tipped artists pen, a straight-edge and a compass.

I had better luck with the next batch of paint combining white with small amounts of red, brown, black and yellow, mixing and comparing as I went.

The number eleven is admittedly a little shaky because I was unable to smooth out the base paint in that particular spot. The number eleven was pretty much a crap shoot anyway as it was totally obliterated before I began.

The chapter ring and minute markers came out as well as could be expected.

_{in-painting and enhancement of the numerals}

Close examination will certainly reveal that dial work has been done but once the dial is mounted in the case it takes a good eye to see the difference plus I have successfully preserved the overall patina.

The black sections of the lower tablet were reverse painted and there is a significant difference. I am not sure how to address the red, green, and gold tablet design which is in very poor condition. I may leave it as-is if I am unable to complete the fine detail work.

_{Dial, trim, and touchups on the lower tablet}

So far so good! Next is the veneer work which should present an interesting challenge.

February 21, 2023

Jerome cottage clock – progress so far

It is always challenging to find time to work on projects when life is busy. I picked up some part-time work this winter, teaching at a community college so between that my clock hobby teaching has taken precedence, for now.

Since the post on extreme restoration a week or so ago, I have continued planning the work to be done and have actually managed to address two issues, the second one only partially.

For my first thoughts on this Jerome Rose Cottage 30-hour clock, see the post below. I am sure you will agree that this is a candidate for extreme measures.

Jerome Rose Cottage clock – a candidate for extreme restoration?

_{Posted Jan 31, 2023}

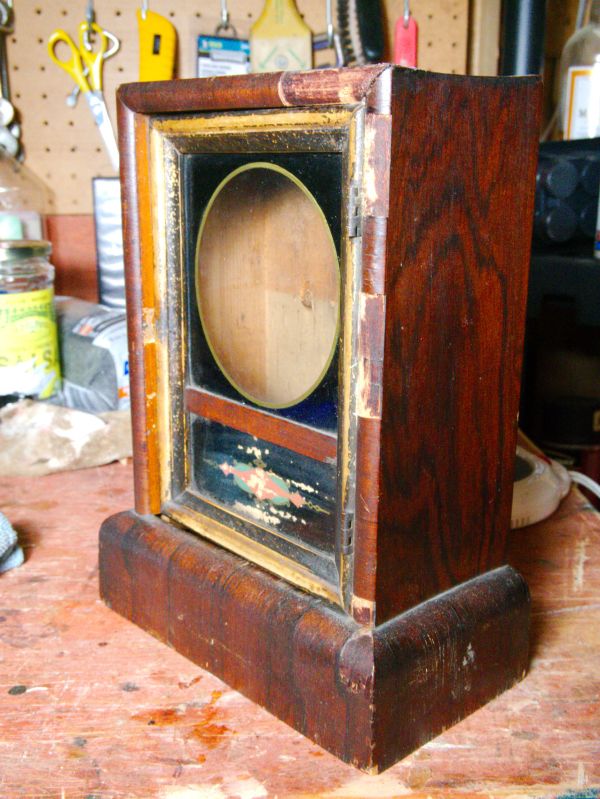

The case has been cleaned of dirt and grime and I have removed some of the ragged pieces of veneer on the right side. The plan is to cover the exposed sections with new veneer but since the trim is curved I will have to work out some way to apply the veneer to the curved surface and clamp using some sort of curved block. I considered an old section of ogee molding but no, not the right shape.

The movement had been serviced in the spring of 2022 and is running perfectly.

_{One solid wheel on this tiny movement}

Painting the door trim

In my collection of acrylic paints, I found antique gold which I believe is very close to the original trim framing the front access door.

Dark chocolate brown paint was used to cover the area between the glass and the gold trim and since it was a flat texture I applied a coat of shellac to give it a satin sheen.

The design of the small glass tablet will be a challenge to duplicate and I continue my search online for a cottage clock with the same design that I can pattern off, otherwise, I will have to improvise.

Addressing the dial

The dial has been thoroughly cleaned but some of the dirt is embedded in the dial surface which is not an issue since I would like to retain some of the patina.

I haven’t quite found the exact paint match at this point, but I am not too concerned as building up layers is the first step in in-painting. With some experimentation I should arrive very close to what I am looking for. The real fun will be in-painting the Roman numerals and chapter ring.

Next steps

Next will be the veneer work but as mentioned clamping the veneer will be a minor challenge. I am sure I will find a way. The veneer looks like Rosewood and I have a small quantity on hand.

After the veneer work is completed the tablet will be addressed and that will unfortunately involve cutting or peeling the label on the inside, though I will preserve it as best I can.

Finally when all is done a coat or two of traditional shellac should make this clock very presentable.

This small clock has certainly been to hell and back but I do know one thing; whatever I do will be a vast improvement.

Look for more posts to come on this nice little cottage clock.

February 7, 2023

Ansonia cottage clock servicing but is the end near for this old clock?

It is a $10 cottage clock my sister picked up in a yard sale several years ago and gave to me after I serviced one of her ogee clocks. There is a label on the inside that says it is made by Ansonia Brass Co. and I would date it to around the early 1880s.

It likely cost no more than 50 cents in its day, the most inexpensive of mechanical clocks but enough to provide for a family of modest needs.

Not many survive to this day as they were tossed out when they stopped working. When they do survive they are often in poor condition such as this one. So, it is not surprising that time-only cottage clocks, in very good condition, are sometimes worth more and have greater collector value than larger American time and strike parlour or kitchen clocks.

So, why is this clock not worth much more than my sister paid for it? It’s had a hard life and has likely been altered in several ways. Original movement? It’s hard to say as there are no markings on it. Well worn? Yes! Pendulum, crutch, the mainspring, pallets; probably replacements. And why the notches on the rear of the access door?

My wife and I love the sound of a ticking clock when we sleep at night. We both find it very soothing. And this one ticks just loud enough to be heard over our window air conditioner.

Unfortunately, the movement cannot quite run its intended 30 hours, and either the mainspring is too weak, or it needs a good cleaning. It is certainly not worth replacing a mainspring that would exceed the value of the clock so, a good cleaning is what it will get.

Time-only movements are the simplest to work on. There is only one train with three wheels plus the escape wheel. It is a matter of letting down the mainspring (a clamp is not necessary) releasing the 4 pins that hold the plates together which exposes the wheels and then taking the parts out.

Two issues immediately tell me that this movement does not have a lot of time left. The main wheel and the centre cannon teeth are slightly bent and it is only a matter of time when one or more break. There is not a lot of stress produced by the mainspring on the wheels of a 30-hour clock so it could take years, or perhaps even tomorrow. In any event, a repair of the wheel teeth is just not worth it.

The movement is not especially dirty but there is blackened oil in some of the pivot holes necessitating remediation. A clean in the ultrasonic followed by rinsing the parts, drying them, and then reassembly, oiling, and testing. That is it.

It is clean and I hope it will run 30 hours after the cleaning. Will it last? Well, for as long as the wheel teeth hold out. Let’s hope they do!

September 9, 2022

Clock prices – a great time to buy despite crazy inflationary times

Inflation seems to be everywhere. The continuing decline in purchasing power is reflected in increased prices on almost everything.

The other day my wife and I bought a container of spray from a garden store. We thought the price was high at almost $25 but when we got to the cash, the clerk charged us $6 more. We showed her the sticker price and she said it was old stock and the computer had already adjusted the price for the new stock coming in. I understand supply chain issues and rising fuel costs but a 25% increase is a bit much. We argued and did not pay the extra $6. Needless to say we will not be buying that product again.

Everything seems to have risen in price as a result of inflation except perhaps antique and vintage clocks!

I don’t actively pursue high end clocks so, there could be movement price-wise for rare and highly collectible clocks but not for garden variety antique clocks. This completely anecdotal but I have been observing the clock market for some time and I do not see a lot of change in prices and if you are into buying and selling clocks this is not a great time to make a profit. Perhaps one day in the future but I believe that day is far off.

So, it has been a buyer’s market for the last number of years and it doesn’t look like things will change any time soon. There are many great bargains to be found everywhere and it doesn’t take much looking.

Antique and vintage clocks have flooded the market in the past several years with prices tumbling even further downwards. The new generation of millennials have little interest in antiques and find it pointless to collect antique and vintage clocks. Their loss is our gain, meaning those of us who appreciate the finer things in life.

In addition, modern homes do not have the room for clocks as floor and wall space is limited. In an age when families are living in 800 square foot apartments space is at a premium though there is a hint that things could change as the migration from dense cities to smaller communities continues.

When space is at a premium grandfather clocks or any clock occupying floor or wall space are not items many would consider as necessary for the modern family home. Sentimental reasons aside, the cost of servicing far exceeds the value if the desire is to have a working clock.

Of course, I don’t have a crystal ball but judging from prices in the past few years I can comfortably predict that things will continue to be much the same this year and next. I do not expect a significant change in the months to come and that $20 bargain clock you discovered today at a flea market will not be worth much more next year.

It is a buyer’s market and there are some terrific bargains out there. Knowledge is power and no doubt there are some great clocks to be found but shop carefully and do your research.

August 5, 2022

The tiniest clock movement I have come across, made by New Haven

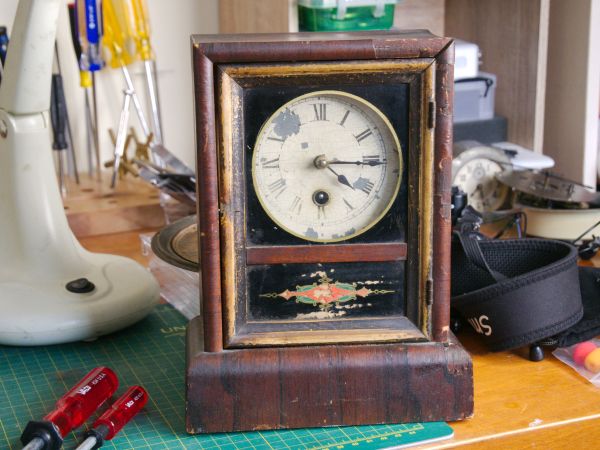

Jerome & Co., a marketing arm of the New Haven Clock Co. made this clock in the mid-1850s. It is a 1-day or 30-hour clock called the “Rose Cottage”. In the 1850s and later, cottage clocks could be purchased with a time and strike movement, time and strike with alarm but this one is a very simple clock that was made to do one thing, tell the time.

It is a very small movement. In fact the smallest American clock movement I have ever worked on.

The most interesting features of this movement, besides the size, are the solid third wheel and the high mount escape wheel with the entry pallet just above the wheel itself.

The photo below shows a very interesting “fix” for a worn pivot hole, certainly an add-on by a not-so-professional clock repairer. It consists of a piece of copper wire soldered to the plate. The copper wire then loops around the pivot and keeps it from moving in the worn hole. Many repairers at the time punched around a pivot hole to close it but this is an odd repair.

Other issues included finishing nails instead of taper pins to secure the plates and the mainspring loop end attached to the bottom right post instead of the left. While on the right post (as found) the mainspring uncoils and pushes against the center cannon lantern pinion and stops the clock. I doubt that the movement could run a full day.

The movement

As a time-only movement, it is pretty simple in design. It takes all but a minute to disassemble and reassemble the movement.

My first task was to remove the ugly solder and copper wire. I pulled the wire away and using a soldering gun the solder dissolved easily, both front, and back since both ends had the same “fix”.

Once the copper wire was removed I could see that the front bushing hole was elongated as I suspected.

_{New bushing, upper black dot, mainspring attached to the bottom left post}

The only other bushing required was the escape wheel and back-plate. The bushing hole on the escape wheel bridge is a little worn but it should do for now as this clock will not be a daily runner.

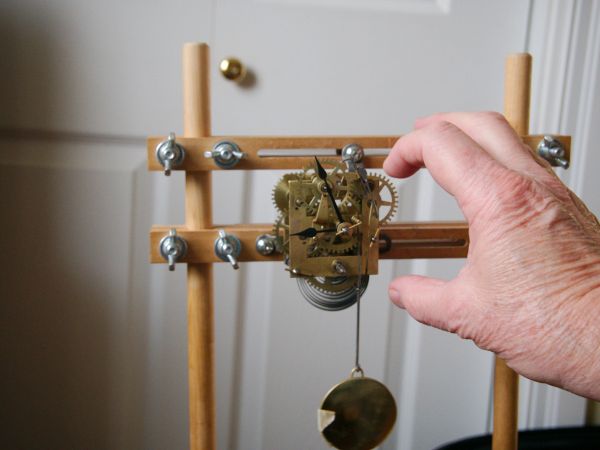

The movement is on the test stand and running well. Now to see what I can do with a very worn and very tired case.

June 4, 2022

Several clocks bought at auction this spring

I am an avid collector of antique and vintage clocks which means I cruise the online auction sites regularly, about once or twice a week. This spring I checked out offerings from a local online auction site that deals with estate items, placed bids on 4 clocks (actually 5 since one lot had two clocks). The one I did not win was a 6 column Sessions mantel clock but no real loss there.

I won the bids on four clocks. CDN110 was the total though with buyers’ premium and taxes the price jumped to CDN147, still not bad for a small collection of antique clocks.

I do not have these clocks as of this writing since they are sitting at the auction house but I think can make a preliminary judgment based on what I see in the auction photos.

Although I am normally not in the business of selling clocks I will sell the odd one to keep my collection manageable. The plan is to fix these clocks and sell them to offset clock equipment purchases most notably an Adams Brown Timetrax 185, an electric clock timer, an amplifier that measures the rate of mechanical clocks by sensing escapement action and mechanical sounds of the escapement which I recently purchased. Here they are.

Unknown cottage clock

In no particular order of importance let’s start with an octagon cottage clock from the 1870s or 80s. It is a 30-hour clock judging from the placement of the winding points.

From the style of the pendulum bob and the case itself, I would say an E. Ingraham & Co. time and strike cottage clock. Some would have come with an alarm. This one does not.

It is in fair shape. The dial appears to have serious losses and there are nicks and scratches over a good portion of the case from what I see in the photos. I wonder if the tablet is a replacement and the original reverse painted?

It is difficult to tell with the harsh auction light but the case might be made of rosewood.

It will be a good candidate for a mild refresh and should look very nice when completed.

Sessions Grand Assortment #3

Next is a Sessions Grand Assortment #3. I have worked on one in the past. There are three models in the Grand Assortment series and despite the fact that it is a lowly gingerbread clock and thousands of similarly styled clocks were sold by every major American clock manufacturer, this model is surprisingly collectible.

It is an 8-day clock with a steam-pressed oak case. The case looks very “aligorated” a term applied to a shellac finish that has coagulated as a result of being stored in a hot, humid environment such as an attic or a garage.

The tablet looks good but the dial is very degraded. This is a paper-on-metal dial and when the metal below the paper rusts the stain bleeds through to the front. This is called “foxing”. These stains are very difficult to remove and cost-prohibitive for most clocks. This is a cheap clock and a dial replacement is the only option and as such, I am not sure what to do about it.

A note is attached to the key and it says 1903. It is doubtful it was actually made in that year and I am sure the previous owner went by the year Sessions Clock Co. acquired clock-maker E.N. Welch Co. though the clock is certainly from around that period.

Reconditioning the case might be a challenge. Is it a candidate for stripping down to the bare wood? I suspect it is but we’ll see. I also see a small crack just above the top of the dial, so it might have been broken off at one point and re-glued.

I am not sure about the pendulum bob which does not look quite right for this clock. More research should provide me with the answer.

E Ingraham Ocean and Ansonia kitchen/parlour clock

Next is a two-for-one deal.

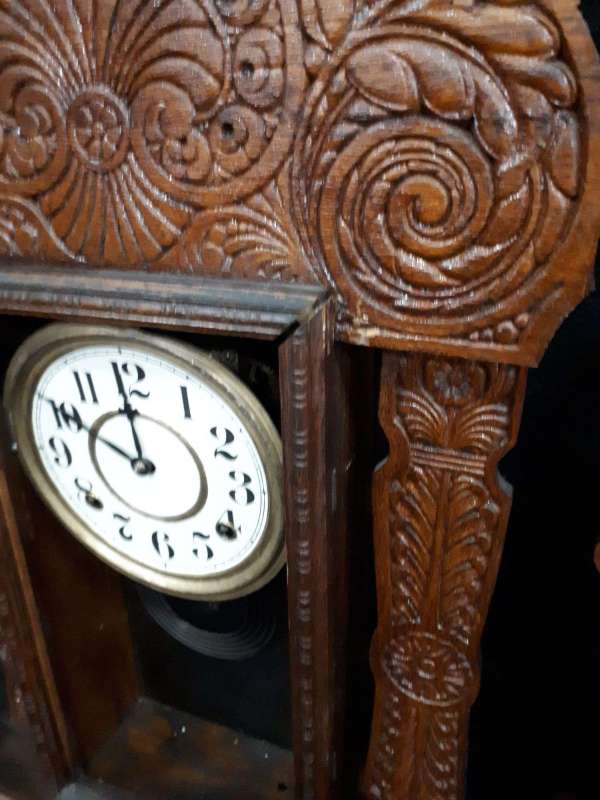

The one on the left is an E. Ingraham steam-pressed 8-day gingerbread possibly from the Ocean series. Unfortunately, it is missing its decorative tablet and that will certainly affect its resale value.

The pendulum looks right for the clock and the case itself looks to be in decent shape but as I said, it is very unfortunate that the tablet is missing.

The pieces at the foot of the gingerbread clock belong to the clock on the right. Usually, when I see pieces like this it tells me that it was handled roughly by the auction house.

What I like about this clock is its timeless design, almost Art Deco but made long before the Art Deco period.

So who is the maker of the clock on the right?

The auction description simply says, “unknown clock”. I believe it is an Ansonia 30-hour (position of the winding arbours) kitchen clock in Walnut from about the early 1880s. The tablet is bright and vivid, not a design I have seen before but likely original. Attaching the top pieces should be a fairly simple process and thorough cleaning of the clock case clock and movement should make it an ideal candidate for resale.

Of the four, two are 30-hour clocks. I have found that 30-hour clocks are a tough sell. Most casual collectors are looking for an 8-day clock since 1-day clocks are a hassle to wind but I think I can make both presentable enough to attract some buyers.

The auction notes do not say whether any of these are in working order. They are all “untested” which is typical auction-speak for “they may or may not work – the risk is yours!”.

American clocks are very tough and often work well despite being very worn. I suspect with a little encouragement I can get all of these clocks working again.

Now, to pick them up from the auction house.

Check for upcoming articles on each of these clocks.

April 2, 2022

Canada Clock Co. – a frustrating movement

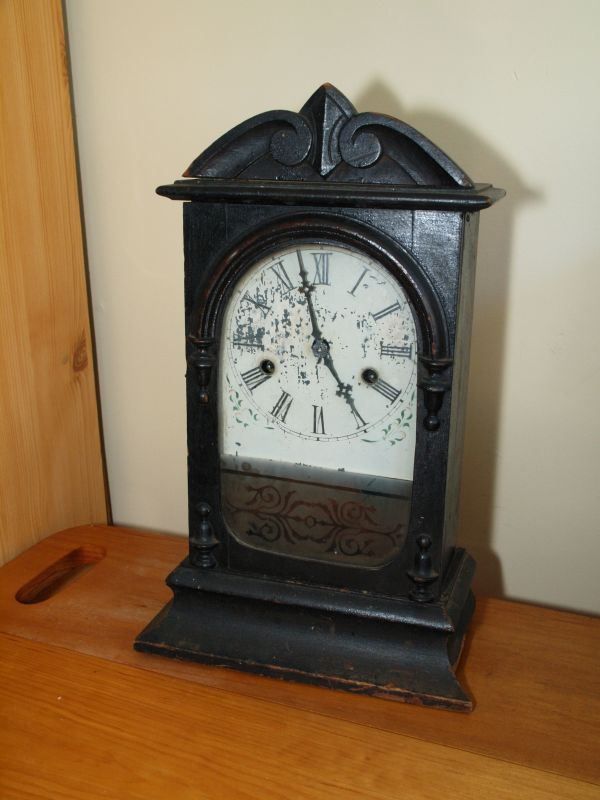

Case is in fair condition, dial face has some flaking

In light of current world events the antiquevintageclock.com family wish to convey our sympathy and condolences to those effected by Covid 19

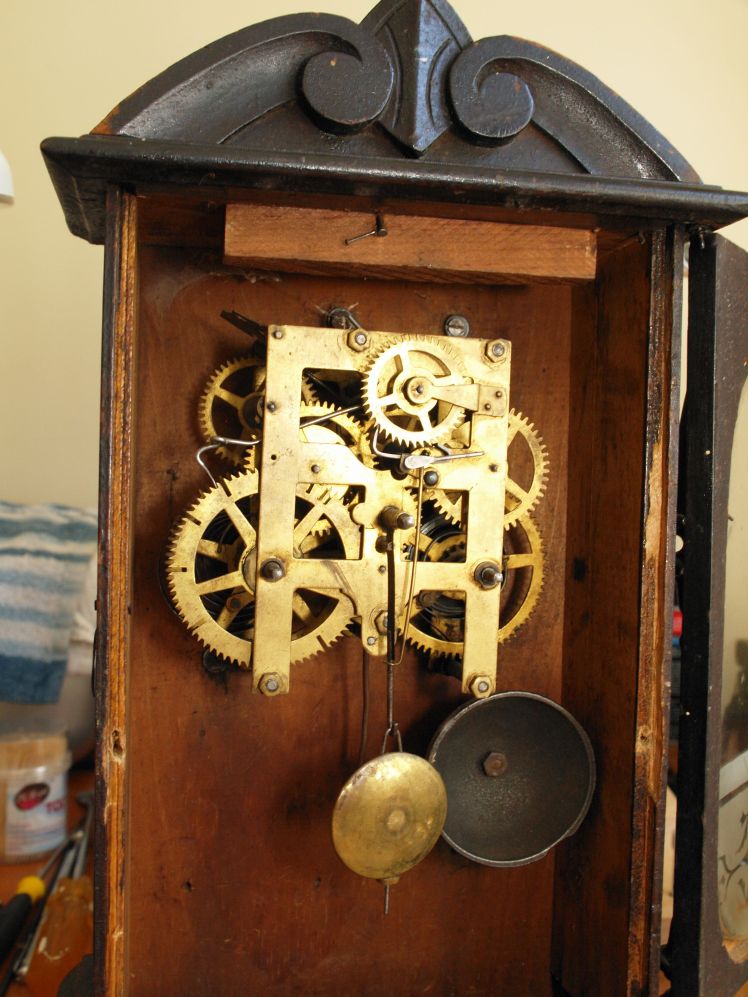

Original time and strike 30 hour movement

The movement in this Canada Clock Co. time and (hour) strike cottage clock from the late 1880s is a mess but fixable. Some past repairs are acceptable while other leave a lot to be desired.

I’ll begin with the issues. “Repaired” mainsprings, nuts on a copper wire fashioned as a gong hammer and string “helping” the helper springs are things you really don’t want to see on a movement. The time side runs reasonably well but the strike side does not function, likely the result of fiddling with levers too many times.

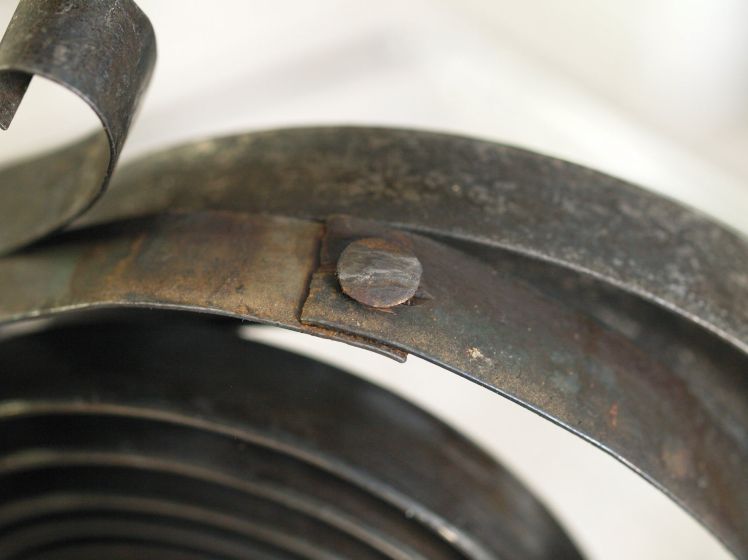

clever, but dangerosu way of repairing the mainspring

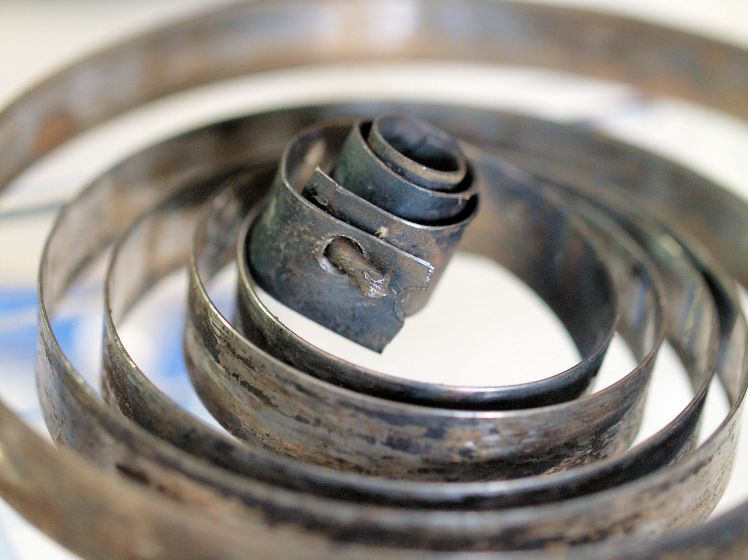

The second mainspring, another “iffy” repair

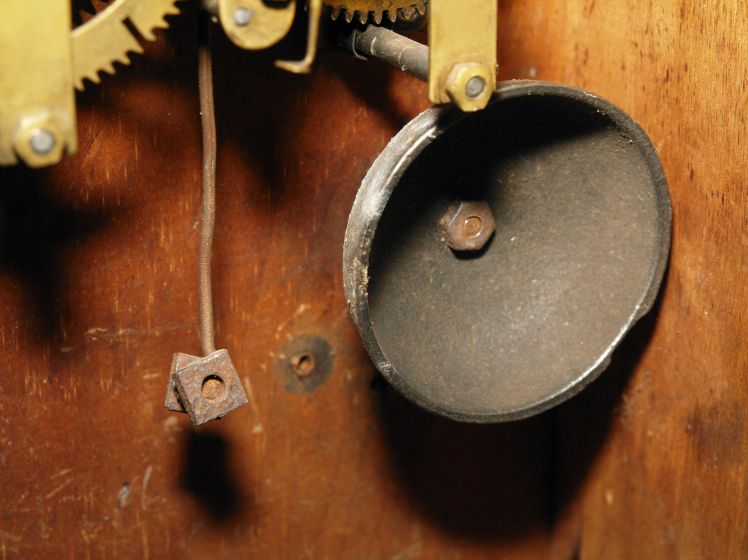

Home-made copper wire and two nuts serve as the gong

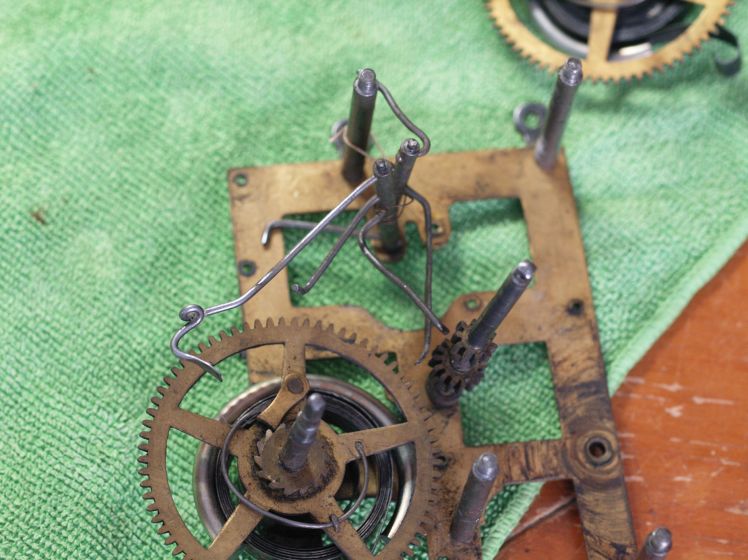

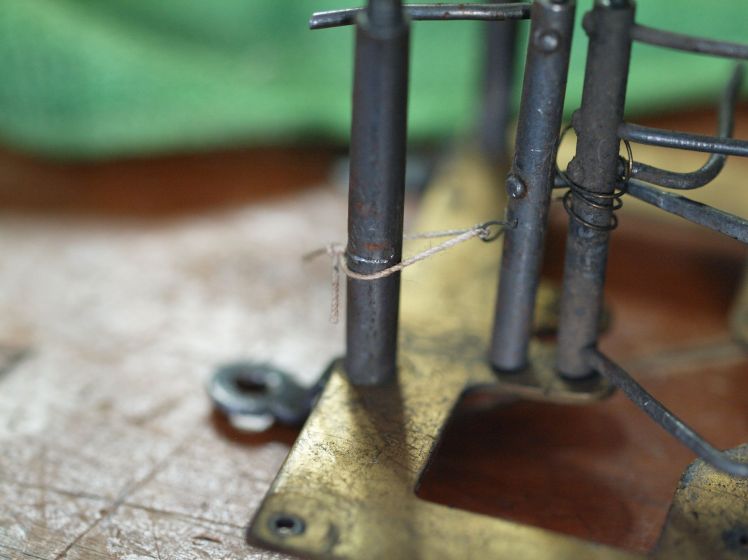

String used to connect a broken helper spring

In the clock business you must always expect the unexpected. While I awaited parts, I went about cleaning the parts and bushing work .

This is perhaps the most frustrating 30-hour movement I have ever worked on

The parts arrived and included a new gong hammer, two new mainsprings and brass wire for new helper springs.

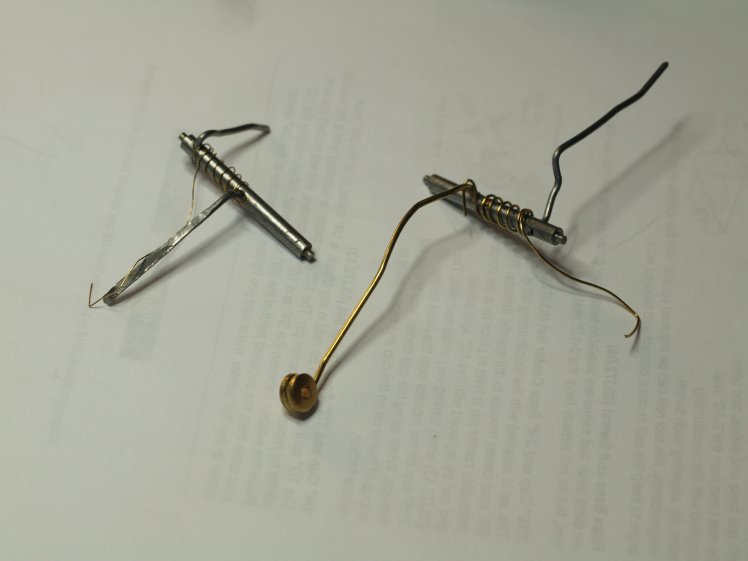

New hammer gong and lever with helper springs installed

I began by installing the new hammer. Using my mini lathe I drilled a new access hole in the hammer arbour. I measured the diameter of the hammer rod and used a HSS bit to drill through the centre of the arbour. It was a reasonably good fit but to ensure a permanent hold I applied a drop of thread-locker.

The levers look like a twisting mess but there is a logic to the arrangement

This is the first 30-hour shelf clock I have worked on without a discernible warning action and it made for tricky lever positioning. Perhaps there is warning but I just could not see it. Though the levers look like a twisted mess there must be some logic to the arrangement.

The above photo shows the left side lifting lever that must be precisely adjusted and curved for the centre cam to push the drop lever over the count wheel cam to actuate the strike. The count lever blade must also line up exactly with the centre of the count wheel and precisely in the middle of the deep slot. As far as I can determine the lifting lever is the only one of the two levers that require a helper spring but I will know more after further testing.

All in all, this is one of the most frustrating 30-hour movements I have ever worked on. The movement was taken apart several times for various adjustments. I worked at for a while, left it, thought about the next steps but despite my best efforts, that strike side continues to elude me. The time side, however, works perfectly.

Some day I will have it working but for now it is on display.

May 9, 2020

The Canada Clock Company (Hamilton Clock Co.) – a brief history

30-hour time and strike movement with clock company inscription on the bottom of the front plate

If one were to ask those with a keen interest in Canadian antique clocks, the word Pequegnat would immediately come to mind. Pequegnat produced clocks for close to 40 years and left an indelible mark on Canadian culture.

Predating Arthur Pequegnat is a lesser known clock maker (or clock-makers) that made clocks between 1872 and 1884. The Canada Clock Co, and the Hamilton Clock Co. struggled over a 12 year period to put Canada on the clock-making map. In 1872 the Canada Clock Co. established itself in Whitby, Ontario (Canada) but lasted just 4 years before failing, though largely due to a devastating factory fire.

Out of the ashes came another attempt in 1876 and key principles including manager John Collins moved to Hamilton and set up the Hamilton Clock Company. After 4 years this new company also failed and production halted in 1880. In late 1880 one more attempt was made to establish a new company called the Canada Clock Company resurrecting the old name. It is still based in Hamilton at the old Hamilton Clock Co. factory. Success was short-lived as the company declared bankruptcy in 1884 ending a dozen years producing clocks for the Canadian market.

Although both movements and cases were made in Canada they were copies American styles

Canada Clock Company, Prince of Wales parlour clock

Canada Clock Company, City of Hamilton parlour clock

I have grouped the clocks from the three companies and these are their characteristics. The most common clocks found today are the weight-driven, thirty-hour “Ogee” style, with colourful birds or flowers surrounded by a black background on the glass tablet. At least five different labels are known, four have a beaver on them. The large printed paper label was located inside the case on the lower back. Spring-driven mantel clocks with plain cases were also made with thirty-hour movements. Although both movements and cases were made in Canada they were obvious copies of American styles.

Hamilton Clock Co Gothic steeple clock with etched glass tablet

Loss on the clock label — Clock label showing the Hamilton Clock Company factory

Also produced was a spring-driven “school house” wall clock.

At least sixty models of spring-driven mantel clocks are known, with both thirty-hour and eight-day movements. Most of the door tablets (Canada Clock Co.) have acid etched glass designs, unique to the two Hamilton-based companies and done in association with a local glass factory. Wall clocks are also found with the Canada Clock Company, Hamilton label.

The most desirable clocks are the ornate time and strike parlour clocks such as the City of Hamilton and Prince of Wales pictured above.

Unfortunately, a valiant attempt to grow a home-bred clock company failed miserably. However, the clocks of all three companies are highly sought after by Canadian collectors today.

October 25, 2018

Taking a summer clock break

It is time to take a little break.

As regular readers know I publish between 7 and 9 articles per month. I have been spending considerable time this spring putting ideas together and getting articles ready for the summer months so that there will be NO interruption in activity on this blog.

Since I spend quality time with friends and family and decompress at our summer get-away in central Canada I might be a tad slow getting back to you if you have questions about your clock or comments on any of my posts. I therefore apologize in advance.

Canada Clock Company Hamilton Cottage Extra, circa 1880, an interesting find in a junk shop

On my blog I typically profile my own clock collection, the challenges of maintaining and repairing clocks in my collection plus many articles of general interest. I often write about my personal observations during my travels and I always look for unique and interesting clocks as I navigate through the fascinating world of horology.

I hope you enjoy reading them as much as I enjoy the researching each article. I invite you to browse through my archive; there is always something that will interest clock lovers of all ages.

Over the next two months you will find exciting new articles and some helpful information on various clock issues. No doubt my summer adventures will produce new clock stories that will be the source of future articles. So, stay tuned as they say and if you like what you see let me know.

July 4, 2018

The Macdonald Museum – if you are a clock fan, or even if you are not, this small museum may surprise you

Macdonald Museum in Middleton Nova Scotia

I have been to Middleton, Nova Scotia many times. I have even passed the Macdonald Consolidated School where the clock museum is located without realizing what treasures lay inside. The clock museum represents a small section of the museum, the remainder of which is dedicated to the history of the area.

In the Spring of 2018 my wife and I set off on one of our many mini staycations. On my agenda was a visit to this museum and I was not disappointed.

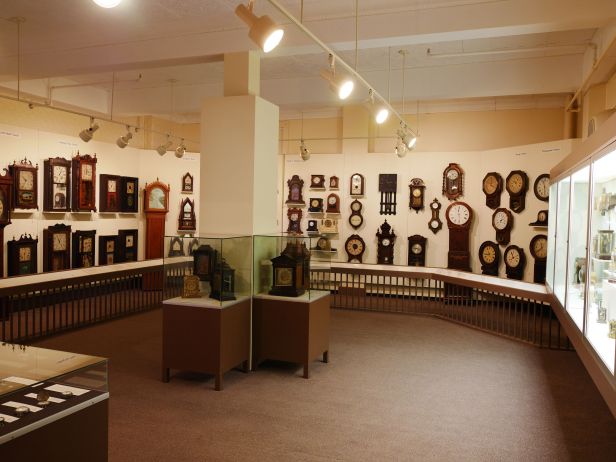

MacDonald Museum main exhibit area — Macdonald Museum main clock exhibit area

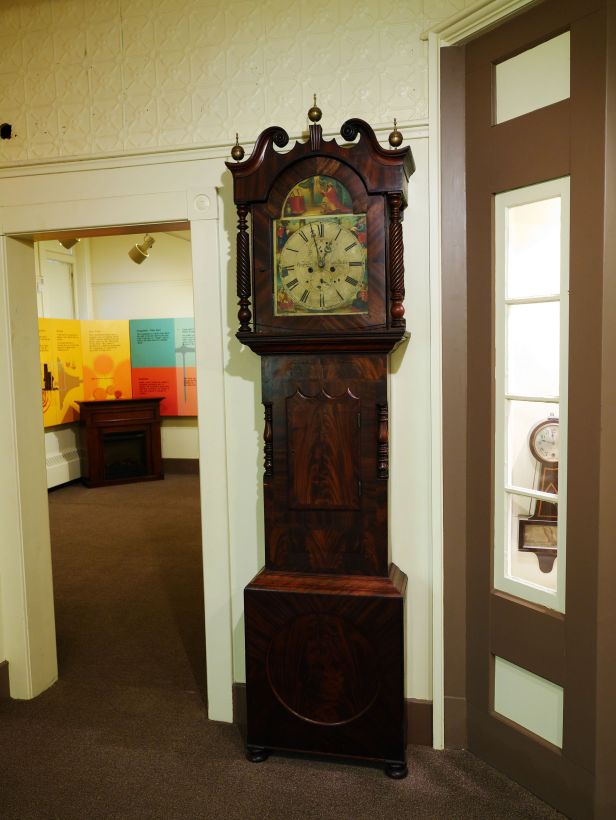

Tallcase clock — Holbeck made tall-case clock

It certainly ranks as the best exhibit in Atlantic Canada

Off highway 1 on School Street, Middleton, Nova Scotia stands the Macdonald museum. I had some expectations because I had been to two well respected clock museums, the NAWCC museum in Columbia PA. and the Canadian Clock Museum in Deep River, Ontario. Though not on the same scale as these two, it certainly ranks as the best exhibit in Atlantic Canada.

According to the web site

The Annapolis Valley Macdonald Museum is home to the Nova Scotia Museum’s collection of over 150 antique clocks and watches. This permanent exhibit showcases items collected by the late Norman Phinney and was one of the primary reasons for establishing the Macdonald Museum. Many of the clocks are in working condition. There are a wide variety of clocks and watches on display, with some dating back to the late 17th century. Anyone interested in clocks would do well to see this exhibit – one of the best in Eastern Canada.

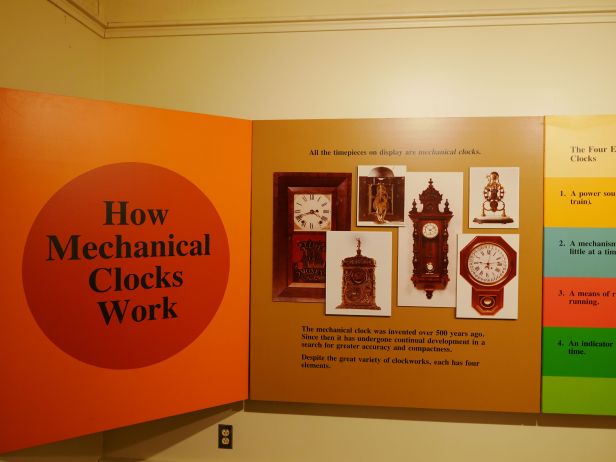

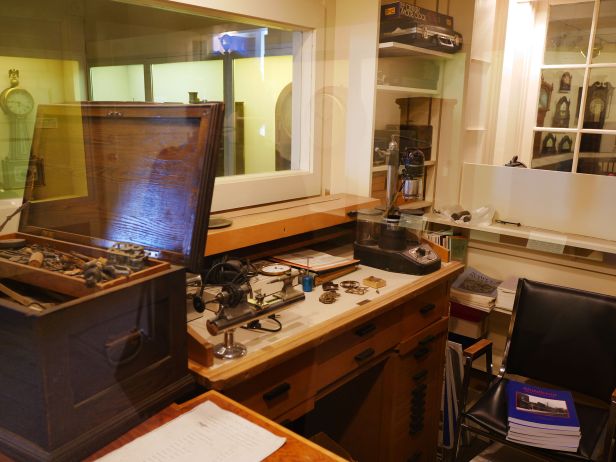

The museum is well laid out with enough information on each of the clocks on display to satisfy the general public and clock enthusiasts alike. Each display highlights its significance as an important development in horological history. We were alone as we walked though the main exhibit area and an adjacent room which contained a fascinating old clock-maker’s shop and a well laid out and informative interactive display on how mechanical clocks work.

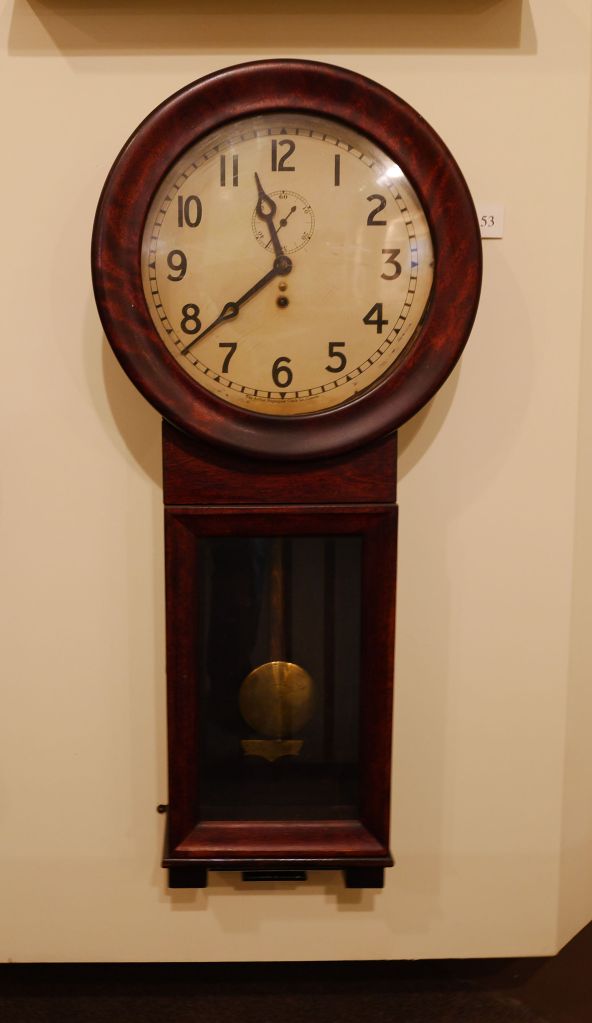

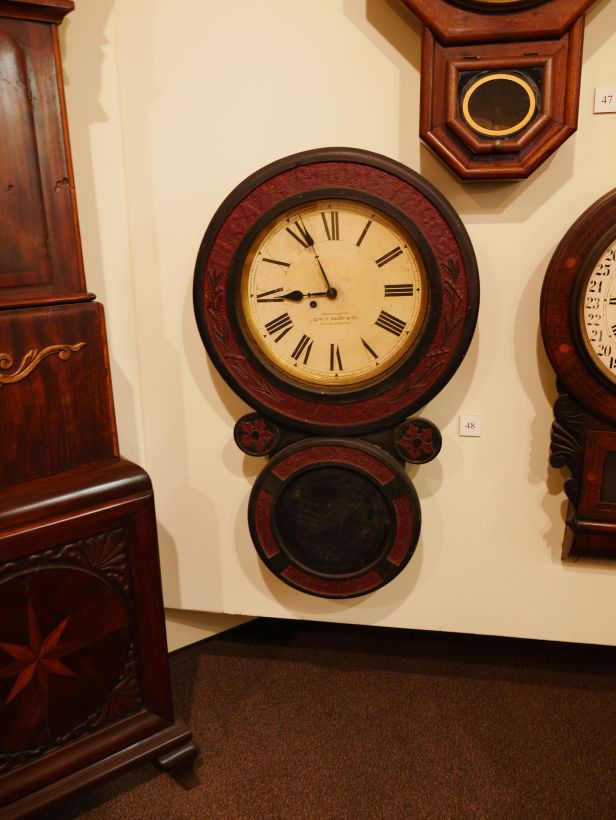

At least one example from the Baird Clock Co. of Montreal and five examples from the Arthur Pequegnat Clock Co. of Berlin (now Kitchener) Ontario were on display including the Arthur Pequegnat Regulator #1, that the company once advertised as “The finest clock made in America”.

None of the clocks were running, however. Though the clocks appeared to be in excellent condition, the sound of ticking clocks make for a more authentic experience. All other clock museums make a practice of running some clocks on a rotating basis at any given time.

At the entrance to the clock collection there is a simple plaque dedicated to Norman D. Phinney. Learning more about Norman D. Phinney, his contribution to the Macdonald Museum and the story of how the museum received his clock collection would add to the experience.

If you are a clock fan or even if you only have a casual interest in the world of horology, this small clock museum may surprise you

Though perhaps not within the scope of Phinney’s original collection, examples from the Canada Clock Co. and the Hamilton Clock Co. or more peddlers clocks from Nova Scotia and New Brunswick would have provided an enhanced Canadian horological perspective.

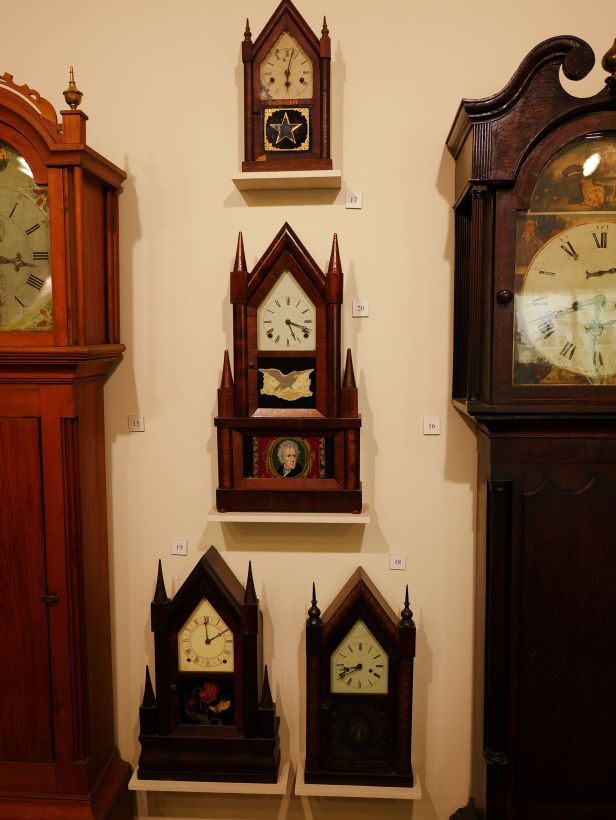

However, these are minor quibbles and should not detract you from appreciating the high quality of the exhibits which contained British, American, French and Canadian examples or the many styles that included Pillar and Scroll, tall-case, shelf, beehive, steeple, drop octagons, mantel, alarm clocks and Ogee clocks, all of which were well represented.

If you are a clock fan or even if you only have a casual interest in the world of horology, this small clock museum may surprise you.

Oh, and while there, visit the rest of this fascinating museum.

June 24, 2018

Ansonia cottage clock – a neglected clock brought back to life

Last summer (2017) my sister asked me to look at her newly acquired Ansonia time-only 1-day cottage clock (circa 1895). “How much did you pay for it”, I said. “Only $25 but it doesn’t work, something is wrong with it,” she said without being specific. And she was correct.

The clock would have not cost much at the time, perhaps a dollar or so but today people collect small clocks such as this and prices can be higher than the more common mantel clock. In those days for an extra 50 cents you could buy a time and strike cottage clock with an alarm feature but his one is pretty basic. They were cheaply built, somewhat disposable since very few made their way to the repair shop and not as many have survived.

Several months have gone by and I thought I should take a look at the clock, repair the movement, spruce up the case and dial face and return it to my sister in working condition. Having completed a number of other projects I decided I had time to tackle this one.

It was dirty as expected and the gears generally loose, particularly the winding arbour. It was clear something around the mainspring was amiss. The click was loose and would not engage every time.

Top plate is removed — The top plate is removed

Time-only movements are the simplest to work on and this is no exception. If you are starting out in the world of mechanical clocks this is the movement to begin with. The movement is very small in comparison to mantel or kitchen clocks and measures only 2 inches wide by 3 inches tall. Despite its diminutive size, it is easy to work on. The case itself is only 9 1/2 inches tall by 7 inches wide by 3 1/2 inches deep.

The movement had been worked on before. The click anchor screw was stripped and there were punch marks on the escape wheel bridge.

New bushing but 2 punch marks are still showing — New bushing but 2 punch marks are visible

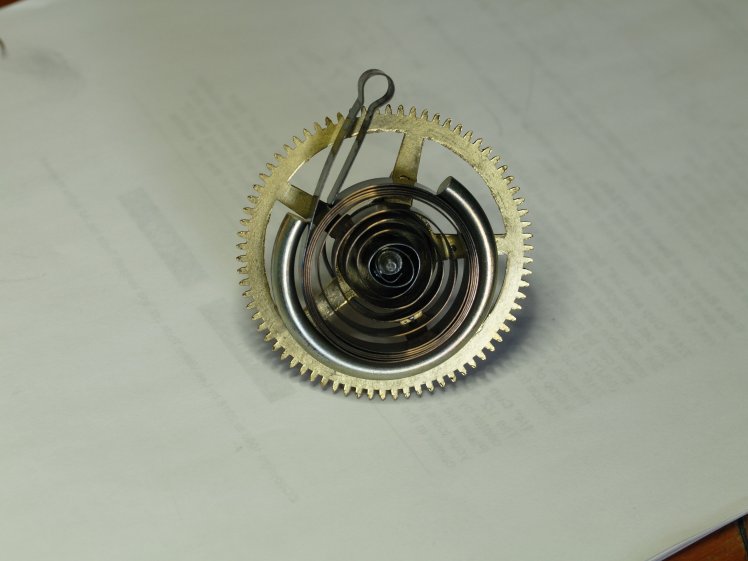

The most troubling issue was the main wheel arbour which had detached from the gear. It took a few punches on the brass shroud to push it in back into place and secure the wheel to the arbour. Not the prettiest of repairs but very functional. The click was also loose and would barely engage the ratchet. It took a couple of hits with a hammer on the holding pin to secure it tightly in place.

The arbour is now secured to the wheel and the click has been repaired

Four bushings were installed, the centre arbour (rear), the rear of numbers 2 and 3 wheels and the escape wheel bridge.

Centering prior to drilling a hole for a bushing. You can also see how small the plate is

The clock was mounted on the test stand and run for several days without issue. Once testing was completed it was returned to its case.

The numbers on the dial were somewhat faded. I decided to address the numbers with a little paint.

Faded numerals on dial face — Faded numerals on the dial face

I was concerned about being too invasive when touching up the dial but I thought the numerals should stand out a little more. I used a number 2 paintbrush and touched them up using flat black acrylic metal paint and a Sharpie pen for the small lines. The effect is subtle without being over the top.

After touching up the numbers with paint and a Sharpie for the thin lines — After touching up the numbers with paint and using a Sharpie and straight-edge for the thin lines

The case was cleaned up with a toothbrush and Murphy’s Soap. There is some finish loss on top but I will leave that as-is.

Here is the completed project. The movement is now back in its case.

Assembled, in beat and ticking away strongly

The hands, which appear original, are attached and the clock is running better than it has in years.

I am sure that my sister will be pleased when the clock is returned to her.

June 9, 2018

Rate this:

Share this:

Rate this:

Share this:

Rate this:

Share this:

Rate this:

Share this:

Rate this:

Share this:

Rate this:

Share this:

Rate this:

Share this:

In light of current world events the antiquevintageclock.com family wish to convey our sympathy and condolences to those effected by Covid 19

This is perhaps the most frustrating 30-hour movement I have ever worked on

Rate this:

Share this:

Although both movements and cases were made in Canada they were copies American styles

Rate this:

Share this:

Rate this:

Share this:

It certainly ranks as the best exhibit in Atlantic Canada

If you are a clock fan or even if you only have a casual interest in the world of horology, this small clock museum may surprise you

Rate this:

Share this:

Rate this:

Share this:
