Small details added during clock restoration projects can change the appearance of clock in a positive way. In this article I will describe how adding a piece (actually two), that should have there in the first place, will make all the difference.
During the fall (2018) I spent a considerable amount of time restoring a Vienna styled time and strike German made FMS Mauthe spring driven wall clock. Restoration involved completely stripping and refinishing the case and fully servicing the movement. My wife commented that the transformation was dramatic and of course, I graciously accepted the compliment.
For some reason many wall clocks are missing their side stabilizers
Before
And….
After
Restoration included adding an arched door insert above the dial and a new centre top finial. Otherwise, the clock was complete except for one small item, the 2 wall stabilizers. Why would they be missing? A thumbscrew might go astray during a servicing and rather than find a replacement it is too easy to take both off and discard them.
Clock case stabilizers
Many wall clocks are missing their side stabilizers. Check the rear backboard of a wall clock without stabilizers. You might find two small holes on either side of the case near the bottom indicating it once had wall stabilizers. Otherwise if you do not find those holes, the clock was never meant to have them.
Once the beat is set, level the clock on the wall and set the stabilizers by screwing each one into the wall. The stabilizers will compensate for any wall vibrations and the movement of the case during the weekly winding.
Right side stabilizer
Some stabilizers are unique to brands such as Ansonia and Gustav Becker. This, however, does not mean that they are limited to these movements, they are interchangeable. The stabilizers you see here are advertised as Vienna stabilizers.
Left and right stabilizers are barely seen but preform an important function
All clock suppliers carry stabilizers. I ordered a pair and simply re-used the screw holes on either side on the backboard to attach the stabilizers.
Are they absolutely necessary? No! Can a clock run without them. Yes! Yet, it is an often overlooked detail that might make all the difference.
I acquired four old clocks in a barn find. Two, a 30 hour Ogee and a mantel clock were totally unsalvageable although I managed to take off some veneer, case parts, a movement, boards, case hardware and a few other items.

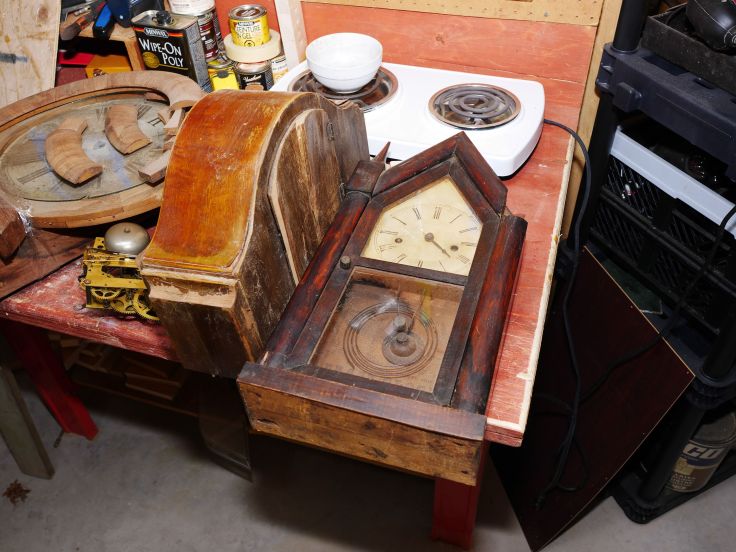

Elisha Manross 30 hour steeple clock
Two others were worth a second look. One is an Elisha Manross 30 hour Gothic steeple clock that is worth restoring and the other, an Ansonia Drop Extra wall clock, the subject of this article.
There are a number of variations of the Ansonia Drop Extras and the one most sought after is the time, strike and calendar version. This is merely a time-only version and would fetch a price in the lower end of the range.
The largely intact label says,
Eight-day and thirty hour brass clocks, pendulum clocks, a variety of……., Also sole manufacturers of Jeweled Marines and eight-day gilt time pieces, Ansonia Brass and Copper….Ansonia Conn.
This clock was manufactured by the Ansonia Brass & Copper Co. around 1880. It is 26 inches high, 16 inches wide and 5 inches deep. It has a 16 inch round wood door bezel on a large 2 inch hinge. The drop section has serpentine sides and teardrop finials. The bottom access drop door opens downwards. Other Drop Extra access doors open to the side.
Much has been written about the Ansonia clock company. The company history can be found here. Formed in 1844, the Ansonia Clock Company went into receivership just before the stock market crash in 1929. The machinery and dies were sold to a Russian Company in 1931 thus ending the long reign of a glorious American clock manufacturer.
The Lima (Ohio) News gave this account in a March 12, 1931 news report:
“…there came an order to supply the Soviet union with men and machines to make watches and clocks, neither of which products ever had been manufactured there. Representatives of Amtorg went to the Ansonia Clock Company in Brooklyn and to the Duber Hampden Watch Company of Canton, Ohio, and bought them lock, stock and barrel. Then they hired most of the skilled employees of the plants to go to Russia and operate the familiar machines. These have been installed in a new, many-windowed building in Moscow, where Russian apprentices are beginning to master the trade.”
The time-only movement appears unusual because of the oversize 2nd and 3rd wheels. The dial glass is original as is the painted dial which is 11 1/2 inches wide. The painted zinc dial has black Roman numerals, is flaked in some areas and requires stabilization. The flaking dial could use some work if only to arrest the deterioration of the finish. In the meantime the numerals have been touched up with black metal paint.

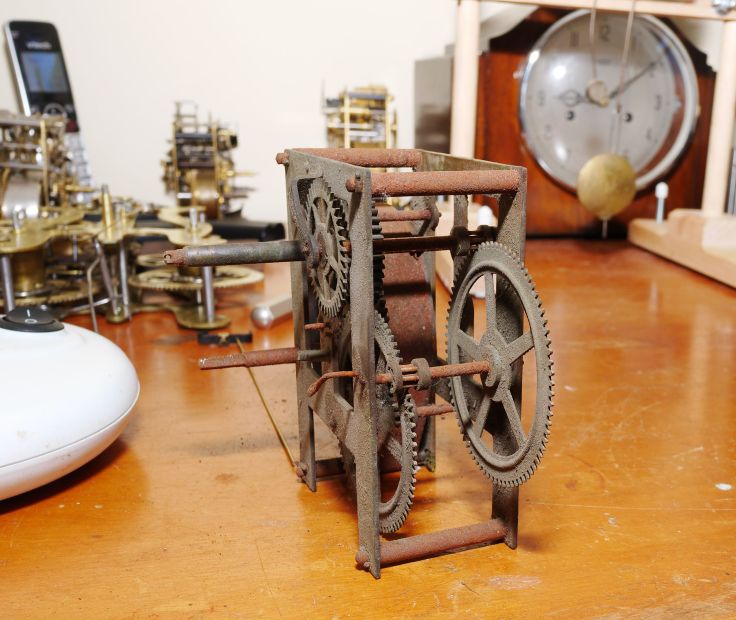

Ansonia Extra short drop wall clockSeized time-only movement
The clock is in generally poor shape, what I would consider a diamond in the rough. A challenging project? Yes, because there are so many missing parts. Missing are the brass dial bezel, clock hands, pendulum bob, verge, drop access door with its hardware, right tear drop finial and 3 hinges. The finish is completely gone, down to the bare veneer. The veneer has some minor losses that are in hidden from view but for the most part the case is in good condition.
The movement was rusty and the wheels were seized. Obviously the clock had not been running in a number of years. After applying some WD-40 I managed to free the gears. In addition, two bent wheels (2nd and 3rd) had to be straightened. The rust was removed and the movement cleaned up surprisingly well. Only one bushing was required on the escape wheel bridge. The movement is presently installed in the clock and running well with the addition of a new verge, pendulum rod and bob.
There is nothing special about bringing the veneer back to life. After a thorough cleaning with Murphy’s soap I applied three coats of shellac lightly sanding after each coat. The photo shows the clock after the third application of shellac.
Ansonia backboard with partial label & movement mount blocks
A section on the right side of the backboard was missing. I salvaged a piece of board from a donor Waterbury Ogee from about the same period and traced a pattern to fit the missing piece. Replacing the entire backboard might have been an option but I felt it necessary to preserve most of the label. Hide glue was used to bond the two boards which were then clamped for 24 hours. The gaps were filled with a combination of hide glue and sawdust one day later.
Ansonia movement running and installed in the case
Unfortunately, this is as far as I can go with this project. Unless the previous owner finds the missing pieces which is doubtful or I find another clock to marry the two together this clock will simply be a curiosity on a wall. In the meantime I have contacted some clock suppliers and have had no luck so far. My inquiries on clock oriented social media sites have also produced no results.

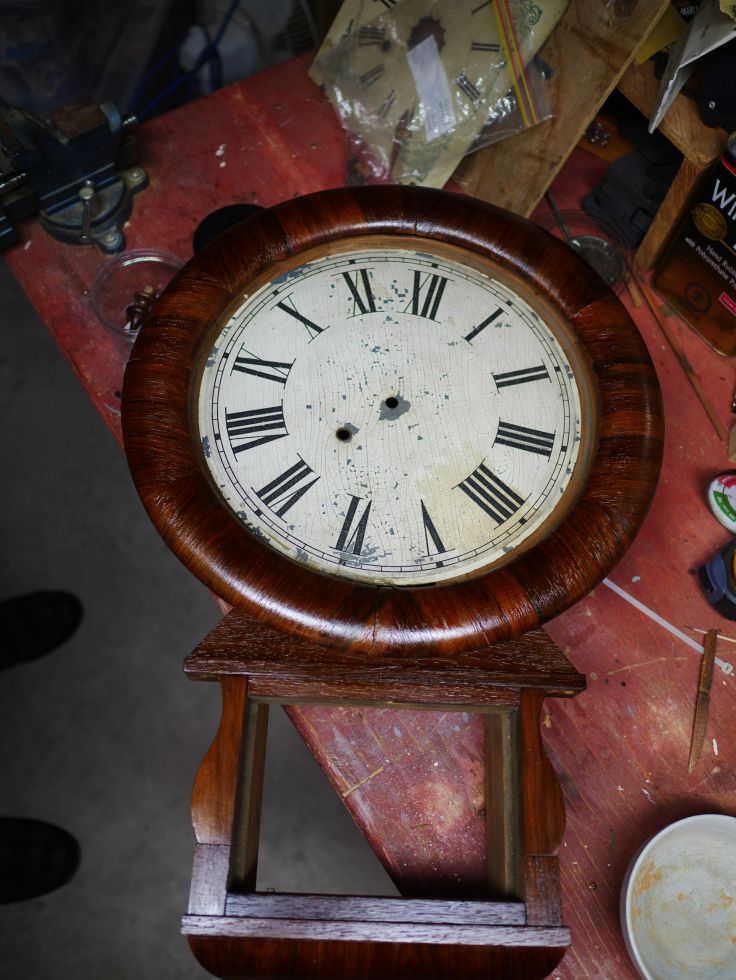

Rosewood veneered dial bezel in position
The movement has been running reliably for a full 8-day cycle and has run for the past 4 weeks. Despite not having the parts I require to complete the project there is a certain satisfaction in making a clock run that has not run in years.
A Martin Cheney clock is on my wish list though I doubt I will ever see one let alone buy one, they are that rare. So who is this clock-maker from Montreal, Quebec?

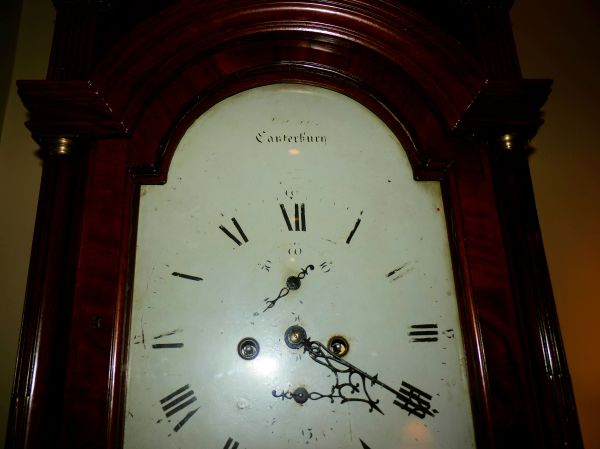

Could this be a Martin Cheney tall-case clock?
My wife and I were staying at an historic Inn in downtown Halifax (Nova Scotia, Canada) in the spring of 2016. We discovered a fully restored long-case clock in the front room of the inn. The inscription “Canterbury” on the dial face suggested that is was an English clock or would it be a Canadian clock made by Montreal clock-maker Martin Cheney almost 200 years ago? I should have asked.
Upon returning home I did some research. I posed the question on a clock forum site and the response was “who is Martin Cheney?” In clock collecting circles the name is not exactly commonplace. Not a lot is written about this man despite many of his clocks surviving to this day.
Barely readable numerals
Martin Cheney – an American born clock-maker
In 1778, Martin Cheney was born into a well-known and established American clock-making family. He was one of four clock-makers born to Benjamin Cheney 1725-1815 and Elizabeth Long Cheney in East Hartford, Connecticut. Benjamin most likely trained all four of his boys in the art of clock-making. Asahel was the oldest and was born in 1759. He then moved to Vermont. Elisha was born in 1770 and died in 1847. He settled in Berlin, Connecticut. Russell was the youngest. It appears he moved north to Putney, Vermont. Martin also had an uncle, Timothy 1731-1795. He became a well-known clock-maker in East Hartford and worked closely with Benjamin. By 1803, Martin Cheney moved up the Connecticut River to Windsor, Vermont. While in Vermont he advertised that he has fine English Watches, watch keys, chains and seals for sale.
Political events in the United States sent a group of families to the British territory (as Canada was known prior to 1867) in the early 1800s. Martin moved to Montreal in 1809. He remained in Montreal for some twenty years. In 1817 he formed a partnership with J. A. Dwight and advertised this business as Cheney & Dwight at 104 St Paul Street, Montreal (now a show-bar!). He made both movements and cases, wall and tall case clocks and banjo clocks. The partnership with Dwight lasted until 1830. In 1827, Martin placed an advertisement in Burlington, Vermont newspaper for a journeyman clock-maker to work with him in Montreal. Although Cheney continued to make clocks into the 1830s there is no information on Cheney beyond 1830, however, it appears that he spent the remainder of his days in Montreal.
What is a Cheney clock?
What is intriguing about a Martin Cheney clock? His clocks featured outstanding inlaid mahogany reflecting both high style and workmanship. The cases were well proportioned; this long-case clock has a long and narrow waist and a large rectangular waist door that is fitted with an applied molding. The center of this door also features a selection of mahogany veneer. Open this door and one can access the inside of the case. The sides of the waist are fitted with quarter round columns. These terminate in brass quarter capitals. The bonnet features a New England style raised centre brass inlay top piece. It is surmounted by three brass balls and spiked finials. The molded arch is supported by fully turned and fluted bonnet columns. They are mounted in brass capitals. These columns flank the sides of the arched bonnet door. This door is line inlaid and it opens to access the dial of the clock. Had I looked at the movement it would have confirmed the fine craftsmanship of this 19th century timepiece.
This clock at the historic inn I described above certainly fits the style and detail of a Martin Cheney clock, so is it a Cheney clock? Some day I will have to find that out!
What is a shelf clock? If you have a number of clocks as I do it can be quite confusing to describe each specific type to the average person but it is really quite simple. Let me explain how you can identify the clock you might be looking at. The term shelf clock is a broad category but I believe it can be classified in the following ways.
Some 180 years ago the first shelf clocks were OG (Ogee) clocks. These were the first mass-produced American clocks, were inexpensive, and were made up to about the late 1870s. They represented the early years of American clock-making and the transition from more expensively produced wood movements to cheaper brass movement clocks. OG clocks are so named because of the double-curved molding on the front of the clock. The curved molding was designed to hide the weights. Many of these clocks were weight driven with 30-hour or 8-day movements and had mirrored or painted tablets. OG clocks were usually 25 inches in height and 15 inches wide and had hardwood veneers covering a softwood frame. They were surprisingly accurate and reliable.
Spring-driven and weight driven 30 hour OG (Ogee) clocks, made by the Canada Clock Company, circa 1872-76 (Canadian Clock Museum)
Later, more stylish clocks could be found. These are called Column clocks because they would either have a half-column or full column on the left and right or even stacked half or full columns such as the one pictured below. Moldings on the top and bottom would be brought together by columns on each side of the clock with mirrored or painted tablets. Column clocks were almost exclusively weight driven with 30-hour or 8-day movements.
Stacked Column clock, circa 1870 (Canadian Clock Museum)
At around 1840 Steeple clocks were introduced. They had a peaked centre section bordered by columns topped with finials and a peaked sash with a decorated (often hand-painted) lower tablet. They were spring driven with 8-day movements. Steeple clocks are very distinctive, stood about 15 inches high with veneered hardwood over softwood, often with reverse-painted scenes and are made by a number of well-known companies.
Arthur Pequegnat Maple Leaf “fan top” Kitchen clock, circa 1905
Kitchen clocks (Gingerbread) were simple or ornate with carved or steam-pressed patterns made by quick-saws and heavy steel presses, stood 22-24 inches in height and about 15 inches wide, and had a decorated sash which could be a very simple design as you see here or a much fancier reverse-painted glass scene. These inexpensive, visually pleasing timepieces sat in the kitchens of lower and middle-class homes and were produced by the thousands. They were so named because of their likeness to the design of gingerbread houses at the time (early 1900s). They are usually made of oak, walnut or even walnut trimmings on oak with a metal clock face and many had a simple alarm mechanism. The Gingerbread clock you see here is the Maple Leaf “fan top” by Arthur Pequegnat. The Maple Leaf came in 4 unique styles all characterized by the maple leaf decal on the glass door.
Some kitchen clocks had beautifully carved features and figurines such as this stunning clock made by the Hamilton Clock Company (Canada), though a clock such as this might be found elsewhere in the home and considered a parlor clock.
City of Hamilton, made by the Hamilton Clock Company, circa 1880 (Canadian Clock Museum)
When spring-driven clocks were introduced the Parlor clocks like this Hamilton Clock Company model became popular. They tended to be narrower than column clocks because they had spring-driven movements. These clocks mirrored the furniture styles of the time. This one reflected the Victorian era with its bold figurines, carved finials, elaborate patterns etched into its wooden frame, and the hand-painted floral design of the sash.
Seth Thomas round top cottage clock, circa 1930
Cottage clocks are less than 15 inches high and typically 8 inches wide are small, simple in design, and take up very little space. Many have basic alarm mechanisms but have one feature that distinguishes them from other pendulum clocks. They have a clip or a clasp that secures the pendulum rod for travel. The “round top” you see here was sold by Henry Birks and Sons an upscale Canadian jeweler. Others had “beehive” tops, flat tops, or octagon tops.
Pendulum rod clip for Seth Thomas round top
Smaller clocks are often referred to as desk clocks. They are usually mainspring driven with a flat dial. This Kundo 400-day anniversary German clock is an example of a desk clock but it might also be described more specifically as a torsion clock. This one stands less than ten inches tall and has a glass dome, a weighted wheel with 4 balls suspended by a ribbon called a torsion spring, and an exposed movement. It was typically given as a wedding gift.
Kundo 400 day anniversary clock, circa 1970
Finally, the mantel clock.
Mantel clocks can be ornate, larger, and the centerpiece in a room. This particular clock, a Mauthe pendulum mantel clock offers a precision-built sophisticated German Westminster chime movement in a relatively non-descript but attractive and well-built cabinet that is simple yet elegant.
Mauthe time. strike and chime, circa 1970
ASIDE: Is it mantel or mantle? I have always considered a mantle as something you wear, a garment or a part of the earth’s crust. A mantel on the other hand is a shelf above, say, a fireplace. I see this word interchanged so often when clocks are advertised or described that either word is universally accepted. I prefer the word “mantel”.
Ingraham Huron shelf clock, circa 1878
Mantel clocks were inexpensive to make, occupied very little space, and were part decoration and part practical timepieces. Mantel clocks were made with brass, wood, porcelain, slate, Bakelite, and metal though for the most part they were designed to be lightweight (slate clocks and cast iron clocks would be the exception), simple in basic design, and very practical. Mantel clocks have lasted so long, over two centuries, because they are dependable, versatile, and work so well in many domestic situations.
The categories of shelf clocks also include carriage clocks and lantern clocks. One of the first clocks whose movement and external structure was made predominantly from brass instead of iron or wood was the lantern clock. Although the shape of the clock looks somewhat like a lantern, the derivation of the name probably stems from the French word “laiton”, meaning brass. The earliest lantern clocks had striking mechanisms; later in the 17th-century alarms were sometimes added. Some lantern clocks had pendulums and could be hung on the wall.
Carriage clocks were spring-driven clocks developed in 19th century France and are made of plain or gilt brass. They are often no more than 8 inches tall, designed to be portable, and are characterized by a rectangular shape, glass or porcelain panels, and a carrying handle on the top. If you have a Breguet carriage clock as part of your collection you are very lucky indeed!
This is by no means an exhaustive description of the types of shelf clocks. There are others such as swinging clocks, tambour clocks, pillar and scroll, and so on. Whether you are shopping for a clock as a gift or adding one to your collection or even describing what you have seen to a friend, it is important to understand the distinctions between one type and another.
I acquired this beautiful Mauthe Horse Crown Vienna style wall clock in the fall. I inspected it carefully enough before the purchase but it was not until I got it home that I discovered a finial or perhaps a trim piece missing from the base area on the bottom.
Missing trim or finial
Once hung the clock did not look as balanced as it should. It did not look quite right and there was clear evidence of a piece missing when I inspected the bottom more closely.
I went to the usual clock parts sites to look for a finial or piece that would best fit the design of this turn of the century wall clock. There were a number of choices but I decided to get the base piece finial you see here. It is flat on one side and comes without a peg. It complements the style of the clock without making it look awkward and I think I struck the right balance. It may not be exactly like the original but it looks good enough to fool the casual observer or even an expert.
The trim piece came unfinished. I determined that the clock had an original walnut finish so proceeded to apply enough coats of stain on the trim piece to match the rest of the clock.
Here is the result.
Trim piece added to base of clock
Here is a shot of the clock from a couple of meters away. You can see that it is more “balanced” than before. it might even be period-correct judging from what I have seen on other Vienna style clocks.
A small detail makes a difference
From Perrin Canada
This cost me $6.70 for the trim piece / finial I purchased from Perrin Canada, $4.99 for the dark walnut stain and $.79 for a length of 5/16 dowel. This small detail makes a huge difference.
