In a previous article on servicing this clock, I mentioned the challenge I faced with the mainspring. With only minimal tools at my disposal and no spring winder, I was determined to find a solution and successfully service the mainspring.
This clock was manufactured by New Haven and boasts a classic design with a twelve-inch Roman Numeral dial and a distinctive short drop style.
The softwood case is veneered in Rosewood veneer accents. The clock’s case must have been quite elegant at one time, but now it is showing much wear and tear.
Given the condition of the case, I anticipated that the movement would be just as well-worn. It was in better condition than I thought.
New Haven 8-day time-only movement
Let me point out that the servicing is being done under less-than-ideal conditions. I am at our summer cottage with only the basic tools for clock repair, so I must either improvise or skip certain procedures.
No spring winder | no problem
The movement had already been restrained with a heavy copper wire.
A heavy copper wire contains the mainspring
First, partially reassemble the movement with only the main wheel and second wheels. Reattach the front plate and secure the movement with the 4 pillar nuts.
Attaching the second wheel allows the main wheel to be stabilized while the spring is wound using the ratchet.
Safety first
I strongly recommend wearing leather work gloves and eye protection. Handling mainsprings under tension can be hazardous, so prioritizing safety is crucial. Precautions are essential to protect yourself from potential injuries.
Next steps
The key is to hold onto the second wheel while winding the clock. Once fully wound the copper restraining wire can be removed. In the photo below the screwdriver is arresting the wheel while I take the photo.
Then, using a letdown tool, release the click by popping out the click spring from the rachet and allowing the mainspring to unwind. The main wheel with the relaxed spring can now be safely removed from the movement.
The letdown tool is on the right
Servicing involves carefully removing the main wheel from the spring, manually inspecting and cleaning the spring, re-oiling it, and reconnecting it with the main wheel.
The mainspring is removed from the main wheel for cleaning
Reassembly
After cleaning the main wheel and the spring, simply reverse the procedure. Reattach the click spring, join the main wheel and the mainspring, place them back in the movement along with the second wheel, wind the spring, and secure it again with the copper restraining wire. Once this is done, you can continue to reassemble the movement.
May not be suitable for all applications
This approach allows the main wheel to be cleaned in the ultrasonic cleaner along with all the other movement parts.
While this method may not be suitable for all open mainspring designs, it might be the solution for you.
Servicing a mainspring without a spring winder isn’t ideal, it can still be done safely and effectively.
Servicing this movement is reminiscent of days gone by when Dad (or Mom) would gather tools from the shed to fix the family clock. The repair might not have been perfect, but the goal was always to keep the clock running reliably until the next time it needed attention.
My collection of wall clocks includes several schoolhouse models and I am continually impressed by their resilience despite their age.
While many of these clocks spent their lives in school rooms, some ended up in commercial establishments and offices, often neglected until they stopped working. I’ve seen clocks with bushing holes so enlarged it’s a miracle they still ran at all.
This particular clock, manufactured by New Haven, boasts a classic design with a twelve-inch Roman Numeral dial and a distinctive short drop style.
The softwood case is veneered in Rosewood veneer accents. The clock’s case must have been quite elegant at one time, but now it is showing much wear and tear.
Given the condition of the case, I anticipated that the movement would be just as well-worn.
Let me point out that the servicing is being done under less-than-ideal conditions. I am at our summer cottage with only the basic tools for clock repair, so I must either improvise or skip certain procedures.
Removing the movement
After removing the hour and minute hands, you will find that three screws hold the dial in place. Once these screws are removed, the next step is to take out two movement blocks that secure the movement. This is done by unscrewing the blocks (each held by two wood screws) and then pulling out the movement. Once out the blocks can be removed.
The movement is held by movement blocks
Disassembly and inspection
The first step is to contain the power of the mainspring. Since I did not have access to my standard equipment, I had to improvise. I would normally use a C-clamp to restrain the mainspring, but with none available, I used a stiff piece of copper wire and wrapped it around the mainspring. Not ideal but it works.
Safely restrained mainspring
The movement is in surprisingly good condition.
The top (front) plate is removed
Once the wheels are out it is time to visually inspect the components including the gear teeth, pivots, escape wheel pallets, the condition of the manispring, and lantern pinions.
The parts are laid out for inspection
Before placing the parts into the ultrasonic cleaner, I clean the pivot holes with toothpicks and wipe off any excess dirt and oil. Since I plan to reuse the ultrasonic cleaner several times, putting excessively dirty parts into the cleaning solution can shorten its lifespan.
Opinions vary on whether mainsprings should be cleaned in an ultrasonic cleaner. I believe it’s a matter of judgment. If I am not planning to reuse the cleaning solution (mainspring oil can render the solution unusable) and can thoroughly dry the springs, I have had good results by placing them in the ultrasonic cleaner.
In this situation, I have opted not to clean the mainspring in a solution.
Next is the reassembly of the movement leaving out the main wheel and mainspring. Without tension on the wheels, this is a simple way of determining wear.
Wheels that move laterally suggest enlarged pivot holes. Lateral movement affects the meshing of the gears and with enough wear the gears do not mesh properly and the clock will stop.
Checking for lateral movement
In this movement, the third-wheel front plate shows the most wear. However, it is not worn enough to require a new bushing at this time. If I were in the clock repair business and this was a customer’s clock, I would definitely address the need for a new bushing. This is compounded by the fact that I do not have bushing tools with me.
The pivots exhibit no significant wear, as confirmed by the fingernail test, which revealed no ridges. If you feel any ridges, grooves, or irregularities, it indicates wear on the pivot. A smooth pivot suggests minimal or no wear. Although I had to use a portable power drill for cleaning/polishing, the cleaning process was satisfactory despite it not being the ideal method.
My main challenge is the mainspring. I’m currently working with minimal tools and would like to service the mainspring, but I don’t have a spring winder.
Mainspring and first wheel
I am determined to service the mainspring and will find a solution within the next day or so, reporting on the procedures as I go. In the meantime, this is as far as I can proceed with this movement.
Accepting the schoolhouse clock as a restoration project, I was prepared for the inevitable wear and tear it had endured over time. Despite its condition, I wondered what it would look like if the case was rejuvenated.
Decisions, decisions.
My collection of wall clocks includes several schoolhouse models and I am continually impressed by their resilience despite their age.
These clocks, renowned for their durability, keep time reliably, even in well-worn condition.
While many of these clocks spent their lives in school rooms, some ended up in commercial establishments and offices, often neglected until they stopped working. I’ve seen clocks with bushing holes so enlarged it’s a wonder they still ran.
This particular clock, manufactured by New Haven, boasts a classic design with a twelve-inch Roman Numeral dial and a distinctive short drop style. Its standout feature is the reverse painted glass on the access door, allowing the decorative pendulum bob to be seen in motion.
The softwood case is veneered in Rosewood veneer accents. The clock’s case must have been quite elegant at one time, but now it is showing much wear and tear.
Is it even worth fixing? However, let’s look at the movement.
The movement
I am impressed by the size and construction of the movement. The plate measures 5 inches tall and 3 inches wide, but it extends to 5 1/2 inches wide when including the main wheel and the third wheel. It is one of the larger time-only movements I have seen in an antique clock. Two wood blocks secure the movement to the case.
Movement in the case
It has been challenging to determine the date of manufacture of the movement, even though the trademark design should provide some clues. Despite searching through antique clock forums, the best match I found was an identical movement in a Cambria wall clock, which had no trademark but featured pins instead of nuts to hold the plates together.
Cambria wall clock
According to this siteNew Haven began using this trademark style in 1890.
New Haven trademark, 9 3/4 refers to the pendulum length
Although it looks clean, my plan is to take it apart and assess what needs to be done. Join me in my next article as I guide you through servicing the movement.
My collection of clocks is divided between my home in Nova Scotia and our cottage in Central Canada. Part of my collection is there because I am not the type of person who abandons a hobby; I make it a part of my everyday life.
Although not an even split, about 15% of the collection is at our summer cottage in central Canada. The clocks at the cottage, though not particularly special, add a charming ambiance to the space. They often serve as great conversation starters when guests are over, contributing to the cozy and inviting atmosphere.
Let’s begin in the sunroom, the focal centre of our cottage. In this room are two German box clocks, a Mauthe and a Kienzle, which has been a recent acquisition. Joining the two box clocks is a 30-hour Ansonia cottage clock.
Mauthe time and strike box clock(the wall to the left is under construction)Kienzle time and strike box clock
Check out this recently posted article for more information on the Kienzle clock.
Ansonia 30-hour cottage clock
Inside the main part of the cottage which comprises the kitchen, dining, and living area are 3 clocks, a Hemle time and strike weight-driven wall clock, passed on by my wife’s uncle, known as a wag-on-a-wall clock, an Empire time-only gallery-style clock from England, and a 30-hour New Haven miniature ogee.
This New Haven clock might look good from a distance, but closer inspection reveals that the front veneer has been stripped, likely due to significant loss or damage. This condition is not common with old veneered cases but unfortunately, it is what it is.
New Haven mini ogee clock
In our bedroom is one clock, and one clock only, and it is placed there for a reason. It is a time-only GIlbert gallery clock. Gallery clocks, in other parts of the world, may be known pub-clocks, canteen clocks, or office clocks.
Gilbert gallery clock
This time-only gallery-style clock made by the Gilbert Company of USA is nondescript and quite ordinary looking. There is nothing special or distinctive about it but it is in excellent condition.
Check out this articleon how having a clock in the bedroom can aid in getting a restful night’s sleep. The article describes how providing a gentle reminder of the time helps regulate your sleep patterns and creates a more restful environment.
So, there you have it—time flies at my summer cottage with these clocks. They may not be particularly special, but they surely tick all the boxes to enhance my summer experience!
A steeple clock is a type of clock designed to resemble a miniature church steeple or spire. This style of clock is often characterized by its tall and narrow structure.
These clocks gained popularity in the mid-19th century and were often produced in various styles. The design was influenced by the Gothic Revival architecture that was prevalent during that period.
Steeple clocks are relatively common in North America as thousands were produced in America particularly but rare in other parts of the world.

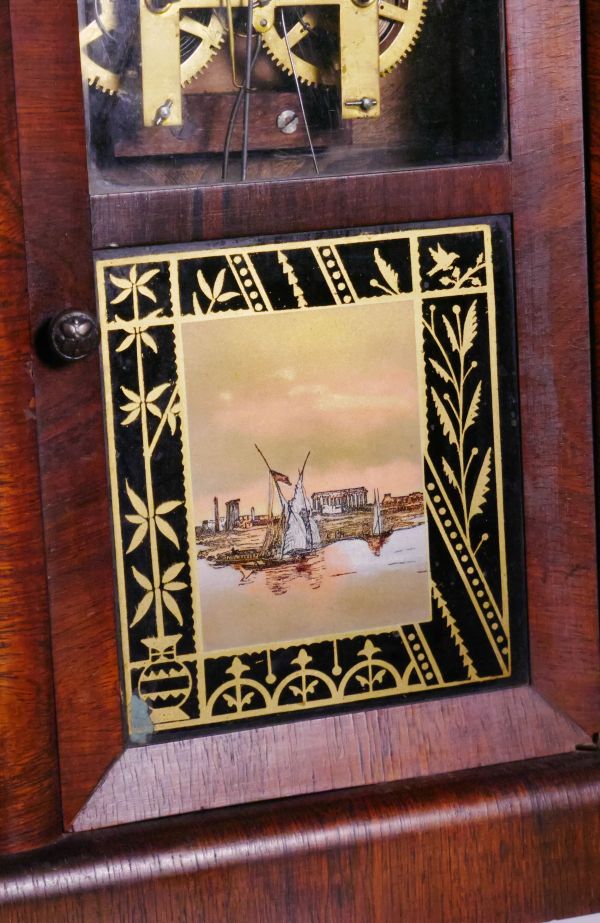

New Haven Gothic Steeple clock
In my collection, I own three steeple clocks – the first, crafted by the American manufacturer Elisha Manross, the second by the Hamilton Clock Company of Hamilton, Ontario, and the third by The New Haven Clock Company of America, made for export and sold by Thomas Spike Jewelers in Halifax, Nova Scotia in the 1880s.
All three share a commonality with their time and strike 30-hour spring-driven movements.
The Elisha Manross steeple clock stands out with its distinctive use of tempered brass mainsprings, marking a period between 1836 and 1847 when this material was the motive force for spring-driven clocks. It represents a technological glimpse into an important era in American clockmaking.
Alisha Manross steeple clock
However, it is the steeple clock from the Hamilton Clock Company that holds a special place in my collection. Being a Canadian collector, the clock not only adds historical charm to my collection but also carries significance because it is Canadian-made.
Crafted in Hamilton, Ontario, it embodies a piece of Canadian horological heritage, making it more than just a clock but a connection to the craftsmanship and legacy of clockmaking in Canada.
Hamilton Clock Co Gothic steeple clock
The Hamilton Gothic steeple clock stands out because of a religious inscription, “Cling to the Cross,” delicately etched onto the lower glass tablet. It is a rare clock from the Hamilton Clock Co., which manufactured a variety of clocks of every style over a very short period.
The historical weight of this 30-hour steeple clock is underscored in Jim Connell’s description in a video he produced several years ago. Connell, a figure renowned in Canadian clock circles, whose acknowledgment of the clock’s rarity adds an extra layer of importance to this find. Fun fact, Jim Connell invented salt and vinegar potato chips.
This clock carries whispers of a bygone era, a testament to the Hamilton Clock Co. which, between 1876 and 1880, made a valiant though short-lived attempt to compete with the growing number of common clocks coming from the USA.
Steeple clock discussion
The term “Gothic steeple clock” specifically refers to clocks that incorporate Gothic design elements, such as pointed arches, into their structure.
An unusual “ribbed” style steeple clock
Steeple clocks can vary in features, including different types of movements.
A trio of steeple clocks with an 8-day fusee clock in the middle
The vast majority were relatively simple designs that were spring-driven but there are some very rare examples of steeple clocks that are weight-driven and ones that incorporate fusee movements.
Unknown double steeple clock
R. Blakeslee, Jr. in or around 1850 made a 30-hour weight-driven clock with a lyre movement (not pictured). His clock also featured a compound pulley configuration on the time side, the time side weight being heavier than the strike side.
A fusee movement, unknown maker
Even more unusual are double-steeple clocks, a noteworthy example being a Birge and Fuller 8-day fusee-powered brass movement clock (not pictured) made in the mid-1840s.
During the same period, Elisha Manross made a double steeple shelf clock that had an 8-day time and strike strap brass fusee movement with a 12″ pendulum (not pictured). It features the original stenciled and painted tablets by William B. Fenn of Plymouth. William Fenn was one of the more prolific tablet makers of the mid-19th century.
By comparison to a conventional steeple clock that stands at about 20 inches, double steeples are over 6 inches taller.
Jerome & Co. New Haven, Conn, 1850 steeple with the portrait of Andrew Jackson
Jerome & Co. of Chauncey Jerome fame also produced a double steeple in 1850. The one pictured above features a portrait of the seventh President of the USA, Andrew Jackson.
Gallery-style gothic clock, a variation of a steeple theme
Steeple clocks are appreciated by collectors for their historical charm and unique aesthetic, reflecting the craftsmanship and design of the era in which they were produced. They also stand as tangible expressions of the artistry and cultural influences of their respective historical periods.
For years, my wife and I have been on the hunt for an elusive Arthur Pequegnat Hall clock, a prized possession among Canadian collectors. Recently, I stumbled upon what seemed like the jackpot—a seemingly authentic piece advertised for a mere $100. However, as I explored the deal further, doubts crept in, casting a shadow over my potential bargain.
Join me on this intriguing journey as we uncover the secrets of a clock that may not be what it initially appeared to be.

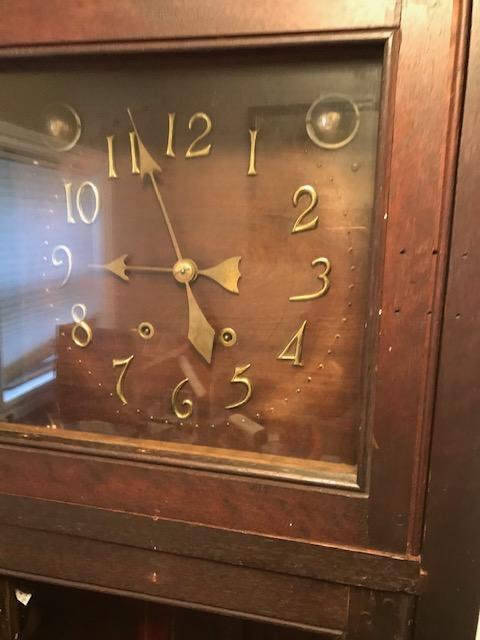

It certainly looks like a weight-driven clock
The clock is closely reminiscent of Pequegnat’s craftsmanship. It was a tempting find but a closer inspection raised eyebrows. The clock hands seemed out of place (for a Pequegnat), and the overall workmanship did not quite match the renowned Pequegnat build quality. Could this have been a misstep in our quest, or was there more to this story?
Undeterred I made an over-the-phone offer of $90 and embarked on a 90-minute journey to claim what could be a gem in disguise. The seller warned of a non-functioning clock but sweetened the deal by mentioning that it had weights—only to reveal later that the weights were, in fact, fake. On top of that, a spring-driven New Haven mechanical movement lay beneath the surface.
New Haven time and strike movement
The weight cans were empty shells, and the decent-quality ladder chains with acorn pull ends were crudely strung to mimic a weight-driven movement.
Brass weight shells
Further investigation unveiled a raised platform supporting the movement, yet no traces of a seat board that usually accompanies weight-driven mechanisms. The clock’s peculiarities extended to a tied cord on the strike lever, adding to the mystery. As questions piled up, it became clear that this clock’s origins were far from conventional.
The movement is stamped 27. This could be a date stamp but it is more likely the length of the pendulum in inches. The movement plates are pinned rather than held with screws or nuts suggesting an older square-aperture type New Haven movement. Judging from the build of the movement I would say that it is earlier than 1927. The heavy, solid wood case which comes apart in three sections is certainly just as old.
I removed the movement from its case and mounted it on a test stand. The movement runs at 72 bpm, not quite the 60 bpm one would typically expect from a hall clock and the slower beat rate explains the long pendulum rod.
The only plausible explanation was clear: I had purchased a kit clock, where an independently crafted case had been paired with a New Haven movement, dial face, hands, accessory weight cans, and ladder chains with acorn pull ends. It was likely a more cost-effective means of acquiring a tall case clock back in the day.
In its new location
Despite the oddities, I had, after all, secured the clock at a reasonable price. Now, armed with the knowledge of its peculiarities, I am content with it. Servicing the movement and restoring the case have been completed and after having stood in my work area for a couple of years it was time to move it to its permanent location.
And it looks pretty good! The combination of the separately crafted case with the New Haven movement, dial face, hands, and the accessory weight cans and ladder chains with pull ends came together quite well, offering an appealing and budget-friendly tall case clock.
The lesson in all of this is that in the world of clock collecting, sometimes unexpected discoveries and not value and authenticity are the ones that leave a lasting impression.
Dropping in Facebook Marketplace from time to time is interesting because there’s always the possibility that an unknowing seller might list an antique clock without realizing its true value. Occasionally, I strike gold, however, the majority of listings mainly feature commonplace antique clocks, alongside an overwhelming abundance of quartz-driven ones.
Daniel Dakota time and strike wall clock
On any typical day, it’s a common occurrence for me to find more than half a dozen 31-day clocks available for sale.
What is a 31-day clock
A 31-day clock is a type of mechanical clock that runs for about a month before it needs to be wound up again. It has a pendulum that swings back and forth to regulate the time. The name 31-day clock comes from the fact that it can operate for 31 days without stopping, but some clocks may run for a few days more or less depending on their level of wear.
A Chinese-made 31-day clockconverted to a quartz movement
A significant number of these clocks are designed as spring-driven time-and-strike models, meaning they strike every half-hour announcing the time on the hour.
Most 31-day clocks originate from China or Korea, with trade names such as Citizen (not to be confused with the watch company), Daniel Dakota, Alaron, Olympia, Sabre, Beacon, and well, the list goes on. Directional arrows near the winding arbours typically give away the origin of the clock, with a common association being Chinese or Korean manufacture.
The hallmark features of a 31-day movement are powerful mainsprings and thin plates
Acquiring a vintage 31-day wall clock manufactured in China or Korea will not set you back very much. These clocks were and still are widely available since they were produced in massive quantities during the 1960s through to the 1980s. It is a safe bet that a vast majority, around 99%, have never seen the inside of a clock repair shop. Their inexpensive movements appear remarkably resilient, enduring for long periods and finally meeting an unceremonious end in the trash or, popping up on online for-sale sites such as Facebook Marketplace.
Clockmakers typically prefer to avoid servicing these clocks and may encourage you to swap out the mechanical movement for a quartz one if the clock is not functioning. This is primarily due to the powerful and potentially hazardous mainsprings in 31-day clocks, which make working on them a risky task. Secondly, these clocks have such low value that any maintenance, even basic oiling, will cost many times more than the clock is actually worth. Thirdly, replacement parts are impossible to find and any repairs necessitate salvaging components from similar movements. Indeed, converting them to quartz movements is not such a bad idea.
The Distinction Between 31-day and 30-day clock
31-day clocks should not be confused with antique 30-day clocks, such as those produced over a century ago by companies like Seth Thomas, Welch, Waterbury, and makers of 30-day Vienna Regulators.
The latter boasted sturdy movements with deadbeat escapements, large cases, and dials, and a significant number were powered by weights. These clocks were more accurate than the average domestic clock of the time and were often found in public places such as post offices, libraries, business offices, retail establishments, and factories. Unlike 31-day clocks, collectors find these clocks desirable.
If you are fortunate enough to come across a 31-day clock at a remarkably low price, it’s important to temper expectations regarding its resale value. Despite being budget-friendly acquisitions, these clocks typically don’t appreciate significantly in value, and it’s wise to view them more as charming additions to your collection rather than lucrative investments.
During my visit to a fellow enthusiast of antique and vintage clocks, I was graciously presented with a complimentary schoolhouse clock.
New Haven time-only schoolhouse clock
Although I wasn’t anticipating it to be in pristine condition, I gladly accepted the schoolhouse clock as a project, knowing that it would require some restoration work.
I own multiple wall clocks, among them are several schoolhouse clocks, and am amazed that they run so well after many decades. These clocks, known for their durability, continue to function reliably even in well-worn condition.
The clock’s manufacturer is New Haven, and it is a time-only clock featuring a twelve-inch Roman Numeral dial and a short drop design. What makes it particularly interesting is the reverse painted glass that allows the moving pendulum bob to be visible.
As for the construction, the clock’s case is crafted from softwood, elegantly adorned with Rosewood veneer on all the visible sections.
A robust time-only movement
During my holiday, I had limited time to work on the clock, but I did take the opportunity to inspect its movement and clean the case. I found the movement to be in very good condition with minimal wear. However, I did notice that there was an absence of lubricating oil. To ensure the clock’s optimal performance and to minimize further wear, I took the necessary step of re-oiling it before placing it back into its case.
The clock does have some veneer issues, especially noticeable in the bottom section of the short drop. I plan to address and repair these veneer problems when I have both the time and the necessary resources to do so properly.
Additionally, there are minor losses on the dial face, but I’ve decided to leave them as they are for now. While they may be imperfections, they also add character and a sense of history to the clock, so I believe preserving them in their current state will maintain the clock’s unique charm.
As my holiday schedule didn’t allow for a comprehensive repair, I made a mental note of wear issues that require attention. Upon my return when I have more time available, I intend to address these wear issues, particularly focusing on one or two bushings that need immediate attention. This approach will help maintain the clock’s accuracy and prevent any further damage.
Once I have the opportunity and means to address these repairs and restorations, I will ensure the clock regains its original beauty and functionality while retaining the traces of its past that make it special.
At our seasonal cottage located in central Canada, we enjoy displaying a small selection of clocks, during the summer months.
The first clock, displayed for a number of years, was a Danial Dakota time and strike clock, which we had converted to a quartz movement. This clock, originating from the 1960s, incorporated Chinese design elements that were inspired by American clocks of that era. It required minimal maintenance and provided very good accuracy.
To operate, it relied on a “C” cell battery. This chiming clock offered both Westminster and Whittington chimes, with my wife and I favouring the Whittington chime.
Converted quartz Daniel Dakota
However, after a period of time we grew weary of the clock’s artificial electronic musical tone, and thus we decided to replace the Danial Dakota clock with a proper mechanical clock.
The Mauthe time and strike box clock we acquired as a replacement at the cottage features a raised maple leaf on its crown. This detail leads me to believe that it was likely sold under a Canadian brand, possibly marketed specifically for a department store or jewellery store. The distinctly Canadian touch with the maple leaf emblem, adds to its charm and appeal in our Canadian cottage setting.
Mauthe box clock with maple leaf emblem on the crown
Next to the box clock is a captivating oak-cased gallery clock produced by the Empire Clock Co. of England. It was acquired through an auction in Nova Scotia and boasts a unique feature — a 10-inch dial instead of the more common 12-inch dial seen in similar gallery clocks.
Despite its resemblance to a fusee clock, it operates with a conventional spring-driven mechanism, which means its timekeeping performance is average at best.
Box clock and gallery clock
Adorning the wall of our sunroom is a familiar time-only schoolhouse clock that was recently gifted to me. It features a sizable 12-inch Roman Numeral dial and a pendulum visible through reverse-painted glass.
Although it has a few minor veneer imperfections that I plan to address later this year, I have already examined the movement and confirmed its excellent condition. After re-oiling it, I carefully placed the movement back into its case.
Schoolhouse clock
Displayed in our family room is a Hermle clock that harkens back to a nostalgic design known as the “wag-on-a-wall” style. This clock operates on a weight-driven mechanism and includes both timekeeping and striking functions. It emits a delightful bim-bam sound by striking on three rods.
The design aesthetic of this clock strongly resembles the clocks manufactured in the 1960s, which aligns with its likely production period. While it possesses a plain and unadorned appearance, it carries a certain charm and serves as a reminder of that era.
Wag on a wall
Among our collection of cottage clocks, we have a New Haven ogee-style clock that operates on a 30-hour time and strike mechanism. It is smaller than a conventional ogee clock and might be referred to as a mini ogee standing at just 18 inches high.
From afar, it presents an appealing appearance, capturing one’s attention. However, upon closer examination, it becomes apparent that the clock has undergone a removal of its veneer at some point in its history. The absence of the veneer adds a touch of character and reveals the clock’s journey through time, offering a glimpse into its past.
New Haven ogee clock
Finally, a well-worn 30-hour cottage Ansonia clock graces a bedroom dresser.
A cottage clock at the cottage
Despite its visible signs of use, this clock continues to perform well, a testament to the remarkable engineering employed by the clock’s manufacturers. Craftsmen at the time anticipated the rigours of wear and tear, and their foresight in creating such durable movements showcases their longevity.
Clocks at our summer cottage not only serve as functional timekeepers but also carry with them a unique charm and nostalgia.
Each clock tells its own story, displaying the marks of time and the craftsmanship of its makers. Whether it’s the captivating gallery clock with its distinctive dial or the familiar schoolhouse clock with its endearing imperfections, these clocks create a harmonious blend of functionality and aesthetics within the cottage.
As their hands tick away the hours, they remind us to slow down, appreciate the present moment, and savour the timeless tranquility of a summer retreat.
I have a number of cottage clocks and they all seem to have one thing in common, they have lived hard lives and this one is no exception. They had the cheapest of movements, the cheapest of cases, and could be purchased for almost nothing but many have not survived and that’s too bad.
This is a one-day or 30-hour time-only cottage clock made by Jerome & Co. Most cottage clocks come with a time and strike movement, some had alarms but this has just the movement.
Jerome & Co. cottage clock
Chauncey Jerome was a prolific clockmaker and a true pioneer of the early American clock. Despite his success in clock manufacturing from the late 1830s to the early 1850s a number of poor business decisions led to bankruptcy in 1856, and the assets of the bankrupt Jerome Manufacturing Co. were purchased by the New Haven Clock Co.
Time only movement
While Jerome was involved in numerous clock-making activities after his bankruptcy and marketed clocks under his name and label, Jerome & Co. is not one of those. “Jerome & Co.” was a tradename used by the New Haven clock company.
Label
The Jerome name obviously had some cache and it was a good marketing strategy on the part of New Haven.
The plan
The movement is very simple in design. However, it has had an odd repair. On the left side of the movement is a copper wire soldered to the brass plate. The copper wire wraps around the 3rd wheel pivot and acts as a bushing. There is a similar repair on the backplate. This will be removed and replaced by a brass bushing. There are one or two other bushings required as well.
As for the rosewood veneer case, I am not sure what I will do. There are veneer losses on the right side of the case, the bottom corners, and the top left. Most of the gilt around the front access door has worn off, there are significant losses on the dial, there is a large age split on the top-right and the reverse painted lower tablet has signifciant losses. I don’t want to go too far and ruin the clock but as it is, it looks quite bad.
The time has come to determine the best clock acquisition of the past year. As a clock hobbyist, I have had little difficulty locating interesting clocks over the years, and despite the seemingly never-ending pandemic, I have scored a few in 2021 though the past year has been leaner than most.
In the early days of collecting, simple time and strike vintage mantel clocks were my principal focus so that I could take them apart, repair them if necessary, and generally advance my learning. Many of those clocks have been either sold or gifted. For the past three years, I have shifted my focus toward collecting interesting clocks, rare clocks, or clocks that have a special provenance that even includes the odd mantel clock.
My wife is my best clock finder. Our discussions often go something like this; “did you see that wall clock on Facebook?”. “Let me see. Yeah, it looks good, what do you think? Make an offer?” and off we go. Sometimes I will accept the offer from the seller without negotiating because I feel it is a fair price and other times there is some wheeling and dealing prior to firming the sale.
At the end of the post, you will have an opportunity to vote on what you think is the best in 2021.
In no particular order, here are my finds for 2021.
Sawin banjo clock
This is a garage sale find and even though it was purchased in the spring of 2021 it is still a work in progress. The clock is over 180 years old and in pretty decent shape.
Sawin weight driven banjo clock
It is a weight-driven banjo but it has no markings. An educated guess is that it was made by John Sawin of Boston or one of his associates on or close to 1840. I have completed minor veneer work on the case and have replaced the broken glass dial. The movement has been serviced but I am now looking at clock parts supply sources to replace a badly bent suspension spring. I want to avoid paying an outrageous price for the complete assembly; suspension spring, leader and spike.
Gilbert mantel or Shawville clock
I call this the Shawville clock because it spent most of its life in Shawville, Quebec (Canada).
It was a family clock for many years and following a death in the family, all possessions were either sold off or given away, a very common practice today. It has a time-and-strike Gilbert movement in a mahogany tinted case that has led a kind life since its manufacture in 1917. It is simple and unadorned and that’s what I love about it. I serviced the movement, cleaned the case, replaced a broken hour hand and now it is on prominent display in our home.
Gilbert time and strike
New Haven tall-case clock
An interesting $90 acquisition is this New Haven tall-case clock with a secret. Wow, a tall-case clock for $90, you say. Despite the look of a weight-driven clock, it is, in fact, a spring-driven clock. I was unaware of this until I walked through the door of the seller. I bought it anyway.
New Haven tall case clock
The weight cans are empty shells and they are simply there for show. The movement is quite large, eight-day, of course, and looks to be very robust. Despite my best efforts to determine if it was originally weight driven it had to have been spring-driven from the start, in other words, no evidence of a seat board or any additional holes for mounting the movement to the case. This appears to be an early “kit clock”, i.e. movement, dial face, hands, pendulum, “weights”, and ladder chains bought from the New Haven Clock Company and fitted to a pre-made case.
The case was very dark from years of accumulated dirt and grime and vigorous scrubbing revealed a wonderful red oak finish.
Waterbury Wren mantel clock
Ansonia Syria
Another clock with a secret is actually a disappointment. I found it in an antique store and it reminded me of an Ansonia Syria I had worked on for a friend last year, so, I was drawn to it.
Waterbury Wren mantel clock
It has a Waterbury case and what I thought was a Waterbury movement, but no.
It is missing the brass bezel and glass which is easily replaced but what is most disappointing is the mismatched movement, a Seth Thomas time and strike, which obviously replaced the original movement presumably because it was worn out. The movement is well-made and runs well but at the end of the day, the clock is destined to be sold.
Schatz Schatz carriage clock
This is a Schatz carriage clock made by August Schatz and Sohne of Germany. Thousands of these were sold and given as gifts through the 60s and 70s. It has an interesting lower visible escapement and an exposed movement.
Schatz carriage clock
Although it is working and keeping time it runs for about 4 days and stops. A cleaning is called for (on my list). It has a wind-up key in the back much like a typical alarm clock. It says West Germany on the dial and made, I would say, in the 1970s. August Schatz and Sohne closed in 1985, a victim of slow sales and a shift to quartz clocks by other makers.
Chauncey Jerome ogee clock
This clock is original in many ways, with a nearly flawless case made of mahogany veneer over softwood, moon hands, a wood dial, and a movement that matches when the case was made. Even the pendulum bob looks original. It was missing the suspension spring and rod and a wooden movement block, all easily sourced.
Chauncey Jerome 30-hour ogee clock
It cleaned up nicely and was a good candidate for a fresh coat of traditionally prepared shellac. I have three other 30-hour ogee clocks and this one is the most original of the bunch.
E. Ingraham Grecian shelf clock
This is a very nice shelf clock from an estate auction. It is an Ingraham Grecian clock with an alarm feature. If you have ever used the alarm on an old antique clock your first impulse is to throw it through a window, it is so loud and it goes on and on till the spring winds down.
Ingraham Grecian 8-day shelf clock
It came with incorrect hands and I had the darnedest time sourcing them but searching various suppliers in Canada and the US paid off. The case has been cleaned and the movement serviced including the infuriating alarm.
Fleet Time Co. mantel clock
An inexpensive clock that had huge potential but left me frustrated. Fleet Time Co. of Montreal had a short life of 4 years before the Second World war when they lost their source of German movements.
Fleet Time clock
I stripped the case and re-glued some sections, applied a walnut stain and I was very pleased with the final result. I serviced the movement, wound the time side completely, and BAM, kerplunk! the sound of a mainspring exploding. Sometimes you can get away with just replacing a mainspring and other times, like this, it took out the barrel teeth and a leaf pinon on the second wheel. I placed it in a plastic bag and it is now on a shelf in the basement awaiting donor parts.
Hamburg American Clock Company. (HAC) mantel clock
This German-made mantel clock has an interesting 14-day movement, an early production type from HAC. HAC is short for the Hamburg American Clock Company, a German company which had a long history up to the time it was absorbed by Junghans in the late 1920s. This clock was made in or around 1895.
HAC 14-day mantel clock
It was another estate sale find. The case is nondescript and nothing special, but quite elegant.
So…..
Tell me what you think and I will reveal what I believe is my best acquisition this year in the next post. Let’s see if we agree.
I found the clock on an online for sale site in the spring of 2021 and contacted the seller the same day. When I saw the sellers photos my first thought was that it was pretty reasonably priced for a hall clock, known by many as a grandfather clock. I decided to take a chance, arranged a meeting with the seller and arrived to pick up the clock.
During our brief discussion I learned that the clock is inexpensive for a good reason – it is not quite what I thought it was.
Seller’s photo
Missing are the door handles, otherwise it is complete. It has a mechanical movement with a pendulum but what I was not expecting was a spring-driven movement. Almost all hall clocks are weight-driven.
Is it a conversion? Was the old movement worn out and a new movement installed in its place. I don’t think so. There was never a seat board in the case as seat boards are almost always present on a clock driven by weights. So it seems that from day one this was never intended to be a weight-driven clock.
The case was likely made by someone other than The New Haven Clock Company and the dial, hands, pendulum rod and bob, weight chains, weights, acorn chain pull knobs and the wood dial face were purchased together as a package from New Haven and installed in the case.
Fakes weight chains below the movement
Okay, that’s different!
Cleaning or stripping?
The decision to clean or strip is made easy by a good cleaning. After a good cleaning it is better to assess whether or not it requires stripping. What was revealed was a very nice red oak case.
All cleaned except the base
In the photo above the base, which was the last section to be cleaned, is almost black.
Base section
What is truly remarkable is the weight of the case and no wonder, the base sides are two inches thick. The top and base can be removed but the middle section alone cannot be lilted by one person, it is that heavy!
I left the cleaning aside to work on the hands and brass (fake) weights.
Clean weight on leftBrass hands and Brasso
The brass hands might looks flimsy but they are surprisingly heavy. Brasso was used on all brass pieces except the dial numbers. They appeared to have been lacquered either from the factory or sometime later.
A very light coat of red oak stain accentuated the grain. I considered shellac for the final finish but opted for Wipe-on Poly, an amber tinted polyurethane.
Finally complete
Yes, there are flaws, nicks and scratches that are consistent with age but given that it is over 100 years old some of the flaws add character. The fake weights went back into the clock to complete the look of a weight-driven clock.
Tick-Talk Tuesday is about the letters and comments I have received from you, the reader, concerning your clock, issues you might have had, challenges you face or a clock you would like me to profile or my responses to your questions with advice on your particular clock concern. For those comments and questions that stump even me, I consult within my clock circles for the best possible answer
Author
In the spring (2021) I found a tall case clock on an online for sale site at what seemed to be a bargain price. It is not what it appears to be. Although you can clearly see weights on the inside of the clock case it is not a weight-driven clock but a spring driven clock with fake weights.
I bought it anyway.
Seller’s photo
The New Haven movement was serviced and the case was cleaned almost down to the bare wood. It looks terrific and keeps good time. I don’t normally send photos back to the seller on a clock that I have rejuvenated but I thought, what the heck, the seller might be pleased that it went to a good home.
My email to TC:
“No need to reply but I just thought I’d send along a photo of the clock you sold me. The clock runs perfectly, everything has been polished, the movement taken apart and serviced and the case refinished.”
TCs reply;
“Wow…. Looks really good. Hard to believe it’s the same clock. Glad you got the clock all fixed up.”
In the spring of 2021 I responded to an ad on a local online for sale site for what appeared to be an antique hall clock. It was inexpensive and I now know why. The seller bought it 20 years ago and in the midst of downsizing it had to go.
I knocked on the seller’s door, she answered. The clock was a few feet from the front door. It looked quite a bit larger than I imagined. Will it fit in our wagon?
Prior to loading the clock into the car, I noticed that the weight cans were very light. The seller said the weights were fake. She gave me a key and I inserted it into the winding points to discover mainsprings, something I was not quite expecting for a hall clock. Okay, I’ll take a chance on this one, and the price is right.
The base and the top crown lift off, presumably to ease relocation. My wife and I loaded the clock in the car. Everything fit nicely. The case is very solid and unbelievably heavy. The clock just fit into our station wagon. On the way home I thought, how strange, a clock with faux weights.
When I arrived home my curiosity got the better of me. I removed the hands, then the dial which was, interestingly enough, quite heavy. Once the dial was removed I saw a large spring-driven New Haven mechanical movement.
Why is there a spring-driven movement in a hall clock?
Did this clock have a weight-driven movement at one time? The spring driven movement is mounted on a raised platform, interesting. Later, I will remove the platform to see if there is any evidence of a seat board as weight-driven movements almost always sit on a seat board.
The ladder chains are crudely screwed onto the backboard to simulate a weight-driven movement, hence the empty weight cans.
The next day
I removed the raised platform and could not see any evidence of a seat board ever being in this case.
I do not believe this is a New Haven factory clock. As far as I can determine it started life as a grandfather clock with a spring-driven movement and fake weights. Spring-driven Mission style hall clocks were made with fake weights by some makers many years ago so, they are not so rare and New Haven did sell mechanical packages to case builders.
I have no idea why the cord is tied to the strike lever as it serves no useful purpose.
Next steps
I am not overly concerned, it was cheap.
Are both the case and movement antiques? The movement is stamped 27. This could be a date stamp but it is more likely the length of the pendulum in inches. The movement plates are pinned rather than held with screws or nuts suggesting an older New Haven movement. My research tells me that it is referred to as a square-aperture movement and appears on occasion in Anglo-American clocks.
I removed the movement from its case and mounted it on a test stand. It runs for a short period and stops. The movement runs at 72 bpm, not quite the 60 bpm one would typically expect from a hall clock but still, it looks like a weight driven clock. Yeah, fake!
My take on this clock? The cabinet was made separately perhaps in a shop along with others, and a New Haven movement, dial face, numbers, hands, chains and weight cans were acquired as a kit and installed in the case. That is the only thing that makes sense.
In the meantime, I intend to service the movement and clean the case. Check for articles on movement servicing and cleaning the case in the next few days.
While I have over 85 clocks in my collection twelve are 30-hour or one-day clocks. One of the twelve is a relatively modern clock.
The history of mass-produced clocks in America began in the 1820s and 1830s with 30-hour clocks that had woodworks movements. While the clock business was booming with many companies selling clocks to the masses, an economic recession in the late 1830s brought clock production to a halt.
Pioneer clockmaker Chauncey Jerome, who was in the clock business at the time, considered his “business troubles and disappointments” and he along with his brother Noble formulated the idea that movements could be made from brass. Noble Jerome received patent number 1200 for his brass clock movement, issued June 27, 1839. Woodworks movements began to be phased out and replaced by brass movements which were made in the hundreds of thousands. 30-hour brass movements were made well into the 1860s and were eventually replaced by the 8-day brass movement.
Because 30-hour clocks were produced in the thousands many examples have survived to this day. Most clock aficionados today have at least one ogee clock in their collection.
Of the 12 in my collection 5 are running continuously. Yes, winding a clock everyday is a hassle but we often forget that at one time the thirty hour clock in the form of the bedside alarm clock was a fixture in every home but for this post I am excluding the dozen alarm clocks in my collection.
Half are weight driven, so let’s begin with those.
Sperry and Shaw
Sperry & Shaw 4 column clock
This, a four-column shelf clock designed in the “New York” style was made between 1841 and 1851. Sperry and Shaw were assemblers and distributors and sourced parts from various producers. The movements and cases could have been made by Silas Hoadley or Chauncey Jerome or both.
I bought the clock from student in Halifax, Nova Scotia in the fall of 2018 and he would not budge on the price. My only question to him prior to making the deal was whether or not the clock had the original wafer weights which would be almost impossible to source if missing.
Daniel Pratt and Son
This is the only clock I have with a woodworks movement. Daniel Pratt worked with others but eventually went out on this own in the 1830s. I would date this clock to around 1837. This clock was won at an estate auction for the price of $30 during a time when clock prices were hitting rock bottom. The clock has a wood dial and a mirrored lower tablet (may or may not be original) and the case is in very good condition for its age.
Daniel Pratt and Sons
Chauncey Jerome
Chauncey Jerome 30 hour Ogee clock
This clock is from around 1855, made just before Chauncey Jerome’s company went into bankruptcy. This was also bought at auction a few years ago. It came with an extra mirrored lower tablet and a “spare” dial. I am not sure if either the mirrored tablet or the JC Brown picture are original. The veneer, however, is in perfect condition.
George H. Clark
George H Clark 30 hour Ogee shelf clock
This is an ogee from around 1857. There is no makers mark on the works but it is a Waterbury type 2.411 movement. The case is well-preserved and in excellent condition, obviously well-cared for by a previous owner. The beehive tablet looks to be original.
Waterbury Clock Co.
This an ogee style clock from 1865. It was bought at an antique store in Halifax. There was no price on the clock. I asked the owner what he would sell it for. He said, name a price, I said $40 and he said, sold! Evidently it been in his shop for a while. It is the first clock on which I learned how to replace very worn trundles.
Cuckoo clock
Dave’s cuckoo clock
This is a 30-hour cuckoo clock with a Regula movement, made about 1976. A cheap German made mass-produced “tourist” clock that was given to me by a relation. It still works but it is on its 3rd movement.
And now for the spring driven clocks.
Ansonia Cottage clock
This cottage clock is from about 1895. This another clock that was given to me. These were probably dollar clocks at the time. They had cheap movements but were solid and reliable. Surprisingly, these command good prices on the auction sites since so few remain.
OLYMPUS DIGITAL CAMERA
Canada Clock Company
The Hamilton Cottage Extra is from about 1880. These are now very difficult to find since so few have survived. It is Canadian made and collectors will happily pay hundreds of dollars for one. It has a very cheap case made of softwood with no veneers. The acid etched lower tablet is quite unique. It was bought in a local junk store for $40. I could not believe my find.
Hamilton Cottage Extra
Elisha Manross
Elisha Manross gothic steeple
The Manross is a thirty hour time and strike and called a steeple clock. One interesting feature is that the Rosewood veneer is in a vertical orientation on the side columns unlike most that have a horizontal orientation. It is also the only clock in my collection that has brass mainsprings which were phased out in the early 1840s making the clock historically significant. Needless to say that in order to preserve the mainsprings I run this clock infrequently.
Hamilton Clock Company
The style is known as gothic steeple. The clock is from about 1876 and features a religious expression on the acid etched lower tablet, “Cling to the Cross”. There are some veneer losses but the clock is in decent shape. The steeple tips never seem to survive on these clocks.
Hamilton Clock Co. 30 hour time and strike
New Haven
This is a spring driven time and strike ogee from around 1875. Unfortunately the veneer has been stripped from the case and the softwood re-stained but it is an attractive little clock nonetheless. The dial is a replacement and the lower tablet has some losses.
Ogee New Haven clock
New Haven
This a called a Sharp Gothic according to the label. It is an American-made clock sold by a jeweler by the name of Thomas B. Spike in Halifax, Nova Scotia (Canada) in the 1880s. The lower tablet features a seaside Parthenon scene which might suggest it was one of many produced for foreign markets. There are some veneer losses but the clock is in running order and keeps reasonably good time. It has replacement mainsprings because it will run for 3 days on a wind. Not bad for a 30-hour clock!
New haven Gothic Steeple clock
I hope you enjoyed this little tour of a part of my collection of 30-hour or one-day clocks and please leave a comment. As for expanding my collection of one-day clocks I am not sure that I would continue acquiring them unless I came across something quite unique or if one were given to me.
Chauncey Jerome along with his brother Noble introduced the first mass-produced brass movement in 1839 two years after the depression of 1837 knocked out 90% of factories in the Northeast (New England States). The 30-hour brass movement was rugged, cheap to repair and not subject to swelling found in wood movement clocks. Despite business ups and downs Chauncey able was able to maintain a viable clock business until 1868 but later died penniless.
This is Part II of a two Part series on a New Haven Sharp Gothic (Steeple) clock. This blog-post is about servicing the movement.
My recently acquired New Haven Gothic Steeple 30-hour clock is an online auction win.
New Haven Gothic Steeple clock
The case is in very good condition apart from minor veneer issues on the base and the columns. The clock is missing the tip of the right finial although it might be hard to tell from the photo. It measures 20 1/2 inches tall with a 5-inch dial. The movement appears to be original to the case.
The dial is original and has some loss that would be expected in a 135-year-old clock. The tablet, likely original, features a sailboat against Greek (?) temples surrounded by gold foliage on a black background. The design of the tablet was used in other New Haven clocks of the time. Though intended for European export the clock found its way to Canada.
This is Part I entitled History Unearthed. It is the first part of a two part series. Part II concerns servicing the movement.
My recently acquired New Haven Gothic Steeple 30-hour clock is an online auction win.
The case is in very good condition apart from minor veneer issues on the base and the columns. The clock is missing the tip of the right finial although it might be hard to tell from the photo. It measures 20 1/2 inches tall with a 5-inch dial. The movement appears to be original to the case.
Antique and Vintage Mechanical Clocks
You must be logged in to post a comment.
